Symptom:
LEFT LOW BEAM HEADLAMP CIRCUIT OPEN
POSSIBLE CAUSES
FRONT CONTROL MODULE
GROUND CIRCUIT OPEN
LEFT HEADLAMP
LEFT LOW BEAM DRIVER CIRCUIT OPEN
WIRING HARNESS INSPECTION
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, erase the Front Control Module DTC's.
Turn the headlamps on.
Switch the headlamps between high beam and low beam several times, pausing for
5 seconds in each position.
With the DRB, read Front Control Module DTC's.
Is this DTC present?All
Ye s®Go To 2
No®Go To 5
2 Turn the ignition off.
Disconnect the Left Headlamp harness connector.
Using a 12-volt test light connected to 12-volts, check the Ground circuit.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s®Go To 3
No®Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
3 Turn the ignition off.
Disconnect the Left Headlamp.
Disconnect the Front Control Module from the Intelligent Power Module.
Measure the resistance of the Left Low Beam Driver circuit.
Is the resistance below 10.0 ohms?All
Ye s®Go To 4
No®Repair the Left Low Beam Driver circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
468
EXTERIOR LIGHTING
Page 498 of 4284

TEST ACTION APPLICABILITY
4 Turn the ignition off.
Disconnect the Left Headlamp harness connector.
Using a 12-volt test light connected to ground, check the Left Low Beam Driver
circuit in the Left Headlamp harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Turn the low beam headlamps on.
Does the test light illuminate brightly?All
Ye s®Replace the Left Headlamp Bulb.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
5 Turn the ignition off.
NOTE: Visually inspect the related wiring harness and circuits. Look for
any chafed, pierced, pinched, or partially broken wires.
NOTE: Visually inspect the related wiring harness connectors. Look for
broken, bent, pushed out, or corroded terminals.
Note: Refer to any Technical Service Bulletins (TSB) that may apply.
Were any problems found?All
Ye s®Repair as necessary.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
469
EXTERIOR LIGHTING
LEFT LOW BEAM HEADLAMP CIRCUIT OPEN ÐContinued
Page 499 of 4284

Symptom:
LEFT LOW BEAM HEADLAMP CIRCUIT SHORTED TO GROUND
POSSIBLE CAUSES
FRONT CONTROL MODULE
LEFT HEADLAMP
LEFT LOW BEAM DRIVER CIRCUIT SHORTED TO GROUND
WIRING PROBLEM
WIRING HARNESS INSPECTION
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, erase the Front Control Module DTC's.
Turn the headlamps on.
Switch the headlamps between high beam and low beam several times, pausing for
5 seconds in each position.
With the DRB, read Front Control Module DTC's.
Is this DTC present?All
Ye s®Go To 2
No®Go To 5
2 Turn the ignition off.
Disconnect the Left Headlamp.
Disconnect the Front Control Module from the Intelligent Power Module.
Measure the resistance between Ground and the Left Low Beam Driver circuit.
Is the resistance below 100.0 ohms?All
Ye s®Repair the Left Low Beam Driver circuit for a short to ground
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 Turn the ignition off.
Turn the Headlamps off.
Install a substitute Headlamp Bulb in place of the Left Headlamp Bulb.
Turn the ignition on.
With the DRB, erase the Front Control Module DTC's.
Turn the headlamps on.
Switch the headlamps between high beam and low beam several times, pausing for
5 seconds in each position.
With the DRB, read Front Control Module DTC's.
Does the DRB display this DTC?All
Ye s®Go To 4
No®Replace the original Left Headlamp Bulb.
Perform BODY VERIFICATION TEST - VER 1.
470
EXTERIOR LIGHTING
Page 500 of 4284
TEST ACTION APPLICABILITY
4 Turn the ignition off.
Inspect the wiring and connectors associated with the Left Low Beam Driver circuit.
Were any problems found?All
Ye s®Repair as necessary.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
5 Turn the ignition off.
NOTE: Visually inspect the related wiring harness and circuits. Look for
any chafed, pierced, pinched, or partially broken wires.
NOTE: Visually inspect the related wiring harness connectors. Look for
broken, bent, pushed out, or corroded terminals.
Note: Refer to any Technical Service Bulletins (TSB) that may apply.
Were any problems found?All
Ye s®Repair as necessary.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
471
EXTERIOR LIGHTING
LEFT LOW BEAM HEADLAMP CIRCUIT SHORTED TO GROUND Ð
Continued
Page 501 of 4284

Symptom:
LEFT LOW BEAM HEADLAMP CIRCUIT SHORTED TO VOLTAGE
POSSIBLE CAUSES
FRONT CONTROL MODULE
GROUND CIRCUIT OPEN
HIGH BEAM AND LOW BEAM DRIVERS CIRCUITS SHORTED TOGETHER
LEFT HEADLAMP
LEFT LOW BEAM DRIVER CIRCUIT SHORTED TO VOLTAGE
WIRING PROBLEM
WIRING HARNESS INSPECTION
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, erase the Front Control Module DTC's.
Turn the headlamps on.
Switch the headlamps between high beam and low beam several times, pausing for
5 seconds in each position.
With the DRB, read Front Control Module DTC's.
Is this DTC present?All
Ye s®Go To 2
No®Go To 7
2 Turn the ignition off.
Disconnect the Left Headlamp harness connector.
Using a 12-volt test light connected to 12-volts, check the Ground circuit.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s®Go To 3
No®Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
3 Turn the ignition off.
Disconnect the Left Headlamp harness connector.
Disconnect the Front Control Module.
Measure the resistance between the Left High Beam Driver circuit and the Left Low
Beam Driver circuit at the Left Headlamp harness connector.
Is the resistance below 100.0 ohms?All
Ye s®Repair the Left High Beam Driver circuit for a short to the Left
Low Beam Driver circuit.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
472
EXTERIOR LIGHTING
Page 502 of 4284

TEST ACTION APPLICABILITY
4 Turn the ignition off.
Disconnect the Left Headlamp harness connector.
Disconnect the Front Control Module.
Turn the ignition on.
Measure the voltage of the Left Low Beam Driver circuit.
Is the voltage below 1.0 volt?All
Ye s®Go To 5
No®Repair the Left Low Beam Driver circuit for a short to voltage.
Perform BODY VERIFICATION TEST - VER 1.
5 Turn the ignition off.
Turn the Headlamps off.
Install a substitute Headlamp in place of the Left Headlamp.
Turn the ignition on.
With the DRB, erase the Front Control Module DTC's.
Turn the headlamps on.
Switch the headlamps between high beam and low beam several times, pausing for
5 seconds in each position.
With the DRB, read Front Control Module DTC's.
Does the DRB display this DTC?All
Ye s®Go To 6
No®Replace the original Left Headlamp Bulb.
Perform BODY VERIFICATION TEST - VER 1.
6 Turn the ignition off.
Inspect the wiring and connectors associated with the Left Low Beam Driver circuit.
Were any problems found?All
Ye s®Repair as necessary.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
7 Turn the ignition off.
NOTE: Visually inspect the related wiring harness and circuits. Look for
any chafed, pierced, pinched, or partially broken wires.
NOTE: Visually inspect the related wiring harness connectors. Look for
broken, bent, pushed out, or corroded terminals.
Note: Refer to any Technical Service Bulletins (TSB) that may apply.
Were any problems found?All
Ye s®Repair as necessary.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
473
EXTERIOR LIGHTING
LEFT LOW BEAM HEADLAMP CIRCUIT SHORTED TO VOLTAGE Ð
Continued
Page 503 of 4284

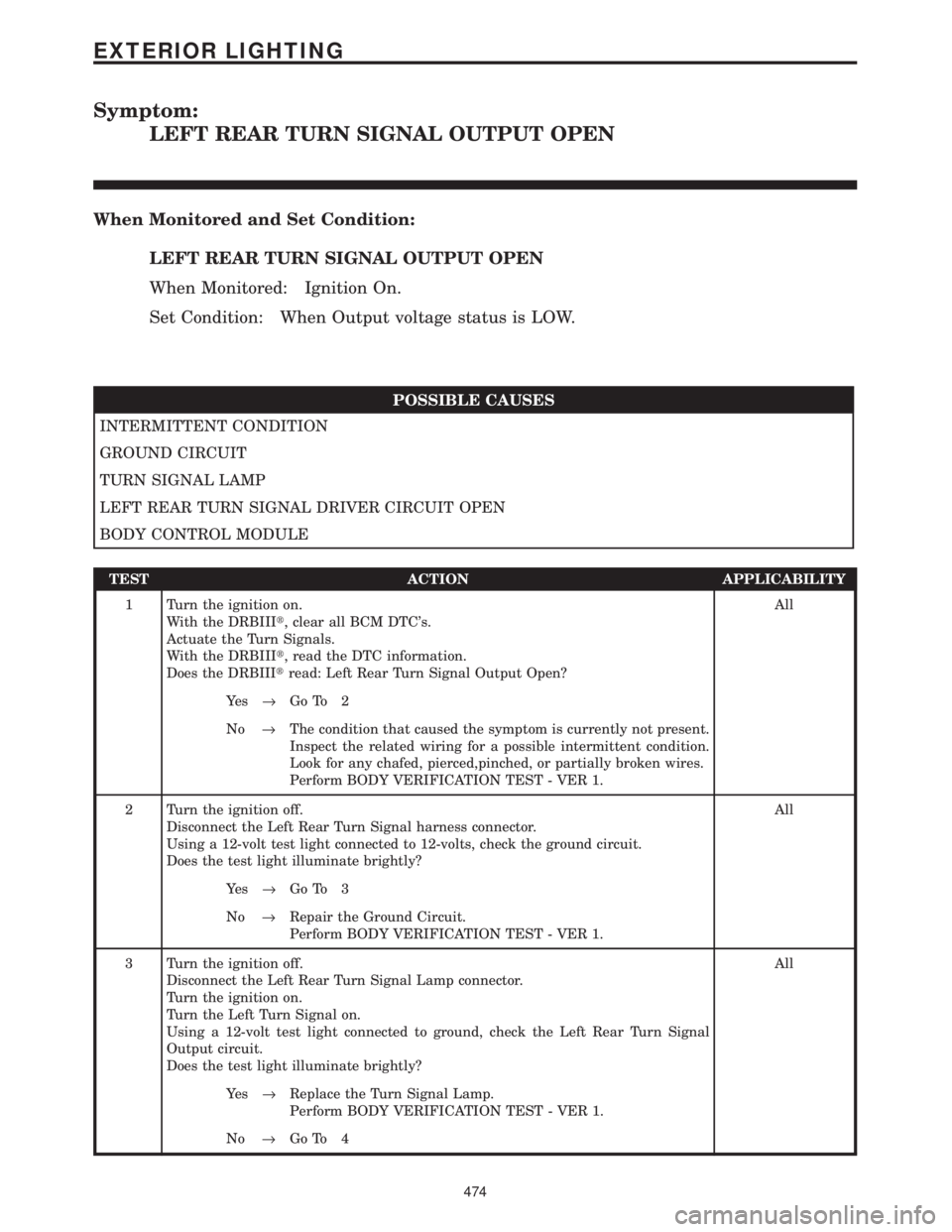

Symptom:
LEFT REAR TURN SIGNAL OUTPUT OPEN
When Monitored and Set Condition:
LEFT REAR TURN SIGNAL OUTPUT OPEN
When Monitored: Ignition On.
Set Condition: When Output voltage status is LOW.
POSSIBLE CAUSES
INTERMITTENT CONDITION
GROUND CIRCUIT
TURN SIGNAL LAMP
LEFT REAR TURN SIGNAL DRIVER CIRCUIT OPEN
BODY CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, clear all BCM DTC's.
Actuate the Turn Signals.
With the DRBIIIt, read the DTC information.
Does the DRBIIItread: Left Rear Turn Signal Output Open?All
Ye s®Go To 2
No®The condition that caused the symptom is currently not present.
Inspect the related wiring for a possible intermittent condition.
Look for any chafed, pierced,pinched, or partially broken wires.
Perform BODY VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Disconnect the Left Rear Turn Signal harness connector.
Using a 12-volt test light connected to 12-volts, check the ground circuit.
Does the test light illuminate brightly?All
Ye s®Go To 3
No®Repair the Ground Circuit.
Perform BODY VERIFICATION TEST - VER 1.
3 Turn the ignition off.
Disconnect the Left Rear Turn Signal Lamp connector.
Turn the ignition on.
Turn the Left Turn Signal on.
Using a 12-volt test light connected to ground, check the Left Rear Turn Signal
Output circuit.
Does the test light illuminate brightly?All
Ye s®Replace the Turn Signal Lamp.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
474
EXTERIOR LIGHTING
Page 504 of 4284
TEST ACTION APPLICABILITY
4 Turn the ignition off.
Disconnect the Body Control Module C2 connector.
Measure the resistance of the Left Rear Turn Signal Driver Circuit to ground.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Left Rear Turn Signal Driver Circuit for an open
condition.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
475
EXTERIOR LIGHTING
LEFT REAR TURN SIGNAL OUTPUT OPEN ÐContinued
