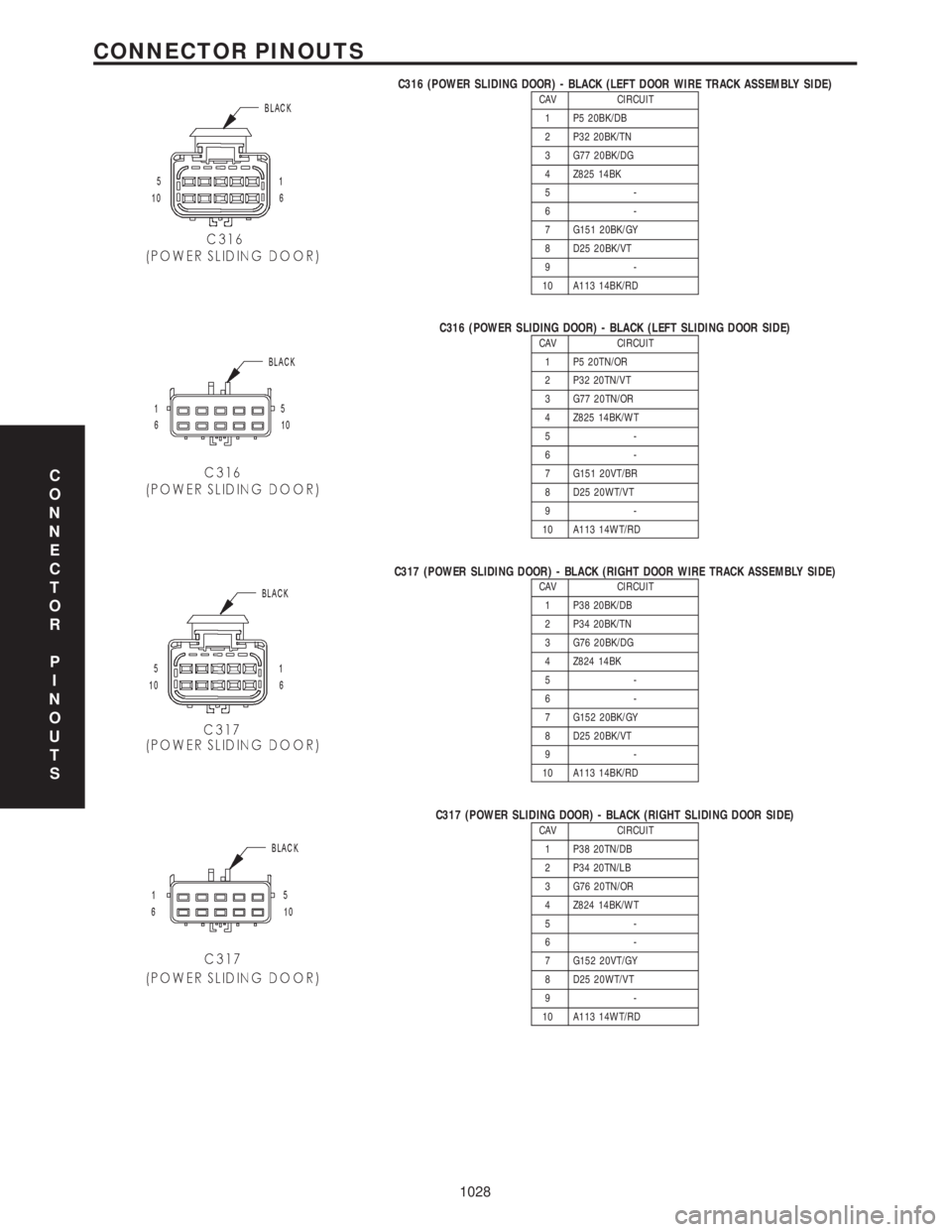

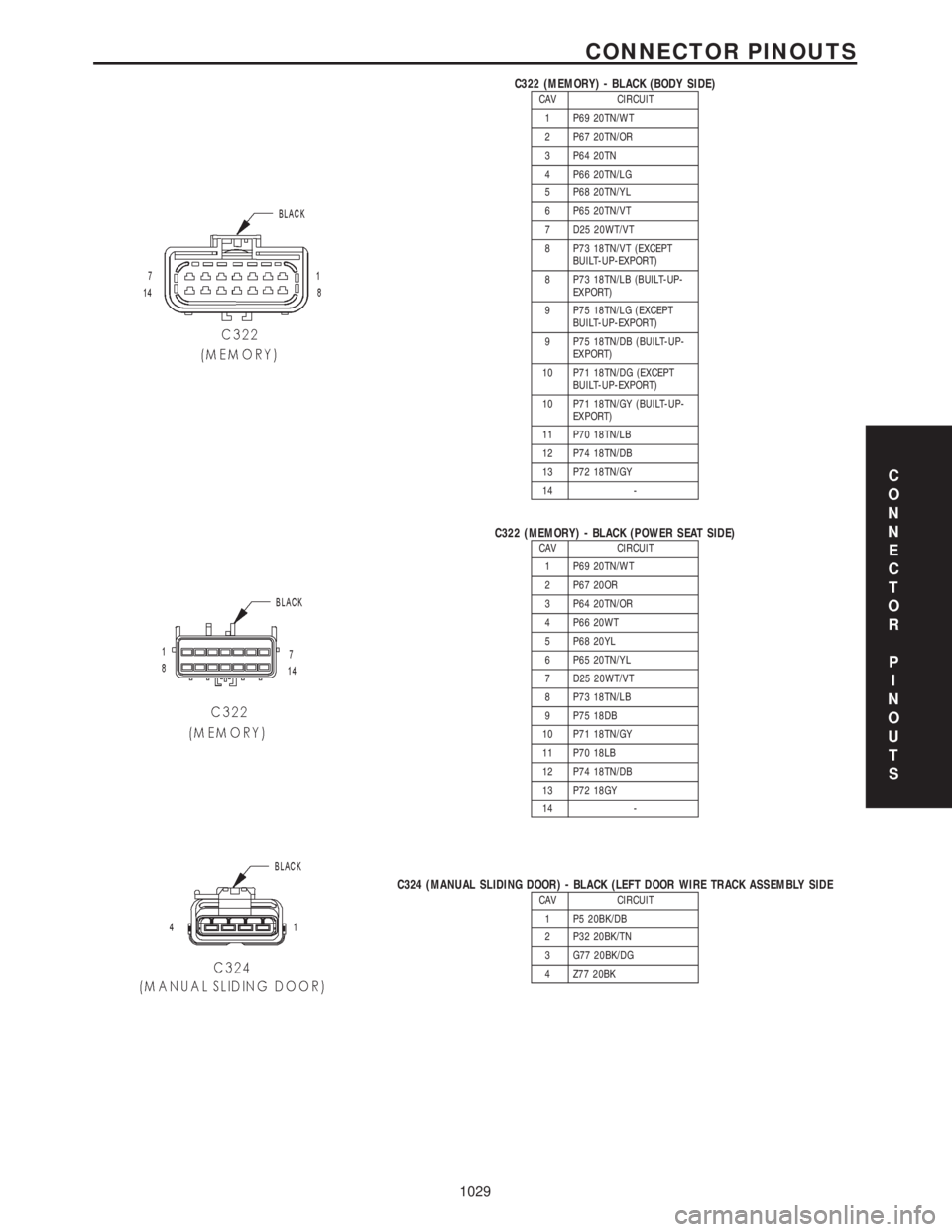

CHRYSLER VOYAGER 2001 Service Manual C316 (POWER SLIDING DOOR) - BLACK (LEFT DOOR WIRE TRACK ASSEMBLY SIDE)CAV CIRCUIT 1 P5 20BK/DB 2 P32 20BK/TN 3 G77 20BK/DG 4 Z825 14BK 5- 6- 7 G151 20BK/GY 8 D25 20BK/VT 9- 10 A113 14BK/RD C316 (POWER

Page 1058 of 4284

CHRYSLER VOYAGER 2001 Service Manual C322 (MEMORY) - BLACK (BODY SIDE)CAV CIRCUIT 1 P69 20TN/WT 2 P67 20TN/OR 3 P64 20TN 4 P66 20TN/LG 5 P68 20TN/YL 6 P65 20TN/VT 7 D25 20WT/VT 8 P73 18TN/VT (EXCEPT BUILT-UP-EXPORT) 8 P73 18TN/LB (BUILT-

Page 1059 of 4284

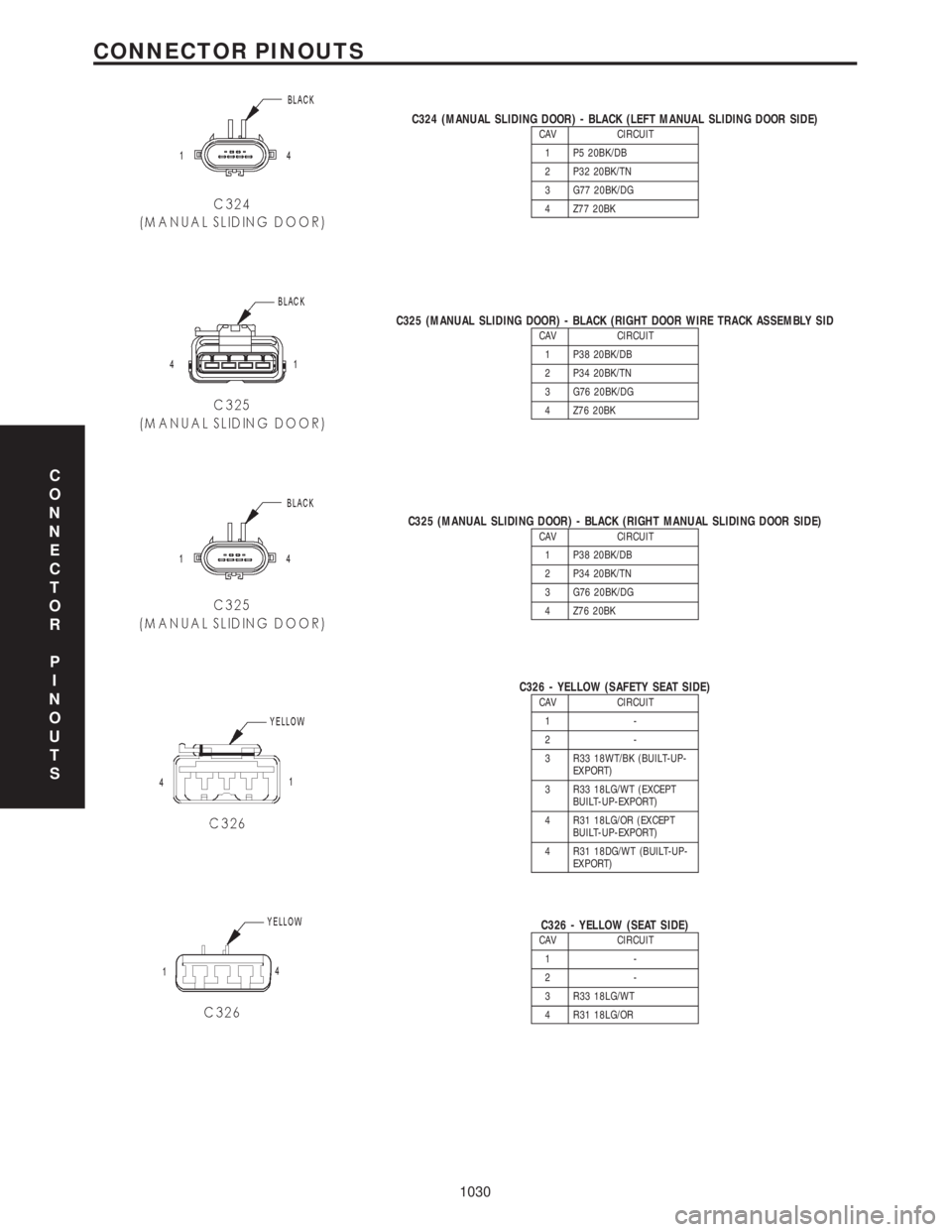

CHRYSLER VOYAGER 2001 Service Manual C324 (MANUAL SLIDING DOOR) - BLACK (LEFT MANUAL SLIDING DOOR SIDE)CAV CIRCUIT 1 P5 20BK/DB 2 P32 20BK/TN 3 G77 20BK/DG 4 Z77 20BK C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT DOOR WIRE TRACK ASSEMBLY SID

Page 1060 of 4284

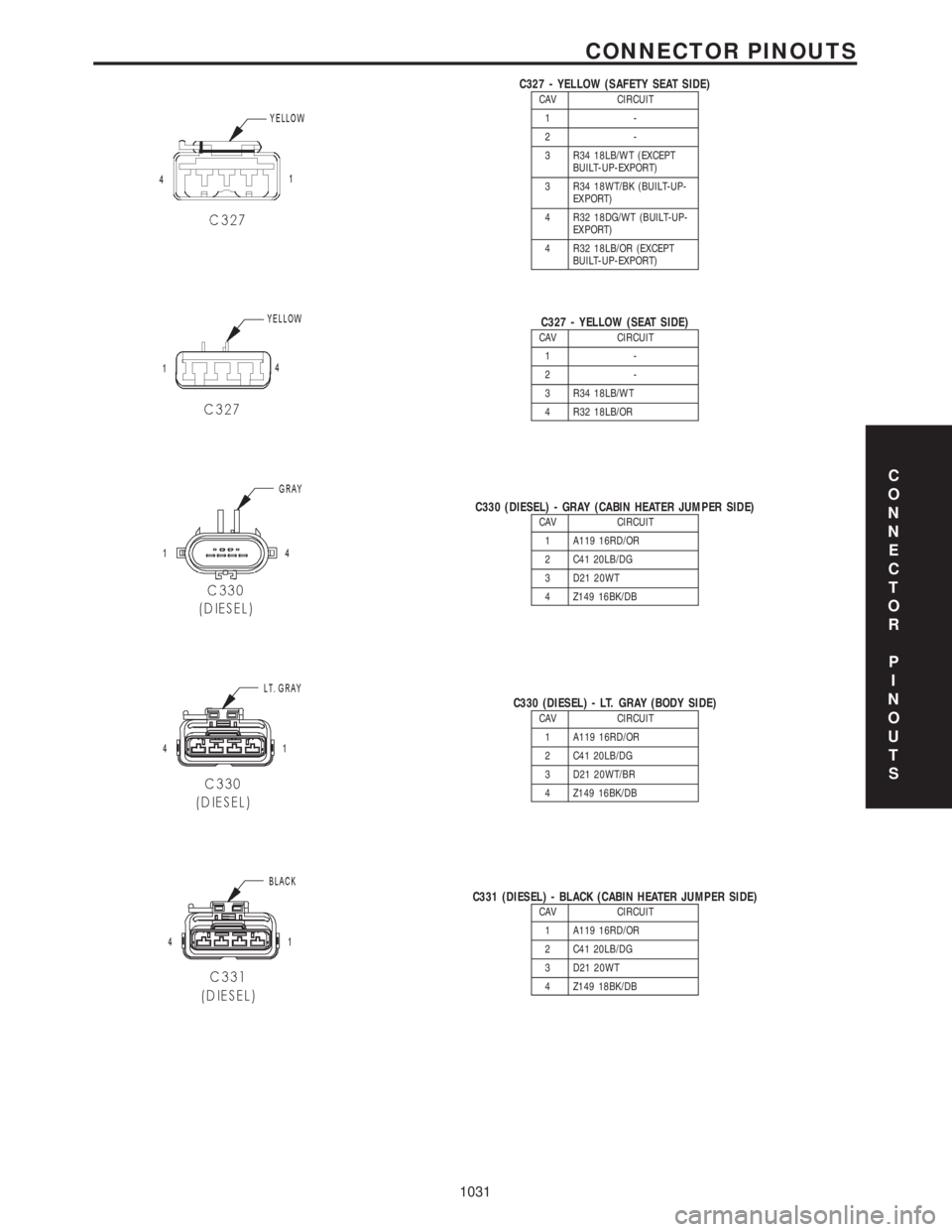

CHRYSLER VOYAGER 2001 Service Manual C327 - YELLOW (SAFETY SEAT SIDE)CAV CIRCUIT 1- 2- 3 R34 18LB/WT (EXCEPT BUILT-UP-EXPORT) 3 R34 18WT/BK (BUILT-UP- EXPORT) 4 R32 18DG/WT (BUILT-UP- EXPORT) 4 R32 18LB/OR (EXCEPT BUILT-UP-EXPORT) C327 -

Page 1061 of 4284

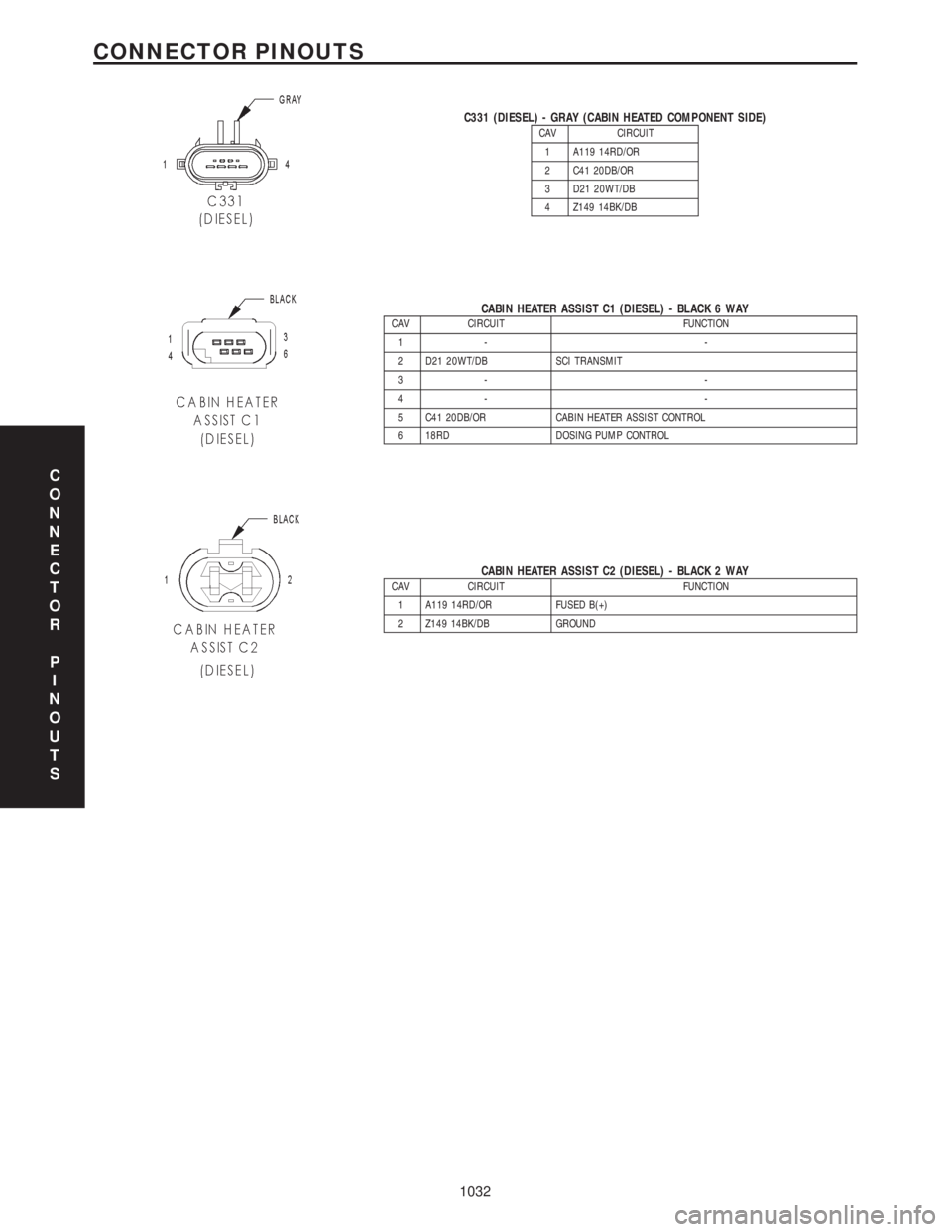

CHRYSLER VOYAGER 2001 Service Manual C331 (DIESEL) - GRAY (CABIN HEATED COMPONENT SIDE)CAV CIRCUIT 1 A119 14RD/OR 2 C41 20DB/OR 3 D21 20WT/DB 4 Z149 14BK/DB CABIN HEATER ASSIST C1 (DIESEL) - BLACK 6 WAYCAV CIRCUIT FUNCTION 1- - 2 D21 20W

Page 1062 of 4284

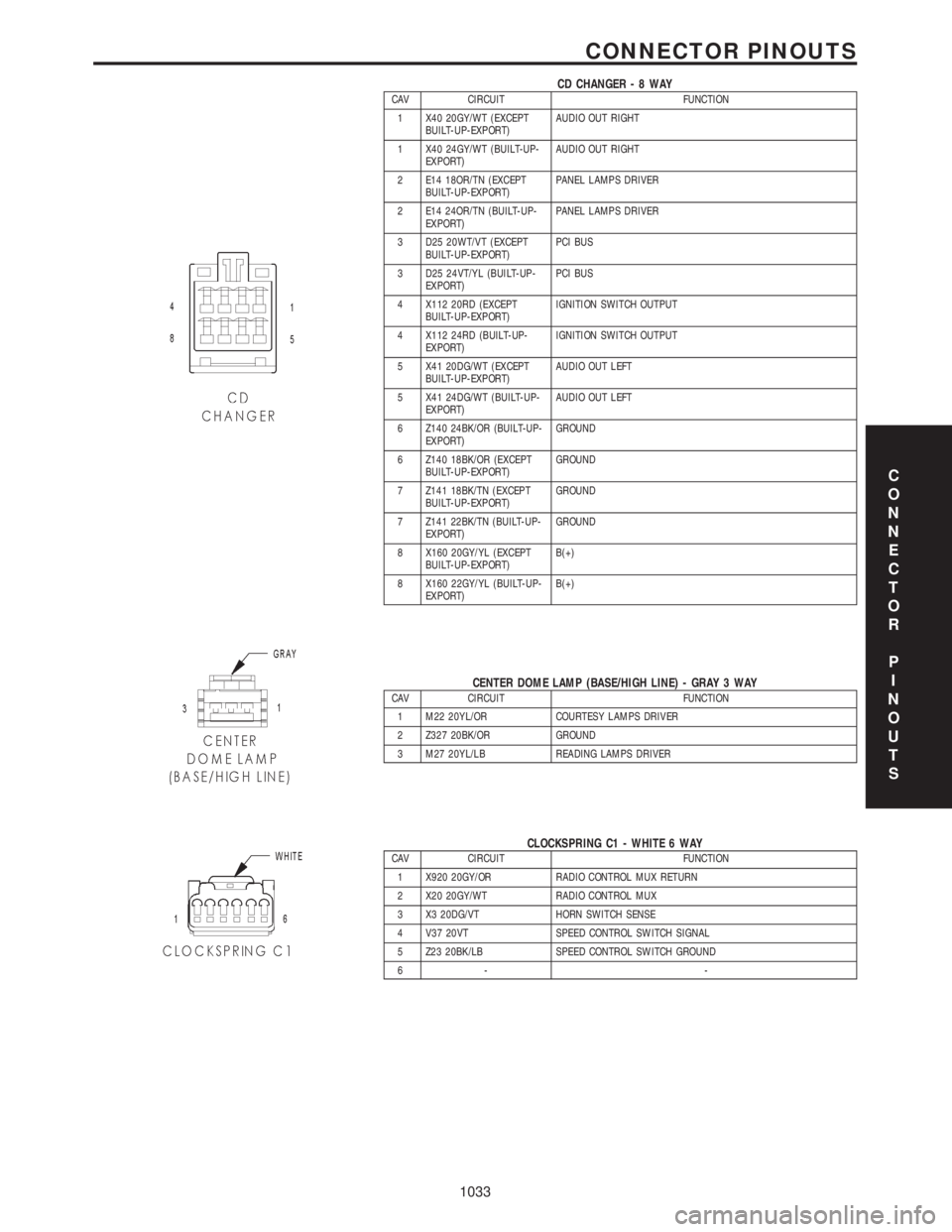

CHRYSLER VOYAGER 2001 Service Manual CD CHANGER-8WAYCAV CIRCUIT FUNCTION 1 X40 20GY/WT (EXCEPT BUILT-UP-EXPORT)AUDIO OUT RIGHT 1 X40 24GY/WT (BUILT-UP- EXPORT)AUDIO OUT RIGHT 2 E14 18OR/TN (EXCEPT BUILT-UP-EXPORT)PANEL LAMPS DRIVER 2 E14

Page 1063 of 4284

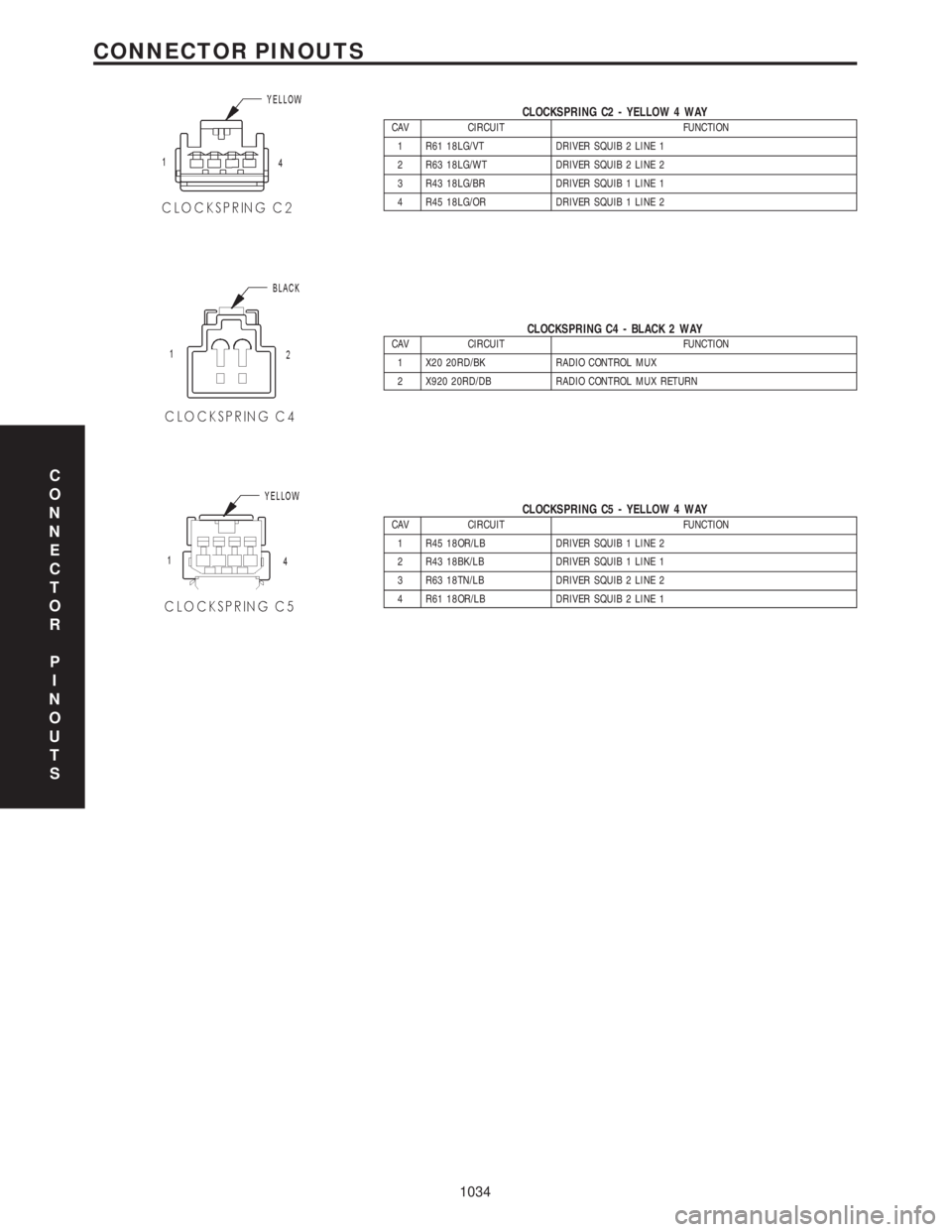

CHRYSLER VOYAGER 2001 Service Manual CLOCKSPRING C2 - YELLOW 4 WAYCAV CIRCUIT FUNCTION 1 R61 18LG/VT DRIVER SQUIB 2 LINE 1 2 R63 18LG/WT DRIVER SQUIB 2 LINE 2 3 R43 18LG/BR DRIVER SQUIB 1 LINE 1 4 R45 18LG/OR DRIVER SQUIB 1 LINE 2 CLOCKS

Page 1064 of 4284

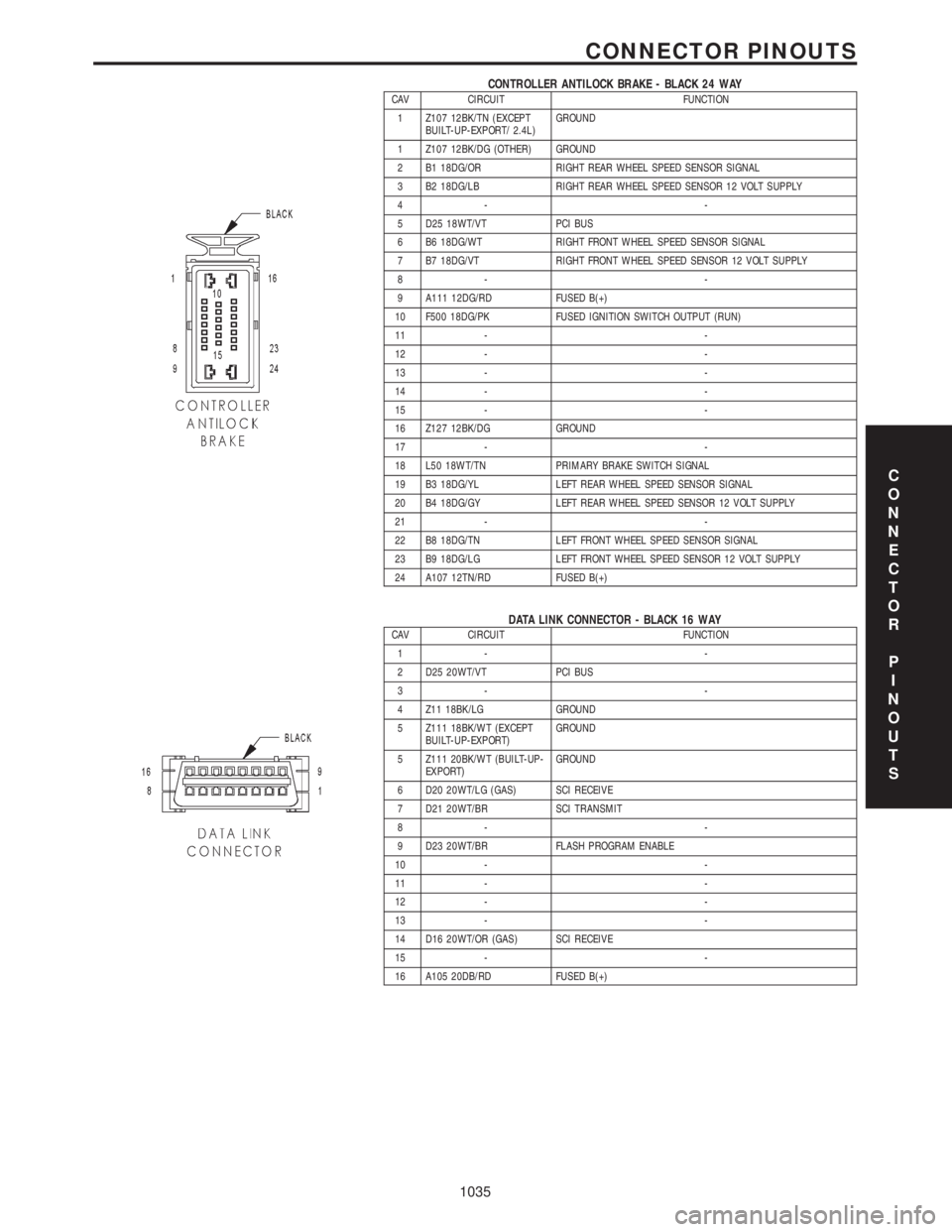

CHRYSLER VOYAGER 2001 Service Manual CONTROLLER ANTILOCK BRAKE - BLACK 24 WAYCAV CIRCUIT FUNCTION 1 Z107 12BK/TN (EXCEPT BUILT-UP-EXPORT/ 2.4L)GROUND 1 Z107 12BK/DG (OTHER) GROUND 2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL 3 B2 18
