Page 2497 of 4284

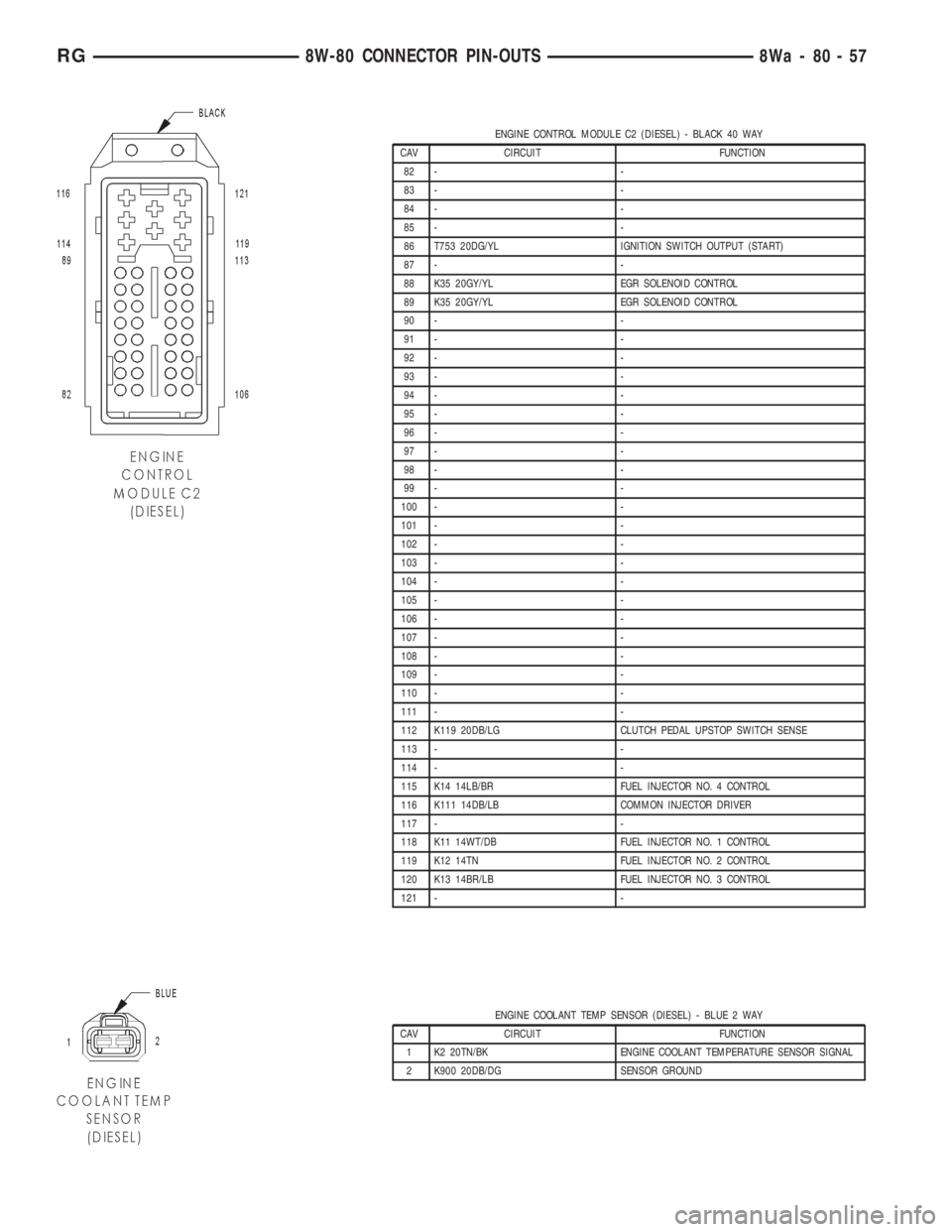

CHRYSLER VOYAGER 2001 Service Manual ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAY CAV CIRCUIT FUNCTION 82 - - 83 - - 84 - - 85 - - 86 T753 20DG/YL IGNITION SWITCH OUTPUT (START) 87 - - 88 K35 20GY/YL EGR SOLENOID CONTROL 89 K35 20GY/

Page 2498 of 4284

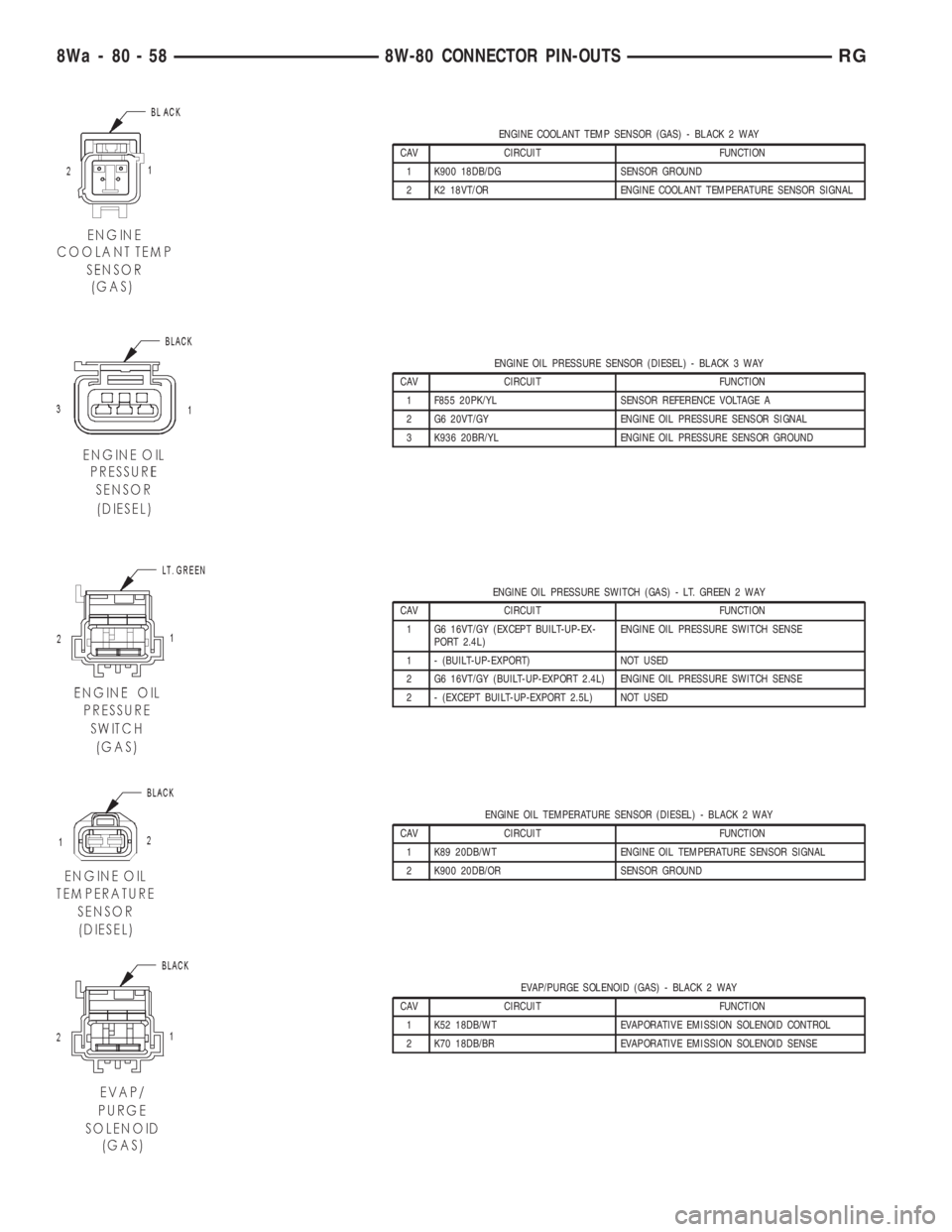

CHRYSLER VOYAGER 2001 Service Manual ENGINE COOLANT TEMP SENSOR (GAS) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 K900 18DB/DG SENSOR GROUND 2 K2 18VT/OR ENGINE COOLANT TEMPERATURE SENSOR SIGNAL ENGINE OIL PRESSURE SENSOR (DIESEL) - BLACK 3 WAY

Page 2499 of 4284

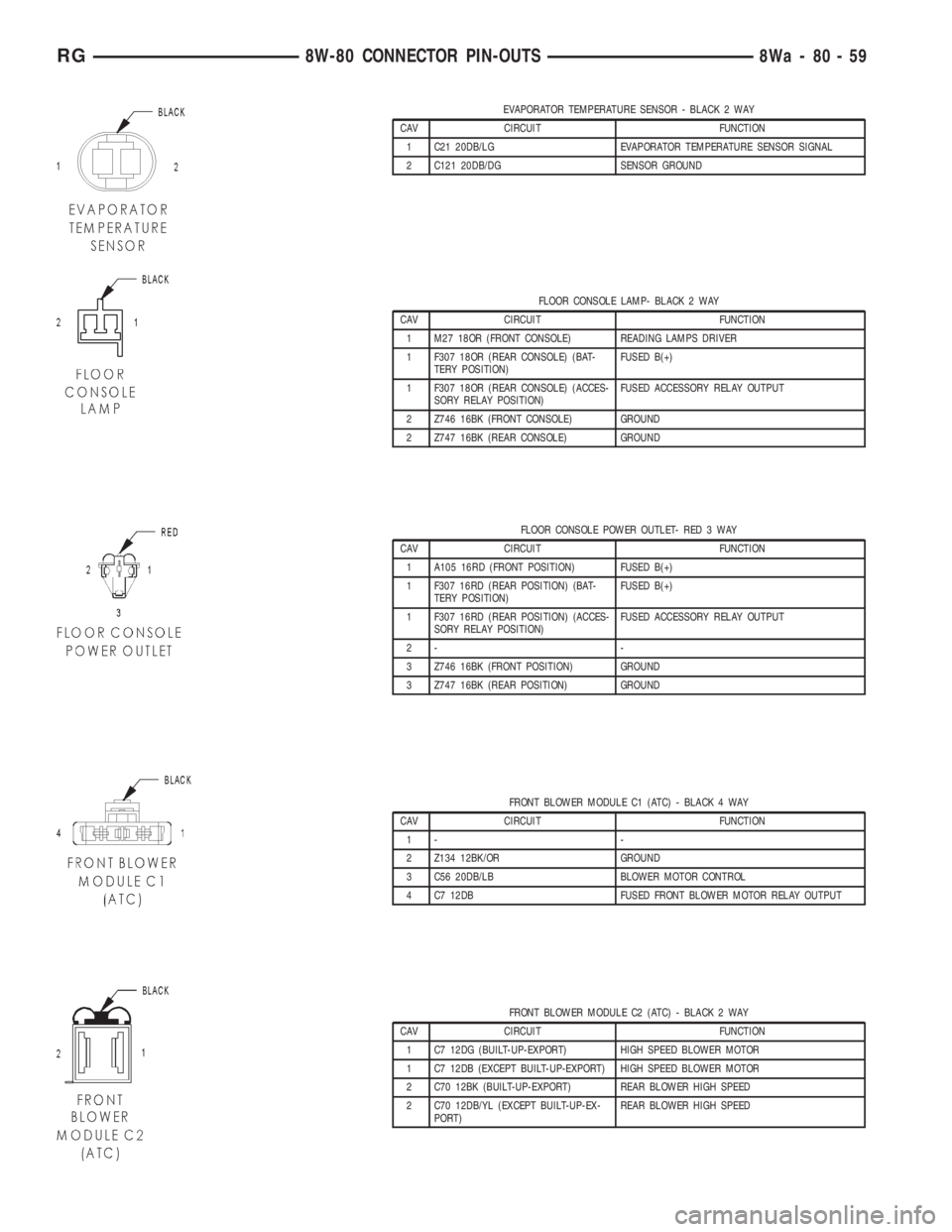

CHRYSLER VOYAGER 2001 Service Manual EVAPORATOR TEMPERATURE SENSOR - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL 2 C121 20DB/DG SENSOR GROUND FLOOR CONSOLE LAMP- BLACK 2 WAY CAV CIRCUIT FUNCTION 1

Page 2500 of 4284

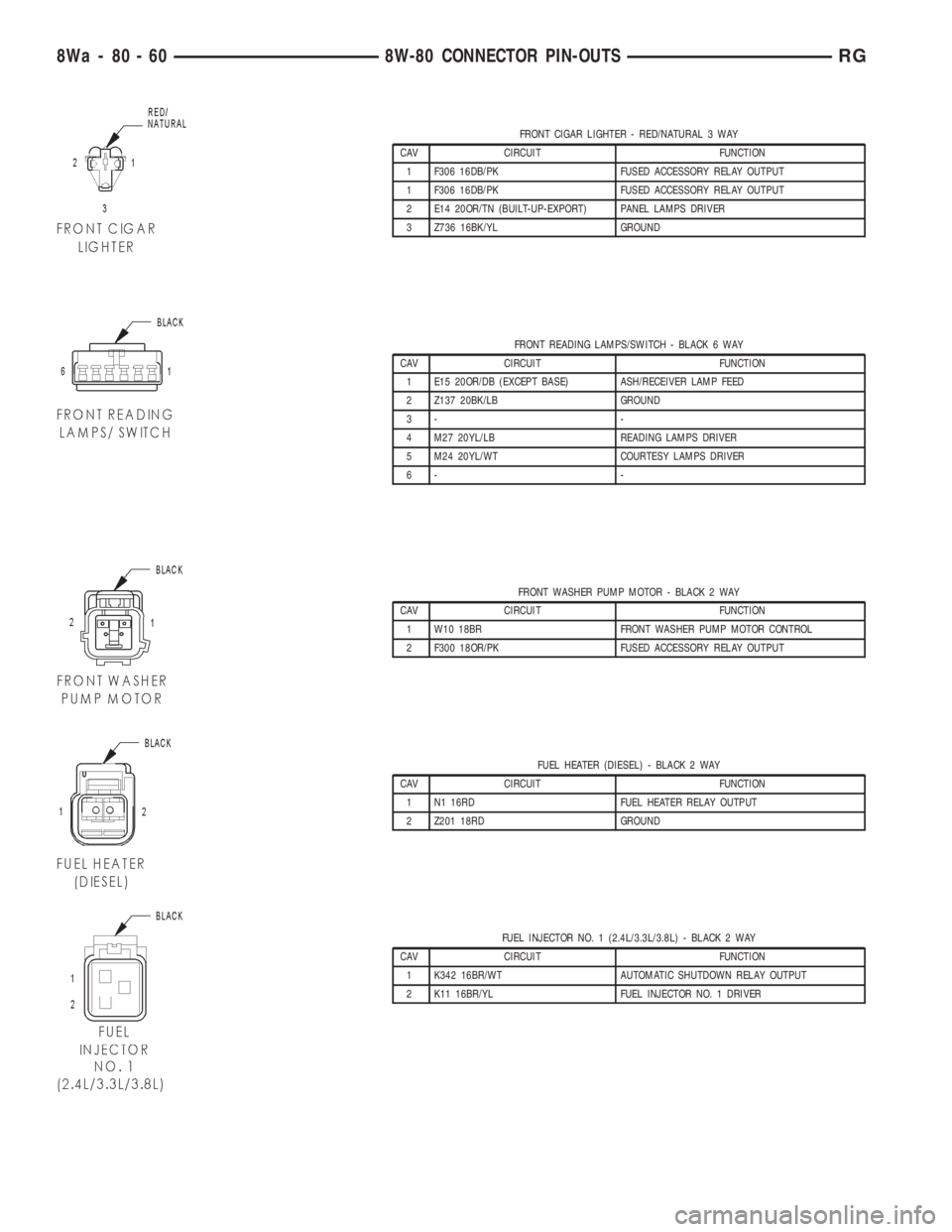

CHRYSLER VOYAGER 2001 Service Manual FRONT CIGAR LIGHTER - RED/NATURAL 3 WAY CAV CIRCUIT FUNCTION 1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT 1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT 2 E14 20OR/TN (BUILT-UP-EXPORT) PANEL LAMPS DRIVER

Page 2501 of 4284

CHRYSLER VOYAGER 2001 Service Manual FUEL INJECTOR NO. 1 (DIESEL) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 K111 14DB/LB COMMON INJECTOR DRIVER 2 K11 14WT/DB FUEL INJECTOR NO. 1 CONTROL FUEL INJECTOR NO. 2 (2.4L/3.3L/3.8L) - BLACK 2 WAY CAV C

Page 2502 of 4284

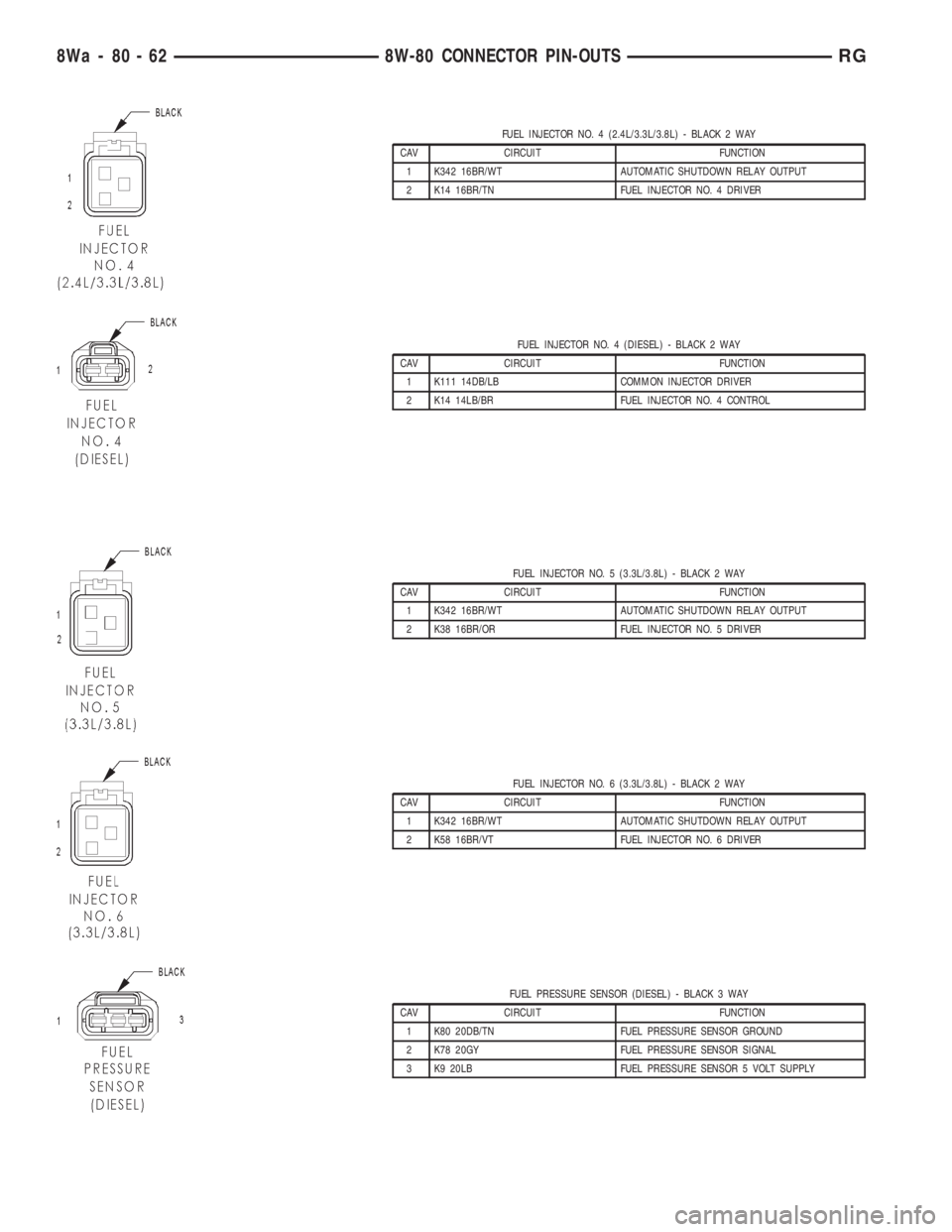

CHRYSLER VOYAGER 2001 Service Manual FUEL INJECTOR NO. 4 (2.4L/3.3L/3.8L) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT 2 K14 16BR/TN FUEL INJECTOR NO. 4 DRIVER FUEL INJECTOR NO. 4 (DIESEL) - BLACK 2 W

Page 2503 of 4284

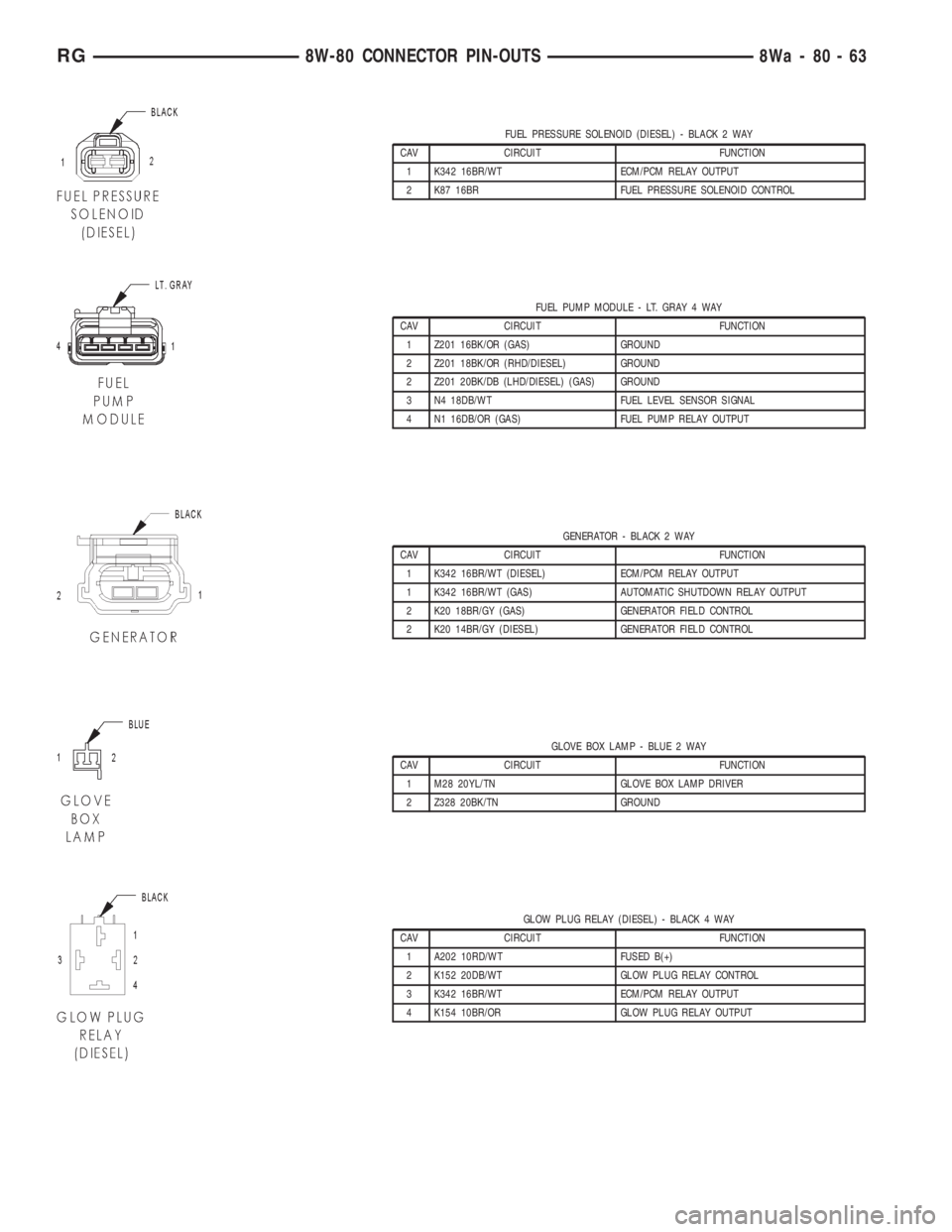

CHRYSLER VOYAGER 2001 Service Manual FUEL PRESSURE SOLENOID (DIESEL) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 K342 16BR/WT ECM/PCM RELAY OUTPUT 2 K87 16BR FUEL PRESSURE SOLENOID CONTROL FUEL PUMP MODULE - LT. GRAY 4 WAY CAV CIRCUIT FUNCTION

Page 2504 of 4284

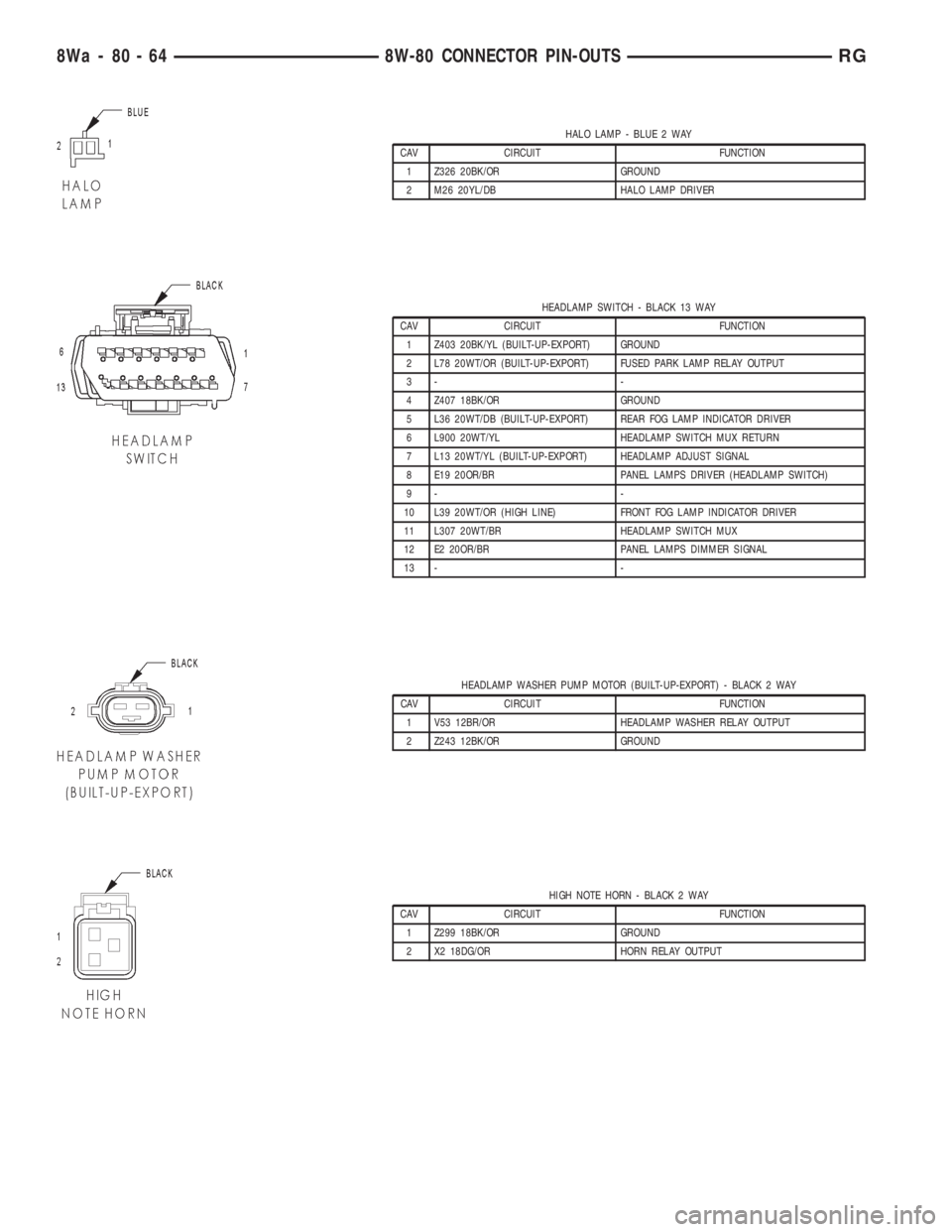

CHRYSLER VOYAGER 2001 Service Manual HALO LAMP - BLUE 2 WAY CAV CIRCUIT FUNCTION 1 Z326 20BK/OR GROUND 2 M26 20YL/DB HALO LAMP DRIVER HEADLAMP SWITCH - BLACK 13 WAY CAV CIRCUIT FUNCTION 1 Z403 20BK/YL (BUILT-UP-EXPORT) GROUND 2 L78 20WT/
