8W-20 CHARGING SYSTEM
Component Page
Auto Shut Down Relay............... 8Wa-20-2
Battery......................... 8Wa-20-2, 3
Battery Temperature Sensor........... 8Wa-20-3
ECM/PCM Relay.................... 8Wa-20-3
Engine Control Module............... 8Wa-20-3
Fuse 16 (IPM) (Diesel)............... 8Wa-20-3
Fuse 16 (IPM) (Gas)................. 8Wa-20-2
Fuse 17 (IPM) (Gas)................. 8Wa-20-2Component Page
Fuselink........................ 8Wa-20-2, 3
G100........................... 8Wa-20-2, 3
G101........................... 8Wa-20-2, 3
Generator....................... 8Wa-20-2, 3
Intelligent Power Module........... 8Wa-20-2, 3
Powertrain Control Module............ 8Wa-20-2
Starter Motor.................... 8Wa-20-2, 3
RG8W-20 CHARGING SYSTEM8Wa-20-1

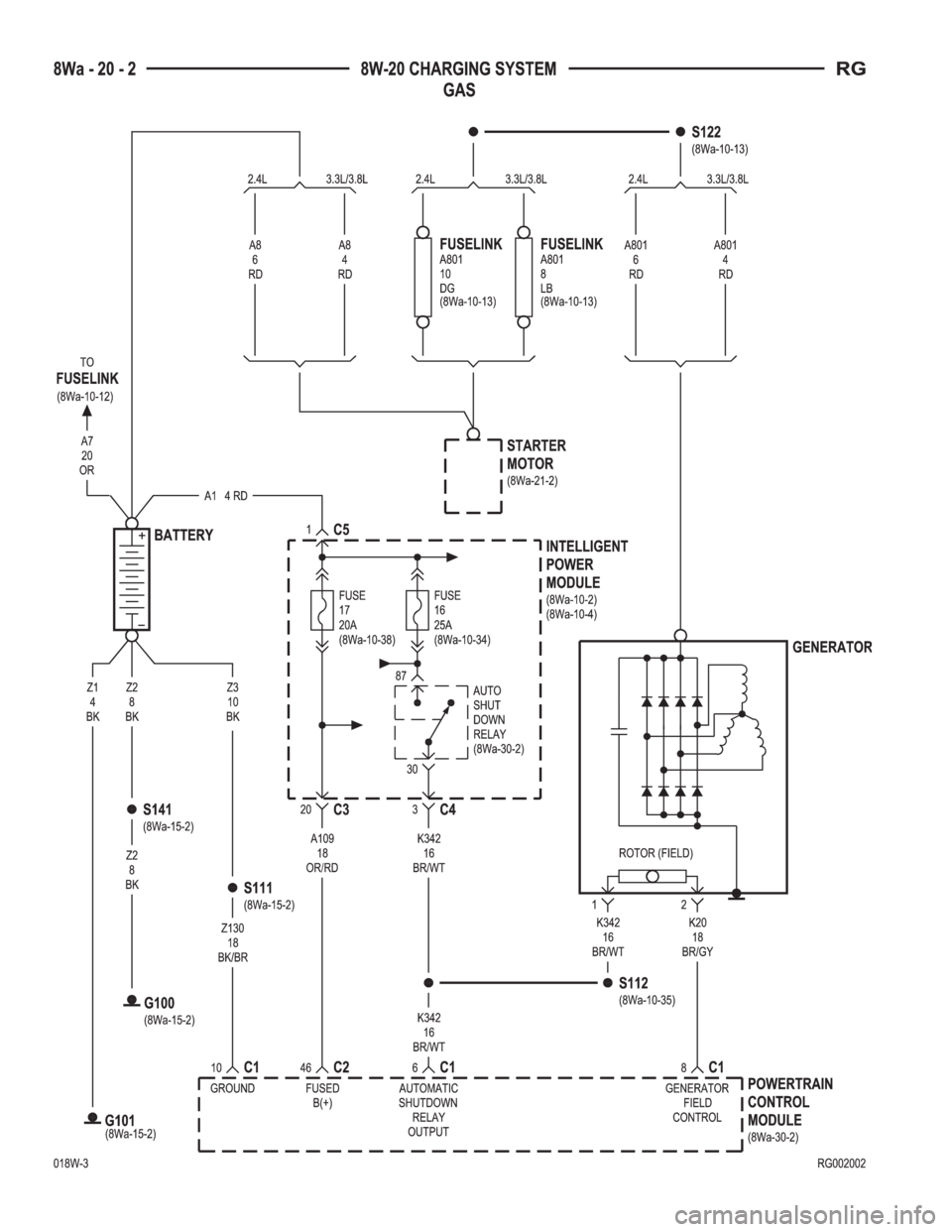

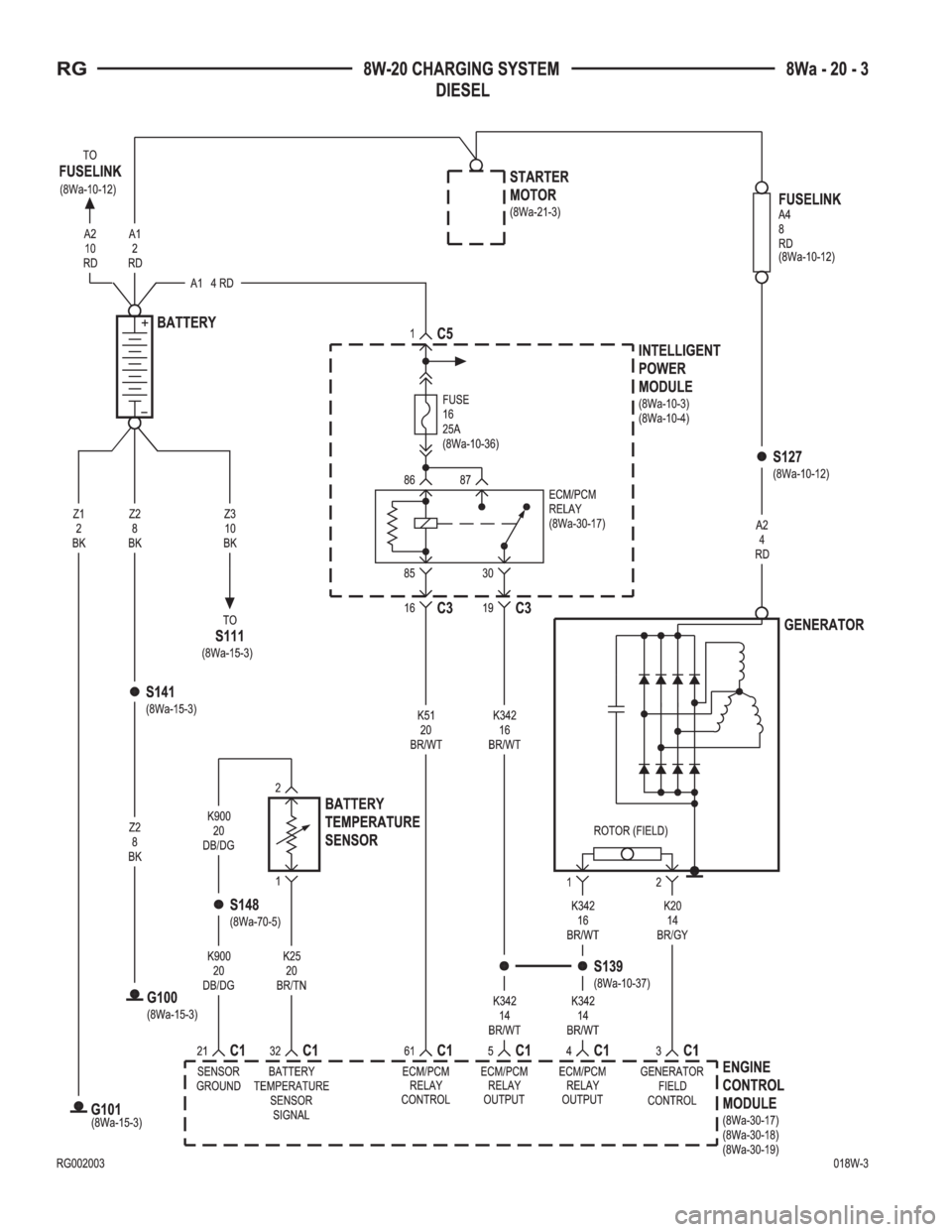

8W-21 STARTING SYSTEM
Component Page
Battery......................... 8Wa-21-2, 3
Clutch Pedal Interlock Switch
Jumper....................... 8Wa-21-2, 3
Clutch Pedal Interlock Switch........ 8Wa-21-2, 3
Engine Control Module............... 8Wa-21-3
Front Control Module................ 8Wa-21-2
Fuse 9 (IPM)..................... 8Wa-21-2, 3
Fuselink........................ 8Wa-21-2, 3Component Page
G101........................... 8Wa-21-2, 3
Generator....................... 8Wa-21-2, 3
Ignition Switch................... 8Wa-21-2, 3
Intelligent Power Module........... 8Wa-21-2, 3
Powertrain Control Module............ 8Wa-21-2
Starter Motor.................... 8Wa-21-2, 3
Starter Motor Relay............... 8Wa-21-2, 3

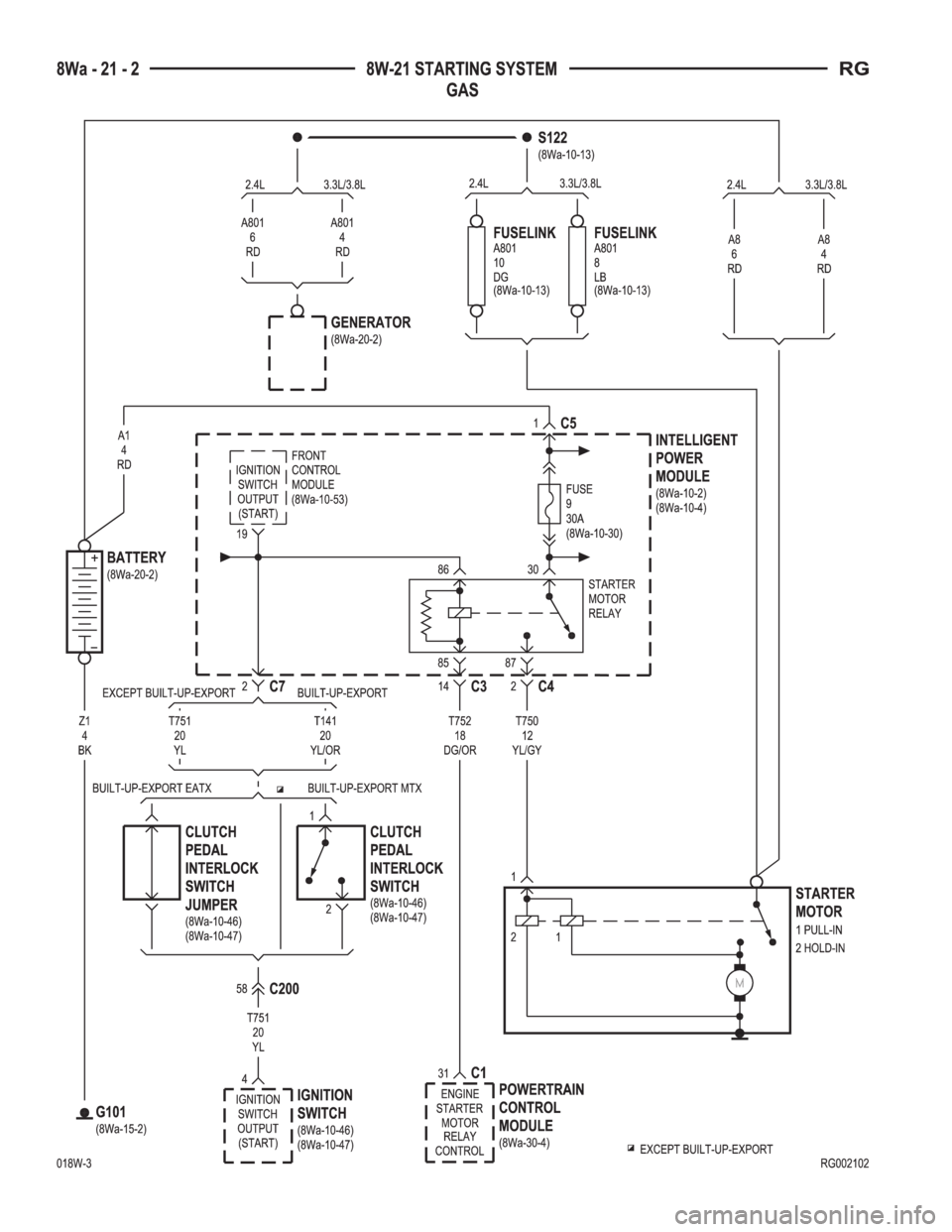

RG8W-21 STARTING SYSTEM8Wa-21-1
