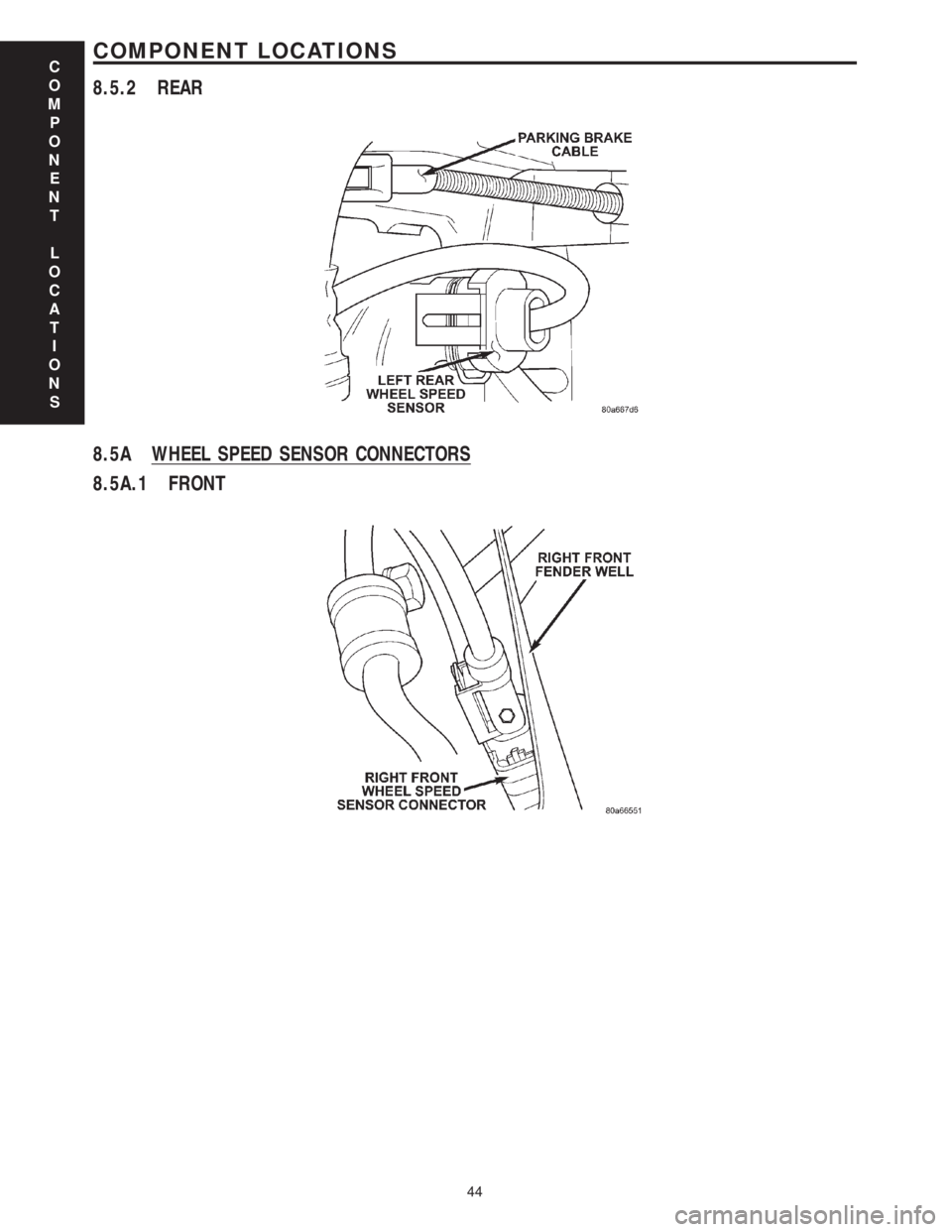

CHRYSLER VOYAGER 2001 Service Manual 8.5.2 REAR 8.5A WHEEL SPEED SENSOR CONNECTORS 8.5A.1 FRONT C O M P O N E N T L O C A T I O N S 44 COMPONENT LOCATIONS

Page 1202 of 4284

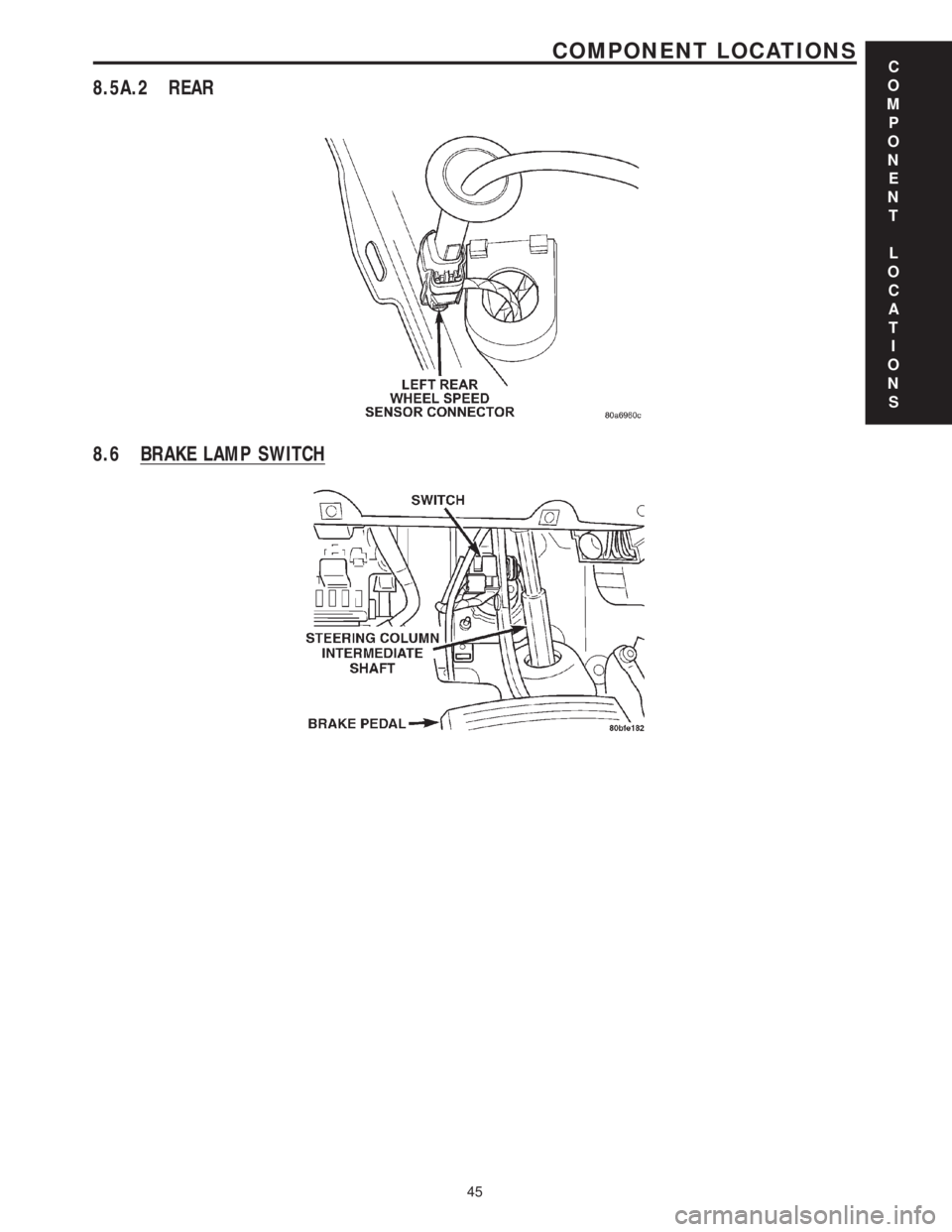

CHRYSLER VOYAGER 2001 Service Manual 8.5A.2 REAR 8.6 BRAKE LAMP SWITCH C O M P O N E N T L O C A T I O N S 45 COMPONENT LOCATIONS

Page 1203 of 4284

CHRYSLER VOYAGER 2001 Service Manual NOTES 46

Page 1204 of 4284

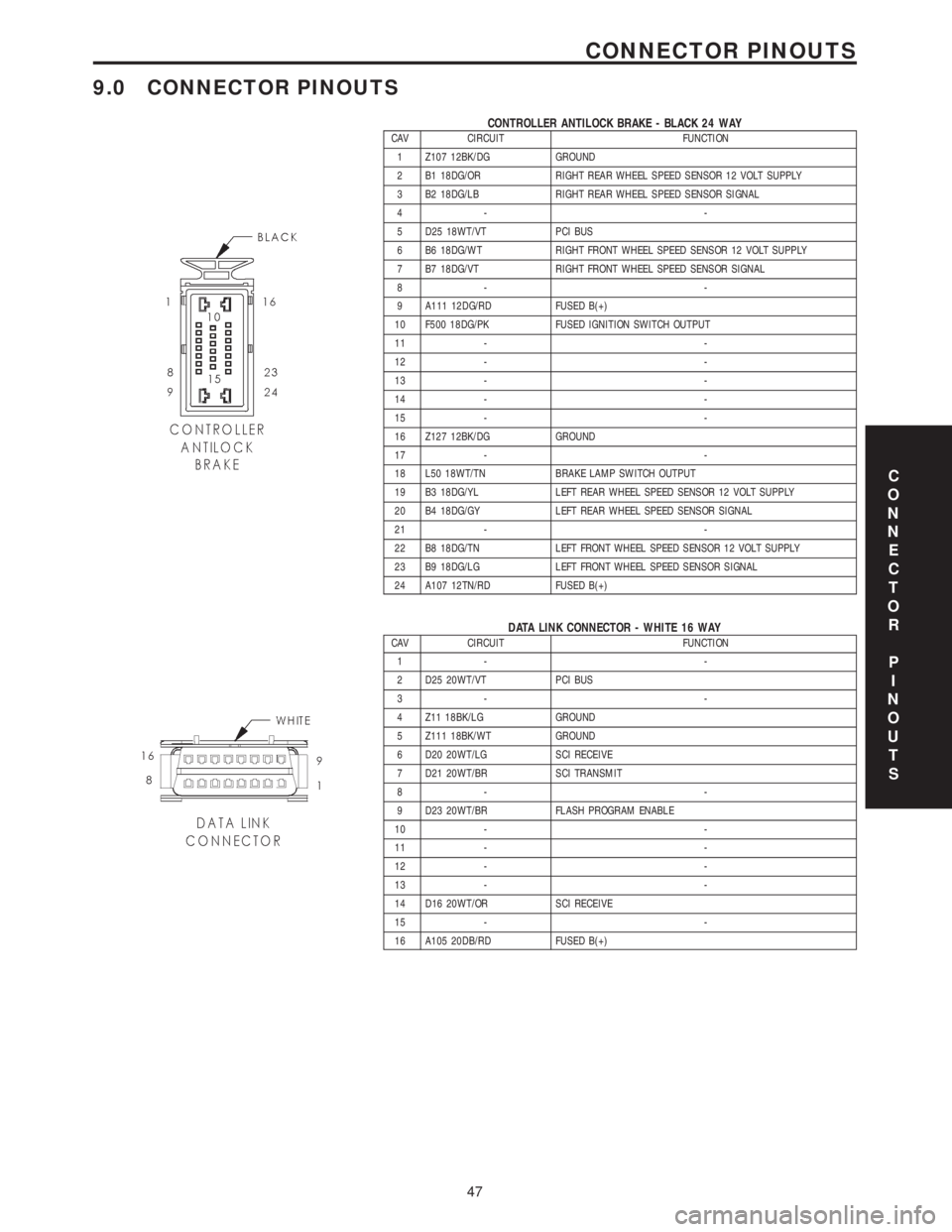

CHRYSLER VOYAGER 2001 Service Manual 9.0 CONNECTOR PINOUTS CONTROLLER ANTILOCK BRAKE - BLACK 24 WAYCAV CIRCUIT FUNCTION 1 Z107 12BK/DG GROUND 2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY 3 B2 18DG/LB RIGHT REAR WHEEL SPEED S

Page 1205 of 4284

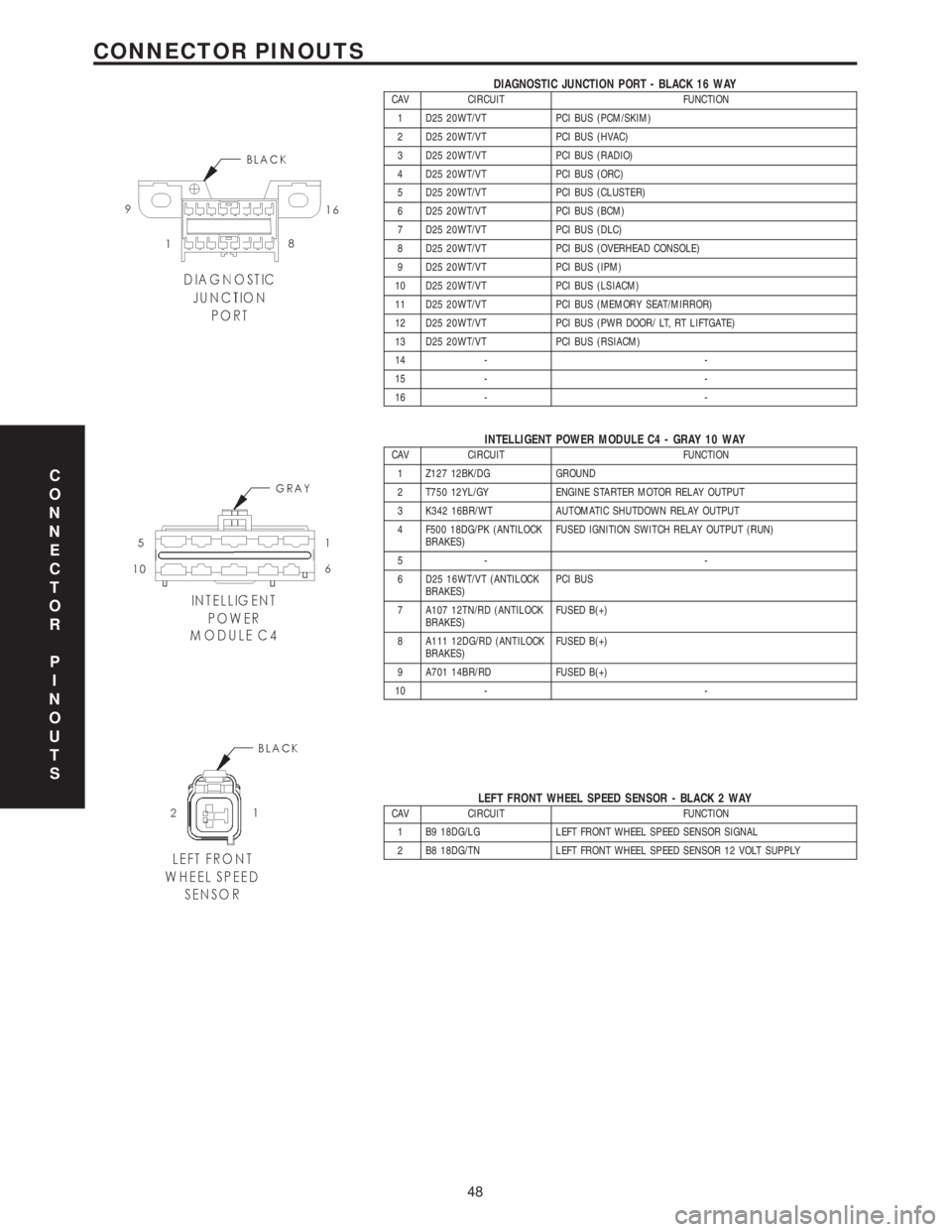

CHRYSLER VOYAGER 2001 Service Manual DIAGNOSTIC JUNCTION PORT - BLACK 16 WAYCAV CIRCUIT FUNCTION 1 D25 20WT/VT PCI BUS (PCM/SKIM) 2 D25 20WT/VT PCI BUS (HVAC) 3 D25 20WT/VT PCI BUS (RADIO) 4 D25 20WT/VT PCI BUS (ORC) 5 D25 20WT/VT PCI BU

Page 1206 of 4284

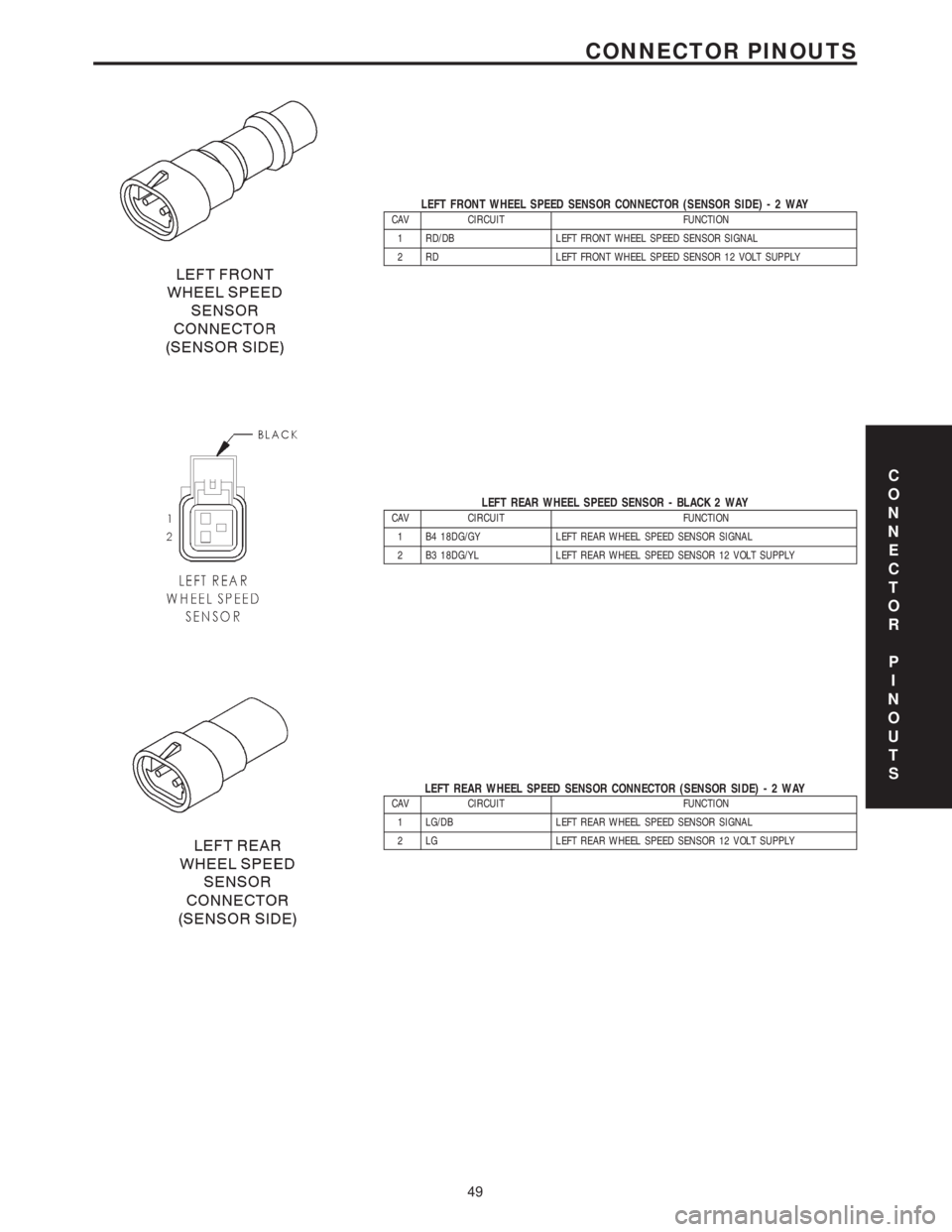

CHRYSLER VOYAGER 2001 Service Manual LEFT FRONT WHEEL SPEED SENSOR CONNECTOR (SENSOR SIDE)-2WAYCAV CIRCUIT FUNCTION 1 RD/DB LEFT FRONT WHEEL SPEED SENSOR SIGNAL 2 RD LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY LEFT REAR WHEEL SPEED SENS

Page 1207 of 4284

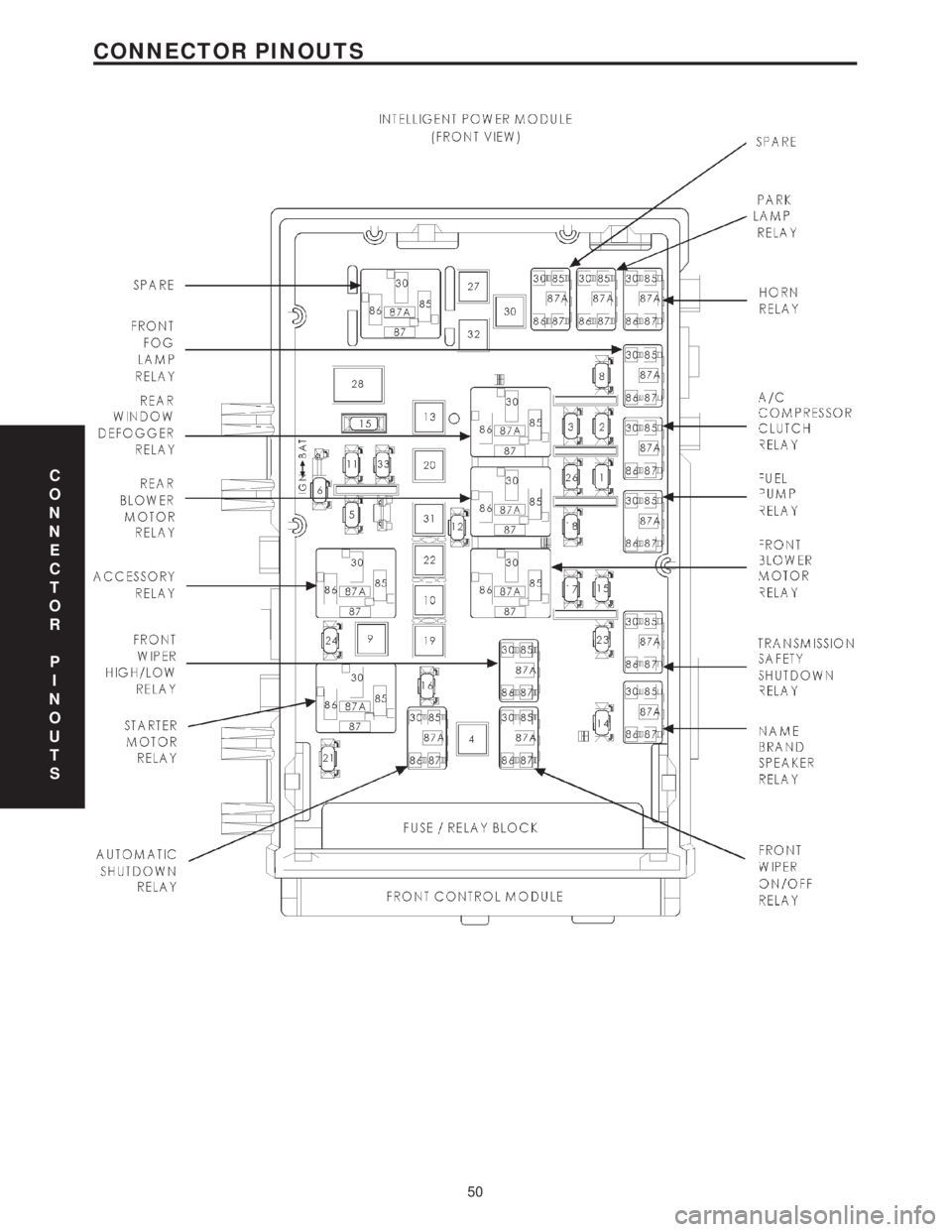

CHRYSLER VOYAGER 2001 Service Manual C O N N E C T O R P I N O U T S 50 CONNECTOR PINOUTS

Page 1208 of 4284

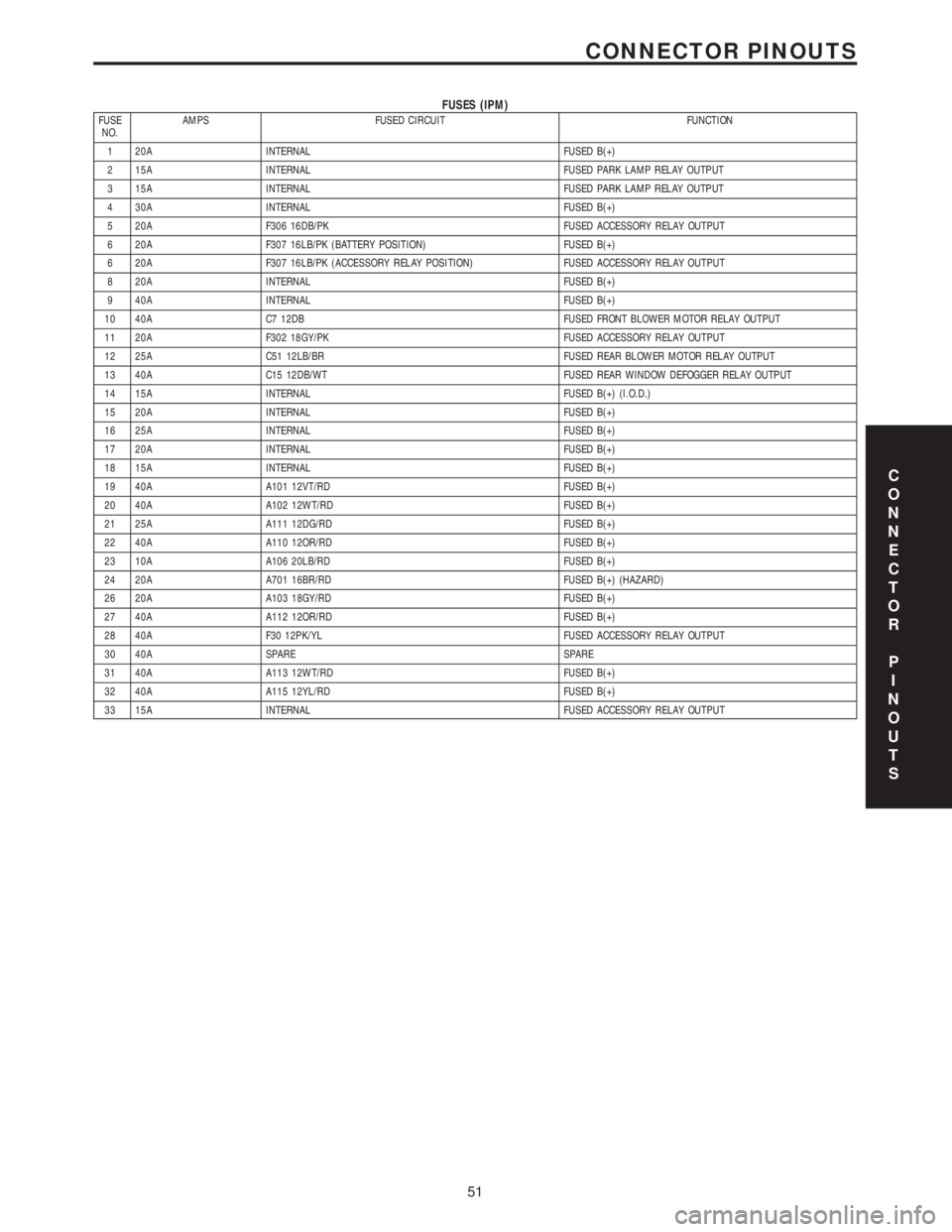

CHRYSLER VOYAGER 2001 Service Manual FUSES (IPM)FUSE NO.AMPS FUSED CIRCUIT FUNCTION 1 20A INTERNAL FUSED B(+) 2 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT 3 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT 4 30A INTERNAL FUSED B(+) 5 20A F306 16
