Page 1009 of 4284

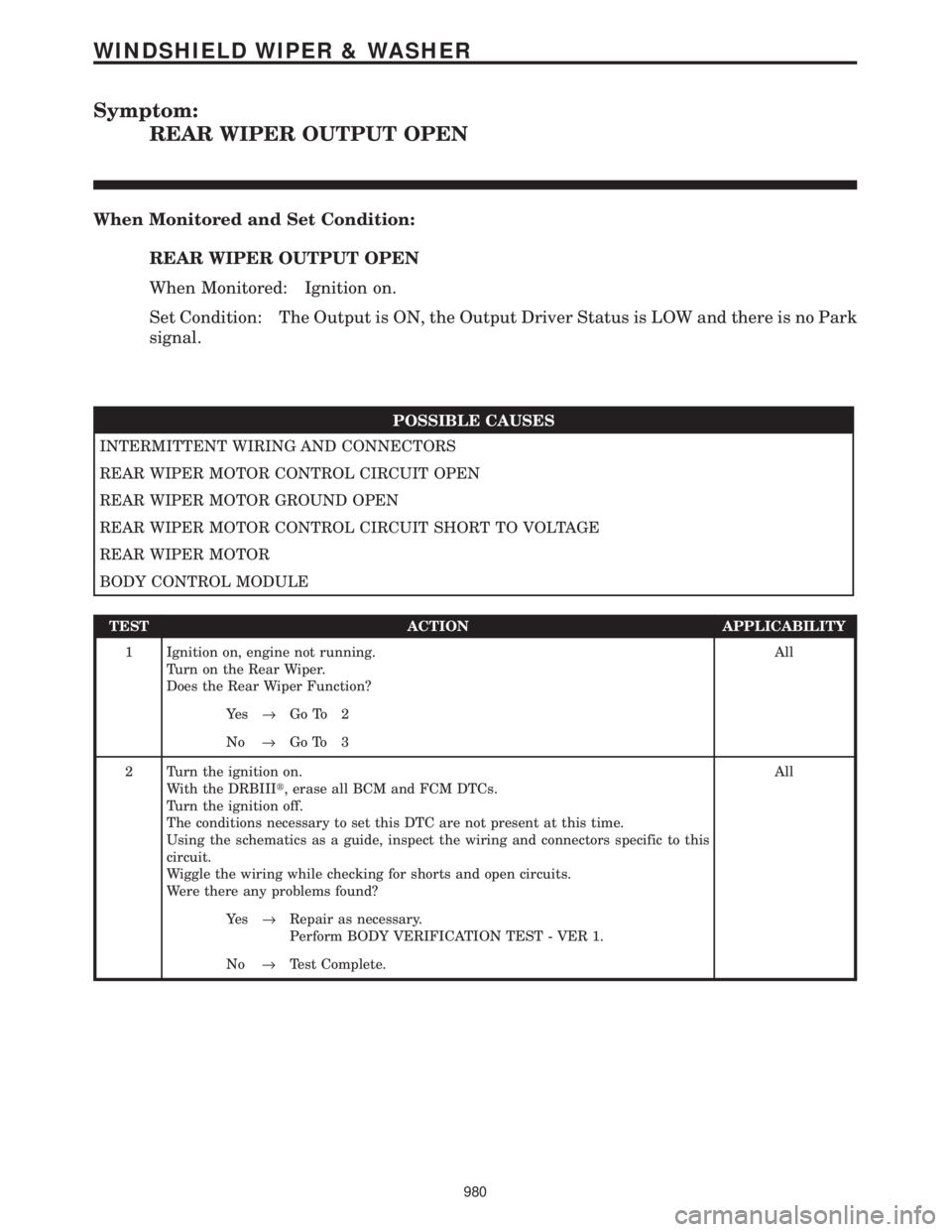

CHRYSLER VOYAGER 2001 Service Manual Symptom:
REAR WIPER OUTPUT OPEN
When Monitored and Set Condition:
REAR WIPER OUTPUT OPEN
When Monitored: Ignition on.
Set Condition: The Output is ON, the Output Driver Status is LOW and there is no P

Page 1010 of 4284

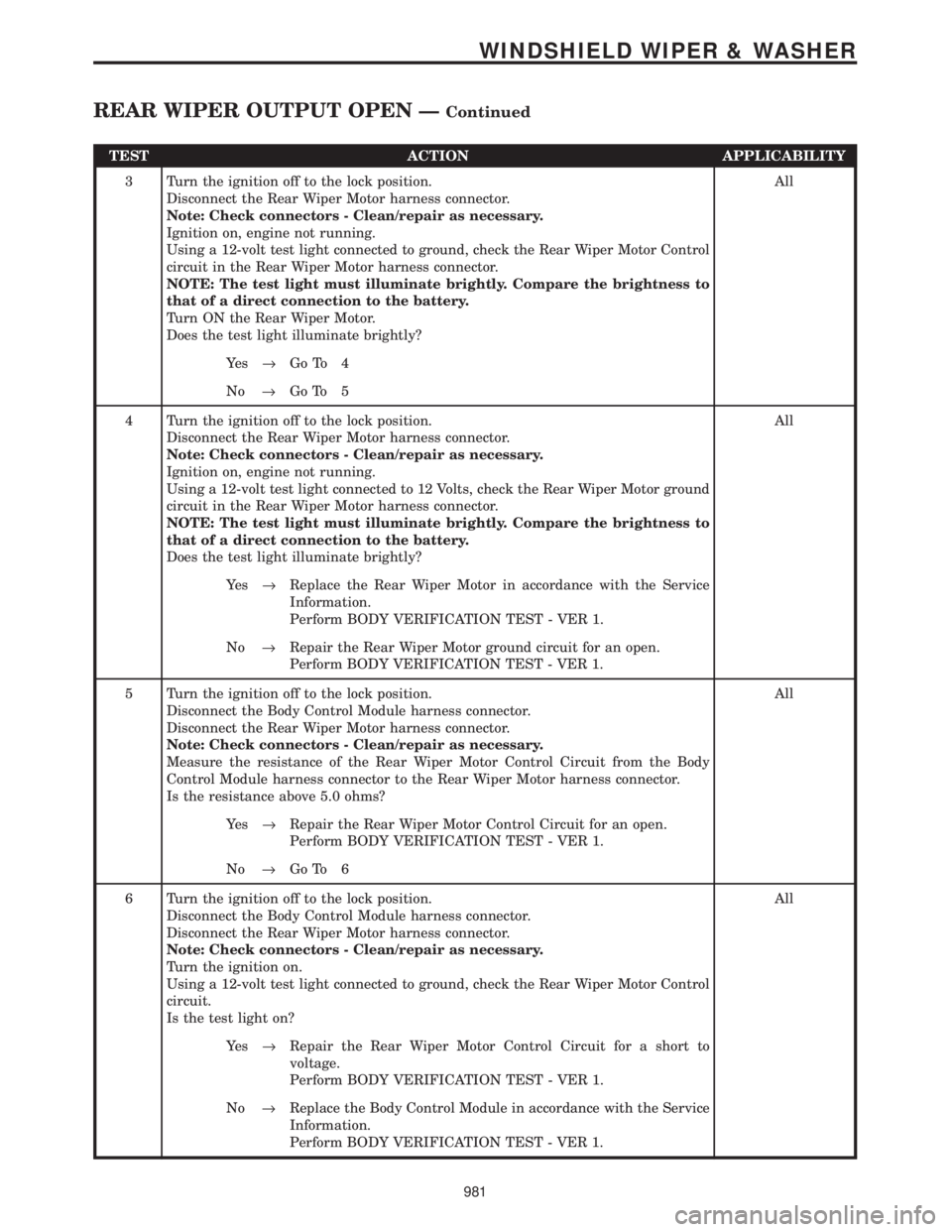

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off to the lock position.
Disconnect the Rear Wiper Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on, engine not r

TEST ACTION APPLICABILITY
3 Turn the ignition off to the lock position.
Disconnect the Rear Wiper Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on, engine not running.
Using a 12-volt test light connected to ground, check the Rear Wiper Motor Control
circuit in the Rear Wiper Motor harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Turn ON the Rear Wiper Motor.
Does the test light illuminate brightly?All
Ye s®Go To 4
No®Go To 5
4 Turn the ignition off to the lock position.
Disconnect the Rear Wiper Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on, engine not running.
Using a 12-volt test light connected to 12 Volts, check the Rear Wiper Motor ground
circuit in the Rear Wiper Motor harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s®Replace the Rear Wiper Motor in accordance with the Service
Information.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Rear Wiper Motor ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
5 Turn the ignition off to the lock position.
Disconnect the Body Control Module harness connector.
Disconnect the Rear Wiper Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Rear Wiper Motor Control Circuit from the Body
Control Module harness connector to the Rear Wiper Motor harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Rear Wiper Motor Control Circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
6 Turn the ignition off to the lock position.
Disconnect the Body Control Module harness connector.
Disconnect the Rear Wiper Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the Rear Wiper Motor Control
circuit.
Is the test light on?All
Ye s®Repair the Rear Wiper Motor Control Circuit for a short to
voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module in accordance with the Service
Information.
Perform BODY VERIFICATION TEST - VER 1.
981
WINDSHIELD WIPER & WASHER
REAR WIPER OUTPUT OPEN ÐContinued

Page 1011 of 4284

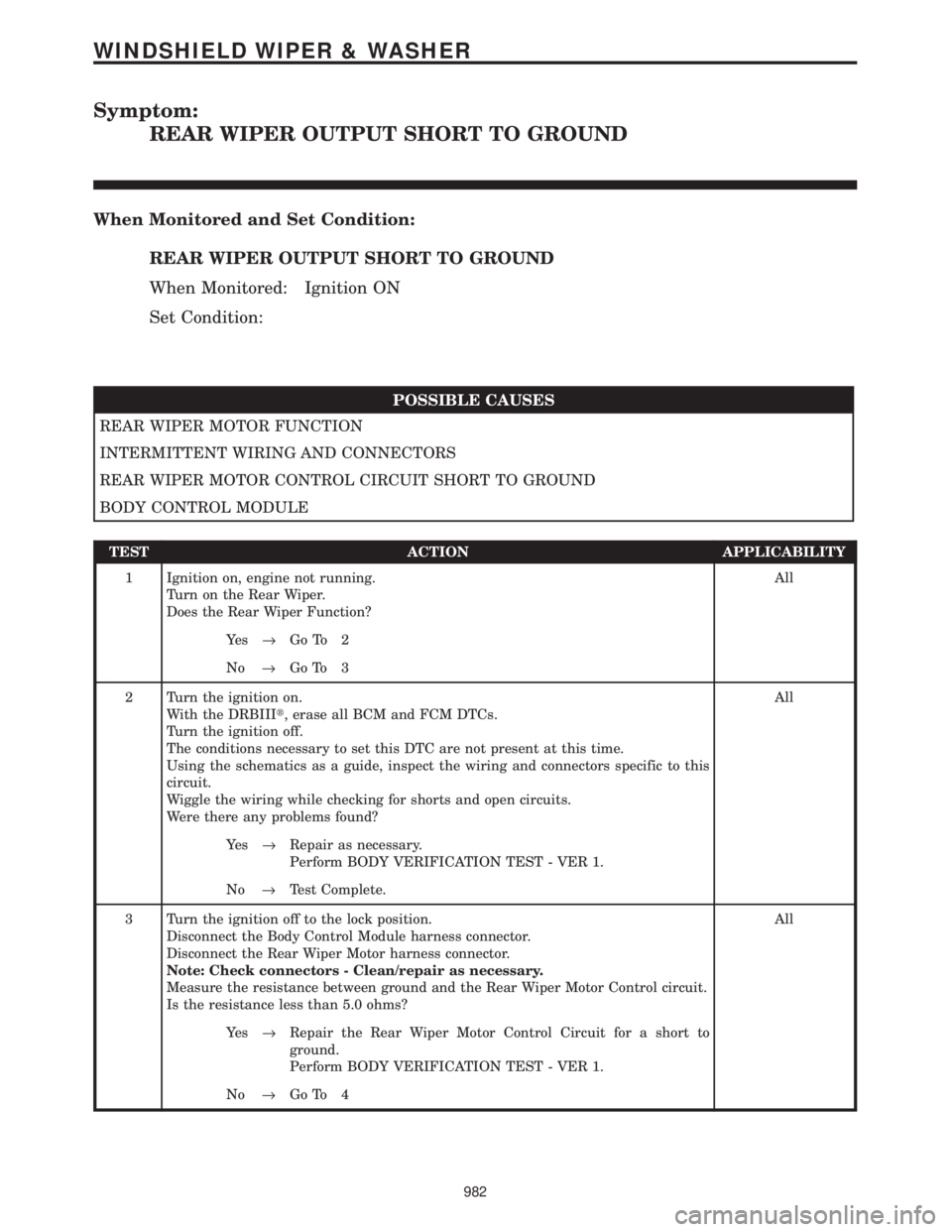

CHRYSLER VOYAGER 2001 Service Manual Symptom:
REAR WIPER OUTPUT SHORT TO GROUND
When Monitored and Set Condition:
REAR WIPER OUTPUT SHORT TO GROUND
When Monitored: Ignition ON
Set Condition:
POSSIBLE CAUSES
REAR WIPER MOTOR FUNCTION
INTE

Page 1012 of 4284

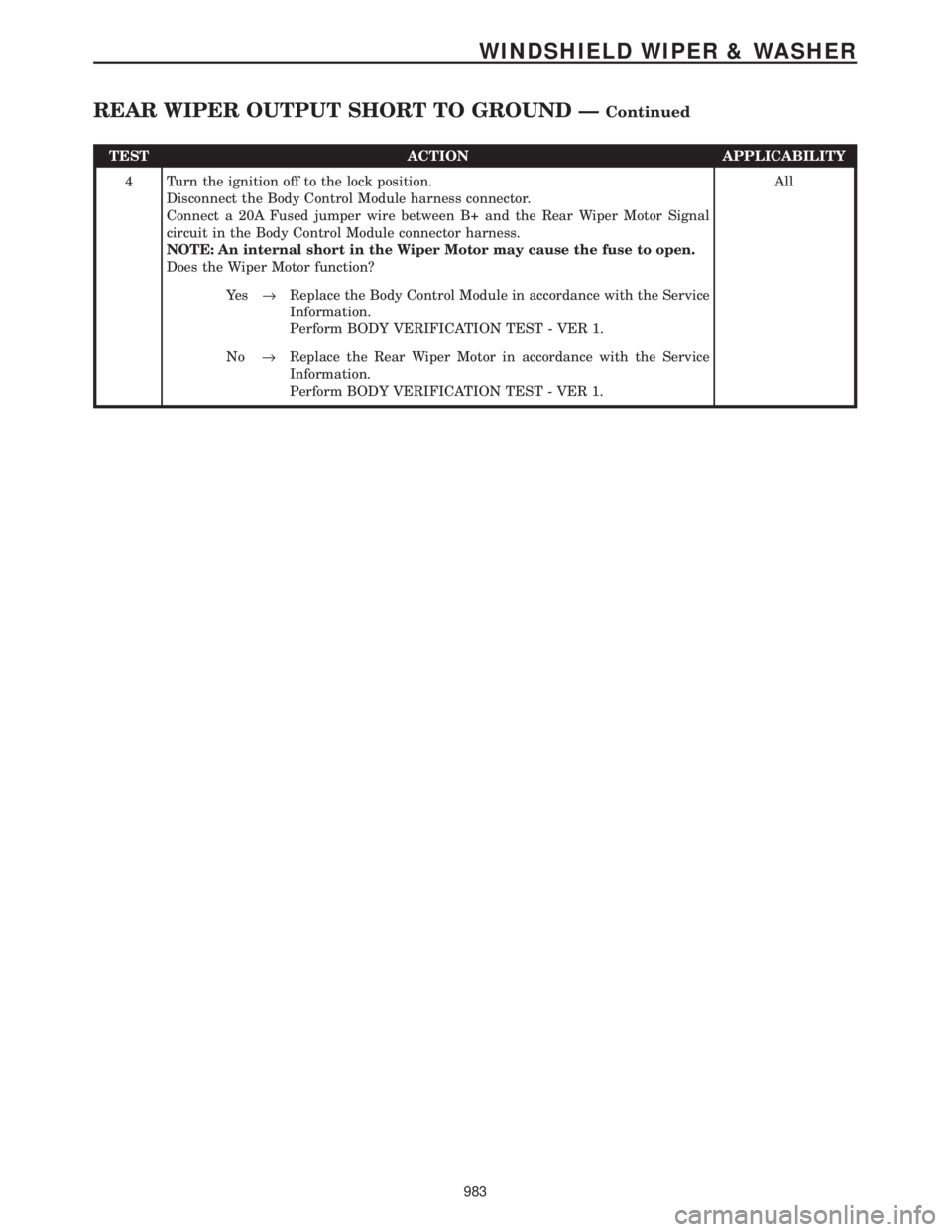

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4 Turn the ignition off to the lock position.
Disconnect the Body Control Module harness connector.
Connect a 20A Fused jumper wire between B+ and the Rear Wiper Motor Signal

Page 1013 of 4284

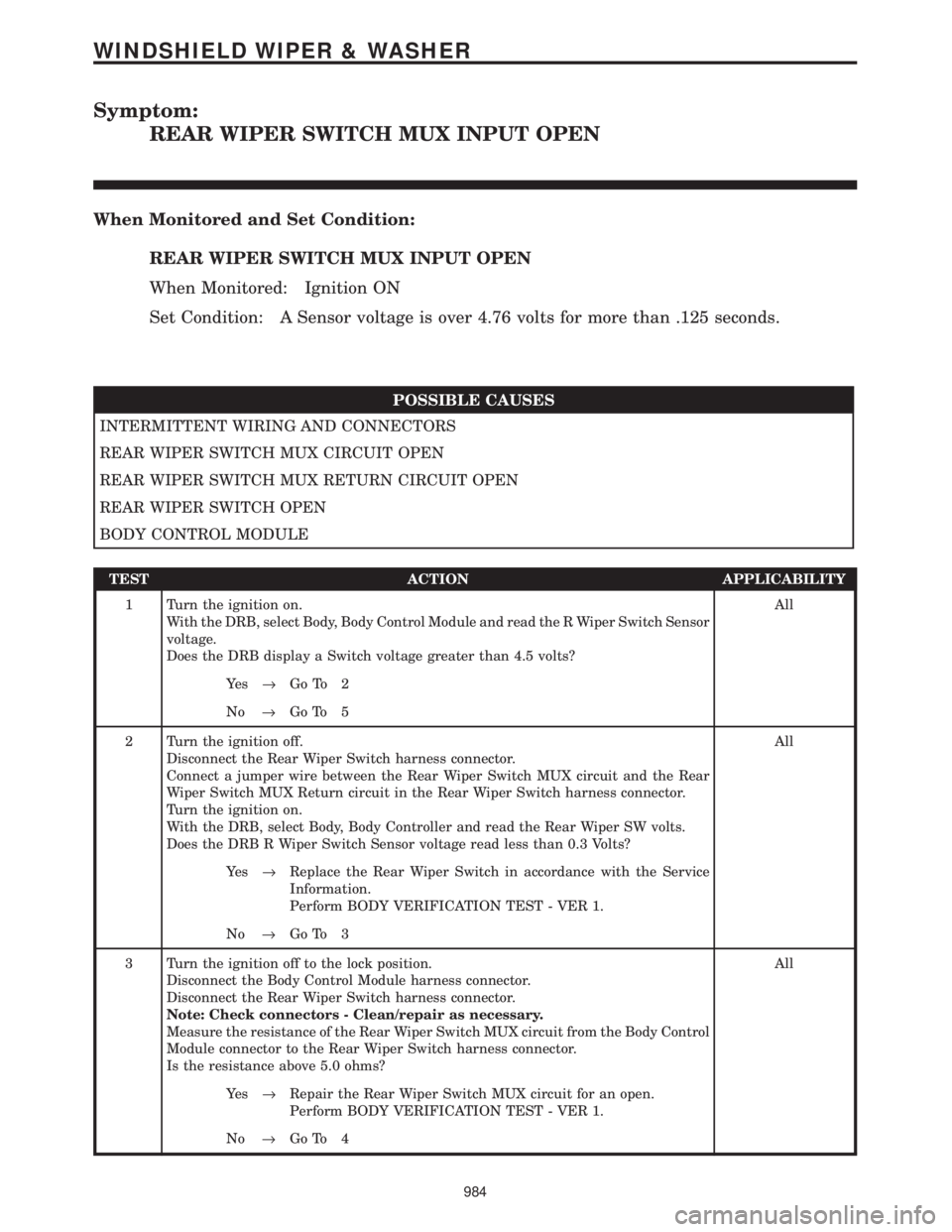

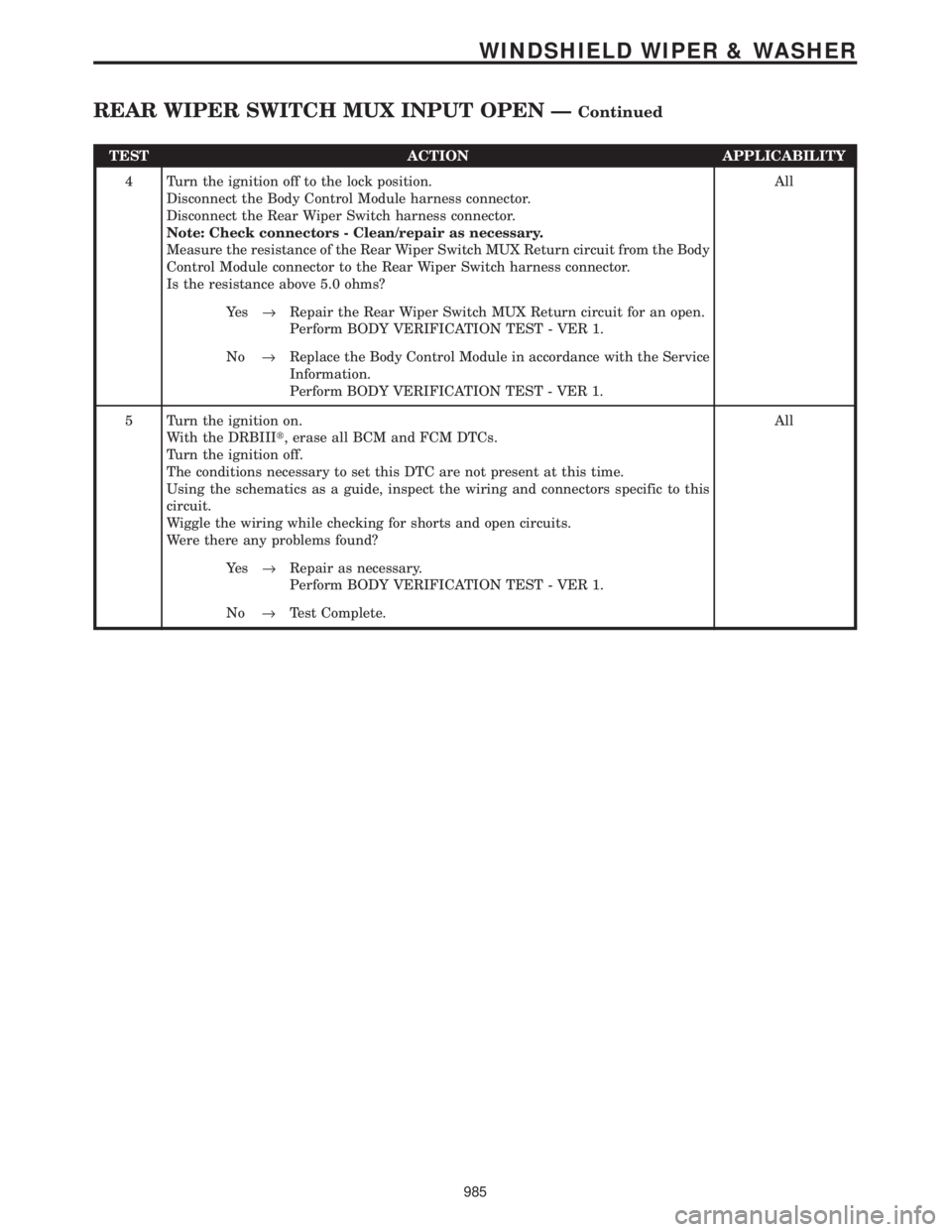

CHRYSLER VOYAGER 2001 Service Manual Symptom:
REAR WIPER SWITCH MUX INPUT OPEN
When Monitored and Set Condition:
REAR WIPER SWITCH MUX INPUT OPEN
When Monitored: Ignition ON
Set Condition: A Sensor voltage is over 4.76 volts for more tha

Page 1014 of 4284

Page 1015 of 4284

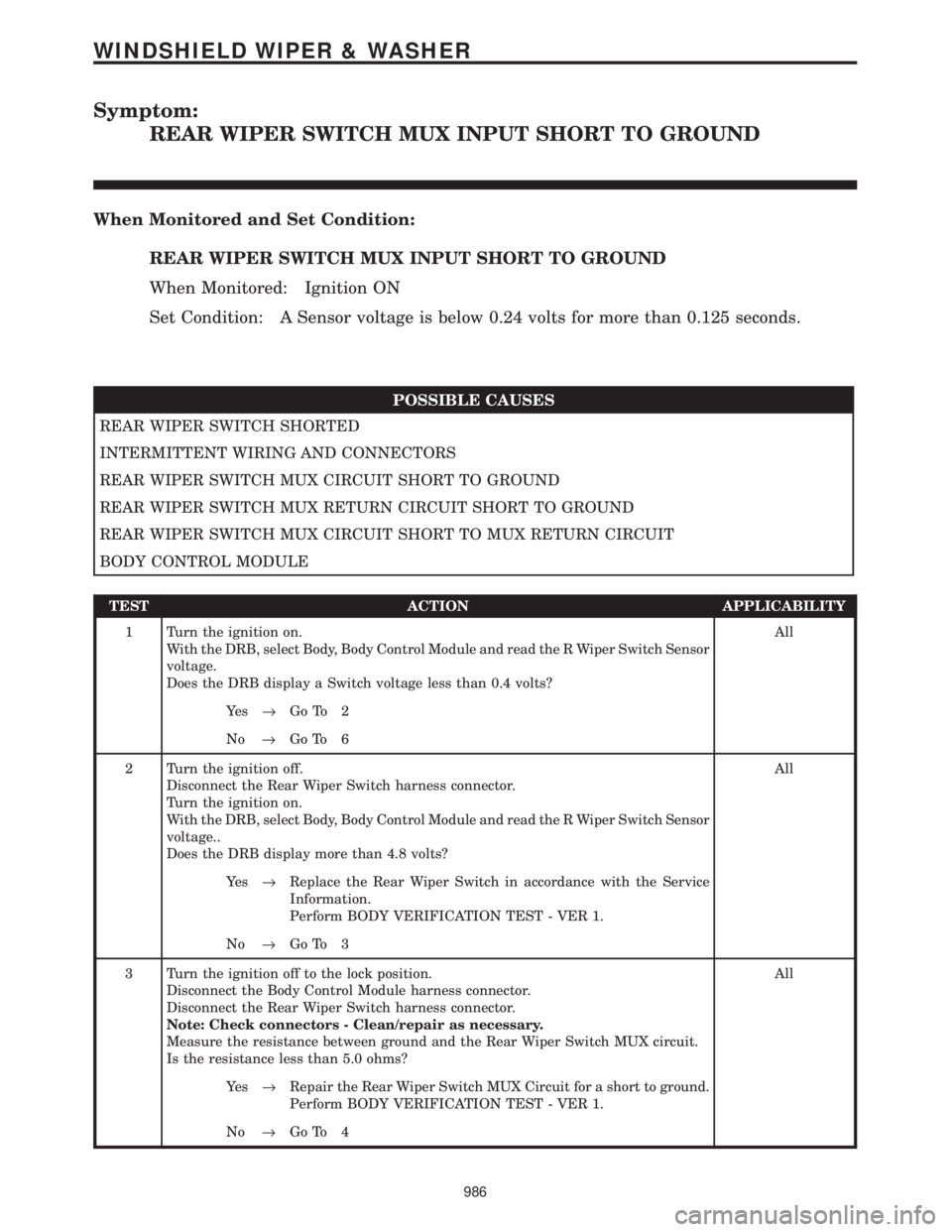

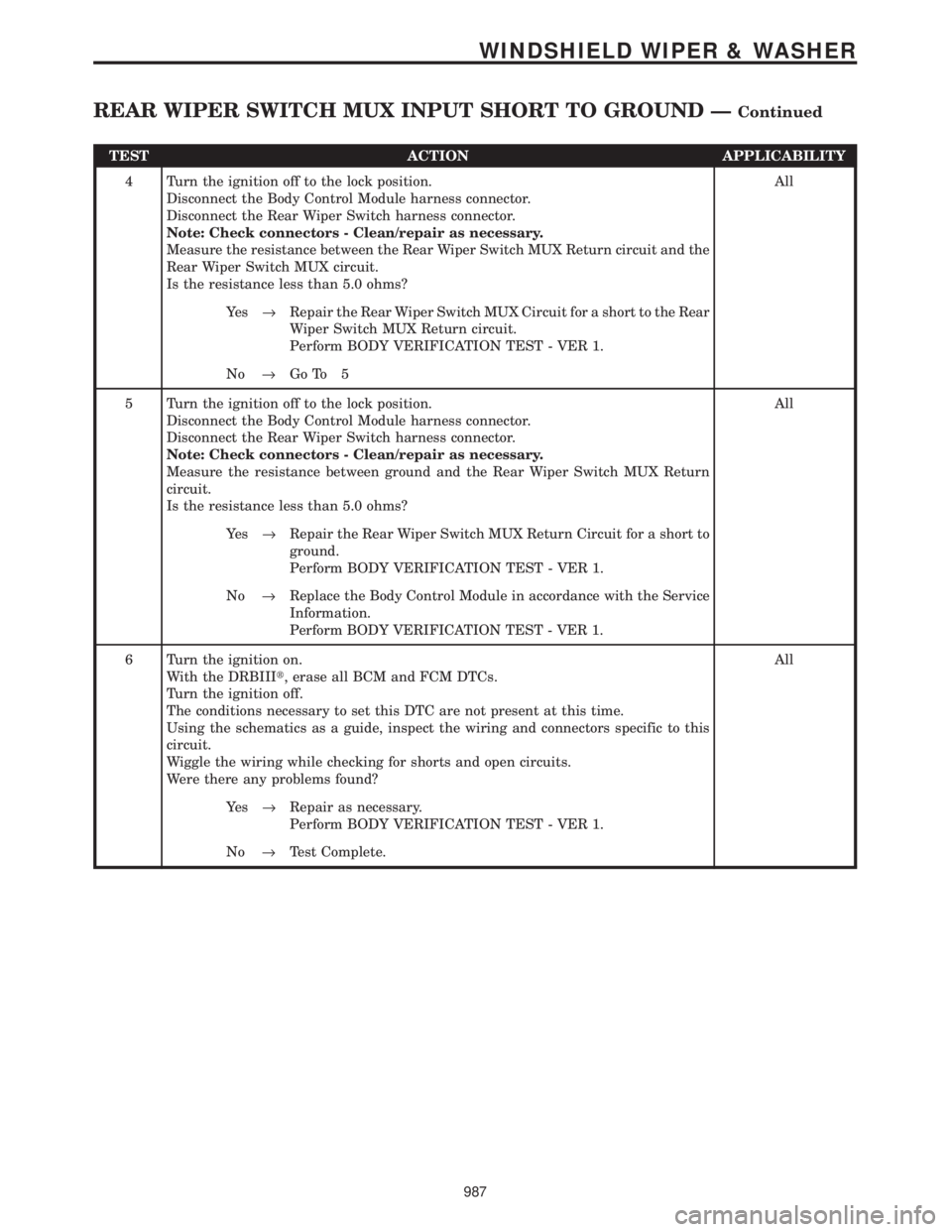

CHRYSLER VOYAGER 2001 Service Manual Symptom:
REAR WIPER SWITCH MUX INPUT SHORT TO GROUND
When Monitored and Set Condition:
REAR WIPER SWITCH MUX INPUT SHORT TO GROUND
When Monitored: Ignition ON
Set Condition: A Sensor voltage is below

Page 1016 of 4284
