Page 2537 of 4284

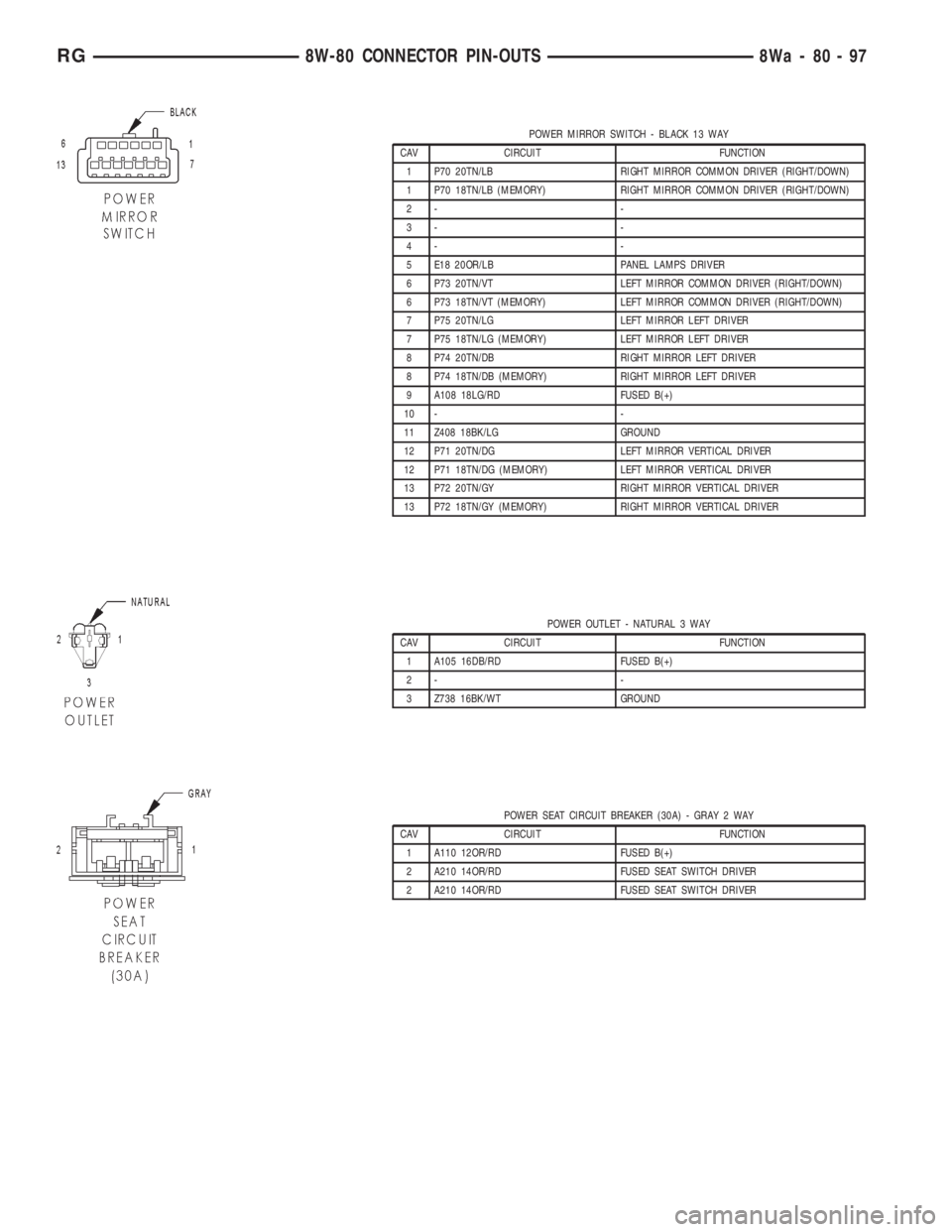

CHRYSLER VOYAGER 2001 Service Manual POWER MIRROR SWITCH - BLACK 13 WAY CAV CIRCUIT FUNCTION 1 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN) 1 P70 18TN/LB (MEMORY) RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN) 2- - 3- - 4- - 5 E18 20OR/L

Page 2538 of 4284

CHRYSLER VOYAGER 2001 Service Manual POWERTRAIN CONTROL MODULE C1 (2.4L/3.3L/3.8L) - GRAY/BLACK 40-WAY CAV CIRCUIT FUNCTION 1- - 2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER 3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER 4- - 5 V32 18V

Page 2539 of 4284

CHRYSLER VOYAGER 2001 Service Manual POWERTRAIN CONTROL MODULE C2 (2.4L/3.3L/3.8L) - GRAY/GRAY 40 WAY CAV CIRCUIT FUNCTION 41 V37 18VT SPEED CONTROL SWITCH SIGNAL 42 C18 18LB/BR A/C PRESSURE SENSOR SIGNAL 43 K900 18DB/DG SENSOR GROUND 44

Page 2540 of 4284

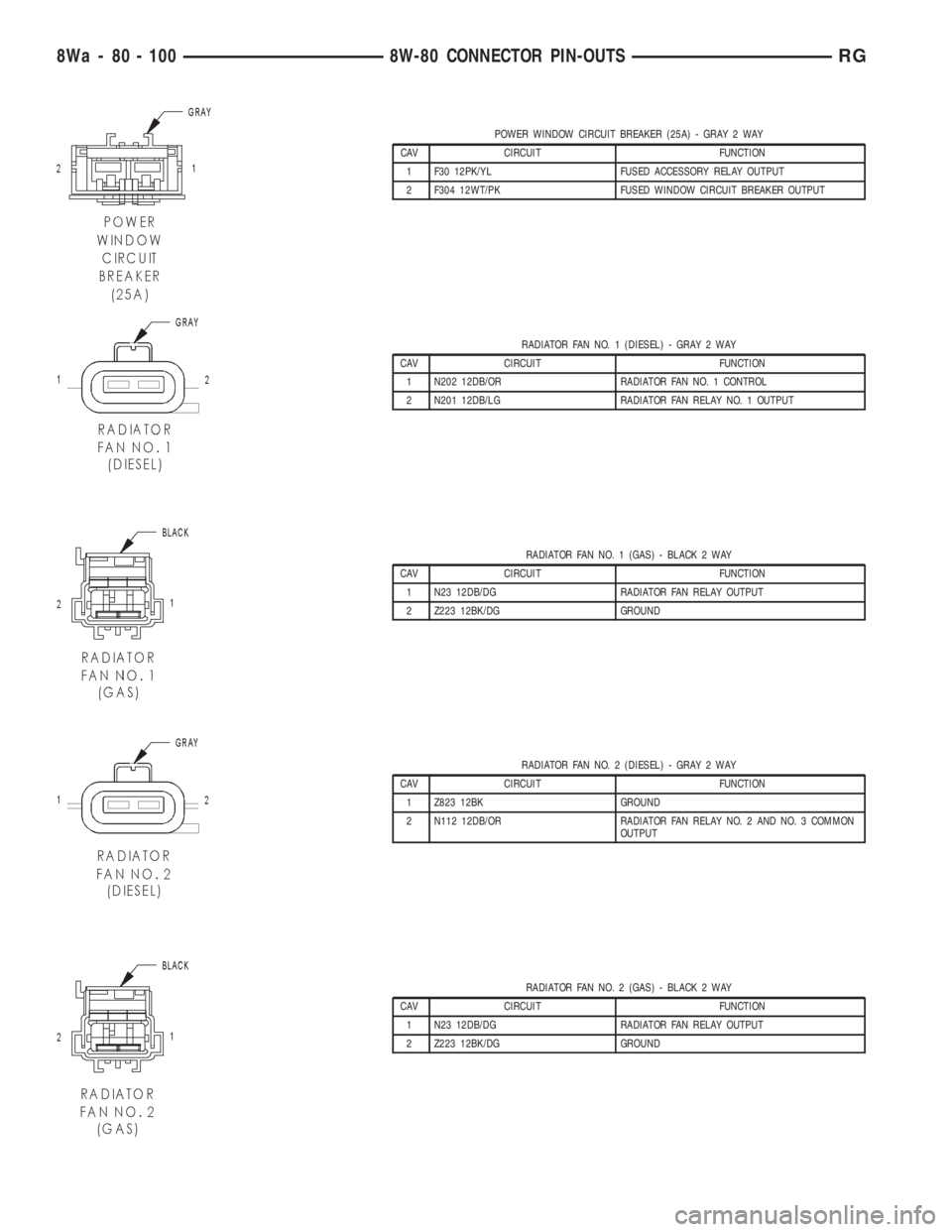

CHRYSLER VOYAGER 2001 Service Manual POWER WINDOW CIRCUIT BREAKER (25A) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 F30 12PK/YL FUSED ACCESSORY RELAY OUTPUT 2 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT RADIATOR FAN NO. 1 (DIESEL) - GRAY 2

Page 2541 of 4284

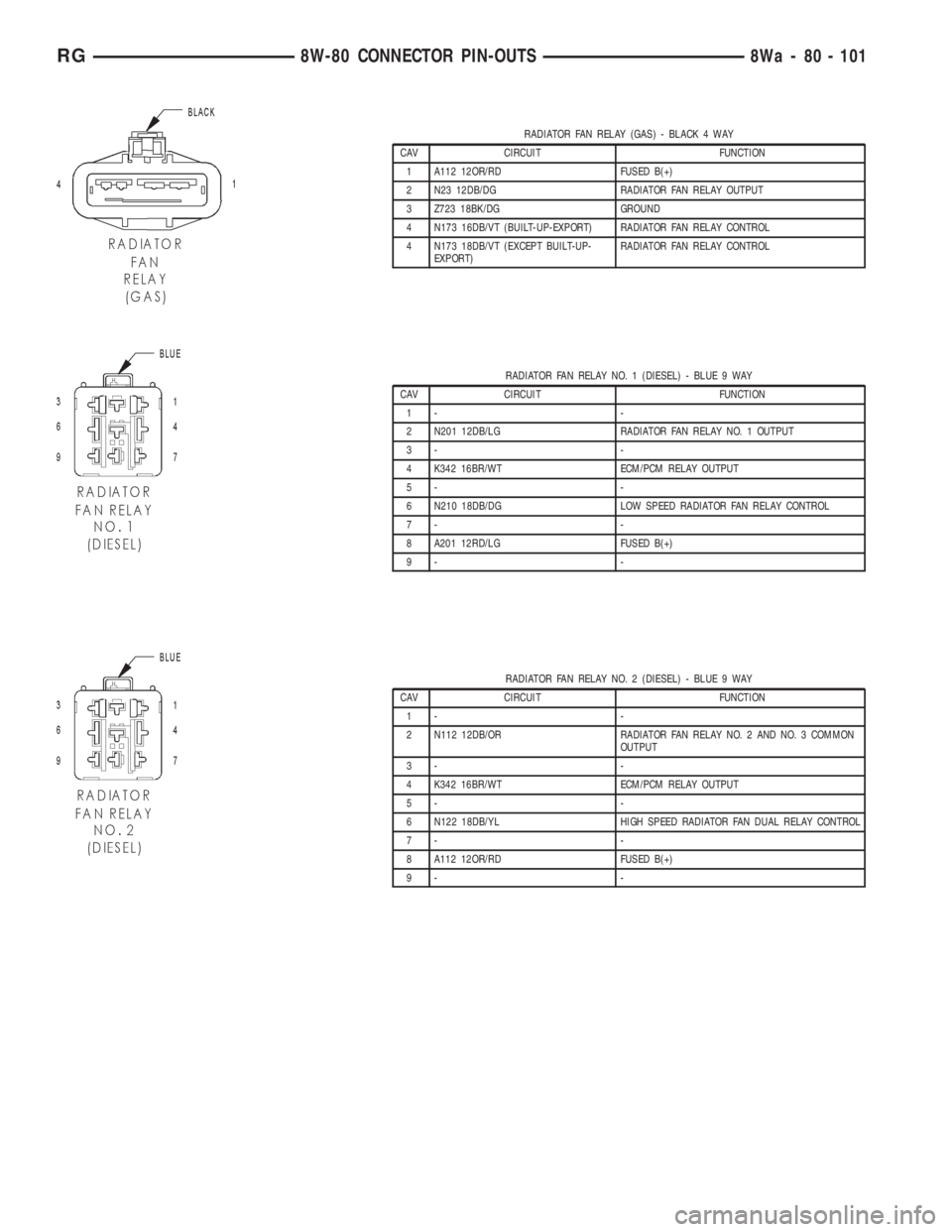

CHRYSLER VOYAGER 2001 Service Manual RADIATOR FAN RELAY (GAS) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 A112 12OR/RD FUSED B(+) 2 N23 12DB/DG RADIATOR FAN RELAY OUTPUT 3 Z723 18BK/DG GROUND 4 N173 16DB/VT (BUILT-UP-EXPORT) RADIATOR FAN RELAY

Page 2542 of 4284

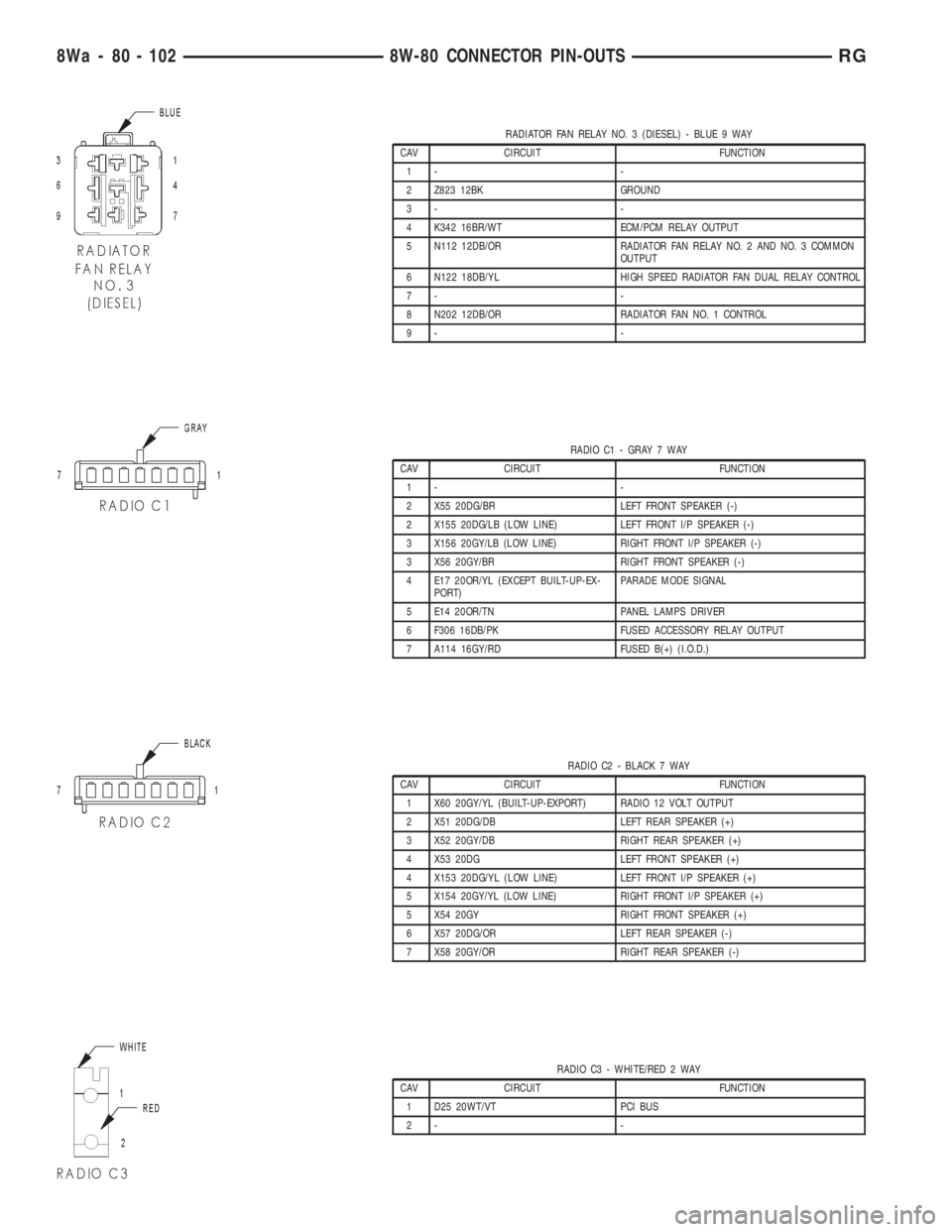

CHRYSLER VOYAGER 2001 Service Manual RADIATOR FAN RELAY NO. 3 (DIESEL) - BLUE 9 WAY CAV CIRCUIT FUNCTION 1- - 2 Z823 12BK GROUND 3- - 4 K342 16BR/WT ECM/PCM RELAY OUTPUT 5 N112 12DB/OR RADIATOR FAN RELAY NO. 2 AND NO. 3 COMMON OUTPUT 6 N

Page 2543 of 4284

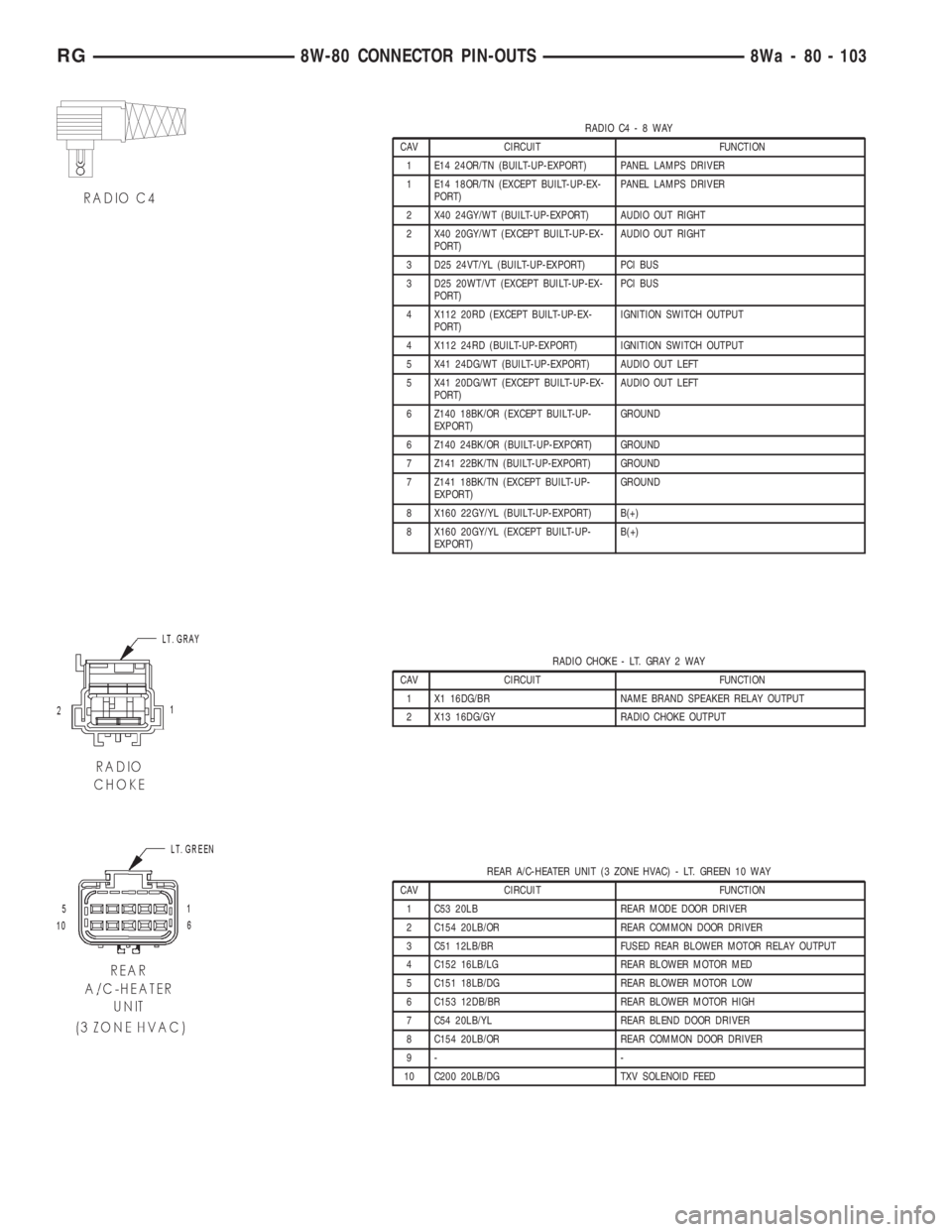

CHRYSLER VOYAGER 2001 Service Manual RADIO C4-8WAY CAV CIRCUIT FUNCTION 1 E14 24OR/TN (BUILT-UP-EXPORT) PANEL LAMPS DRIVER 1 E14 18OR/TN (EXCEPT BUILT-UP-EX- PORT)PANEL LAMPS DRIVER 2 X40 24GY/WT (BUILT-UP-EXPORT) AUDIO OUT RIGHT 2 X40 2

Page 2544 of 4284

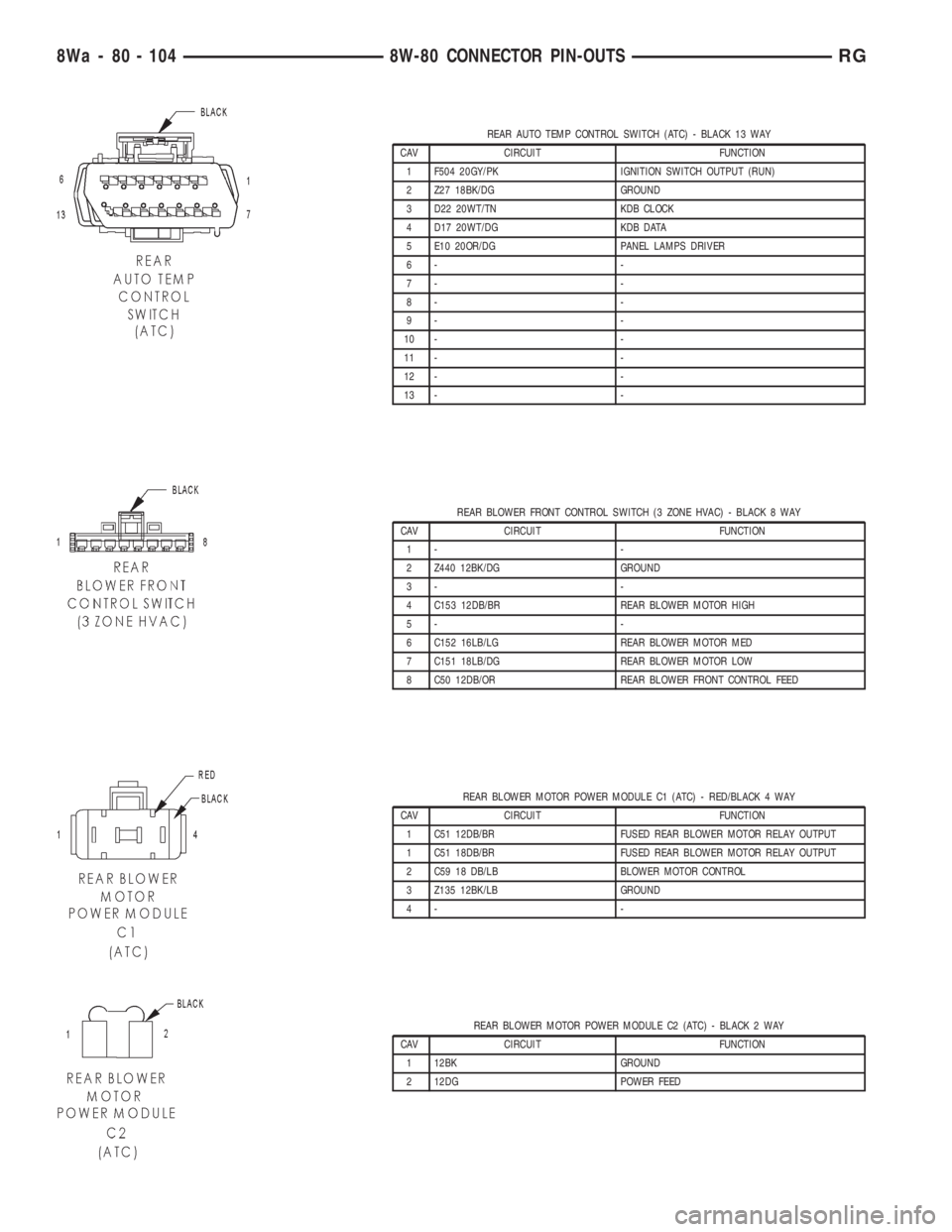

CHRYSLER VOYAGER 2001 Service Manual REAR AUTO TEMP CONTROL SWITCH (ATC) - BLACK 13 WAY CAV CIRCUIT FUNCTION 1 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN) 2 Z27 18BK/DG GROUND 3 D22 20WT/TN KDB CLOCK 4 D17 20WT/DG KDB DATA 5 E10 20OR/DG PA
