Page 3145 of 4284

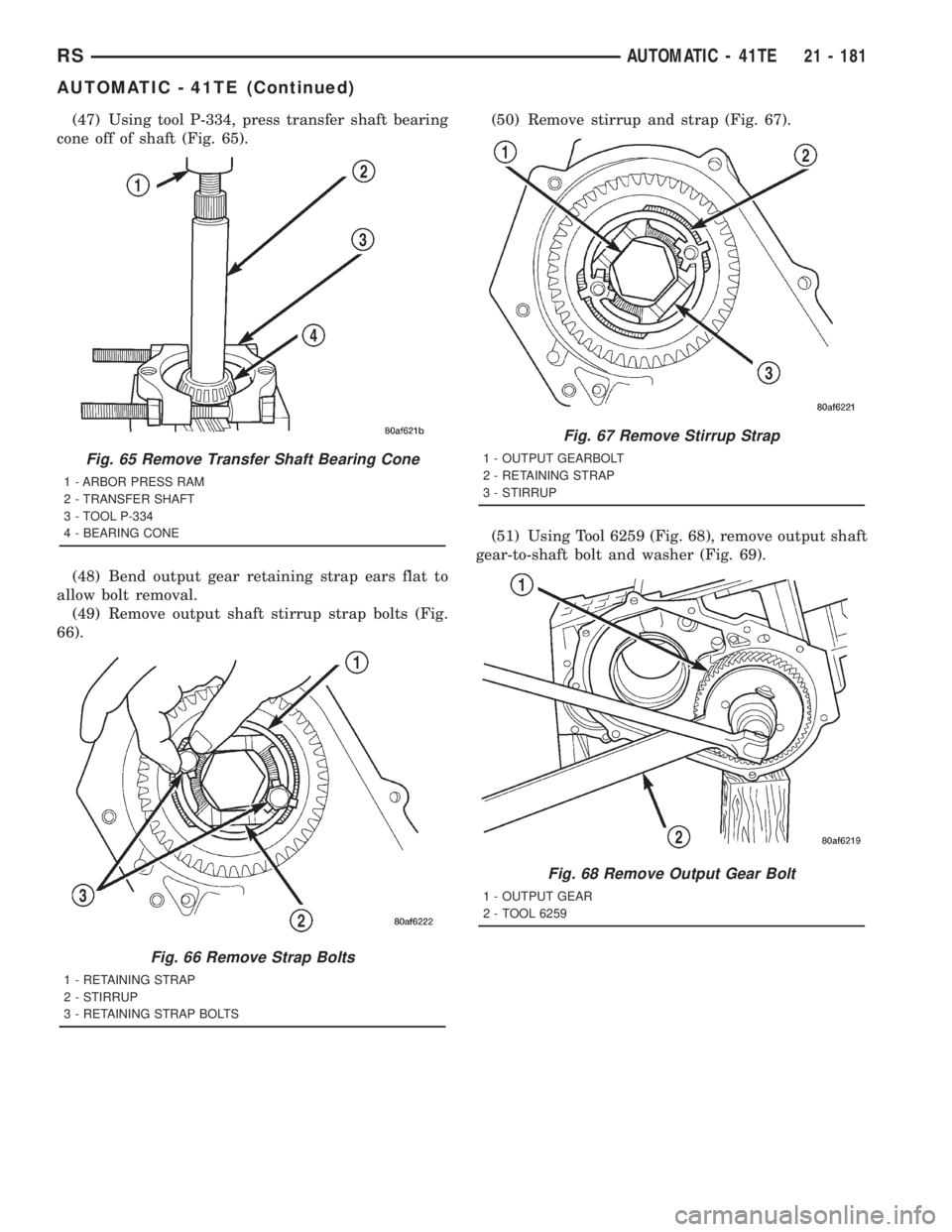

(47) Using tool P-334, press transfer shaft bearing
cone off of shaft (Fig. 65).
(48) Bend output gear retaining strap ears flat to
allow bolt removal.
(49) Remove output shaft stirrup strap bolts (Fig.
66).(50) Remove stirrup and strap (Fig. 67).
(51) Using Tool 6259 (Fig. 68), remove output shaft
gear-to-shaft bolt and washer (Fig. 69).
Fig. 65 Remove Transfer Shaft Bearing Cone
1 - ARBOR PRESS RAM
2 - TRANSFER SHAFT
3 - TOOL P-334
4 - BEARING CONE
Fig. 66 Remove Strap Bolts
1 - RETAINING STRAP
2 - STIRRUP
3 - RETAINING STRAP BOLTS
Fig. 67 Remove Stirrup Strap
1 - OUTPUT GEARBOLT
2 - RETAINING STRAP
3 - STIRRUP
Fig. 68 Remove Output Gear Bolt
1 - OUTPUT GEAR
2 - TOOL 6259
RSAUTOMATIC - 41TE21 - 181
AUTOMATIC - 41TE (Continued)
Page 3146 of 4284

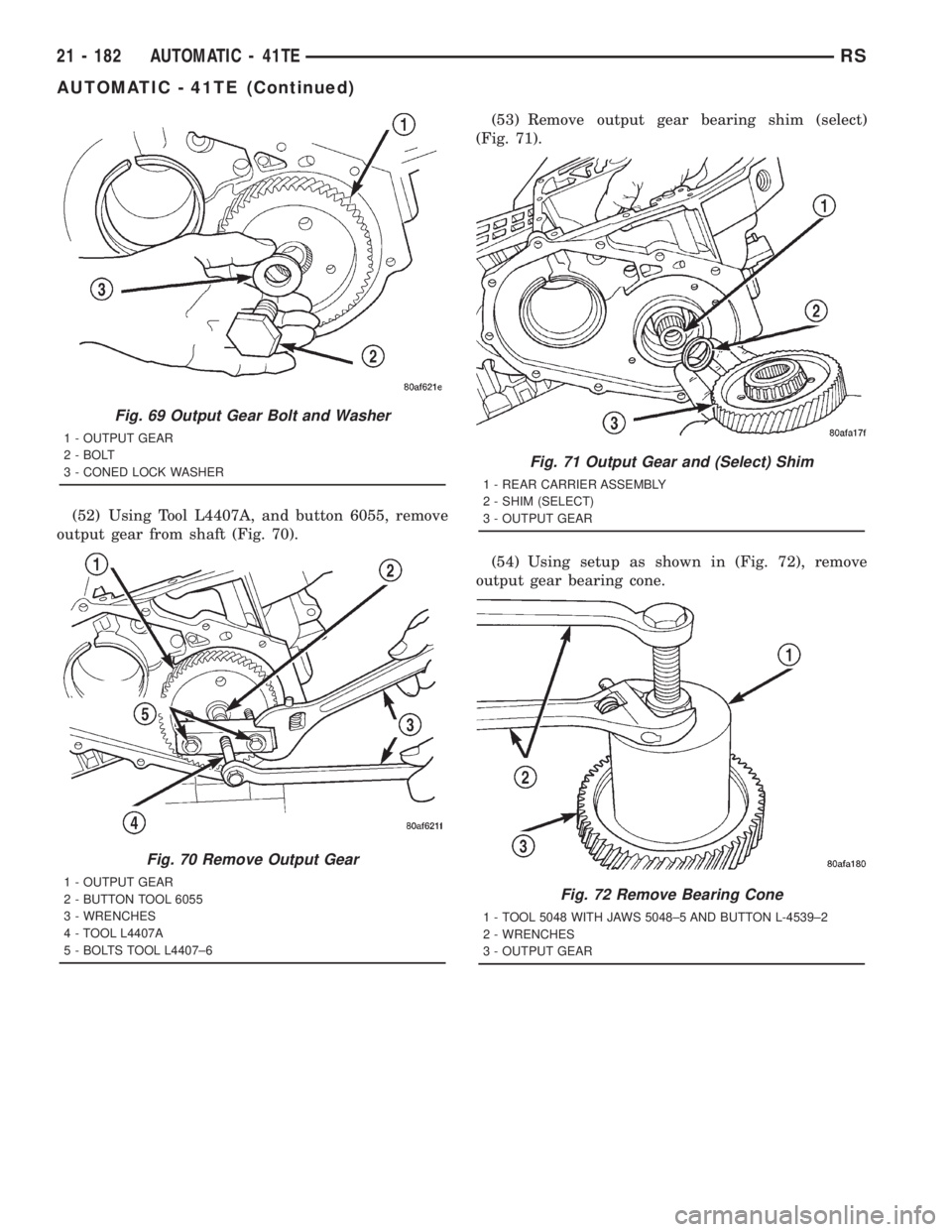

(52) Using Tool L4407A, and button 6055, remove
output gear from shaft (Fig. 70).(53) Remove output gear bearing shim (select)
(Fig. 71).
(54) Using setup as shown in (Fig. 72), remove
output gear bearing cone.
Fig. 69 Output Gear Bolt and Washer
1 - OUTPUT GEAR
2 - BOLT
3 - CONED LOCK WASHER
Fig. 70 Remove Output Gear
1 - OUTPUT GEAR
2 - BUTTON TOOL 6055
3 - WRENCHES
4 - TOOL L4407A
5 - BOLTS TOOL L4407±6
Fig. 71 Output Gear and (Select) Shim
1 - REAR CARRIER ASSEMBLY
2 - SHIM (SELECT)
3 - OUTPUT GEAR
Fig. 72 Remove Bearing Cone
1 - TOOL 5048 WITH JAWS 5048±5 AND BUTTON L-4539±2
2 - WRENCHES
3 - OUTPUT GEAR
21 - 182 AUTOMATIC - 41TERS
AUTOMATIC - 41TE (Continued)
Page 3147 of 4284

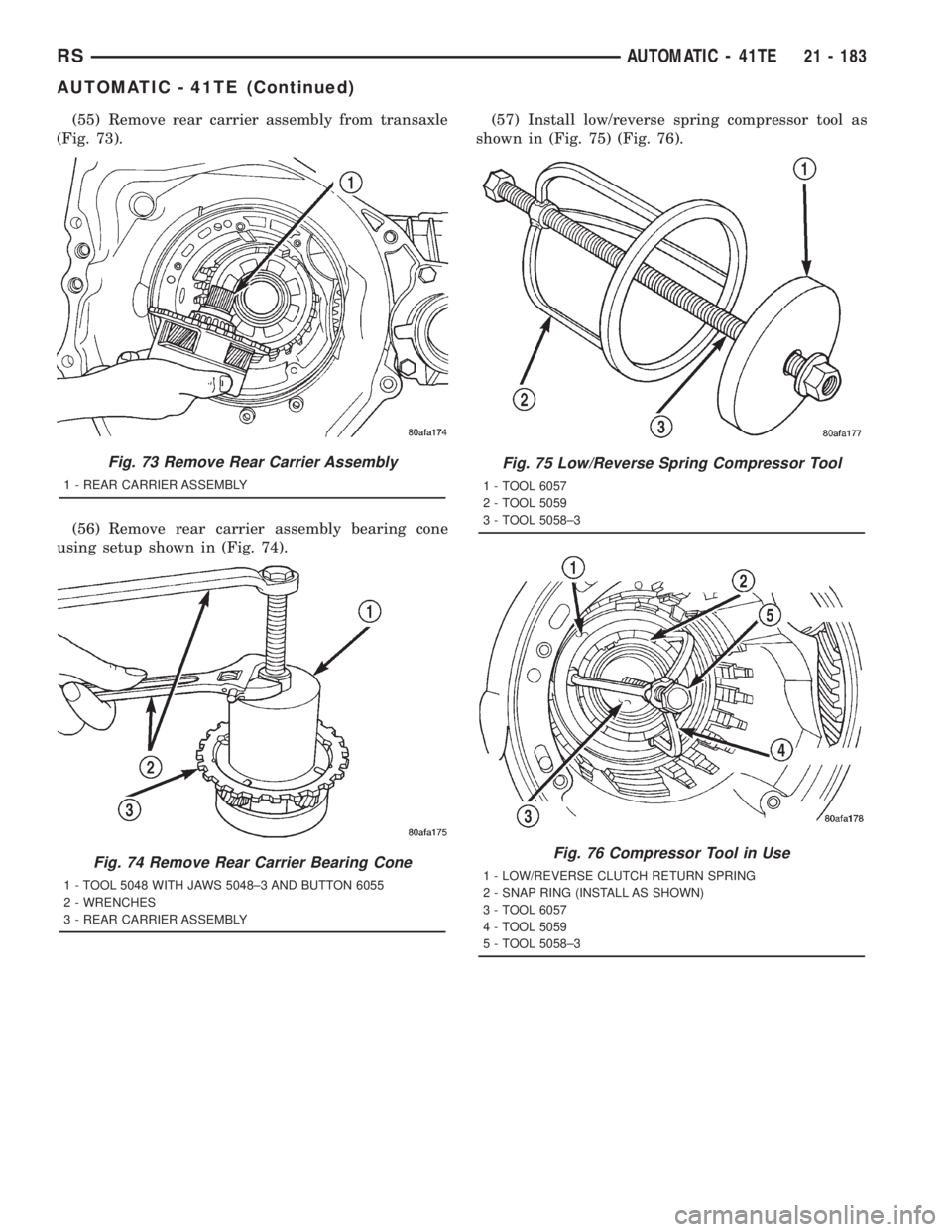

(55) Remove rear carrier assembly from transaxle
(Fig. 73).
(56) Remove rear carrier assembly bearing cone
using setup shown in (Fig. 74).(57) Install low/reverse spring compressor tool as
shown in (Fig. 75) (Fig. 76).
Fig. 73 Remove Rear Carrier Assembly
1 - REAR CARRIER ASSEMBLY
Fig. 74 Remove Rear Carrier Bearing Cone
1 - TOOL 5048 WITH JAWS 5048±3 AND BUTTON 6055
2 - WRENCHES
3 - REAR CARRIER ASSEMBLY
Fig. 75 Low/Reverse Spring Compressor Tool
1 - TOOL 6057
2 - TOOL 5059
3 - TOOL 5058±3
Fig. 76 Compressor Tool in Use
1 - LOW/REVERSE CLUTCH RETURN SPRING
2 - SNAP RING (INSTALL AS SHOWN)
3 - TOOL 6057
4 - TOOL 5059
5 - TOOL 5058±3
RSAUTOMATIC - 41TE21 - 183
AUTOMATIC - 41TE (Continued)
Page 3148 of 4284

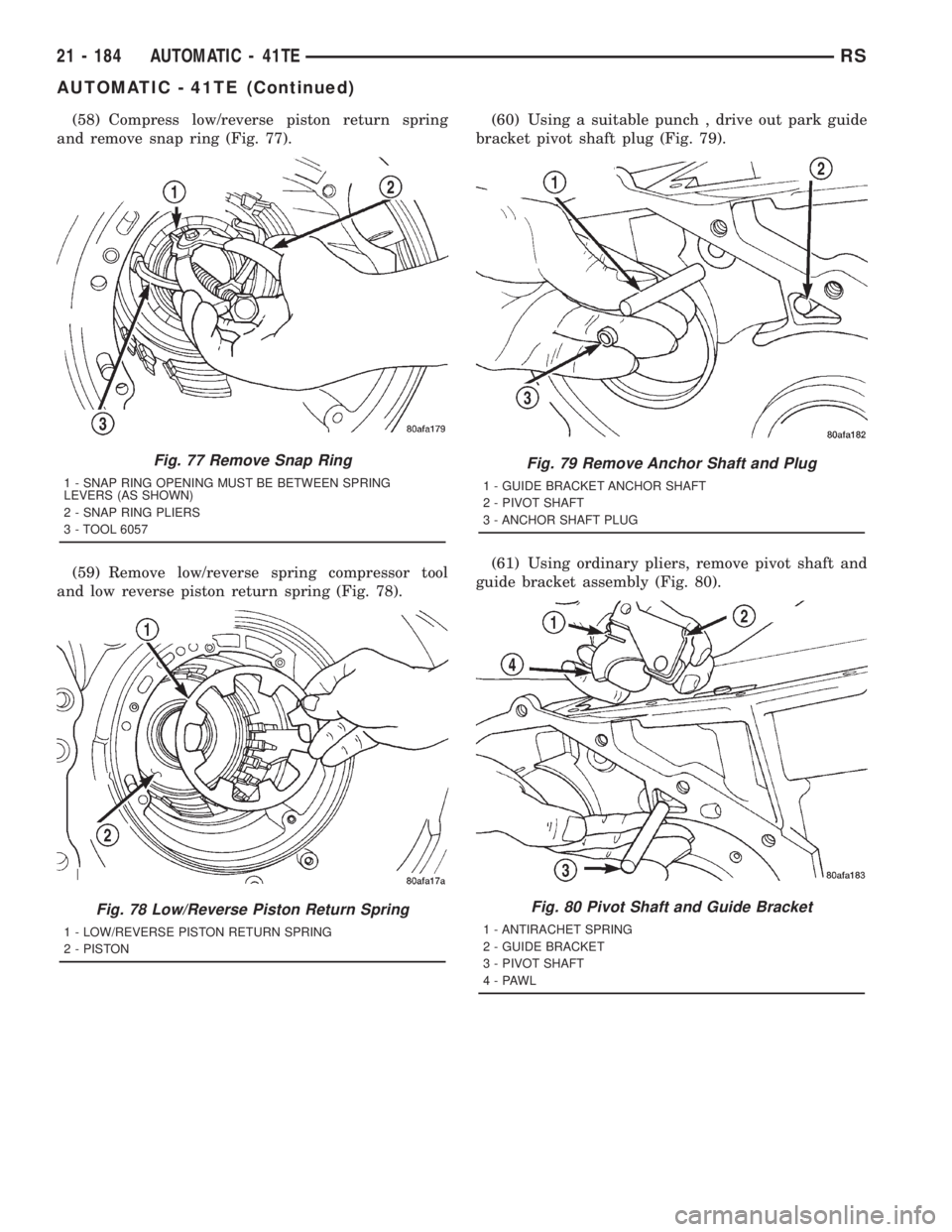

(58) Compress low/reverse piston return spring
and remove snap ring (Fig. 77).
(59) Remove low/reverse spring compressor tool
and low reverse piston return spring (Fig. 78).(60) Using a suitable punch , drive out park guide
bracket pivot shaft plug (Fig. 79).
(61) Using ordinary pliers, remove pivot shaft and
guide bracket assembly (Fig. 80).
Fig. 77 Remove Snap Ring
1 - SNAP RING OPENING MUST BE BETWEEN SPRING
LEVERS (AS SHOWN)
2 - SNAP RING PLIERS
3 - TOOL 6057
Fig. 78 Low/Reverse Piston Return Spring
1 - LOW/REVERSE PISTON RETURN SPRING
2 - PISTON
Fig. 79 Remove Anchor Shaft and Plug
1 - GUIDE BRACKET ANCHOR SHAFT
2 - PIVOT SHAFT
3 - ANCHOR SHAFT PLUG
Fig. 80 Pivot Shaft and Guide Bracket
1 - ANTIRACHET SPRING
2 - GUIDE BRACKET
3 - PIVOT SHAFT
4-PAWL
21 - 184 AUTOMATIC - 41TERS
AUTOMATIC - 41TE (Continued)
Page 3149 of 4284

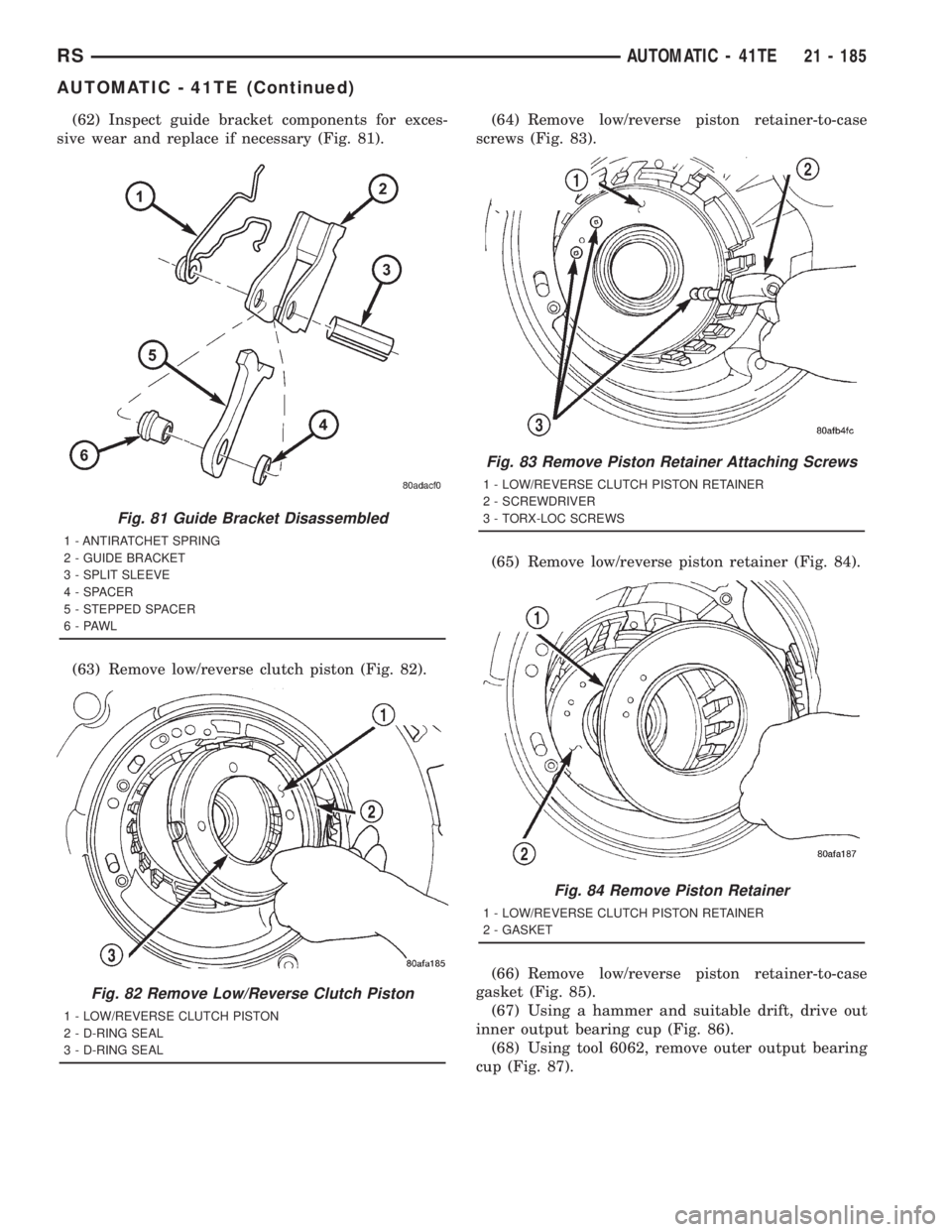

(62) Inspect guide bracket components for exces-
sive wear and replace if necessary (Fig. 81).
(63) Remove low/reverse clutch piston (Fig. 82).(64) Remove low/reverse piston retainer-to-case
screws (Fig. 83).
(65) Remove low/reverse piston retainer (Fig. 84).
(66) Remove low/reverse piston retainer-to-case
gasket (Fig. 85).
(67) Using a hammer and suitable drift, drive out
inner output bearing cup (Fig. 86).
(68) Using tool 6062, remove outer output bearing
cup (Fig. 87).
Fig. 81 Guide Bracket Disassembled
1 - ANTIRATCHET SPRING
2 - GUIDE BRACKET
3 - SPLIT SLEEVE
4 - SPACER
5 - STEPPED SPACER
6-PAWL
Fig. 82 Remove Low/Reverse Clutch Piston
1 - LOW/REVERSE CLUTCH PISTON
2 - D-RING SEAL
3 - D-RING SEAL
Fig. 83 Remove Piston Retainer Attaching Screws
1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - SCREWDRIVER
3 - TORX-LOC SCREWS
Fig. 84 Remove Piston Retainer
1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - GASKET
RSAUTOMATIC - 41TE21 - 185
AUTOMATIC - 41TE (Continued)
Page 3150 of 4284

ASSEMBLY
CAUTION: If transaxle failure has occurred, it is
necessary to flush the transaxle oil cooler and lines
to remove debris and particles that could contami-
nate and/or fail a new or rebuilt unit. (Refer to 7 -
COOLING/TRANSMISSION - STANDARD PROCE-
DURE)CAUTION: The cooler bypass valve must be
replaced if transaxle failure has occurred. Do not
attempt to reuse or clean old valve.
NOTE: If transaxle is being overhauled (clutch
and/or seal replacement), the TCM Quick Learn pro-
cedure must be performed. (Refer to 8 - ELECTRI-
CAL/ELECTRONIC CONTROL MODULES/
TRANSMISSION CONTROL MODULE - STANDARD
PROCEDURE)
(1) Install both output bearing cups using Tool
5050 (Fig. 88).

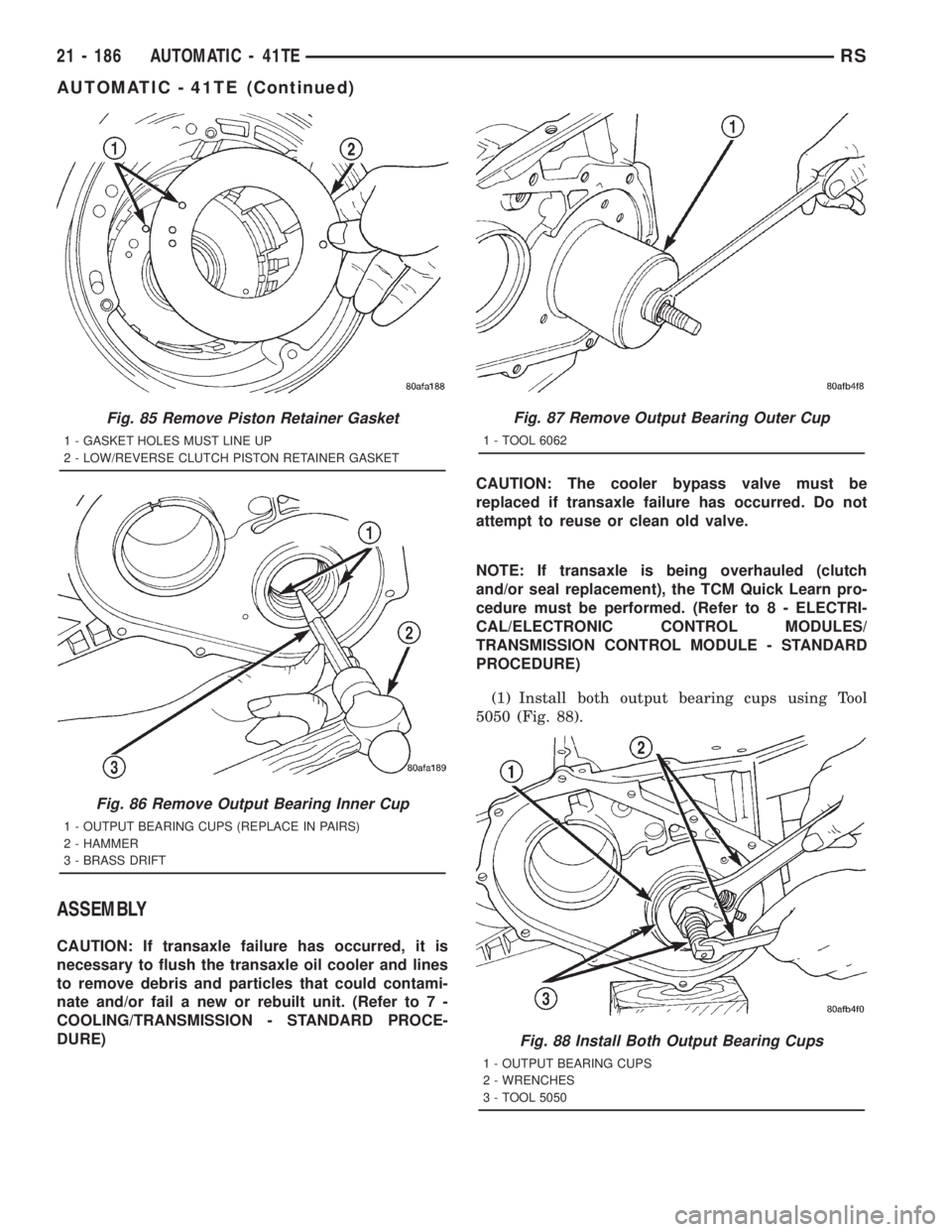

Fig. 85 Remove Piston Retainer Gasket
1 - GASKET HOLES MUST LINE UP
2 - LOW/REVERSE CLUTCH PISTON RETAINER GASKET
Fig. 86 Remove Output Bearing Inner Cup
1 - OUTPUT BEARING CUPS (REPLACE IN PAIRS)
2 - HAMMER
3 - BRASS DRIFT
Fig. 87 Remove Output Bearing Outer Cup
1 - TOOL 6062
Fig. 88 Install Both Output Bearing Cups
1 - OUTPUT BEARING CUPS
2 - WRENCHES
3 - TOOL 5050
21 - 186 AUTOMATIC - 41TERS
AUTOMATIC - 41TE (Continued)
Page 3151 of 4284
(2) Install low/reverse piston retainer gasket (Fig.
89). Make sure gasket holes line up with case.
(3) Install low/reverse piston retainer (Fig. 90).(4) Install low/reverse piston retainer-to-case bolts
(Fig. 91) and torque to 5 N´m (45 in. lbs.).
(5) Install low/reverse clutch piston (Fig. 92).
Fig. 89 Install Piston Retainer Gasket
1 - GASKET HOLES MUST LINE UP
2 - LOW/REVERSE CLUTCH PISTON RETAINER GASKET
Fig. 90 Install Piston Retainer
1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - GASKET
Fig. 91 Install Piston Retainer Attaching Screws
1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - SCREWDRIVER
3 - TORX-LOC SCREWS
Fig. 92 Install Low/Reverse Clutch Piston
1 - LOW/REVERSE CLUTCH PISTON
2 - D-RING SEAL
3 - D-RING SEAL
RSAUTOMATIC - 41TE21 - 187
AUTOMATIC - 41TE (Continued)
Page 3152 of 4284

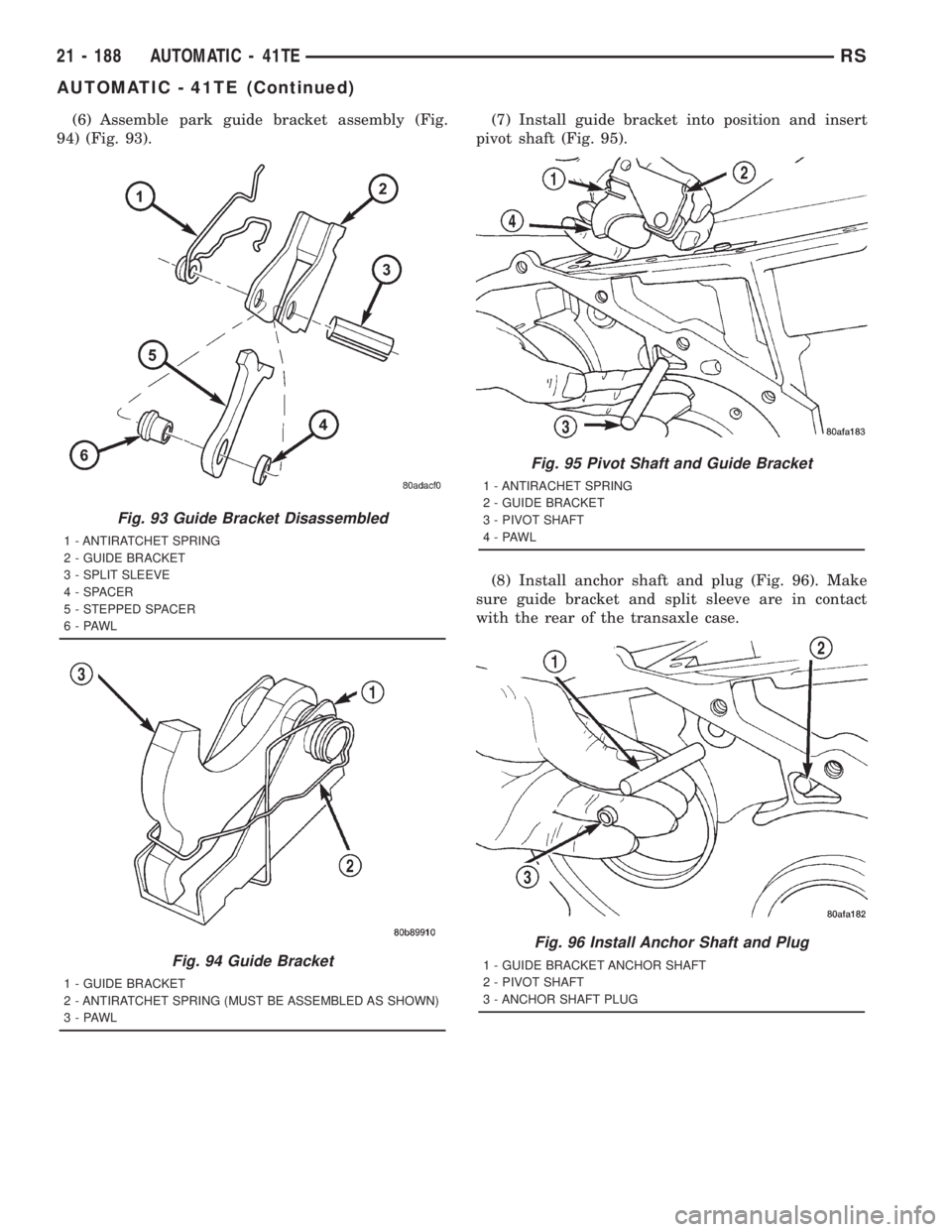

(6) Assemble park guide bracket assembly (Fig.
94) (Fig. 93).(7) Install guide bracket into position and insert
pivot shaft (Fig. 95).
(8) Install anchor shaft and plug (Fig. 96). Make
sure guide bracket and split sleeve are in contact
with the rear of the transaxle case.
Fig. 93 Guide Bracket Disassembled
1 - ANTIRATCHET SPRING
2 - GUIDE BRACKET
3 - SPLIT SLEEVE
4 - SPACER
5 - STEPPED SPACER
6-PAWL
Fig. 94 Guide Bracket
1 - GUIDE BRACKET
2 - ANTIRATCHET SPRING (MUST BE ASSEMBLED AS SHOWN)
3-PAWL
Fig. 95 Pivot Shaft and Guide Bracket
1 - ANTIRACHET SPRING
2 - GUIDE BRACKET
3 - PIVOT SHAFT
4-PAWL
Fig. 96 Install Anchor Shaft and Plug
1 - GUIDE BRACKET ANCHOR SHAFT
2 - PIVOT SHAFT
3 - ANCHOR SHAFT PLUG
21 - 188 AUTOMATIC - 41TERS
AUTOMATIC - 41TE (Continued)
