Page 1177 of 4284

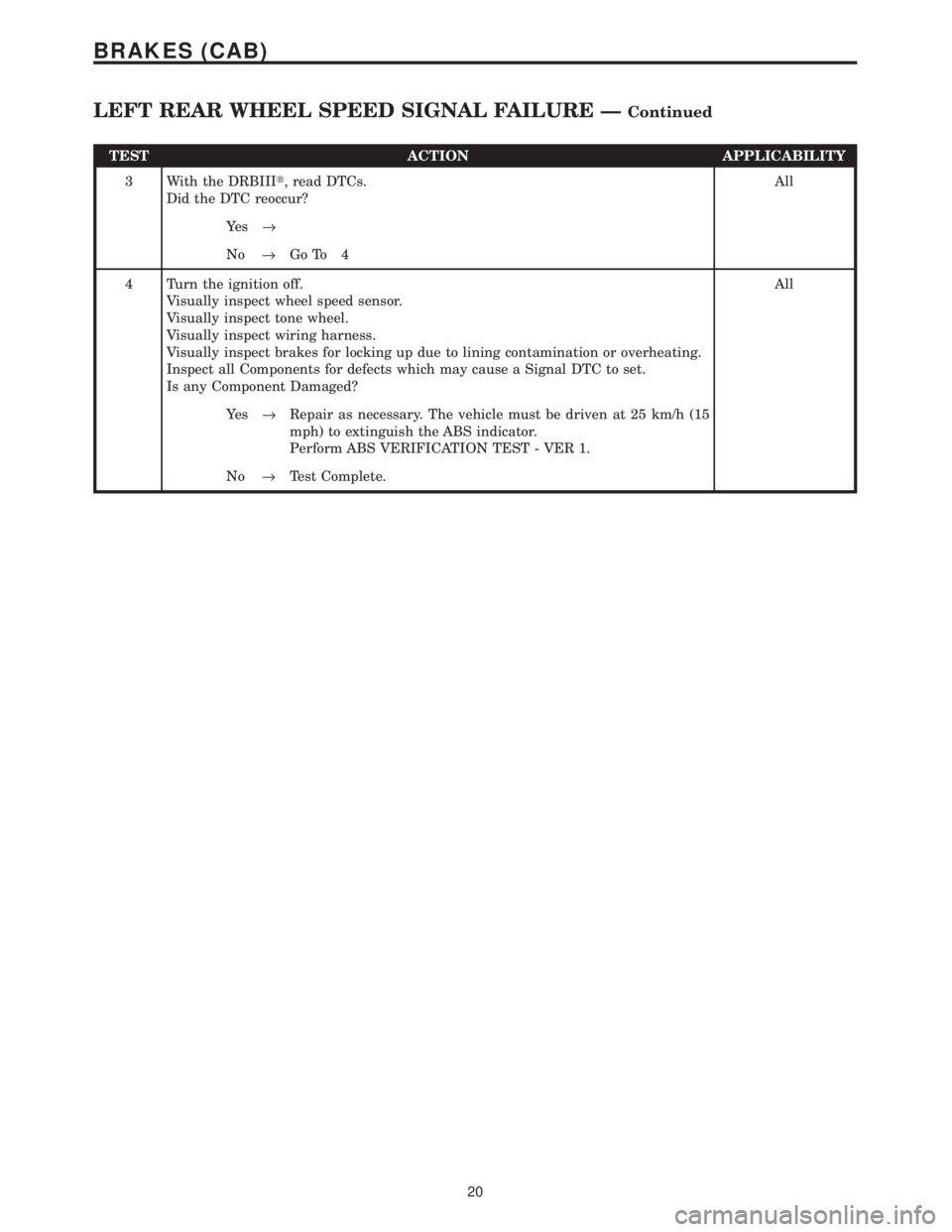

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3 With the DRBIIIt, read DTCs. Did the DTC reoccur?All Ye s® No®Go To 4 4 Turn the ignition off. Visually inspect wheel speed sensor. Visually inspect tone wheel. Visually

Page 1178 of 4284

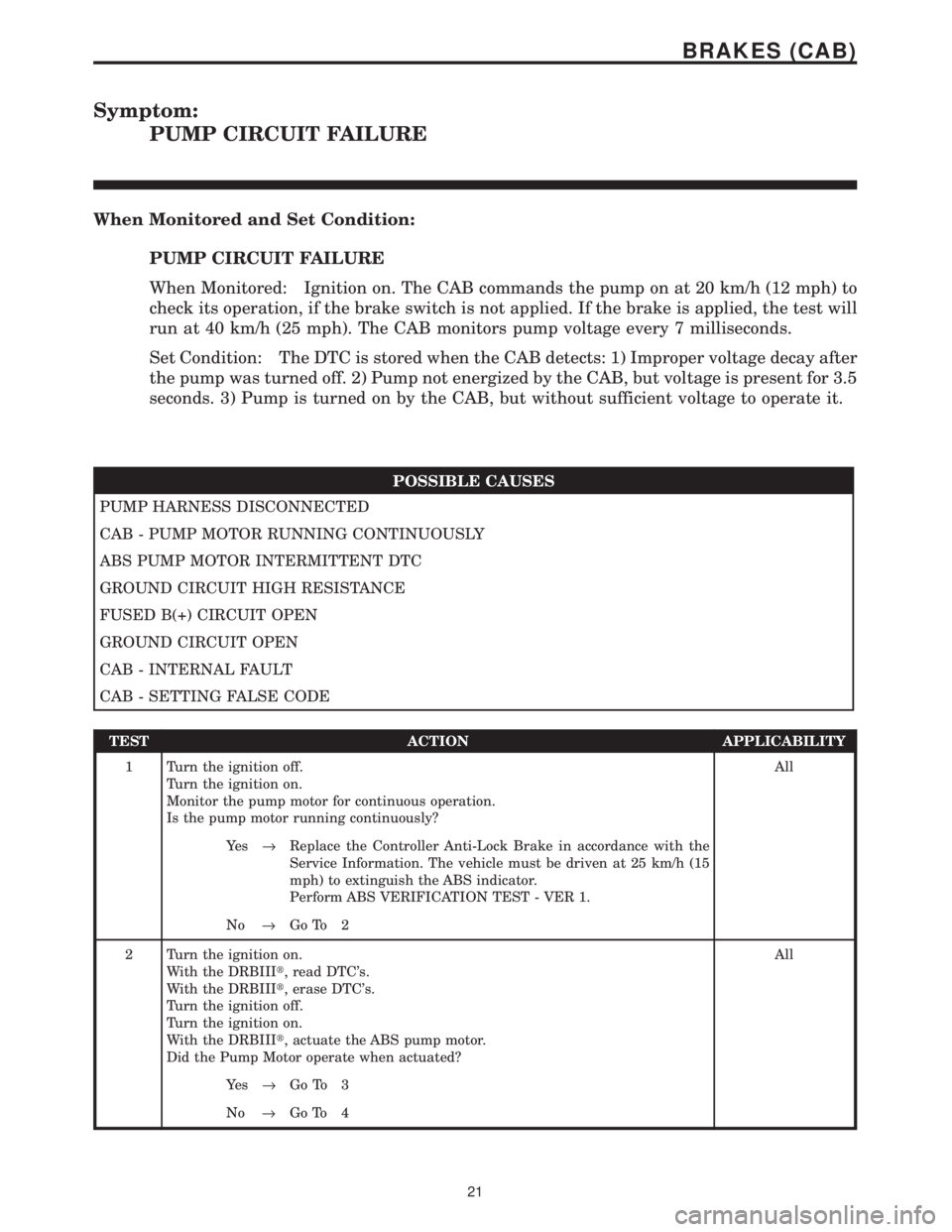

CHRYSLER VOYAGER 2001 Service Manual Symptom: PUMP CIRCUIT FAILURE When Monitored and Set Condition: PUMP CIRCUIT FAILURE When Monitored: Ignition on. The CAB commands the pump on at 20 km/h (12 mph) to check its operation, if the brake

Page 1179 of 4284

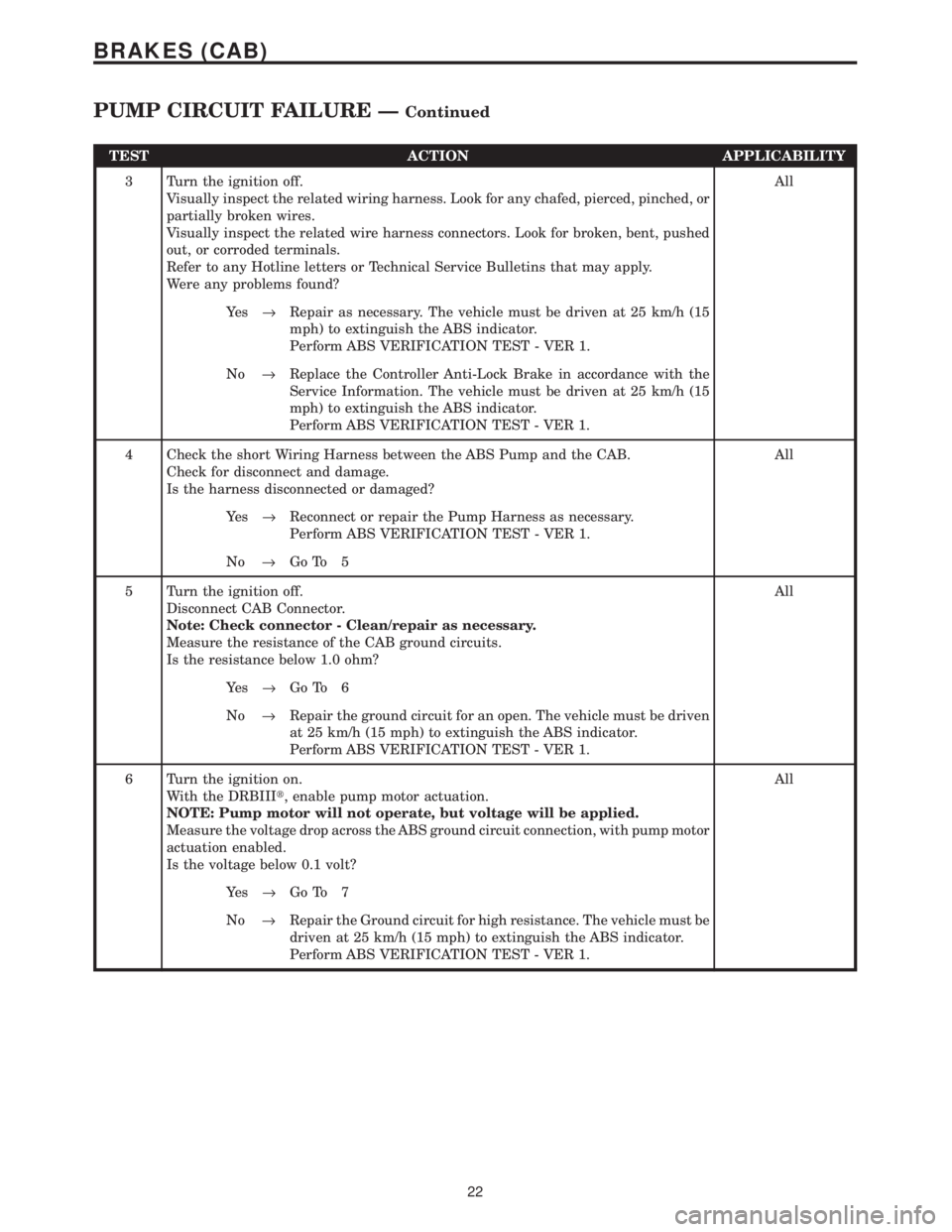

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3 Turn the ignition off. Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or partially broken wires. Visually inspect the related wire harn

Page 1180 of 4284

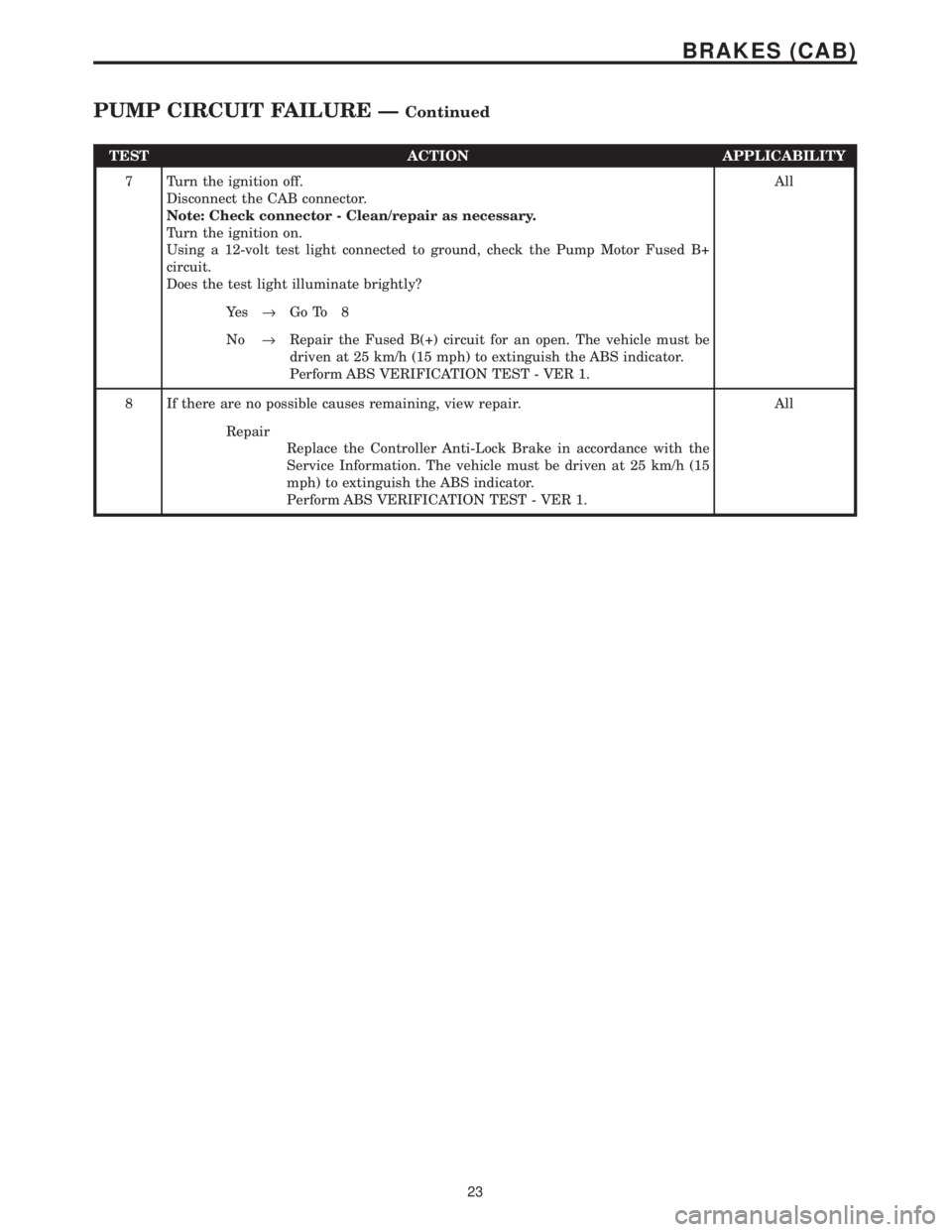

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 7 Turn the ignition off. Disconnect the CAB connector. Note: Check connector - Clean/repair as necessary. Turn the ignition on. Using a 12-volt test light connected to ground

Page 1181 of 4284

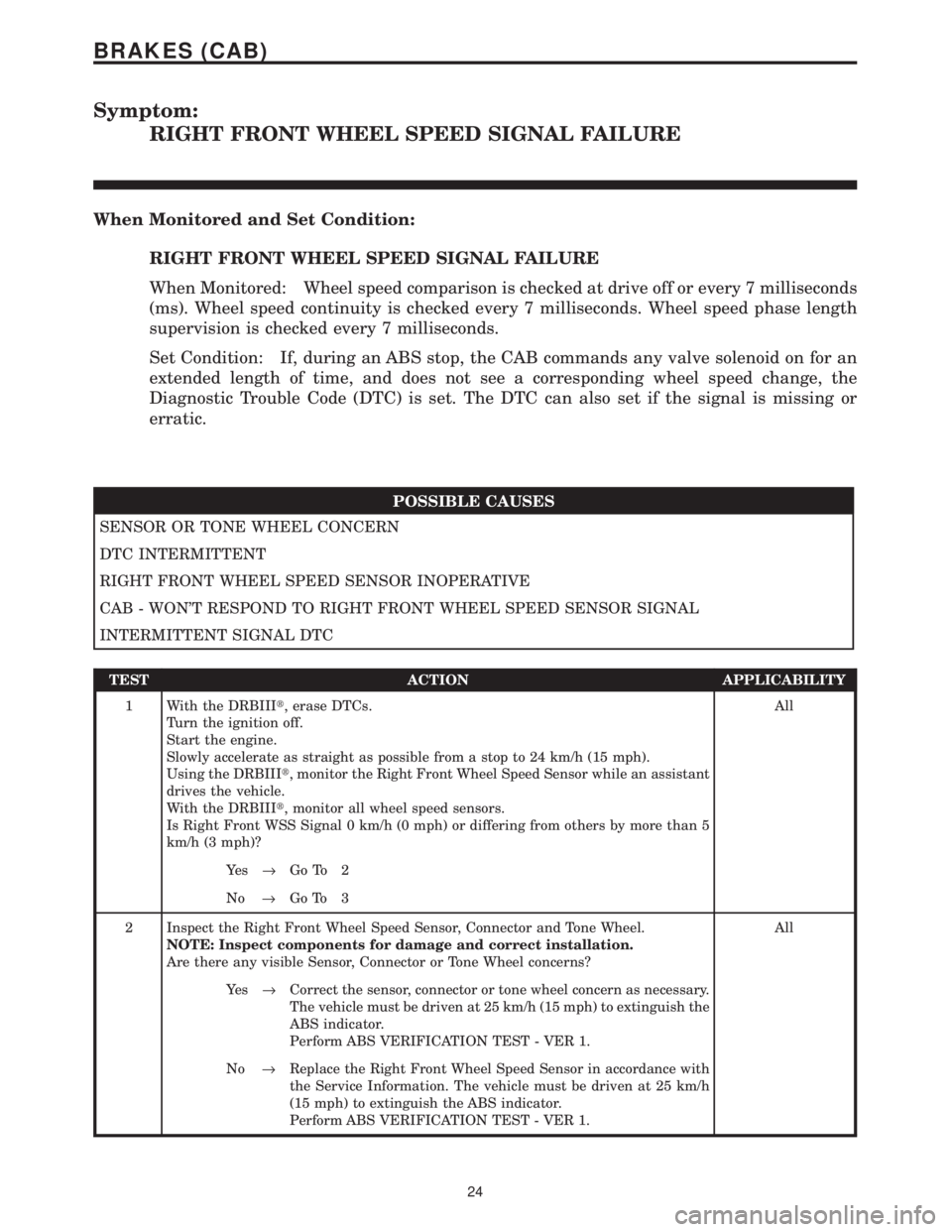

CHRYSLER VOYAGER 2001 Service Manual Symptom: RIGHT FRONT WHEEL SPEED SIGNAL FAILURE When Monitored and Set Condition: RIGHT FRONT WHEEL SPEED SIGNAL FAILURE When Monitored: Wheel speed comparison is checked at drive off or every 7 milli

Page 1182 of 4284

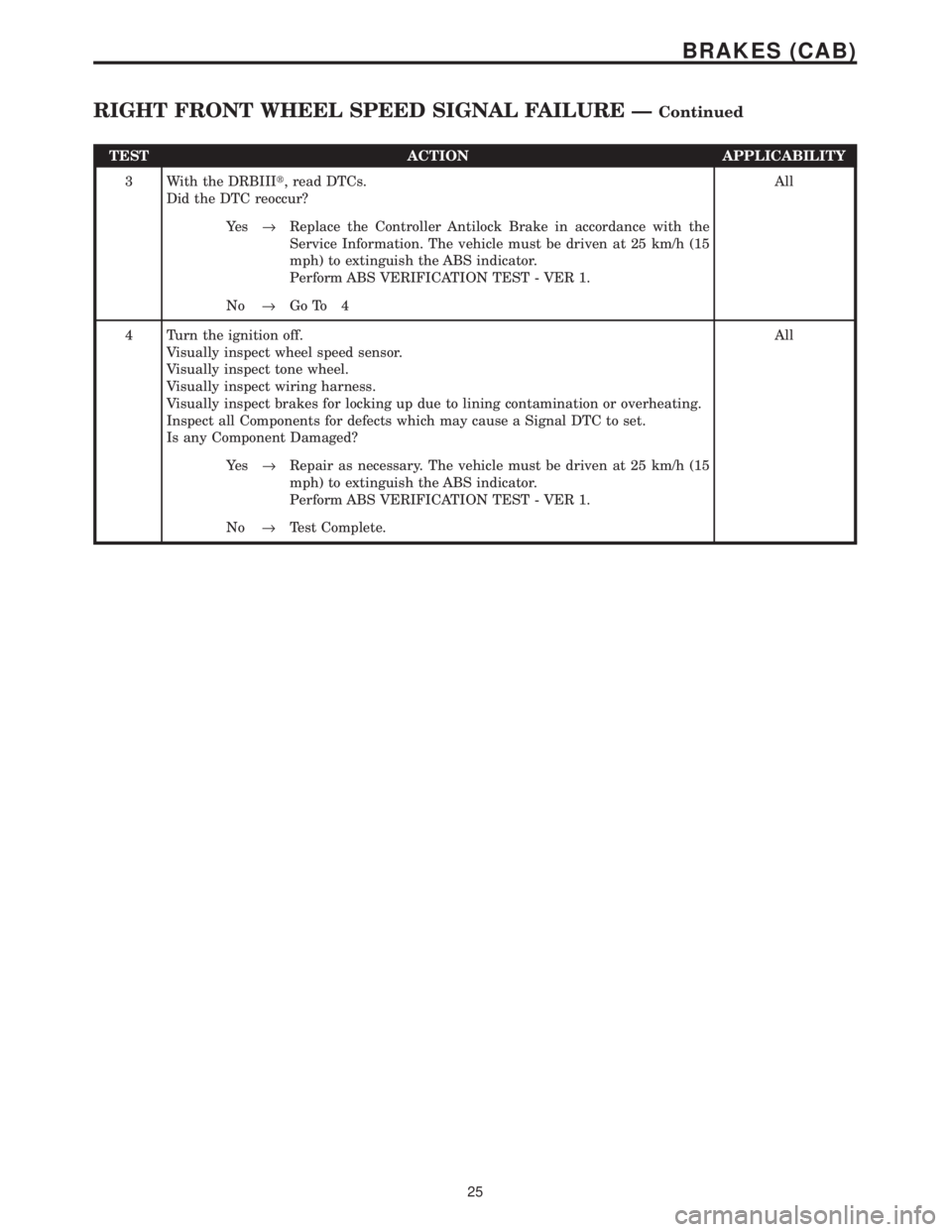

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3 With the DRBIIIt, read DTCs. Did the DTC reoccur?All Ye s®Replace the Controller Antilock Brake in accordance with the Service Information. The vehicle must be driven at 2

Page 1183 of 4284

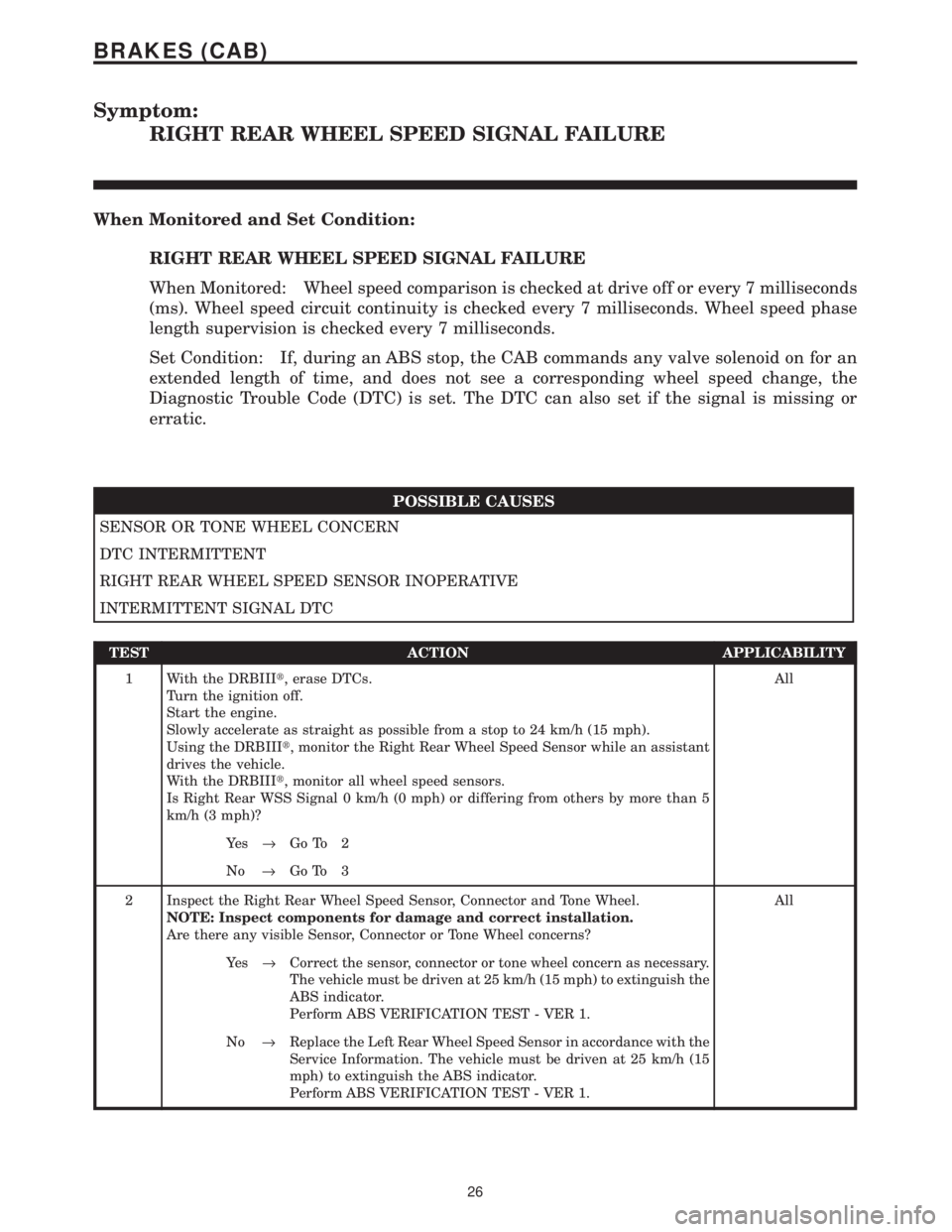

CHRYSLER VOYAGER 2001 Service Manual Symptom: RIGHT REAR WHEEL SPEED SIGNAL FAILURE When Monitored and Set Condition: RIGHT REAR WHEEL SPEED SIGNAL FAILURE When Monitored: Wheel speed comparison is checked at drive off or every 7 millise

Page 1184 of 4284

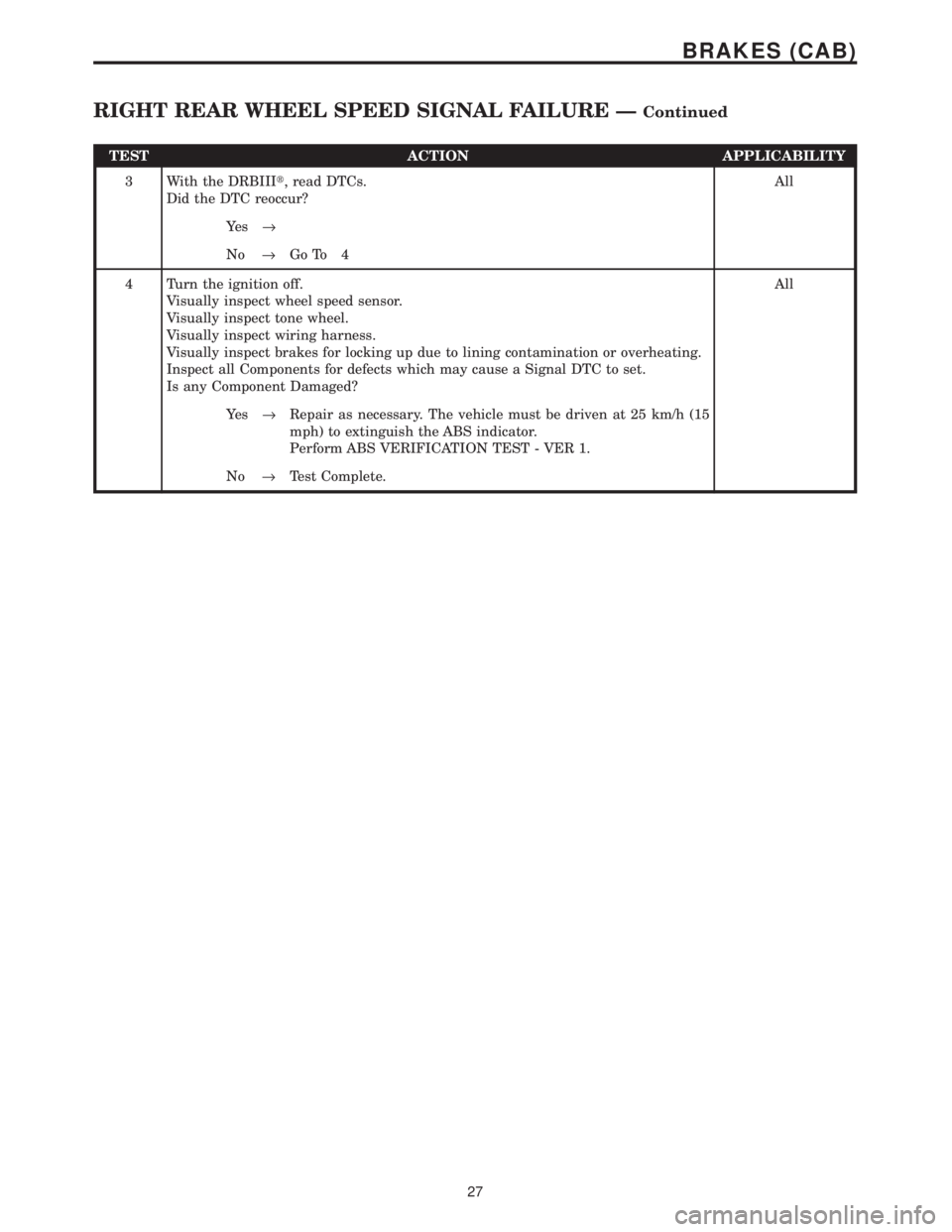

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3 With the DRBIIIt, read DTCs. Did the DTC reoccur?All Ye s® No®Go To 4 4 Turn the ignition off. Visually inspect wheel speed sensor. Visually inspect tone wheel. Visually
