CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Sliding Door Control Module C2 connector.
Disconnect the Cinch/Release Motor connector.
Measure the resistance of the Cinch/Release Mo

Page 882 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
INCOMPLETE LATCH RELEASE - RATCHET SWITCH FAILURE
When Monitored and Set Condition:
INCOMPLETE LATCH RELEASE - RATCHET SWITCH FAILURE
When Monitored: Whenever the power sliding door is operat

Page 883 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
3 With the DRBIIItin Inputs/Outputs, read the RATCHET state.
Open the sliding door to full open position.
Using a screwdriver, click the latch to the second detent while obse

Page 884 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
INCOMPLETE LATCH RELEASE- NO REVERSE TO UNLOAD
CLUTCH
When Monitored and Set Condition:
INCOMPLETE LATCH RELEASE- NO REVERSE TO UNLOAD CLUTCH
When Monitored: Whenever the power sliding door i

Page 885 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
INCOMPLETE LATCH RELEASE- OVERCURRENT
When Monitored and Set Condition:
INCOMPLETE LATCH RELEASE- OVERCURRENT
When Monitored: Whenever the power sliding door is operating in an opening direct

Page 886 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
INCOMPLETE LATCH RELEASE- PAWL SWITCH FAILURE
When Monitored and Set Condition:
INCOMPLETE LATCH RELEASE- PAWL SWITCH FAILURE
When Monitored: Whenever the power sliding door is operating in a

Page 887 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2 Examine the door for proper fit and alignment, loose/ hard or torn seals, worn teeth
on the rack and gear (lower drive unit) or anything that would cause an obstruction
to

TEST ACTION APPLICABILITY
2 Examine the door for proper fit and alignment, loose/ hard or torn seals, worn teeth
on the rack and gear (lower drive unit) or anything that would cause an obstruction
to proper operation.
Manually operate the other sliding door or of a known good vehicle and notice the
effort needed to open and close.
Compare the effort needed on the disabled door.
Especially notice the effort needed to unlatch and close the door.
Does it take more effort to operate the door than it should?All
Ye s®Refer to Service information for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 With the DRBIIItin Inputs/Outputs, read the PAWL state.
Open the sliding door to full open position.
Using a screwdriver, click the latch to the first detent while observing the DRB111t.
Unlatch the latch by pulling the handle switch and observe the DRB111tfor a state
change.
Repeat this step several times while moving the door in different positions and
wiggling the wiring harness to check for an intermittent open.
Did the DRB111tshow the switch state changes correctly every time?All
Ye s®Replace the Power Sliding Door Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
4 Disconnect the Sliding Door Control Module C2 connector.
Disconnect the Sliding Door Latch Sensing Switch connector (latch assembly).
Measure the resistance of the Ground wires (both) between the PSD C2 connector
(cavity 20) and the Sliding Door Latch Sensing Switch connector.
Wiggle the harness while observing the ohmmeter.
Is the resistance below 5.0 ohms on both ground wires?All
Ye s®Go To 5
No®Repair the Ground wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
5 Disconnect the Sliding Door Control Module C2 connector.
Disconnect the Sliding Door Latch Sensing Switch connector (latch assembly).
Measure the resistance of the Pawl Switch Sense circuit between the PSD C2
connector and the Sliding Door Latch Sensing Switch connector.
Wiggle the harness while observing the ohmmeter.
Is the resistance below 5.0 ohms?All
Ye s®Go To 6
No®Repair the Pawl Switch Sense wire for an open.
Perform BODY VERIFICATION TEST - VER 1.
6 If there are no possible causes remaining, view repair. All
Repair
Replace the Pawl Switch (latch assembly).
Perform BODY VERIFICATION TEST - VER 1.
858
POWER DOORS - SLIDING
INCOMPLETE LATCH RELEASE- PAWL SWITCH FAILURE ÐContinued

Page 888 of 4284

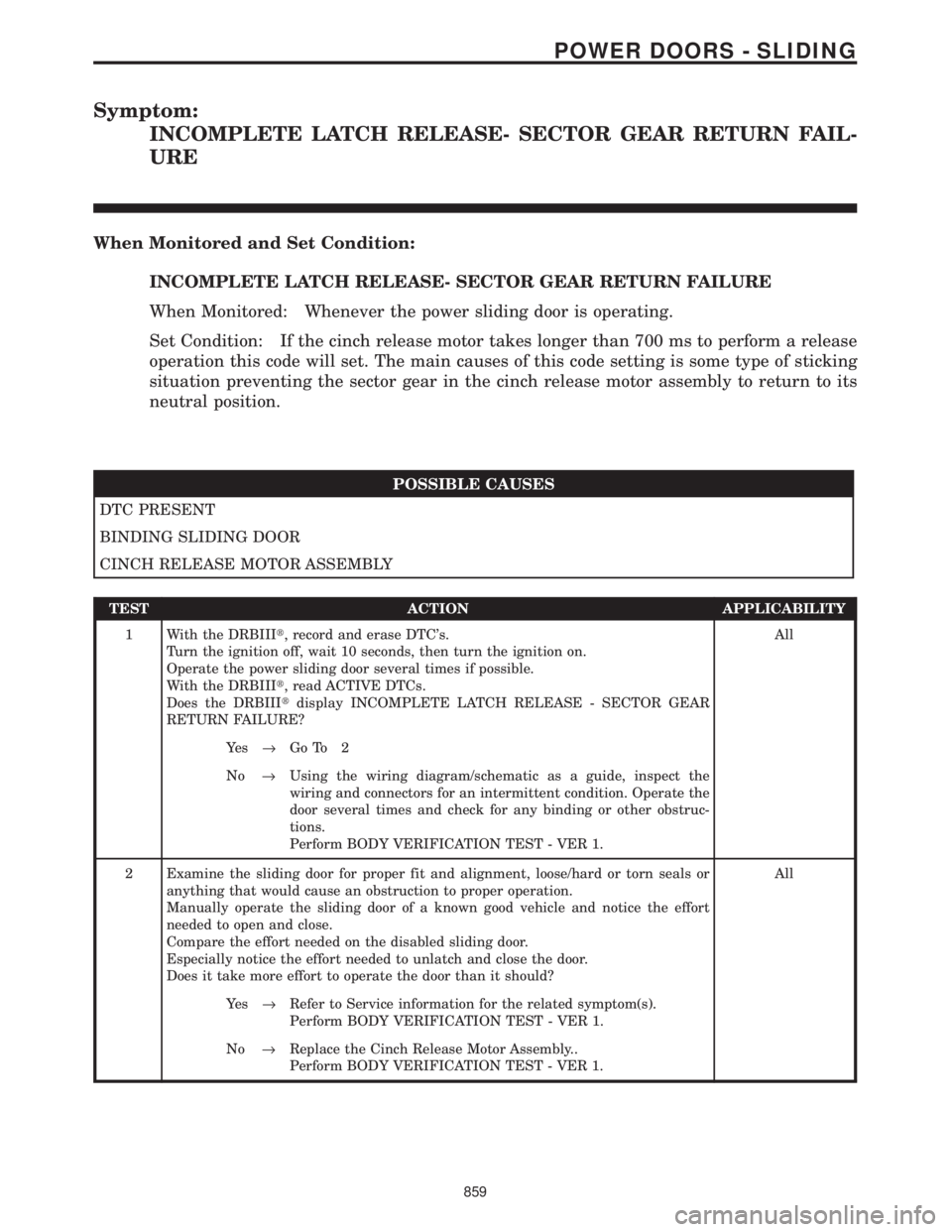

CHRYSLER VOYAGER 2001 Service Manual Symptom:
INCOMPLETE LATCH RELEASE- SECTOR GEAR RETURN FAIL-
URE
When Monitored and Set Condition:
INCOMPLETE LATCH RELEASE- SECTOR GEAR RETURN FAILURE
When Monitored: Whenever the power sliding door i
