Page 1193 of 4284

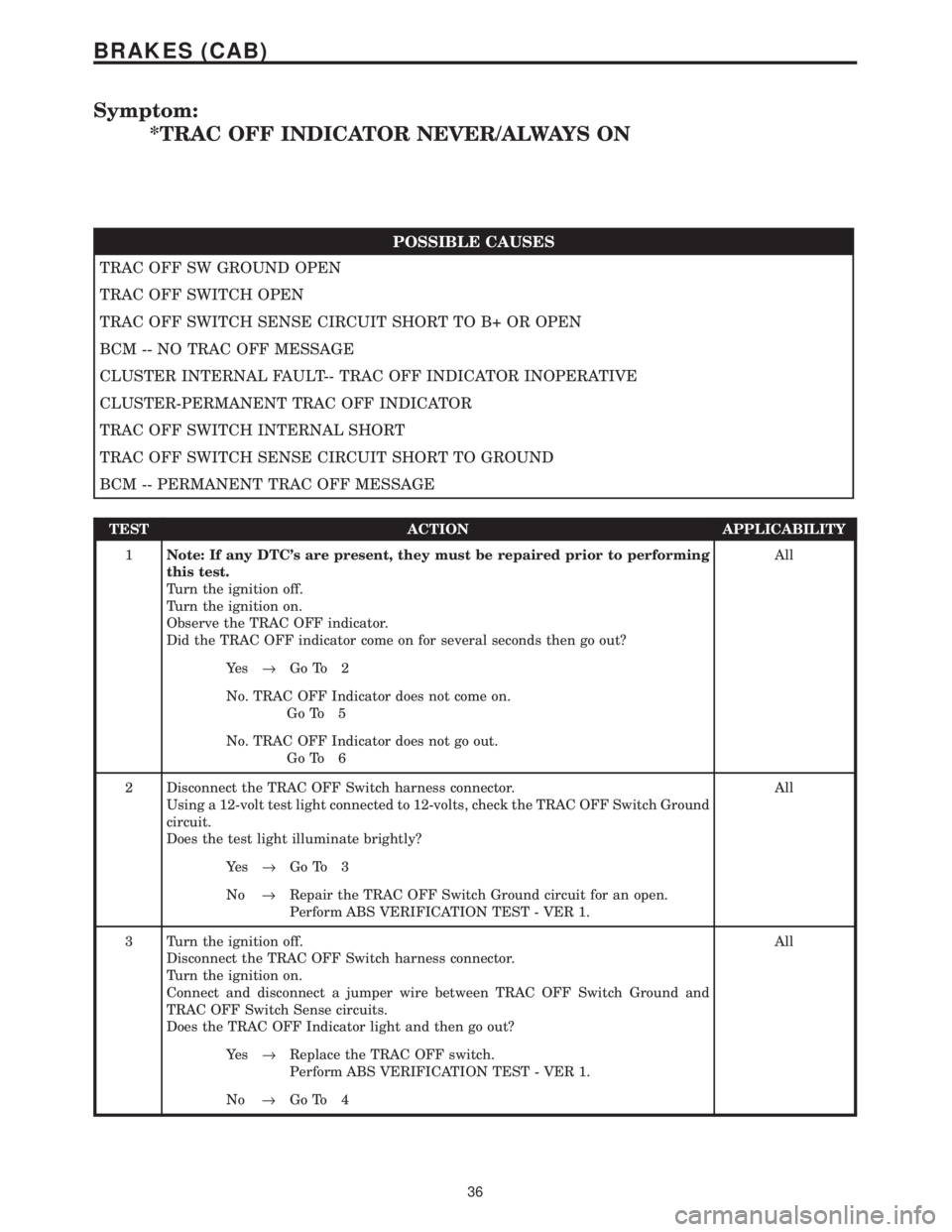

CHRYSLER VOYAGER 2001 Service Manual Symptom: *TRAC OFF INDICATOR NEVER/ALWAYS ON POSSIBLE CAUSES TRAC OFF SW GROUND OPEN TRAC OFF SWITCH OPEN TRAC OFF SWITCH SENSE CIRCUIT SHORT TO B+ OR OPEN BCM -- NO TRAC OFF MESSAGE CLUSTER INTERNAL

Page 1194 of 4284

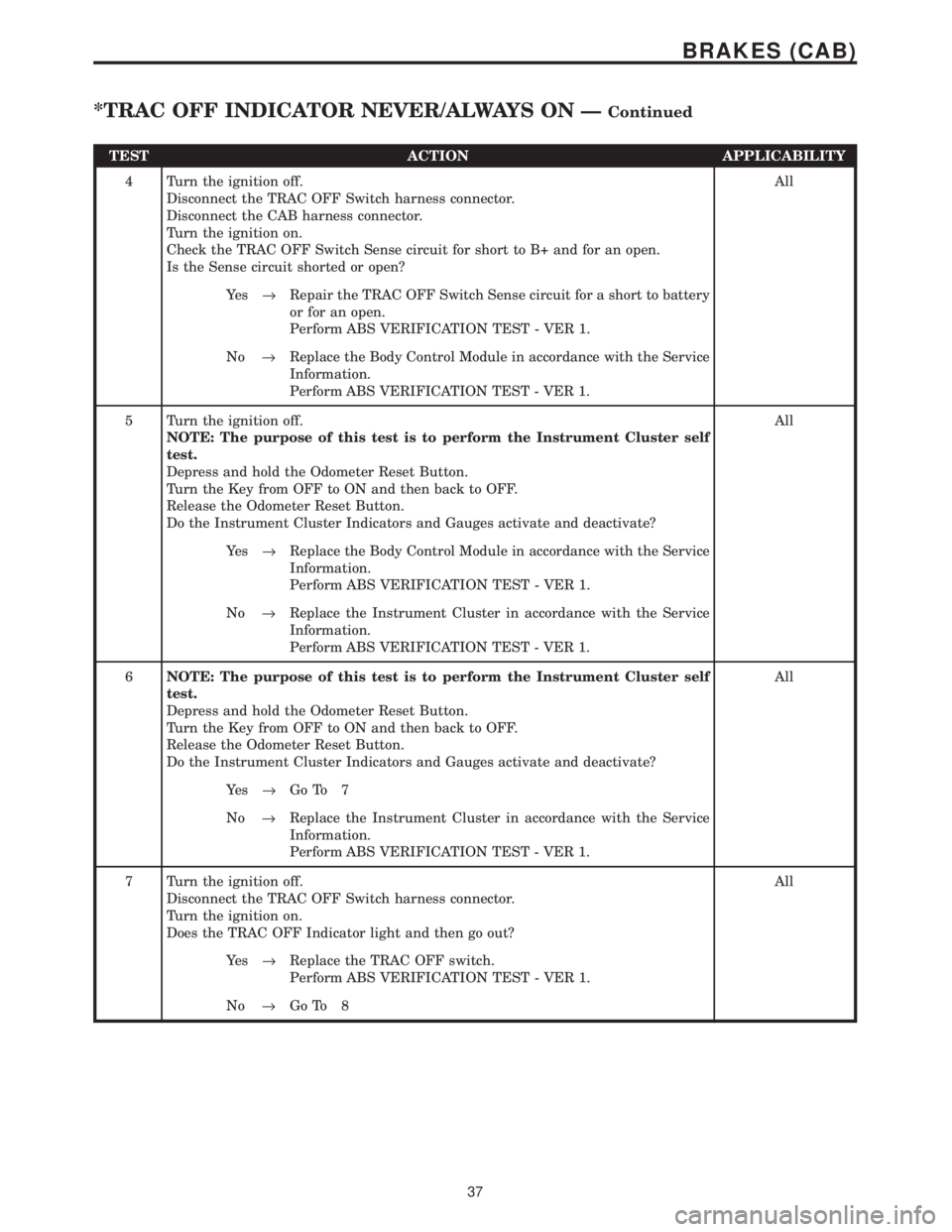

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 4 Turn the ignition off. Disconnect the TRAC OFF Switch harness connector. Disconnect the CAB harness connector. Turn the ignition on. Check the TRAC OFF Switch Sense circuit

Page 1195 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 8 Turn the ignition off. Disconnect the TRAC OFF Switch harness connector. Disconnect the BCM C4 harness connector. Check the TRAC OFF Switch Sense circuit for short to groun

Page 1196 of 4284

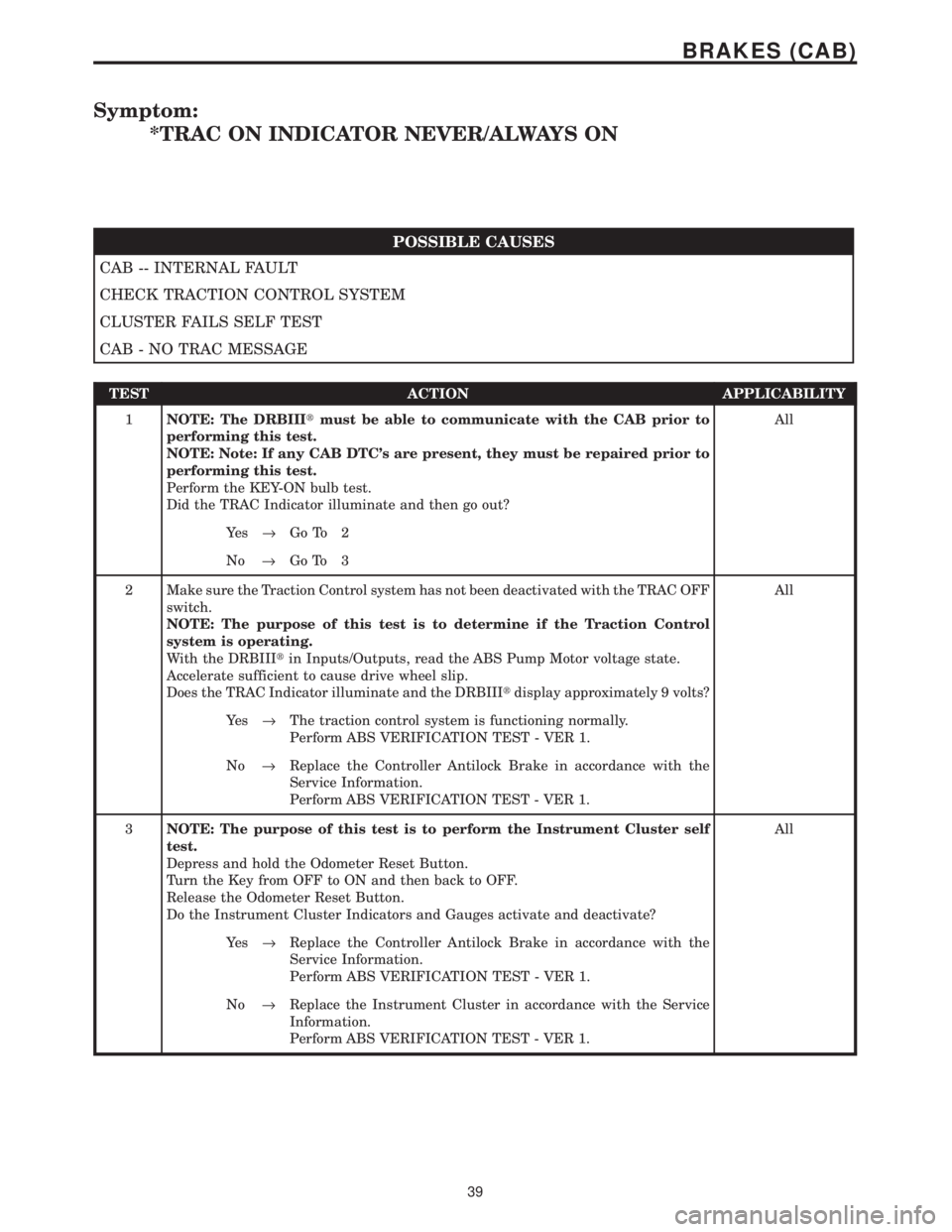

CHRYSLER VOYAGER 2001 Service Manual Symptom: *TRAC ON INDICATOR NEVER/ALWAYS ON POSSIBLE CAUSES CAB -- INTERNAL FAULT CHECK TRACTION CONTROL SYSTEM CLUSTER FAILS SELF TEST CAB - NO TRAC MESSAGE TEST ACTION APPLICABILITY 1NOTE: The DRBII

Page 1197 of 4284

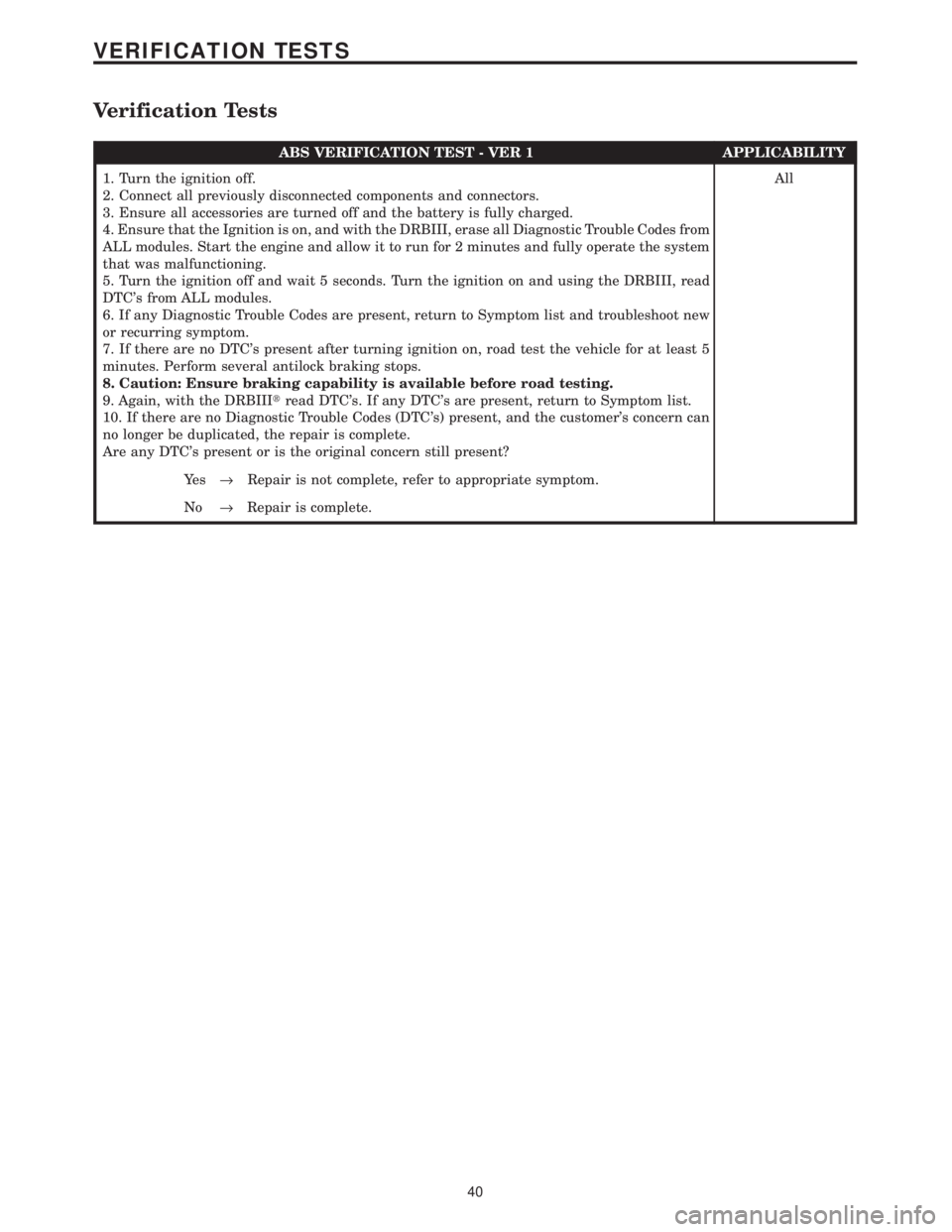

CHRYSLER VOYAGER 2001 Service Manual Verification Tests ABS VERIFICATION TEST - VER 1 APPLICABILITY 1. Turn the ignition off. 2. Connect all previously disconnected components and connectors. 3. Ensure all accessories are turned off and

Page 1198 of 4284

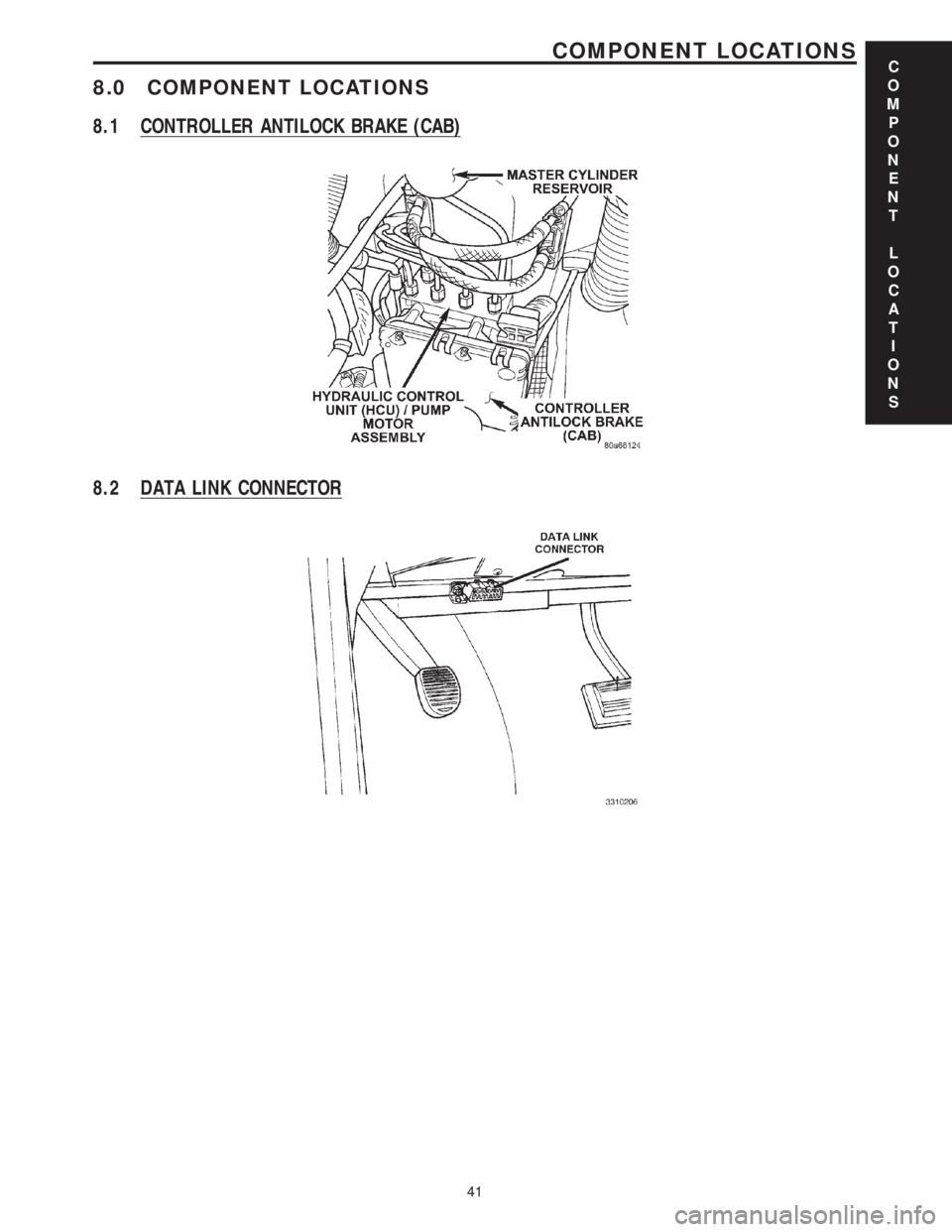

CHRYSLER VOYAGER 2001 Service Manual 8.0 COMPONENT LOCATIONS 8.1 CONTROLLER ANTILOCK BRAKE (CAB) 8.2 DATA LINK CONNECTOR C O M P O N E N T L O C A T I O N S 41 COMPONENT LOCATIONS

Page 1199 of 4284

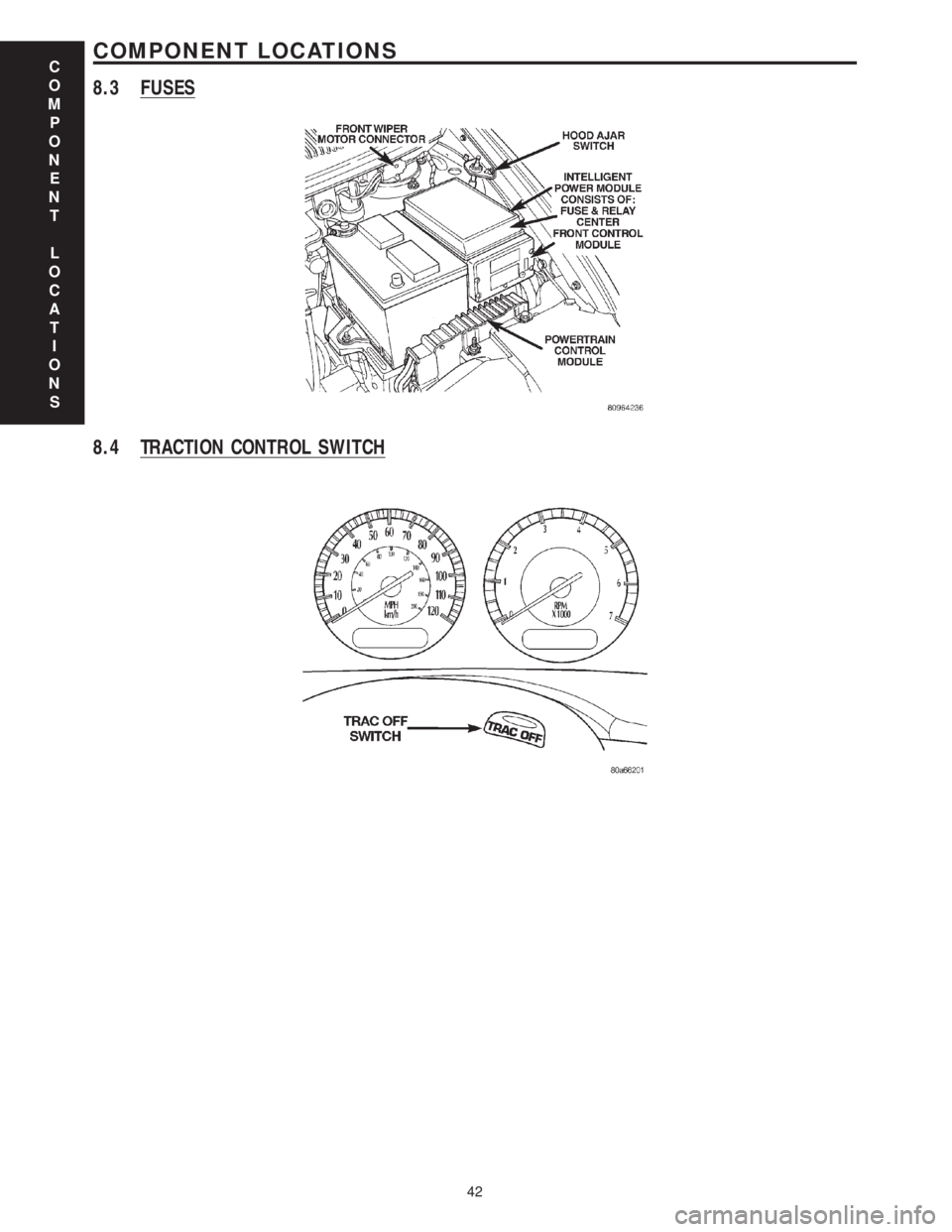

CHRYSLER VOYAGER 2001 Service Manual 8.3 FUSES 8.4 TRACTION CONTROL SWITCH C O M P O N E N T L O C A T I O N S 42 COMPONENT LOCATIONS

Page 1200 of 4284

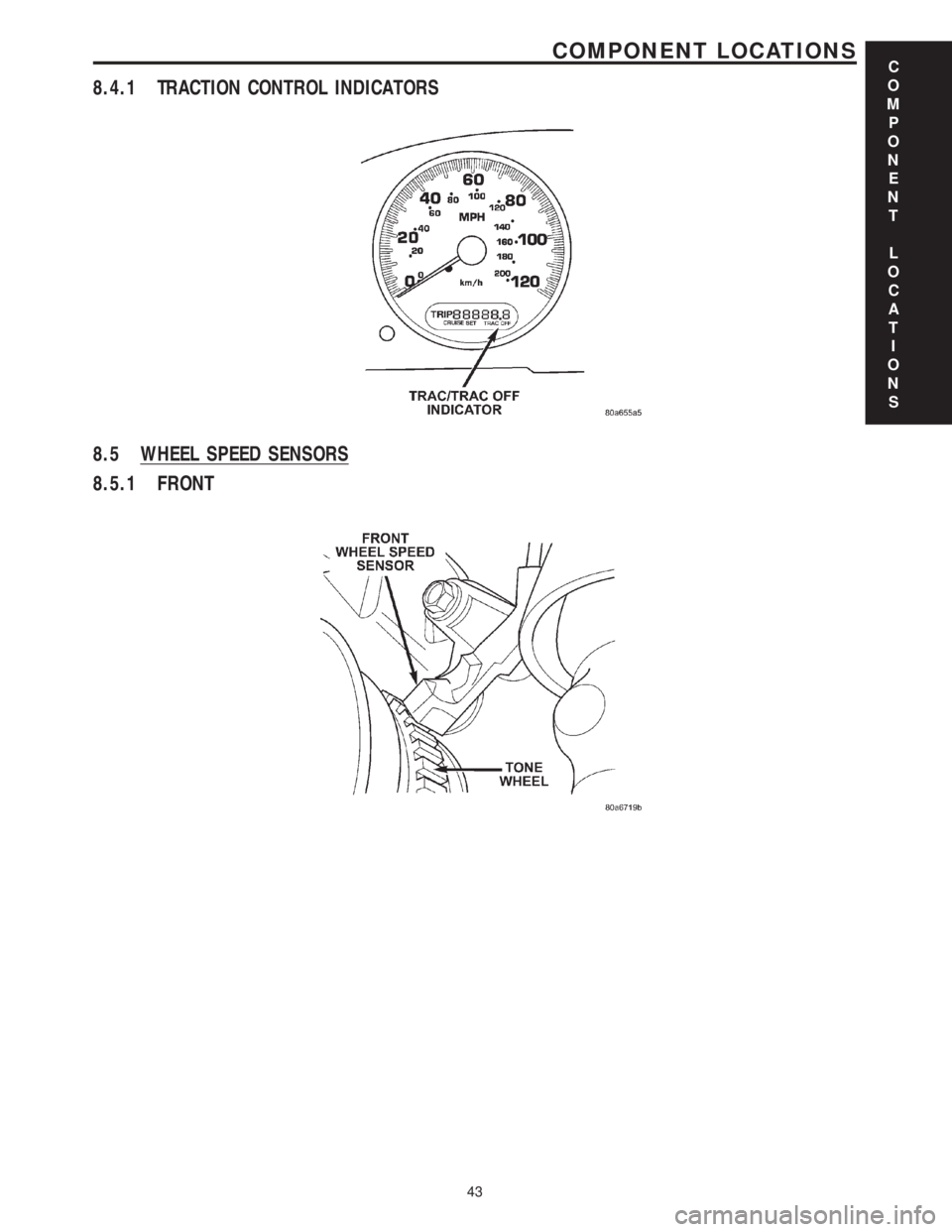

CHRYSLER VOYAGER 2001 Service Manual 8.4.1 TRACTION CONTROL INDICATORS 8.5 WHEEL SPEED SENSORS 8.5.1 FRONT C O M P O N E N T L O C A T I O N S 43 COMPONENT LOCATIONS
