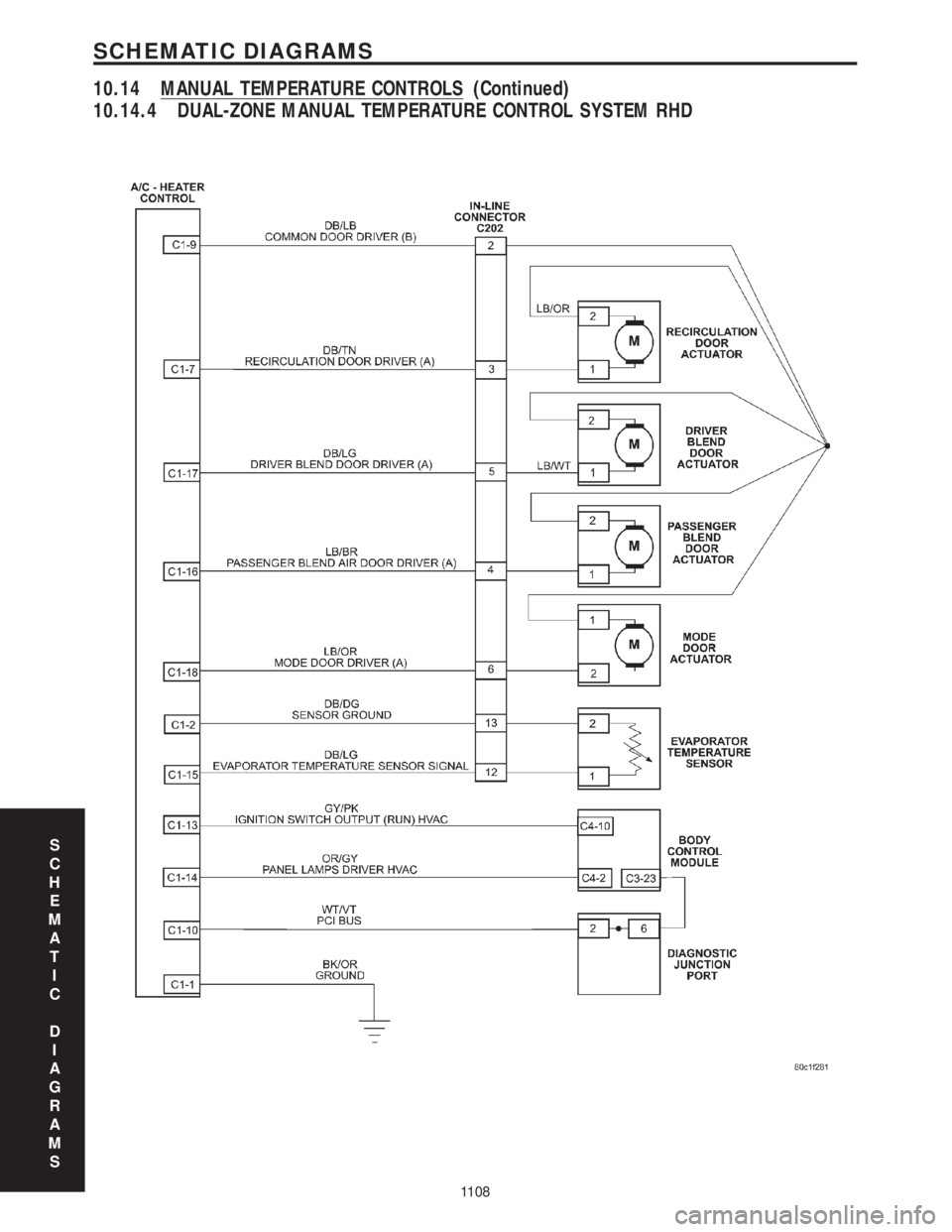

CHRYSLER VOYAGER 2001 Service Manual 10.14.4 DUAL-ZONE MANUAL TEMPERATURE CONTROL SYSTEM RHD S C H E M A T I C D I A G R A M S 1108 SCHEMATIC DIAGRAMS 10.14 MANUAL TEMPERATURE CONTROLS (Continued)

Page 1138 of 4284

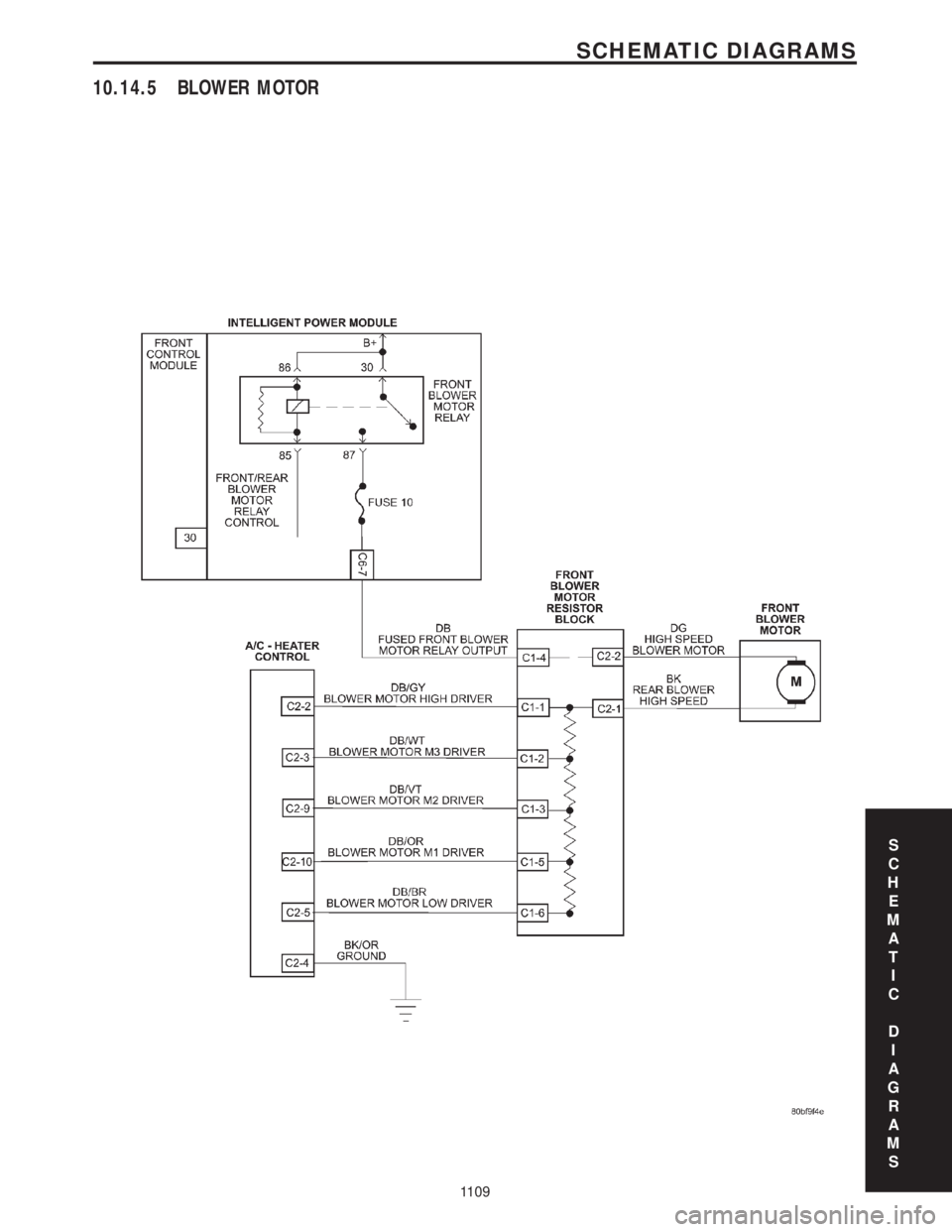

CHRYSLER VOYAGER 2001 Service Manual 10.14.5 BLOWER MOTOR S C H E M A T I C D I A G R A M S 1109 SCHEMATIC DIAGRAMS

Page 1139 of 4284

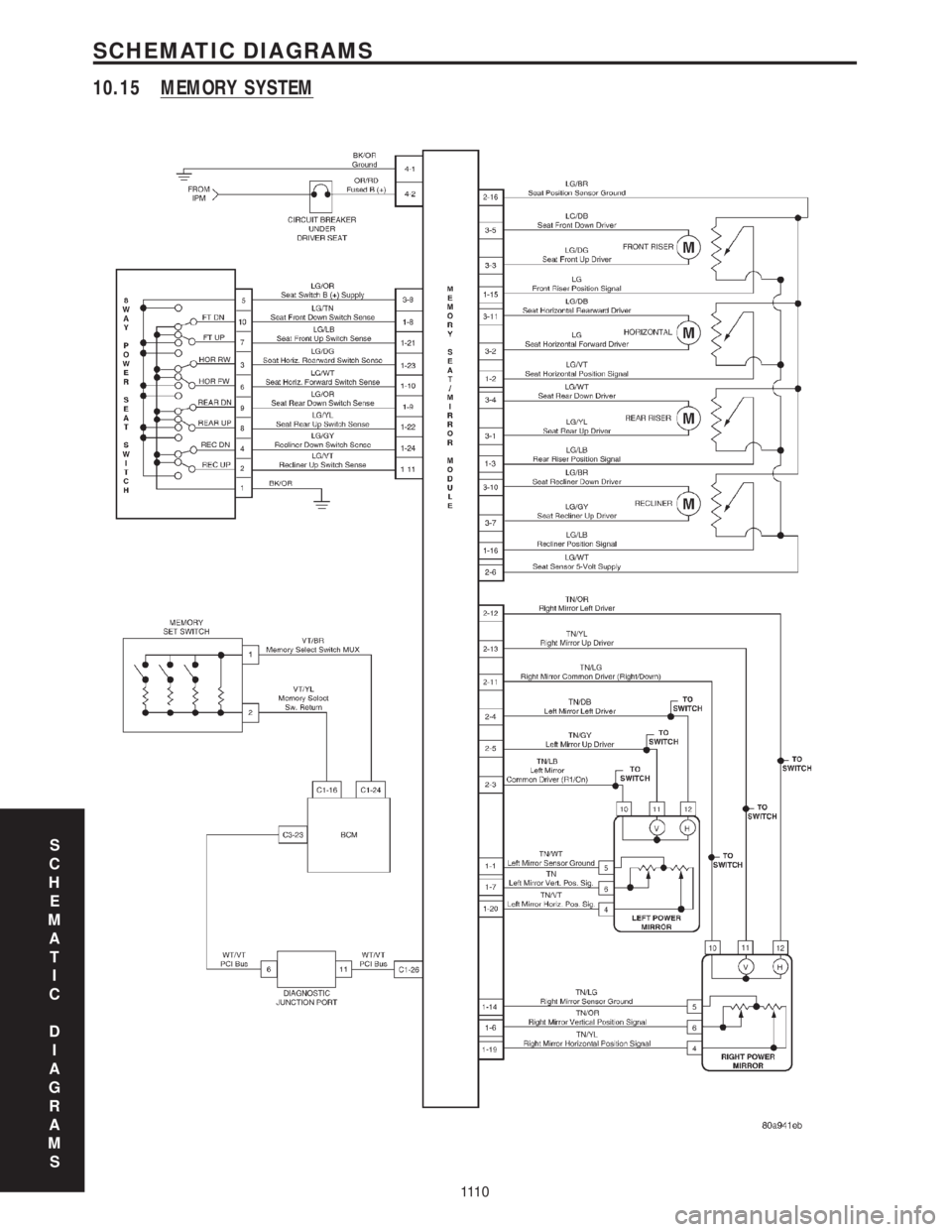

CHRYSLER VOYAGER 2001 Service Manual 10.15 MEMORY SYSTEM S C H E M A T I C D I A G R A M S 111 0 SCHEMATIC DIAGRAMS

Page 1140 of 4284

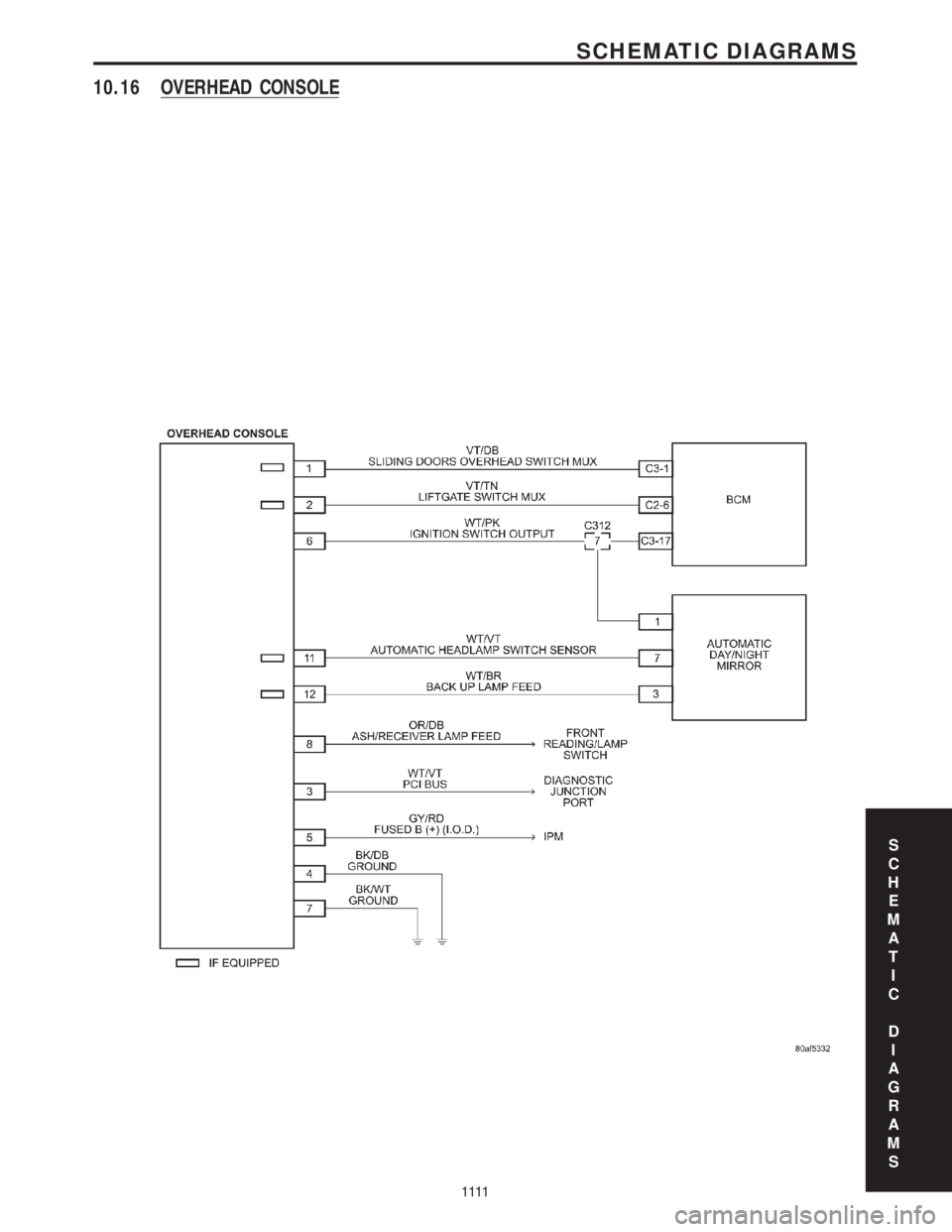

CHRYSLER VOYAGER 2001 Service Manual 10.16 OVERHEAD CONSOLE S C H E M A T I C D I A G R A M S 1111 SCHEMATIC DIAGRAMS

Page 1141 of 4284

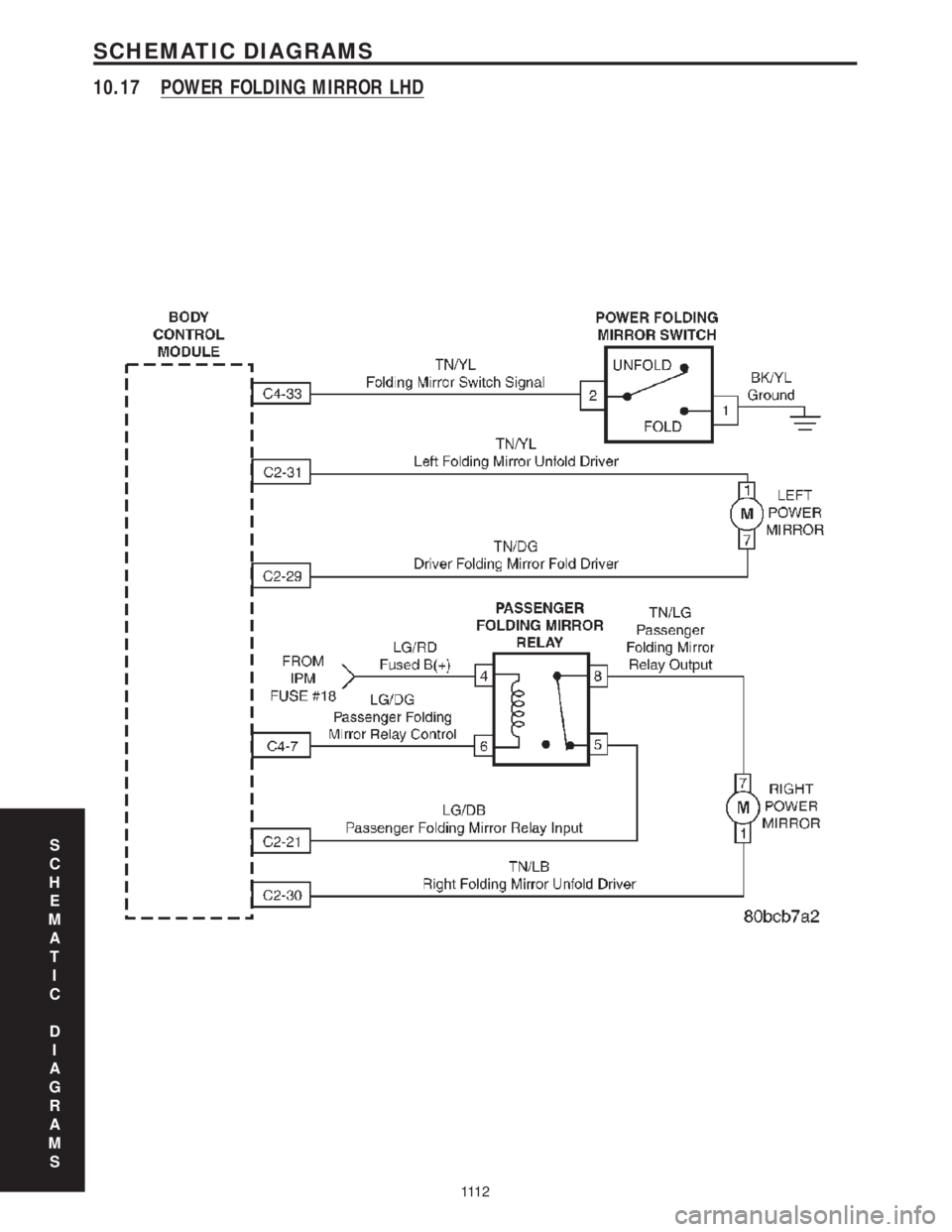

CHRYSLER VOYAGER 2001 Service Manual 10.17 POWER FOLDING MIRROR LHD S C H E M A T I C D I A G R A M S 111 2 SCHEMATIC DIAGRAMS

Page 1142 of 4284

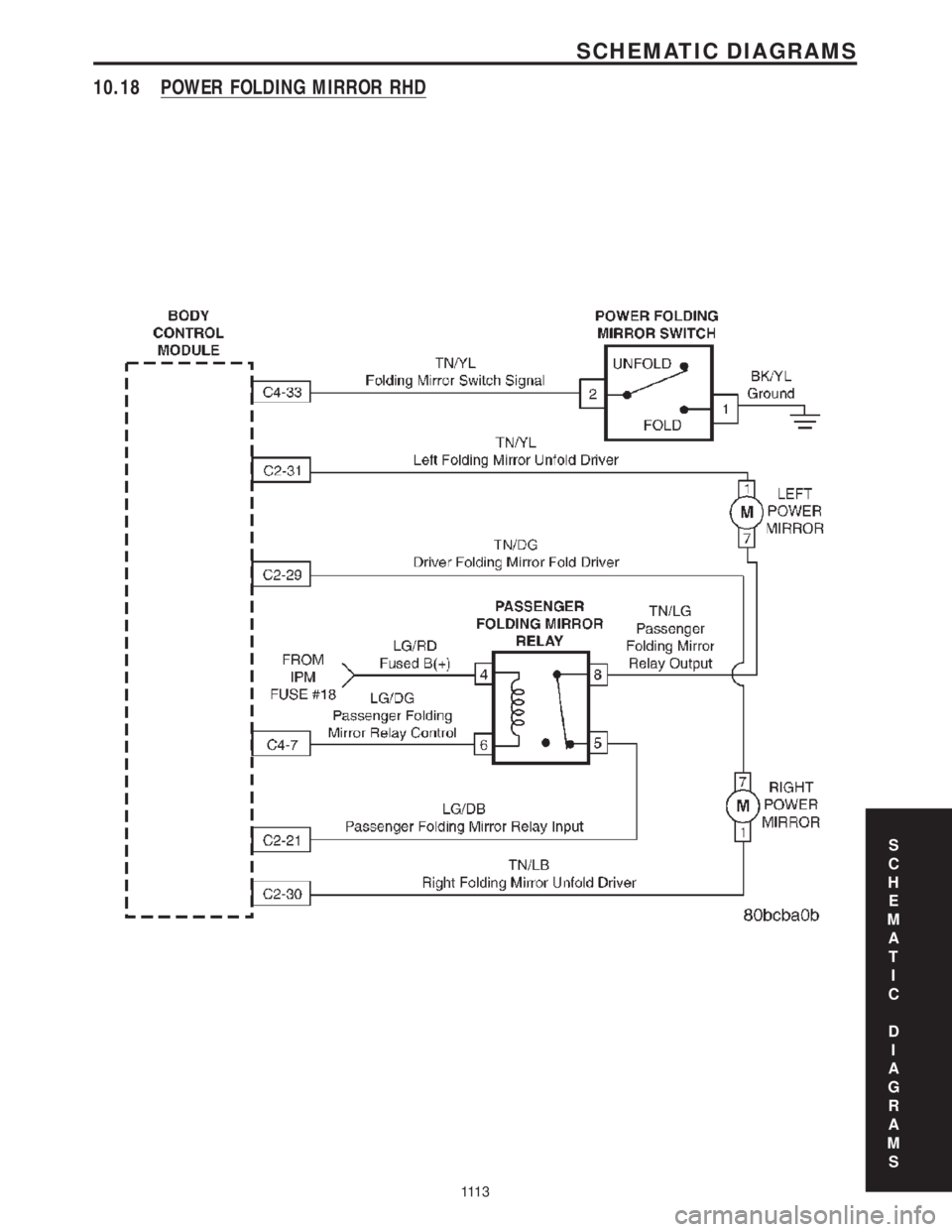

CHRYSLER VOYAGER 2001 Service Manual 10.18 POWER FOLDING MIRROR RHD S C H E M A T I C D I A G R A M S 111 3 SCHEMATIC DIAGRAMS

Page 1143 of 4284

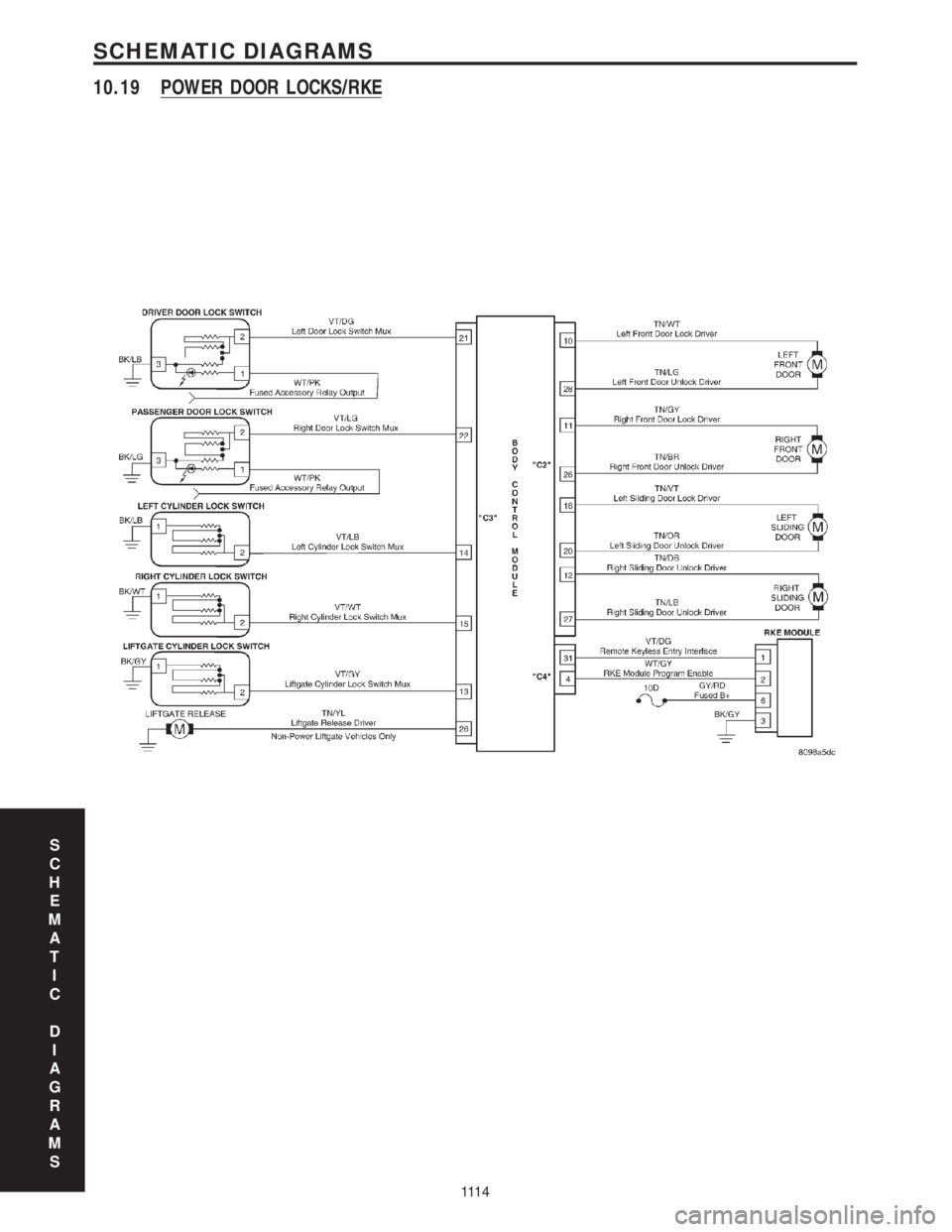

CHRYSLER VOYAGER 2001 Service Manual 10.19 POWER DOOR LOCKS/RKE S C H E M A T I C D I A G R A M S 111 4 SCHEMATIC DIAGRAMS

Page 1144 of 4284

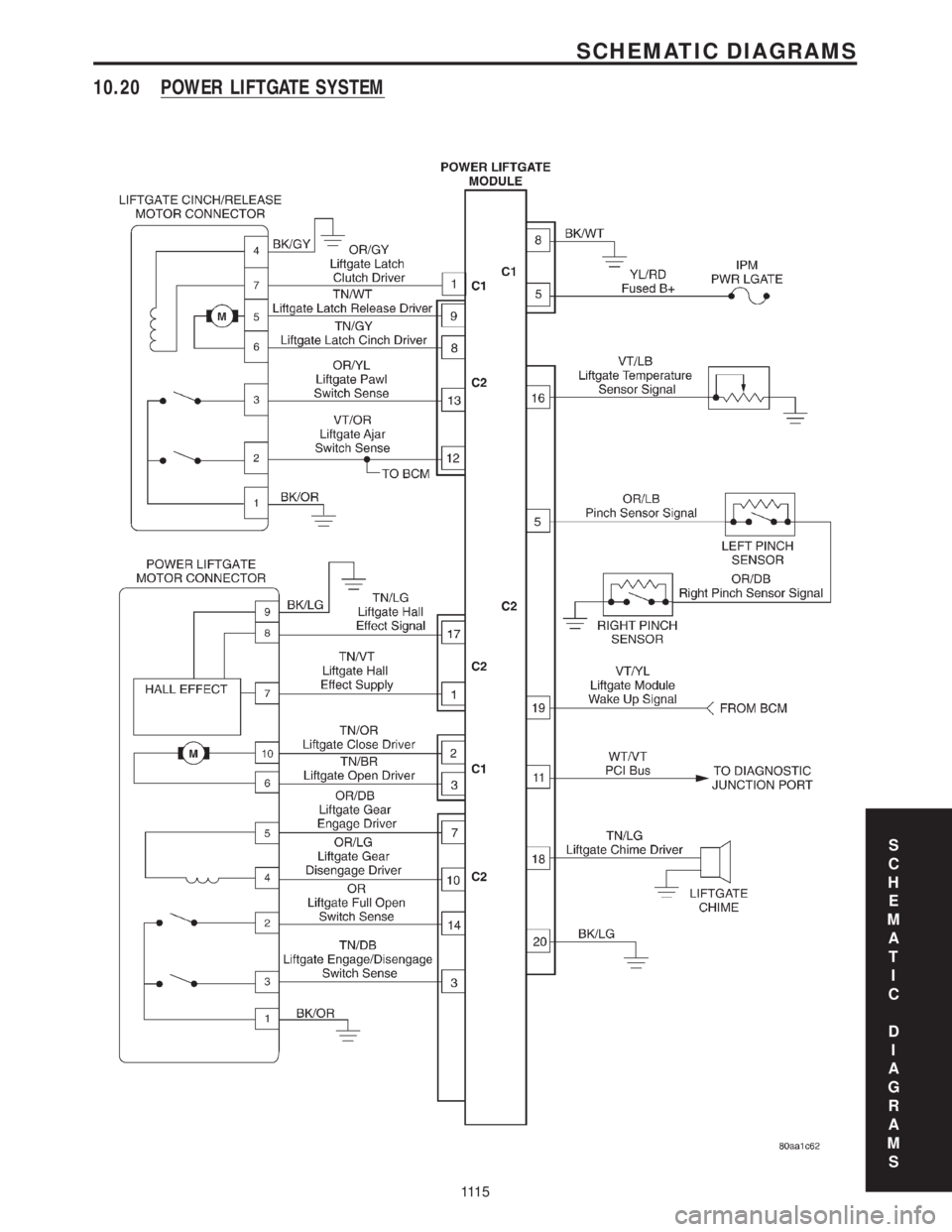

CHRYSLER VOYAGER 2001 Service Manual 10.20 POWER LIFTGATE SYSTEM S C H E M A T I C D I A G R A M S 111 5 SCHEMATIC DIAGRAMS
