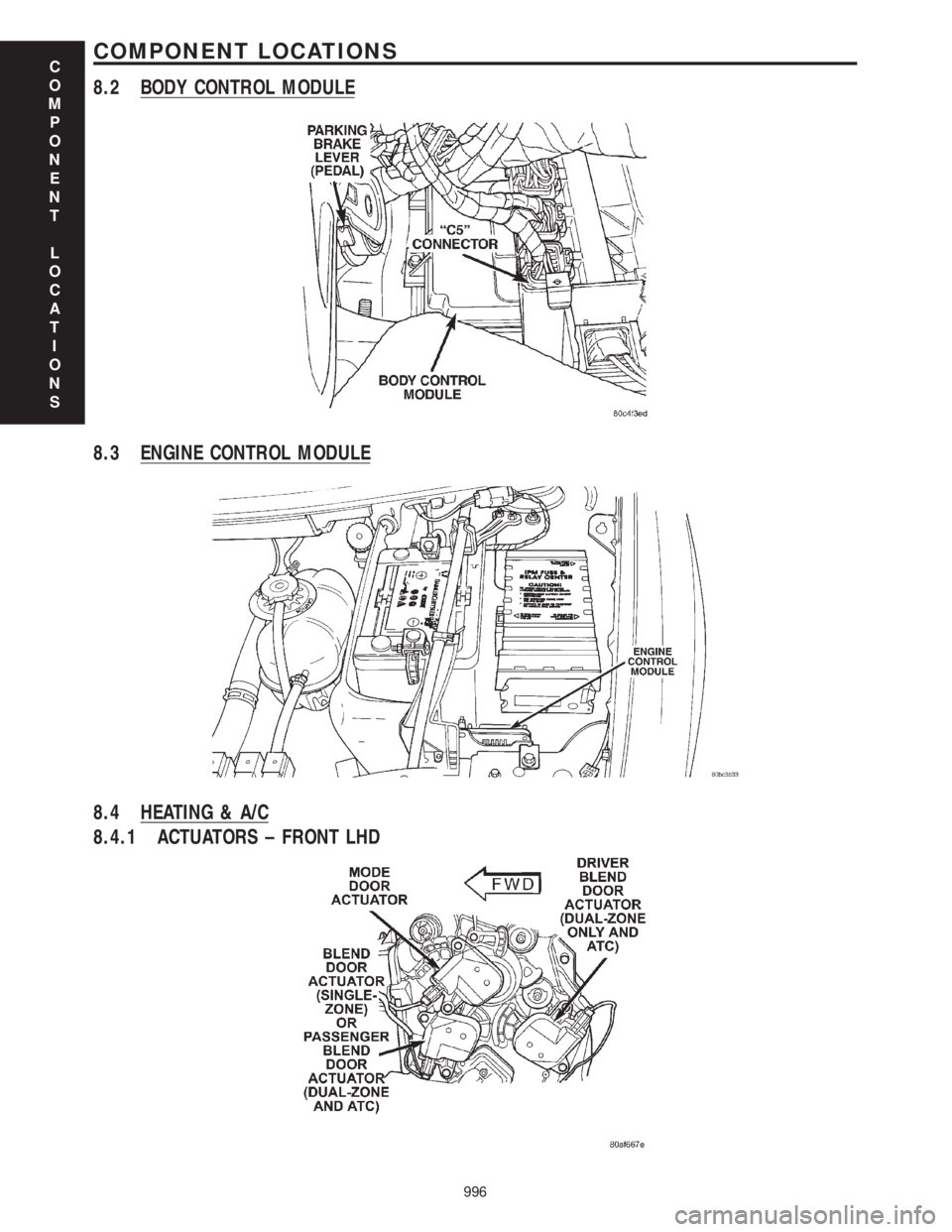

CHRYSLER VOYAGER 2001 Service Manual 8.2 BODY CONTROL MODULE 8.3 ENGINE CONTROL MODULE 8.4 HEATING & A/C 8.4.1 ACTUATORS ± FRONT LHD C O M P O N E N T L O C A T I O N S 996 COMPONENT LOCATIONS

Page 1026 of 4284

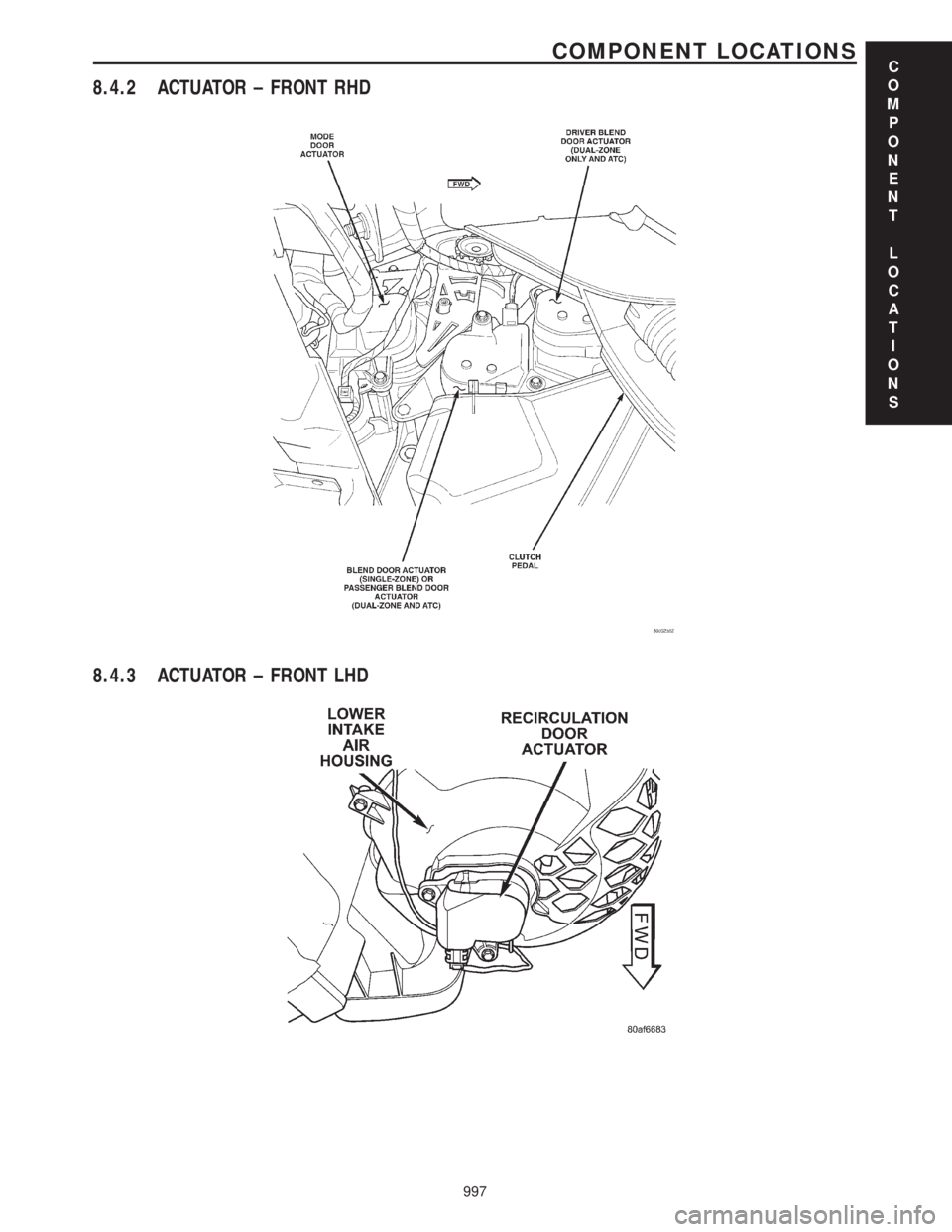

CHRYSLER VOYAGER 2001 Service Manual 8.4.2 ACTUATOR ± FRONT RHD 8.4.3 ACTUATOR ± FRONT LHD C O M P O N E N T L O C A T I O N S 997 COMPONENT LOCATIONS

Page 1027 of 4284

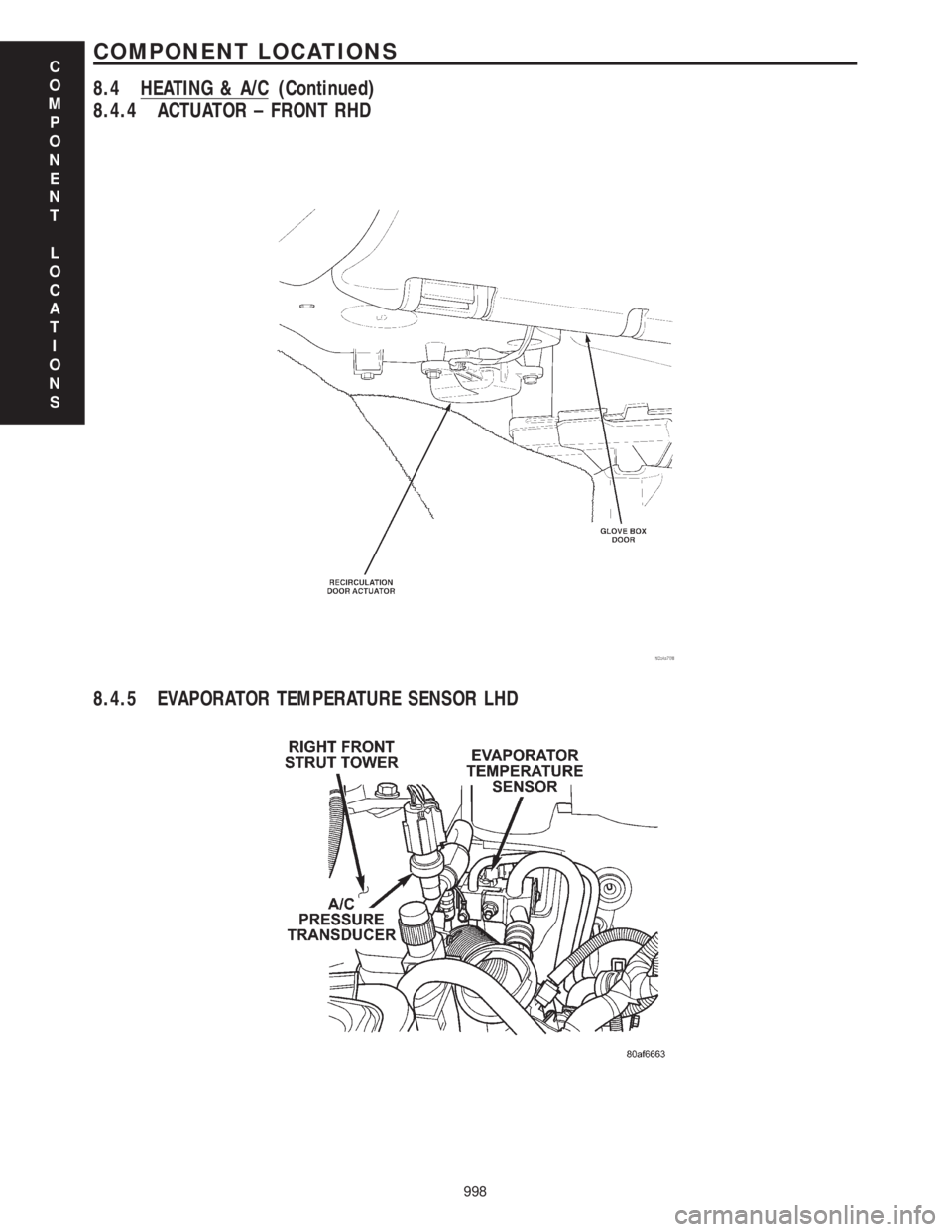

CHRYSLER VOYAGER 2001 Service Manual 8.4.4 ACTUATOR ± FRONT RHD 8.4.5 EVAPORATOR TEMPERATURE SENSOR LHD C O M P O N E N T L O C A T I O N S 998 COMPONENT LOCATIONS 8.4 HEATING & A/C (Continued)

Page 1028 of 4284

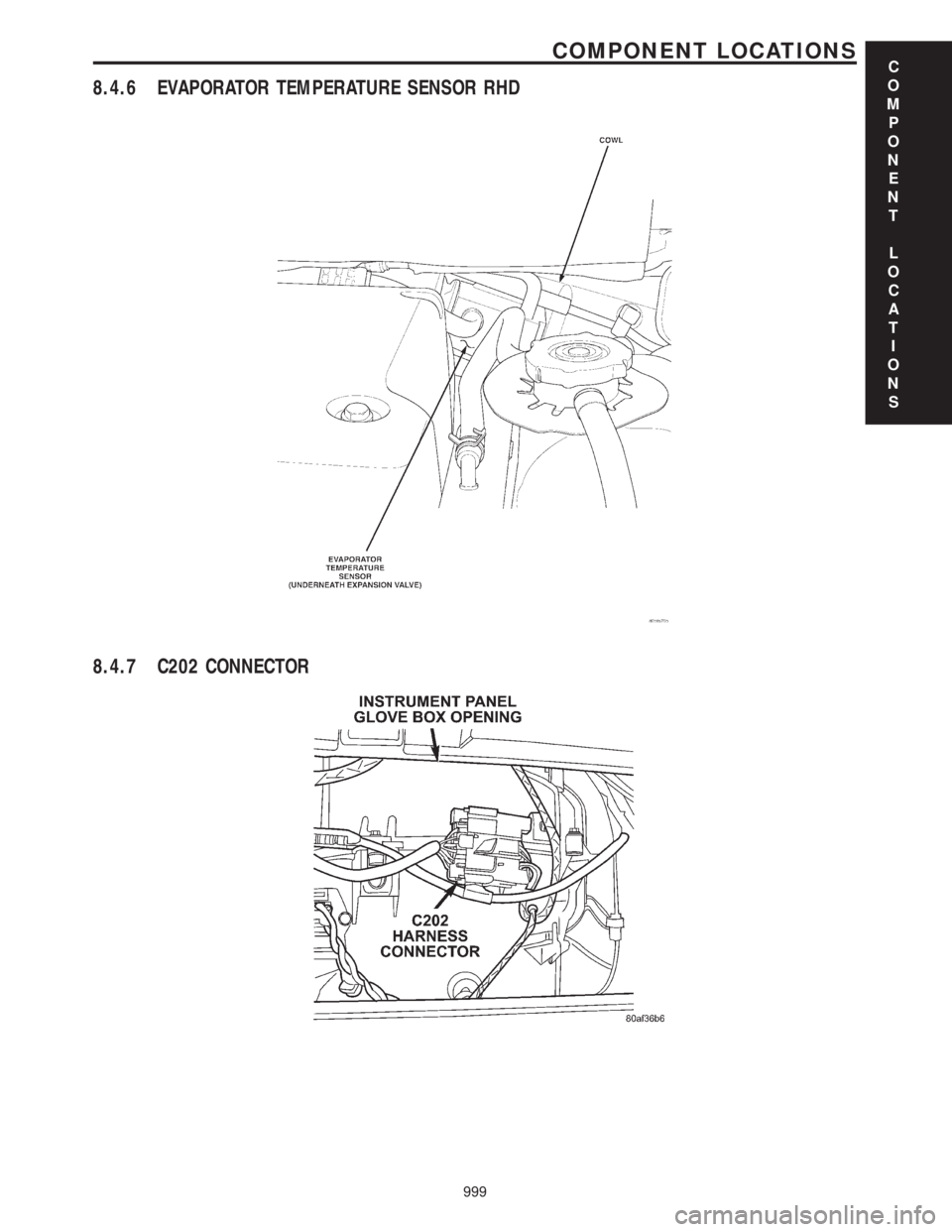

CHRYSLER VOYAGER 2001 Service Manual 8.4.6 EVAPORATOR TEMPERATURE SENSOR RHD 8.4.7 C202 CONNECTOR C O M P O N E N T L O C A T I O N S 999 COMPONENT LOCATIONS

Page 1029 of 4284

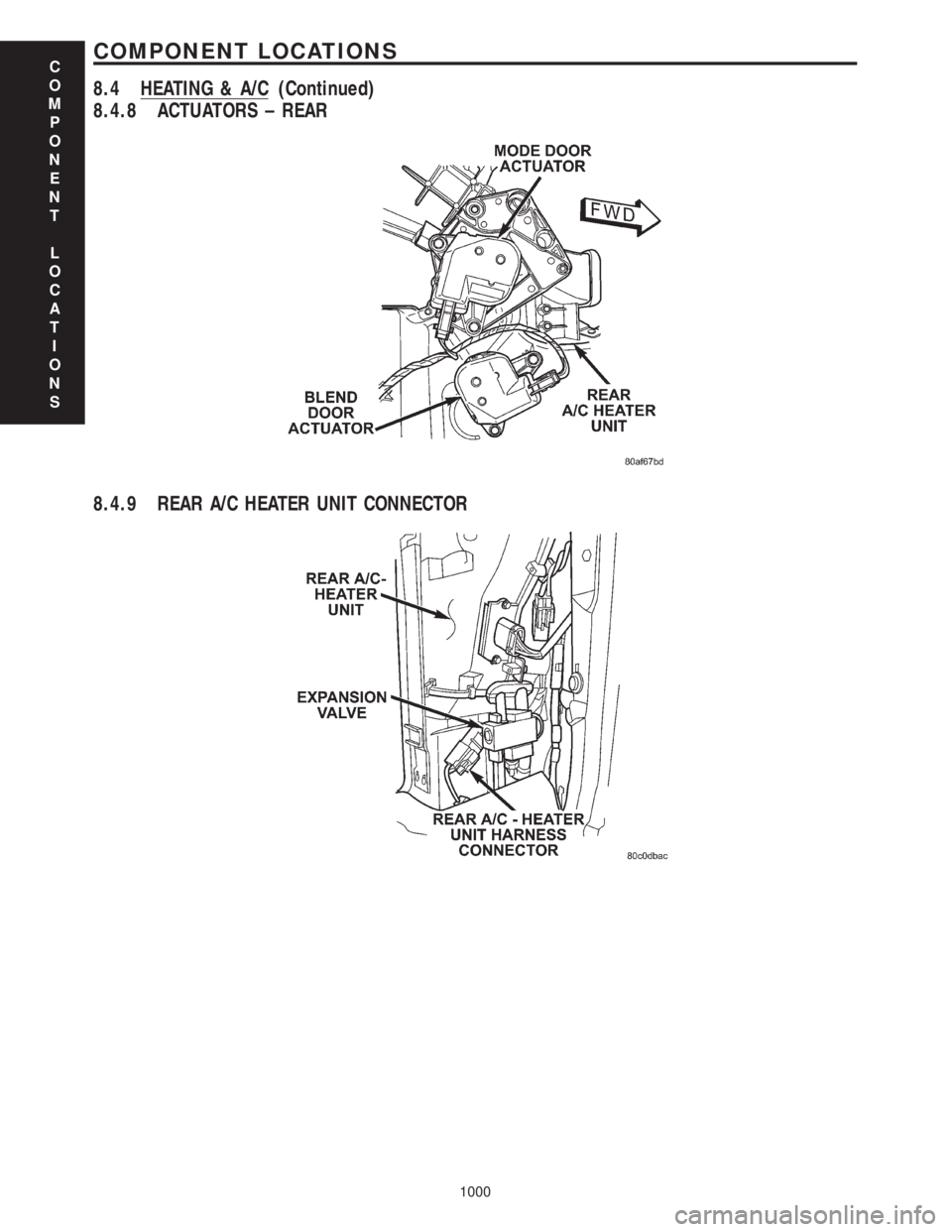

CHRYSLER VOYAGER 2001 Service Manual 8.4.8 ACTUATORS ± REAR 8.4.9 REAR A/C HEATER UNIT CONNECTOR C O M P O N E N T L O C A T I O N S 1000 COMPONENT LOCATIONS 8.4 HEATING & A/C (Continued)

Page 1030 of 4284

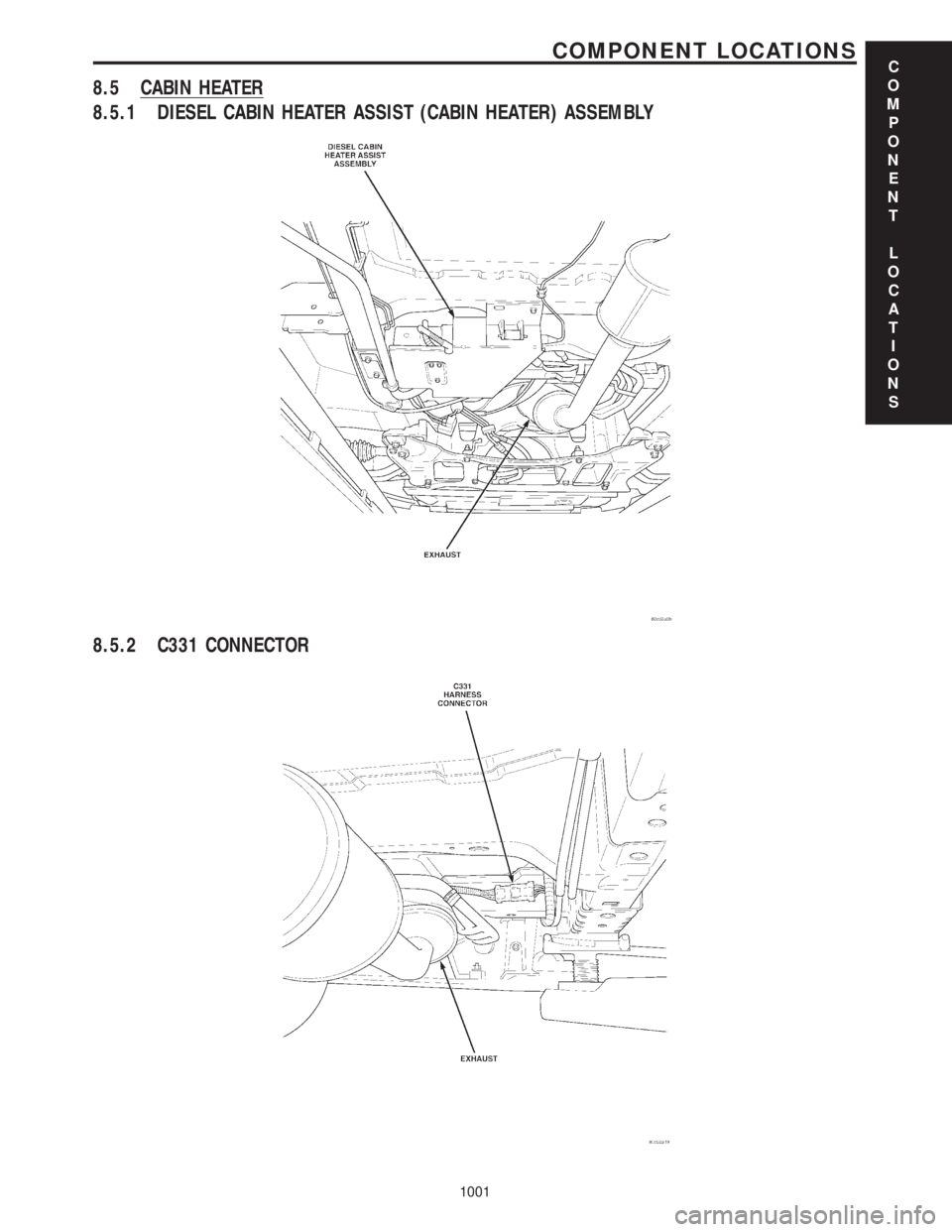

CHRYSLER VOYAGER 2001 Service Manual 8.5 CABIN HEATER 8.5.1 DIESEL CABIN HEATER ASSIST (CABIN HEATER) ASSEMBLY 8.5.2 C331 CONNECTOR C O M P O N E N T L O C A T I O N S 1001 COMPONENT LOCATIONS

Page 1031 of 4284

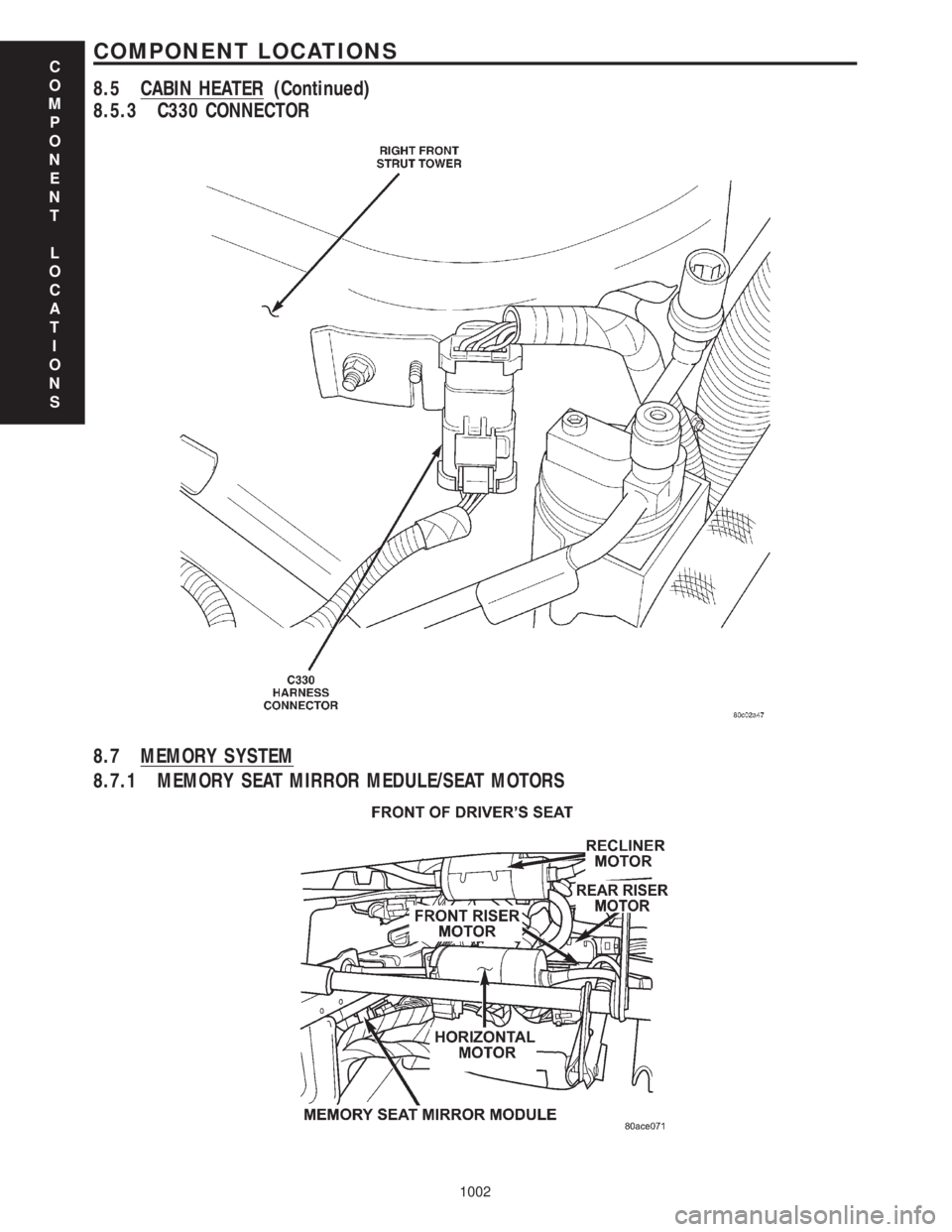

CHRYSLER VOYAGER 2001 Service Manual 8.5.3 C330 CONNECTOR 8.7 MEMORY SYSTEM 8.7.1 MEMORY SEAT MIRROR MEDULE/SEAT MOTORS C O M P O N E N T L O C A T I O N S 1002 COMPONENT LOCATIONS 8.5 CABIN HEATER (Continued)

Page 1032 of 4284

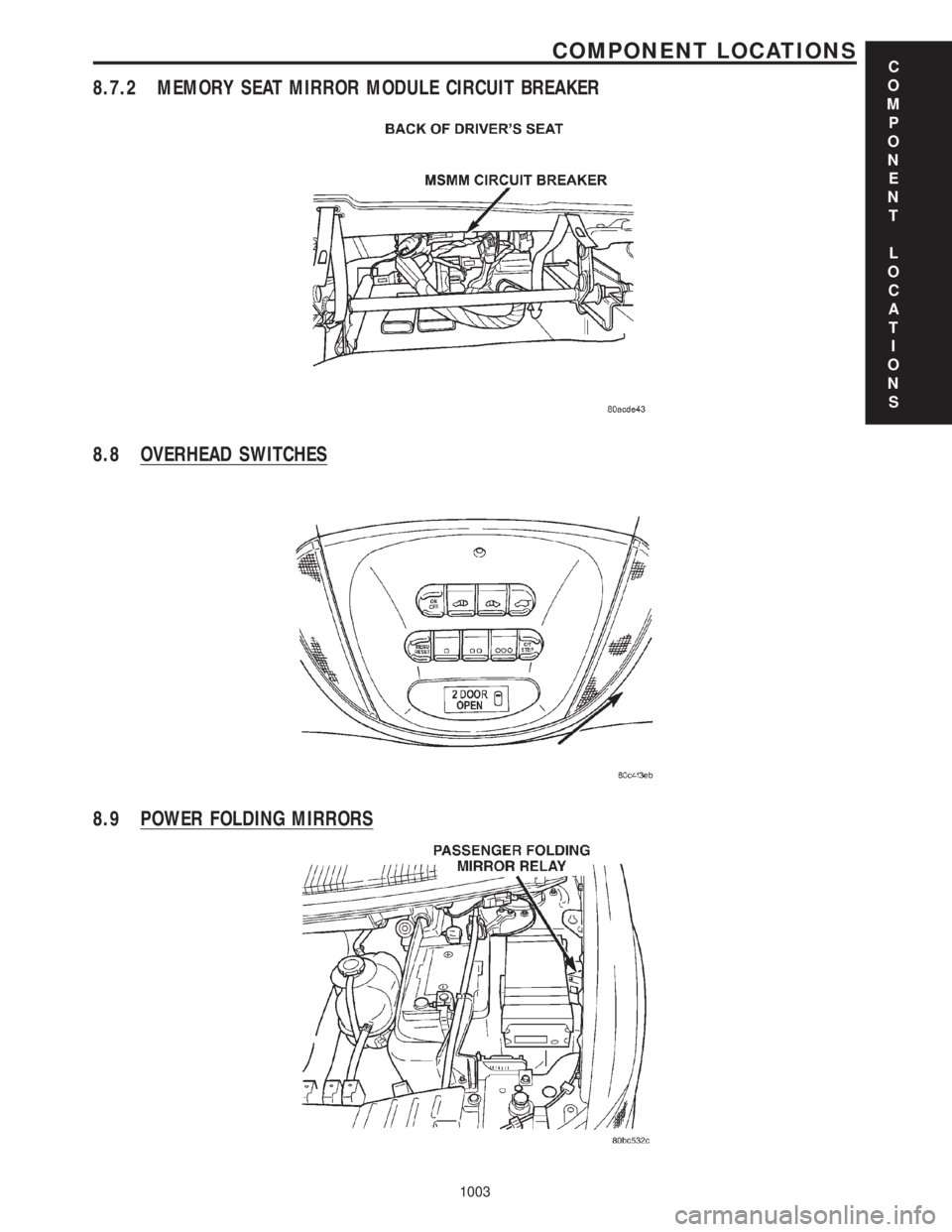

CHRYSLER VOYAGER 2001 Service Manual 8.7.2 MEMORY SEAT MIRROR MODULE CIRCUIT BREAKER 8.8 OVERHEAD SWITCHES 8.9 POWER FOLDING MIRRORS C O M P O N E N T L O C A T I O N S 1003 COMPONENT LOCATIONS
