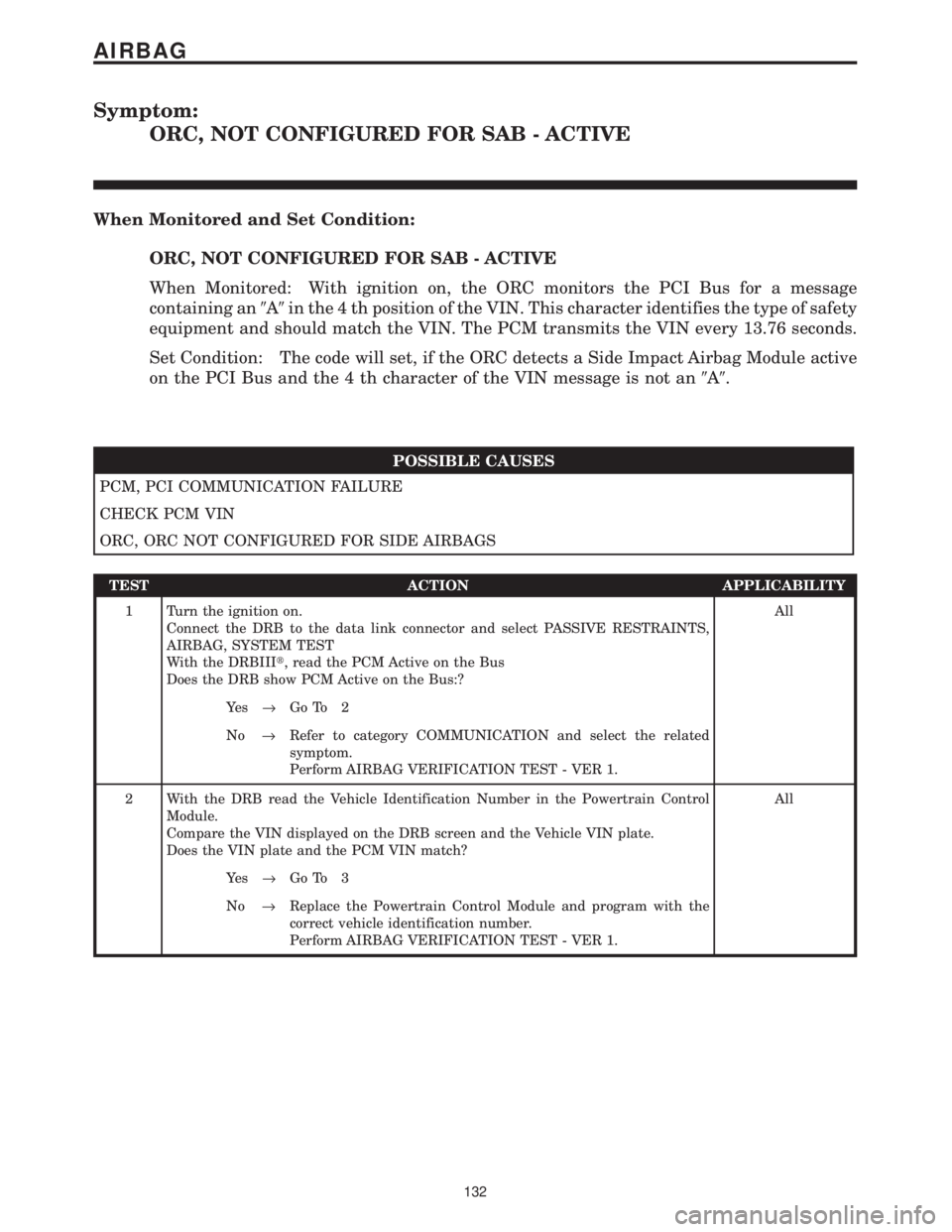

Page 161 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: ORC, NOT CONFIGURED FOR SAB - ACTIVE When Monitored and Set Condition: ORC, NOT CONFIGURED FOR SAB - ACTIVE When Monitored: With ignition on, the ORC monitors the PCI Bus for a message contai

Page 162 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE PROCEEDING. WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED AT ANY TIME, IT MUST

Page 163 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: ORC, NOT CONFIGURED FOR SAB - STORED When Monitored and Set Condition: ORC, NOT CONFIGURED FOR SAB - STORED When Monitored: With ignition on, the ORC monitors the PCI Bus for a message contai

Page 164 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: ORC, PASSENGER SBS OPEN - ACTIVE When Monitored and Set Condition: ORC, PASSENGER SBS OPEN - ACTIVE When Monitored: The ORC monitors the Seat Belt Switch circuit for an open condition. Set Co

Page 165 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED AT ANY TIME, IT MUST BE REPLACED. WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE PRO

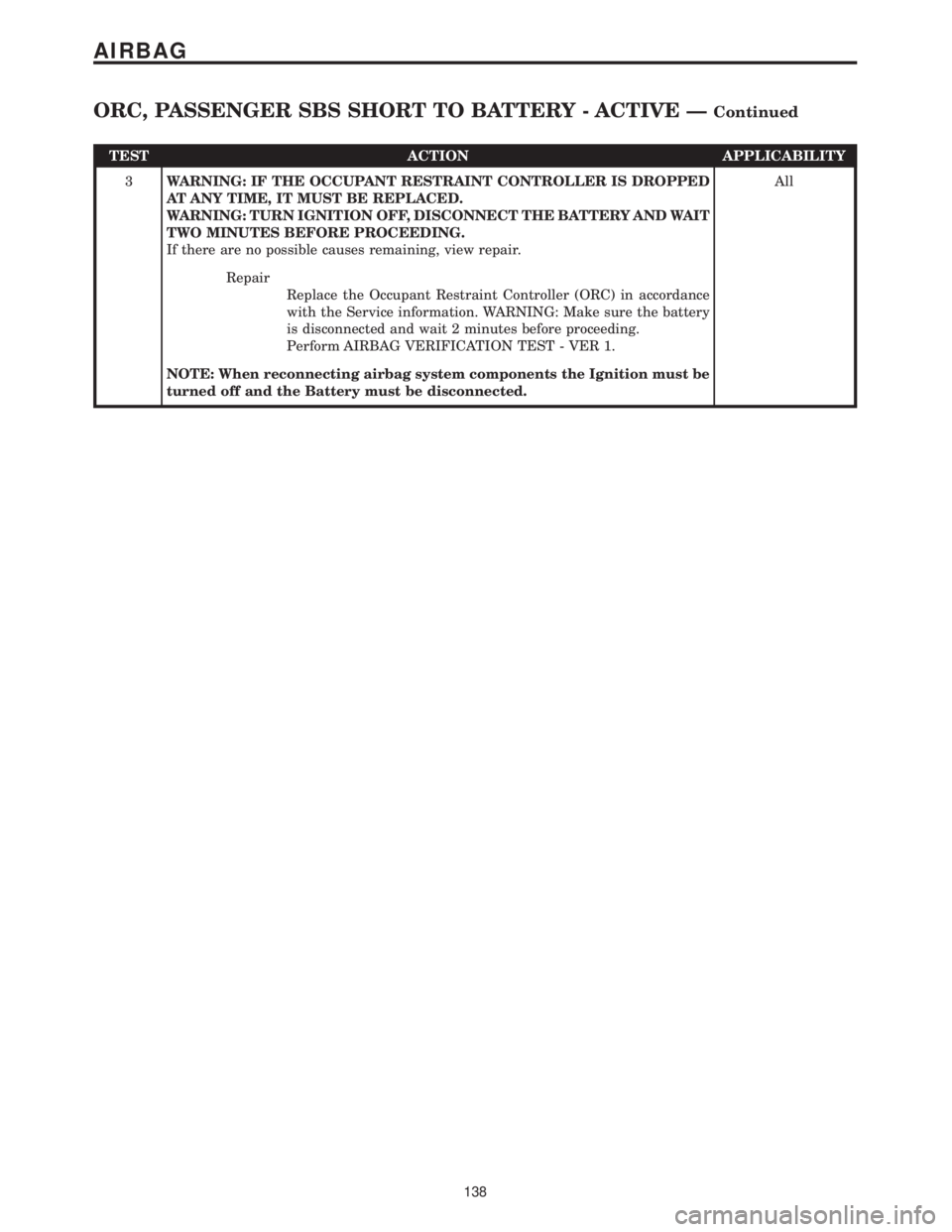

Page 166 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: ORC, PASSENGER SBS SHORT TO BATTERY - ACTIVE When Monitored and Set Condition: ORC, PASSENGER SBS SHORT TO BATTERY - ACTIVE When Monitored: The ORC monitors the Seat Belt Switch circuit for a

Page 167 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED AT ANY TIME, IT MUST BE REPLACED. WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BEFORE PRO

Page 168 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: ORC, PASSENGER SBS SHORT TO GROUND - ACTIVE When Monitored and Set Condition: ORC, PASSENGER SBS SHORT TO GROUND - ACTIVE When Monitored: The ORC monitors the Seat Belt Switch circuit for a s
