Page 353 of 4284

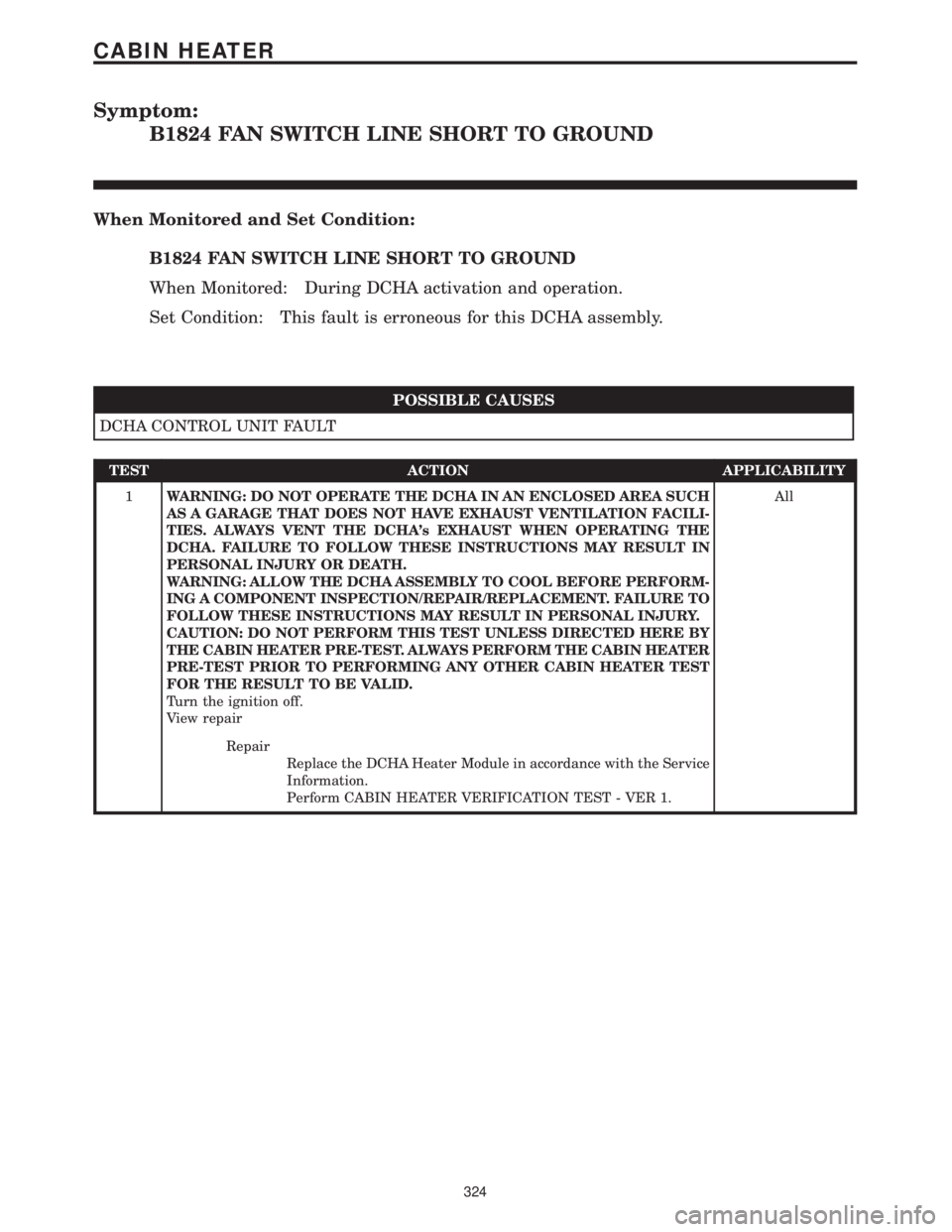

CHRYSLER VOYAGER 2001 Service Manual Symptom:
B1824 FAN SWITCH LINE SHORT TO GROUND
When Monitored and Set Condition:
B1824 FAN SWITCH LINE SHORT TO GROUND
When Monitored: During DCHA activation and operation.
Set Condition: This fault i

Page 354 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
CABIN HEATER CONTROL CIRCUIT OPEN (ACTIVE)
When Monitored and Set Condition:
CABIN HEATER CONTROL CIRCUIT OPEN (ACTIVE)
When Monitored: When the DCHA system is off
Set Condition: The DCHA Low

Page 355 of 4284

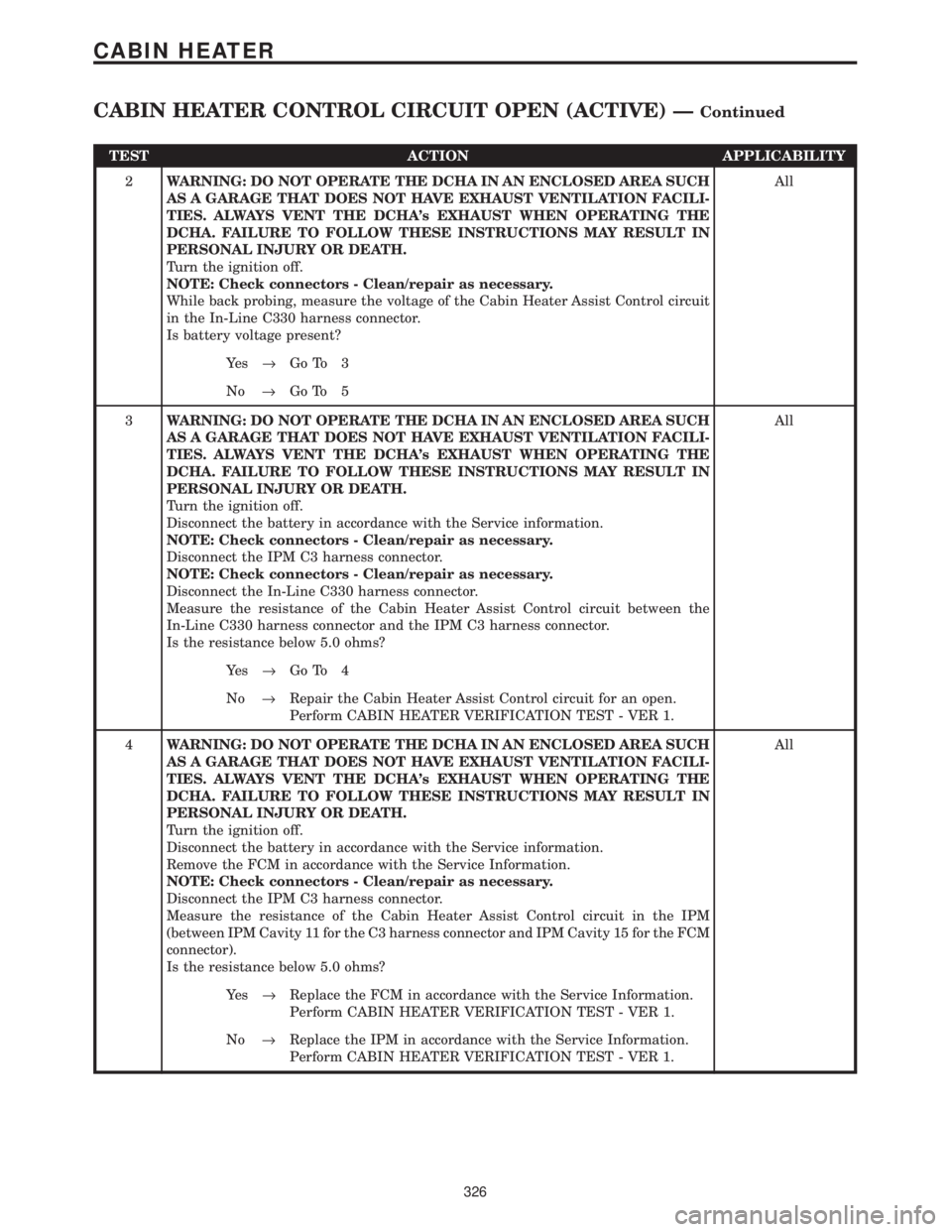

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2WARNING: DO NOT OPERATE THE DCHA IN AN ENCLOSED AREA SUCH
AS A GARAGE THAT DOES NOT HAVE EXHAUST VENTILATION FACILI-
TIES. ALWAYS VENT THE DCHAs EXHAUST WHEN OPERATING THE

TEST ACTION APPLICABILITY
2WARNING: DO NOT OPERATE THE DCHA IN AN ENCLOSED AREA SUCH
AS A GARAGE THAT DOES NOT HAVE EXHAUST VENTILATION FACILI-
TIES. ALWAYS VENT THE DCHA's EXHAUST WHEN OPERATING THE
DCHA. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN
PERSONAL INJURY OR DEATH.
Turn the ignition off.
NOTE: Check connectors - Clean/repair as necessary.
While back probing, measure the voltage of the Cabin Heater Assist Control circuit
in the In-Line C330 harness connector.
Is battery voltage present?All
Ye s®Go To 3
No®Go To 5
3WARNING: DO NOT OPERATE THE DCHA IN AN ENCLOSED AREA SUCH
AS A GARAGE THAT DOES NOT HAVE EXHAUST VENTILATION FACILI-
TIES. ALWAYS VENT THE DCHA's EXHAUST WHEN OPERATING THE
DCHA. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN
PERSONAL INJURY OR DEATH.
Turn the ignition off.
Disconnect the battery in accordance with the Service information.
NOTE: Check connectors - Clean/repair as necessary.
Disconnect the IPM C3 harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Disconnect the In-Line C330 harness connector.
Measure the resistance of the Cabin Heater Assist Control circuit between the
In-Line C330 harness connector and the IPM C3 harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the Cabin Heater Assist Control circuit for an open.
Perform CABIN HEATER VERIFICATION TEST - VER 1.
4WARNING: DO NOT OPERATE THE DCHA IN AN ENCLOSED AREA SUCH
AS A GARAGE THAT DOES NOT HAVE EXHAUST VENTILATION FACILI-
TIES. ALWAYS VENT THE DCHA's EXHAUST WHEN OPERATING THE
DCHA. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN
PERSONAL INJURY OR DEATH.
Turn the ignition off.
Disconnect the battery in accordance with the Service information.
Remove the FCM in accordance with the Service Information.
NOTE: Check connectors - Clean/repair as necessary.
Disconnect the IPM C3 harness connector.
Measure the resistance of the Cabin Heater Assist Control circuit in the IPM
(between IPM Cavity 11 for the C3 harness connector and IPM Cavity 15 for the FCM
connector).
Is the resistance below 5.0 ohms?All
Ye s®Replace the FCM in accordance with the Service Information.
Perform CABIN HEATER VERIFICATION TEST - VER 1.
No®Replace the IPM in accordance with the Service Information.
Perform CABIN HEATER VERIFICATION TEST - VER 1.
326
CABIN HEATER
CABIN HEATER CONTROL CIRCUIT OPEN (ACTIVE) ÐContinued

Page 356 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
5WARNING: DO NOT OPERATE THE DCHA IN AN ENCLOSED AREA SUCH
AS A GARAGE THAT DOES NOT HAVE EXHAUST VENTILATION FACILI-
TIES. ALWAYS VENT THE DCHAs EXHAUST WHEN OPERATING THE

Page 357 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
7WARNING: DO NOT OPERATE THE DCHA IN AN ENCLOSED AREA SUCH
AS A GARAGE THAT DOES NOT HAVE EXHAUST VENTILATION FACILI-
TIES. ALWAYS VENT THE DCHAs EXHAUST WHEN OPERATING THE

TEST ACTION APPLICABILITY
7WARNING: DO NOT OPERATE THE DCHA IN AN ENCLOSED AREA SUCH
AS A GARAGE THAT DOES NOT HAVE EXHAUST VENTILATION FACILI-
TIES. ALWAYS VENT THE DCHA's EXHAUST WHEN OPERATING THE
DCHA. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN
PERSONAL INJURY OR DEATH.
WARNING: ALLOW THE DCHA ASSEMBLY TO COOL BEFORE PERFORM-
ING A COMPONENT INSPECTION/REPAIR/REPLACEMENT. FAILURE TO
FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Turn the ignition off.
Disconnect the battery in accordance with the Service information.
NOTE: Check connectors - Clean/repair as necessary.
Disconnect the IPM C3 harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Disconnect the Cabin Heater Assist C1 harness connector.
Measure the resistance between ground and the Cabin Heater Assist Control circuit.
Is the resistance below 10K ohms?All
Ye s®Repair the Cabin Heater Assist Control circuit for a short to
ground.
Perform CABIN HEATER VERIFICATION TEST - VER 1.
No®Go To 8
8WARNING: DO NOT OPERATE THE DCHA IN AN ENCLOSED AREA SUCH
AS A GARAGE THAT DOES NOT HAVE EXHAUST VENTILATION FACILI-
TIES. ALWAYS VENT THE DCHA's EXHAUST WHEN OPERATING THE
DCHA. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN
PERSONAL INJURY OR DEATH.
WARNING: ALLOW THE DCHA ASSEMBLY TO COOL BEFORE PERFORM-
ING A COMPONENT INSPECTION/REPAIR/REPLACEMENT. FAILURE TO
FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Turn the ignition off.
Disconnect the battery in accordance with the Service information.
NOTE: Check connectors - Clean/repair as necessary.
Disconnect the IPM C3 harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Disconnect the Cabin Heater Assist C1 harness connector.
Measure the resistance of the Cabin Heater Assist Control circuit between the Cabin
Heater Assist C1 harness connector and the IPM C3 harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace the DCHA Heater Module in accordance with the Service
Information.
Perform CABIN HEATER VERIFICATION TEST - VER 1.
No®Repair the Cabin Heater Assist Control circuit for an open.
Perform CABIN HEATER VERIFICATION TEST - VER 1.
328
CABIN HEATER
CABIN HEATER CONTROL CIRCUIT OPEN (ACTIVE) ÐContinued

Page 358 of 4284

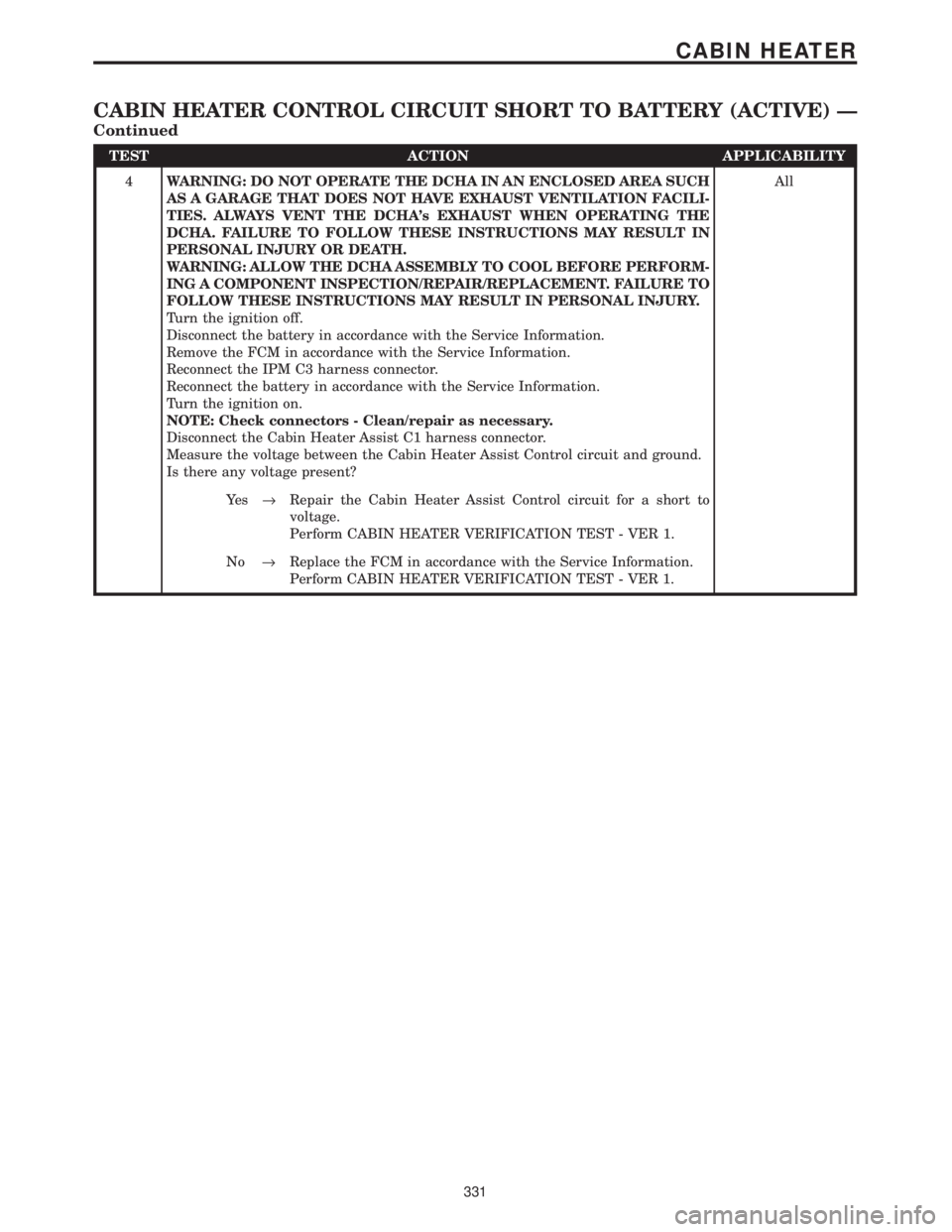

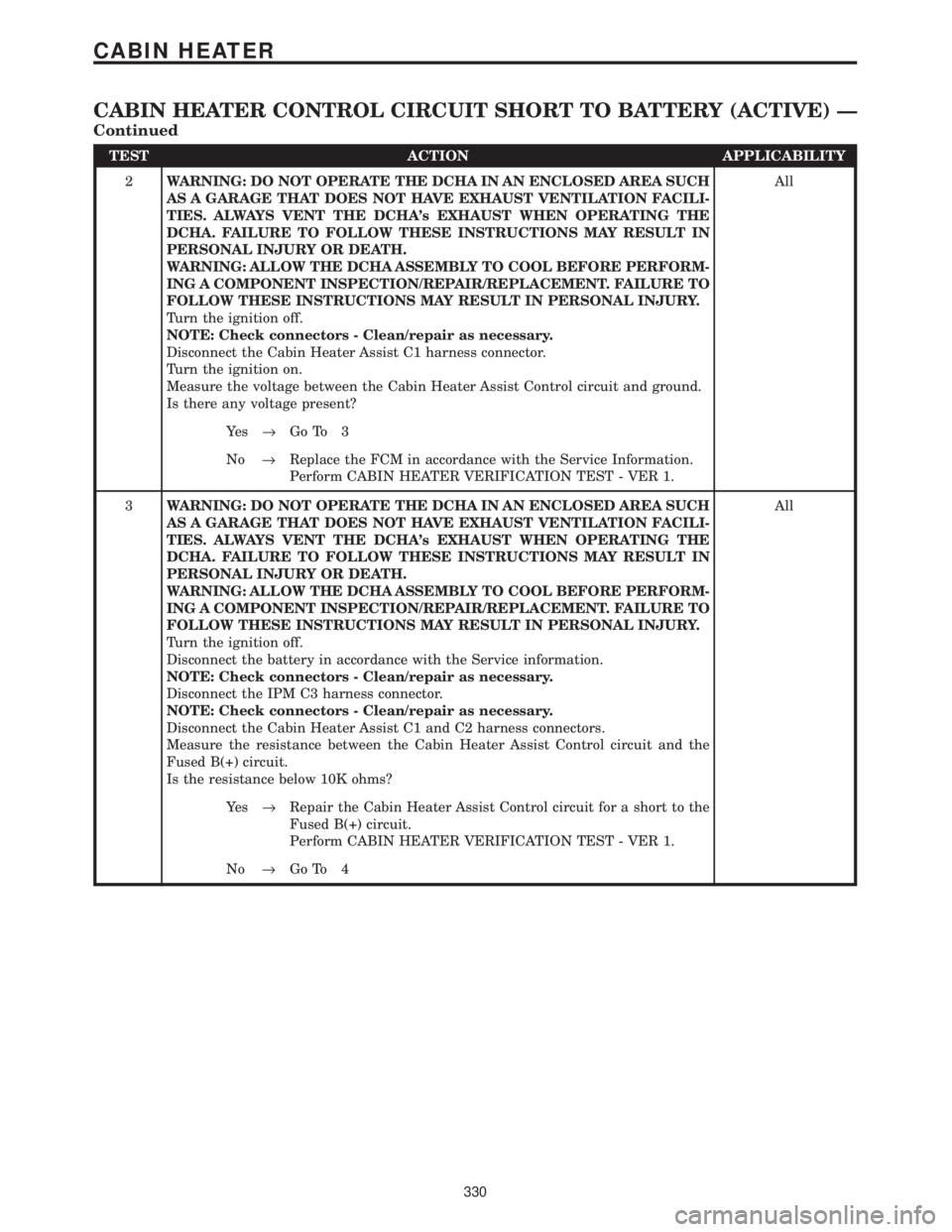

CHRYSLER VOYAGER 2001 Service Manual Symptom:
CABIN HEATER CONTROL CIRCUIT SHORT TO BATTERY (AC-
TIVE)
When Monitored and Set Condition:
CABIN HEATER CONTROL CIRCUIT SHORT TO BATTERY (ACTIVE)
When Monitored: During DCHA activation and op

Page 359 of 4284

Page 360 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4WARNING: DO NOT OPERATE THE DCHA IN AN ENCLOSED AREA SUCH
AS A GARAGE THAT DOES NOT HAVE EXHAUST VENTILATION FACILI-
TIES. ALWAYS VENT THE DCHAs EXHAUST WHEN OPERATING THE
