TEST ACTION APPLICABILITY
4 Disconnect the Passenger Door Lock Switch connector.
Measure the voltage between Door Lock Switch Mux circuit and ground.
Is the voltage above 4.6 volts?All
Ye s®Go To 5
No®Repair the Door Lock Switch Mux circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
5 If there are no possible causes remaining, view repair. All
Repair
Replace the Door Lock Switch.
Perform BODY VERIFICATION TEST - VER 1.
748
POWER DOOR LOCKS/RKE
PASSENGER DOOR LOCK SWITCH INPUT OPEN ÐContinued
Page 778 of 4284

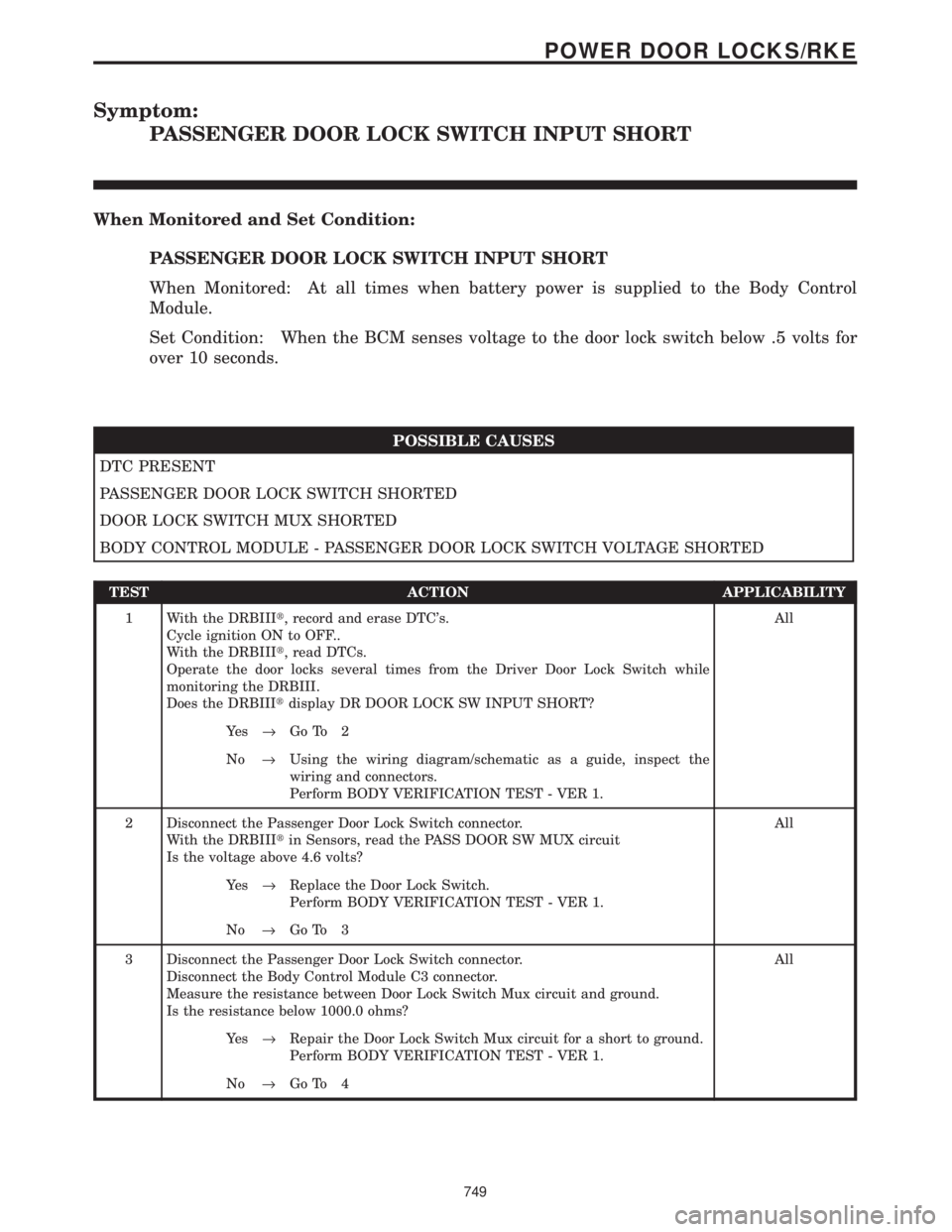

Symptom:
PASSENGER DOOR LOCK SWITCH INPUT SHORT
When Monitored and Set Condition:
PASSENGER DOOR LOCK SWITCH INPUT SHORT
When Monitored: At all times when battery power is supplied to the Body Control
Module.
Set Condition: When the BCM senses voltage to the door lock switch below .5 volts for
over 10 seconds.
POSSIBLE CAUSES
DTC PRESENT
PASSENGER DOOR LOCK SWITCH SHORTED
DOOR LOCK SWITCH MUX SHORTED
BODY CONTROL MODULE - PASSENGER DOOR LOCK SWITCH VOLTAGE SHORTED
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Cycle ignition ON to OFF..
With the DRBIIIt, read DTCs.
Operate the door locks several times from the Driver Door Lock Switch while
monitoring the DRBIII.
Does the DRBIIItdisplay DR DOOR LOCK SW INPUT SHORT?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors.
Perform BODY VERIFICATION TEST - VER 1.
2 Disconnect the Passenger Door Lock Switch connector.
With the DRBIIItin Sensors, read the PASS DOOR SW MUX circuit
Is the voltage above 4.6 volts?All
Ye s®Replace the Door Lock Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 Disconnect the Passenger Door Lock Switch connector.
Disconnect the Body Control Module C3 connector.
Measure the resistance between Door Lock Switch Mux circuit and ground.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Door Lock Switch Mux circuit for a short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
749
POWER DOOR LOCKS/RKE
Page 779 of 4284
TEST ACTION APPLICABILITY
4 If there are no possible causes remaining, view repair. All
Repair
Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
750
POWER DOOR LOCKS/RKE
PASSENGER DOOR LOCK SWITCH INPUT SHORT ÐContinued
Page 780 of 4284

Symptom:
PASSENGER DOOR LOCK SWITCH INPUT STUCK
When Monitored and Set Condition:
PASSENGER DOOR LOCK SWITCH INPUT STUCK
When Monitored: At all times when battery power is supplied to the Body Control
Module.
Set Condition: When the BCM senses voltage to the door lock switch between 1.3 and
3.25 for over 10 seconds.
POSSIBLE CAUSES
DTC PRESENT
BODY CONTROL MODULE - PASSENGER DOOR LOCK SWITCH VOLTAGE INCORRECT
DOOR LOCK SWITCH GROUND OPEN
DOOR LOCK SWITCH MUX OPEN
DOOR LOCK SWITCH STUCK
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
Cycle the ignition ON to OFF.
With the DRBIIIt, read DTCs.
Operate the door lock several times from the Passenger Door Lock Switch while
monitoring the DRBIII.
Does the DRBIIItdisplay PASS DOOR LOCK SW INPUT STUCK?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors.
Perform BODY VERIFICATION TEST - VER 1.
2 With the DRBIIItin Sensors, read the PASS DOOR LOCK SW voltage.
Does the DRBIIItdisplay voltage between 1.3 and 3.25 volts?All
Ye s®Go To 3
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
3 Disconnect the Passenger Door Lock Switch connector.
Using a 12-volt test light connected to 12-volts, check the Ground circuit.
Does the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
751
POWER DOOR LOCKS/RKE
Page 781 of 4284
TEST ACTION APPLICABILITY
4 Disconnect the Passenger Door Lock Switch connector.
Measure the voltage between Door Lock Switch Mux circuit and ground.
Is the voltage above 4.6 volts?All
Ye s®Go To 5
No®Repair the Door Lock Switch Mux circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
5 If there are no possible causes remaining, view repair. All
Repair
Replace the Door Lock Switch.
Perform BODY VERIFICATION TEST - VER 1.
752
POWER DOOR LOCKS/RKE
PASSENGER DOOR LOCK SWITCH INPUT STUCK ÐContinued
Page 782 of 4284

Symptom:
RIGHT CYLINDER LOCK SWITCH INPUT OPEN
When Monitored and Set Condition:
RIGHT CYLINDER LOCK SWITCH INPUT OPEN
When Monitored: At all times when battery power is supplied to the Body Control
Module.
Set Condition: When the BCM senses voltage to the cylinder lock switch above 4.6 volts
for over 10 seconds.
POSSIBLE CAUSES
DTC PRESENT
BODY CONTROL MODULE - RIGHT CYLINDER LOCK SWITCH VOLTAGE LOW
CYLINDER LOCK SWITCH GROUND OPEN
CYLINDER LOCK SWITCH MUX OPEN
CYLINDER LOCK SWITCH OPEN
TEST ACTION APPLICABILITY
1 NOTE: When this code is present, the VTSS indicator will stay on solid during the
arming process.
With the DRBIIIt, record and erase DTC's.
With the DRBIIIt, read DTCs.
Operate the door locks several times from the Right Cylinder Lock Switch while
monitoring the DRBIIIt.
Does the DRBIIItdisplay RIGHT CYL LOCK SW INPUT OPEN?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors.
Perform BODY VERIFICATION TEST - VER 1.
2 With the DRBIIItin Sensors, read the RIGHT CYL LOCK SW voltage.
Does the DRBIIItdisplay 4.6 volts or greater?All
Ye s®Go To 3
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
3 Disconnect the Right Cylinder Lock Switch connector.
Using a 12-volt test light connected to 12-volts, check the Ground circuit.
Does the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
753
POWER DOOR LOCKS/RKE
Page 783 of 4284
TEST ACTION APPLICABILITY
4 Disconnect the Right Cylinder Lock Switch connector.
Measure the voltage between Cylinder Lock Switch Mux circuit and ground.
Is the voltage above 4.6 volts?All
Ye s®Go To 5
No®Repair the Cylinder Lock Switch Mux circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
5 If there are no possible causes remaining, view repair. All
Repair
Replace the Cylinder Lock Switch.
Perform BODY VERIFICATION TEST - VER 1.
754
POWER DOOR LOCKS/RKE
RIGHT CYLINDER LOCK SWITCH INPUT OPEN ÐContinued
Page 784 of 4284

Symptom:
RIGHT CYLINDER LOCK SWITCH INPUT SHORT
When Monitored and Set Condition:
RIGHT CYLINDER LOCK SWITCH INPUT SHORT
When Monitored: At all times when battery power is supplied to the Body Control
Module.
Set Condition: When the BCM senses voltage to the cylinder lock switch below .5 volts for
over 10 seconds.
POSSIBLE CAUSES
DTC PRESENT
CYLINDER LOCK SWITCH SHORTED
CYLINDER LOCK SWITCH MUX CIRCUIT SHORTED
BODY CONTROL MODULE - RIGHT CYLINDER LOCK SWITCH VOLTAGE SHORTED
TEST ACTION APPLICABILITY
1 NOTE: When this code is present, the VTSS indicator will stay on solid during the
arming process.
With the DRBIIIt, record and erase DTC's.
With the DRBIIIt, read DTC's.
Operate the door locks several times from the Left Cylinder Lock Switch while
monitoring the DRBIIIt.
Does the DRBIIItdisplay RIGHT CYL LOCK SW INPUT SHORT?All
Ye s®Go To 2
No®Using the wiring diagram/schematic as a guide, inspect the
wiring and connectors.
Perform BODY VERIFICATION TEST - VER 1.
2 Disconnect the Right Cylinder Lock Switch connector.
With the DRBIIItin Sensors, read the RIGHT CYL SW MUX circuit
Is the voltage above 4.6 volts?All
Ye s®Replace the Cylinder Lock Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 Disconnect the Right Cylinder Lock Switch connector.
Disconnect the Body Control Module C3 connector.
Measure the resistance between Cylinder Lock Switch Mux circuit and ground.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Cylinder Lock Switch Mux circuit for a short to
ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
755
POWER DOOR LOCKS/RKE
