CHRYSLER VOYAGER 2001 Service Manual Symptom: REAR BLEND DOOR NOT RESPONDING (ACTIVE) When Monitored and Set Condition: REAR BLEND DOOR NOT RESPONDING (ACTIVE) When Monitored: With the ignition on and the IOD fuse installed. Set Conditio

Page 298 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3 Turn the ignition off. Disconnect the Rear Blend Door Actuator harness connector. Disconnect the ATC C1 harness connectors. Measure the resistance between the Rear Blend Do

Page 299 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: REAR BLEND DOOR TRAVEL TOO LARGE (ACTIVE) When Monitored and Set Condition: REAR BLEND DOOR TRAVEL TOO LARGE (ACTIVE) When Monitored: With the ignition on and the IOD fuse installed. Set Cond

Page 300 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3 Remove the Rear Blend Door Actuator. Rotate the blend door (door only). Note: This should rotate approximately 45 degrees from stop to stop. Inspect the blend door linkage

Page 301 of 4284

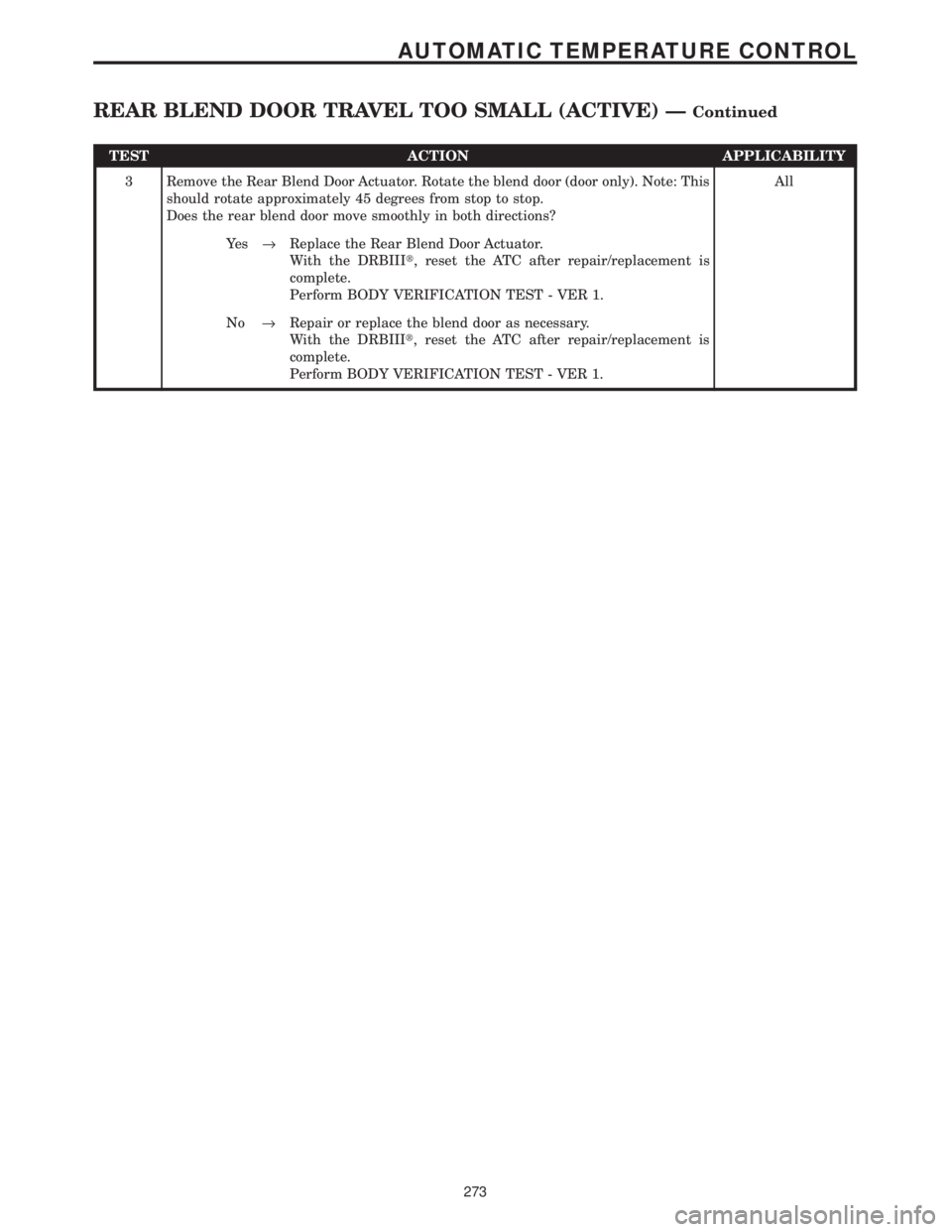

CHRYSLER VOYAGER 2001 Service Manual Symptom: REAR BLEND DOOR TRAVEL TOO SMALL (ACTIVE) When Monitored and Set Condition: REAR BLEND DOOR TRAVEL TOO SMALL (ACTIVE) When Monitored: With the ignition on and the IOD fuse installed. Set Cond

Page 302 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3 Remove the Rear Blend Door Actuator. Rotate the blend door (door only). Note: This should rotate approximately 45 degrees from stop to stop. Does the rear blend door move s

Page 303 of 4284

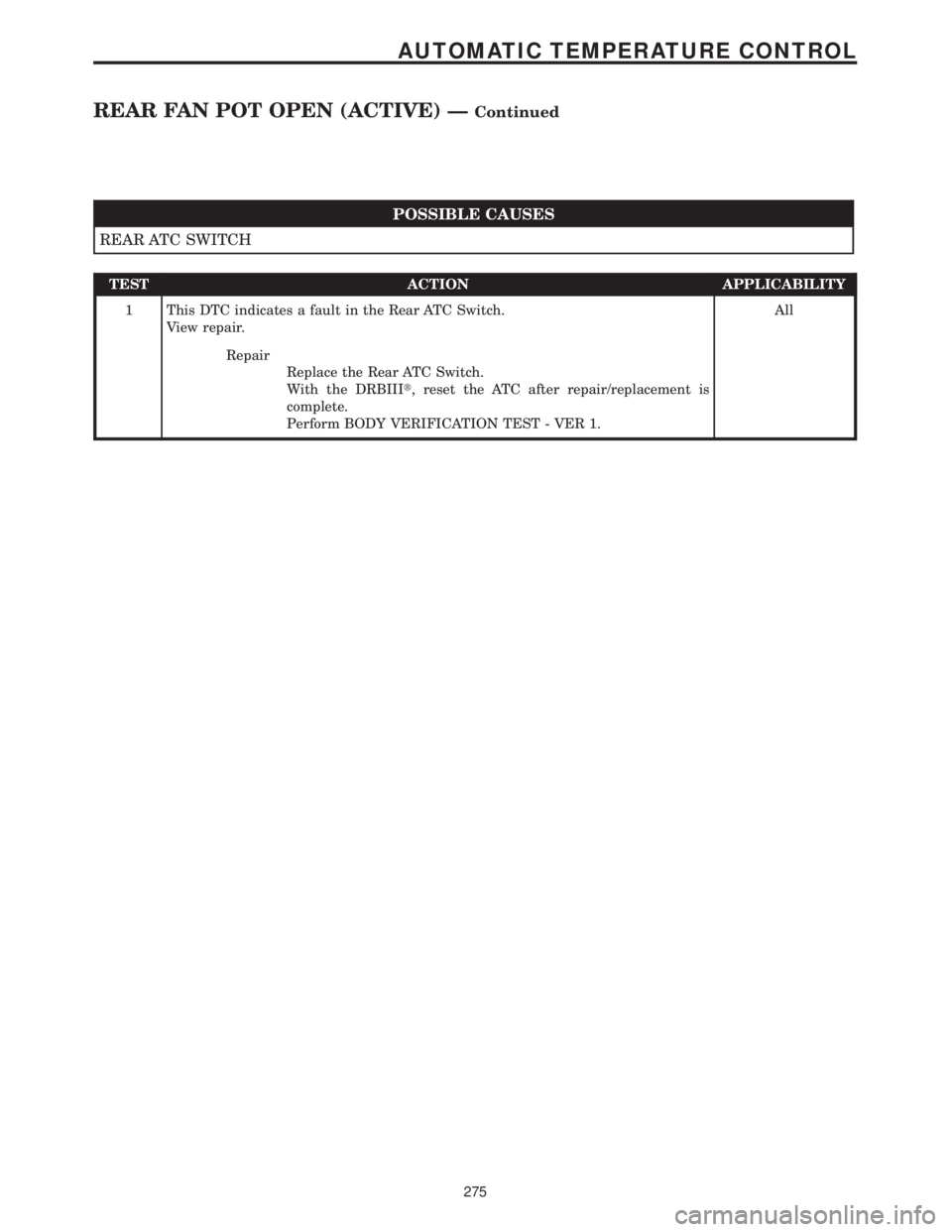

CHRYSLER VOYAGER 2001 Service Manual Symptom List: REAR FAN POT OPEN (ACTIVE) REAR FAN POT SHORTED (ACTIVE) REAR IR SENSOR HIGH (ACTIVE) REAR IR SENSOR LOW (ACTIVE) REAR MODE POT OPEN (ACTIVE) REAR MODE POT SHORTED (ACTIVE) Test Note: Al

Page 304 of 4284

CHRYSLER VOYAGER 2001 Service Manual POSSIBLE CAUSES REAR ATC SWITCH TEST ACTION APPLICABILITY 1 This DTC indicates a fault in the Rear ATC Switch. View repair.All Repair Replace the Rear ATC Switch. With the DRBIIIt, reset the ATC after
