CHRYSLER VOYAGER 2001 Service Manual 8W-61 POWER DOOR LOCKS
Component Page
Accessory Relay............... 8Wa-61-2, 3, 4, 7
Body Control Module . 8Wa-61-2, 3, 4, 5, 6, 7, 10, 13,
14, 15, 16, 19
Diagnostic Junction Port........ 8Wa-61-7,

8W-61 POWER DOOR LOCKS
Component Page
Accessory Relay............... 8Wa-61-2, 3, 4, 7
Body Control Module . 8Wa-61-2, 3, 4, 5, 6, 7, 10, 13,
14, 15, 16, 19
Diagnostic Junction Port........ 8Wa-61-7, 10, 16

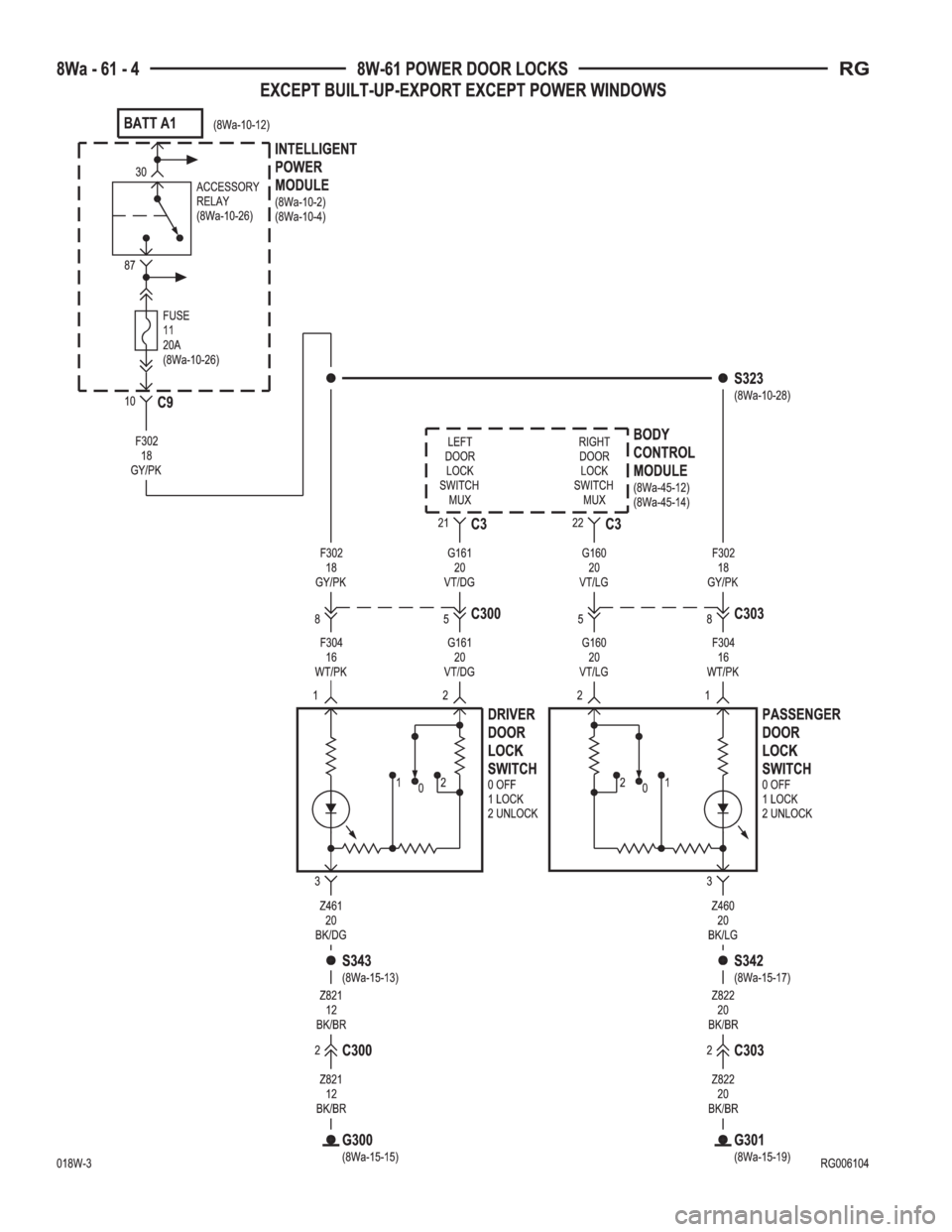

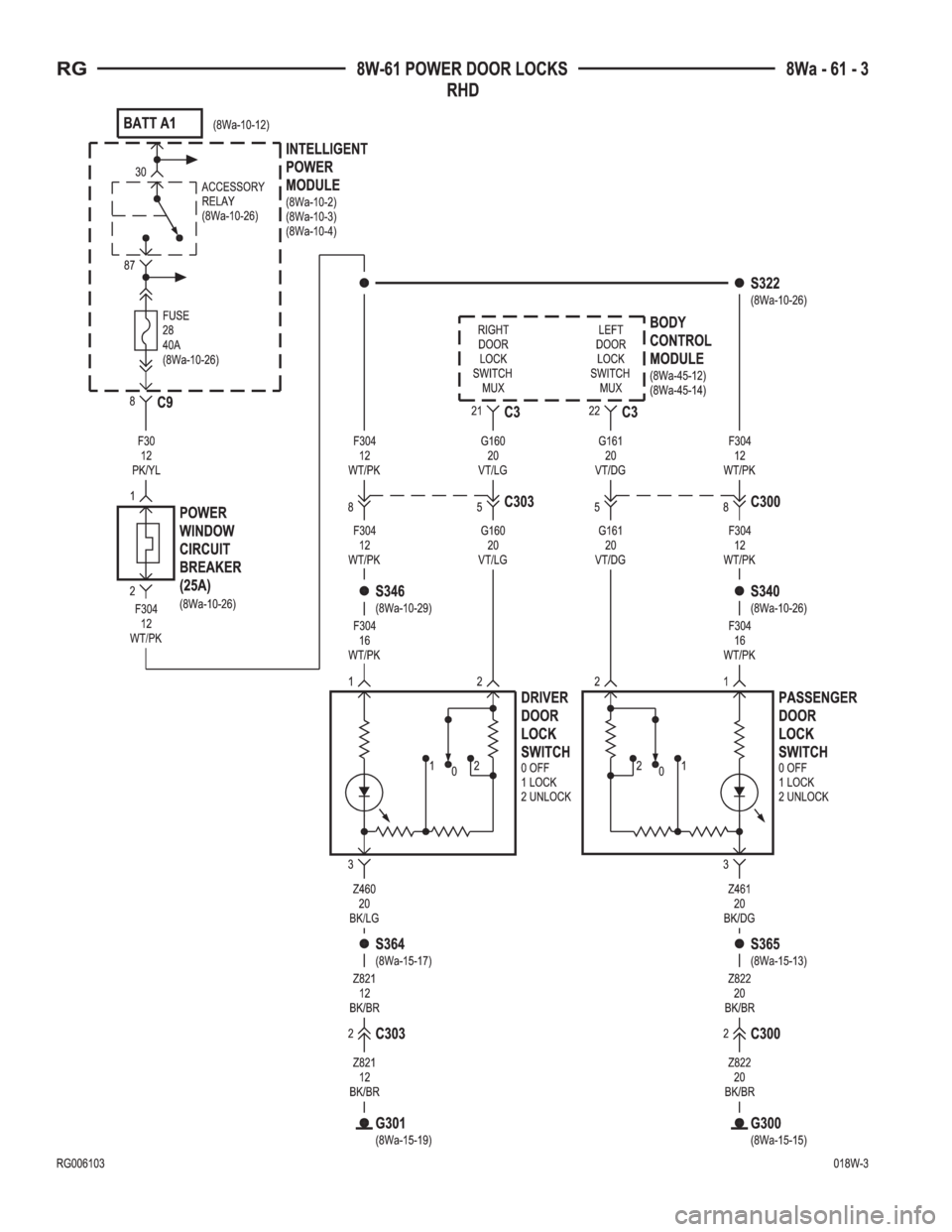

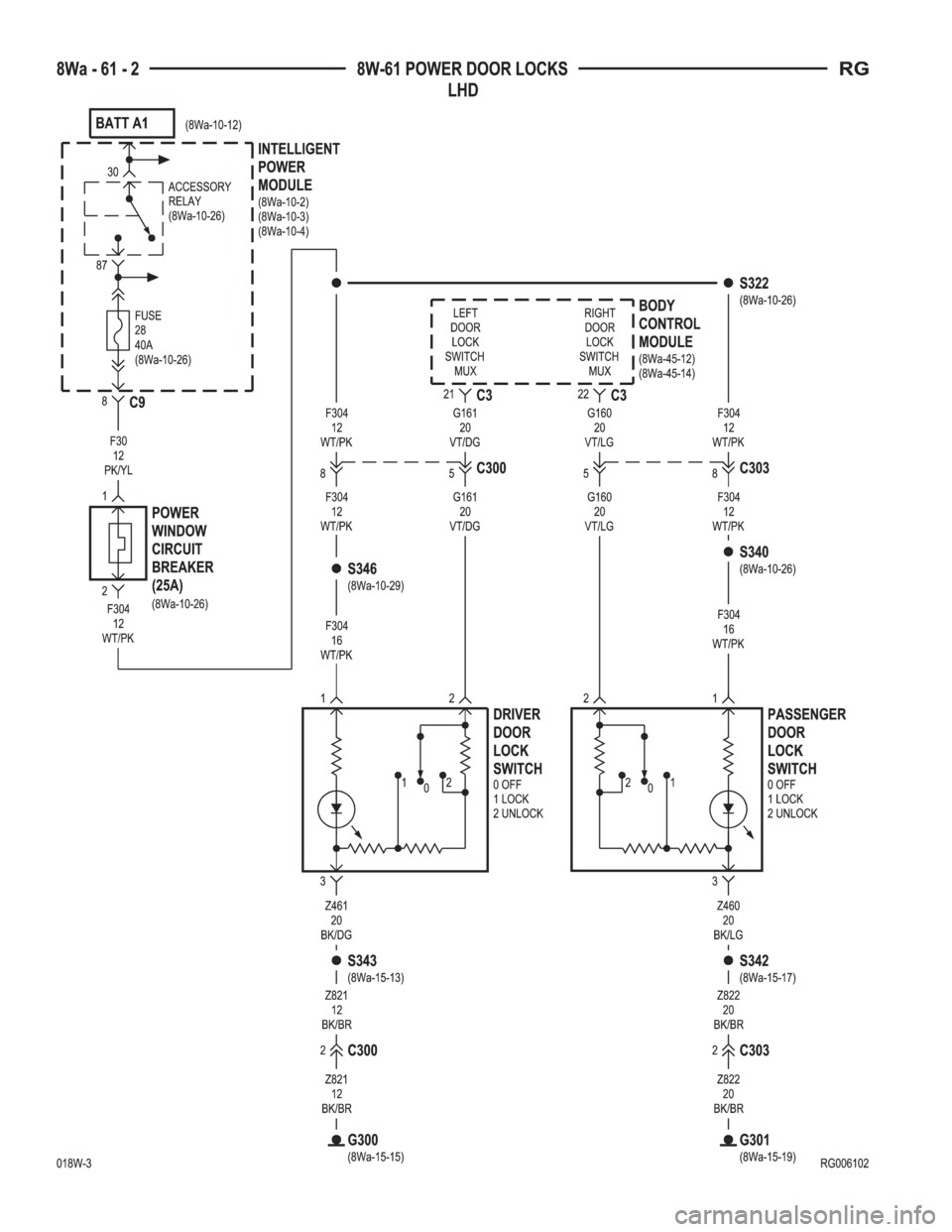

Driver Door Lock Switch.......... 8Wa-61-2, 3, 4
Front Control Module................ 8Wa-61-7
Fuse 11 (IPM).................... 8Wa-61-4, 7
Fuse 14 (IPM)...................... 8Wa-61-6
Fuse 19 (IPM)................ 8Wa-61-5, 13, 14
Fuse 20 (IPM)................ 8Wa-61-5, 13, 14
Fuse 28 (IPM).................... 8Wa-61-2, 3
Fuse 31 (IPM)...................... 8Wa-61-7
Fuse 32 (IPM)..................... 8Wa-61-16
G200............................. 8Wa-61-6
G300.............. 8Wa-61-2, 3, 4, 5, 7, 8, 9, 14
G301............ 8Wa-61-2, 3, 4, 5, 10, 11, 12, 14
G302............................ 8Wa-61-16
G400......................... 8Wa-61-15, 19
Intelligent Power Module . . . 8Wa-61-2, 3, 4, 5, 6, 7,
13, 14, 16
Left B-Pillar Switch................. 8Wa-61-7
Left Cinch/Release Motor............. 8Wa-61-8
Left Front Door Lock Motor/Ajar Switch . . 8Wa-61-5
Left Full Open Switch................ 8Wa-61-8
Left Sliding Door Control Module . . . 8Wa-61-7, 8, 9,
13
Left Sliding Door Latch Sensing Switch . . 8Wa-61-7,
9
Left Sliding Door Lock Motor......... 8Wa-61-13
Left Sliding Door Lock Motor/Ajar Switch. 8Wa-61-14
Left Sliding Door Motor.............. 8Wa-61-8
License Lamp.................. 8Wa-61-18, 19
Liftgate Ajar Switch................ 8Wa-61-15
Liftgate Cinch/Release Motor......... 8Wa-61-18
Liftgate Left Pinch Sensor........... 8Wa-61-18
Liftgate Right Pinch Sensor.......... 8Wa-61-18
Passenger Door Lock Switch....... 8Wa-61-2, 3, 4
Power Liftgate Module...... 8Wa-61-16, 17, 18, 19
Power Liftgate Motor............... 8Wa-61-17
Power Window Circuit Breaker....... 8Wa-61-2, 3
Remote Keyless Entry Antenna......... 8Wa-61-6
Remote Keyless Entry Module......... 8Wa-61-6
Right B-Pillar Switch............. 8Wa-61-7, 10
Right Cinch/Release Motor........... 8Wa-61-11
Right Front Door Lock Motor/Ajar Switch . 8Wa-61-5
Right Full Open Switch.............. 8Wa-61-11
Right Sliding Door Control Module . . 8Wa-61-10, 11,
12, 13
Right Sliding Door Latch Sensing Switch. 8Wa-61-10,
12
Right Sliding Door Lock Motor........ 8Wa-61-13
Right Sliding Door Lock Motor/Ajar Switch. 8Wa-61-14Component Page
Right Sliding Door Motor............ 8Wa-61-11
RG8W-61 POWER DOOR LOCKS8Wa-61-1
