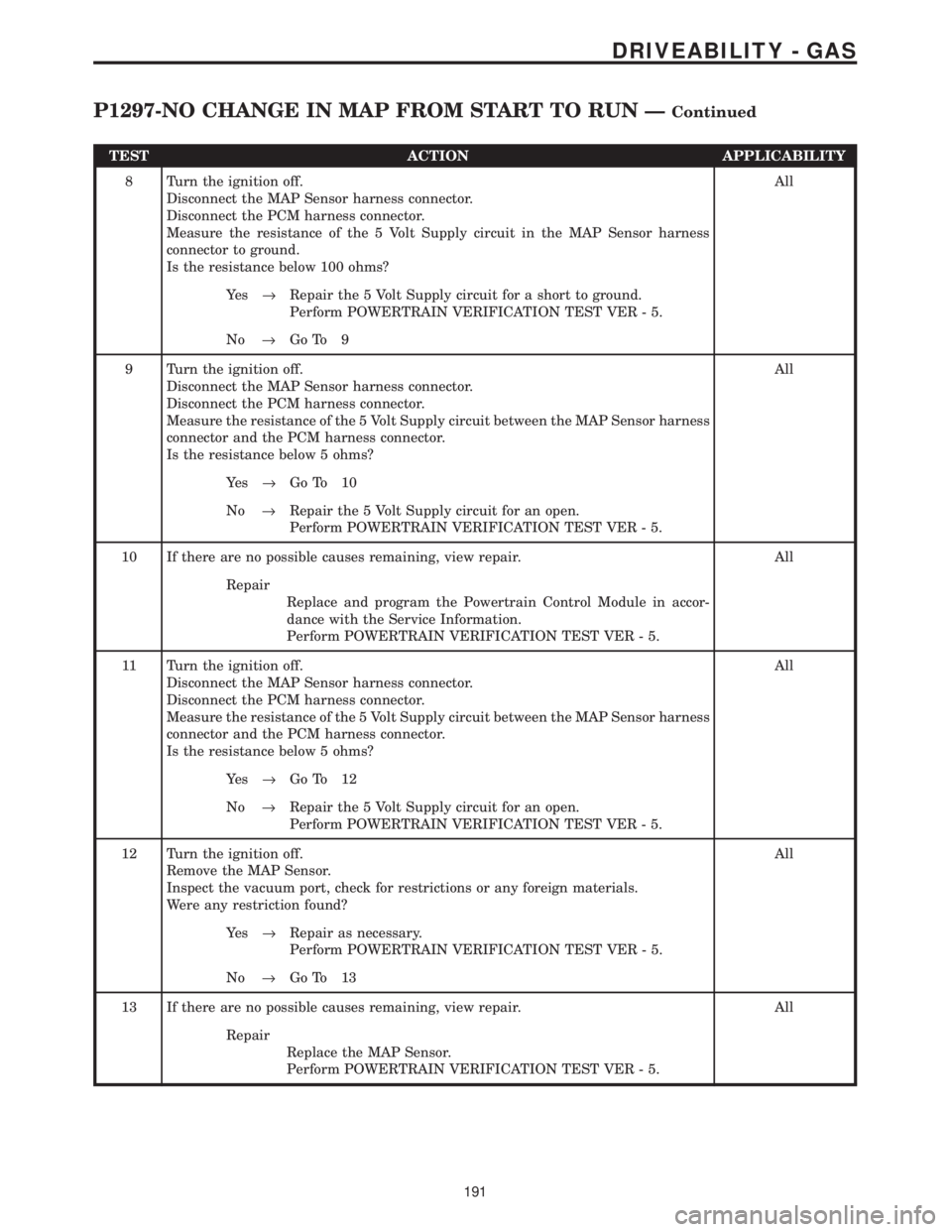

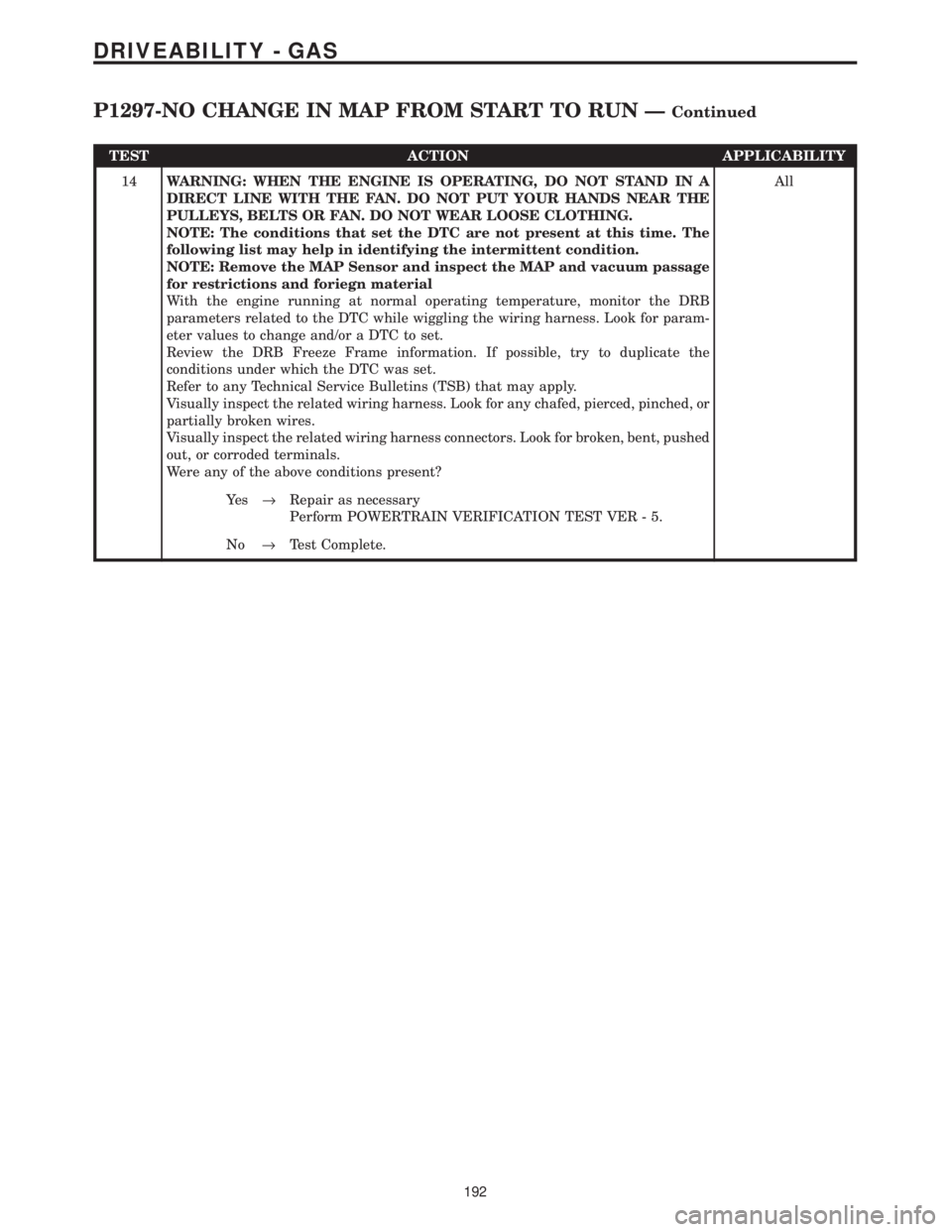

Page 3985 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
8 Turn the ignition off.
Disconnect the MAP Sensor harness connector.
Disconnect the PCM harness connector.
Measure the resistance of the 5 Volt Supply circuit in the MAP Sen

Page 3986 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
14WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: T

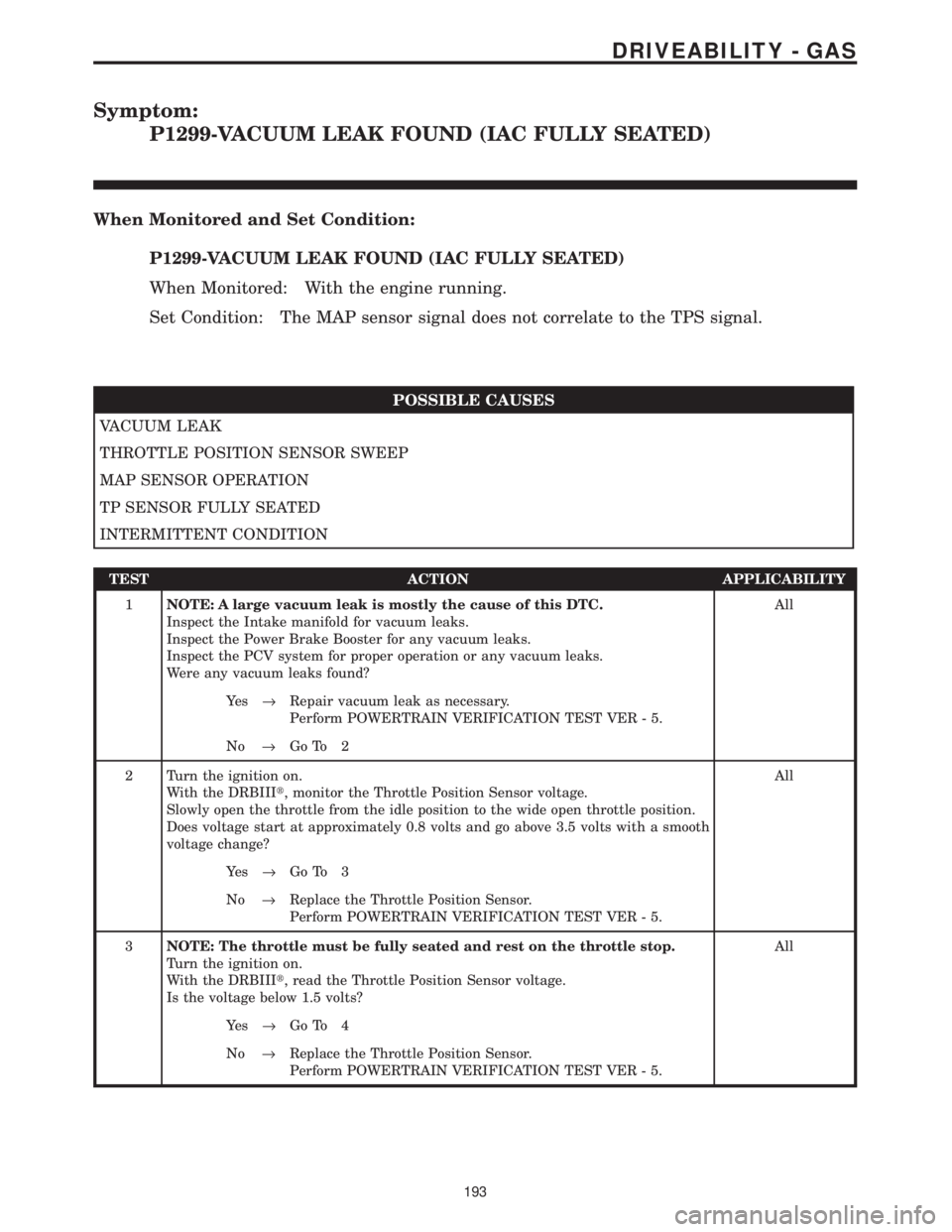

Page 3987 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P1299-VACUUM LEAK FOUND (IAC FULLY SEATED)
When Monitored and Set Condition:
P1299-VACUUM LEAK FOUND (IAC FULLY SEATED)
When Monitored: With the engine running.
Set Condition: The MAP sensor

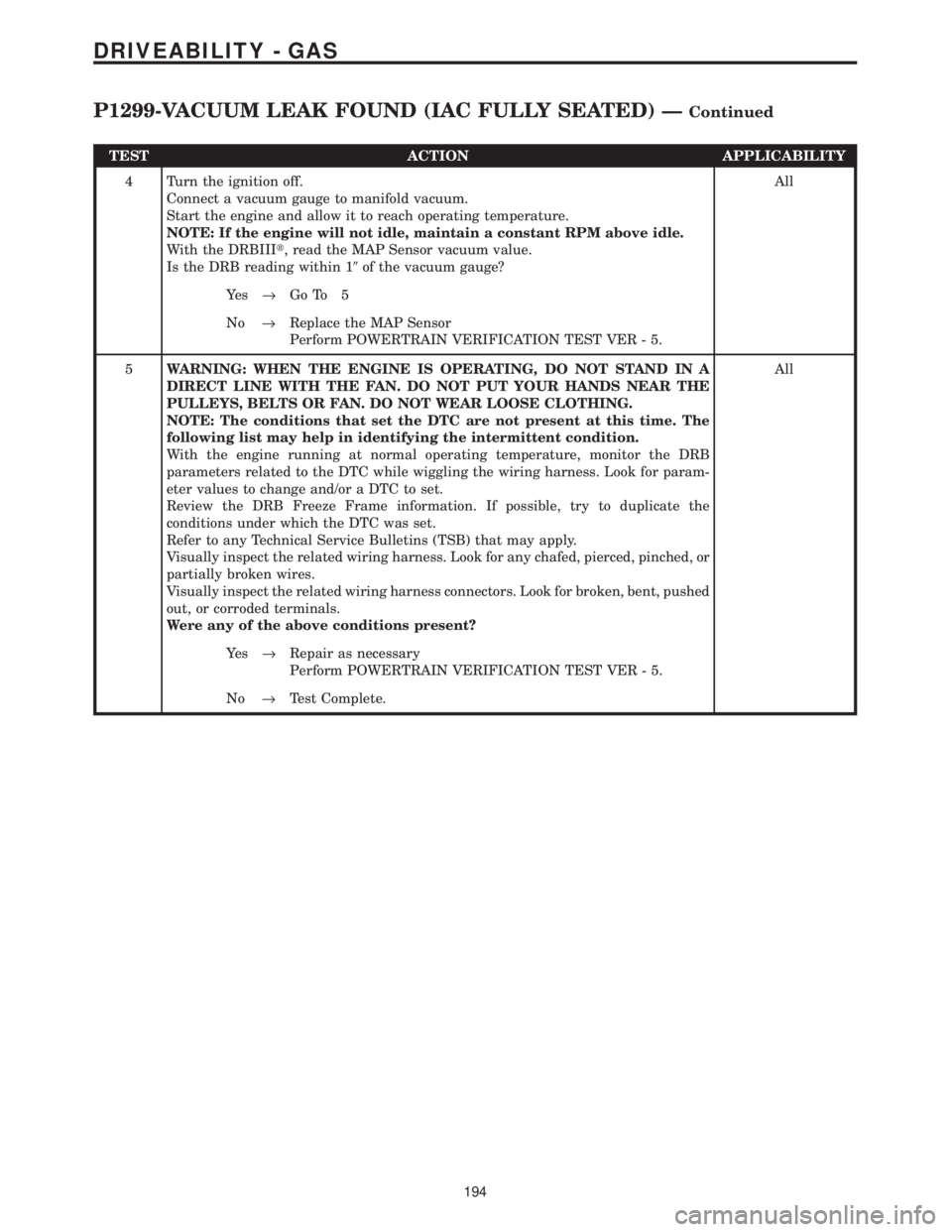

Page 3988 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4 Turn the ignition off.
Connect a vacuum gauge to manifold vacuum.
Start the engine and allow it to reach operating temperature.
NOTE: If the engine will not idle, maintain

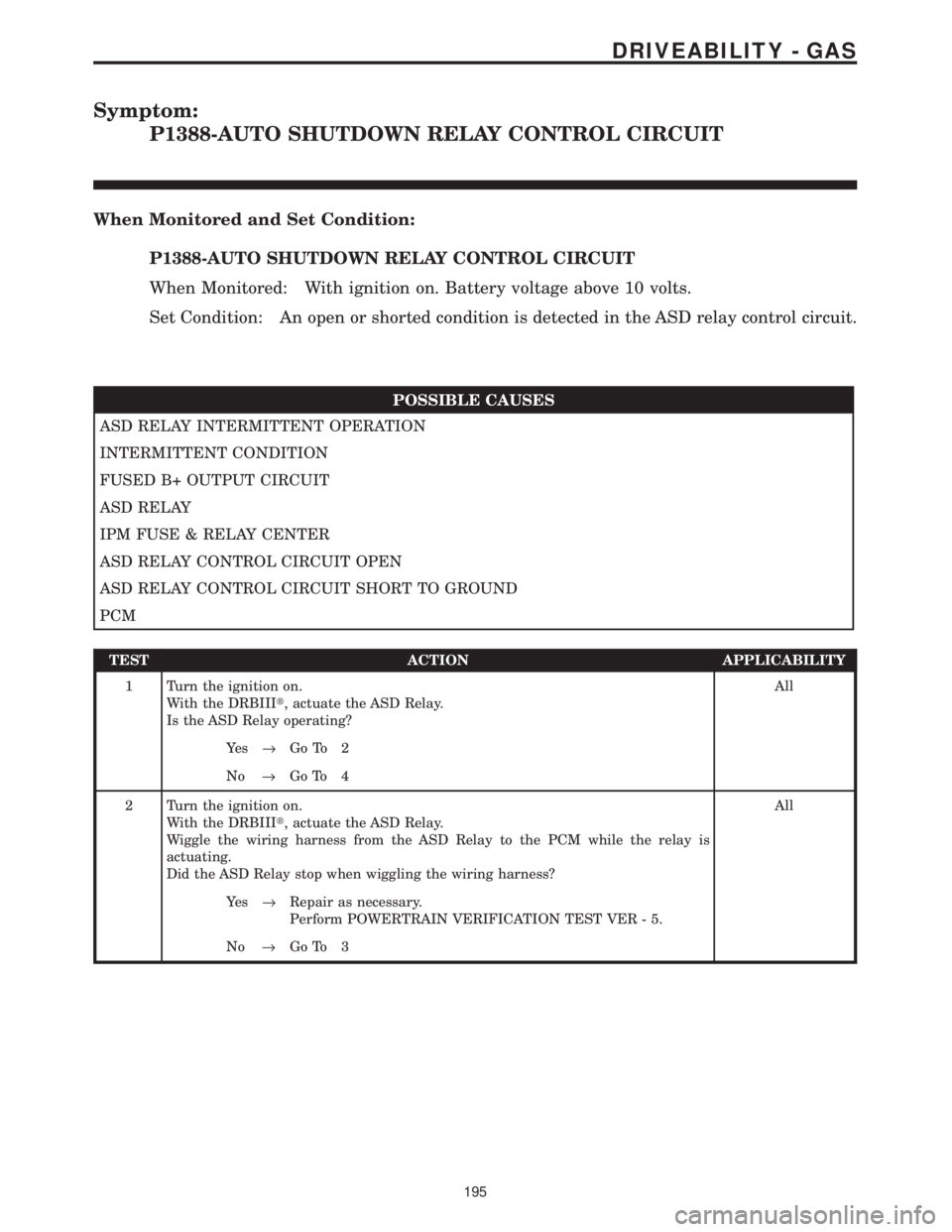

Page 3989 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P1388-AUTO SHUTDOWN RELAY CONTROL CIRCUIT
When Monitored and Set Condition:
P1388-AUTO SHUTDOWN RELAY CONTROL CIRCUIT
When Monitored: With ignition on. Battery voltage above 10 volts.
Set Con

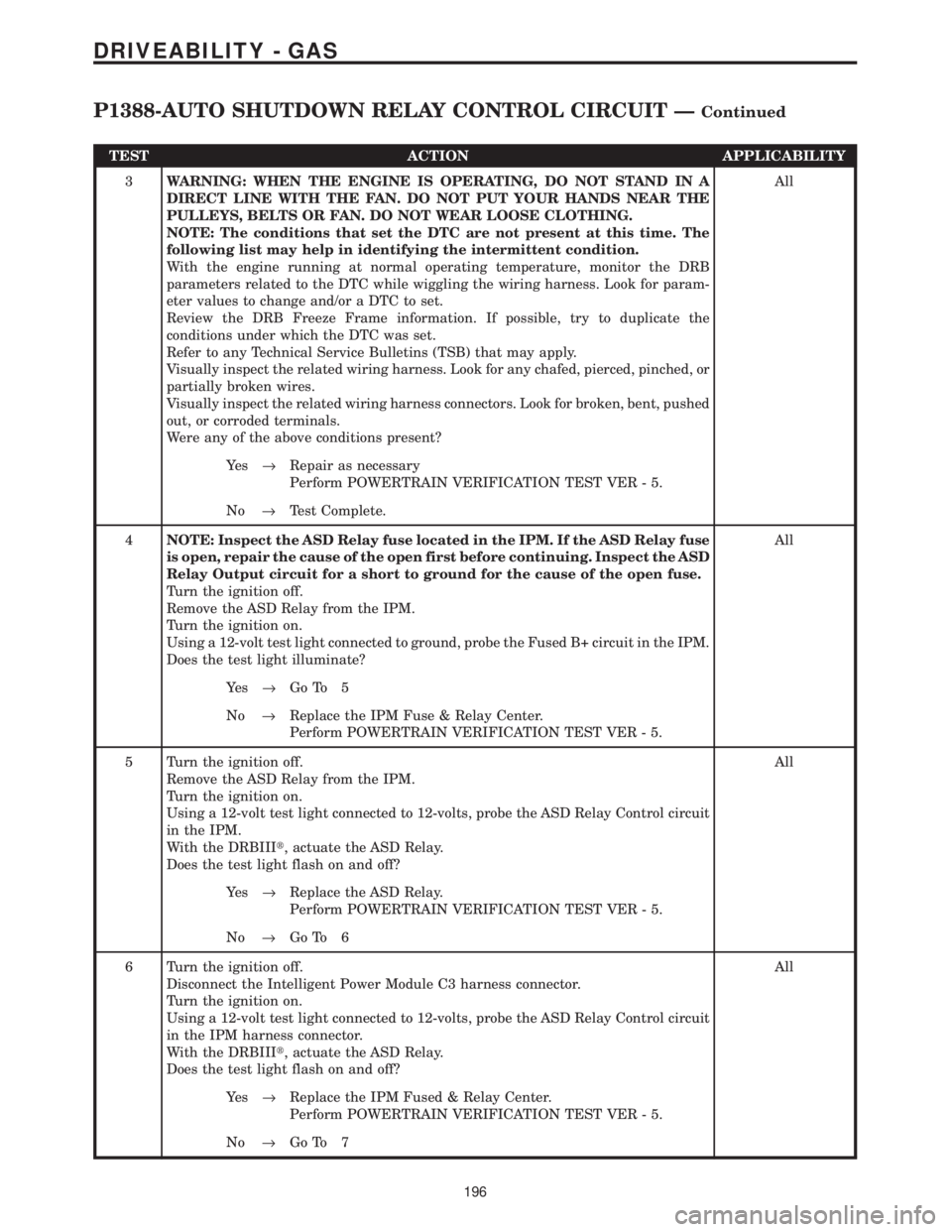

Page 3990 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
3WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: Th

TEST ACTION APPLICABILITY
3WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DRB Freeze Frame information. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary
Perform POWERTRAIN VERIFICATION TEST VER - 5.
No®Test Complete.
4NOTE: Inspect the ASD Relay fuse located in the IPM. If the ASD Relay fuse
is open, repair the cause of the open first before continuing. Inspect the ASD
Relay Output circuit for a short to ground for the cause of the open fuse.
Turn the ignition off.
Remove the ASD Relay from the IPM.
Turn the ignition on.
Using a 12-volt test light connected to ground, probe the Fused B+ circuit in the IPM.
Does the test light illuminate?All
Ye s®Go To 5
No®Replace the IPM Fuse & Relay Center.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
5 Turn the ignition off.
Remove the ASD Relay from the IPM.
Turn the ignition on.
Using a 12-volt test light connected to 12-volts, probe the ASD Relay Control circuit
in the IPM.
With the DRBIIIt, actuate the ASD Relay.
Does the test light flash on and off?All
Ye s®Replace the ASD Relay.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
No®Go To 6
6 Turn the ignition off.
Disconnect the Intelligent Power Module C3 harness connector.
Turn the ignition on.
Using a 12-volt test light connected to 12-volts, probe the ASD Relay Control circuit
in the IPM harness connector.
With the DRBIIIt, actuate the ASD Relay.
Does the test light flash on and off?All
Ye s®Replace the IPM Fused & Relay Center.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
No®Go To 7
196
DRIVEABILITY - GAS
P1388-AUTO SHUTDOWN RELAY CONTROL CIRCUIT ÐContinued

Page 3991 of 4284

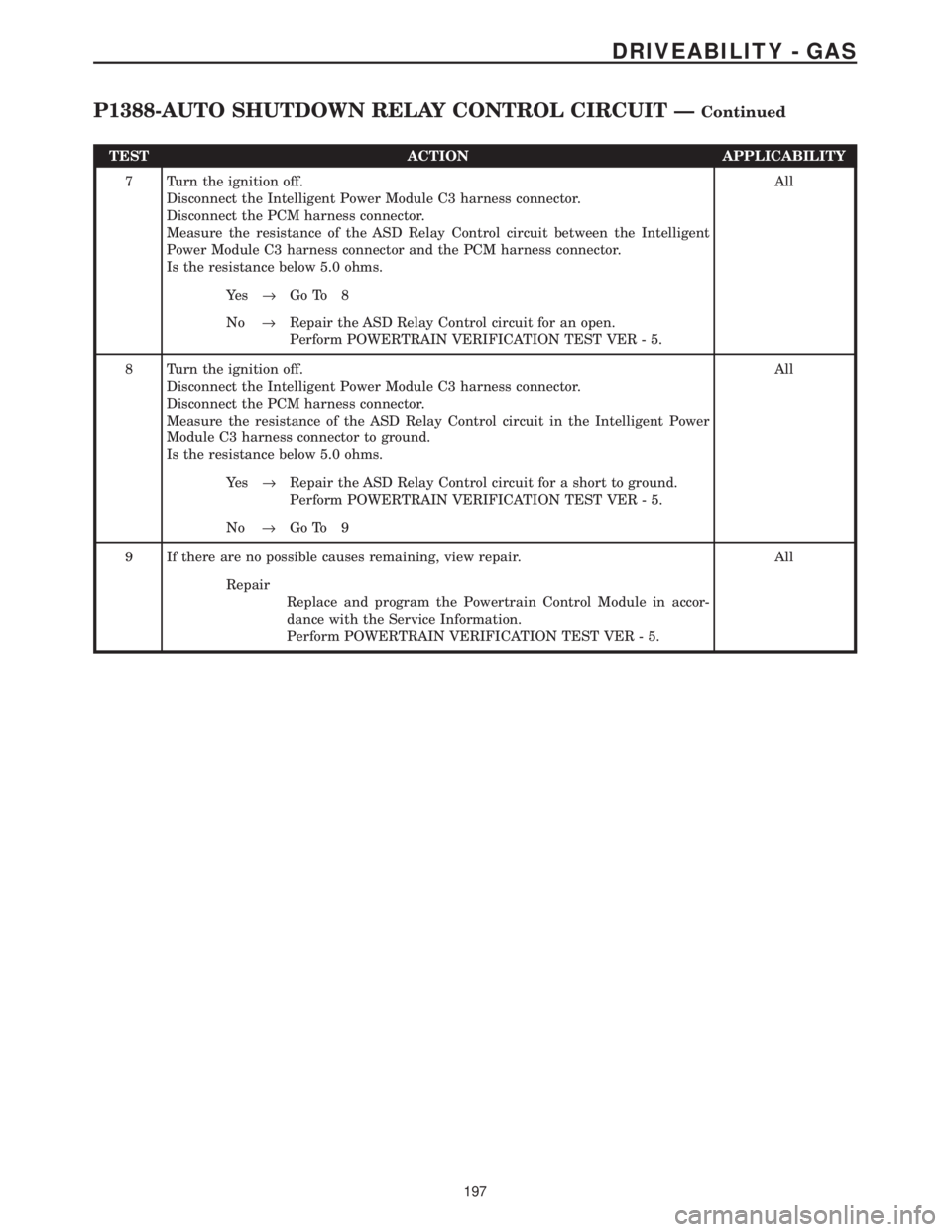

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
7 Turn the ignition off.
Disconnect the Intelligent Power Module C3 harness connector.
Disconnect the PCM harness connector.
Measure the resistance of the ASD Relay Control c

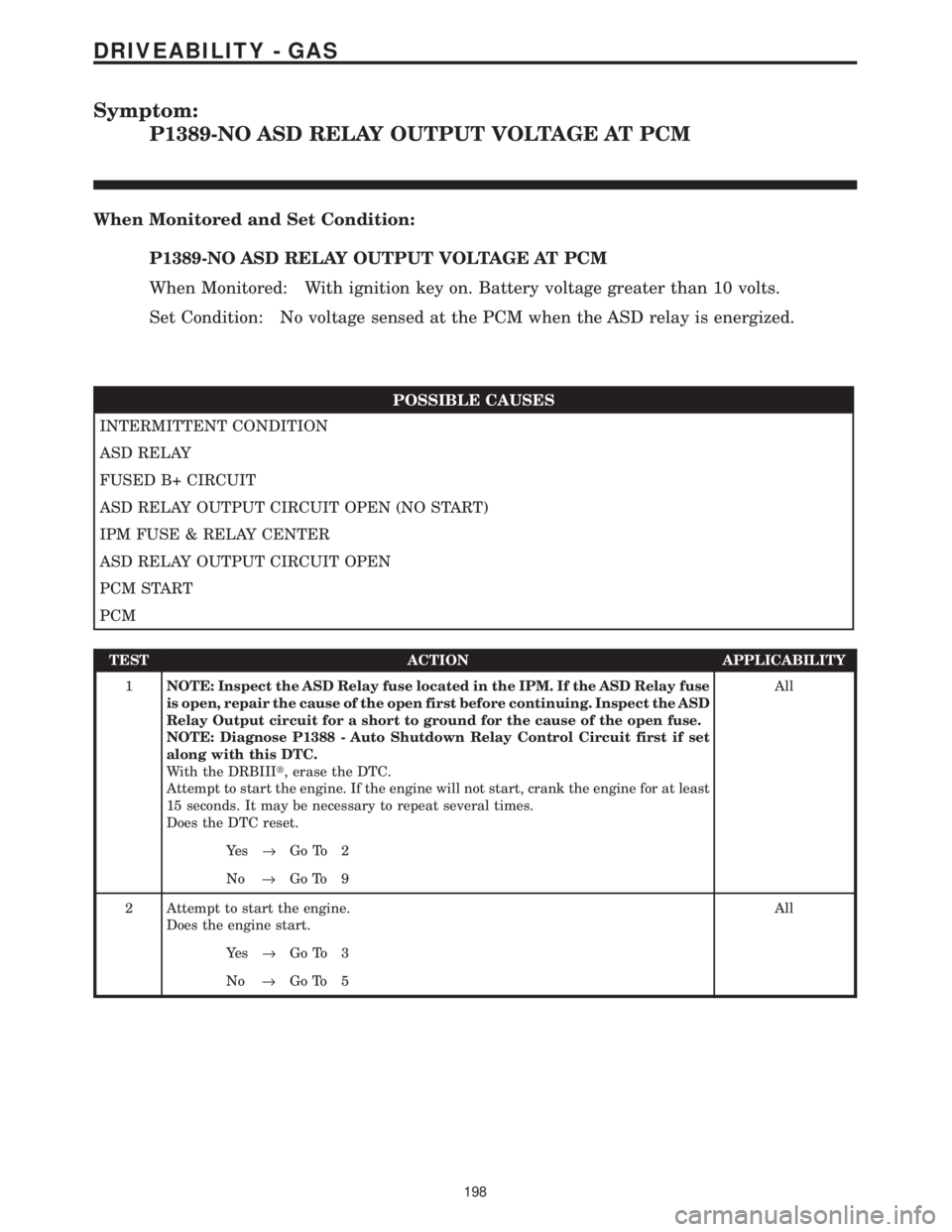

Page 3992 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P1389-NO ASD RELAY OUTPUT VOLTAGE AT PCM
When Monitored and Set Condition:
P1389-NO ASD RELAY OUTPUT VOLTAGE AT PCM
When Monitored: With ignition key on. Battery voltage greater than 10 volts
