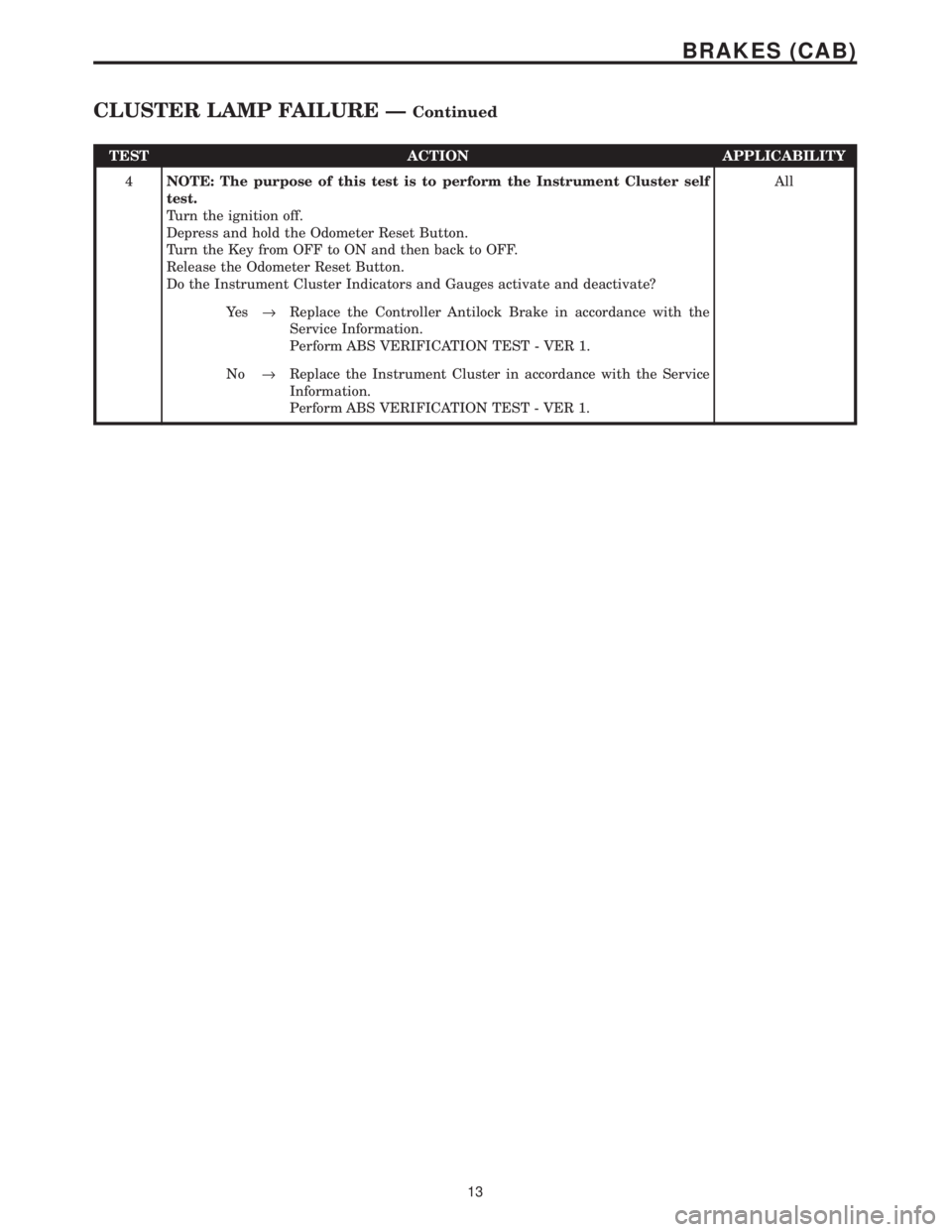

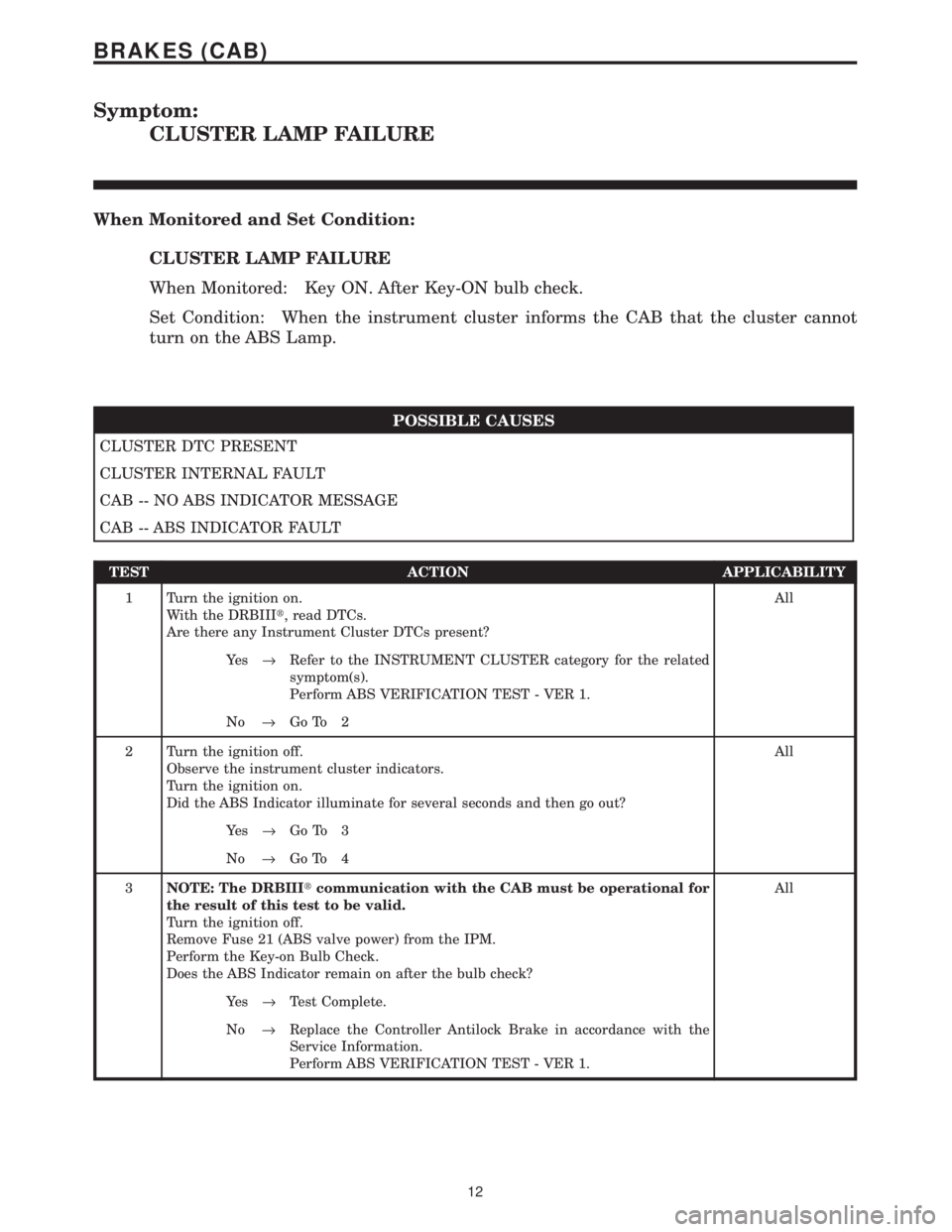

Page 1169 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: CLUSTER LAMP FAILURE When Monitored and Set Condition: CLUSTER LAMP FAILURE When Monitored: Key ON. After Key-ON bulb check. Set Condition: When the instrument cluster informs the CAB that th

Page 1170 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 4NOTE: The purpose of this test is to perform the Instrument Cluster self test. Turn the ignition off. Depress and hold the Odometer Reset Button. Turn the Key from OFF to ON

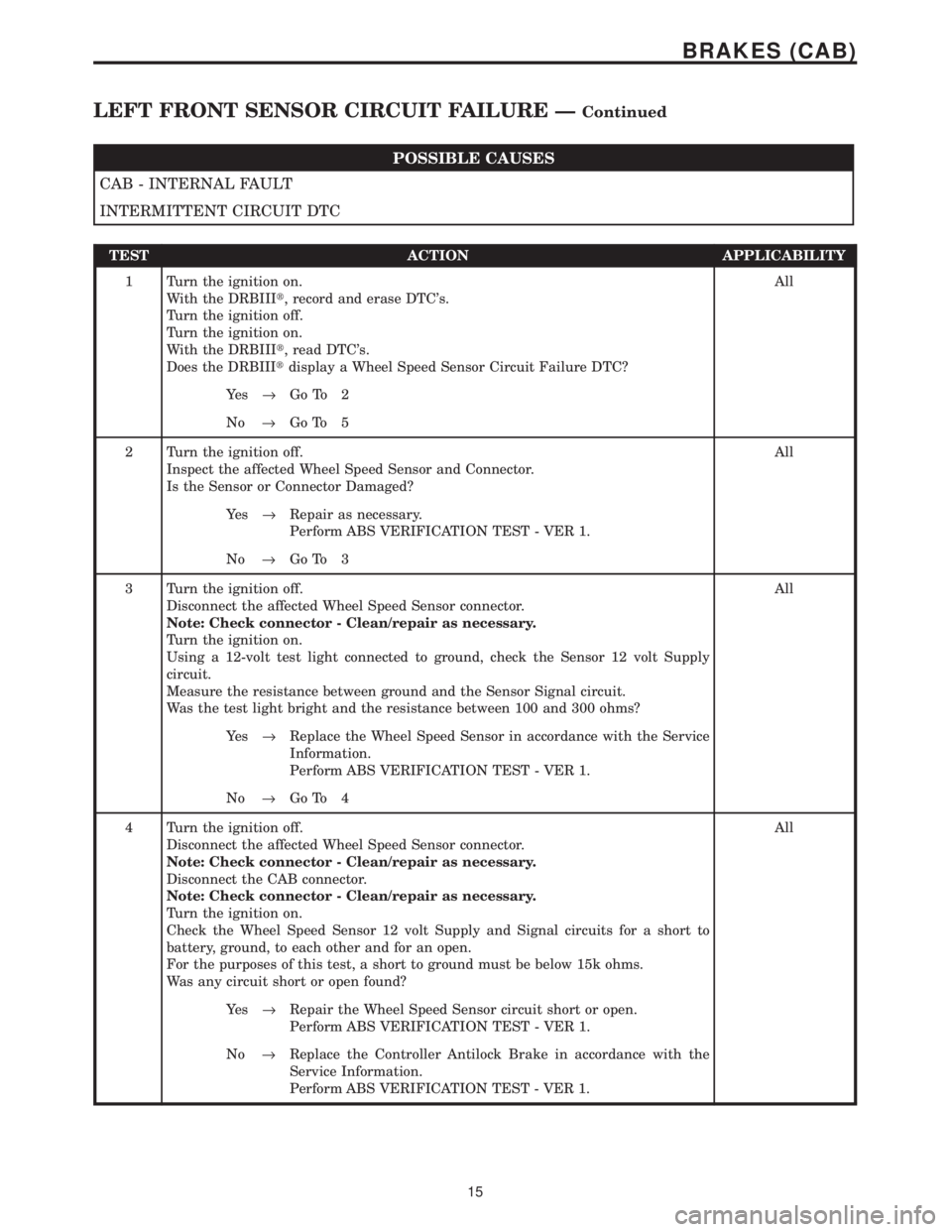

Page 1171 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom List: LEFT FRONT SENSOR CIRCUIT FAILURE LEFT REAR SENSOR CIRCUIT FAILURE RIGHT FRONT SENSOR CIRCUIT FAILURE RIGHT REAR SENSOR CIRCUIT FAILURE Test Note: All symptoms listed above are diagnosed

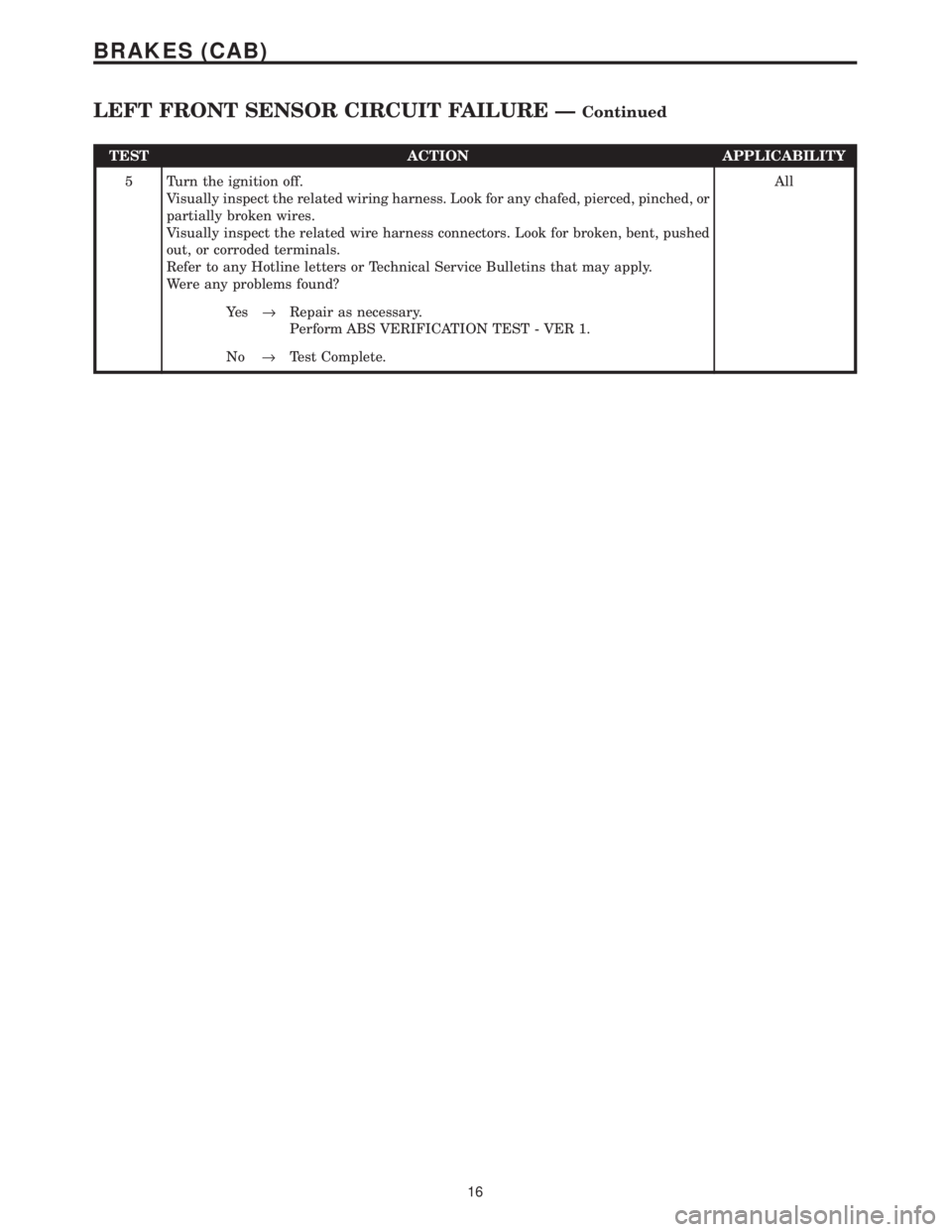

Page 1172 of 4284

CHRYSLER VOYAGER 2001 Service Manual POSSIBLE CAUSES CAB - INTERNAL FAULT INTERMITTENT CIRCUIT DTC TEST ACTION APPLICABILITY 1 Turn the ignition on. With the DRBIIIt, record and erase DTCs. Turn the ignition off. Turn the ignition on. W

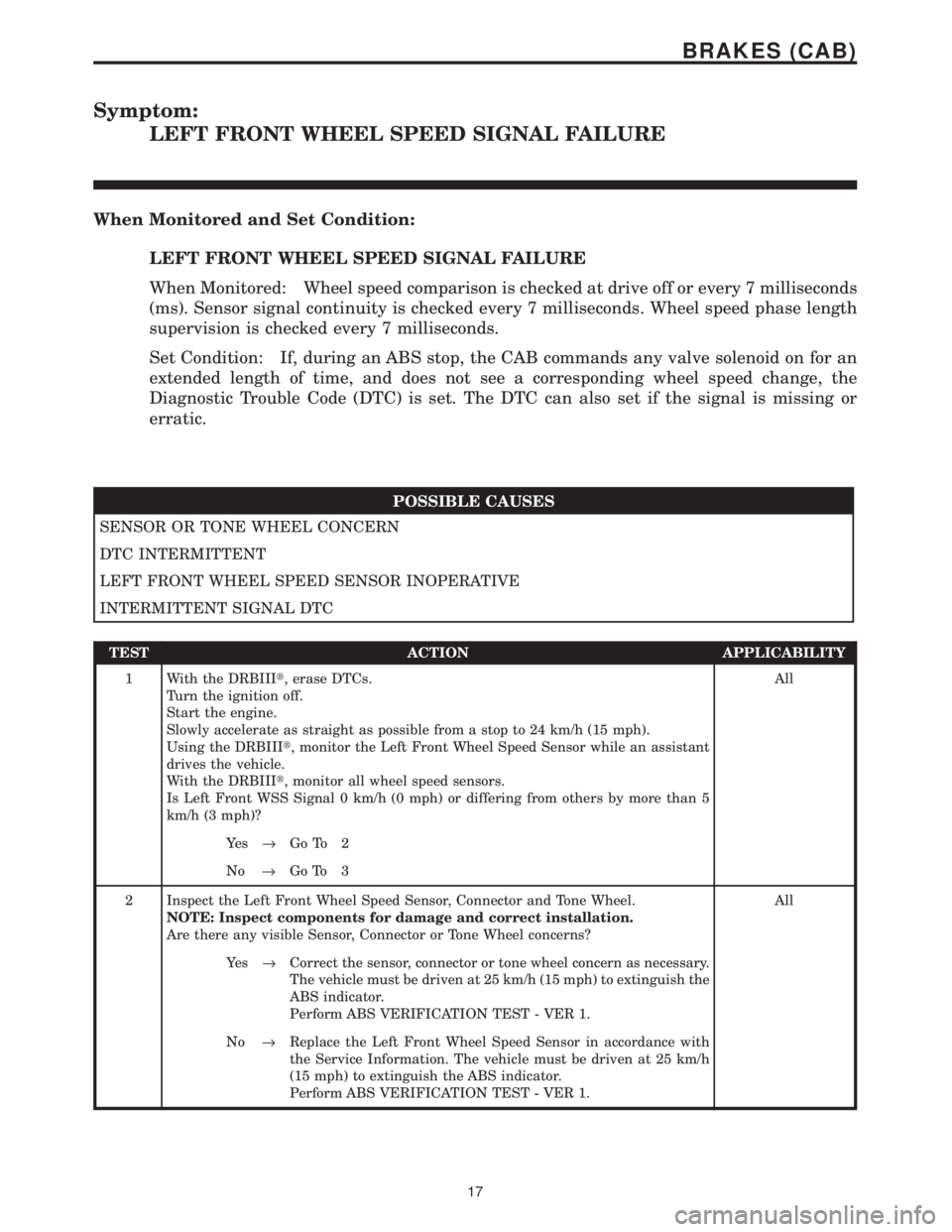

Page 1173 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 5 Turn the ignition off. Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or partially broken wires. Visually inspect the related wire harn

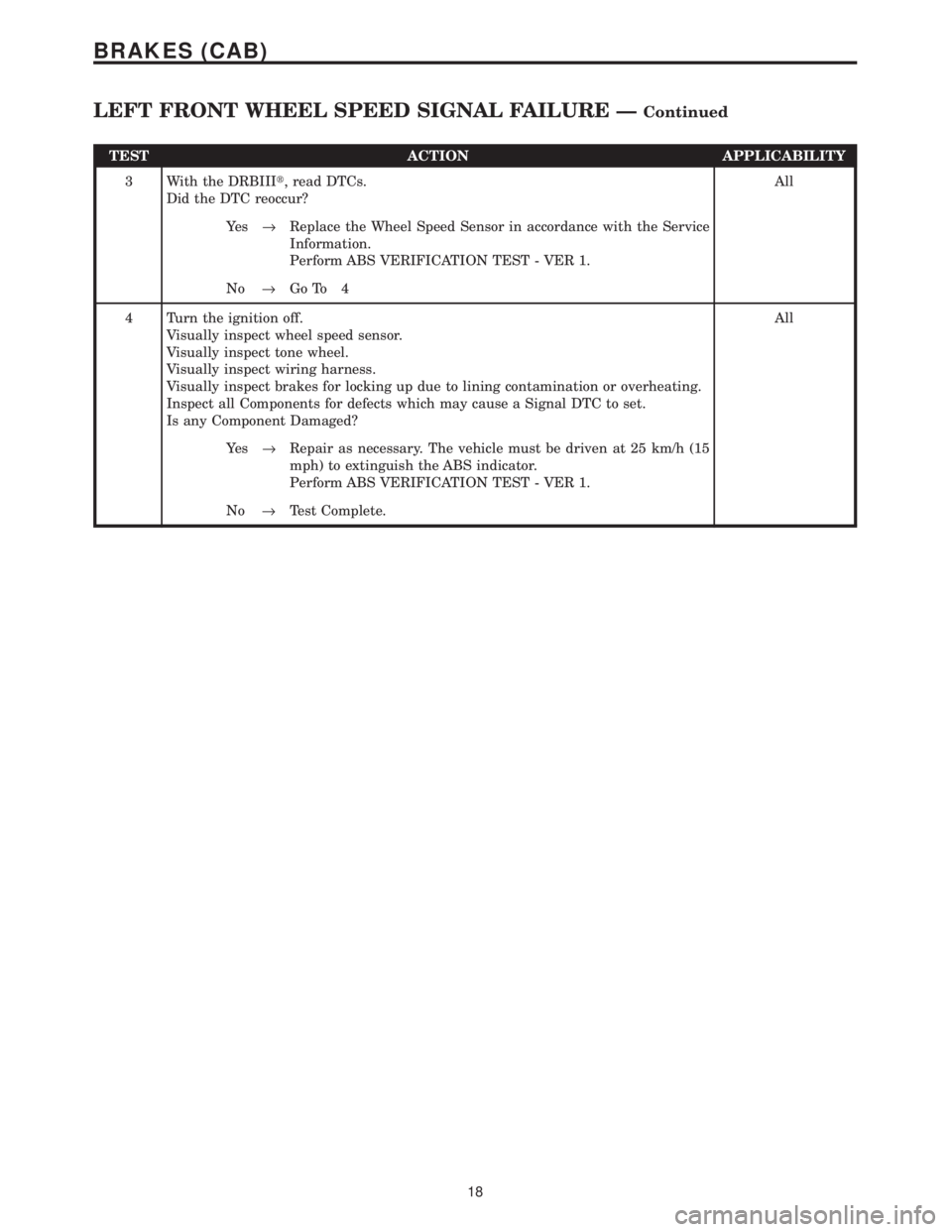

Page 1174 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: LEFT FRONT WHEEL SPEED SIGNAL FAILURE When Monitored and Set Condition: LEFT FRONT WHEEL SPEED SIGNAL FAILURE When Monitored: Wheel speed comparison is checked at drive off or every 7 millise

Page 1175 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3 With the DRBIIIt, read DTCs. Did the DTC reoccur?All Ye s®Replace the Wheel Speed Sensor in accordance with the Service Information. Perform ABS VERIFICATION TEST - VER 1.

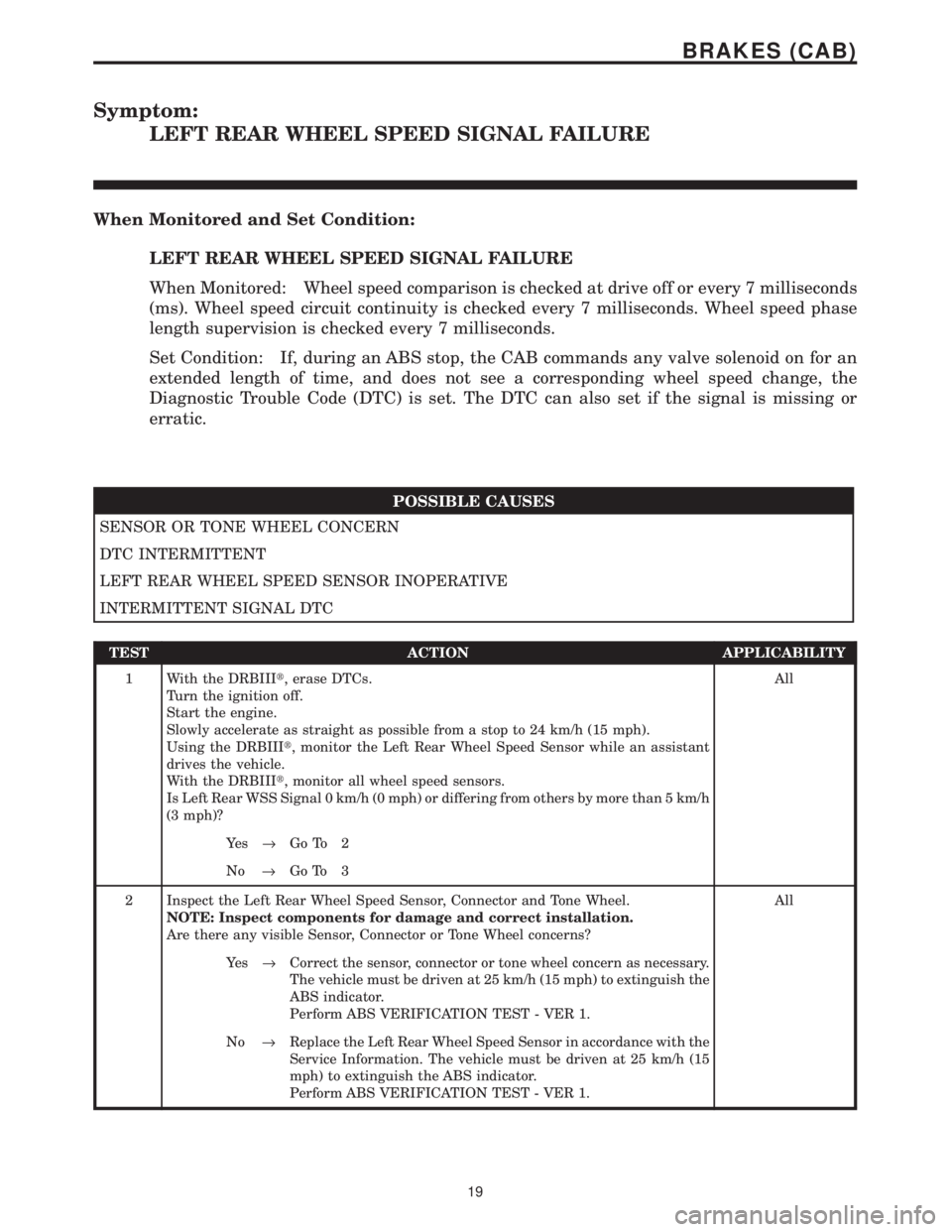

Page 1176 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: LEFT REAR WHEEL SPEED SIGNAL FAILURE When Monitored and Set Condition: LEFT REAR WHEEL SPEED SIGNAL FAILURE When Monitored: Wheel speed comparison is checked at drive off or every 7 milliseco
