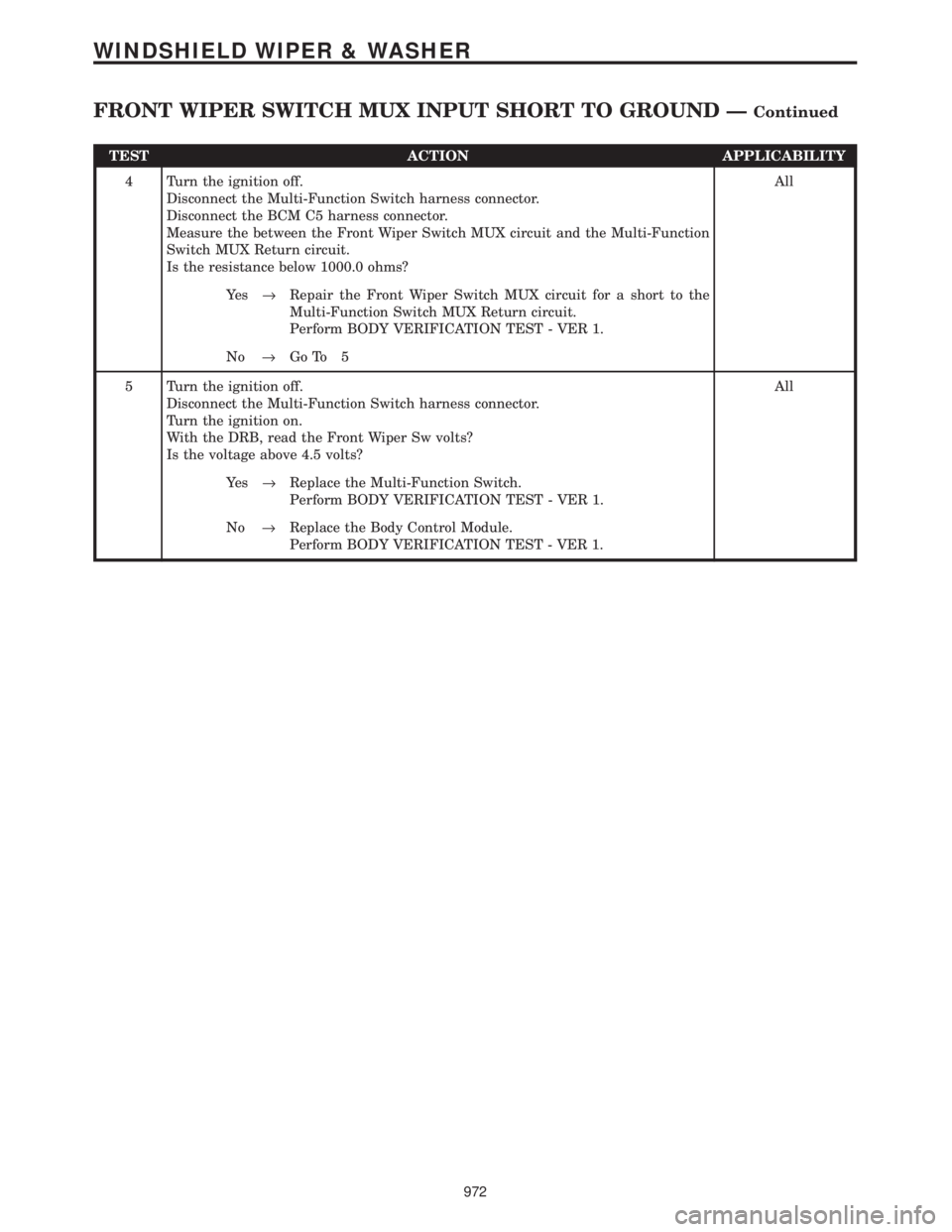

Page 1001 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4 Turn the ignition off.
Disconnect the Multi-Function Switch harness connector.
Disconnect the BCM C5 harness connector.
Measure the between the Front Wiper Switch MUX circu

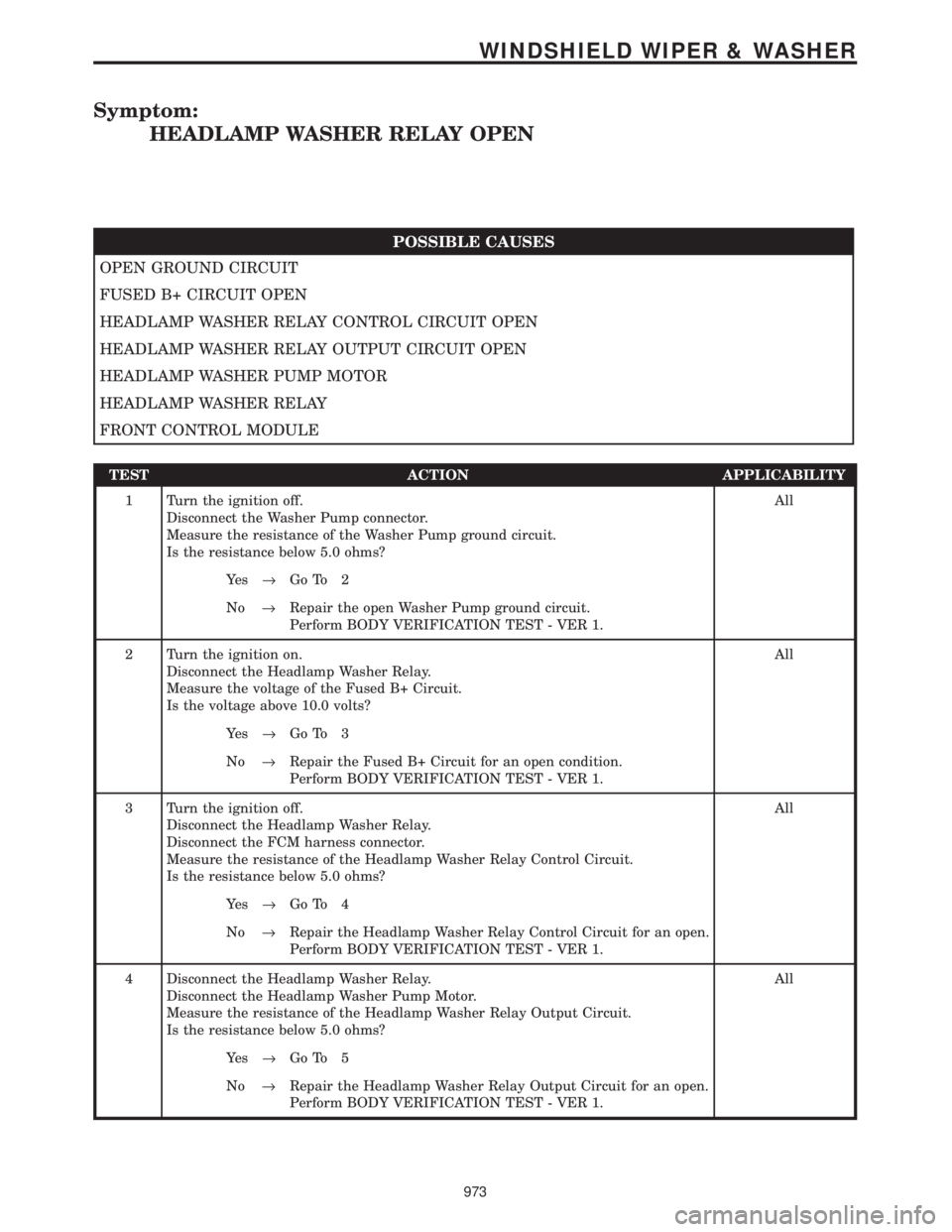

Page 1002 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
HEADLAMP WASHER RELAY OPEN
POSSIBLE CAUSES
OPEN GROUND CIRCUIT
FUSED B+ CIRCUIT OPEN
HEADLAMP WASHER RELAY CONTROL CIRCUIT OPEN
HEADLAMP WASHER RELAY OUTPUT CIRCUIT OPEN
HEADLAMP WASHER PUMP

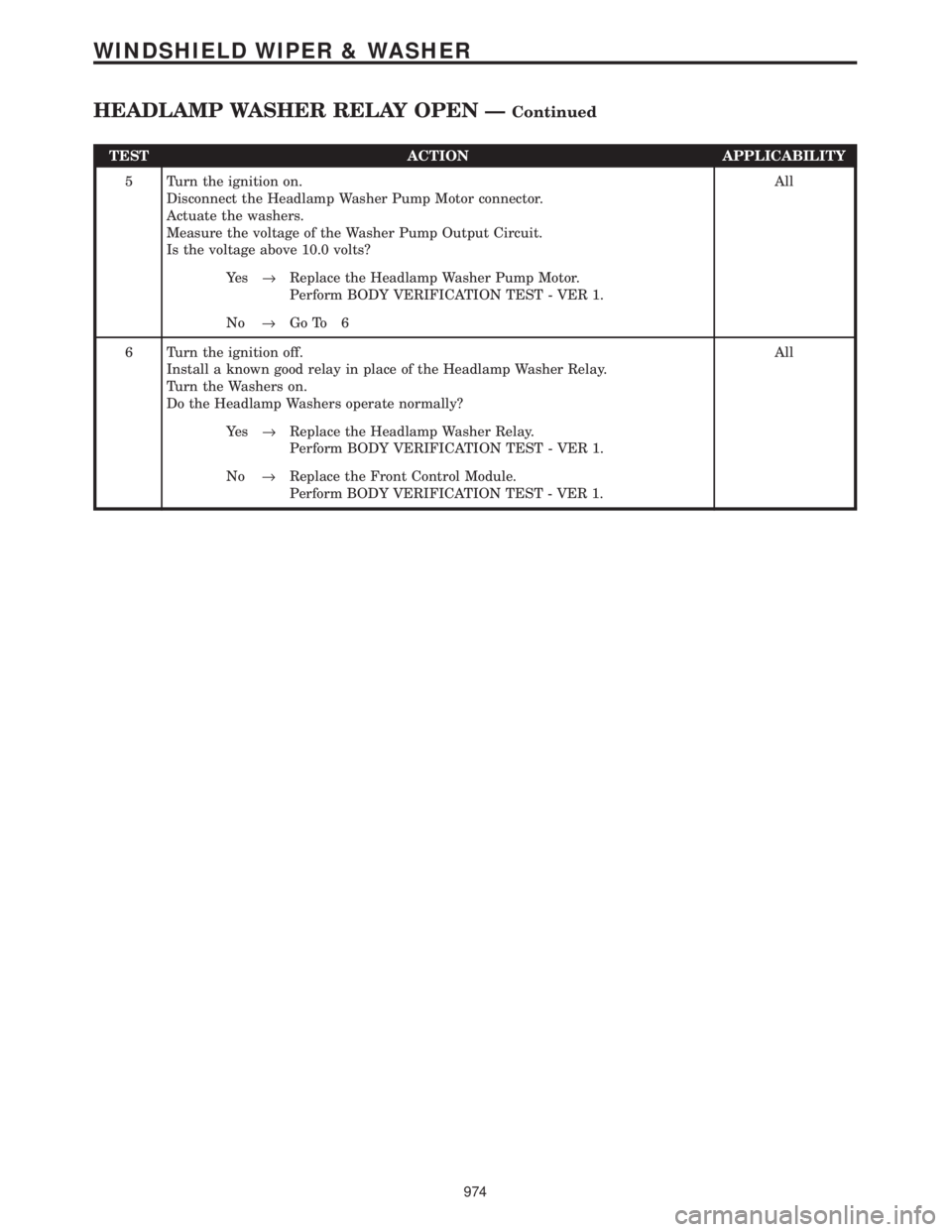

Page 1003 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
5 Turn the ignition on.
Disconnect the Headlamp Washer Pump Motor connector.
Actuate the washers.
Measure the voltage of the Washer Pump Output Circuit.
Is the voltage above

Page 1004 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
HEADLAMP WASHER RELAY SHORT TO BATT
POSSIBLE CAUSES
FUSED B+ CIRCUIT OPEN
HEADLAMP WASHER RELAY CONTROL CIRCUIT OPEN
HEADLAMP WASHER PUMP MOTOR
HEADLAMP WASHER RELAY
FRONT CONTROL MODULE
TEST

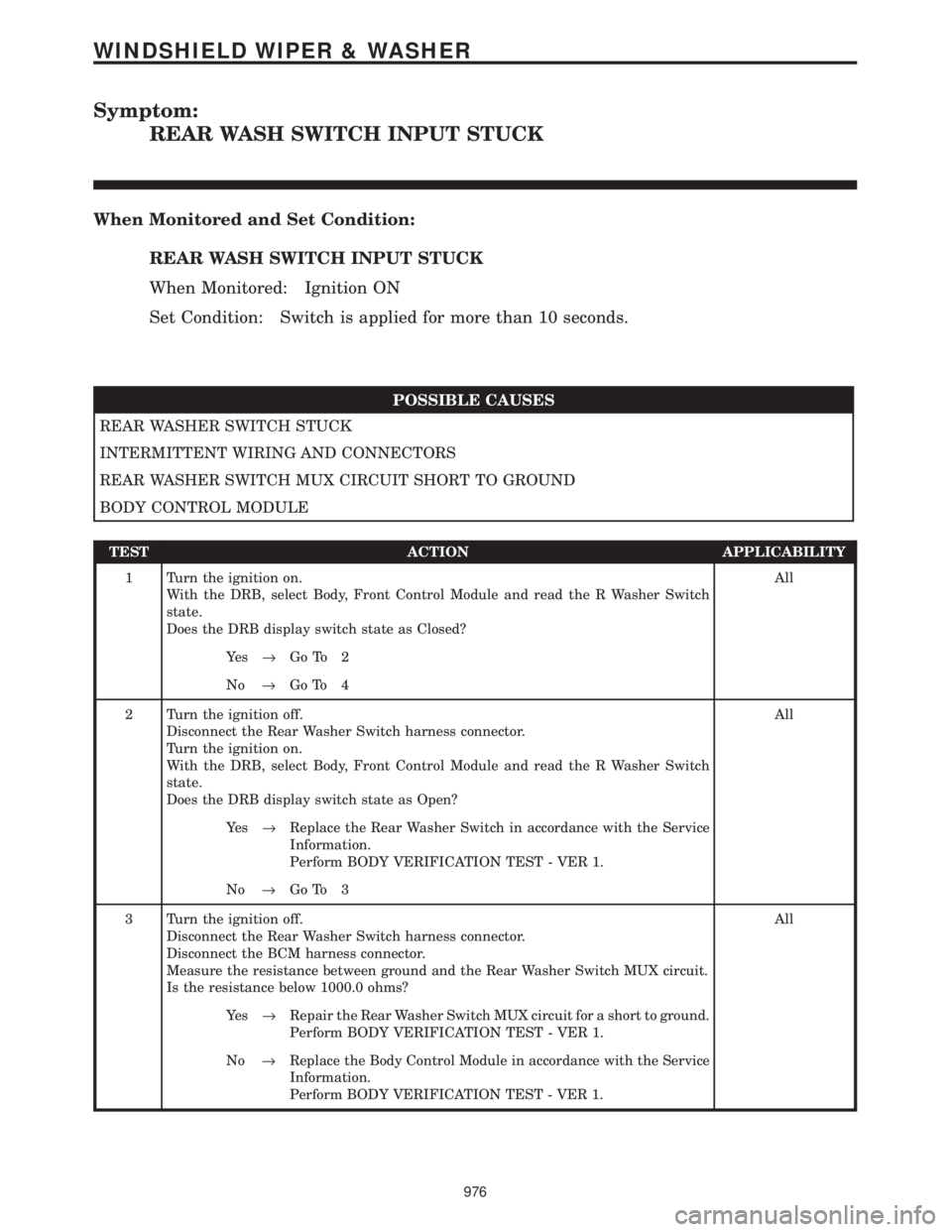

Page 1005 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
REAR WASH SWITCH INPUT STUCK
When Monitored and Set Condition:
REAR WASH SWITCH INPUT STUCK
When Monitored: Ignition ON
Set Condition: Switch is applied for more than 10 seconds.
POSSIBLE CAU

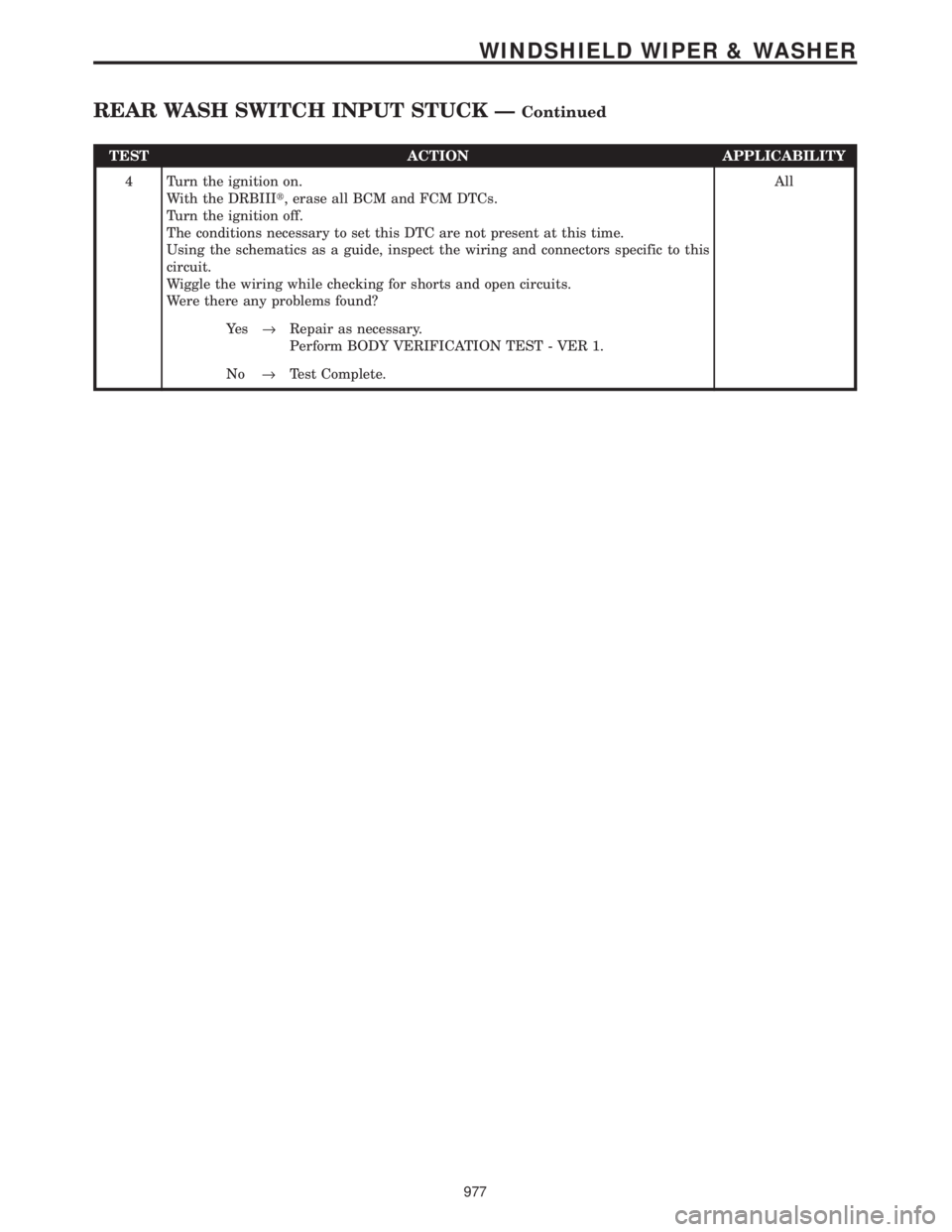

Page 1006 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4 Turn the ignition on.
With the DRBIIIt, erase all BCM and FCM DTCs.
Turn the ignition off.
The conditions necessary to set this DTC are not present at this time.
Using the

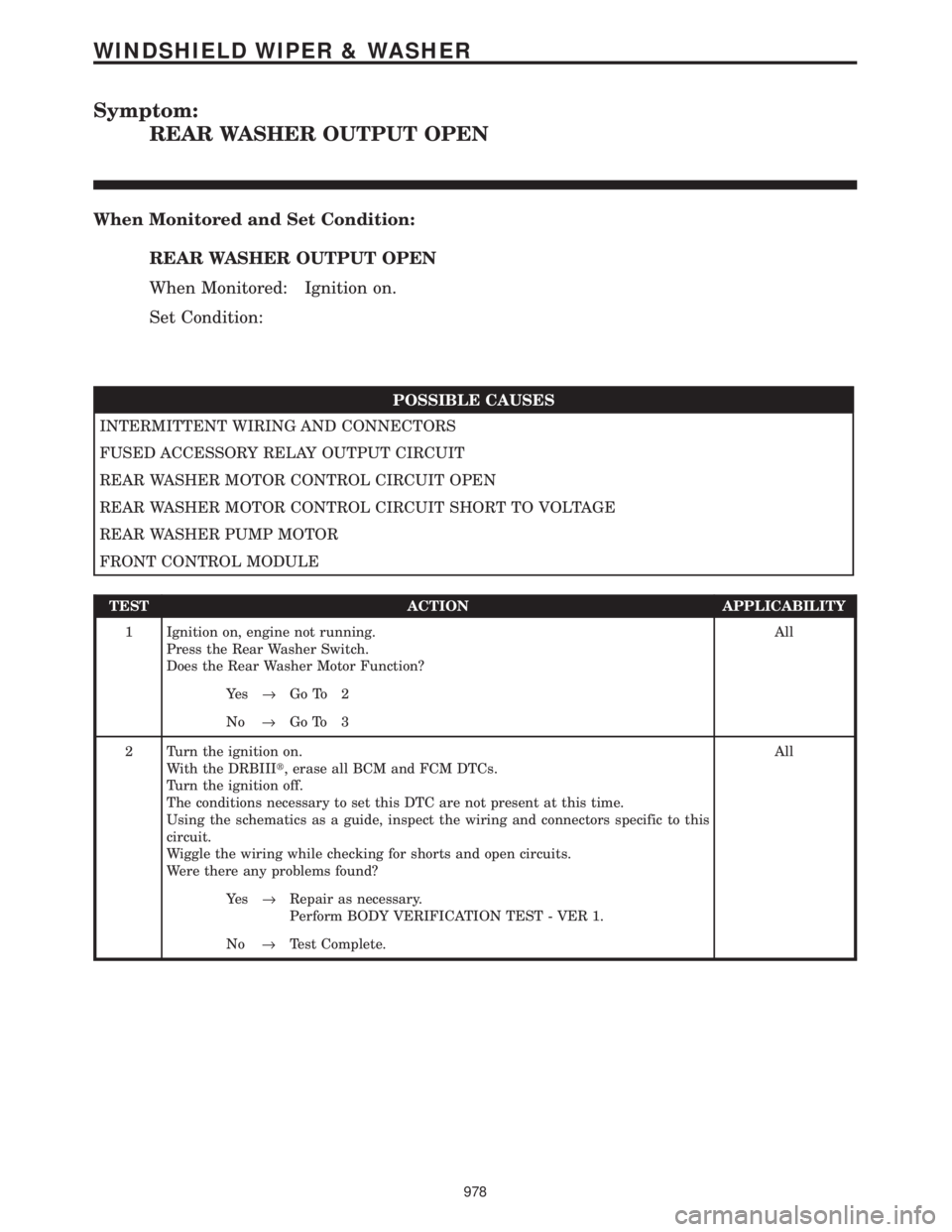

Page 1007 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
REAR WASHER OUTPUT OPEN
When Monitored and Set Condition:
REAR WASHER OUTPUT OPEN
When Monitored: Ignition on.
Set Condition:
POSSIBLE CAUSES
INTERMITTENT WIRING AND CONNECTORS
FUSED ACCESSOR

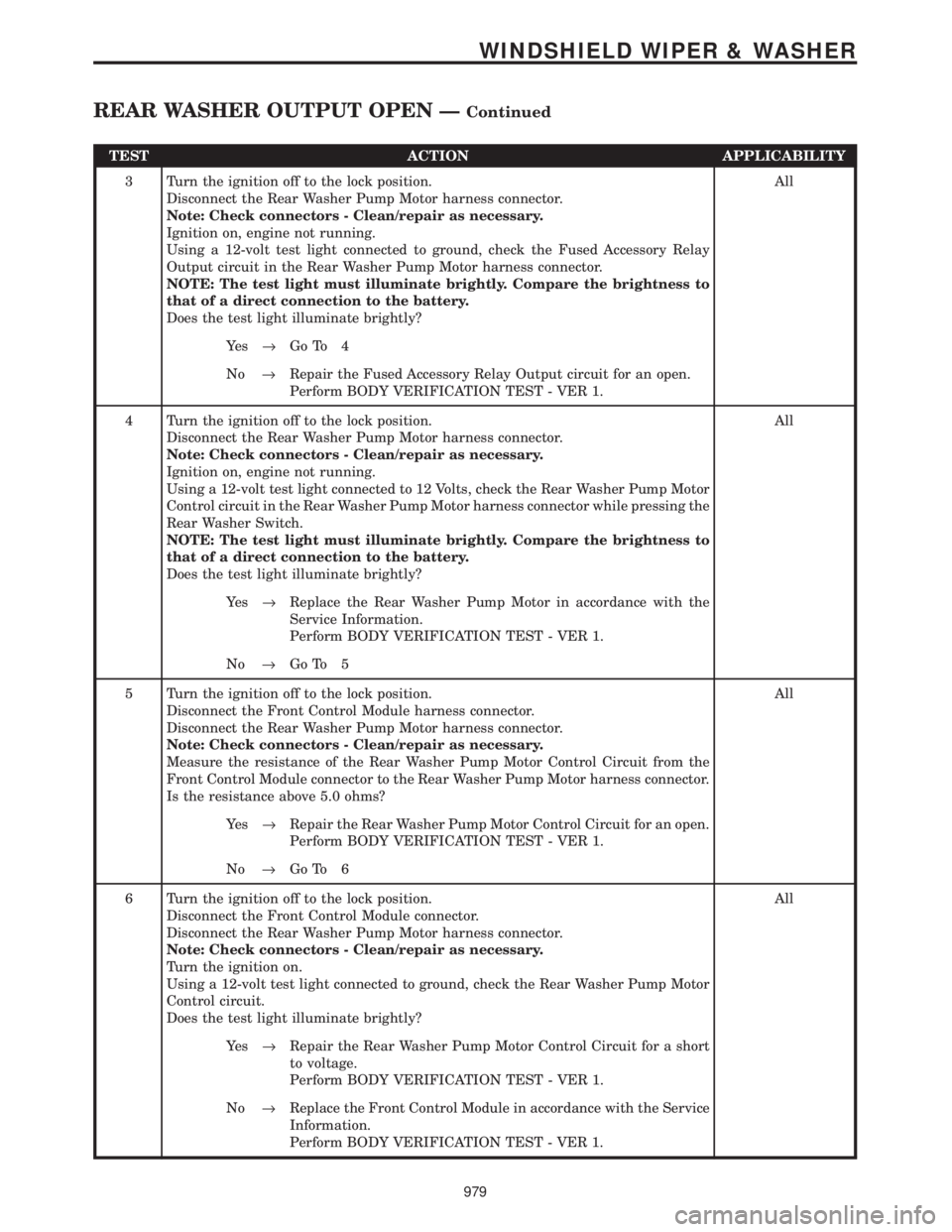

Page 1008 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off to the lock position.
Disconnect the Rear Washer Pump Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on, engine

TEST ACTION APPLICABILITY
3 Turn the ignition off to the lock position.
Disconnect the Rear Washer Pump Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on, engine not running.
Using a 12-volt test light connected to ground, check the Fused Accessory Relay
Output circuit in the Rear Washer Pump Motor harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the Fused Accessory Relay Output circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
4 Turn the ignition off to the lock position.
Disconnect the Rear Washer Pump Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on, engine not running.
Using a 12-volt test light connected to 12 Volts, check the Rear Washer Pump Motor
Control circuit in the Rear Washer Pump Motor harness connector while pressing the
Rear Washer Switch.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s®Replace the Rear Washer Pump Motor in accordance with the
Service Information.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn the ignition off to the lock position.
Disconnect the Front Control Module harness connector.
Disconnect the Rear Washer Pump Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Rear Washer Pump Motor Control Circuit from the
Front Control Module connector to the Rear Washer Pump Motor harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Rear Washer Pump Motor Control Circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
6 Turn the ignition off to the lock position.
Disconnect the Front Control Module connector.
Disconnect the Rear Washer Pump Motor harness connector.
Note: Check connectors - Clean/repair as necessary.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the Rear Washer Pump Motor
Control circuit.
Does the test light illuminate brightly?All
Ye s®Repair the Rear Washer Pump Motor Control Circuit for a short
to voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Front Control Module in accordance with the Service
Information.
Perform BODY VERIFICATION TEST - VER 1.
979
WINDSHIELD WIPER & WASHER
REAR WASHER OUTPUT OPEN ÐContinued
