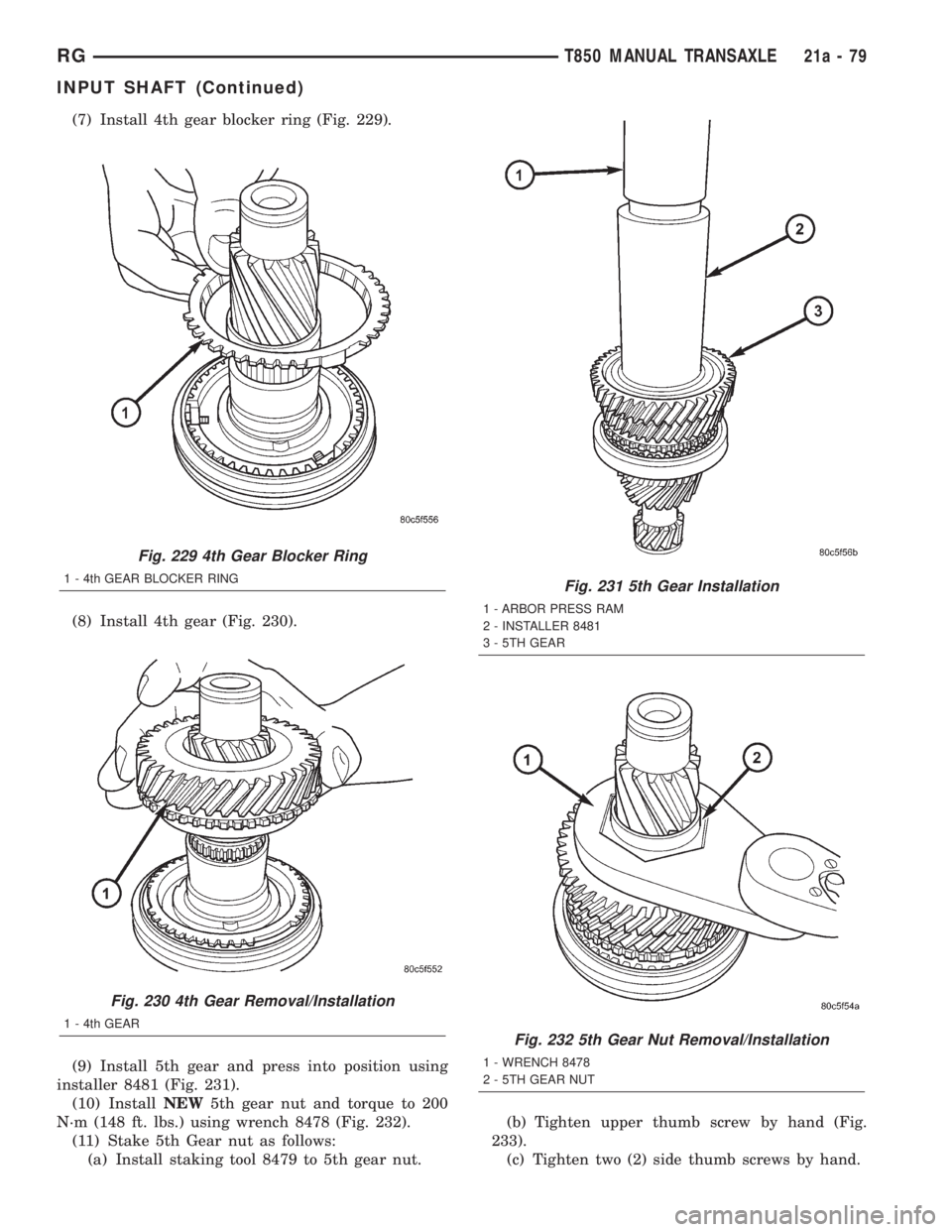

Page 3345 of 4284
(7) Install 4th gear blocker ring (Fig. 229).
(8) Install 4th gear (Fig. 230).
(9) Install 5th gear and press into position using
installer 8481 (Fig. 231).
(10) InstallNEW5th gear nut and torque to 200
N´m (148 ft. lbs.) using wrench 8478 (Fig. 232).
(11) Stake 5th Gear nut as follows:
(a) Install staking tool 8479 to 5th gear nut.(b) Tighten upper thumb screw by hand (Fig.
233).
(c) Tighten two (2) side thumb screws by hand.
Fig. 229 4th Gear Blocker Ring
1 - 4th GEAR BLOCKER RING
Fig. 230 4th Gear Removal/Installation
1 - 4th GEAR
Fig. 231 5th Gear Installation
1 - ARBOR PRESS RAM
2 - INSTALLER 8481
3 - 5TH GEAR
Fig. 232 5th Gear Nut Removal/Installation
1 - WRENCH 8478
2 - 5TH GEAR NUT
RGT850 MANUAL TRANSAXLE21a-79
INPUT SHAFT (Continued)

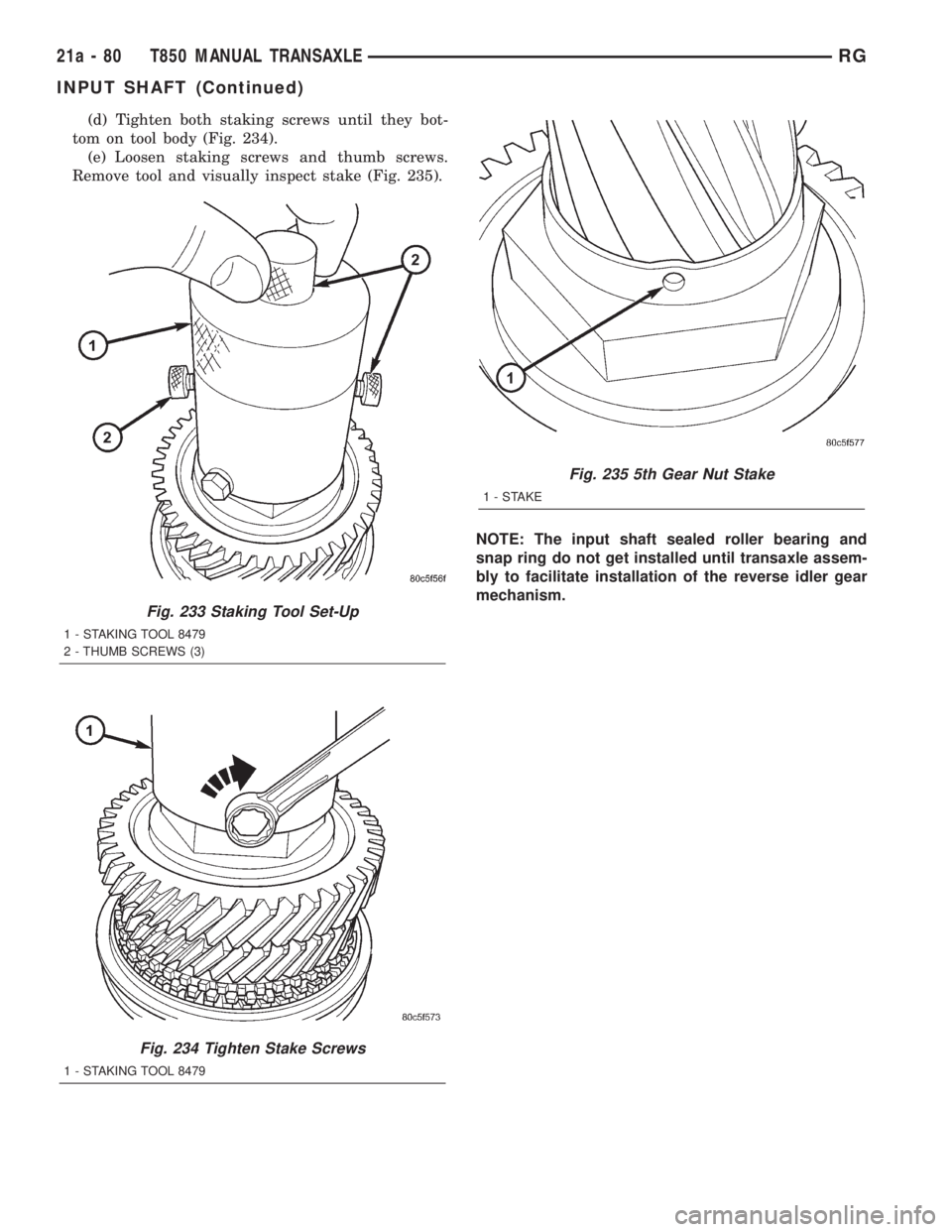

Page 3346 of 4284
(d) Tighten both staking screws until they bot-
tom on tool body (Fig. 234).
(e) Loosen staking screws and thumb screws.
Remove tool and visually inspect stake (Fig. 235).
NOTE: The input shaft sealed roller bearing and
snap ring do not get installed until transaxle assem-
bly to facilitate installation of the reverse idler gear
mechanism.
Fig. 233 Staking Tool Set-Up
1 - STAKING TOOL 8479
2 - THUMB SCREWS (3)
Fig. 234 Tighten Stake Screws
1 - STAKING TOOL 8479
Fig. 235 5th Gear Nut Stake
1-STAKE
21a - 80 T850 MANUAL TRANSAXLERG
INPUT SHAFT (Continued)

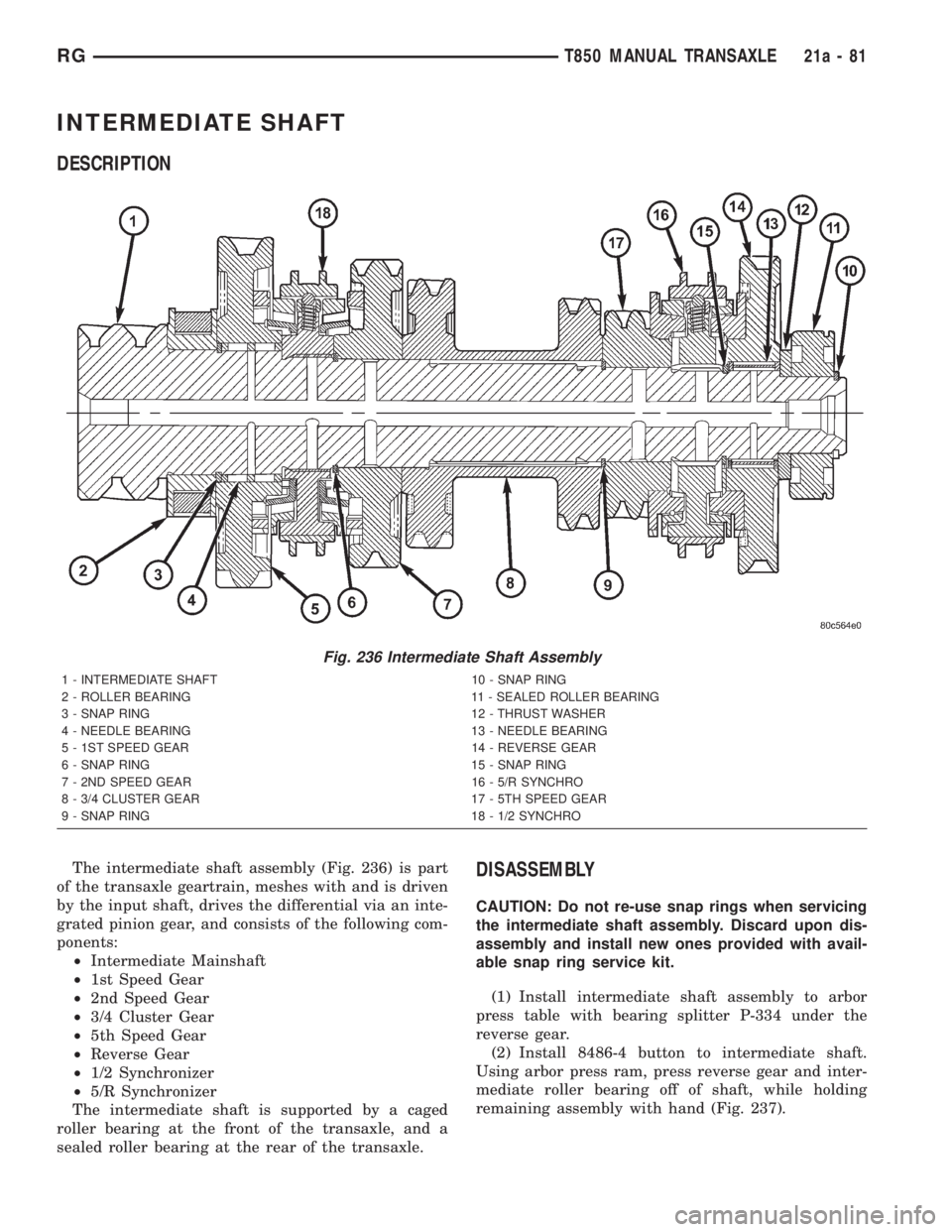

Page 3347 of 4284

INTERMEDIATE SHAFT
DESCRIPTION
The intermediate shaft assembly (Fig. 236) is part
of the transaxle geartrain, meshes with and is driven
by the input shaft, drives the differential via an inte-
grated pinion gear, and consists of the following com-
ponents:
²Intermediate Mainshaft
²1st Speed Gear
²2nd Speed Gear
²3/4 Cluster Gear
²5th Speed Gear
²Reverse Gear
²1/2 Synchronizer
²5/R Synchronizer
The intermediate shaft is supported by a caged
roller bearing at the front of the transaxle, and a
sealed roller bearing at the rear of the transaxle.DISASSEMBLY
CAUTION: Do not re-use snap rings when servicing
the intermediate shaft assembly. Discard upon dis-
assembly and install new ones provided with avail-
able snap ring service kit.
(1) Install intermediate shaft assembly to arbor
press table with bearing splitter P-334 under the
reverse gear.
(2) Install 8486-4 button to intermediate shaft.
Using arbor press ram, press reverse gear and inter-
mediate roller bearing off of shaft, while holding
remaining assembly with hand (Fig. 237).
Fig. 236 Intermediate Shaft Assembly
1 - INTERMEDIATE SHAFT 10 - SNAP RING
2 - ROLLER BEARING 11 - SEALED ROLLER BEARING
3 - SNAP RING 12 - THRUST WASHER
4 - NEEDLE BEARING 13 - NEEDLE BEARING
5 - 1ST SPEED GEAR 14 - REVERSE GEAR
6 - SNAP RING 15 - SNAP RING
7 - 2ND SPEED GEAR 16 - 5/R SYNCHRO
8 - 3/4 CLUSTER GEAR 17 - 5TH SPEED GEAR
9 - SNAP RING 18 - 1/2 SYNCHRO
RGT850 MANUAL TRANSAXLE21a-81

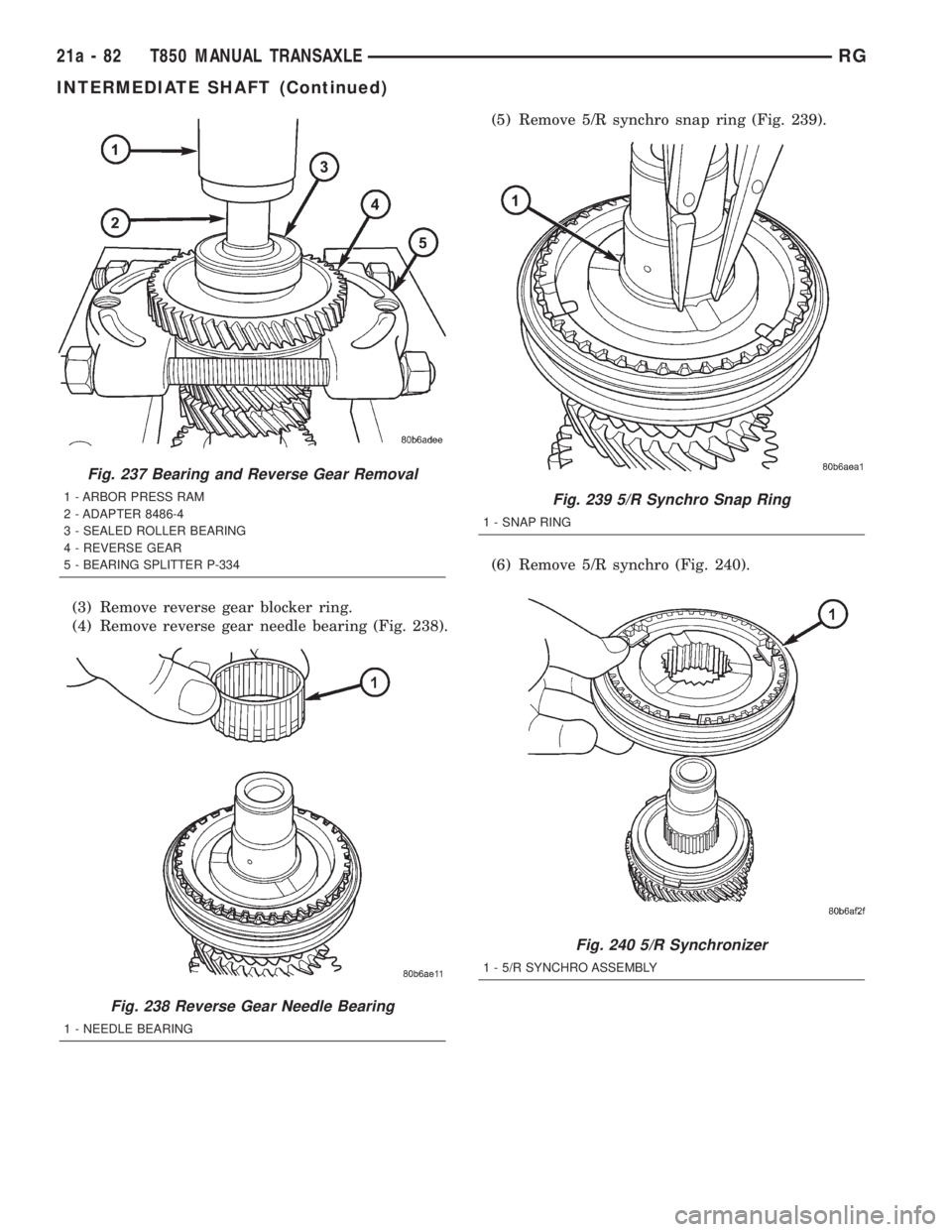

Page 3348 of 4284
(3) Remove reverse gear blocker ring.
(4) Remove reverse gear needle bearing (Fig. 238).(5) Remove 5/R synchro snap ring (Fig. 239).
(6) Remove 5/R synchro (Fig. 240).
Fig. 237 Bearing and Reverse Gear Removal
1 - ARBOR PRESS RAM
2 - ADAPTER 8486-4
3 - SEALED ROLLER BEARING
4 - REVERSE GEAR
5 - BEARING SPLITTER P-334
Fig. 238 Reverse Gear Needle Bearing
1 - NEEDLE BEARING
Fig. 239 5/R Synchro Snap Ring
1 - SNAP RING
Fig. 240 5/R Synchronizer
1 - 5/R SYNCHRO ASSEMBLY
21a - 82 T850 MANUAL TRANSAXLERG
INTERMEDIATE SHAFT (Continued)
Page 3349 of 4284
(7) Remove 5th gear blocker ring (Fig. 241).
(8) Remove 5th gear (Fig. 242).(9) Remove 3/4 cluster gear snap ring (Fig. 243).
(10) Install shaft assembly into fixture 8483, with
split collar 8483-3 oriented chamfer side up (Fig.
244). Place 8483-2 into position with chamfer side up
(Fig. 245).
Fig. 241 5th Gear Blocker Ring
1 - 5th GEAR BLOCKER RING
Fig. 242 5th Gear
1 - 5th GEAR
Fig. 243 3/4 Cluster Gear Snap Ring
1 - SNAP RING
Fig. 244 Fixture 8483
1 - FIXTURE 8483
2 - COLLAR 8483-3
RGT850 MANUAL TRANSAXLE21a-83
INTERMEDIATE SHAFT (Continued)

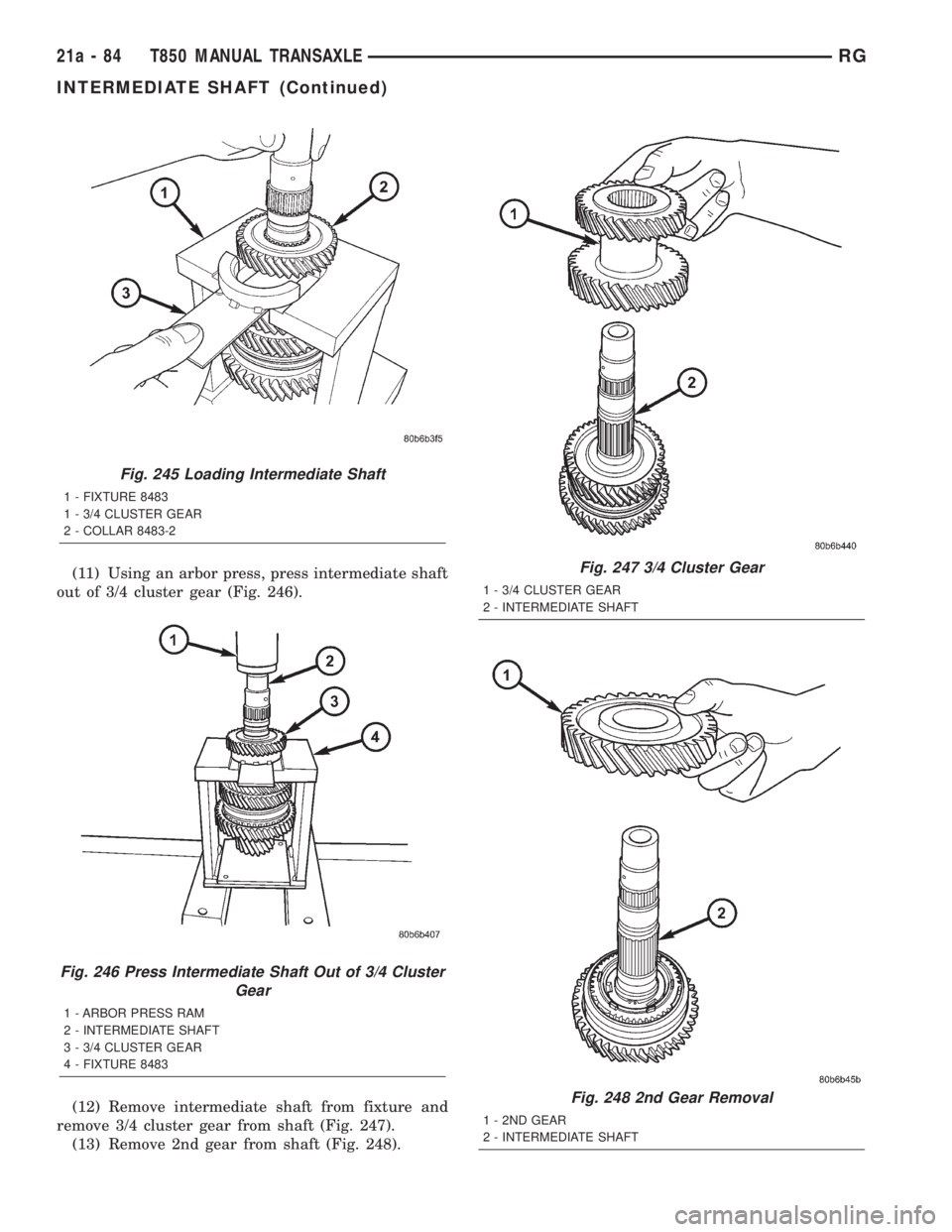

Page 3350 of 4284
(11) Using an arbor press, press intermediate shaft
out of 3/4 cluster gear (Fig. 246).
(12) Remove intermediate shaft from fixture and
remove 3/4 cluster gear from shaft (Fig. 247).
(13) Remove 2nd gear from shaft (Fig. 248).
Fig. 245 Loading Intermediate Shaft
1 - FIXTURE 8483
1 - 3/4 CLUSTER GEAR
2 - COLLAR 8483-2
Fig. 246 Press Intermediate Shaft Out of 3/4 Cluster
Gear
1 - ARBOR PRESS RAM
2 - INTERMEDIATE SHAFT
3 - 3/4 CLUSTER GEAR
4 - FIXTURE 8483
Fig. 247 3/4 Cluster Gear
1 - 3/4 CLUSTER GEAR
2 - INTERMEDIATE SHAFT
Fig. 248 2nd Gear Removal
1 - 2ND GEAR
2 - INTERMEDIATE SHAFT
21a - 84 T850 MANUAL TRANSAXLERG
INTERMEDIATE SHAFT (Continued)

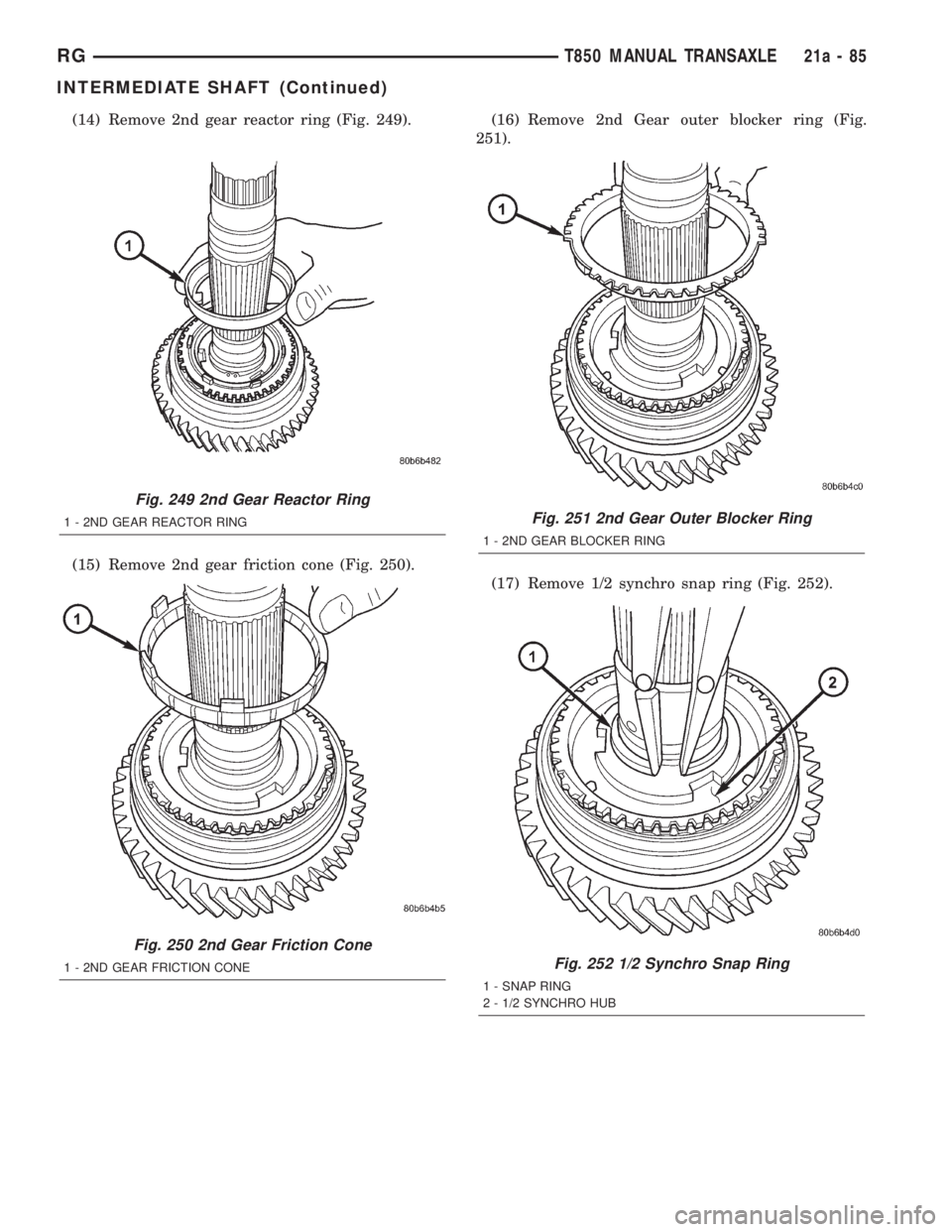

Page 3351 of 4284
(14) Remove 2nd gear reactor ring (Fig. 249).
(15) Remove 2nd gear friction cone (Fig. 250).(16) Remove 2nd Gear outer blocker ring (Fig.
251).
(17) Remove 1/2 synchro snap ring (Fig. 252).
Fig. 249 2nd Gear Reactor Ring
1 - 2ND GEAR REACTOR RING
Fig. 250 2nd Gear Friction Cone
1 - 2ND GEAR FRICTION CONE
Fig. 251 2nd Gear Outer Blocker Ring
1 - 2ND GEAR BLOCKER RING
Fig. 252 1/2 Synchro Snap Ring
1 - SNAP RING
2 - 1/2 SYNCHRO HUB
RGT850 MANUAL TRANSAXLE21a-85
INTERMEDIATE SHAFT (Continued)

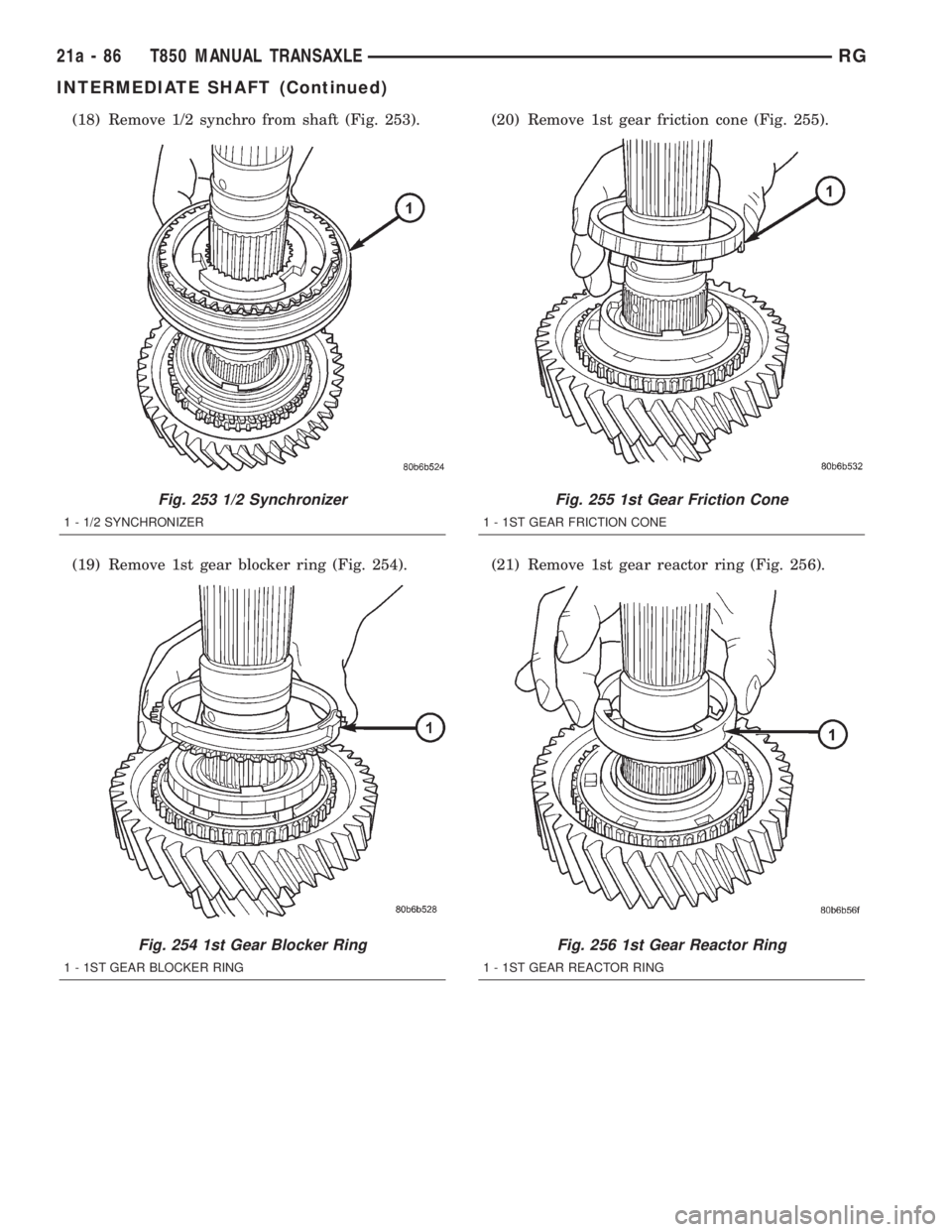

Page 3352 of 4284
(18) Remove 1/2 synchro from shaft (Fig. 253).
(19) Remove 1st gear blocker ring (Fig. 254).(20) Remove 1st gear friction cone (Fig. 255).
(21) Remove 1st gear reactor ring (Fig. 256).
Fig. 253 1/2 Synchronizer
1 - 1/2 SYNCHRONIZER
Fig. 254 1st Gear Blocker Ring
1 - 1ST GEAR BLOCKER RING
Fig. 255 1st Gear Friction Cone
1 - 1ST GEAR FRICTION CONE
Fig. 256 1st Gear Reactor Ring
1 - 1ST GEAR REACTOR RING
21a - 86 T850 MANUAL TRANSAXLERG
INTERMEDIATE SHAFT (Continued)
