Page 1113 of 4284

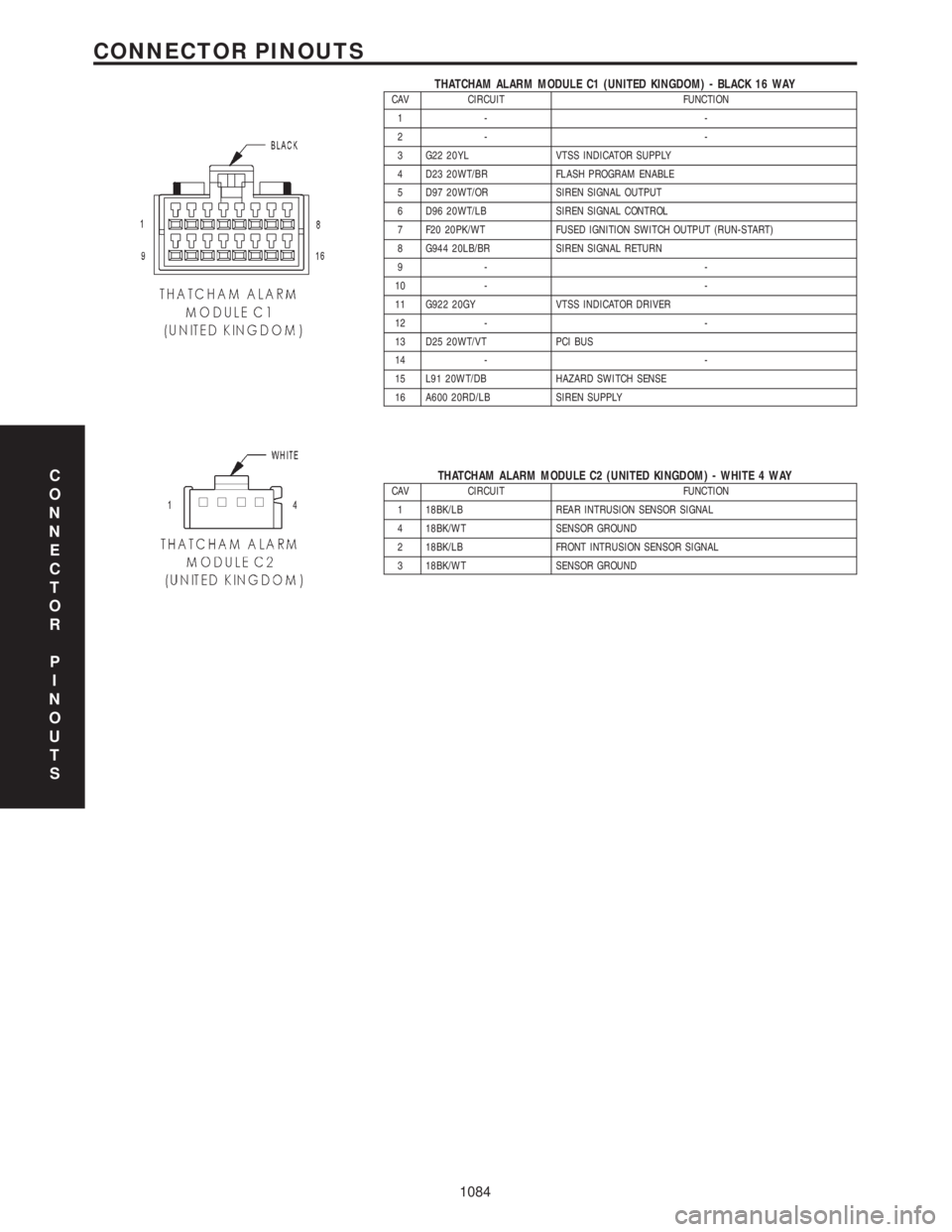

CHRYSLER VOYAGER 2001 Service Manual THATCHAM ALARM MODULE C1 (UNITED KINGDOM) - BLACK 16 WAYCAV CIRCUIT FUNCTION 1- - 2- - 3 G22 20YL VTSS INDICATOR SUPPLY 4 D23 20WT/BR FLASH PROGRAM ENABLE 5 D97 20WT/OR SIREN SIGNAL OUTPUT 6 D96 20WT/

Page 1114 of 4284

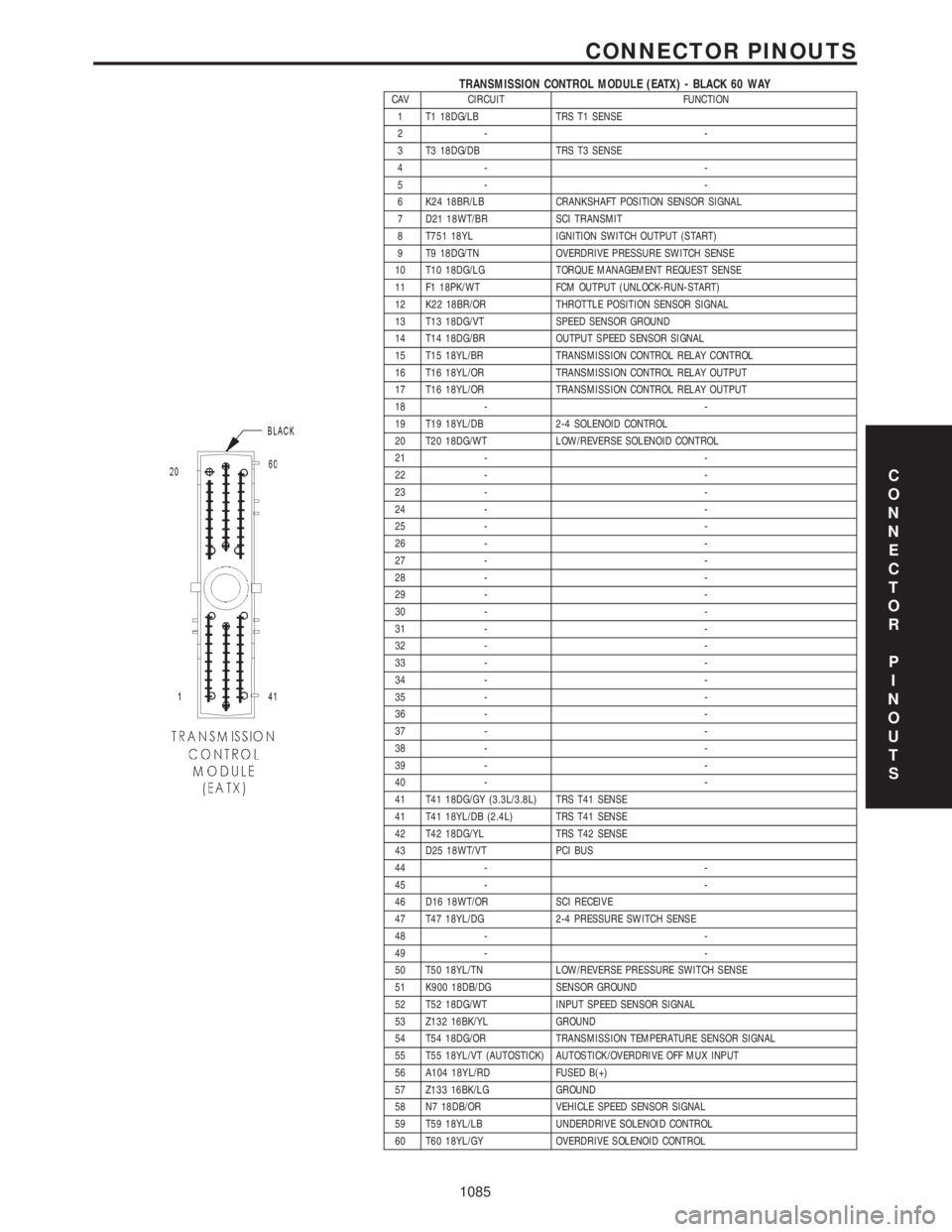

CHRYSLER VOYAGER 2001 Service Manual TRANSMISSION CONTROL MODULE (EATX) - BLACK 60 WAYCAV CIRCUIT FUNCTION 1 T1 18DG/LB TRS T1 SENSE 2- - 3 T3 18DG/DB TRS T3 SENSE 4- - 5- - 6 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL 7 D21 18WT/BR S

Page 1115 of 4284

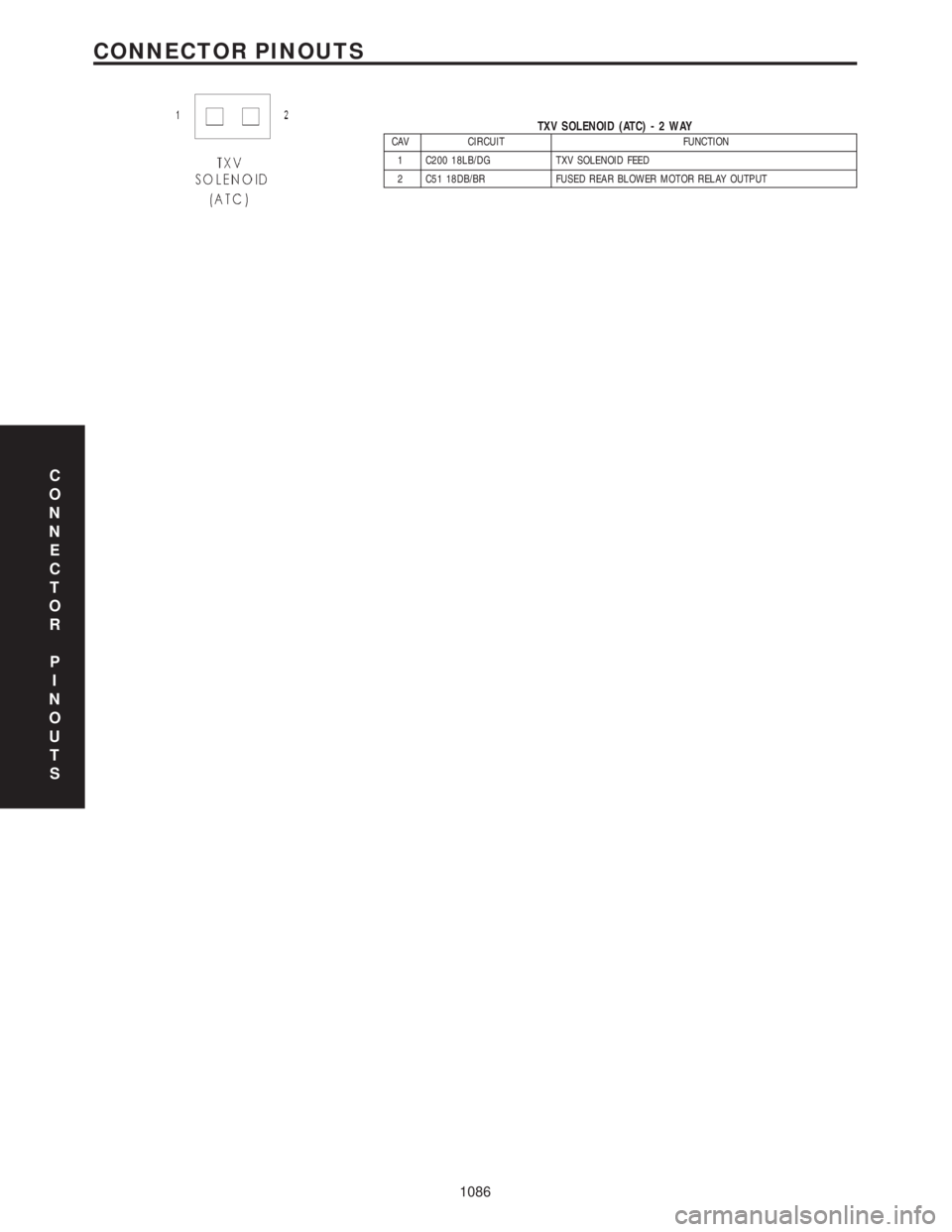

CHRYSLER VOYAGER 2001 Service Manual TXV SOLENOID (ATC)-2WAYCAV CIRCUIT FUNCTION 1 C200 18LB/DG TXV SOLENOID FEED 2 C51 18DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT C O N N E C T O R P I N O U T S 1086 CONNECTOR PINOUTS

Page 1116 of 4284

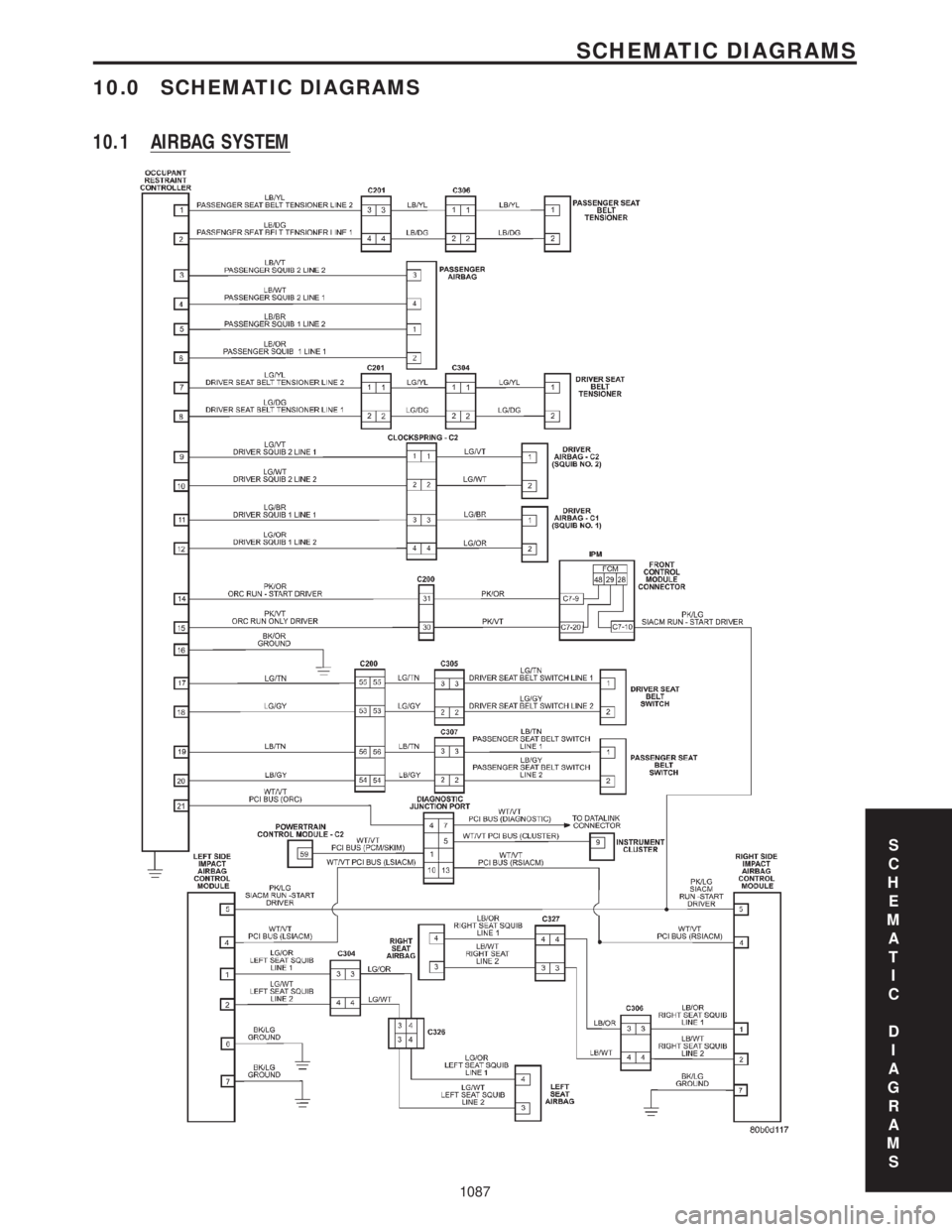

CHRYSLER VOYAGER 2001 Service Manual 10.0 SCHEMATIC DIAGRAMS 10.1 AIRBAG SYSTEM S C H E M A T I C D I A G R A M S 1087 SCHEMATIC DIAGRAMS

Page 1117 of 4284

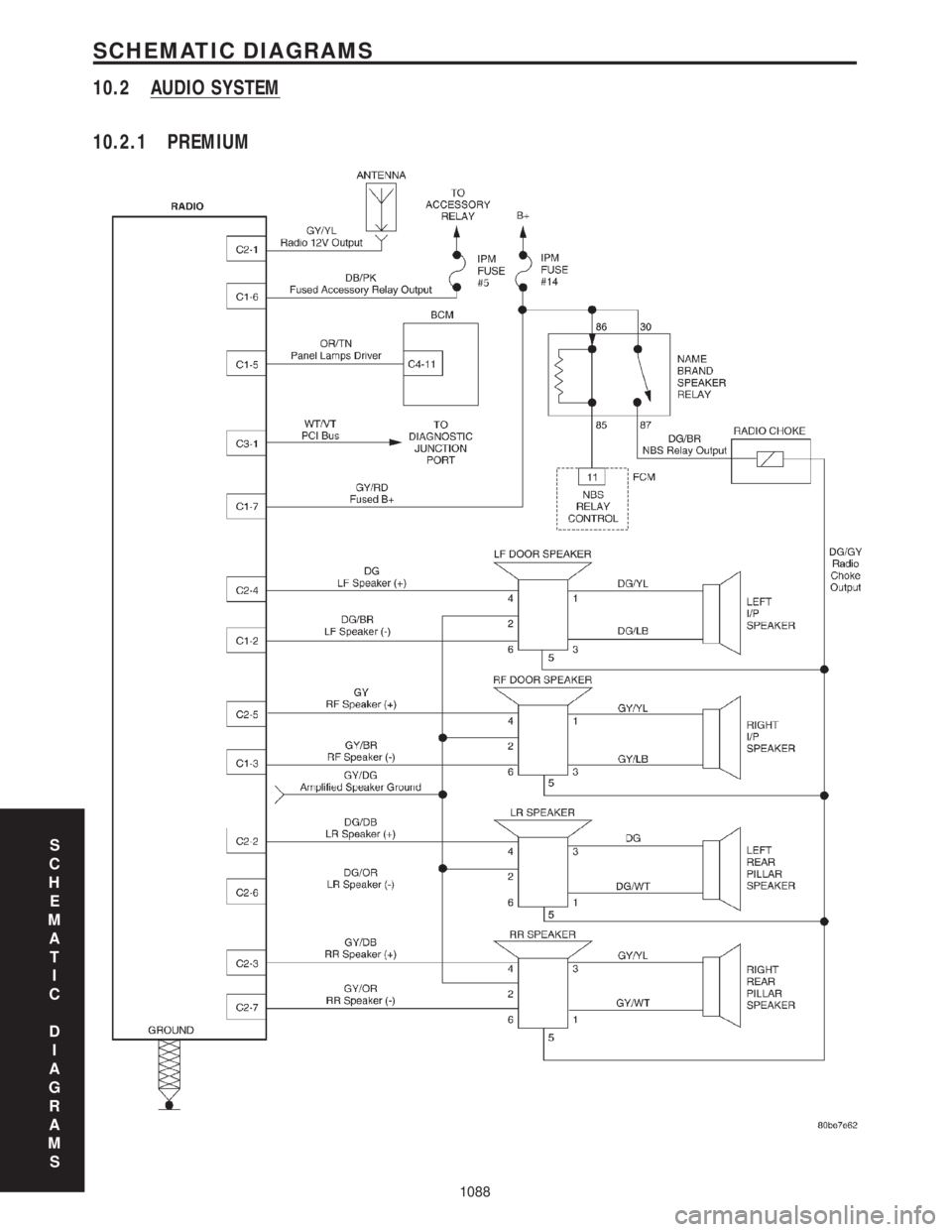

CHRYSLER VOYAGER 2001 Service Manual 10.2 AUDIO SYSTEM 10.2.1 PREMIUM S C H E M A T I C D I A G R A M S 1088 SCHEMATIC DIAGRAMS

Page 1118 of 4284

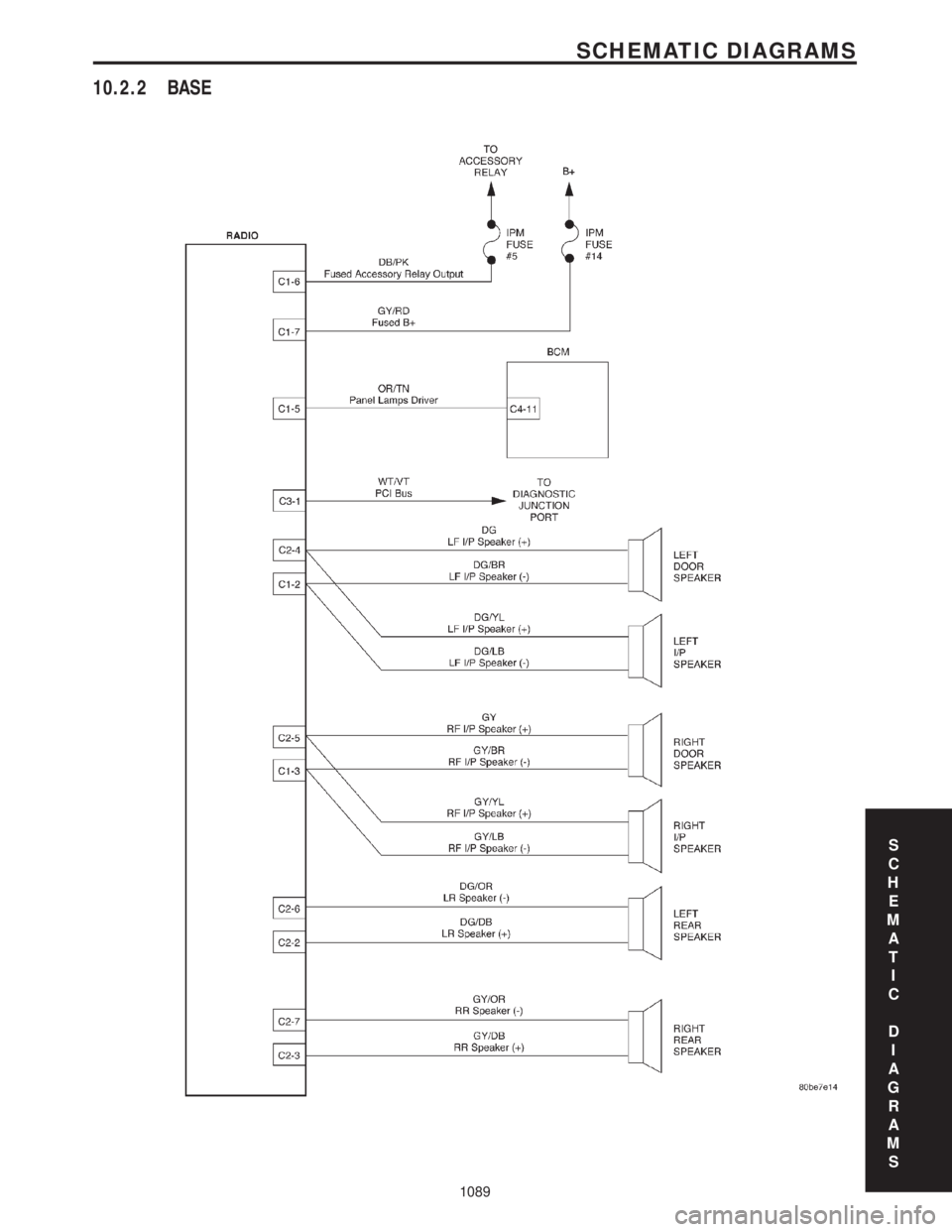

CHRYSLER VOYAGER 2001 Service Manual 10.2.2 BASE S C H E M A T I C D I A G R A M S 1089 SCHEMATIC DIAGRAMS

Page 1119 of 4284

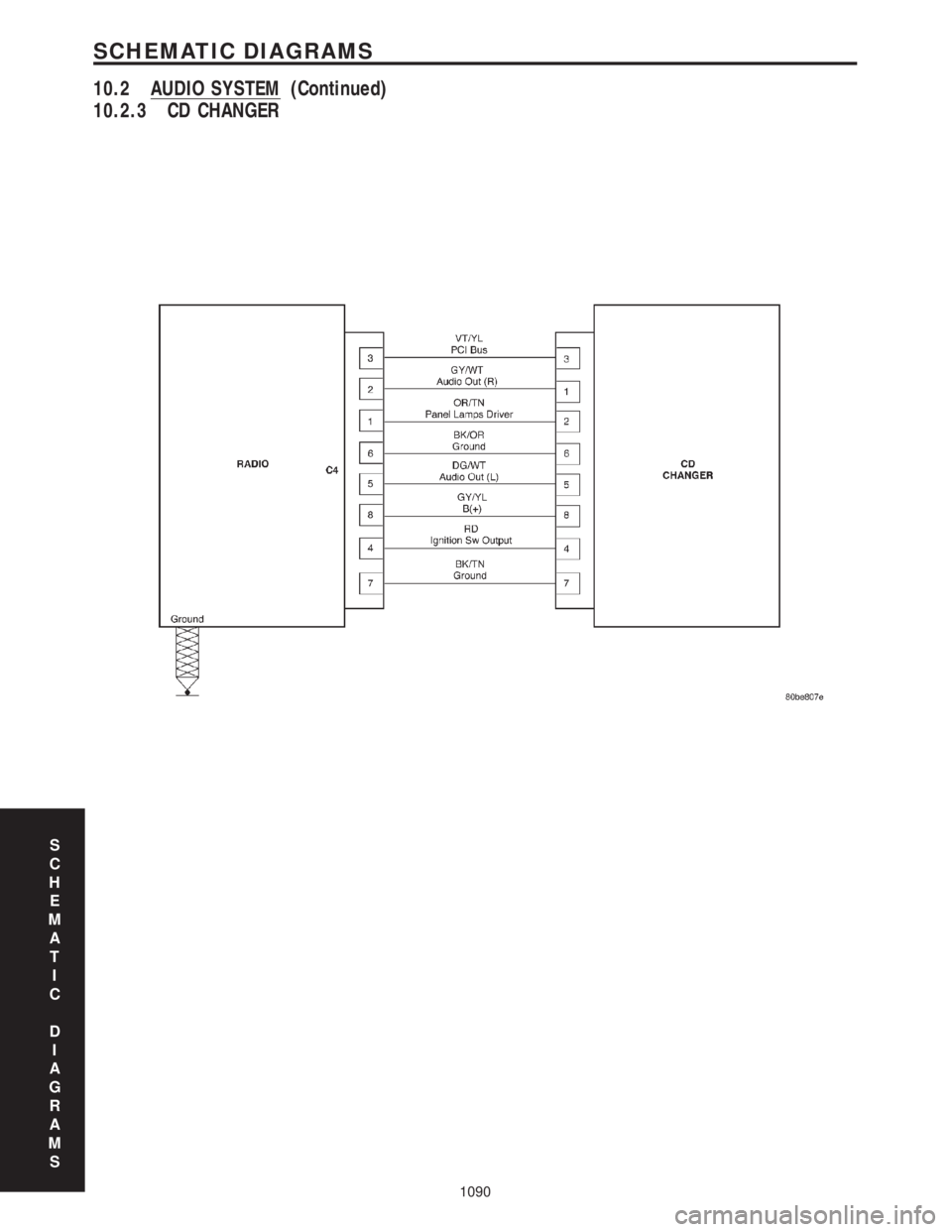

CHRYSLER VOYAGER 2001 Service Manual 10.2.3 CD CHANGER S C H E M A T I C D I A G R A M S 1090 SCHEMATIC DIAGRAMS 10.2 AUDIO SYSTEM (Continued)

Page 1120 of 4284

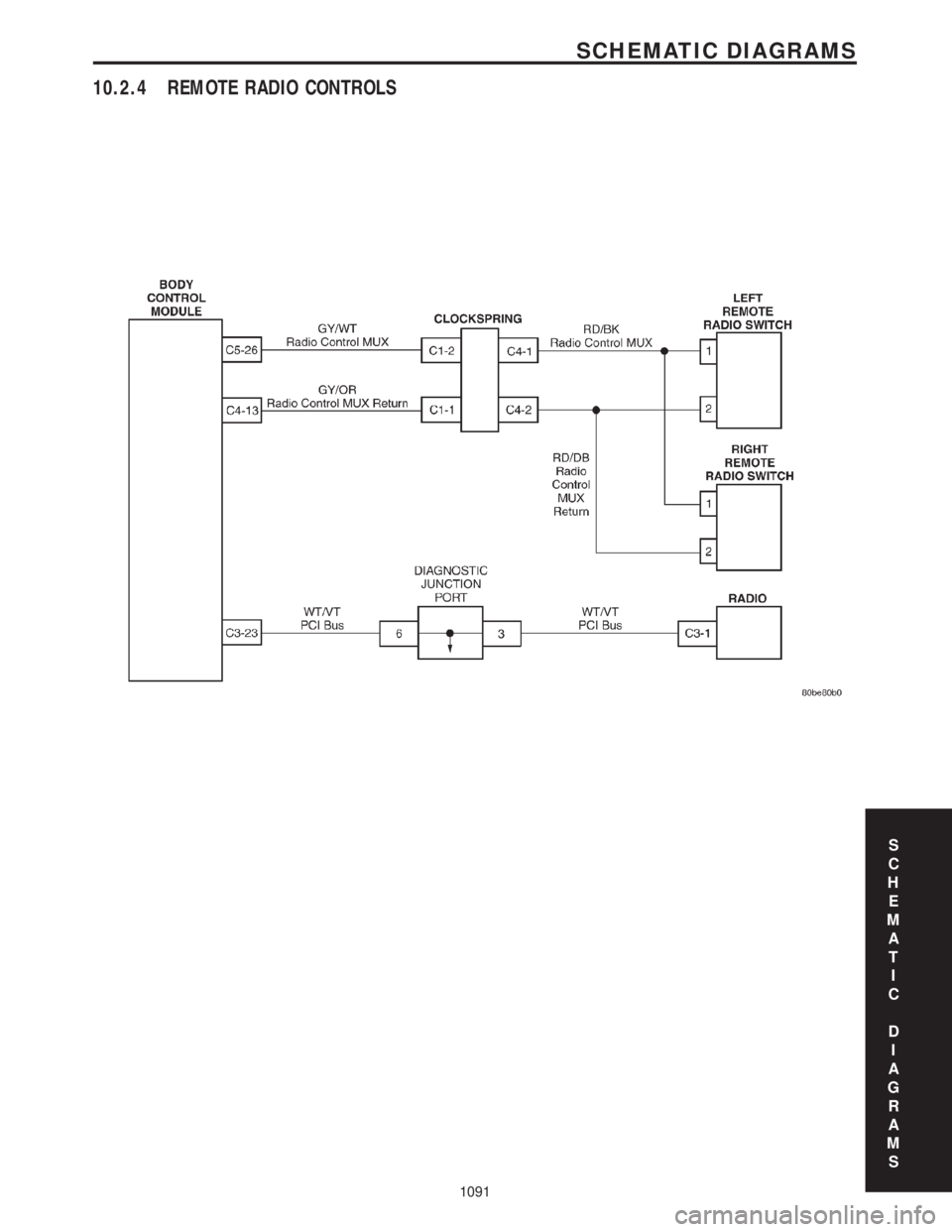

CHRYSLER VOYAGER 2001 Service Manual 10.2.4 REMOTE RADIO CONTROLS S C H E M A T I C D I A G R A M S 1091 SCHEMATIC DIAGRAMS
