Page 4185 of 4284
Symptom:
P1717-NO COMMUNICATION WITH THE MIC
When Monitored and Set Condition:
P1717-NO COMMUNICATION WITH THE MIC
When Monitored: Continuously with engine running.
Set Condition: The code sets in approximately 25 seconds if no BUS messages are
received form the MIC.
POSSIBLE CAUSES
OTHER BUS PROBLEMS PRESENT
INTERMITTENT WIRING AND CONNECTORS
MIC - NO COMMUNICATION
TCM - BUS COMMUNICATION
TEST ACTION APPLICABILITY
1 With the DRBIIIt, Check the STARTS SINCE SET counter.
Note: This counter only applies to the last DTC set.
Is the STARTS SINCE SET counter equal to zero?All
Ye s®Go To 2
No®Go To 5
2 With the DRBIIIt, check all of the other modules on the vehicle for evidence of a
vehicle bus problem.
Bus related DTC's in other modules point to an overall vehicle bus problem. Other
symptoms such as a customer complaint of intermittent operation of bus controlled
features also indicate a bus problem.
Does the PRNDL display indicate9No Bus9or is there any evidence of an overall
vehicle bus problem?All
Ye s®Refer to the Communications category for the related symp-
tom(s).
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 3
3 Ignition on, engine not running.
With the DRBIIIt, clear all DTC's.
Start the engine in park.
With the DRBIIIt, read the MIC DTC's.
Can the DRBIIItcommunicate with the MIC?All
Ye s®Go To 4
No®Refer to the communication category and perform symptoms
related for No Response to MIC.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
81
TRANSMISSION
Page 4186 of 4284
TEST ACTION APPLICABILITY
4 Ignition on, engine not running.
With the DRBIIIt, erase TCM DTC's.
Start the engine in park.
With the DRBIIIt, read Transmission DTC's.
Is the DTC, P1717- No Communication with the MIC, present?All
Ye s®Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
5 The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this
circuit.
Wiggle the wiring while checking for shorts and open circuits.
Were there any problems found?All
Ye s®Repair as necessary.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
82
TRANSMISSION
P1717-NO COMMUNICATION WITH THE MIC ÐContinued
Page 4187 of 4284
Symptom:
P1738-HIGH TEMPERATURE OPERATION ACTIVATED
When Monitored and Set Condition:
P1738-HIGH TEMPERATURE OPERATION ACTIVATED
When Monitored: Whenever the engine is running.
Set Condition: Immediately when the Overheat shift schedule is activated (240 degrees
Trans oil temp).
POSSIBLE CAUSES
ENGINE COOLING SYSTEM MALFUNCTION
INCORRECT FLUID LEVEL
TRANSMISSION OIL COOLER PLUGGED
HIGH TEMPERATURE OPERATIONS ACTIVATED
TEST ACTION APPLICABILITY
1 Perform Engine Cooling System diagnostics per Service Information
Is the engine cooling system functioning properly?All
Ye s®Go To 2
No®Repair cause of engine overheating. Refer to Service Information
for additional repair information.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
2 Check the Transmission Fluid level per the Service Information.
Is the Transmission Fluid Level at the proper level?All
Ye s®Go To 3
No®Repair any Transmission Fluid leak as necessary and adjust the
Transmission Fluid Level in accordance with the Service Infor-
mation.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
3 Perform Cooler Flow Check per Service Information.
Did the cooler flow test pass?All
Ye s®Go To 4
No®Repair cause of plugged Transmission Oil Cooler. Flush or replace
Transmission Oil Cooler(s) as necessary per Service Information.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
83
TRANSMISSION
Page 4188 of 4284
TEST ACTION APPLICABILITY
4 This DTC is an informational DTC designed to aid the Technician in diagnosing shift
quality complaints.
This DTC indicates that the Transmission has been operating in the9Overheat9shift
schedule which may generate a customer complaint.
The customer driving patterns may indicate the need for an additional Transmission
Oil Cooler.
Were any problems found?All
Ye s®Repair cause of transmission overheating or if indicated install an
additional Transmission Oil Cooler.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
84
TRANSMISSION
P1738-HIGH TEMPERATURE OPERATION ACTIVATED ÐContinued
Page 4189 of 4284

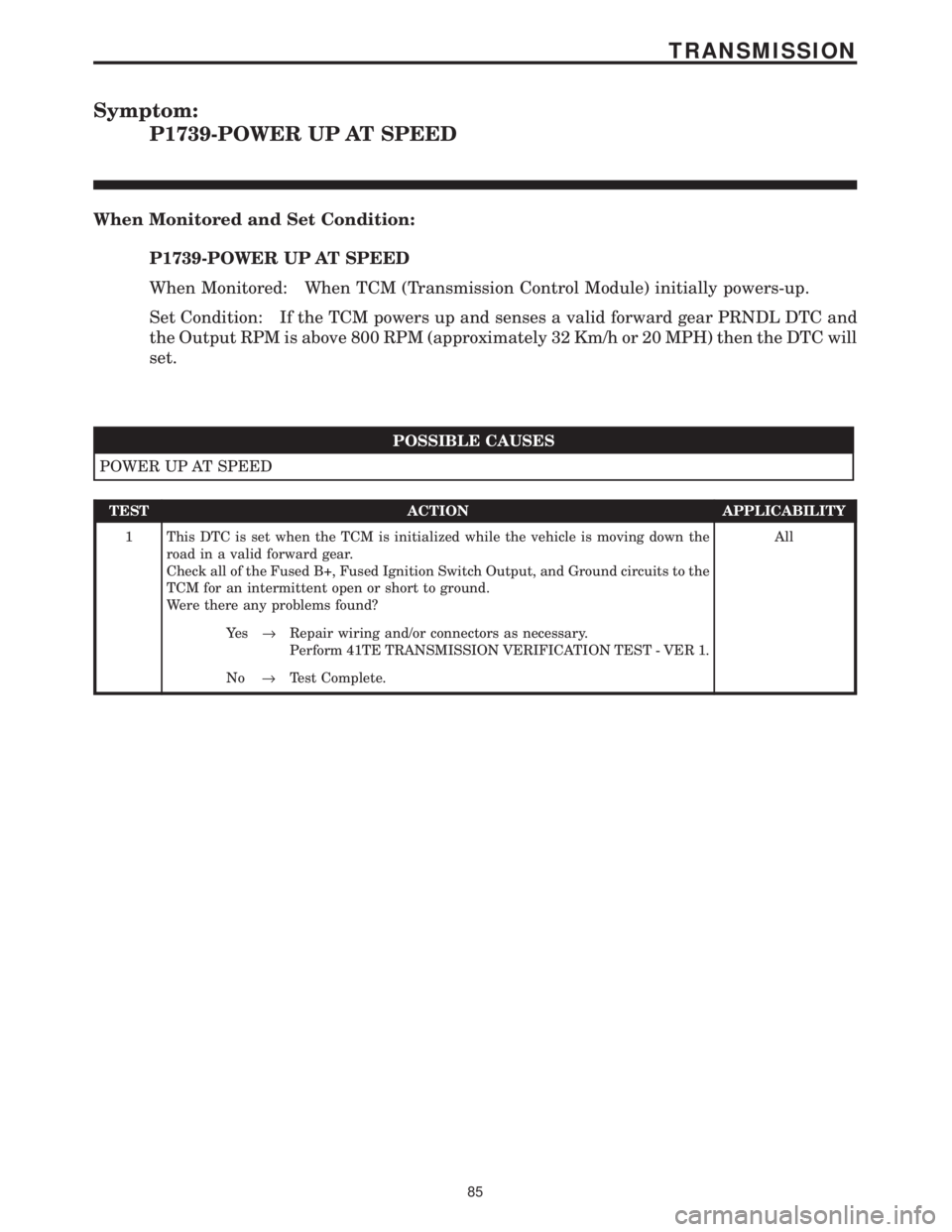

Symptom:
P1739-POWER UP AT SPEED
When Monitored and Set Condition:
P1739-POWER UP AT SPEED
When Monitored: When TCM (Transmission Control Module) initially powers-up.
Set Condition: If the TCM powers up and senses a valid forward gear PRNDL DTC and
the Output RPM is above 800 RPM (approximately 32 Km/h or 20 MPH) then the DTC will
set.
POSSIBLE CAUSES
POWER UP AT SPEED
TEST ACTION APPLICABILITY
1 This DTC is set when the TCM is initialized while the vehicle is moving down the
road in a valid forward gear.
Check all of the Fused B+, Fused Ignition Switch Output, and Ground circuits to the
TCM for an intermittent open or short to ground.
Were there any problems found?All
Ye s®Repair wiring and/or connectors as necessary.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
85
TRANSMISSION
Page 4190 of 4284
Symptom:
P1765-SWITCHED BATTERY
When Monitored and Set Condition:
P1765-SWITCHED BATTERY
When Monitored: Ignition key is turned from the OFF position to RUN position and/or
ignition key is turned from the CRANK position to RUN position.
Set Condition: This DTC is set if the Transmission Control Module senses voltage on any
of the Pressure Switch Inputs prior to the TCM energizing the Transmission Control Relay.
POSSIBLE CAUSES
INTERMITTENT WIRING AND CONNECTORS
2-4 PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
OD PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
TCM - SWITCHED BATTERY
TEST ACTION APPLICABILITY
1NOTE: Low fluid level can be the cause of many Transmission problems. If
the fluid level is low locate and repair the leak then check and adjust the
fluid level per the Service Information.
NOTE: Always perform diagnostics with a fully charged battery to avoid
false symptoms.
With the DRBIIIt, read the engine DTC's. Check and repair all engine DTC's prior
to performing Transmission Symptom Diagnostics.
With the DRBIIIt, read Transmission DTC's. Record all DTC's and 1 Trip Failures.
NOTE: Diagnose 1 Trip Failures as a fully matured DTC.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Repair as necessary.
Perform the Shift Lever Position Test. If the test does not pass, refer to Symptom test
for P0705 Check Shifter Signal.
For Gear Ratio DTC's, check and record all CVI's.
Most DTC's set on start up but some must be set by driving the vehicle such that all
diagnostic monitors have run.
NOTE: Verify flash level of Transmission Control Module. Some problems
are corrected by software upgrades to the Transmission Control Module.
NOTE: Check for applicable TSB's related to the symptom.
Perform this procedure prior to Symptom diagnosis.All
Continue
Go To 2
2 With the DRBIIIt, Check the STARTS SINCE SET counter.
Note: This counter only applies to the last DTC set.
Is the STARTS SINCE SET counter for P1765 set at 0?All
Ye s®Go To 3
No®Go To 7
86
TRANSMISSION
Page 4191 of 4284
TEST ACTION APPLICABILITY
3 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Fused B+ circuit and the Transmission Control
Relay Output circuit in the Transmission Control Relay connector in the IPM.
Ignition on, engine not running.
Measure the voltage of the 2-4 Pressure Switch Sense circuit in the TCM harness
connector.
Is the voltage above 0.5 volt?All
Ye s®Repair the 2-4 Pressure Switch Sense circuit for a short to
voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 4
4 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Fused B+ circuit and the Transmission Control
Relay Output circuit in the Transmission Control Relay connector in the IPM.
Ignition on, engine not running.
Measure the voltage of the L/R Pressure Switch Sense circuit in the TCM harness
connector.
Is the voltage above 0.5 volt?All
Ye s®Repair the L/R Pressure Switch Sense circuit for a short to
voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Fused B+ circuit and the Transmission Control
Relay Output circuit in the Transmission Control Relay connector in the IPM.
Ignition on, engine not running.
Measure the voltage of the OD Pressure Switch Sense circuit in the TCM harness
connector.
Is the voltage above 0.5 volt?All
Ye s®Repair the OD Pressure Switch Sense circuit for a short to
voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 6
6 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
87
TRANSMISSION

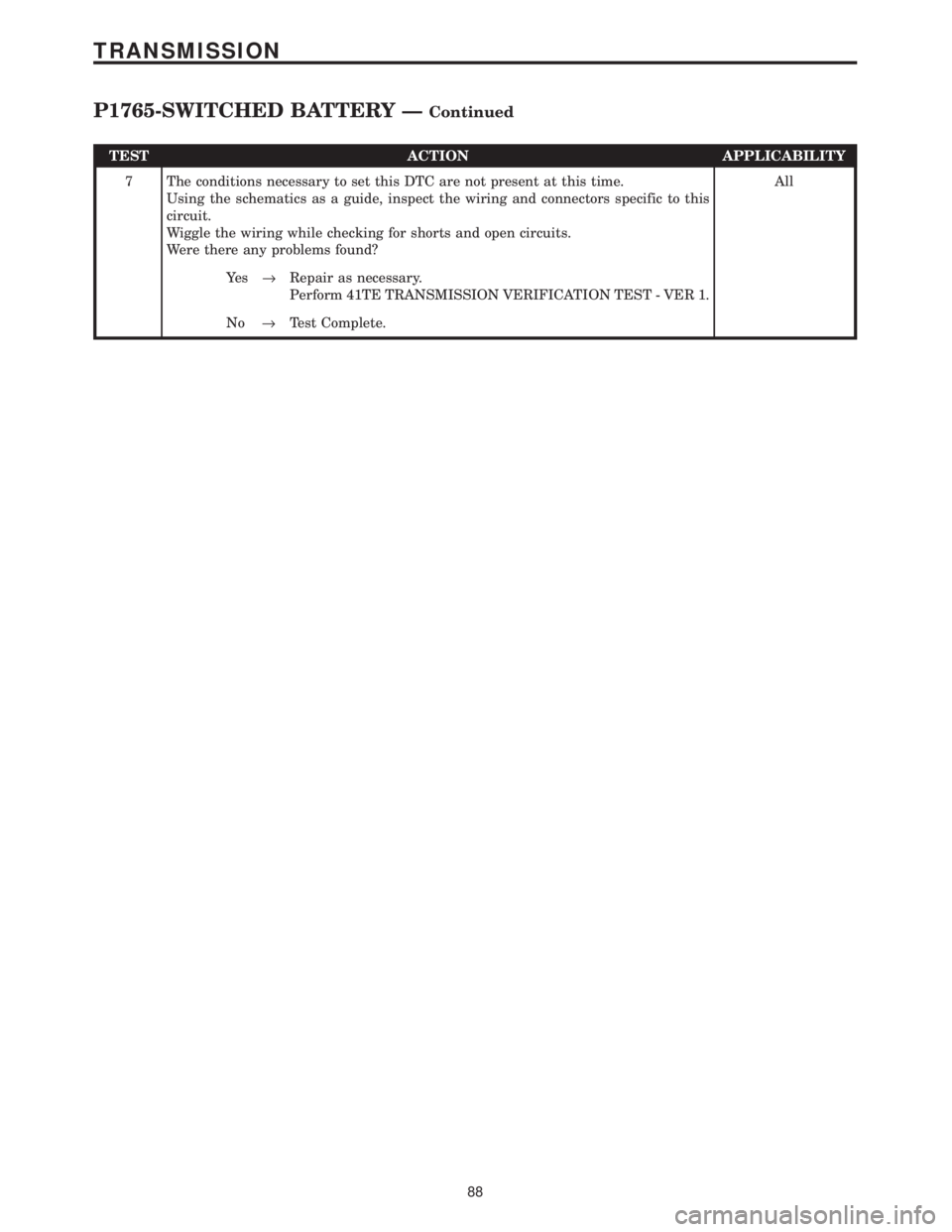

P1765-SWITCHED BATTERY ÐContinued
Page 4192 of 4284
TEST ACTION APPLICABILITY
7 The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this
circuit.
Wiggle the wiring while checking for shorts and open circuits.
Were there any problems found?All
Ye s®Repair as necessary.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
88
TRANSMISSION
P1765-SWITCHED BATTERY ÐContinued
