Page 1105 of 4284

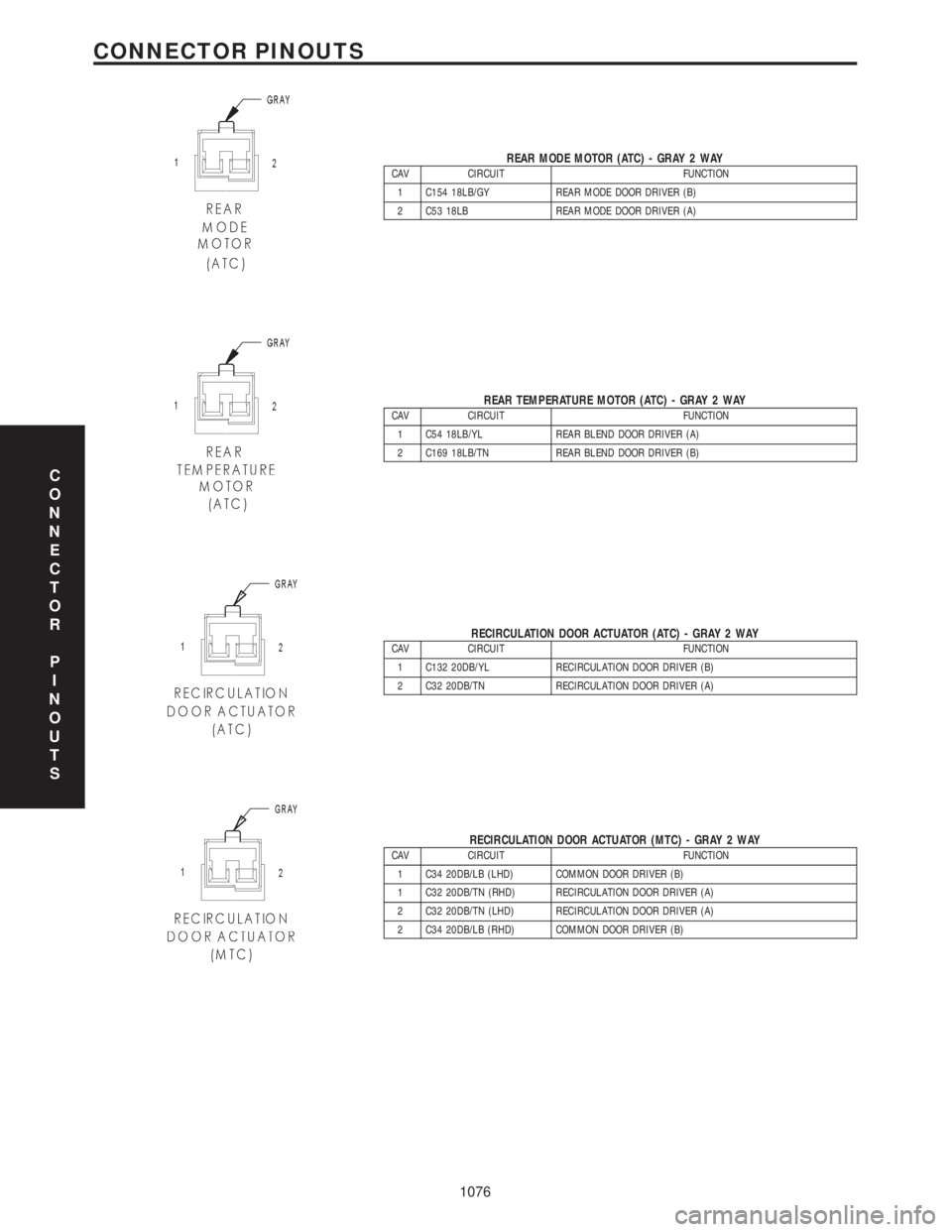

CHRYSLER VOYAGER 2001 Service Manual REAR MODE MOTOR (ATC) - GRAY 2 WAYCAV CIRCUIT FUNCTION 1 C154 18LB/GY REAR MODE DOOR DRIVER (B) 2 C53 18LB REAR MODE DOOR DRIVER (A) REAR TEMPERATURE MOTOR (ATC) - GRAY 2 WAYCAV CIRCUIT FUNCTION 1 C54

Page 1106 of 4284

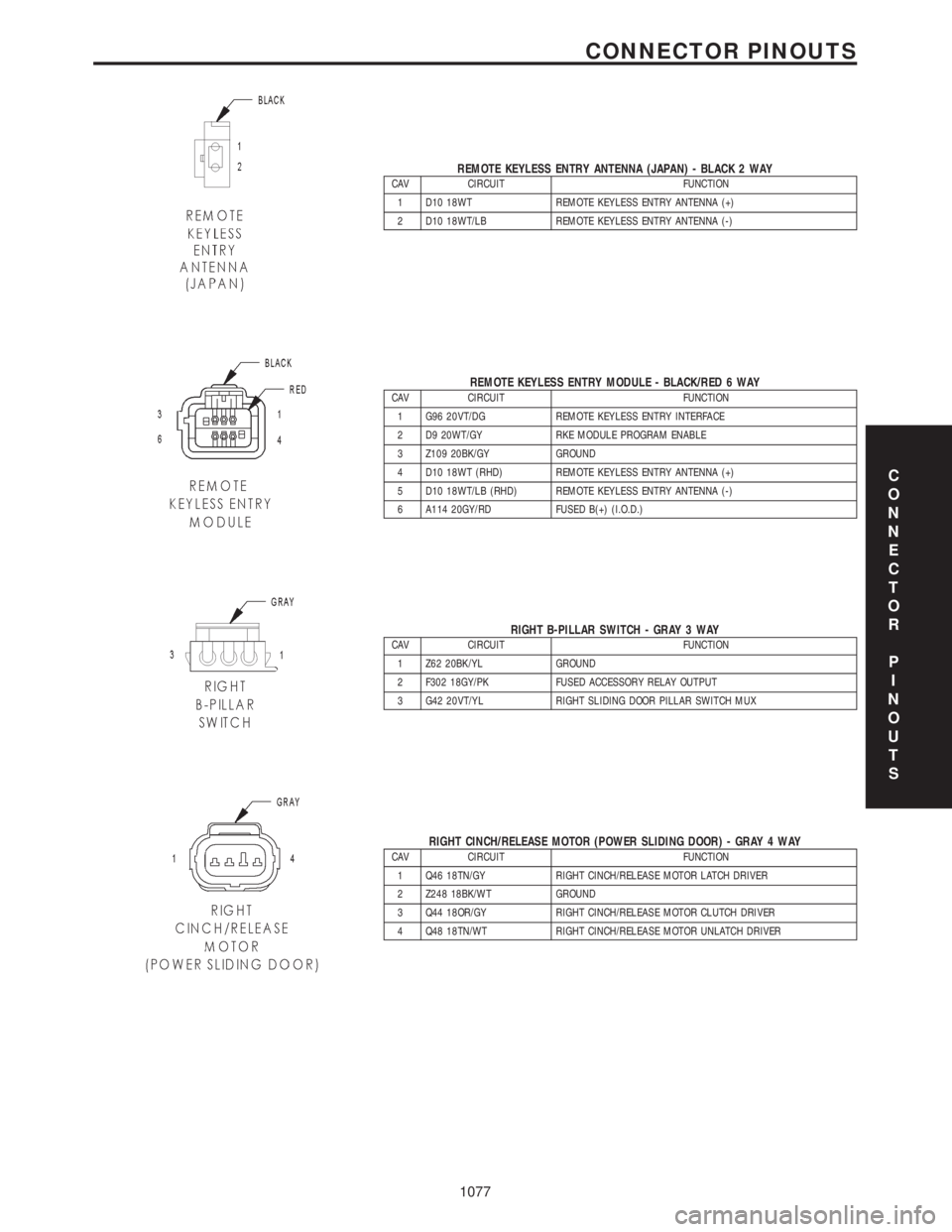

CHRYSLER VOYAGER 2001 Service Manual REMOTE KEYLESS ENTRY ANTENNA (JAPAN) - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 D10 18WT REMOTE KEYLESS ENTRY ANTENNA (+) 2 D10 18WT/LB REMOTE KEYLESS ENTRY ANTENNA (-) REMOTE KEYLESS ENTRY MODULE - BLACK/RE

Page 1107 of 4284

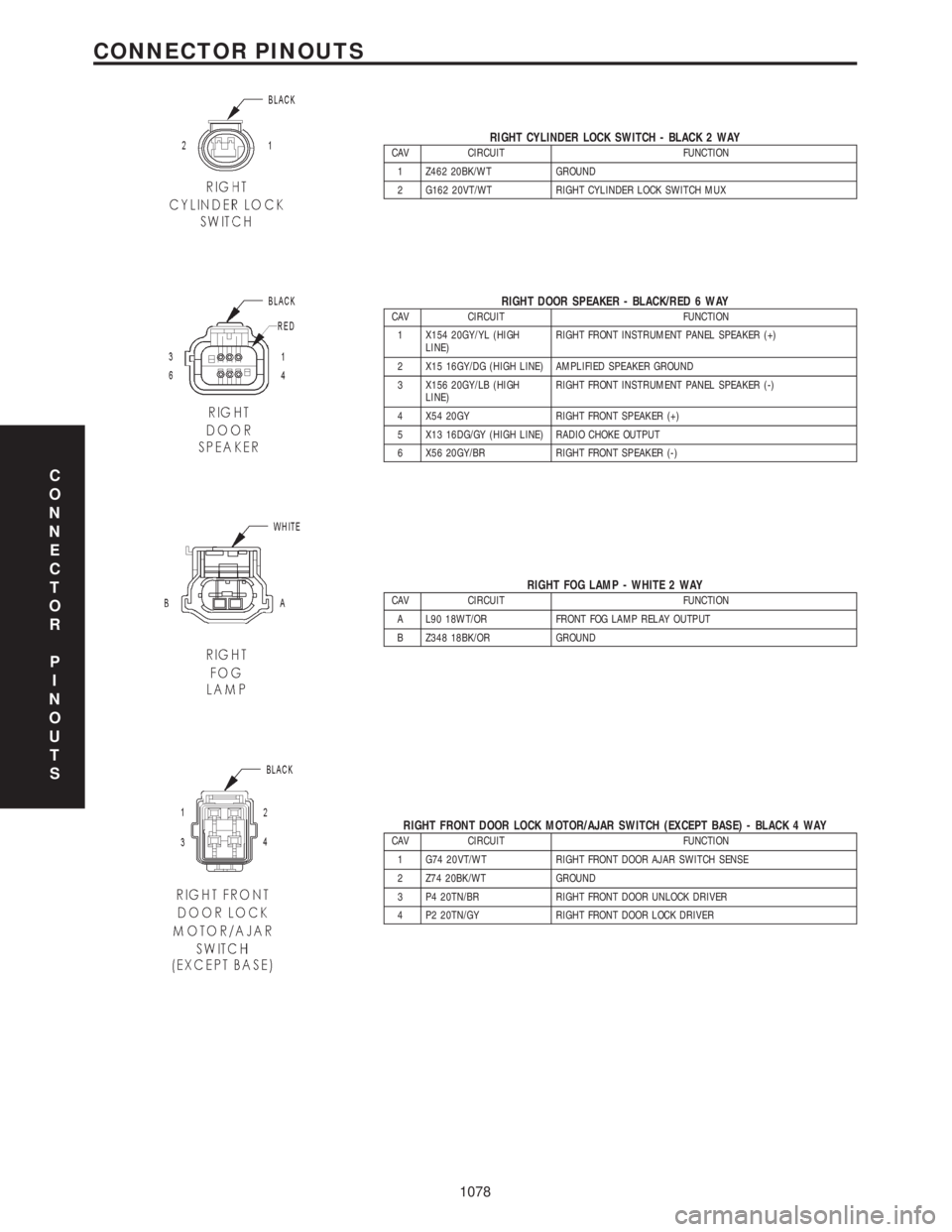

CHRYSLER VOYAGER 2001 Service Manual RIGHT CYLINDER LOCK SWITCH - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 Z462 20BK/WT GROUND 2 G162 20VT/WT RIGHT CYLINDER LOCK SWITCH MUX RIGHT DOOR SPEAKER - BLACK/RED 6 WAYCAV CIRCUIT FUNCTION 1 X154 20GY/YL

Page 1108 of 4284

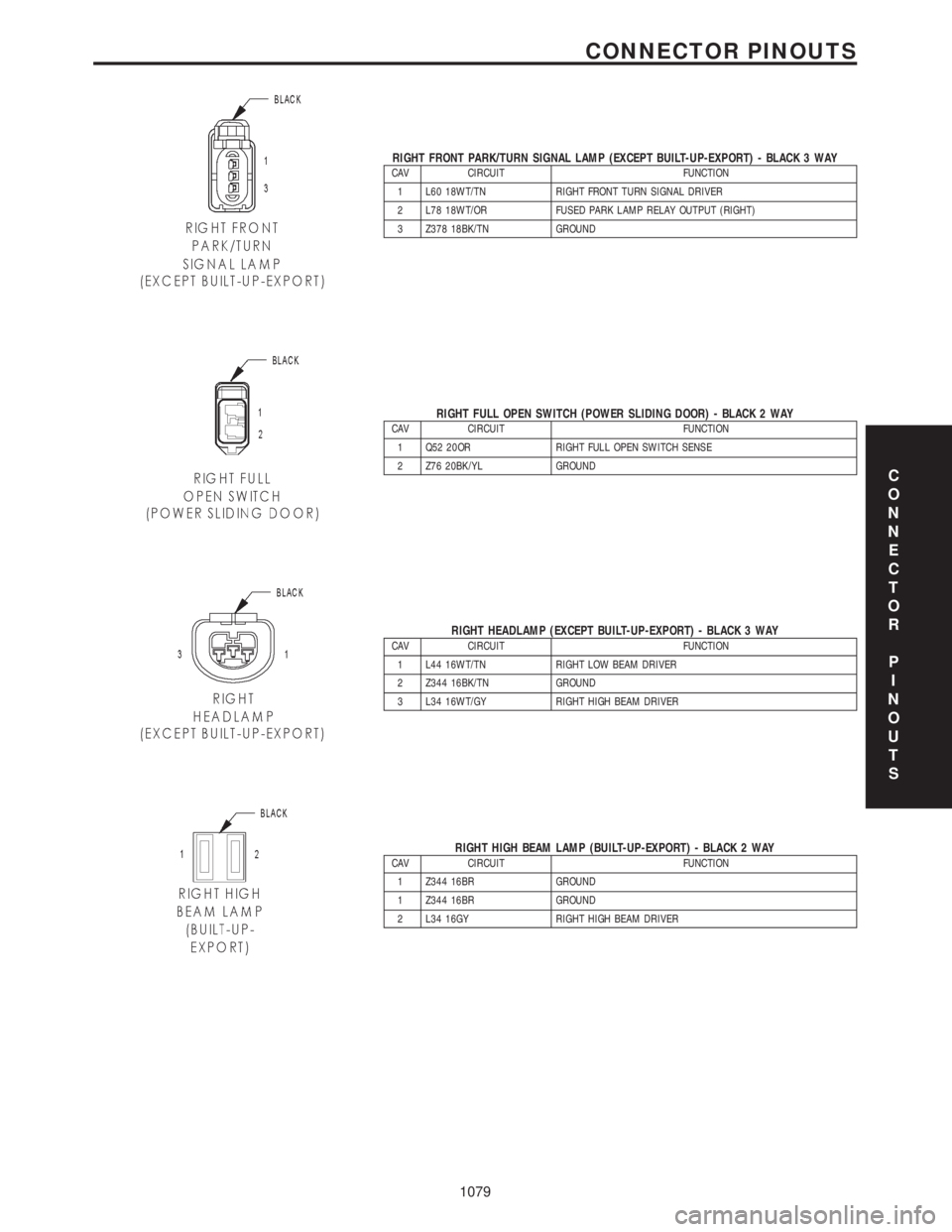

CHRYSLER VOYAGER 2001 Service Manual RIGHT FRONT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAYCAV CIRCUIT FUNCTION 1 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER 2 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT) 3 Z378 18BK

Page 1109 of 4284

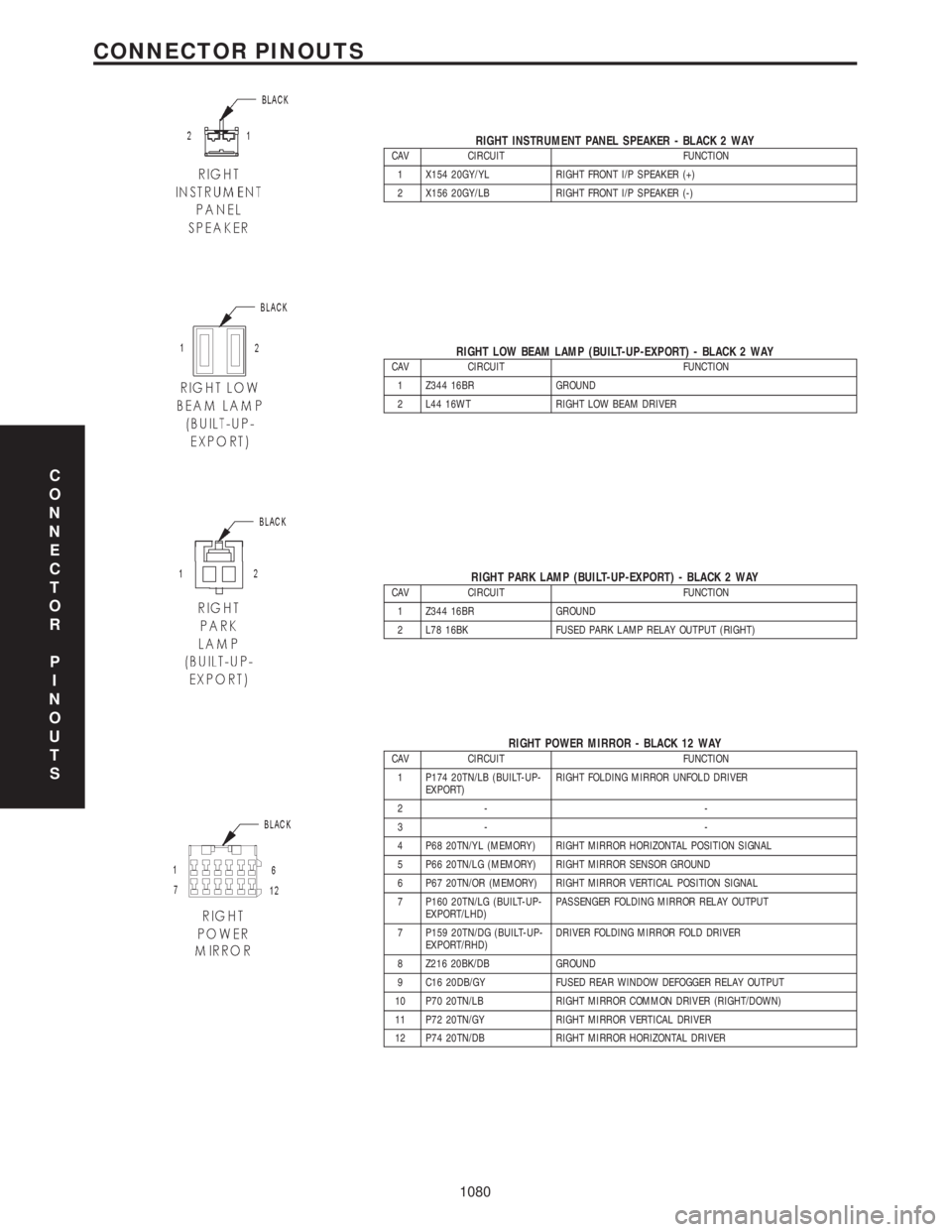

CHRYSLER VOYAGER 2001 Service Manual RIGHT INSTRUMENT PANEL SPEAKER - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 X154 20GY/YL RIGHT FRONT I/P SPEAKER (+) 2 X156 20GY/LB RIGHT FRONT I/P SPEAKER (-) RIGHT LOW BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 W

Page 1110 of 4284

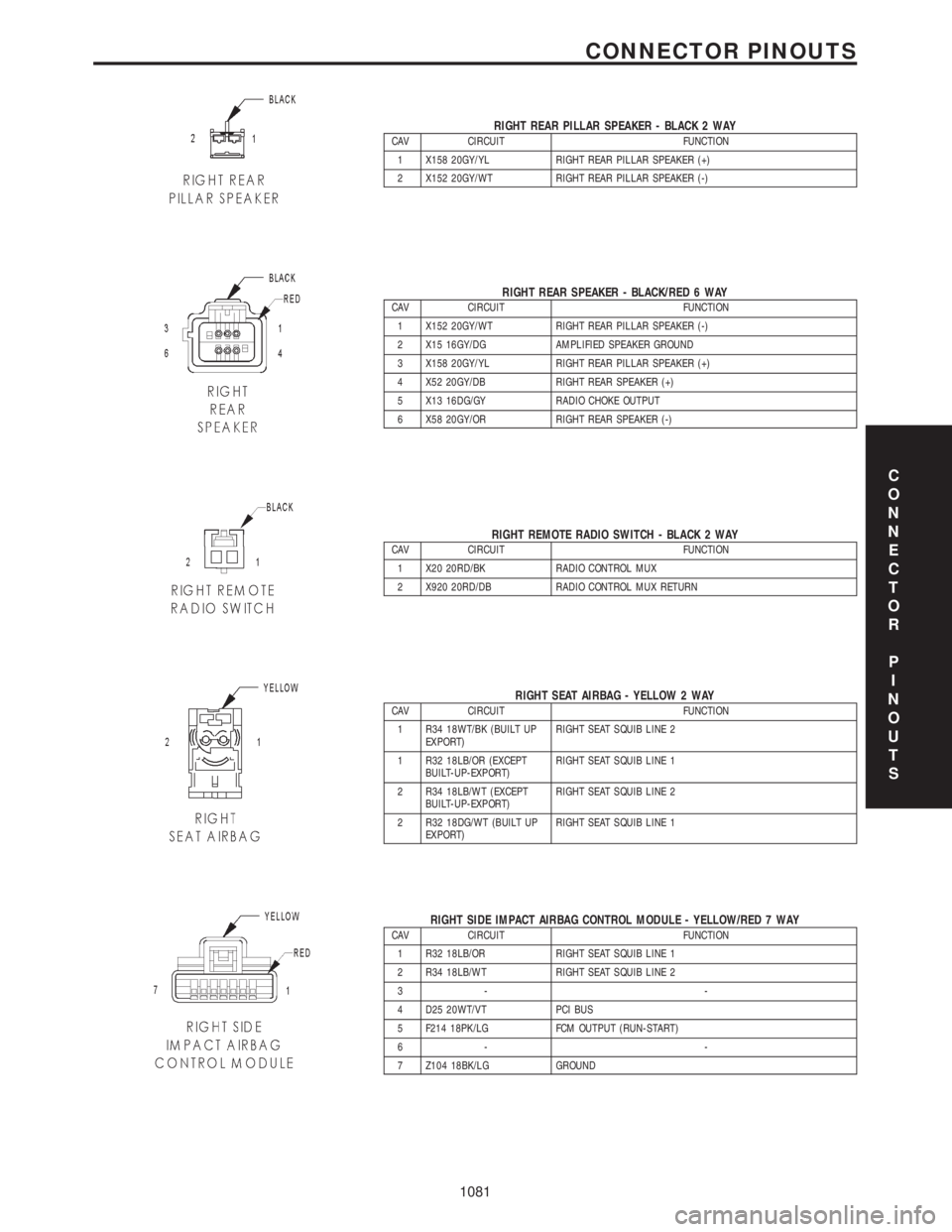

CHRYSLER VOYAGER 2001 Service Manual RIGHT REAR PILLAR SPEAKER - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 X158 20GY/YL RIGHT REAR PILLAR SPEAKER (+) 2 X152 20GY/WT RIGHT REAR PILLAR SPEAKER (-) RIGHT REAR SPEAKER - BLACK/RED 6 WAYCAV CIRCUIT FU

Page 1111 of 4284

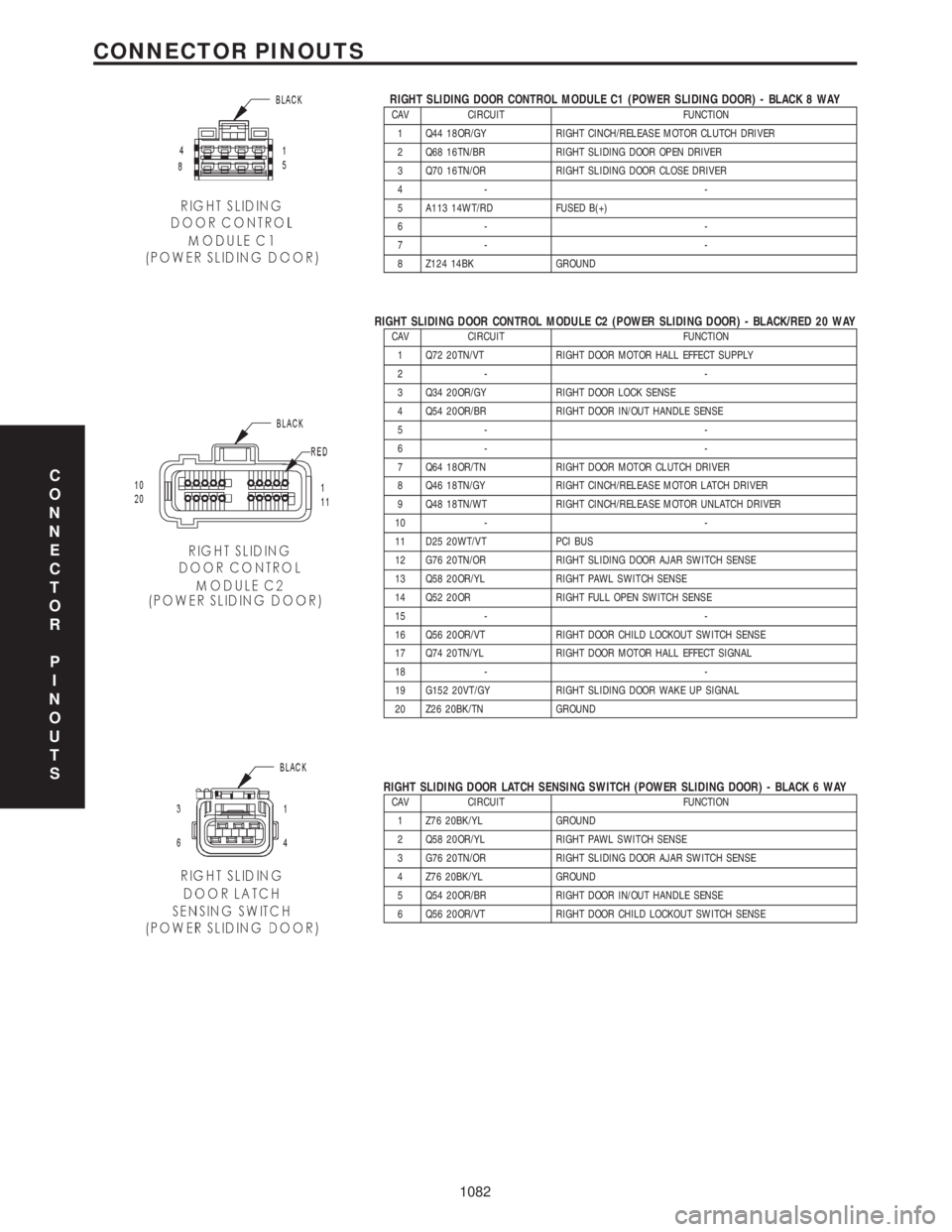

CHRYSLER VOYAGER 2001 Service Manual RIGHT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAYCAV CIRCUIT FUNCTION 1 Q44 18OR/GY RIGHT CINCH/RELEASE MOTOR CLUTCH DRIVER 2 Q68 16TN/BR RIGHT SLIDING DOOR OPEN DRIVER 3 Q70 16T

Page 1112 of 4284

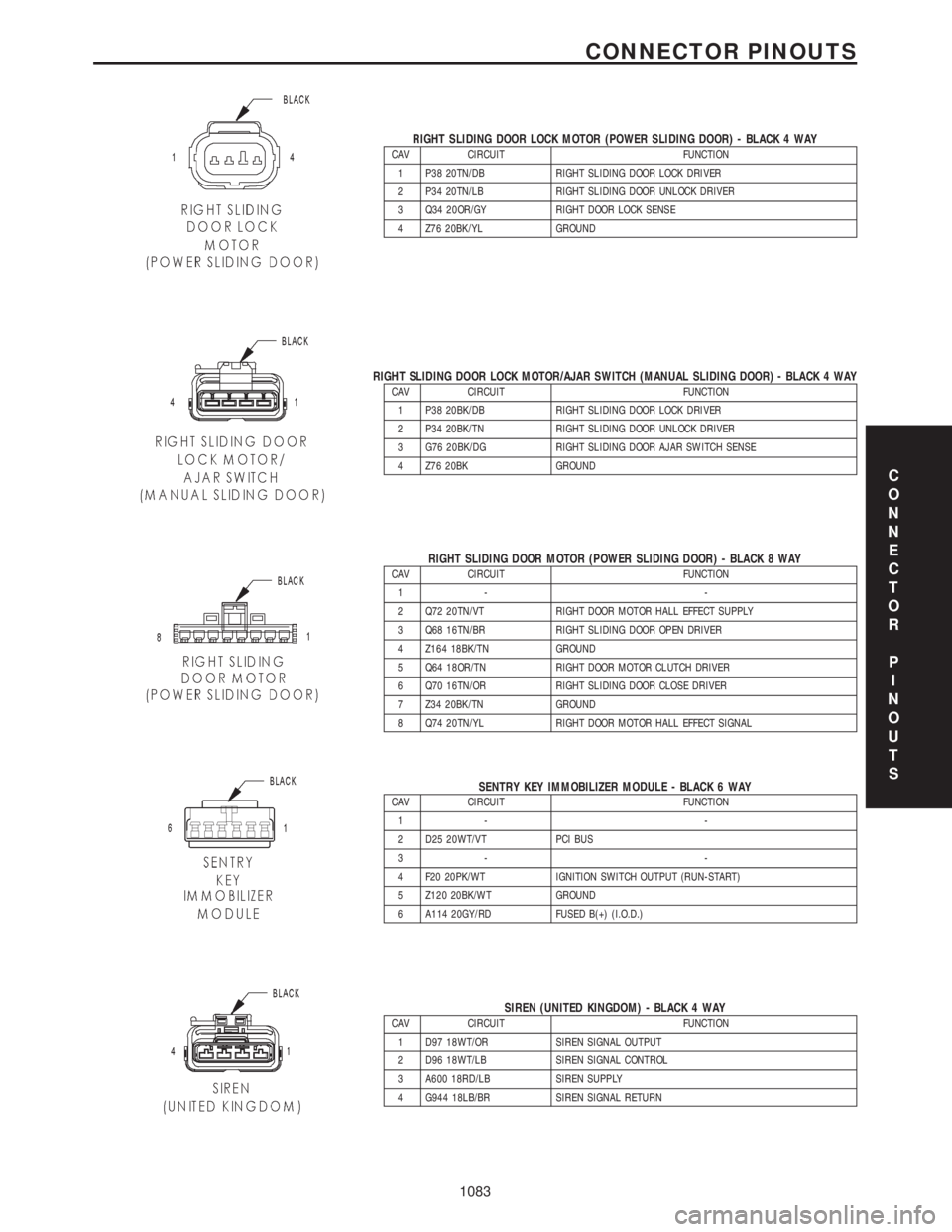

CHRYSLER VOYAGER 2001 Service Manual RIGHT SLIDING DOOR LOCK MOTOR (POWER SLIDING DOOR) - BLACK 4 WAYCAV CIRCUIT FUNCTION 1 P38 20TN/DB RIGHT SLIDING DOOR LOCK DRIVER 2 P34 20TN/LB RIGHT SLIDING DOOR UNLOCK DRIVER 3 Q34 20OR/GY RIGHT DOO
