Page 1097 of 4284

CHRYSLER VOYAGER 2001 Service Manual FRONT FOG LAMP RELAYCAV CIRCUIT FUNCTION 30 INTERNAL FUSED B(+) 85 FCM 33 FRONT FOG LAMP RELAY CONTROL 86 INTERNAL FUSED B(+) 87 INTERNAL FRONT FOG LAMP RELAY OUTPUT 87A -- HEADLAMP WASHER RELAY (BUIL

Page 1098 of 4284

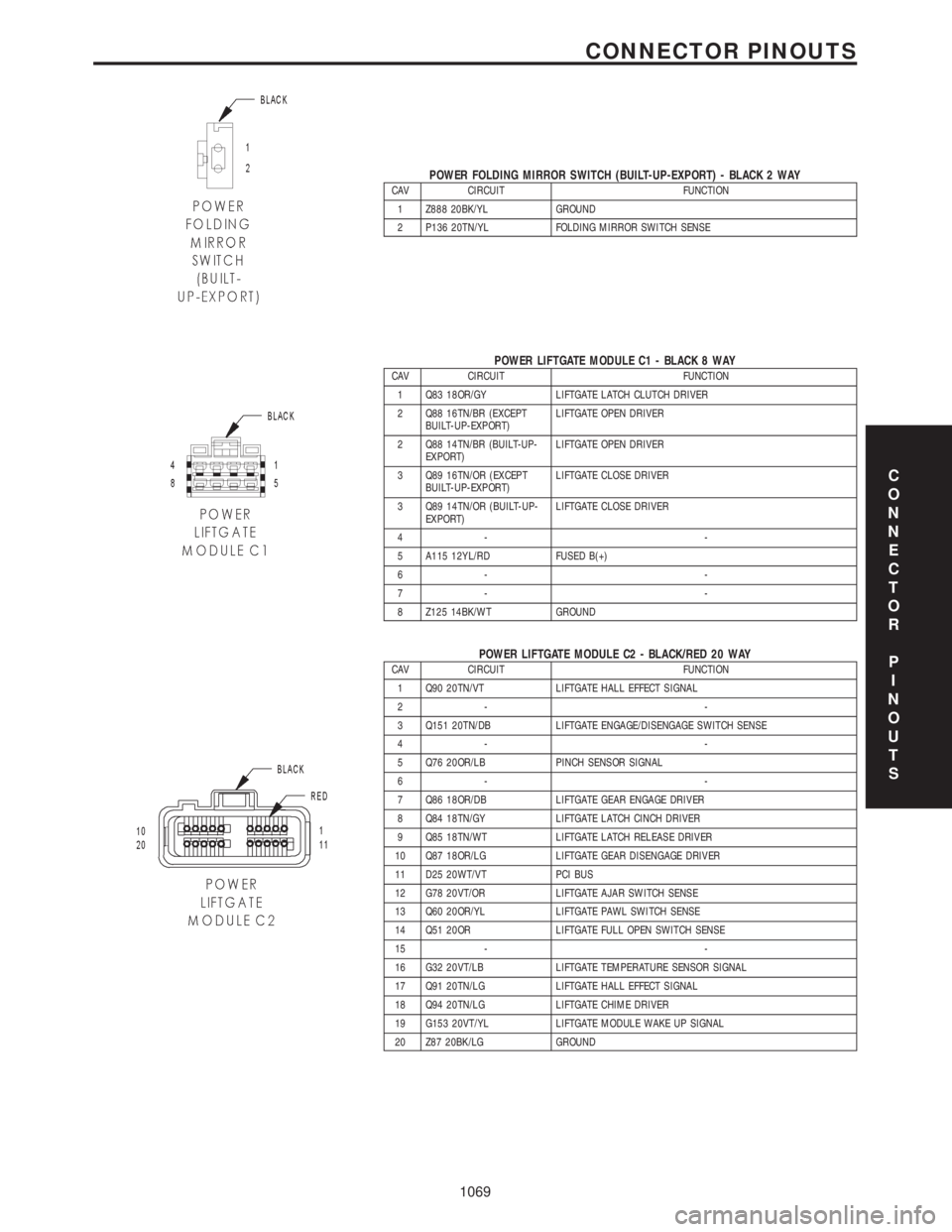

CHRYSLER VOYAGER 2001 Service Manual POWER FOLDING MIRROR SWITCH (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 Z888 20BK/YL GROUND 2 P136 20TN/YL FOLDING MIRROR SWITCH SENSE POWER LIFTGATE MODULE C1 - BLACK 8 WAYCAV CIRCUIT FUNCT

Page 1099 of 4284

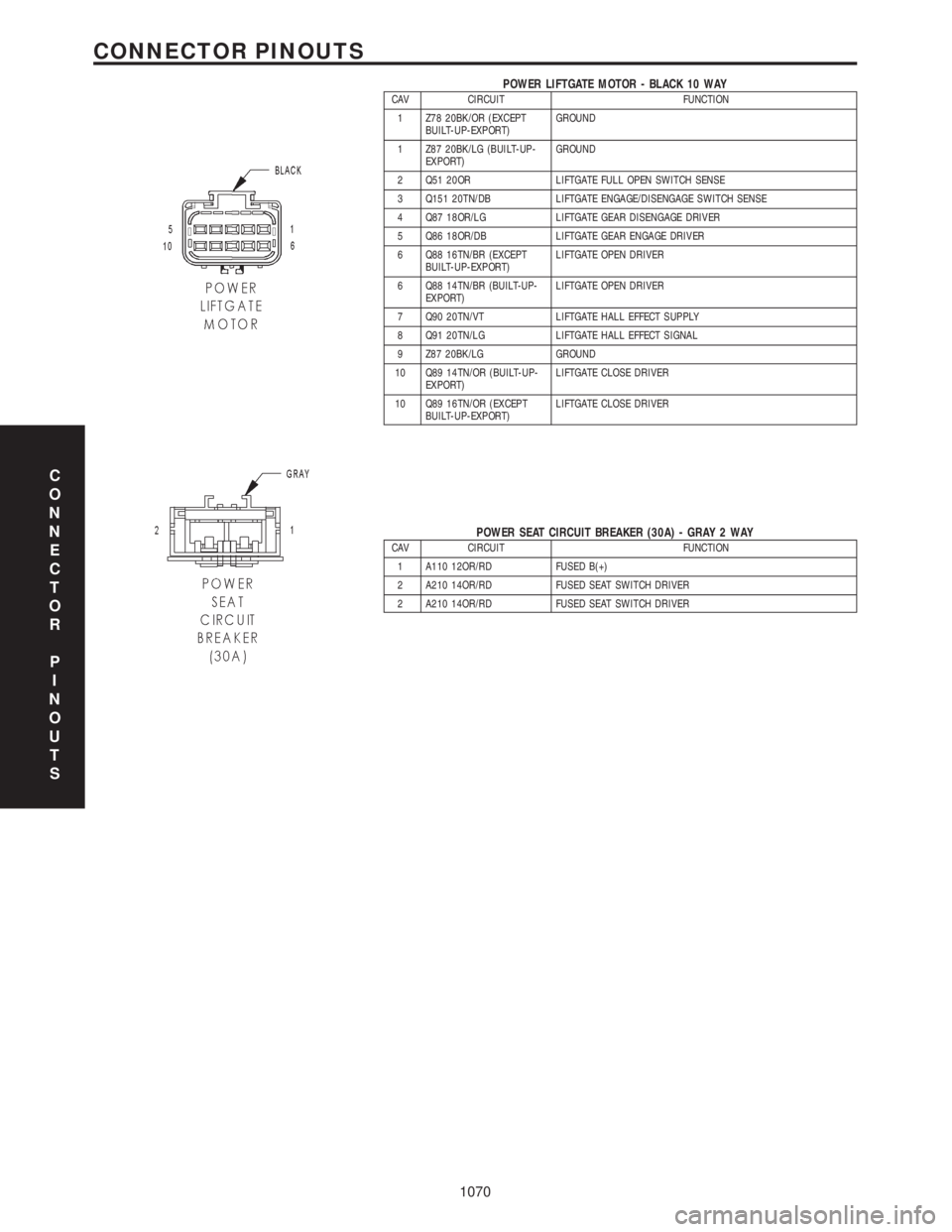

CHRYSLER VOYAGER 2001 Service Manual POWER LIFTGATE MOTOR - BLACK 10 WAYCAV CIRCUIT FUNCTION 1 Z78 20BK/OR (EXCEPT BUILT-UP-EXPORT)GROUND 1 Z87 20BK/LG (BUILT-UP- EXPORT)GROUND 2 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE 3 Q151 20TN/DB LI

Page 1100 of 4284

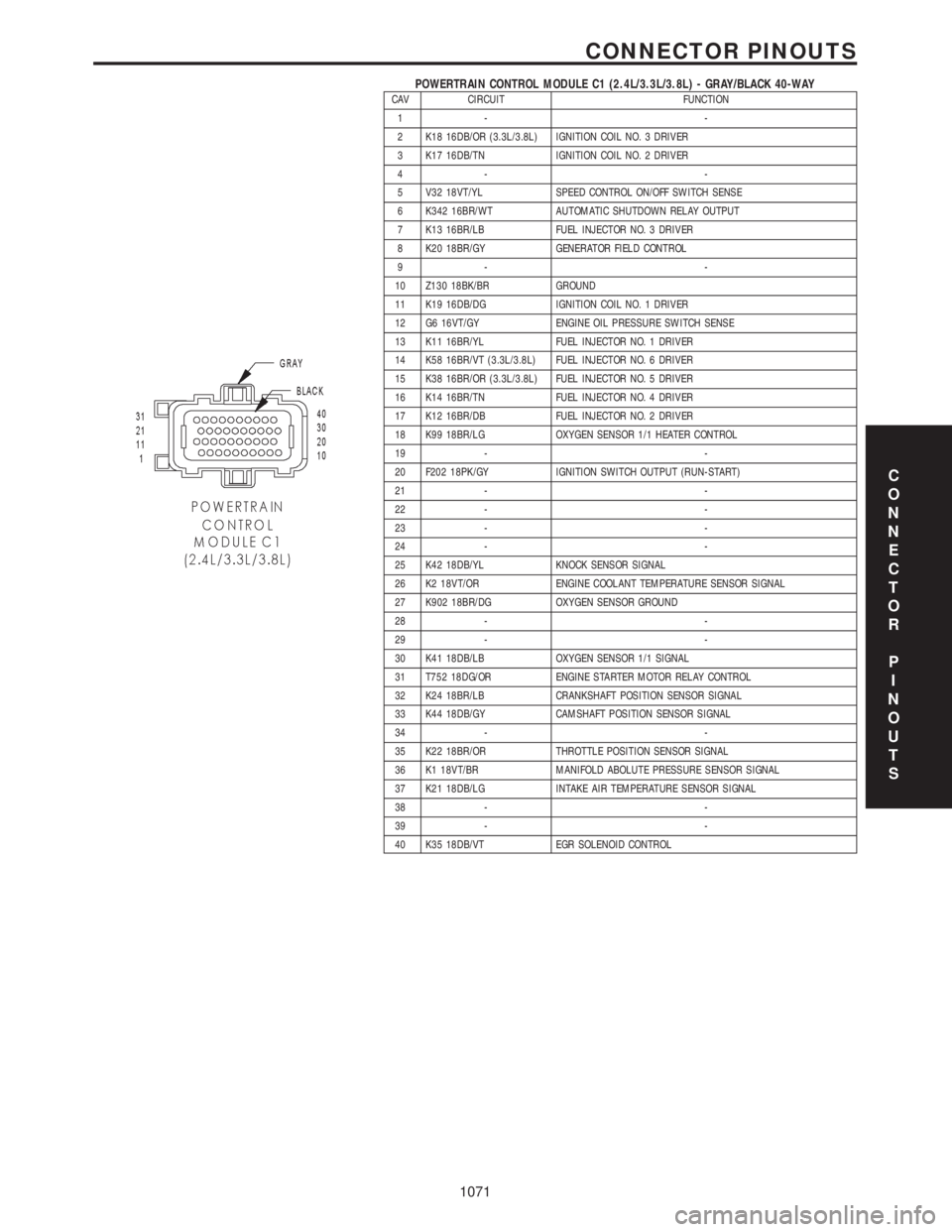

CHRYSLER VOYAGER 2001 Service Manual POWERTRAIN CONTROL MODULE C1 (2.4L/3.3L/3.8L) - GRAY/BLACK 40-WAYCAV CIRCUIT FUNCTION 1- - 2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER 3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER 4- - 5 V32 18VT

Page 1101 of 4284

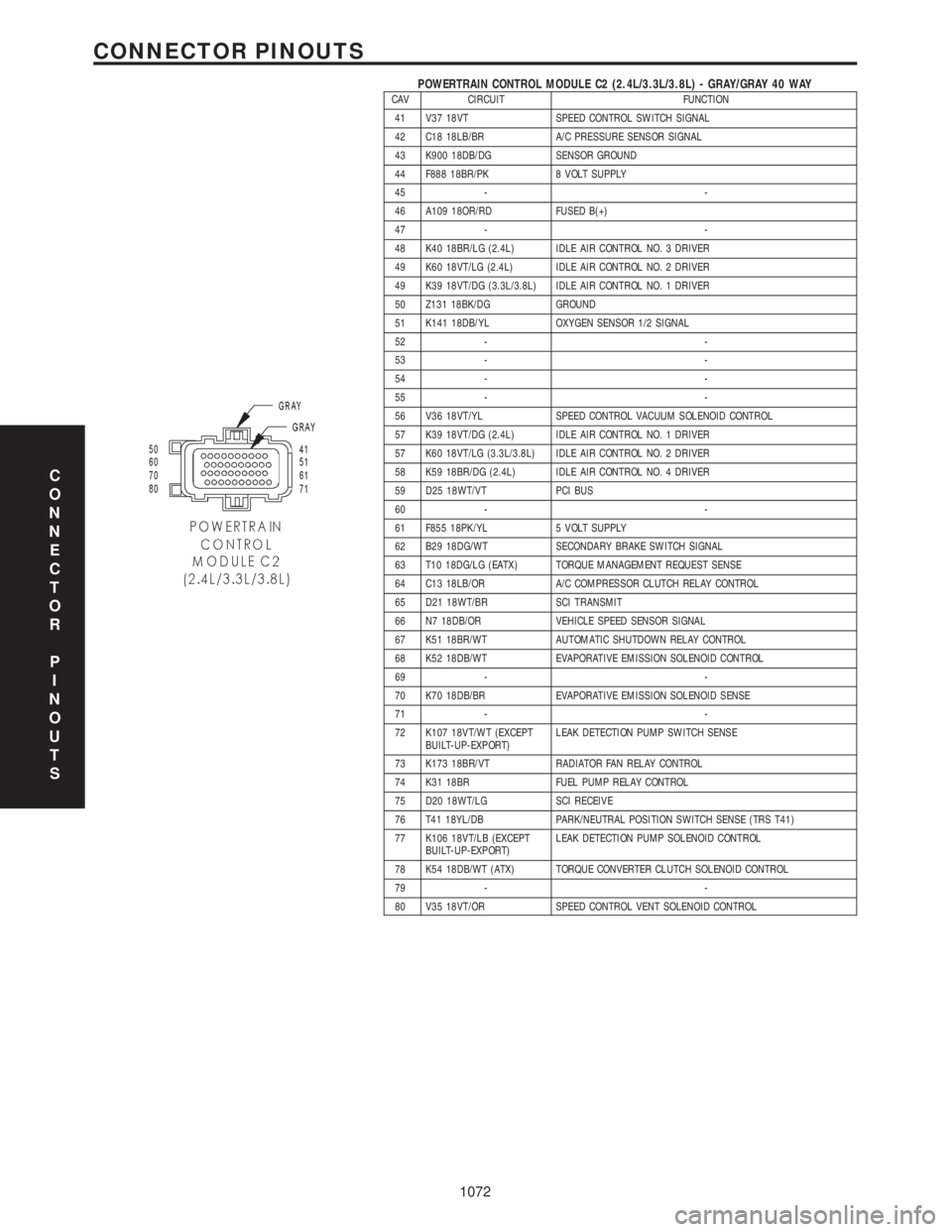

CHRYSLER VOYAGER 2001 Service Manual POWERTRAIN CONTROL MODULE C2 (2.4L/3.3L/3.8L) - GRAY/GRAY 40 WAYCAV CIRCUIT FUNCTION 41 V37 18VT SPEED CONTROL SWITCH SIGNAL 42 C18 18LB/BR A/C PRESSURE SENSOR SIGNAL 43 K900 18DB/DG SENSOR GROUND 44

Page 1102 of 4284

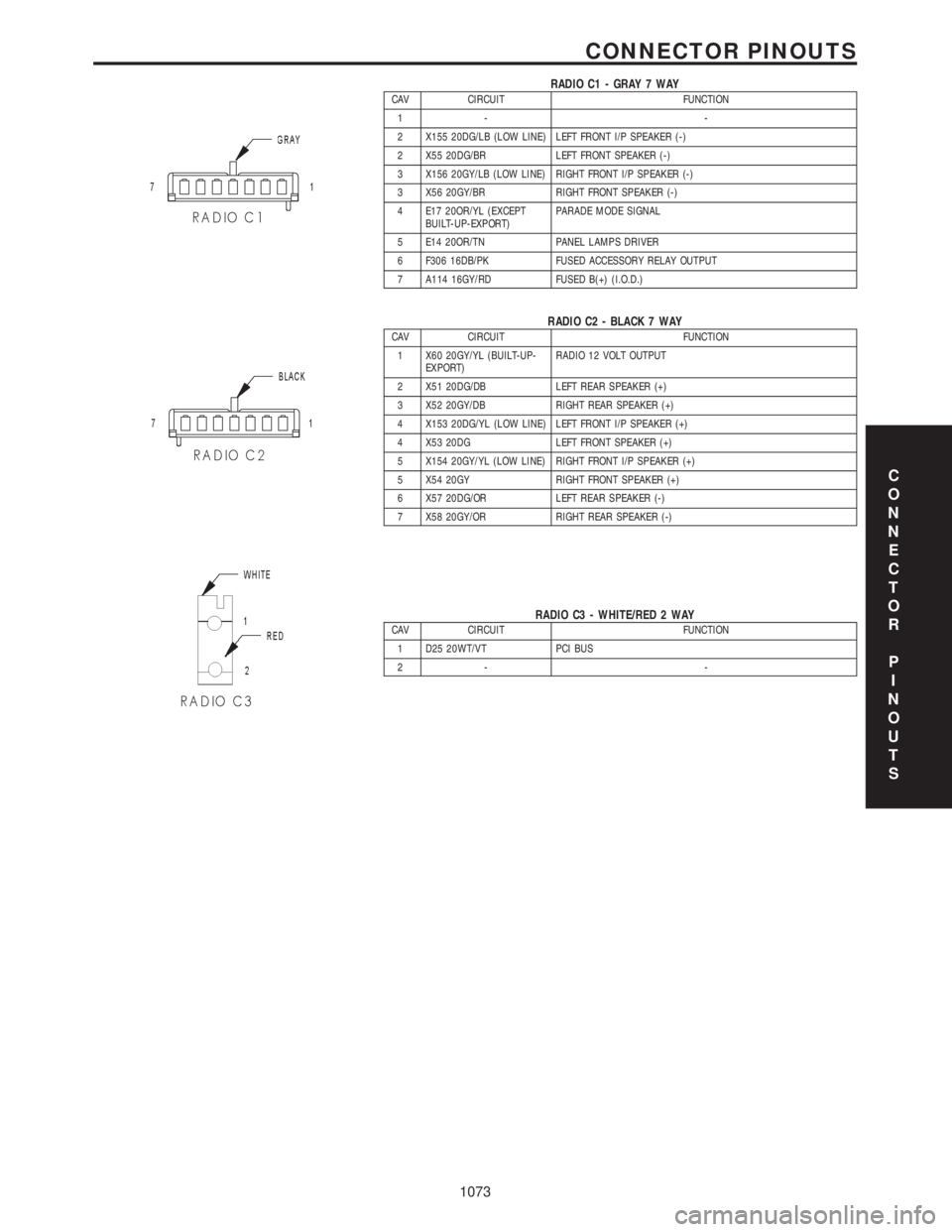

CHRYSLER VOYAGER 2001 Service Manual RADIO C1 - GRAY 7 WAYCAV CIRCUIT FUNCTION 1- - 2 X155 20DG/LB (LOW LINE) LEFT FRONT I/P SPEAKER (-) 2 X55 20DG/BR LEFT FRONT SPEAKER (-) 3 X156 20GY/LB (LOW LINE) RIGHT FRONT I/P SPEAKER (-) 3 X56 20G

Page 1103 of 4284

CHRYSLER VOYAGER 2001 Service Manual RADIO C4-8WAYCAV CIRCUIT FUNCTION 1 E14 18OR/TN (EXCEPT BUILT-UP-EXPORT)PANEL LAMPS DRIVER 1 E14 24OR/TN (BUILT-UP- EXPORT)PANEL LAMPS DRIVER 2 X40 20GY/WT (EXCEPT BUILT-UP-EXPORT)AUDIO OUT RIGHT 2 X4

Page 1104 of 4284

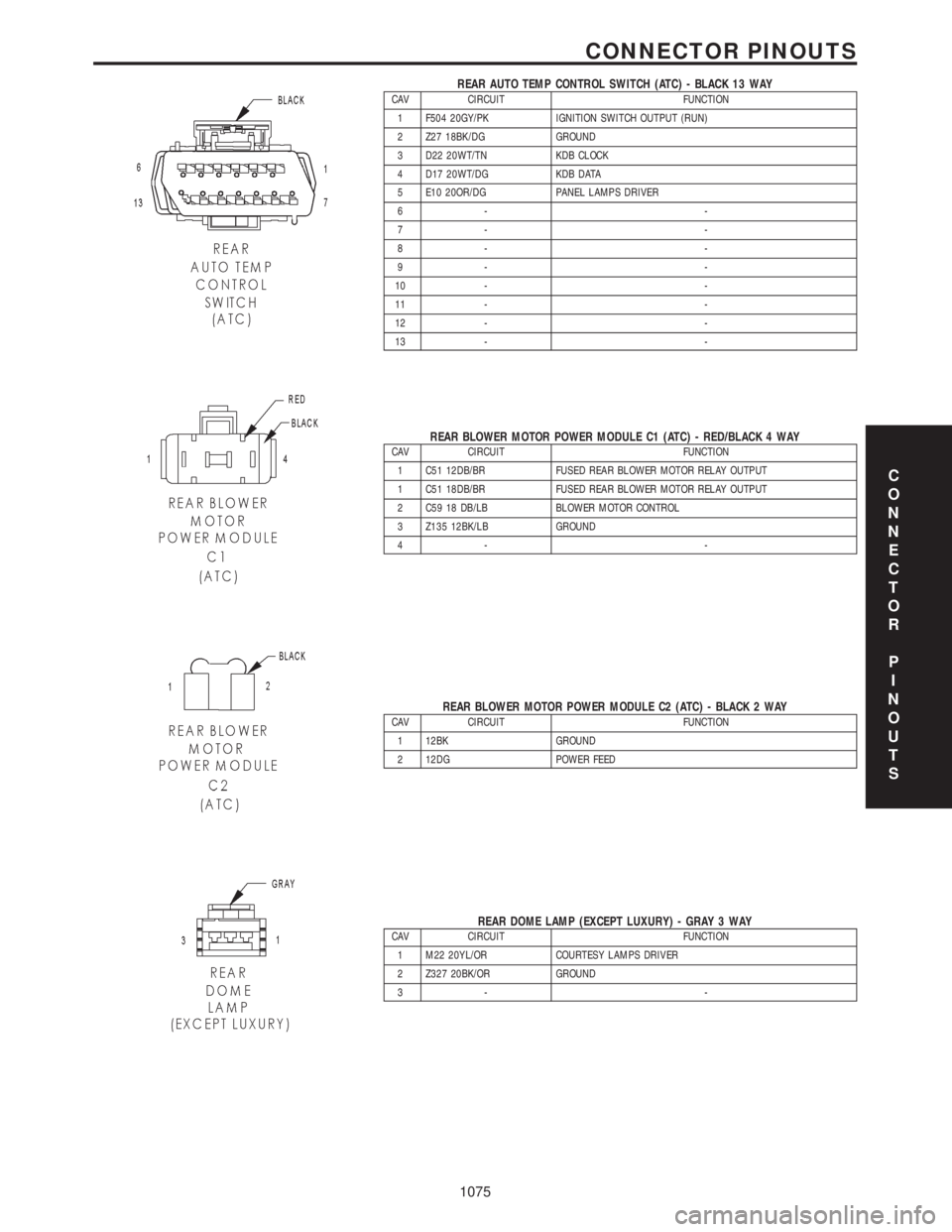

CHRYSLER VOYAGER 2001 Service Manual REAR AUTO TEMP CONTROL SWITCH (ATC) - BLACK 13 WAYCAV CIRCUIT FUNCTION 1 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN) 2 Z27 18BK/DG GROUND 3 D22 20WT/TN KDB CLOCK 4 D17 20WT/DG KDB DATA 5 E10 20OR/DG PAN
