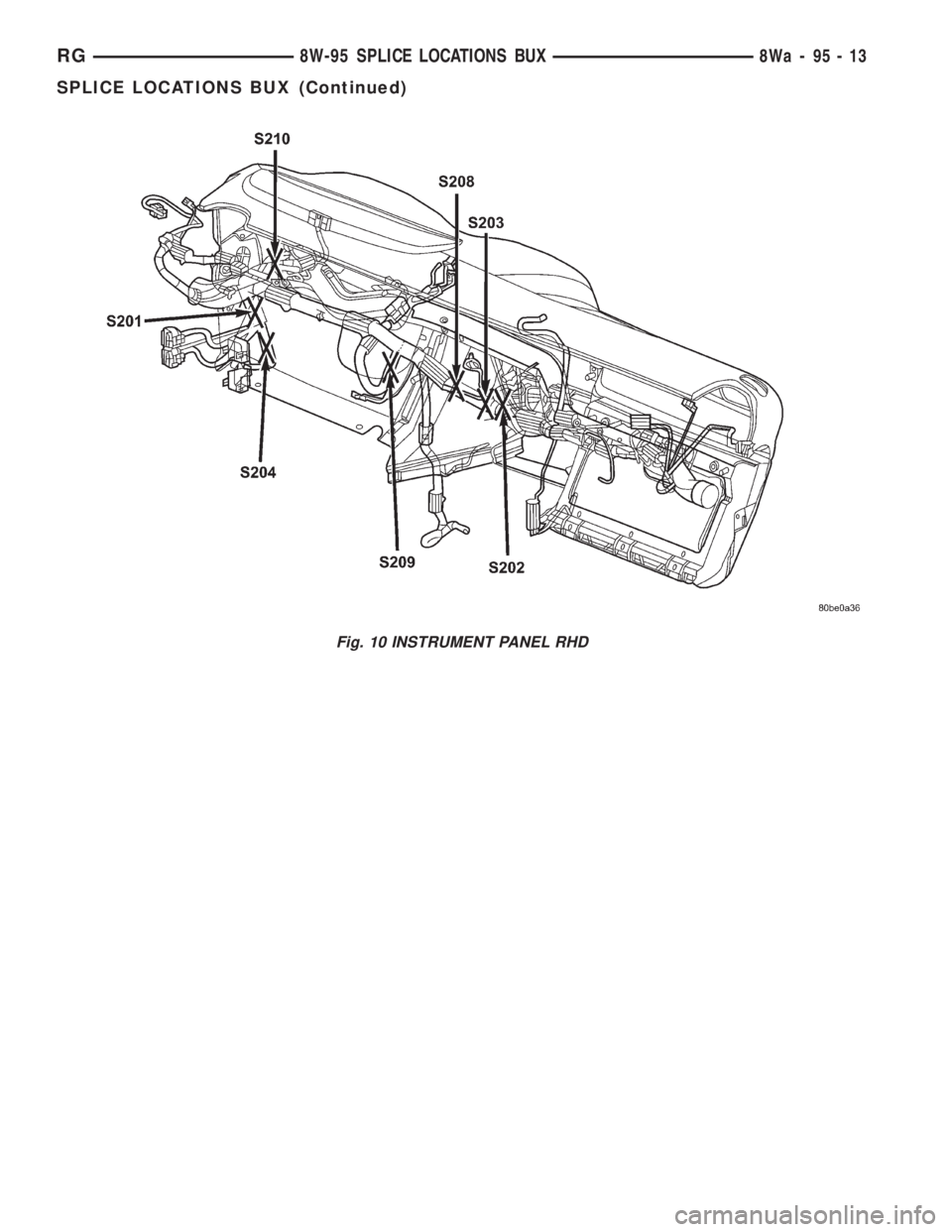

CHRYSLER VOYAGER 2001 Service Manual Fig. 10 INSTRUMENT PANEL RHD RG8W-95 SPLICE LOCATIONS BUX8Wa-95-13 SPLICE LOCATIONS BUX (Continued)

Page 2618 of 4284

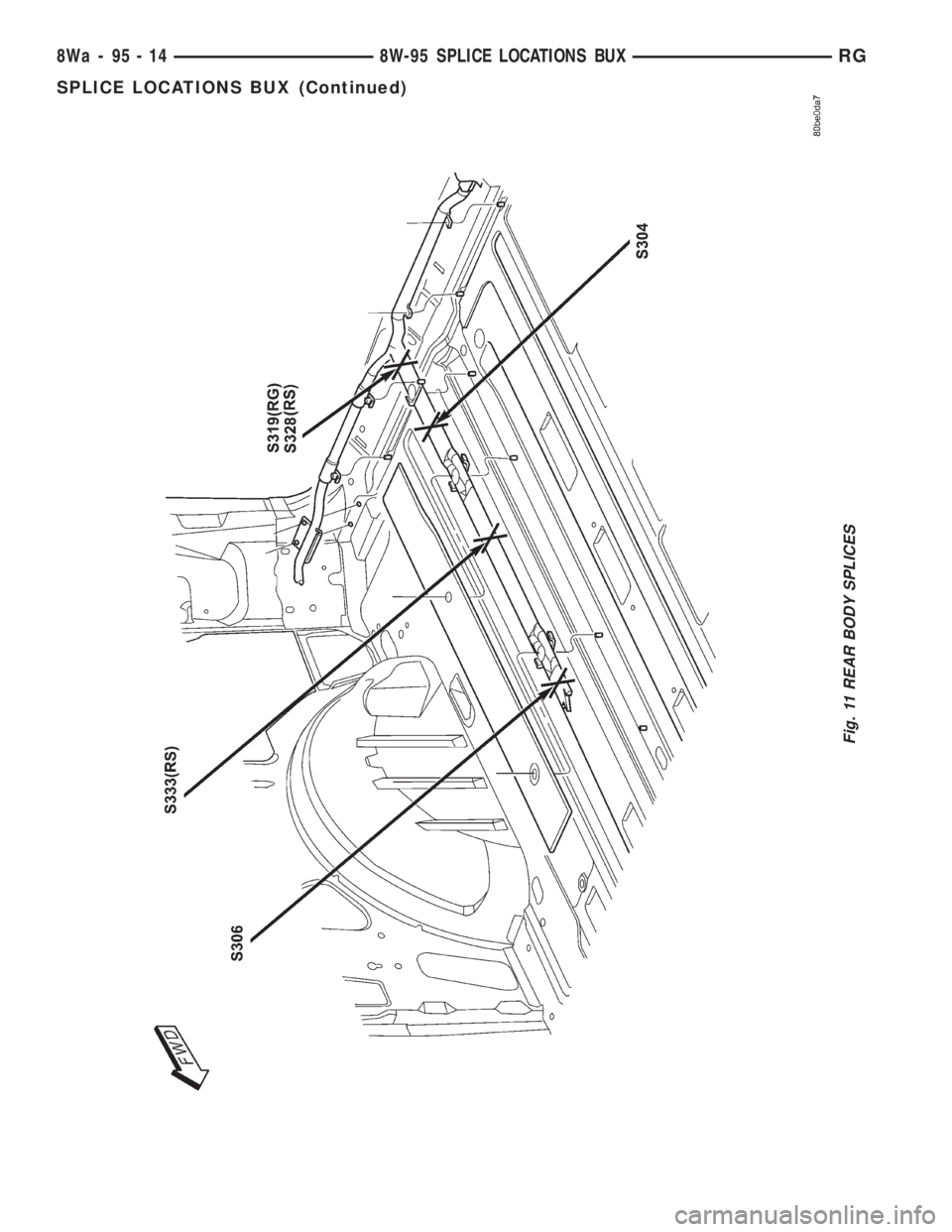

CHRYSLER VOYAGER 2001 Service Manual Fig. 11 REAR BODY SPLICES 8Wa - 95 - 14 8W-95 SPLICE LOCATIONS BUXRG SPLICE LOCATIONS BUX (Continued)

Page 2619 of 4284

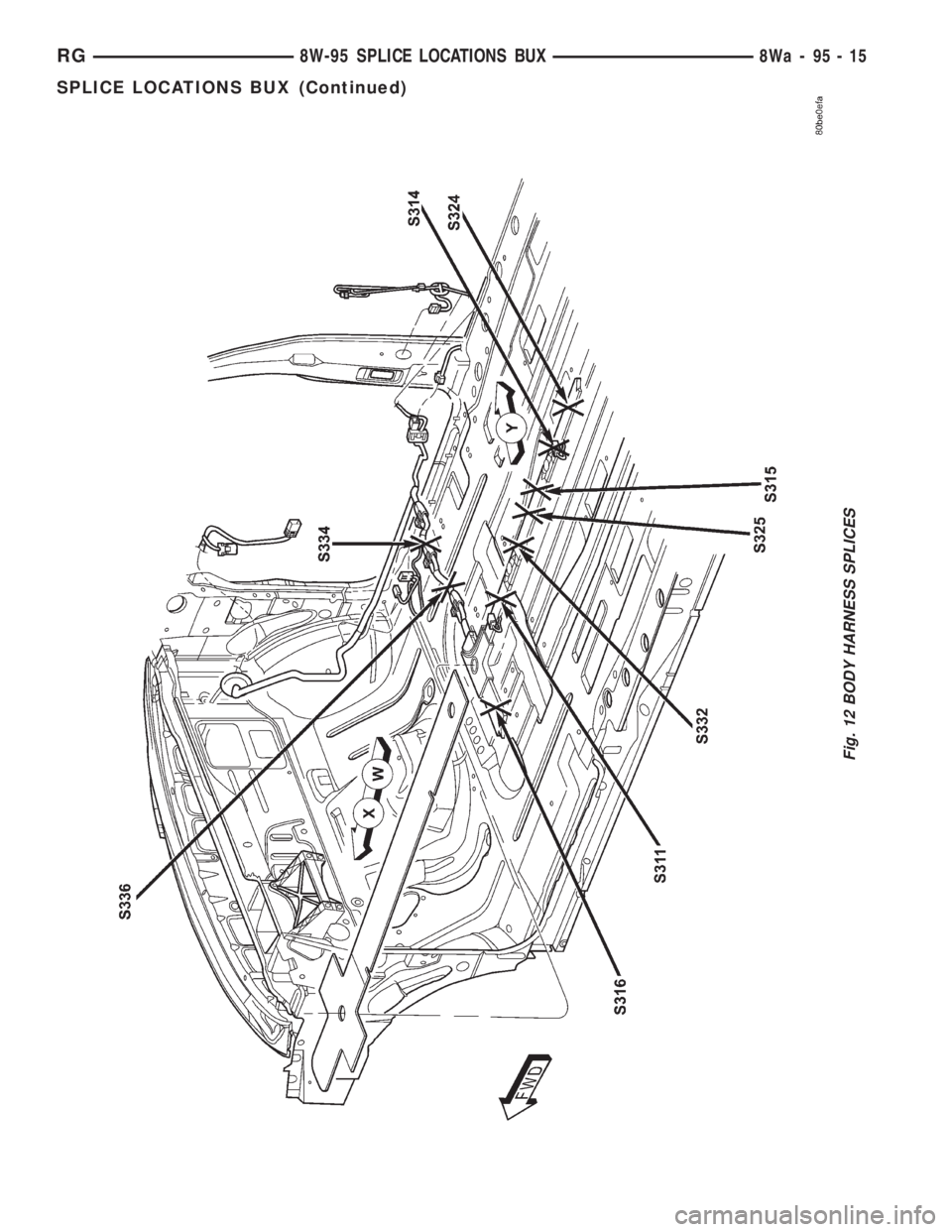

CHRYSLER VOYAGER 2001 Service Manual Fig. 12 BODY HARNESS SPLICES RG8W-95 SPLICE LOCATIONS BUX8Wa-95-15 SPLICE LOCATIONS BUX (Continued)

Page 2620 of 4284

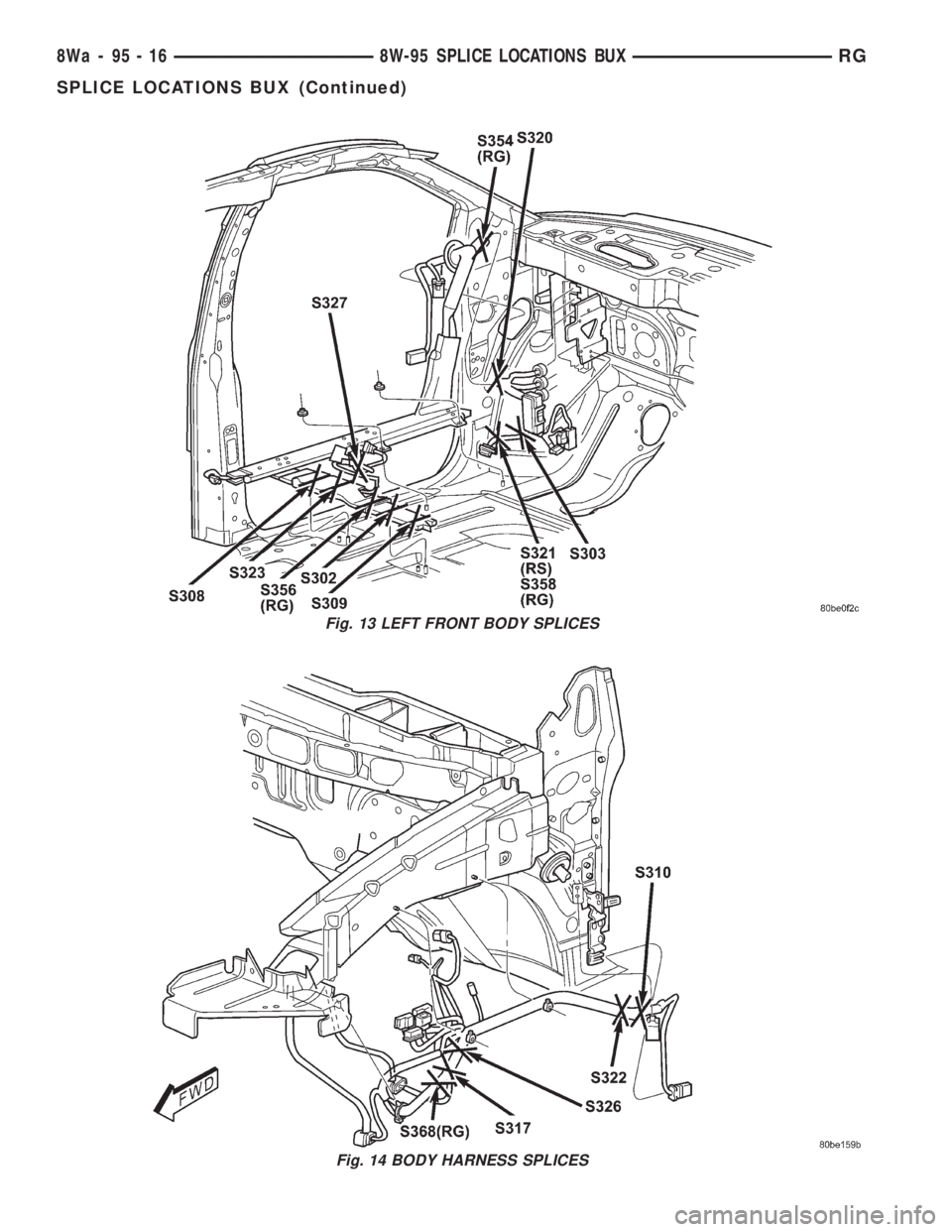

CHRYSLER VOYAGER 2001 Service Manual Fig. 13 LEFT FRONT BODY SPLICES Fig. 14 BODY HARNESS SPLICES 8Wa - 95 - 16 8W-95 SPLICE LOCATIONS BUXRG SPLICE LOCATIONS BUX (Continued)

Page 2621 of 4284

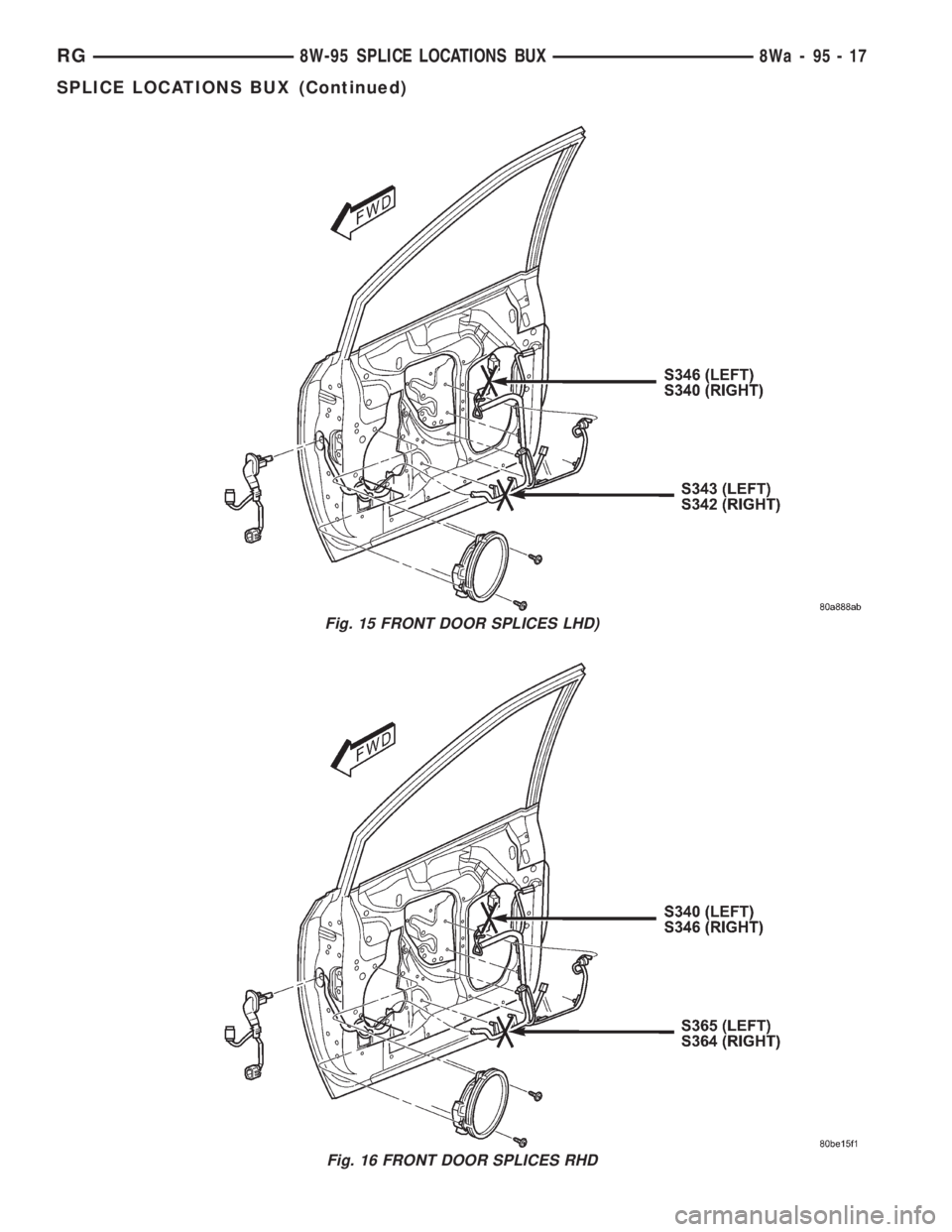

CHRYSLER VOYAGER 2001 Service Manual Fig. 15 FRONT DOOR SPLICES LHD) Fig. 16 FRONT DOOR SPLICES RHD RG8W-95 SPLICE LOCATIONS BUX8Wa-95-17 SPLICE LOCATIONS BUX (Continued)

Page 2622 of 4284

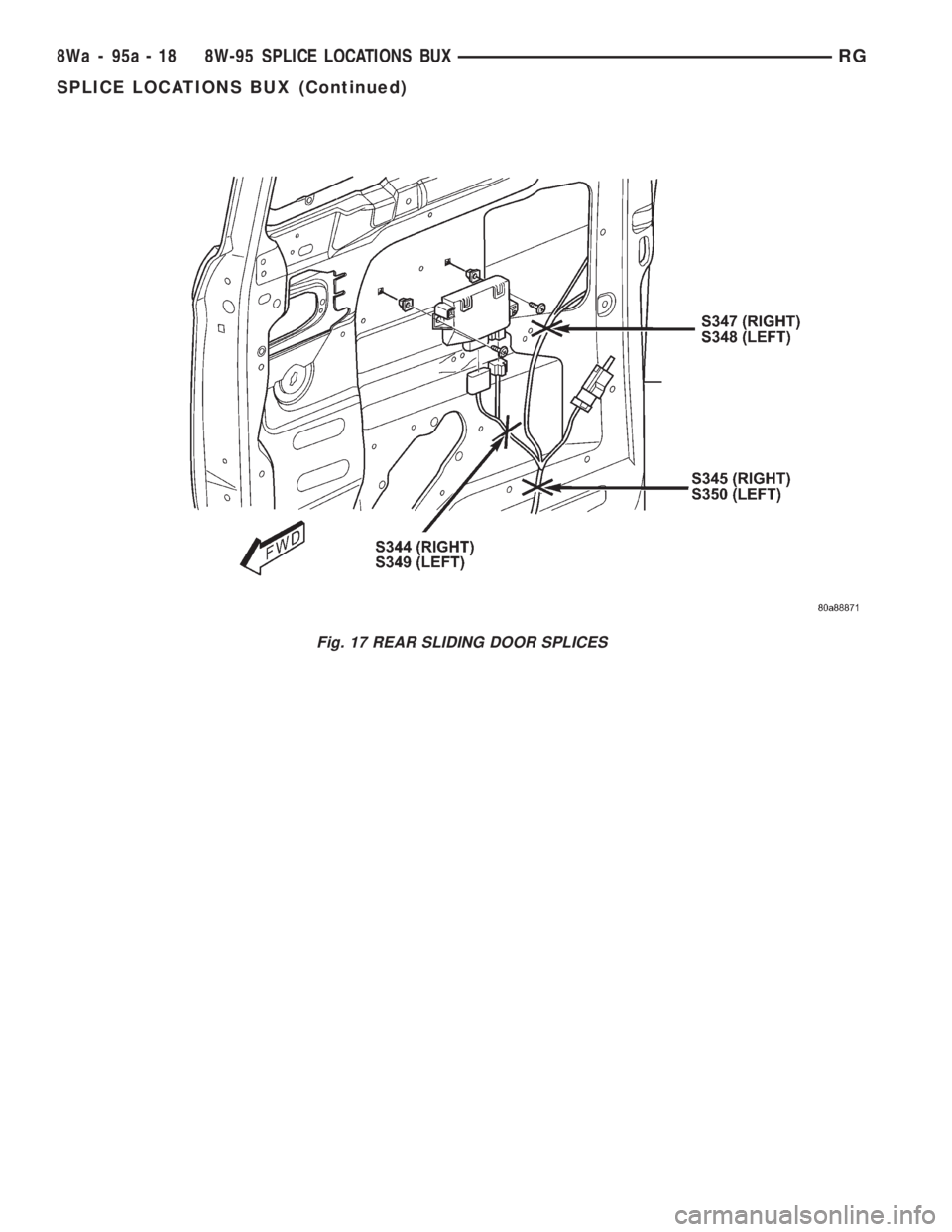

CHRYSLER VOYAGER 2001 Service Manual Fig. 17 REAR SLIDING DOOR SPLICES 8Wa - 95a - 18 8W-95 SPLICE LOCATIONS BUXRG SPLICE LOCATIONS BUX (Continued)

Page 2623 of 4284

CHRYSLER VOYAGER 2001 Service Manual Fig. 18 LEFT REAR BODY SPLICES RG8W-95 SPLICE LOCATIONS BUX8Wa-95-19 SPLICE LOCATIONS BUX (Continued)

Page 2624 of 4284

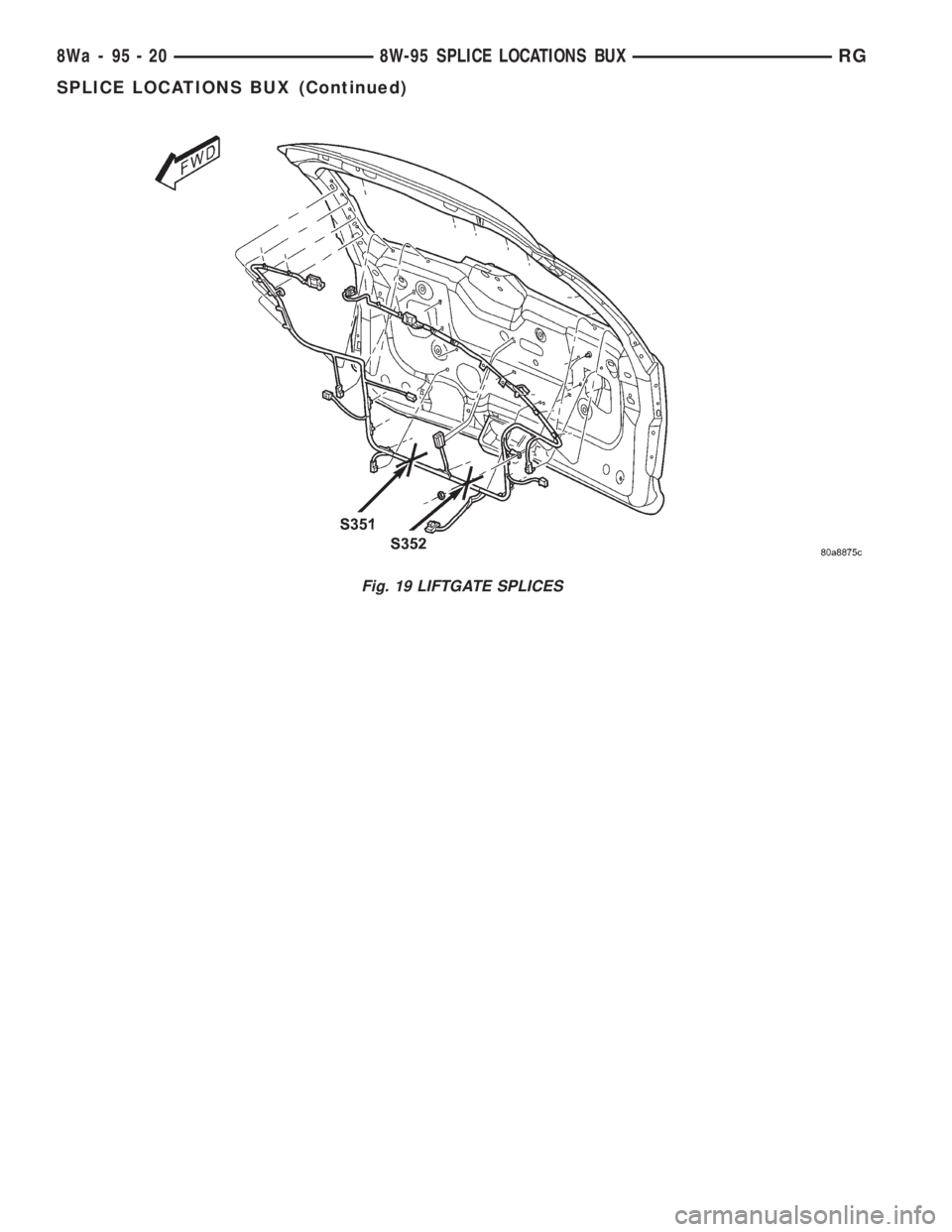

CHRYSLER VOYAGER 2001 Service Manual Fig. 19 LIFTGATE SPLICES 8Wa - 95 - 20 8W-95 SPLICE LOCATIONS BUXRG SPLICE LOCATIONS BUX (Continued)
