Symptom:
RIGHT TURN SIGNAL INDICATOR OPEN (HIGHLINE)
When Monitored and Set Condition:
RIGHT TURN SIGNAL INDICATOR OPEN (HIGHLINE)
When Monitored: With the ignition on.
Set Condition: The BCM detects an open in the Right Turn Indicator Driver.
POSSIBLE CAUSES
INTERMITTENT CONDITION
FUSED B+ CIRCUIT
MESSAGE CENTER OPERATION
RIGHT TURN INDICATOR DRIVER SHORTED TO GROUND
RIGHT TURN INDICATOR DRIVER OPEN
BCM
TEST ACTION APPLICABILITY
1 Turn the ignition on.
Monitor the Right Turn Signal Indicator.
Operate the Right Turn Signal.
Is the Indicator lamp operating correctly?All
Ye s®Go To 2
No®Go To 3
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
604
INSTRUMENT CLUSTER
Page 634 of 4284

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Message Center harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, probe the Fused B+ circuit in the
Message Center harness connector.
Does the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the Fused B+ circuit.
Perform BODY VERIFICATION TEST - VER 1.
4 Turn the ignition off.
Disconnect the Message Center harness connector.
Turn the ignition on.
Using a 12-volt test light connected to 12-volts, probe the Right Indicator Driver
circuit in the Message Center harness connector.
Operate the Multi-Function Switch and turn the Right Indication on.
Does the test light flash on and off?All
Ye s®Remove and inspect the Bulb. If OK, replace the Message Center.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn the ignition off.
Disconnect the Message Center harness connector.
Disconnect the BCM C4 harness connector.
Measure the resistance of the Right Turn Indicator Driver circuit at the Message
Center harness connector to ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Right Turn Indicator for a short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
6 Turn the ignition off.
Disconnect the Message Center harness connector.
Disconnect the BCM C4 harness connector.
Measure the resistance of the Right Turn Indicator Driver circuit between the BCM
harness connector and the Message Center harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 7
No®Repair the Right Turn Indicator for an open.
Perform BODY VERIFICATION TEST - VER 1.
7 If there are no possible causes remaining, view repair? All
Repair
Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
605
INSTRUMENT CLUSTER
RIGHT TURN SIGNAL INDICATOR OPEN (HIGHLINE) ÐContinued
Page 635 of 4284

Symptom:
RIGHT TURN SIGNAL INDICATOR OPEN (LOWLINE)
When Monitored and Set Condition:
RIGHT TURN SIGNAL INDICATOR OPEN (LOWLINE)
When Monitored: With the ignition on.
Set Condition: The BCM detects an open in the Right Turn Indicator Driver.
POSSIBLE CAUSES
RIGHT TURN INDICATOR DRIVER SHORTED TO GROUND
INTERMITTENT CONDITION
FUSED B+ CIRCUIT
INSTRUMENT CLUSTER OPERATION
RIGHT TURN INDICATOR DRIVER OPEN
BCM
TEST ACTION APPLICABILITY
1 Turn the ignition on.
Monitor the Right Turn Signal Indicator.
Operate the Right Turn Signal.
Is the Indicator lamp operating correctly?All
Ye s®Go To 2
No®Go To 3
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
606
INSTRUMENT CLUSTER
Page 636 of 4284

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Instrument Cluster harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, probe the Fused B+ circuit in the
Instrument Cluster harness connector.
Does the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the Fused B+ circuit.
Perform BODY VERIFICATION TEST - VER 1.
4 Turn the ignition off.
Disconnect the Instrument Cluster harness connector.
Turn the ignition on.
Using a 12-volt test light connected to 12-volts, probe the Right Indicator Driver
circuit in the Instrument Cluster harness connector.
Operate the Multi-Function Switch and turn the Right Indication on.
Does the test light flash on and off?All
Ye s®Remove and inspect the Bulb. If OK, replace the Instrument
Cluster printed circuit board.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn the ignition off.
Disconnect the Instrument Cluster harness connector.
Disconnect the BCM C4 harness connector.
Measure the resistance of the Right Turn Indicator Driver circuit between the BCM
harness connector and the Instrument Cluster harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 6
No®Repair the Right Turn Indicator for an open.
Perform BODY VERIFICATION TEST - VER 1.
6 Turn the ignition off.
Disconnect the Instrument Cluster harness connector.
Disconnect the BCM C4 harness connector.
Measure the resistance of the Right Turn Indicator Driver circuit at the Instrument
Cluster harness connector to ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Right Turn Indicator for a short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 7
7 If there are no possible causes remaining, view repair? All
Repair
Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
607
INSTRUMENT CLUSTER
RIGHT TURN SIGNAL INDICATOR OPEN (LOWLINE) ÐContinued
Page 637 of 4284

Symptom:
RIGHT TURN SIGNAL INDICATOR SHORT (HIGHLINE)
When Monitored and Set Condition:
RIGHT TURN SIGNAL INDICATOR SHORT (HIGHLINE)
When Monitored: With the ignition on.
Set Condition: The BCM detects a short to voltage in the Right Turn Indicator Driver.
POSSIBLE CAUSES
INTERMITTENT CONDITION
FUSED B+ CIRCUIT
MESSAGE CENTER OPERATION
RIGHT TURN INDICATOR DRIVER SHORTED TO VOLTAGE
BCM
TEST ACTION APPLICABILITY
1 Turn the ignition on.
Monitor the Right Turn Signal Indicator.
Operate the Right Turn Signal.
Is the Indicator lamp operating correctly?All
Ye s®Go To 2
No®Go To 3
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
608
INSTRUMENT CLUSTER
Page 638 of 4284

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Message Center harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, probe the Fused B+ circuit in the
Message Center harness connector.
Does the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the Fused B+ circuit.
Perform BODY VERIFICATION TEST - VER 1.
4 Turn the ignition off.
Disconnect the Message Center harness connector.
Turn the ignition on.
Using a 12-volt test light connected to 12-volts, probe the Right Indicator Driver
circuit in the Message Center harness connector.
Operate the Multi-Function Switch and turn the Right Indication on.
Does the test light flash on and off?All
Ye s®Remove and inspect the bulb. If OK, replace the Message Center.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn the ignition off.
Disconnect the Message Center harness connector.
Disconnect the BCM C4 harness connector.
Turn the ignition on.
Measure the voltage of the Right Turn Indicator Driver circuit at the Message Center
harness connector.
Is the voltage above 1.0 volts?All
Ye s®Repair the Right Turn Indicator for a short to voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
6 If there are no possible causes remaining, view repair? All
Repair
Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
609
INSTRUMENT CLUSTER
RIGHT TURN SIGNAL INDICATOR SHORT (HIGHLINE) ÐContinued
Page 639 of 4284

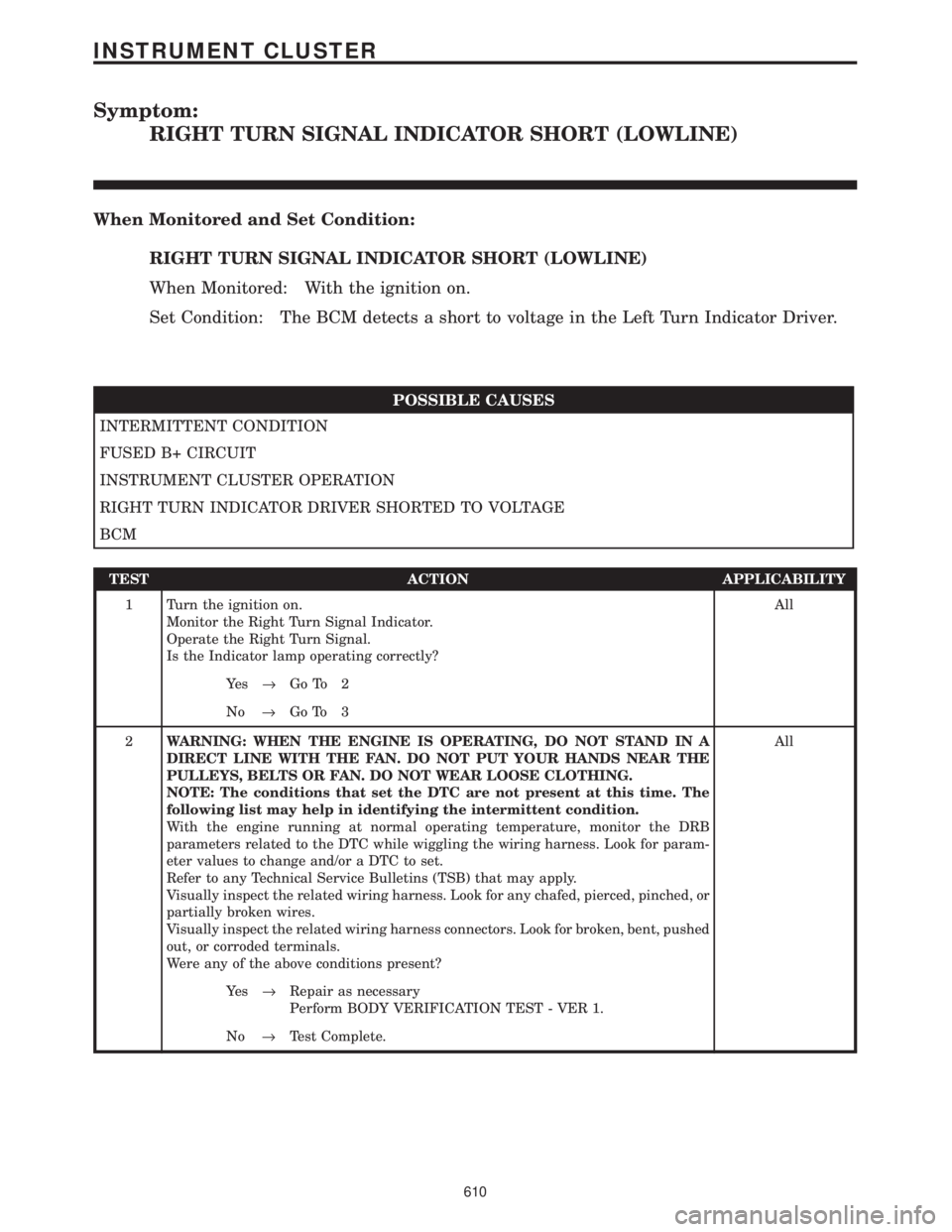

Symptom:
RIGHT TURN SIGNAL INDICATOR SHORT (LOWLINE)
When Monitored and Set Condition:
RIGHT TURN SIGNAL INDICATOR SHORT (LOWLINE)
When Monitored: With the ignition on.
Set Condition: The BCM detects a short to voltage in the Left Turn Indicator Driver.
POSSIBLE CAUSES
INTERMITTENT CONDITION
FUSED B+ CIRCUIT
INSTRUMENT CLUSTER OPERATION
RIGHT TURN INDICATOR DRIVER SHORTED TO VOLTAGE
BCM
TEST ACTION APPLICABILITY
1 Turn the ignition on.
Monitor the Right Turn Signal Indicator.
Operate the Right Turn Signal.
Is the Indicator lamp operating correctly?All
Ye s®Go To 2
No®Go To 3
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
610
INSTRUMENT CLUSTER
Page 640 of 4284

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Instrument Cluster harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, probe the Fused B+ circuit in the
Instrument Cluster harness connector.
Does the test light illuminate brightly?All
Ye s®Go To 4
No®Repair the Fused B+ circuit.
Perform BODY VERIFICATION TEST - VER 1.
4 Turn the ignition off.
Disconnect the Instrument Cluster harness connector.
Turn the ignition on.
Using a 12-volt test light connected to 12-volts, probe the Right Indicator Driver
circuit in the Instrument Cluster harness connector.
Operate the Multi-Function Switch and turn the Right Indication on.
Does the test light flash on and off?All
Ye s®Remove and inspect the bulb. If OK, replace the Instrument
Cluster printed circuit board.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn the ignition off.
Disconnect the Instrument Cluster harness connector.
Disconnect the BCM C4 harness connector.
Turn the ignition on.
Measure the voltage of the Right Turn Indicator Driver circuit at the Instrument
Cluster harness connector.
Is the voltage above 1.0 volts?All
Ye s®Repair the Right Turn Indicator for a short to voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
6 If there are no possible causes remaining, view repair? All
Repair
Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
611
INSTRUMENT CLUSTER
RIGHT TURN SIGNAL INDICATOR SHORT (LOWLINE) ÐContinued
