Page 2481 of 4284

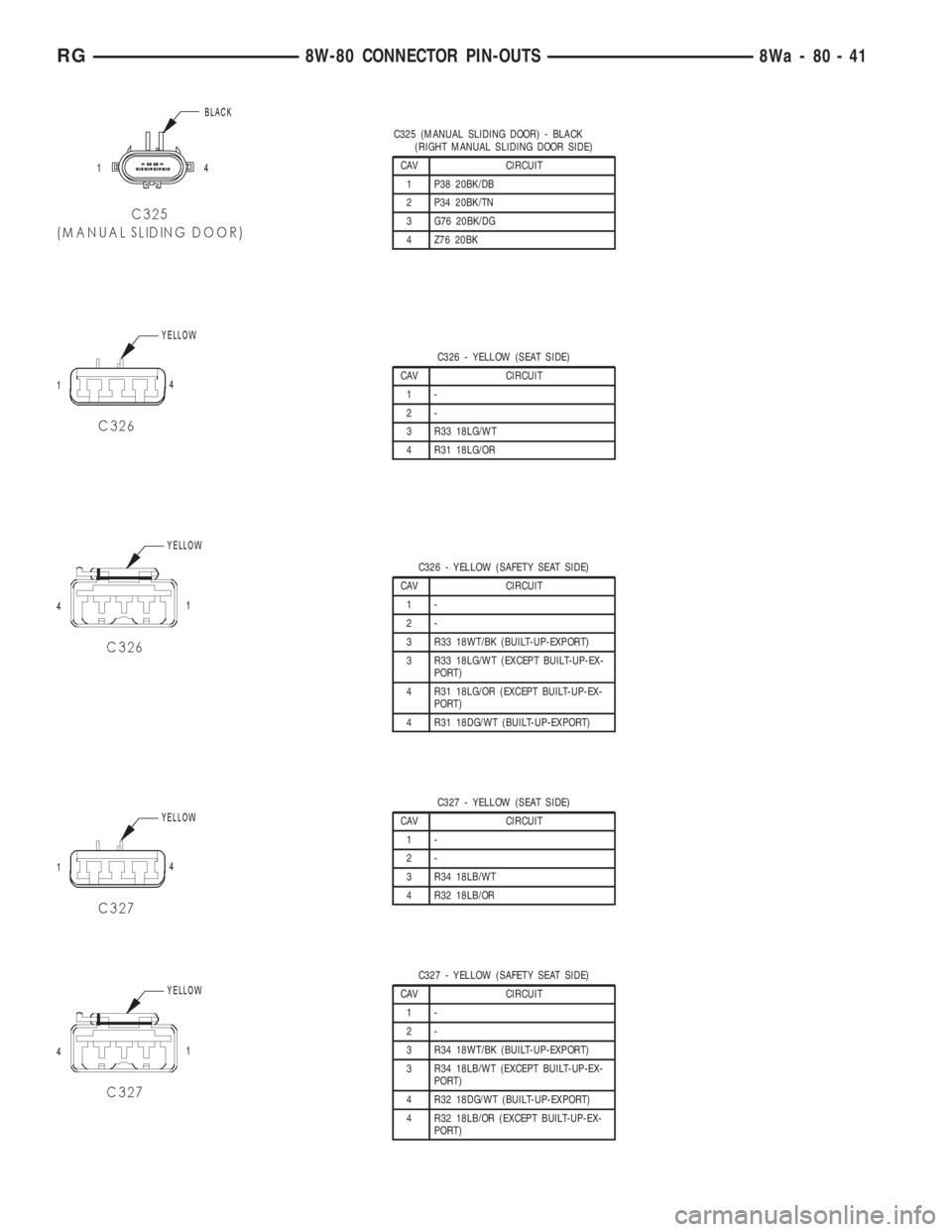

CHRYSLER VOYAGER 2001 Service Manual C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT MANUAL SLIDING DOOR SIDE) CAV CIRCUIT 1 P38 20BK/DB 2 P34 20BK/TN 3 G76 20BK/DG 4 Z76 20BK C326 - YELLOW (SEAT SIDE) CAV CIRCUIT 1- 2- 3 R33 18LG/WT 4 R31 18L

Page 2482 of 4284

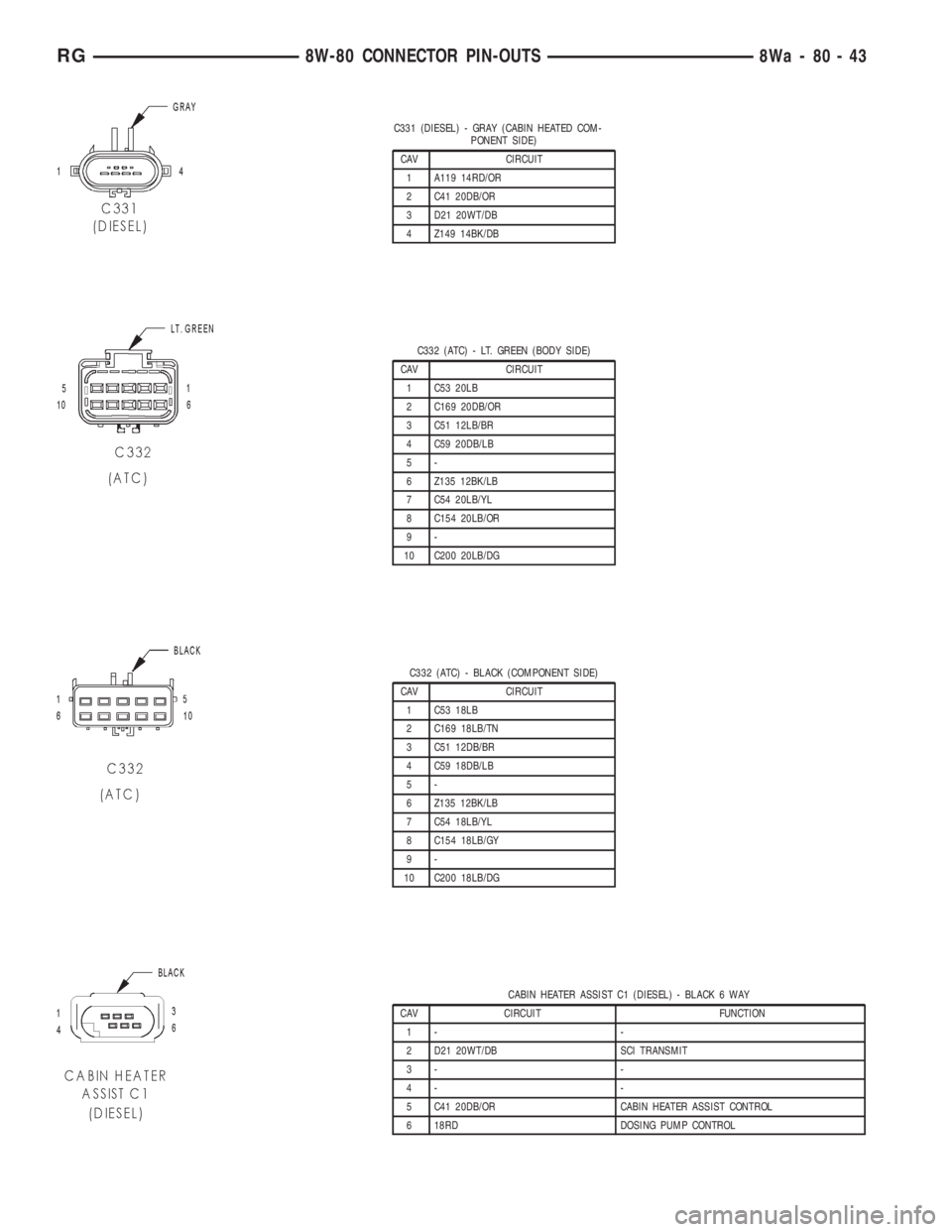

CHRYSLER VOYAGER 2001 Service Manual C329 (DIESEL) - BLACK (BODY SIDE) CAV CIRCUIT 1 N2 18DB/YL 2 Z201 18BK/OR 3 N1 16DB/OR 4 Z201 18BK/OR 5 F853 20LG/PK 6 K900 18DB/DG C329 (DIESEL) - BLACK (LIFT PUMP SIDE) CAV CIRCUIT 1 N2 18OR 2 Z201

Page 2483 of 4284

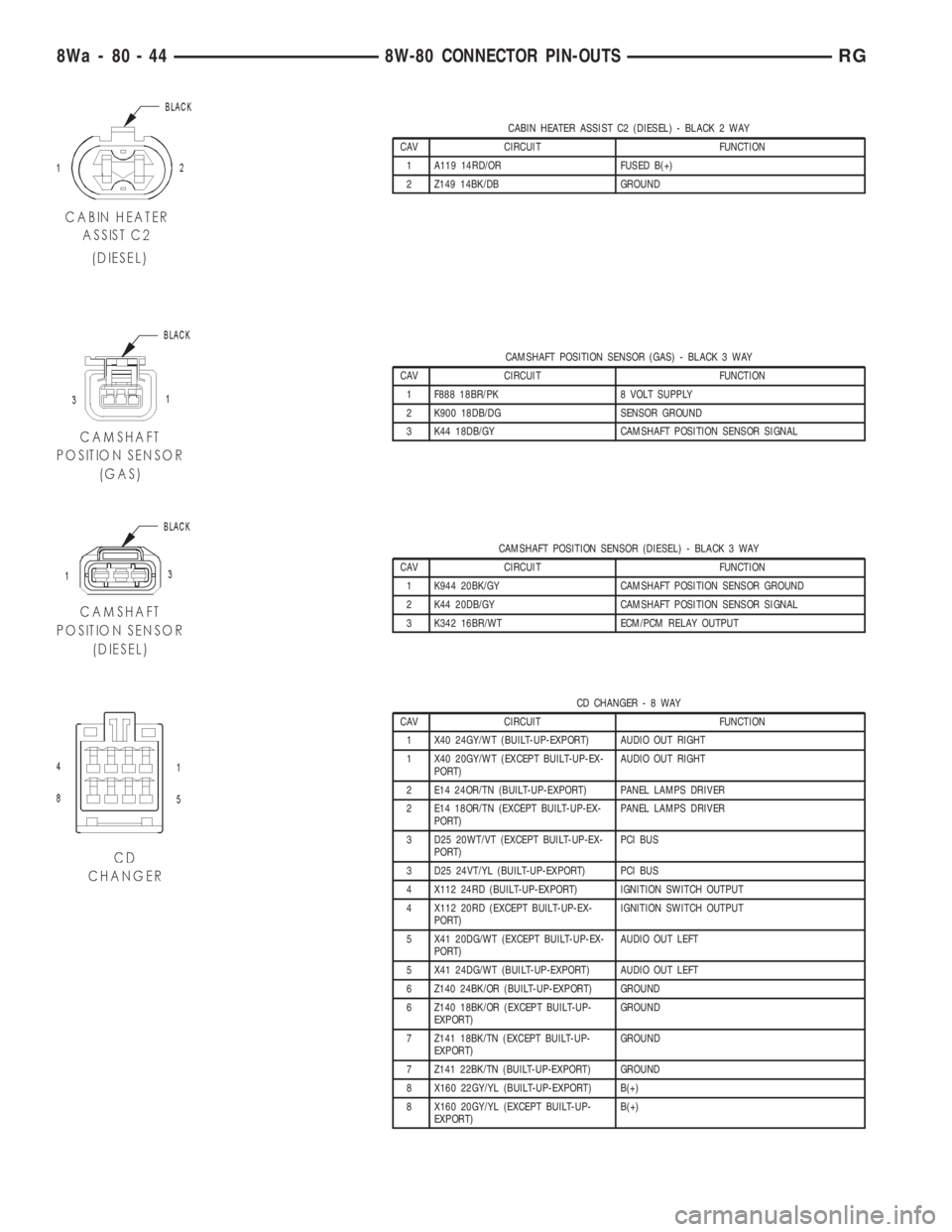

CHRYSLER VOYAGER 2001 Service Manual C331 (DIESEL) - GRAY (CABIN HEATED COM- PONENT SIDE) CAV CIRCUIT 1 A119 14RD/OR 2 C41 20DB/OR 3 D21 20WT/DB 4 Z149 14BK/DB C332 (ATC) - LT. GREEN (BODY SIDE) CAV CIRCUIT 1 C53 20LB 2 C169 20DB/OR 3 C5

Page 2484 of 4284

CHRYSLER VOYAGER 2001 Service Manual CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 A119 14RD/OR FUSED B(+) 2 Z149 14BK/DB GROUND CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 F888 18BR/PK 8 VO

Page 2485 of 4284

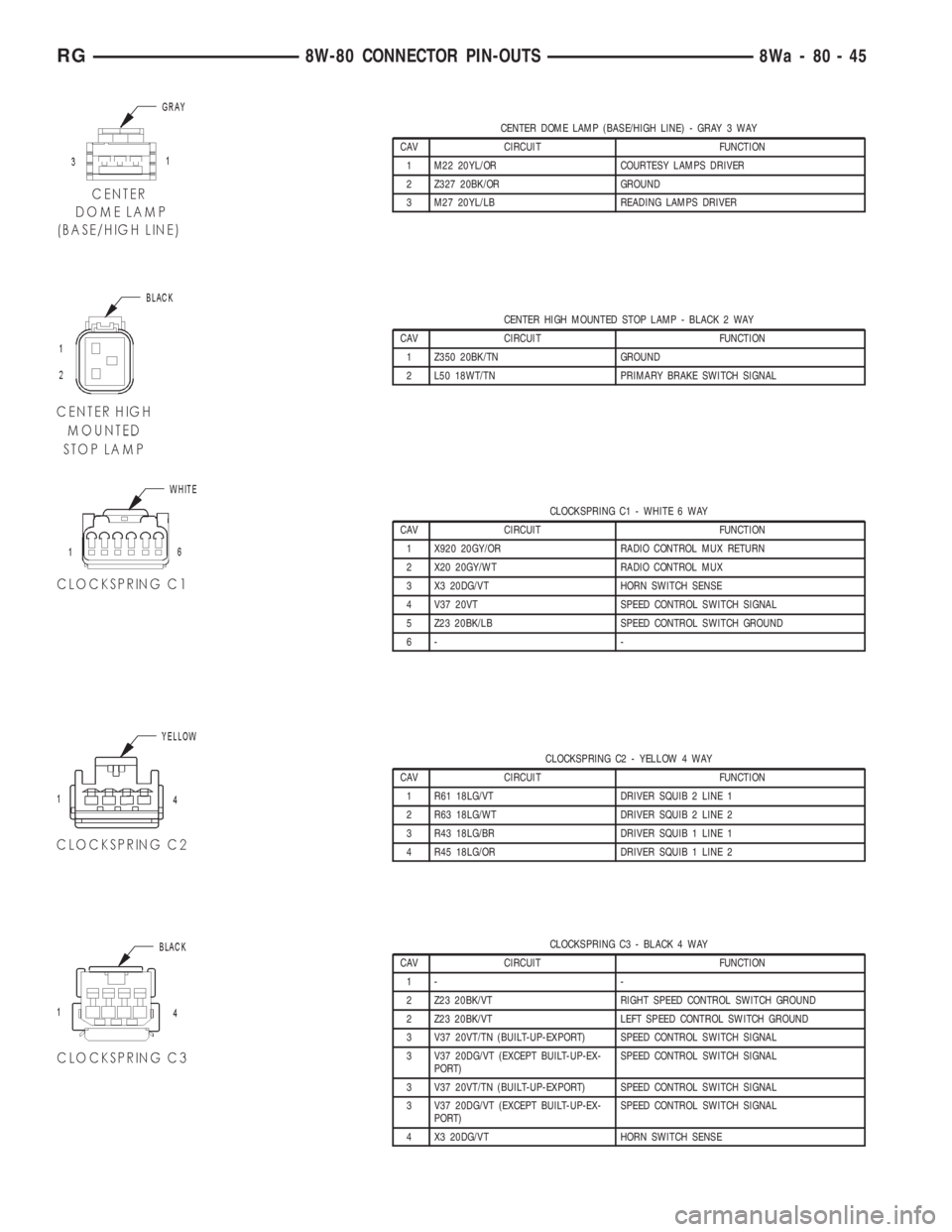

CHRYSLER VOYAGER 2001 Service Manual CENTER DOME LAMP (BASE/HIGH LINE) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 M22 20YL/OR COURTESY LAMPS DRIVER 2 Z327 20BK/OR GROUND 3 M27 20YL/LB READING LAMPS DRIVER CENTER HIGH MOUNTED STOP LAMP - BLACK 2

Page 2486 of 4284

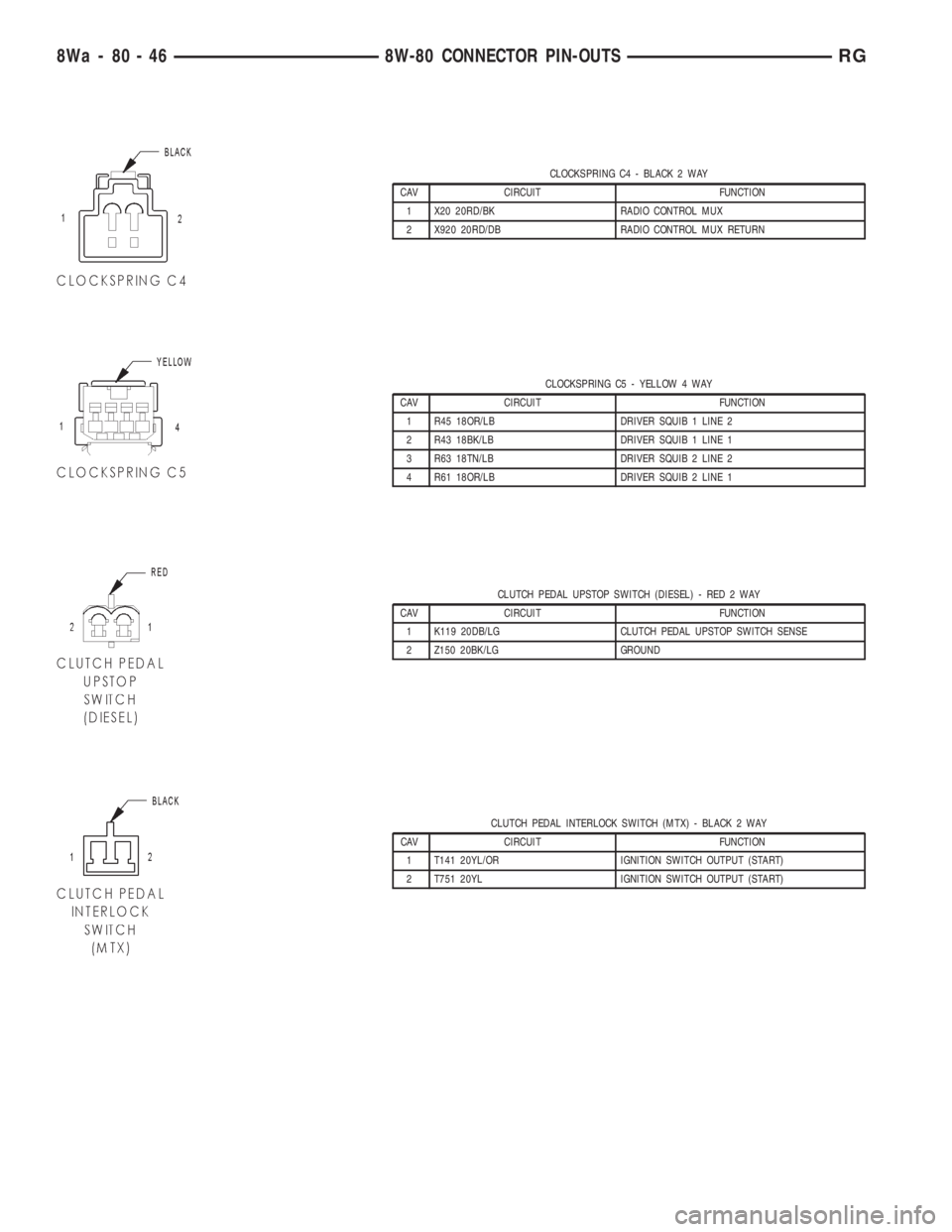

CHRYSLER VOYAGER 2001 Service Manual CLOCKSPRING C4 - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 X20 20RD/BK RADIO CONTROL MUX 2 X920 20RD/DB RADIO CONTROL MUX RETURN CLOCKSPRING C5 - YELLOW 4 WAY CAV CIRCUIT FUNCTION 1 R45 18OR/LB DRIVER SQUIB

Page 2487 of 4284

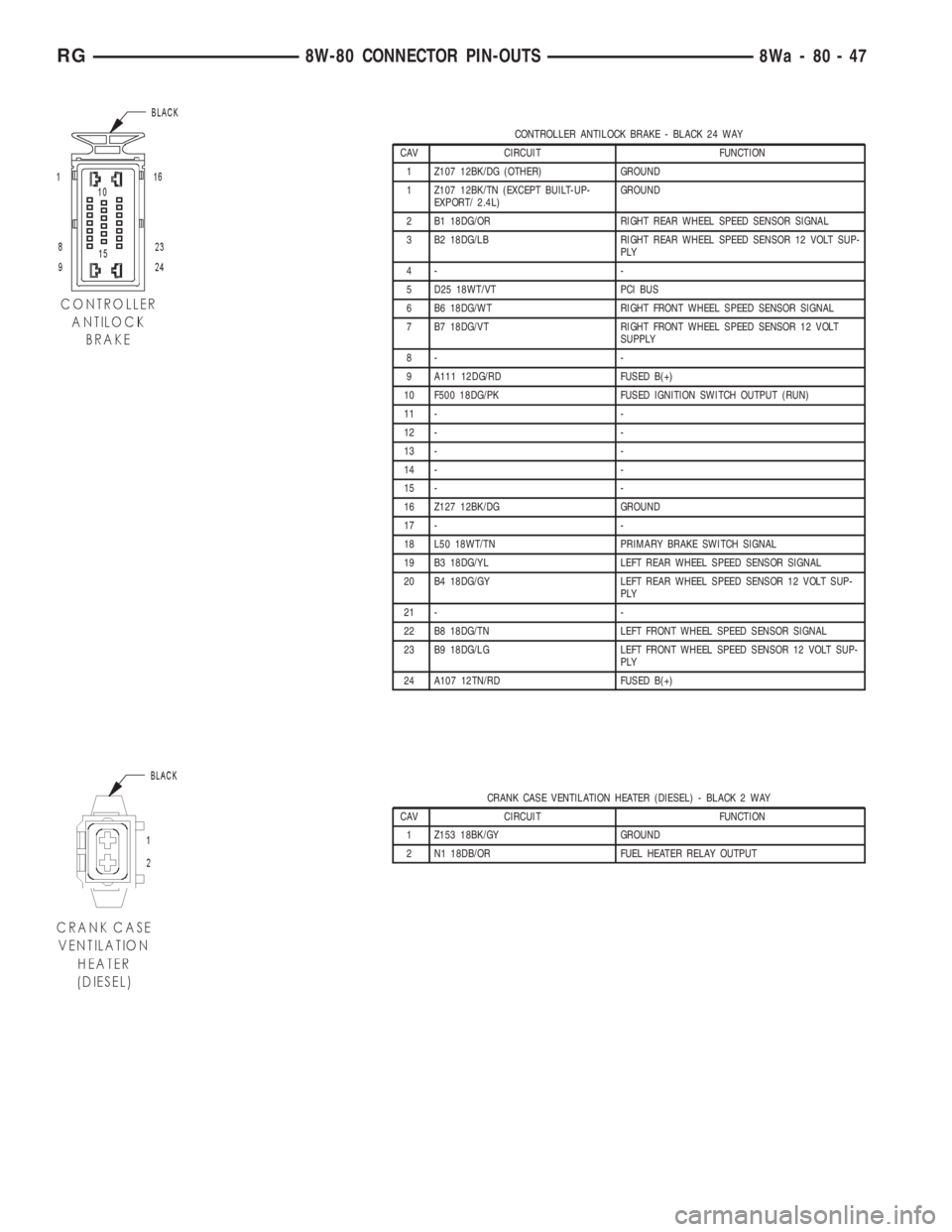

CHRYSLER VOYAGER 2001 Service Manual CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY CAV CIRCUIT FUNCTION 1 Z107 12BK/DG (OTHER) GROUND 1 Z107 12BK/TN (EXCEPT BUILT-UP- EXPORT/ 2.4L)GROUND 2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL 3 B2

Page 2488 of 4284

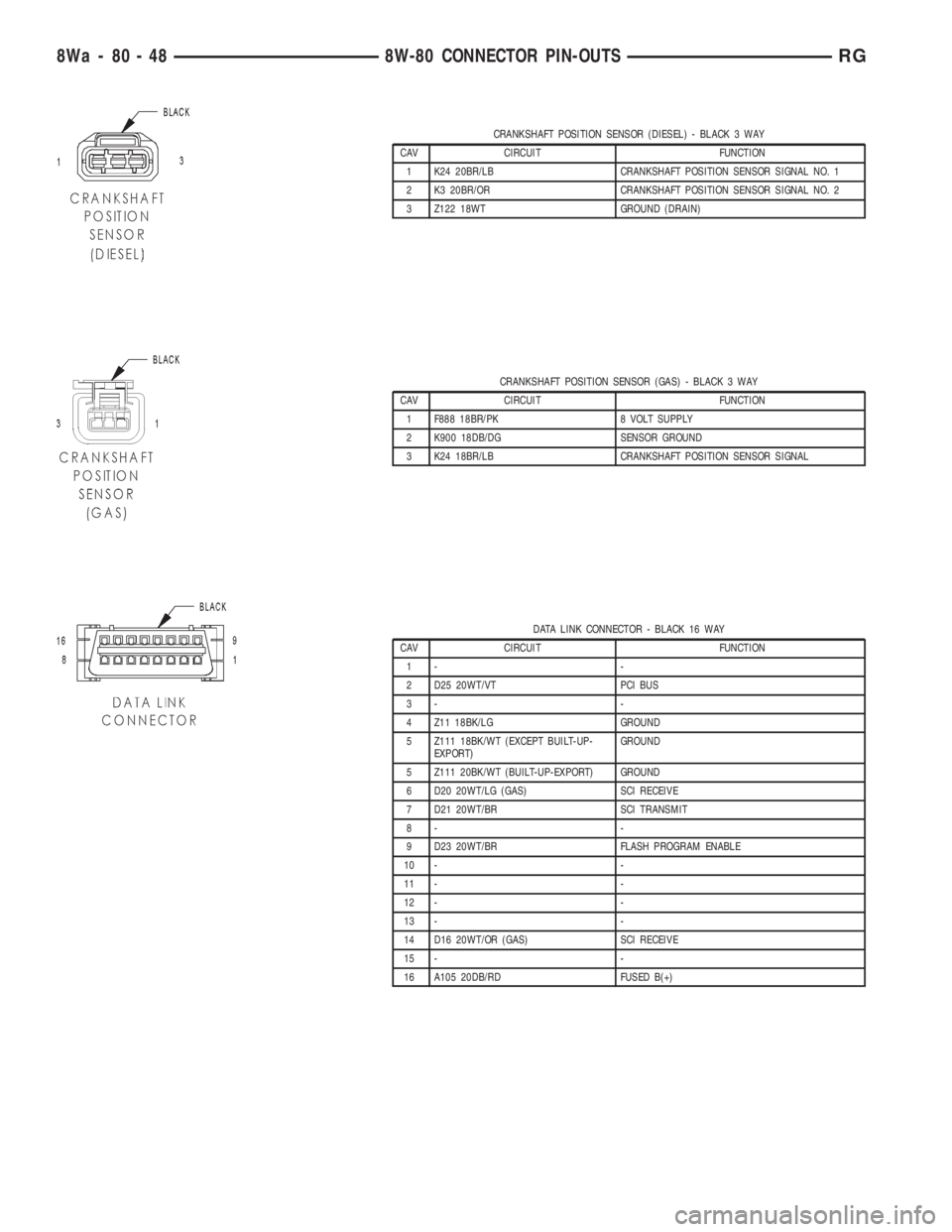

CHRYSLER VOYAGER 2001 Service Manual CRANKSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 1 2 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 2 3 Z122 18WT GROUND (DR
