Page 553 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4 Turn the mode door knob to the Panel, Bi-level, or Floor position.
Turn the ignition off.
Remove the Recirculation Door Actuator from the A/C - Heater Housing Assembly.
Dis

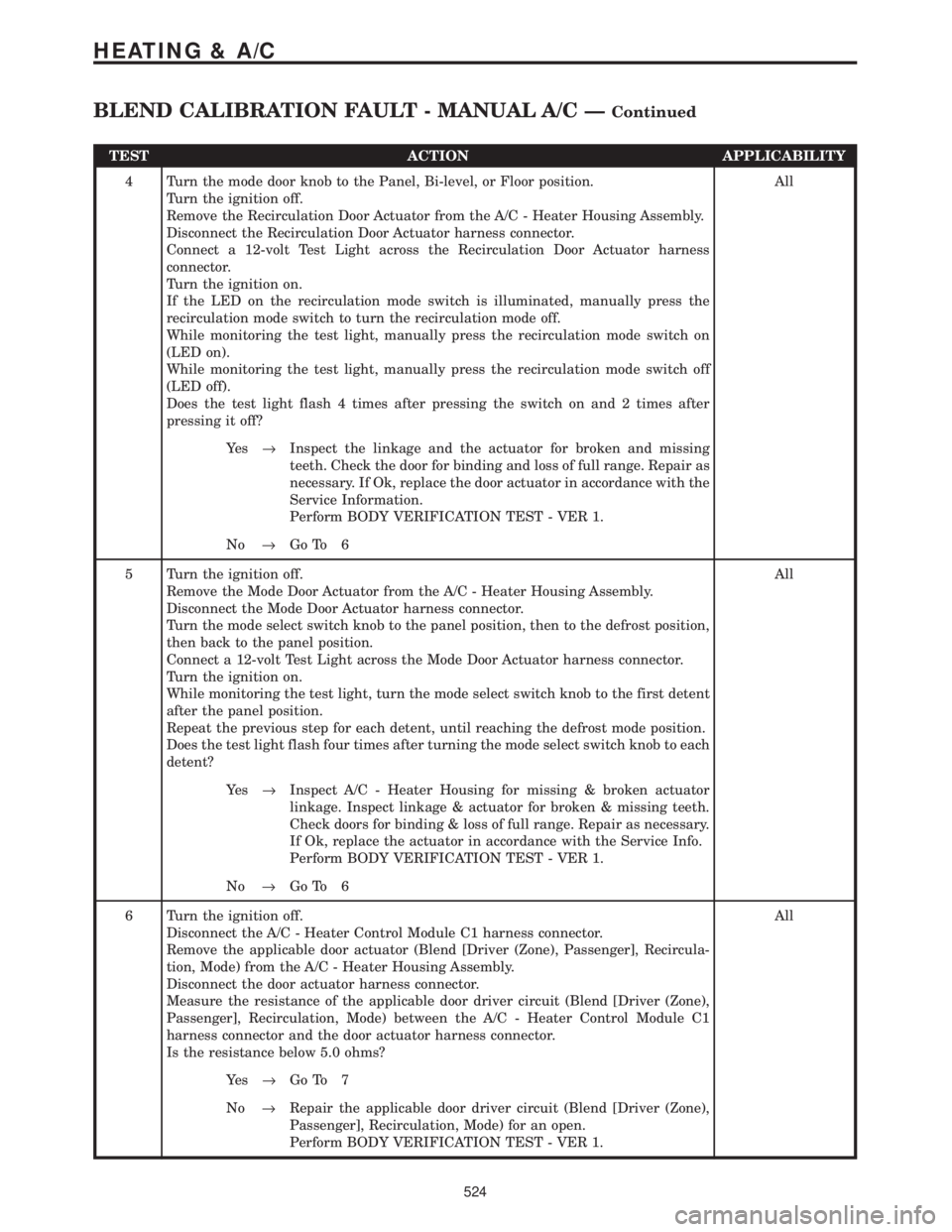

TEST ACTION APPLICABILITY
4 Turn the mode door knob to the Panel, Bi-level, or Floor position.
Turn the ignition off.
Remove the Recirculation Door Actuator from the A/C - Heater Housing Assembly.
Disconnect the Recirculation Door Actuator harness connector.
Connect a 12-volt Test Light across the Recirculation Door Actuator harness
connector.
Turn the ignition on.
If the LED on the recirculation mode switch is illuminated, manually press the
recirculation mode switch to turn the recirculation mode off.
While monitoring the test light, manually press the recirculation mode switch on
(LED on).
While monitoring the test light, manually press the recirculation mode switch off
(LED off).
Does the test light flash 4 times after pressing the switch on and 2 times after
pressing it off?All
Ye s®Inspect the linkage and the actuator for broken and missing
teeth. Check the door for binding and loss of full range. Repair as
necessary. If Ok, replace the door actuator in accordance with the
Service Information.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
5 Turn the ignition off.
Remove the Mode Door Actuator from the A/C - Heater Housing Assembly.
Disconnect the Mode Door Actuator harness connector.
Turn the mode select switch knob to the panel position, then to the defrost position,
then back to the panel position.
Connect a 12-volt Test Light across the Mode Door Actuator harness connector.
Turn the ignition on.
While monitoring the test light, turn the mode select switch knob to the first detent
after the panel position.
Repeat the previous step for each detent, until reaching the defrost mode position.
Does the test light flash four times after turning the mode select switch knob to each
detent?All
Ye s®Inspect A/C - Heater Housing for missing & broken actuator
linkage. Inspect linkage & actuator for broken & missing teeth.
Check doors for binding & loss of full range. Repair as necessary.
If Ok, replace the actuator in accordance with the Service Info.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
6 Turn the ignition off.
Disconnect the A/C - Heater Control Module C1 harness connector.
Remove the applicable door actuator (Blend [Driver (Zone), Passenger], Recircula-
tion, Mode) from the A/C - Heater Housing Assembly.
Disconnect the door actuator harness connector.
Measure the resistance of the applicable door driver circuit (Blend [Driver (Zone),
Passenger], Recirculation, Mode) between the A/C - Heater Control Module C1
harness connector and the door actuator harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 7
No®Repair the applicable door driver circuit (Blend [Driver (Zone),
Passenger], Recirculation, Mode) for an open.
Perform BODY VERIFICATION TEST - VER 1.
524
HEATING & A/C
BLEND CALIBRATION FAULT - MANUAL A/C ÐContinued

Page 554 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY

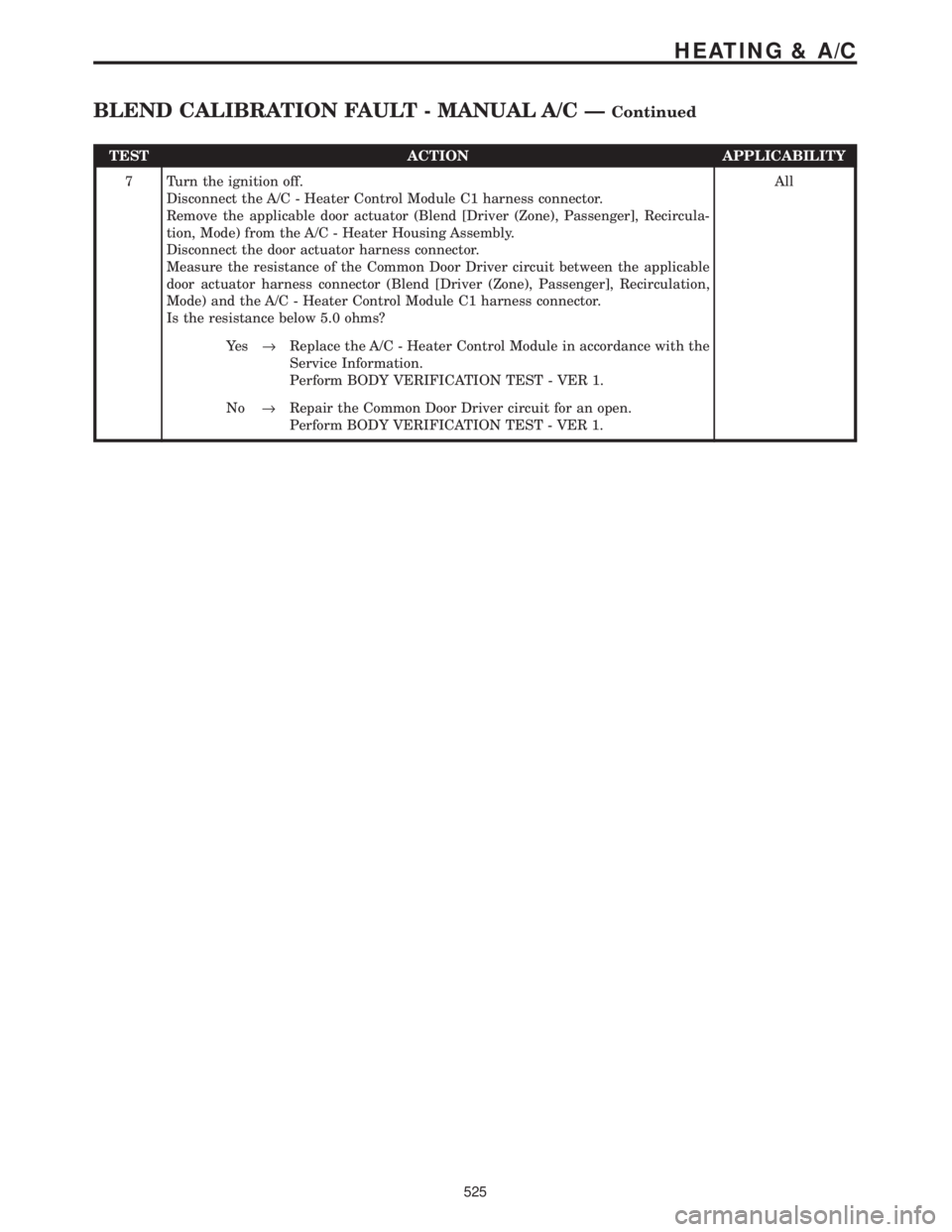

7 Turn the ignition off.
Disconnect the A/C - Heater Control Module C1 harness connector.
Remove the applicable door actuator (Blend [Driver (Zone), Passenger], Recircula-
ti

Page 555 of 4284

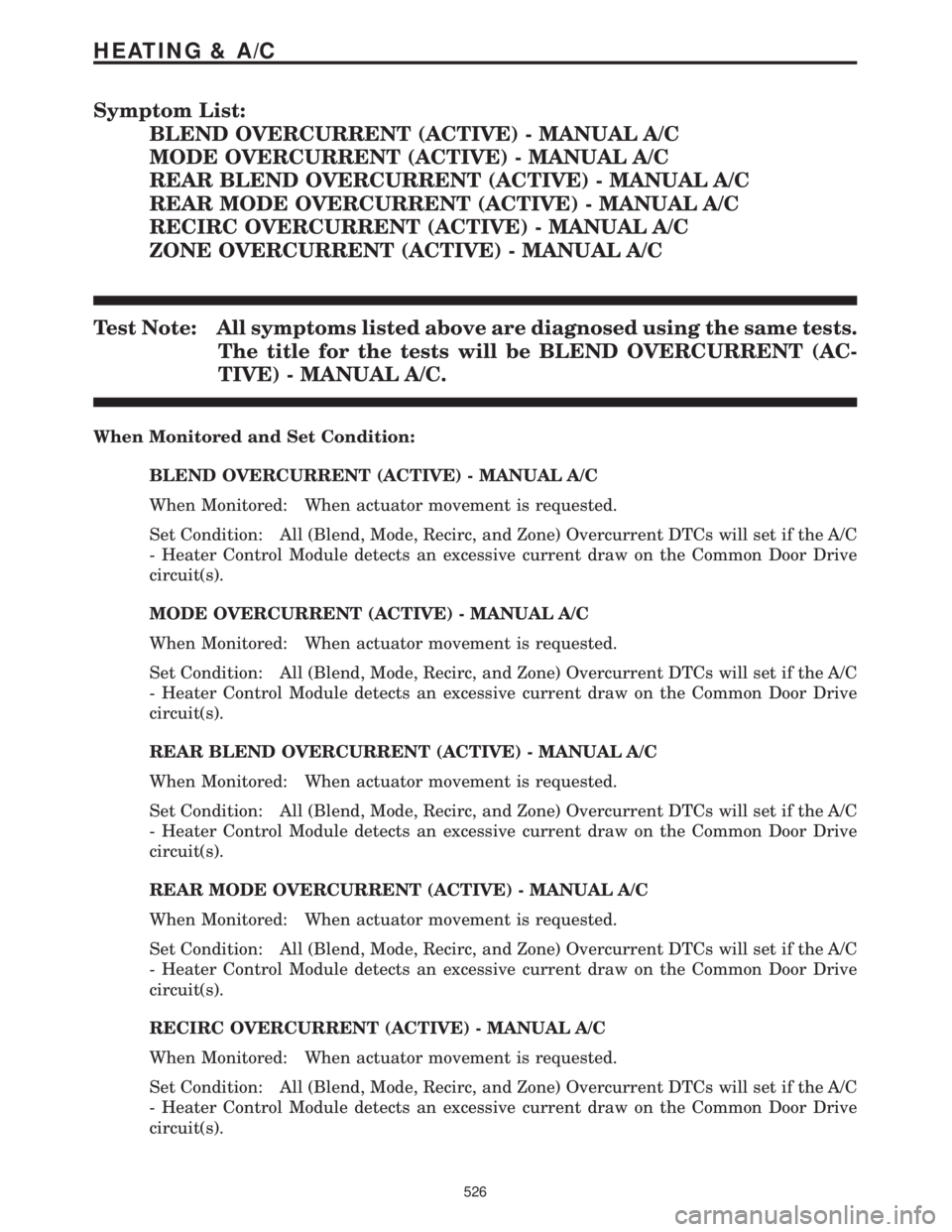

CHRYSLER VOYAGER 2001 Service Manual Symptom List:
BLEND OVERCURRENT (ACTIVE) - MANUAL A/C
MODE OVERCURRENT (ACTIVE) - MANUAL A/C
REAR BLEND OVERCURRENT (ACTIVE) - MANUAL A/C
REAR MODE OVERCURRENT (ACTIVE) - MANUAL A/C
RECIRC OVERCURRENT

Page 556 of 4284

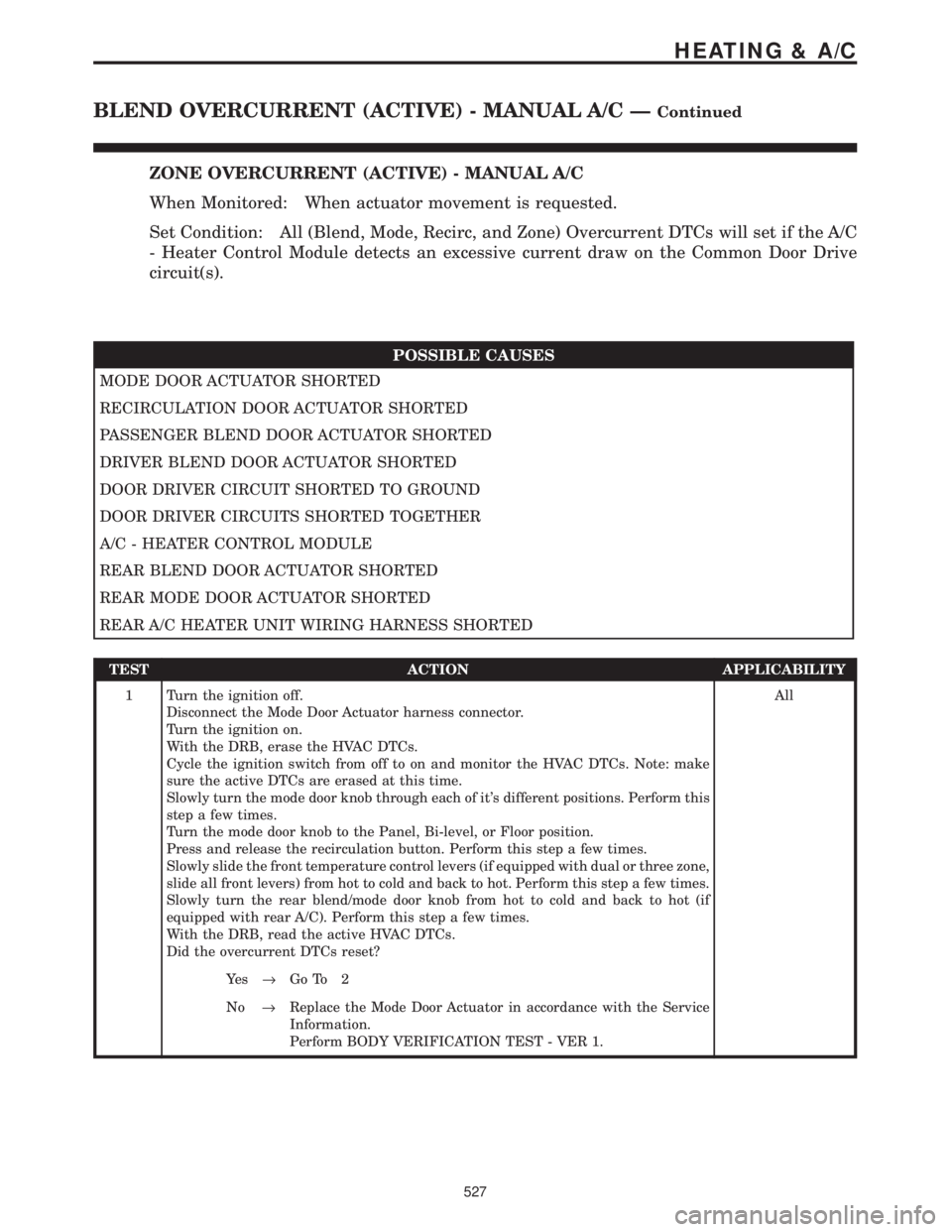

CHRYSLER VOYAGER 2001 Service Manual ZONE OVERCURRENT (ACTIVE) - MANUAL A/C
When Monitored: When actuator movement is requested.
Set Condition: All (Blend, Mode, Recirc, and Zone) Overcurrent DTCs will set if the A/C
- Heater Control Mod

Page 557 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2 Turn the ignition off.
Disconnect the Recirculation Door Actuator harness connector.
Turn the ignition on.
With the DRB, erase the HVAC DTCs.
Cycle the ignition switch from

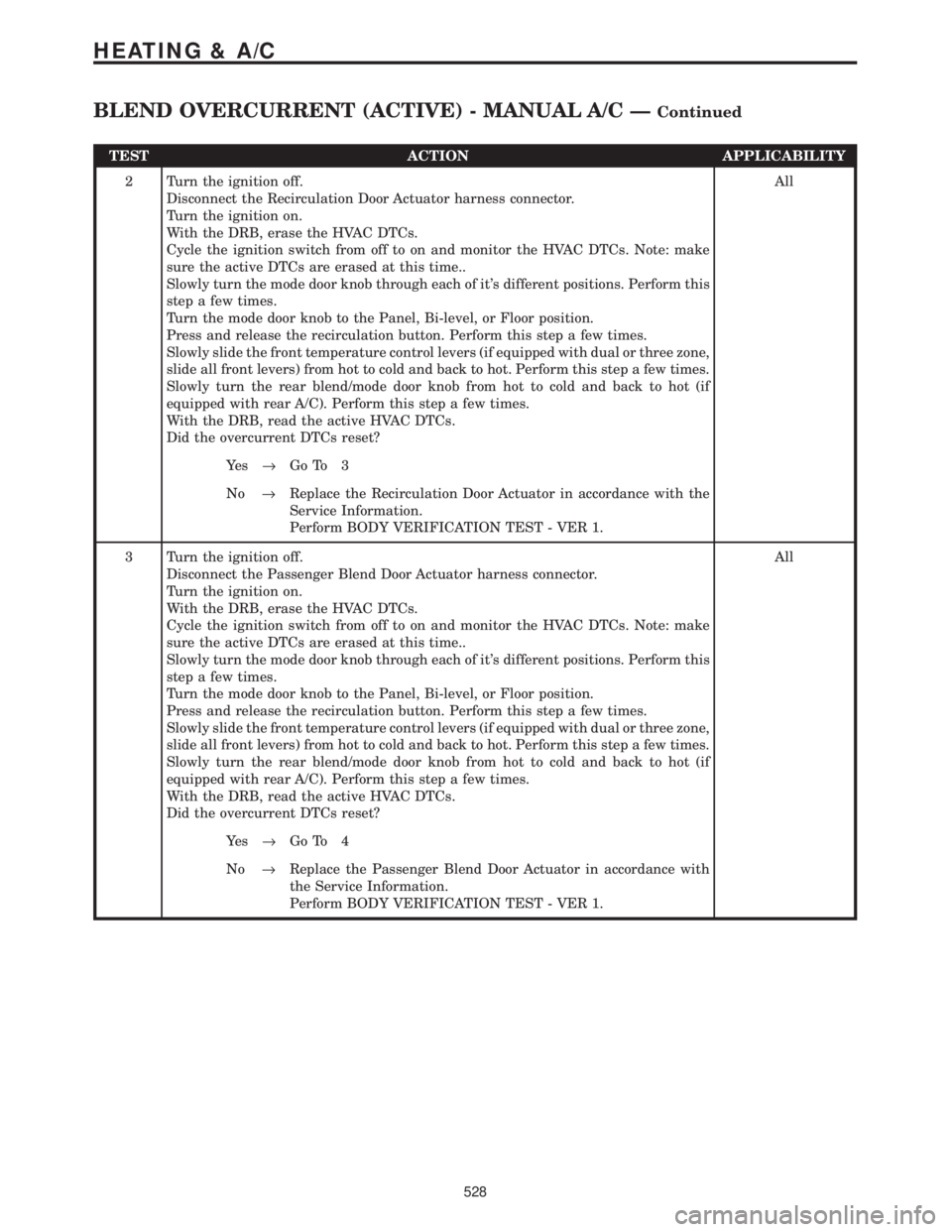

TEST ACTION APPLICABILITY
2 Turn the ignition off.
Disconnect the Recirculation Door Actuator harness connector.
Turn the ignition on.
With the DRB, erase the HVAC DTCs.
Cycle the ignition switch from off to on and monitor the HVAC DTCs. Note: make
sure the active DTCs are erased at this time..
Slowly turn the mode door knob through each of it's different positions. Perform this
step a few times.
Turn the mode door knob to the Panel, Bi-level, or Floor position.
Press and release the recirculation button. Perform this step a few times.
Slowly slide the front temperature control levers (if equipped with dual or three zone,
slide all front levers) from hot to cold and back to hot. Perform this step a few times.
Slowly turn the rear blend/mode door knob from hot to cold and back to hot (if
equipped with rear A/C). Perform this step a few times.
With the DRB, read the active HVAC DTCs.
Did the overcurrent DTCs reset?All
Ye s®Go To 3
No®Replace the Recirculation Door Actuator in accordance with the
Service Information.
Perform BODY VERIFICATION TEST - VER 1.
3 Turn the ignition off.
Disconnect the Passenger Blend Door Actuator harness connector.
Turn the ignition on.
With the DRB, erase the HVAC DTCs.
Cycle the ignition switch from off to on and monitor the HVAC DTCs. Note: make
sure the active DTCs are erased at this time..
Slowly turn the mode door knob through each of it's different positions. Perform this
step a few times.
Turn the mode door knob to the Panel, Bi-level, or Floor position.
Press and release the recirculation button. Perform this step a few times.
Slowly slide the front temperature control levers (if equipped with dual or three zone,
slide all front levers) from hot to cold and back to hot. Perform this step a few times.
Slowly turn the rear blend/mode door knob from hot to cold and back to hot (if
equipped with rear A/C). Perform this step a few times.
With the DRB, read the active HVAC DTCs.
Did the overcurrent DTCs reset?All
Ye s®Go To 4
No®Replace the Passenger Blend Door Actuator in accordance with
the Service Information.
Perform BODY VERIFICATION TEST - VER 1.
528
HEATING & A/C
BLEND OVERCURRENT (ACTIVE) - MANUAL A/C ÐContinued

Page 558 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4NOTE: If vehicle is equipped with a base HVAC system, answer yes to the
question.
Turn the ignition off.
Disconnect the Driver (zone) Blend Door Actuator harness connector.

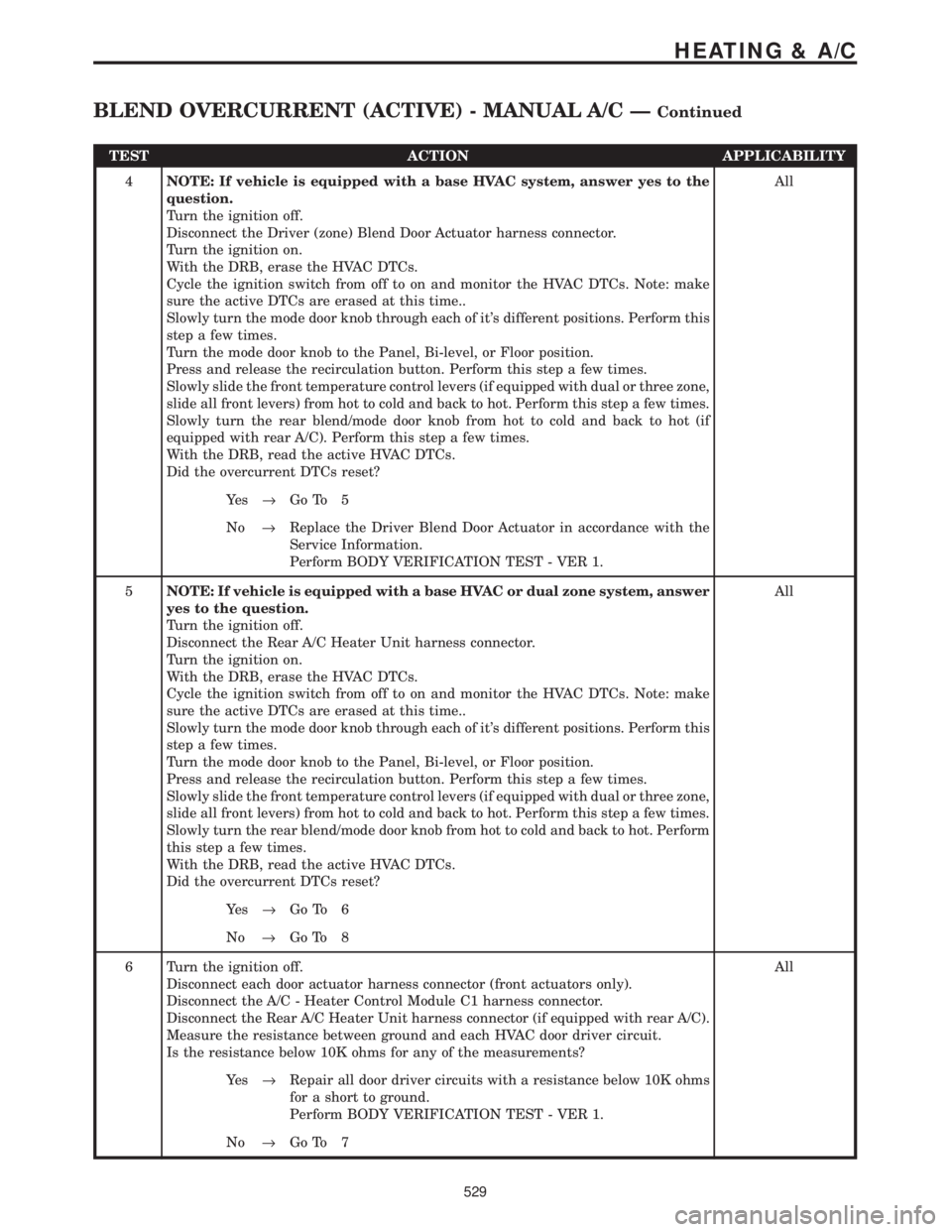

TEST ACTION APPLICABILITY
4NOTE: If vehicle is equipped with a base HVAC system, answer yes to the
question.
Turn the ignition off.
Disconnect the Driver (zone) Blend Door Actuator harness connector.
Turn the ignition on.
With the DRB, erase the HVAC DTCs.
Cycle the ignition switch from off to on and monitor the HVAC DTCs. Note: make
sure the active DTCs are erased at this time..
Slowly turn the mode door knob through each of it's different positions. Perform this
step a few times.
Turn the mode door knob to the Panel, Bi-level, or Floor position.
Press and release the recirculation button. Perform this step a few times.
Slowly slide the front temperature control levers (if equipped with dual or three zone,
slide all front levers) from hot to cold and back to hot. Perform this step a few times.
Slowly turn the rear blend/mode door knob from hot to cold and back to hot (if
equipped with rear A/C). Perform this step a few times.
With the DRB, read the active HVAC DTCs.
Did the overcurrent DTCs reset?All
Ye s®Go To 5
No®Replace the Driver Blend Door Actuator in accordance with the
Service Information.
Perform BODY VERIFICATION TEST - VER 1.
5NOTE: If vehicle is equipped with a base HVAC or dual zone system, answer
yes to the question.
Turn the ignition off.
Disconnect the Rear A/C Heater Unit harness connector.
Turn the ignition on.
With the DRB, erase the HVAC DTCs.
Cycle the ignition switch from off to on and monitor the HVAC DTCs. Note: make
sure the active DTCs are erased at this time..
Slowly turn the mode door knob through each of it's different positions. Perform this
step a few times.
Turn the mode door knob to the Panel, Bi-level, or Floor position.
Press and release the recirculation button. Perform this step a few times.
Slowly slide the front temperature control levers (if equipped with dual or three zone,
slide all front levers) from hot to cold and back to hot. Perform this step a few times.
Slowly turn the rear blend/mode door knob from hot to cold and back to hot. Perform
this step a few times.
With the DRB, read the active HVAC DTCs.
Did the overcurrent DTCs reset?All
Ye s®Go To 6
No®Go To 8
6 Turn the ignition off.
Disconnect each door actuator harness connector (front actuators only).
Disconnect the A/C - Heater Control Module C1 harness connector.
Disconnect the Rear A/C Heater Unit harness connector (if equipped with rear A/C).
Measure the resistance between ground and each HVAC door driver circuit.
Is the resistance below 10K ohms for any of the measurements?All
Ye s®Repair all door driver circuits with a resistance below 10K ohms
for a short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 7
529
HEATING & A/C
BLEND OVERCURRENT (ACTIVE) - MANUAL A/C ÐContinued

Page 559 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
7 Turn the ignition off.
Disconnect each door actuator harness connector (front actuators only).
Disconnect the A/C - Heater Control Module C1 harness connector.
Disconnect t

TEST ACTION APPLICABILITY
7 Turn the ignition off.
Disconnect each door actuator harness connector (front actuators only).
Disconnect the A/C - Heater Control Module C1 harness connector.
Disconnect the Rear A/C Heater Unit harness connector (if equipped with rear A/C).
Measure the resistance between the Common Door Driver circuit and each other door
driver circuit.
Measure the resistance between the Recirculation Door Driver circuit and each other
door driver circuit.
Measure the resistance between the Mode Door Driver circuit and each other door
driver circuit.
Measure the resistance between the Passenger Blend Air Door Driver circuit and
each other door driver circuit.
Measure the resistance between the Driver Blend Door Driver circuit and each other
door driver circuit (if equipped with dual or 3 zone).
Measure the resistance between the Rear Common Door Driver circuit and each
other door driver circuit (if equipped with rear A/C).
Measure the resistance between the Rear Blend Door Driver circuit and each other
door driver circuit (if equipped with rear A/C).
Measure the resistance between the Rear Mode Door Driver circuit and each other
door driver circuit (if equipped with rear A/C).
Is the resistance below 10K ohms for any of the measurements?All
Ye s®Repair the door driver circuits that measured below 10K ohms for
a short to each other.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the A/C - Heater Control Module in accordance with the
Service Information.
Perform BODY VERIFICATION TEST - VER 1.
8 Turn the ignition off.
Reconnect the Rear A/C Heater Unit harness connector.
Disconnect the Rear Blend Door Actuator harness connector.
Turn the ignition on.
With the DRB, erase the HVAC DTCs.
Cycle the ignition switch from off to on and monitor the HVAC DTCs. Note: make
sure the active DTCs are erased at this time.
Slowly turn the mode door knob through each of it's different positions. Perform this
step a few times.
Turn the mode door knob to the Panel, Bi-level, or Floor position.
Press and release the recirculation button. Perform this step a few times.
Slowly slide the front temperature control levers (if equipped with dual or three zone,
slide all front levers) from hot to cold and back to hot. Perform this step a few times.
Slowly turn the rear blend/mode door knob from hot to cold and back to hot. Perform
this step a few times.
With the DRB, read the active HVAC DTCs.
Did the overcurrent DTCs reset?All
Ye s®Go To 9
No®Replace the Rear Blend Door Actuator in accordance with the
Service Information.
Perform BODY VERIFICATION TEST - VER 1.
530
HEATING & A/C
BLEND OVERCURRENT (ACTIVE) - MANUAL A/C ÐContinued

Page 560 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
9 Turn the ignition off.
Reconnect the Rear A/C Heater Unit harness connector.
Disconnect the Rear Mode Door Actuator harness connector.
Turn the ignition on.
With the DRB, e

Load next 8 pages

Page: < prev 1-10 ... 521-528 529-536 537-544 545-552 553-560 561-568 569-576 577-584 585-592 ... 4288 next >

ECO mode remote start 4WD child lock ESP inoperative power steering
