Page 1121 of 4284

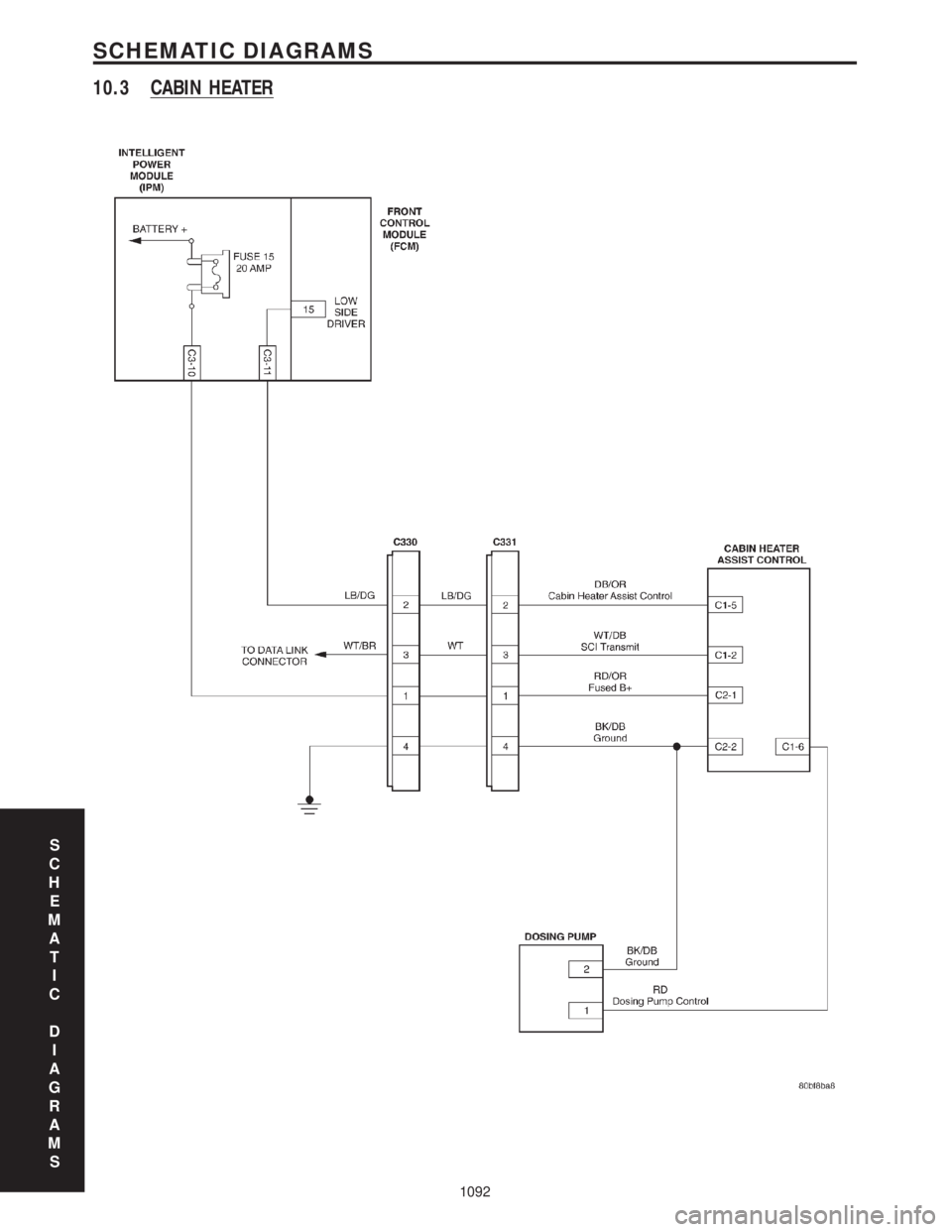

CHRYSLER VOYAGER 2001 Service Manual 10.3 CABIN HEATER S C H E M A T I C D I A G R A M S 1092 SCHEMATIC DIAGRAMS

Page 1122 of 4284

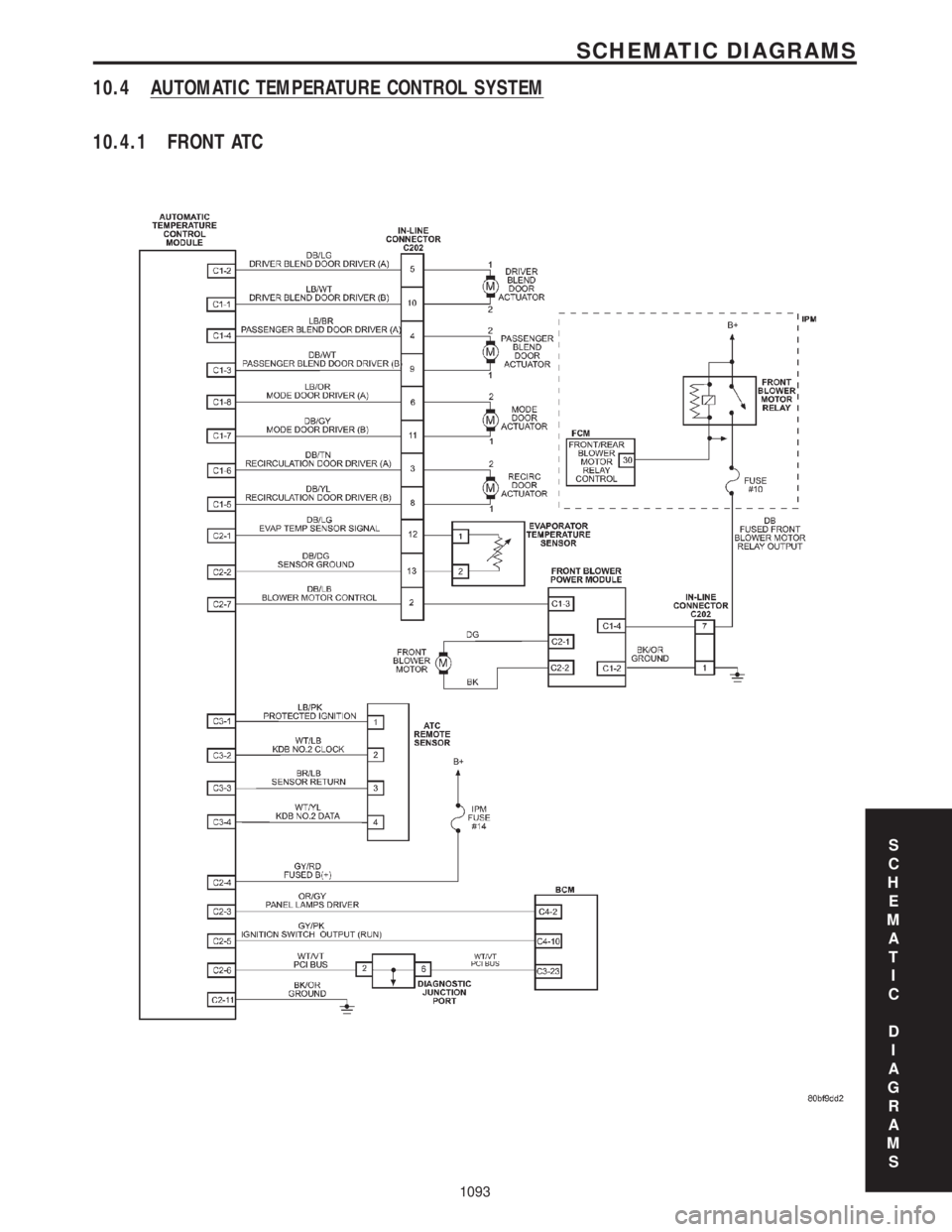

CHRYSLER VOYAGER 2001 Service Manual 10.4 AUTOMATIC TEMPERATURE CONTROL SYSTEM 10.4.1 FRONT ATC S C H E M A T I C D I A G R A M S 1093 SCHEMATIC DIAGRAMS

Page 1123 of 4284

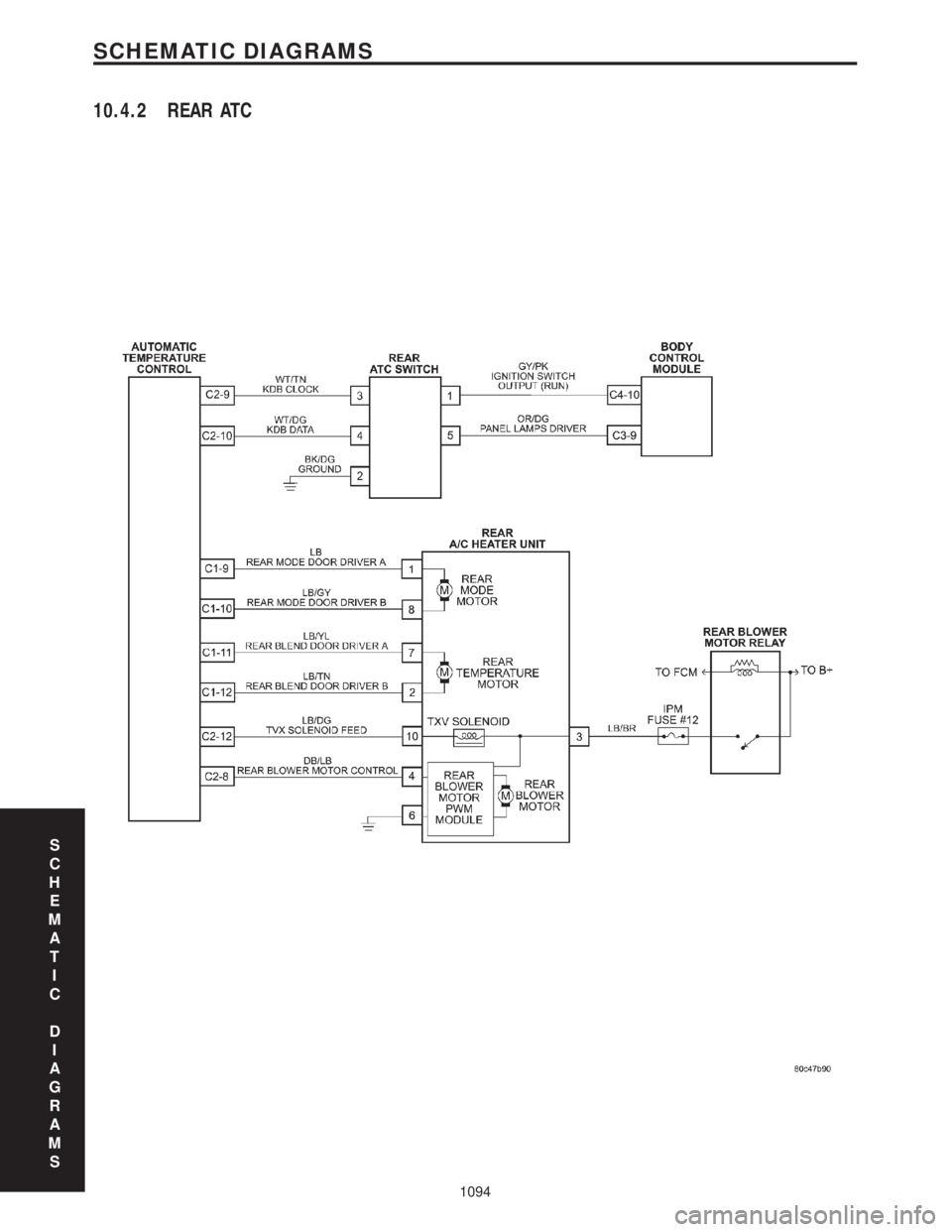

CHRYSLER VOYAGER 2001 Service Manual 10.4.2 REAR ATC S C H E M A T I C D I A G R A M S 1094 SCHEMATIC DIAGRAMS

Page 1124 of 4284

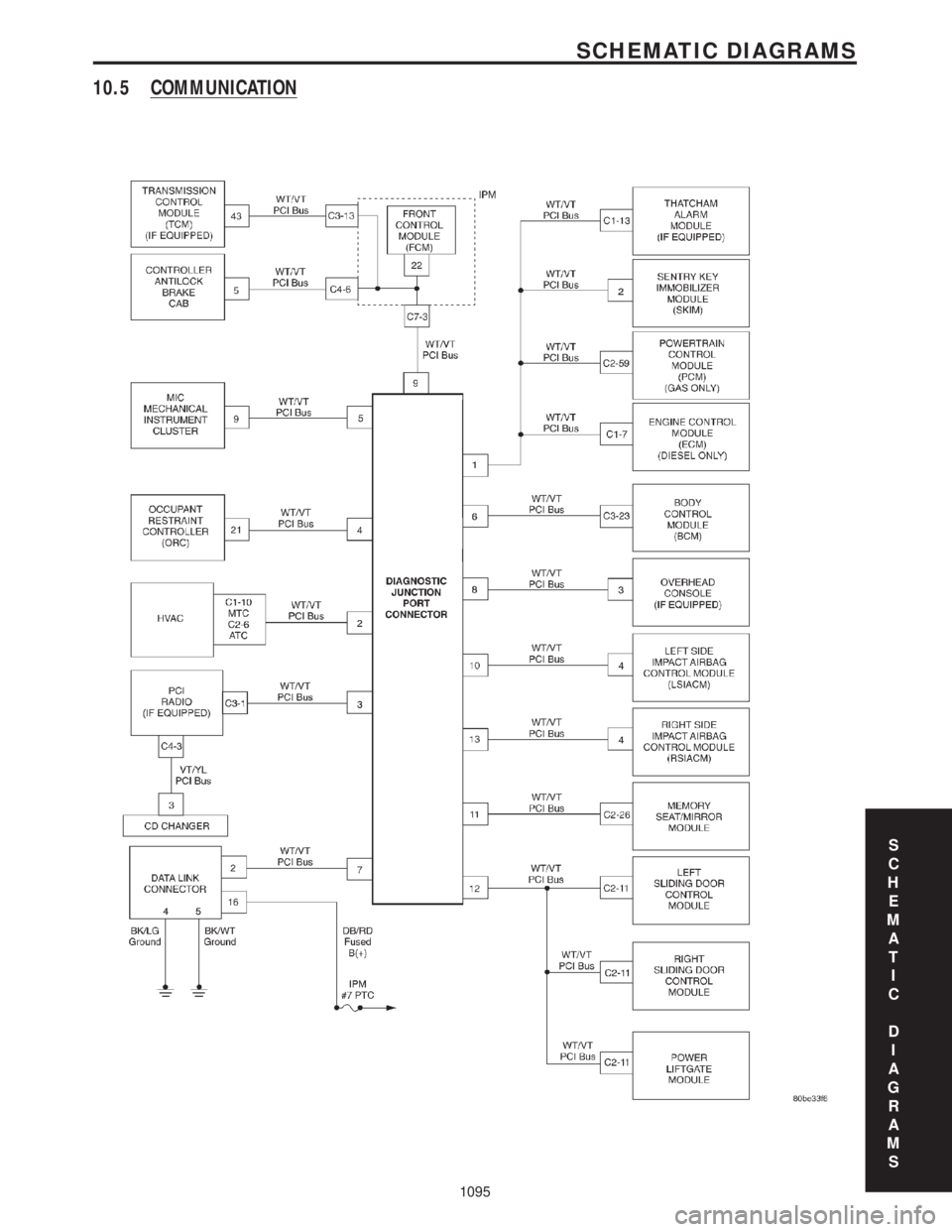

CHRYSLER VOYAGER 2001 Service Manual 10.5 COMMUNICATION S C H E M A T I C D I A G R A M S 1095 SCHEMATIC DIAGRAMS

Page 1125 of 4284

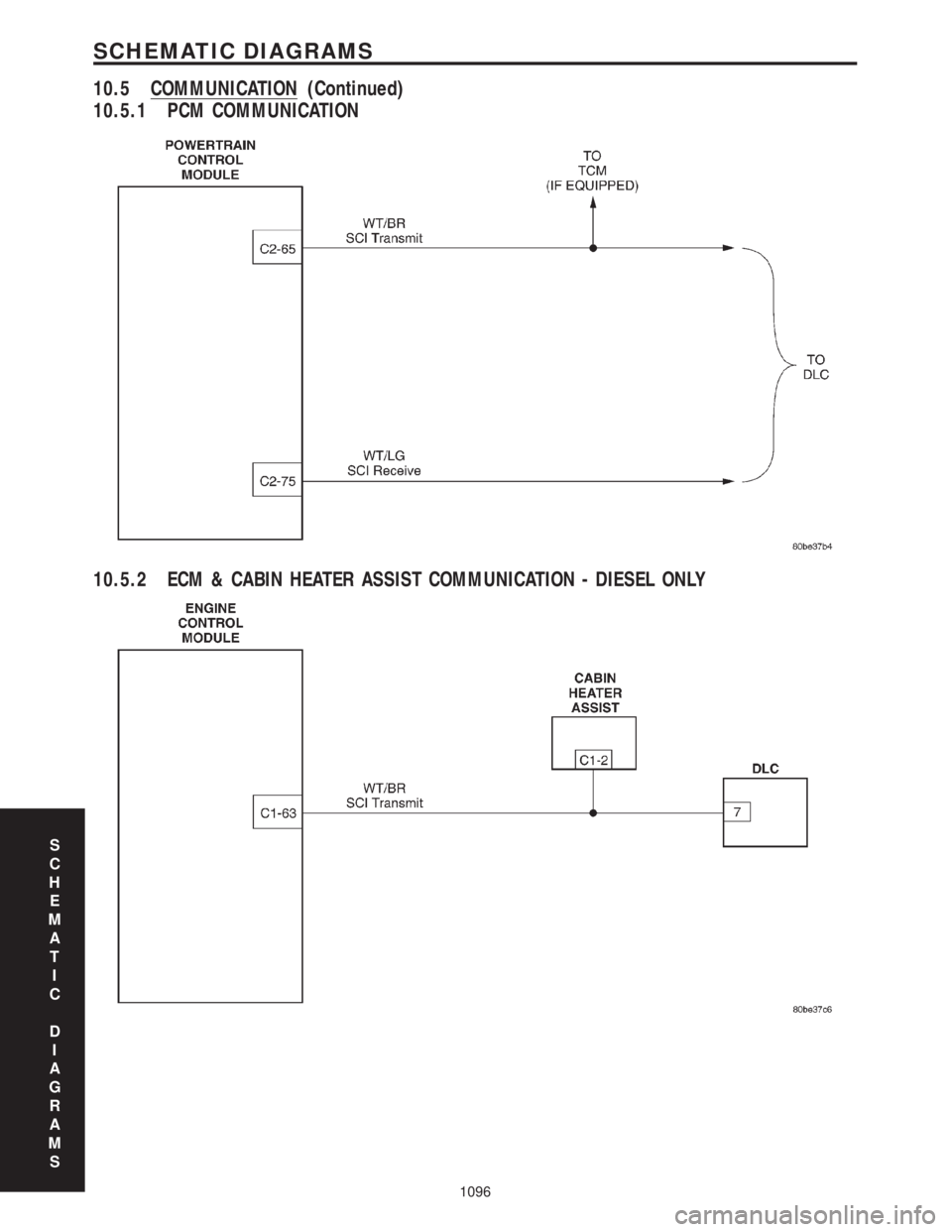

CHRYSLER VOYAGER 2001 Service Manual 10.5.1 PCM COMMUNICATION 10.5.2 ECM & CABIN HEATER ASSIST COMMUNICATION - DIESEL ONLY S C H E M A T I C D I A G R A M S 1096 SCHEMATIC DIAGRAMS 10.5 COMMUNICATION (Continued)

Page 1126 of 4284

CHRYSLER VOYAGER 2001 Service Manual 10.6 DOOR AJAR WITH POWER SLIDING DOORS S C H E M A T I C D I A G R A M S 1097 SCHEMATIC DIAGRAMS

Page 1127 of 4284

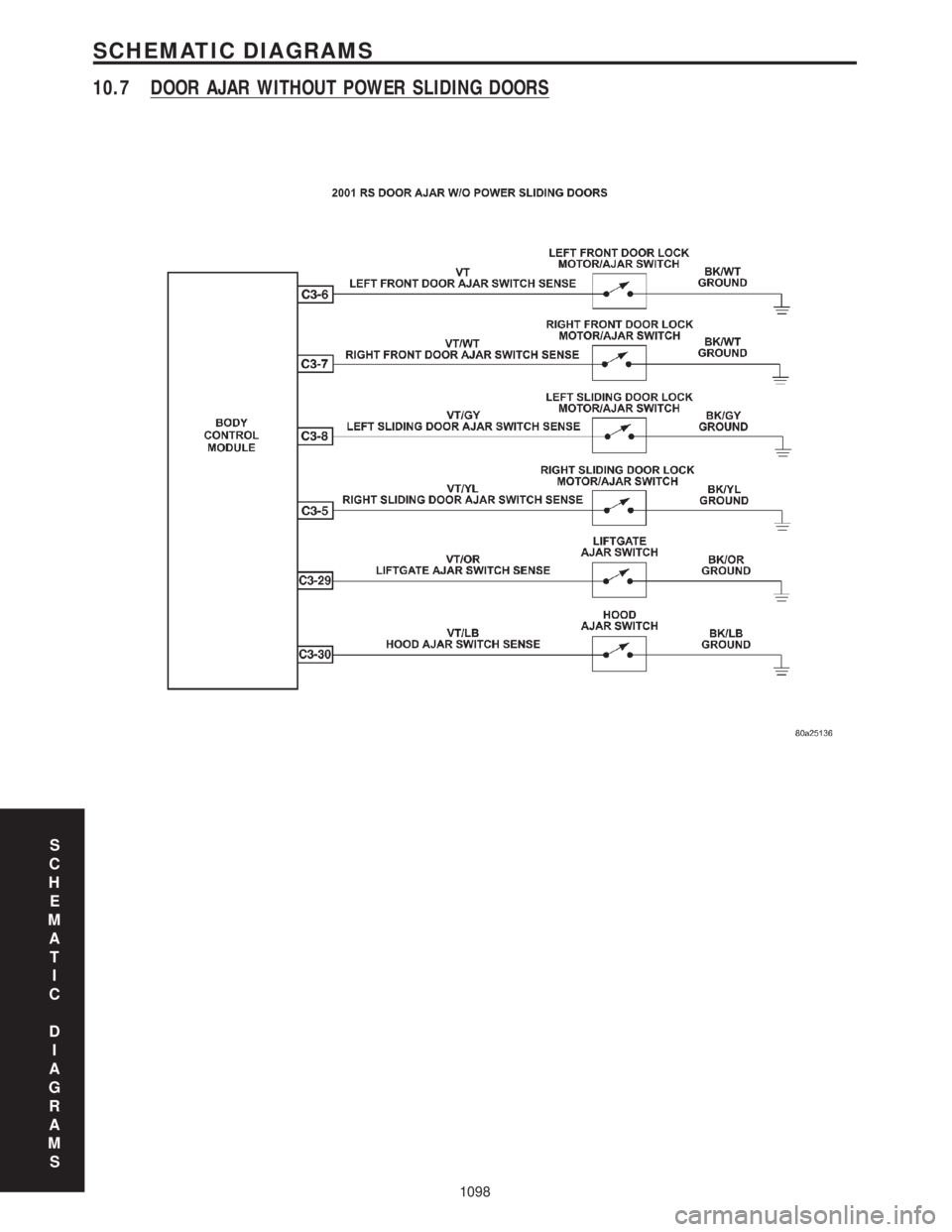

CHRYSLER VOYAGER 2001 Service Manual 10.7 DOOR AJAR WITHOUT POWER SLIDING DOORS S C H E M A T I C D I A G R A M S 1098 SCHEMATIC DIAGRAMS

Page 1128 of 4284

CHRYSLER VOYAGER 2001 Service Manual 10.8 EXTERIOR LIGHTING S C H E M A T I C D I A G R A M S 1099 SCHEMATIC DIAGRAMS
