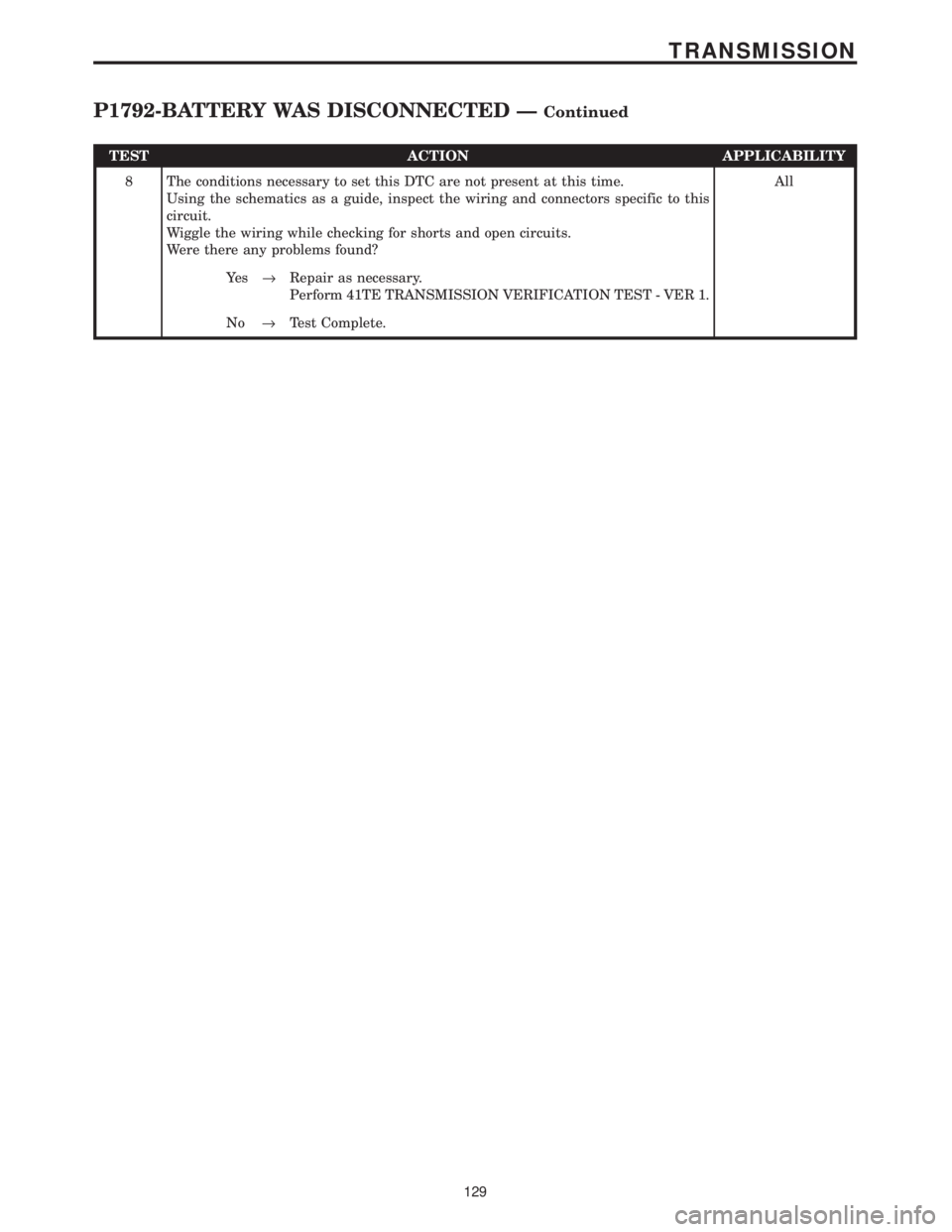

Page 4233 of 4284
TEST ACTION APPLICABILITY
8 The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this
circuit.
Wiggle the wiring while checking for shorts and open circuits.
Were there any problems found?All
Ye s®Repair as necessary.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
129
TRANSMISSION
P1792-BATTERY WAS DISCONNECTED ÐContinued

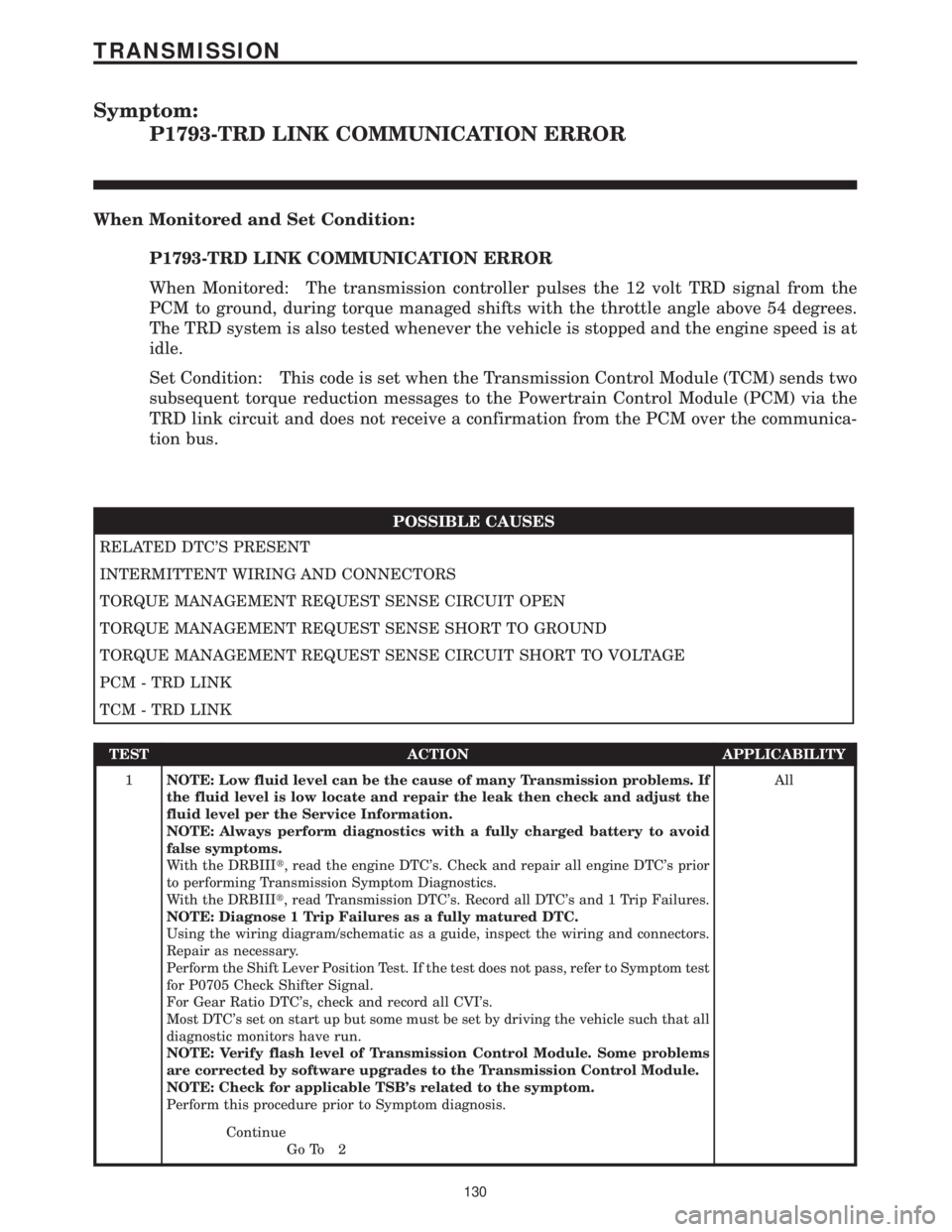

Page 4234 of 4284

Symptom:
P1793-TRD LINK COMMUNICATION ERROR
When Monitored and Set Condition:
P1793-TRD LINK COMMUNICATION ERROR
When Monitored: The transmission controller pulses the 12 volt TRD signal from the
PCM to ground, during torque managed shifts with the throttle angle above 54 degrees.
The TRD system is also tested whenever the vehicle is stopped and the engine speed is at
idle.
Set Condition: This code is set when the Transmission Control Module (TCM) sends two
subsequent torque reduction messages to the Powertrain Control Module (PCM) via the
TRD link circuit and does not receive a confirmation from the PCM over the communica-
tion bus.
POSSIBLE CAUSES
RELATED DTC'S PRESENT
INTERMITTENT WIRING AND CONNECTORS
TORQUE MANAGEMENT REQUEST SENSE CIRCUIT OPEN
TORQUE MANAGEMENT REQUEST SENSE SHORT TO GROUND
TORQUE MANAGEMENT REQUEST SENSE CIRCUIT SHORT TO VOLTAGE
PCM - TRD LINK
TCM - TRD LINK
TEST ACTION APPLICABILITY
1NOTE: Low fluid level can be the cause of many Transmission problems. If
the fluid level is low locate and repair the leak then check and adjust the
fluid level per the Service Information.
NOTE: Always perform diagnostics with a fully charged battery to avoid
false symptoms.
With the DRBIIIt, read the engine DTC's. Check and repair all engine DTC's prior
to performing Transmission Symptom Diagnostics.
With the DRBIIIt, read Transmission DTC's. Record all DTC's and 1 Trip Failures.
NOTE: Diagnose 1 Trip Failures as a fully matured DTC.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Repair as necessary.
Perform the Shift Lever Position Test. If the test does not pass, refer to Symptom test
for P0705 Check Shifter Signal.
For Gear Ratio DTC's, check and record all CVI's.
Most DTC's set on start up but some must be set by driving the vehicle such that all
diagnostic monitors have run.
NOTE: Verify flash level of Transmission Control Module. Some problems
are corrected by software upgrades to the Transmission Control Module.
NOTE: Check for applicable TSB's related to the symptom.
Perform this procedure prior to Symptom diagnosis.All
Continue
Go To 2
130
TRANSMISSION

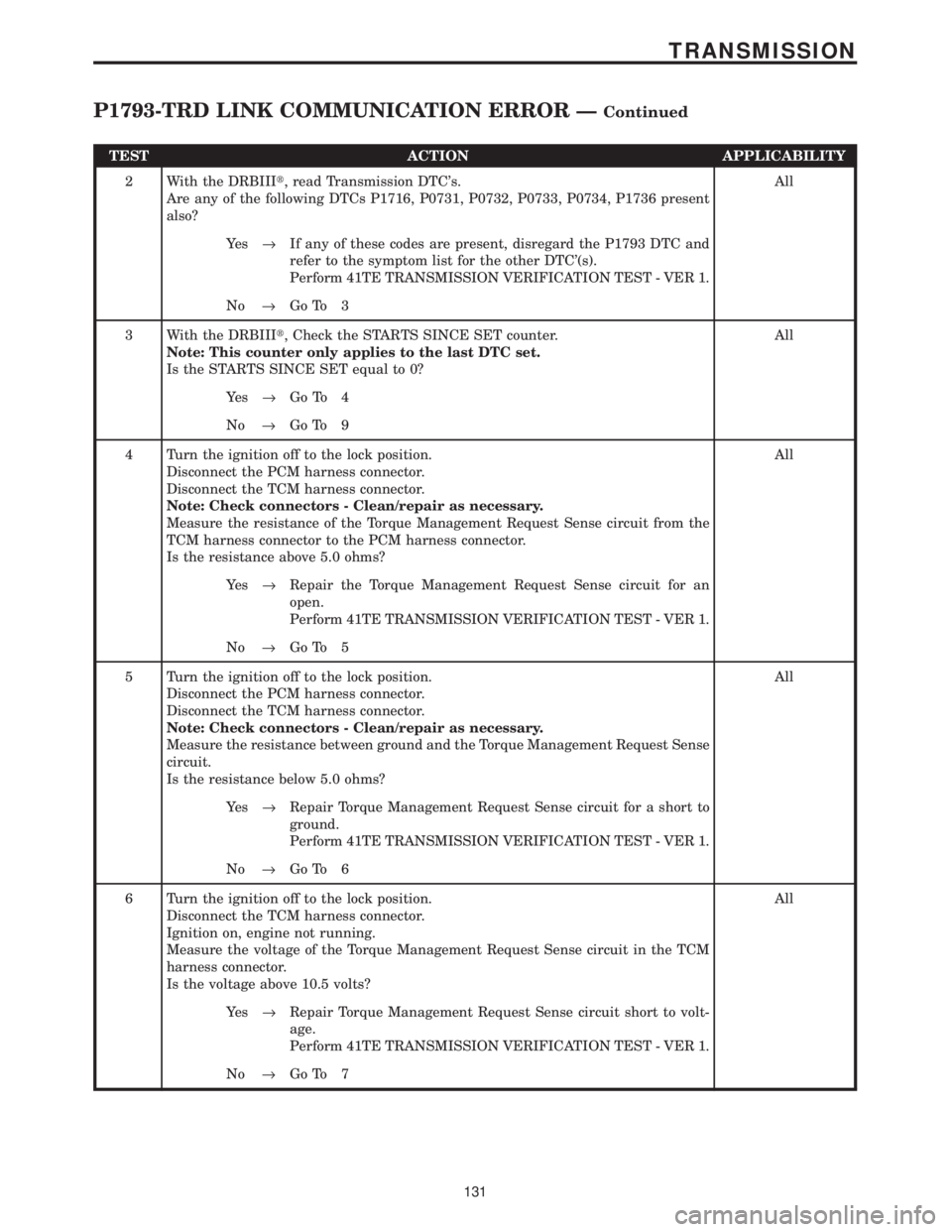

Page 4235 of 4284

TEST ACTION APPLICABILITY
2 With the DRBIIIt, read Transmission DTC's.
Are any of the following DTCs P1716, P0731, P0732, P0733, P0734, P1736 present
also?All
Ye s®If any of these codes are present, disregard the P1793 DTC and
refer to the symptom list for the other DTC'(s).
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 3
3 With the DRBIIIt, Check the STARTS SINCE SET counter.
Note: This counter only applies to the last DTC set.
Is the STARTS SINCE SET equal to 0?All
Ye s®Go To 4
No®Go To 9
4 Turn the ignition off to the lock position.
Disconnect the PCM harness connector.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Torque Management Request Sense circuit from the
TCM harness connector to the PCM harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Torque Management Request Sense circuit for an
open.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn the ignition off to the lock position.
Disconnect the PCM harness connector.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the Torque Management Request Sense
circuit.
Is the resistance below 5.0 ohms?All
Ye s®Repair Torque Management Request Sense circuit for a short to
ground.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 6
6 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Ignition on, engine not running.
Measure the voltage of the Torque Management Request Sense circuit in the TCM
harness connector.
Is the voltage above 10.5 volts?All
Ye s®Repair Torque Management Request Sense circuit short to volt-
age.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 7
131
TRANSMISSION
P1793-TRD LINK COMMUNICATION ERROR ÐContinued

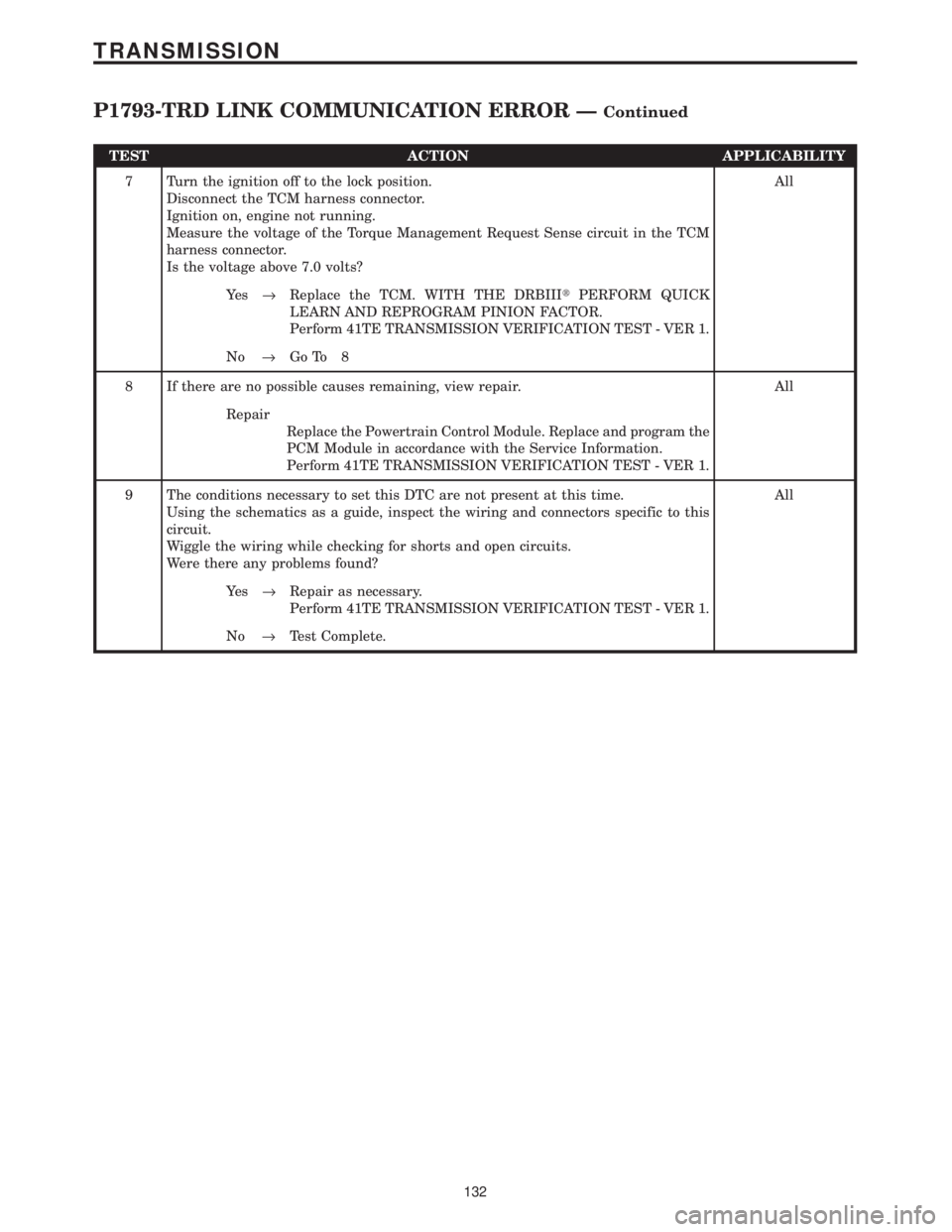

Page 4236 of 4284

TEST ACTION APPLICABILITY
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Ignition on, engine not running.
Measure the voltage of the Torque Management Request Sense circuit in the TCM
harness connector.
Is the voltage above 7.0 volts?All
Ye s®Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 8
8 If there are no possible causes remaining, view repair. All
Repair
Replace the Powertrain Control Module. Replace and program the
PCM Module in accordance with the Service Information.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
9 The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this
circuit.
Wiggle the wiring while checking for shorts and open circuits.
Were there any problems found?All
Ye s®Repair as necessary.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
132
TRANSMISSION
P1793-TRD LINK COMMUNICATION ERROR ÐContinued

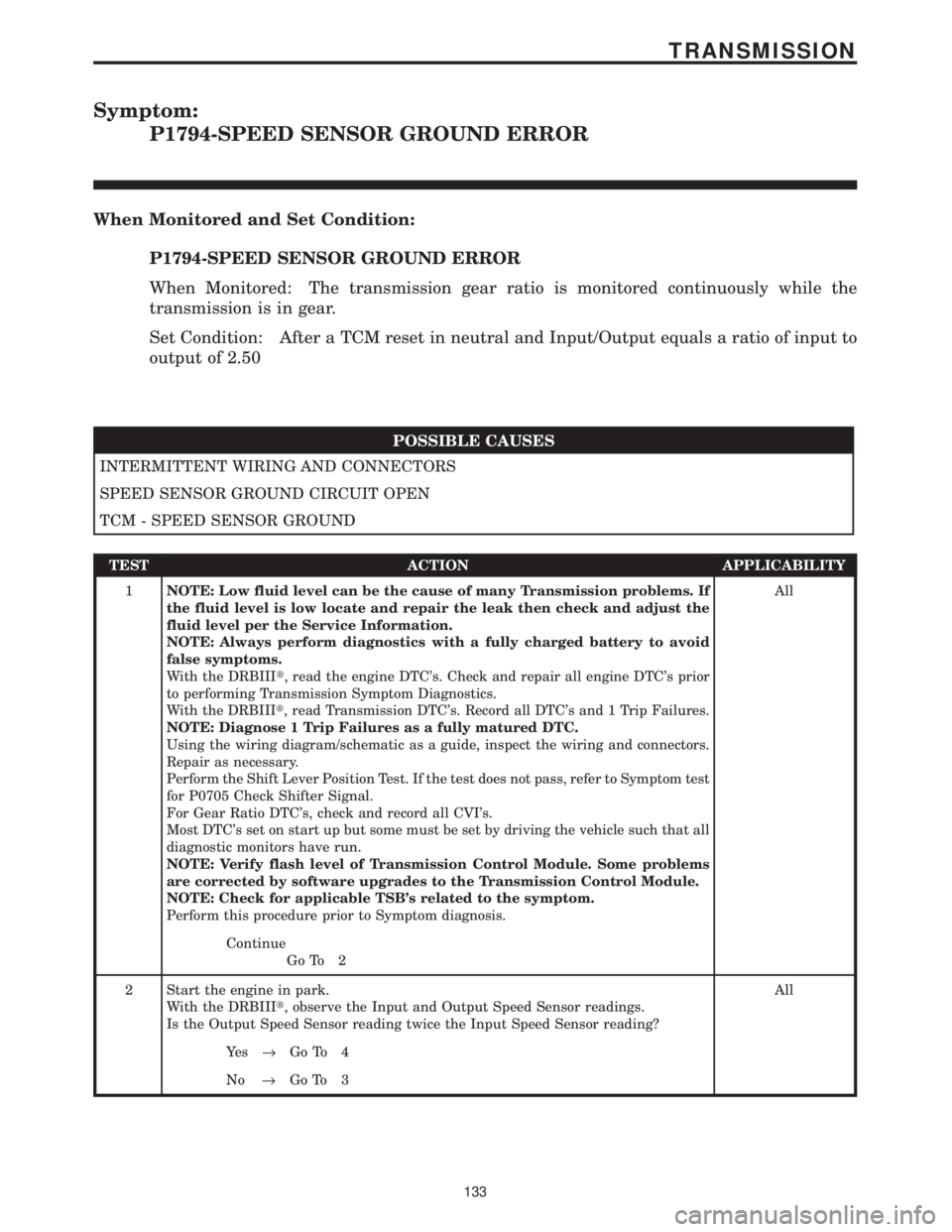

Page 4237 of 4284

Symptom:
P1794-SPEED SENSOR GROUND ERROR
When Monitored and Set Condition:
P1794-SPEED SENSOR GROUND ERROR
When Monitored: The transmission gear ratio is monitored continuously while the
transmission is in gear.
Set Condition: After a TCM reset in neutral and Input/Output equals a ratio of input to
output of 2.50
POSSIBLE CAUSES
INTERMITTENT WIRING AND CONNECTORS
SPEED SENSOR GROUND CIRCUIT OPEN
TCM - SPEED SENSOR GROUND
TEST ACTION APPLICABILITY
1NOTE: Low fluid level can be the cause of many Transmission problems. If
the fluid level is low locate and repair the leak then check and adjust the
fluid level per the Service Information.
NOTE: Always perform diagnostics with a fully charged battery to avoid
false symptoms.
With the DRBIIIt, read the engine DTC's. Check and repair all engine DTC's prior
to performing Transmission Symptom Diagnostics.
With the DRBIIIt, read Transmission DTC's. Record all DTC's and 1 Trip Failures.
NOTE: Diagnose 1 Trip Failures as a fully matured DTC.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Repair as necessary.
Perform the Shift Lever Position Test. If the test does not pass, refer to Symptom test
for P0705 Check Shifter Signal.
For Gear Ratio DTC's, check and record all CVI's.
Most DTC's set on start up but some must be set by driving the vehicle such that all
diagnostic monitors have run.
NOTE: Verify flash level of Transmission Control Module. Some problems
are corrected by software upgrades to the Transmission Control Module.
NOTE: Check for applicable TSB's related to the symptom.
Perform this procedure prior to Symptom diagnosis.All
Continue
Go To 2
2 Start the engine in park.
With the DRBIIIt, observe the Input and Output Speed Sensor readings.
Is the Output Speed Sensor reading twice the Input Speed Sensor reading?All
Ye s®Go To 4
No®Go To 3
133
TRANSMISSION

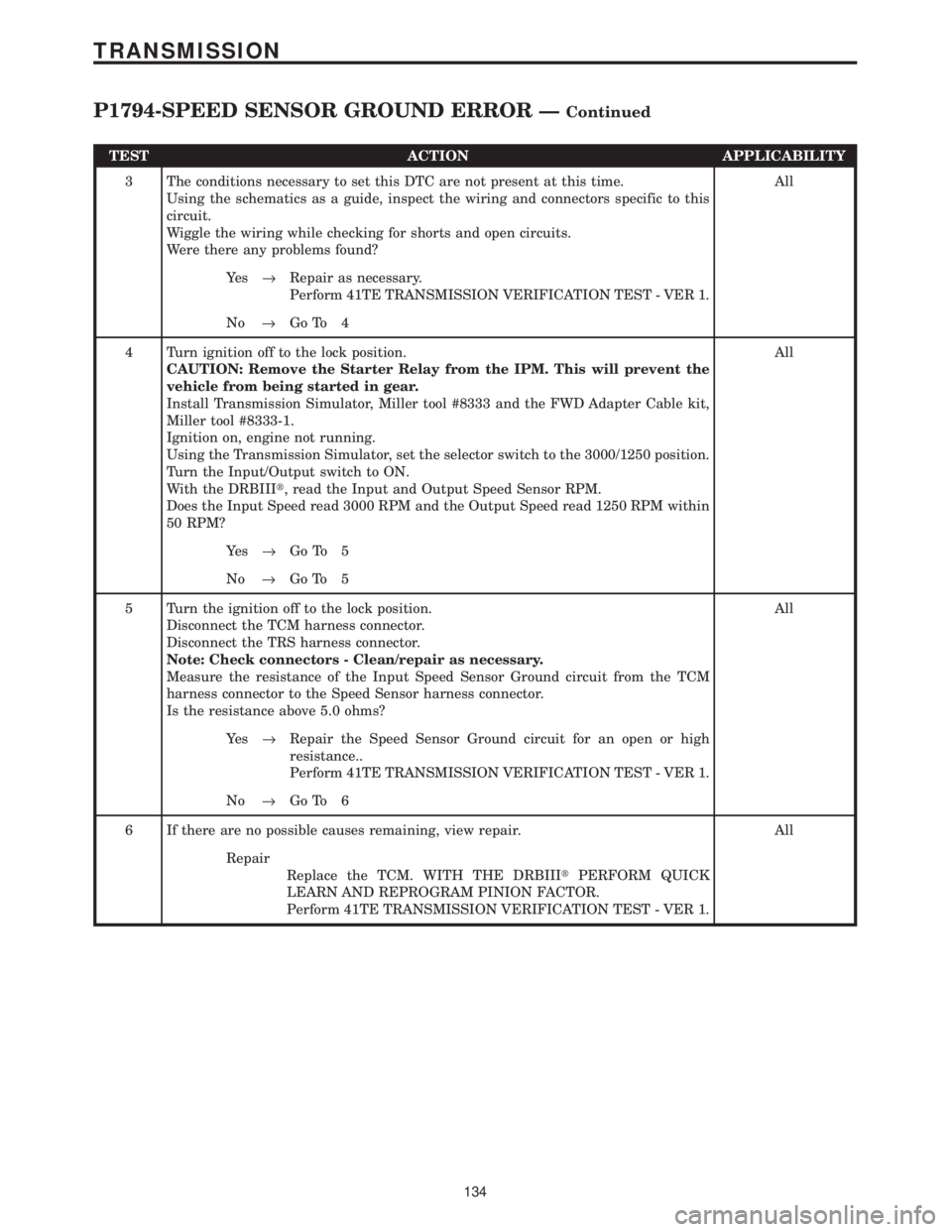

Page 4238 of 4284

TEST ACTION APPLICABILITY
3 The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this
circuit.
Wiggle the wiring while checking for shorts and open circuits.
Were there any problems found?All
Ye s®Repair as necessary.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 4
4 Turn ignition off to the lock position.
CAUTION: Remove the Starter Relay from the IPM. This will prevent the
vehicle from being started in gear.
Install Transmission Simulator, Miller tool #8333 and the FWD Adapter Cable kit,
Miller tool #8333-1.
Ignition on, engine not running.
Using the Transmission Simulator, set the selector switch to the 3000/1250 position.
Turn the Input/Output switch to ON.
With the DRBIIIt, read the Input and Output Speed Sensor RPM.
Does the Input Speed read 3000 RPM and the Output Speed read 1250 RPM within
50 RPM?All
Ye s®Go To 5
No®Go To 5
5 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the TRS harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Input Speed Sensor Ground circuit from the TCM
harness connector to the Speed Sensor harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Speed Sensor Ground circuit for an open or high
resistance..
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 6
6 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
134
TRANSMISSION
P1794-SPEED SENSOR GROUND ERROR ÐContinued

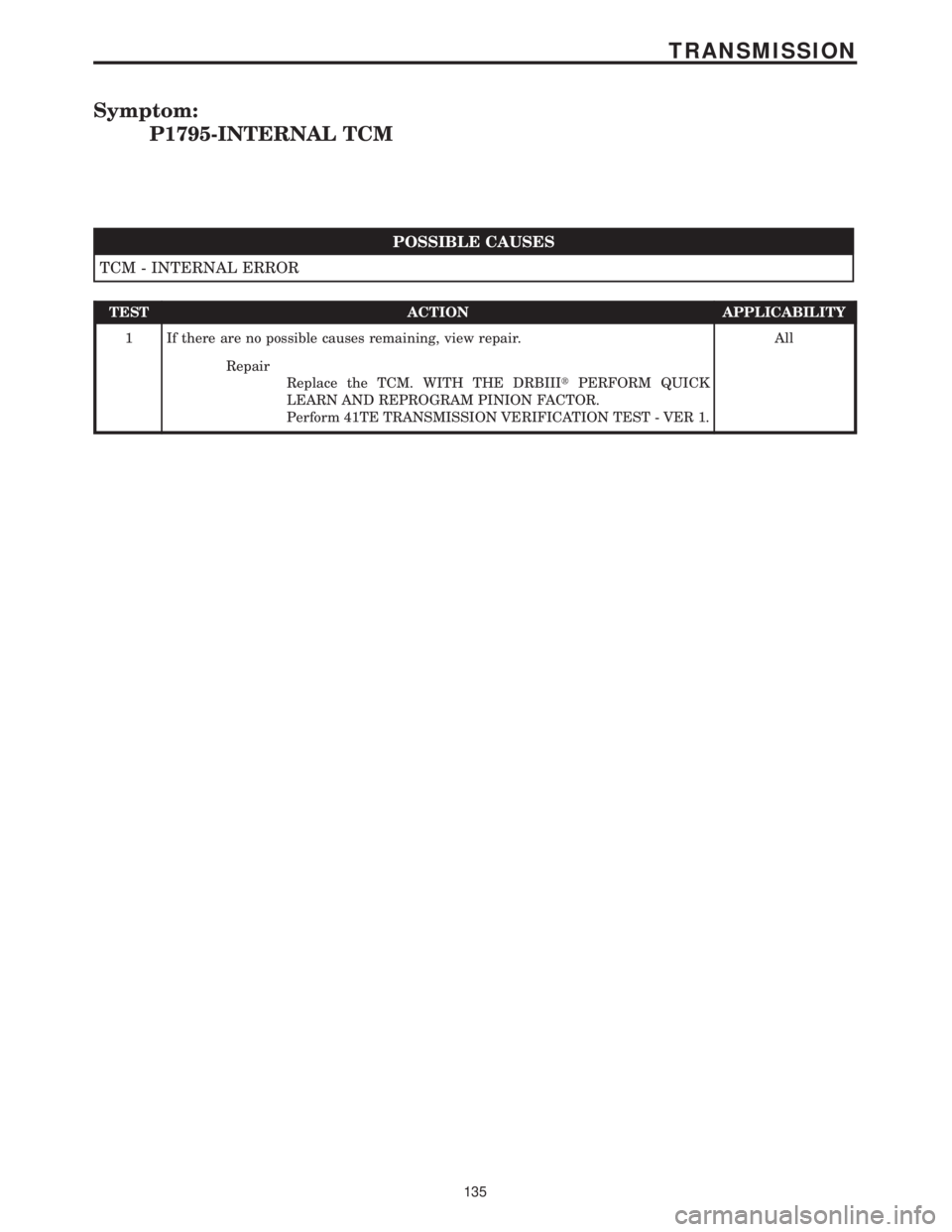

Page 4239 of 4284
Symptom:
P1795-INTERNAL TCM
POSSIBLE CAUSES
TCM - INTERNAL ERROR
TEST ACTION APPLICABILITY
1 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
135
TRANSMISSION
Page 4240 of 4284

Symptom:
P1796-AUTOSTICK SENSOR CIRCUIT
POSSIBLE CAUSES
VERIFY AUTOSTICK OPERATION WITH SWITCH IN THE DOWN POSITION
VERIFY AUTOSTICK OPERATION WITH SWITCH IN THE UP POSITION
VERIFY OD OFF SWITCH OPERATION
INTERMITTENT OPERATION
AUTOSTICK/OD OFF MUX INPUT CIRCUIT OPEN
AUTOSTICK/OD OFF SWITCH ASSEMBLY GROUND CIRCUIT OPEN
AUTOSTICK/OD OFF MUX INPUT CIRCUIT SHORT TO GROUND
AUTOSTICK/OD OFF MUX INPUT CIRCUIT SHORT TO VOLTAGE
TCM - AUTOSTICK INPUT CIRCUIT
TEST ACTION APPLICABILITY
1 With the DRBIIIt, Check the STARTS SINCE SET counter.
NOTE: This counter only applies to the last DTC set.
Is the STARTS SINCE SET counter for P1796 set at 0?All
Ye s®Go To 2
No®Go To 11
2 Turn the ignition on.
Select the Autostick position with the gear selector.
With the DRBIIIt, observe the Autostick switch voltage.
NOTE: Do not press any Autostick switches while reading the voltage.
Is the voltage between 3.8 - 4.8 volts?All
Ye s®Go To 3
No®Go To 6
3 Turn the ignition on.
Select the Autostick position with the gear selector.
With the DRBIIIt, observe the Autostick switch voltage.
Push the Autostick down switch.
Is the voltage between 0.3 - 1.6 volts?All
Ye s®Go To 4
No®Replace the Autostick/OD OFF switch assembly.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
4 Turn the ignition on.
Select the Autostick position with the gear selector.
With the DRBIIIt, observe the Autostick switch voltage.
Push the Autostick up switch.
Is the voltage between 1.6 - 2.8 volts?All
Ye s®Go To 5
No®Replace the Autostick/OD OFF switch assembly.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
136
TRANSMISSION
