Page 4177 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2 With the DRBIIIt, read Transmission Control Module DTCs
Are there any Transmission Control Relay related DTCs P1765, P1767, or P1768
present?All
Ye s®Refer to symptom li

TEST ACTION APPLICABILITY
2 With the DRBIIIt, read Transmission Control Module DTC's
Are there any Transmission Control Relay related DTC's P1765, P1767, or P1768
present?All
Ye s®Refer to symptom list and perform the appropriate symptom for
Transmission Control Relay related DTC's.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 3
3 With the DRBIIIt, Check the STARTS SINCE SET counter.
NOTE: This counter only applies to the last DTC set.
Is the STARTS SINCE SET counter for P0765 set at 0?All
Ye s®Go To 4
No®Go To 11
4 Turn the ignition off to the lock position.
CAUTION: Remove the Starter Relay from the IPM. This will prevent the
vehicle from being started in gear.
Install Transmission Simulator, Miller tool #8333 and the FWD Adapter Cable kit,
Miller tool #8333-1.
Ignition on, engine not running.
With the DRBIIIt, actuate the UD Solenoid.
Monitor the UD Solenoid LED on the Transmission Simulator, Miller tool #8333.
Did the UD Solenoid LED on the Transmission Simulator blink on and off?All
Ye s®Go To 5
No®Go To 6
5 If there are no possible causes remaining, view repair. All
Repair
Replace Transmission Solenoid/Pressure Switch Assembly as re-
quired.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
6 Turn the ignition off to the lock position.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Fused B+ circuit and Transmission Control Relay
Output circuit in the Transmission Control Relay connector in the IPM.
Ignition on, engine not running.
Using a 12-volt test light connected to ground, check the Transmission Control Relay
Output circuit in the Transmission Solenoid/Pressure Switch Assembly harness
connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s®Go To 7
No®Repair the Transmission Control Relay Output circuit for an open
or high resistance.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
73
TRANSMISSION
P0765-UD SOLENOID CIRCUIT ÐContinued

Page 4178 of 4284

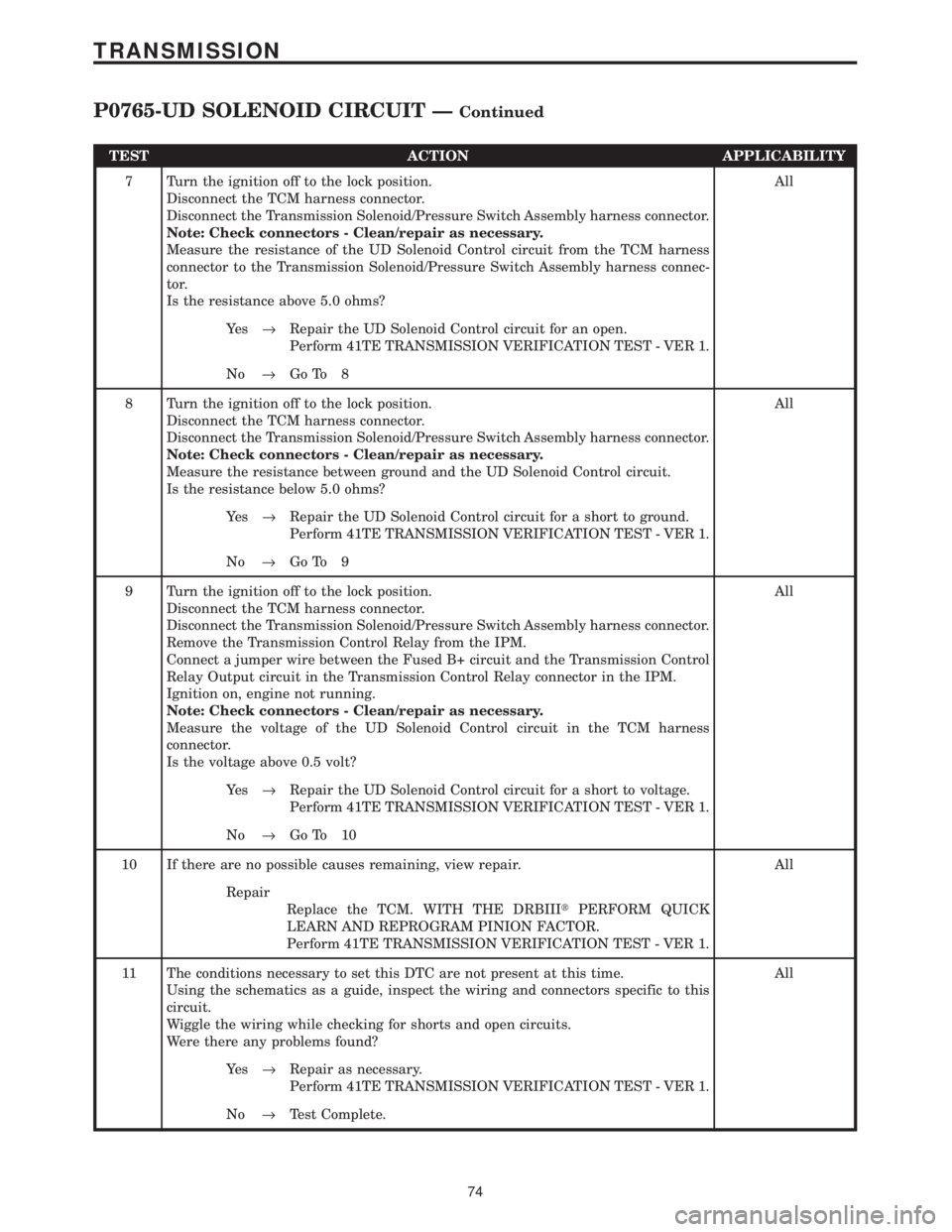

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Note: Che

TEST ACTION APPLICABILITY
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the UD Solenoid Control circuit from the TCM harness
connector to the Transmission Solenoid/Pressure Switch Assembly harness connec-
tor.
Is the resistance above 5.0 ohms?All
Ye s®Repair the UD Solenoid Control circuit for an open.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 8
8 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the UD Solenoid Control circuit.
Is the resistance below 5.0 ohms?All
Ye s®Repair the UD Solenoid Control circuit for a short to ground.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 9
9 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Remove the Transmission Control Relay from the IPM.
Connect a jumper wire between the Fused B+ circuit and the Transmission Control
Relay Output circuit in the Transmission Control Relay connector in the IPM.
Ignition on, engine not running.
Note: Check connectors - Clean/repair as necessary.
Measure the voltage of the UD Solenoid Control circuit in the TCM harness
connector.
Is the voltage above 0.5 volt?All
Ye s®Repair the UD Solenoid Control circuit for a short to voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 10
10 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
11 The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this
circuit.
Wiggle the wiring while checking for shorts and open circuits.
Were there any problems found?All
Ye s®Repair as necessary.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
74
TRANSMISSION
P0765-UD SOLENOID CIRCUIT ÐContinued

Page 4179 of 4284

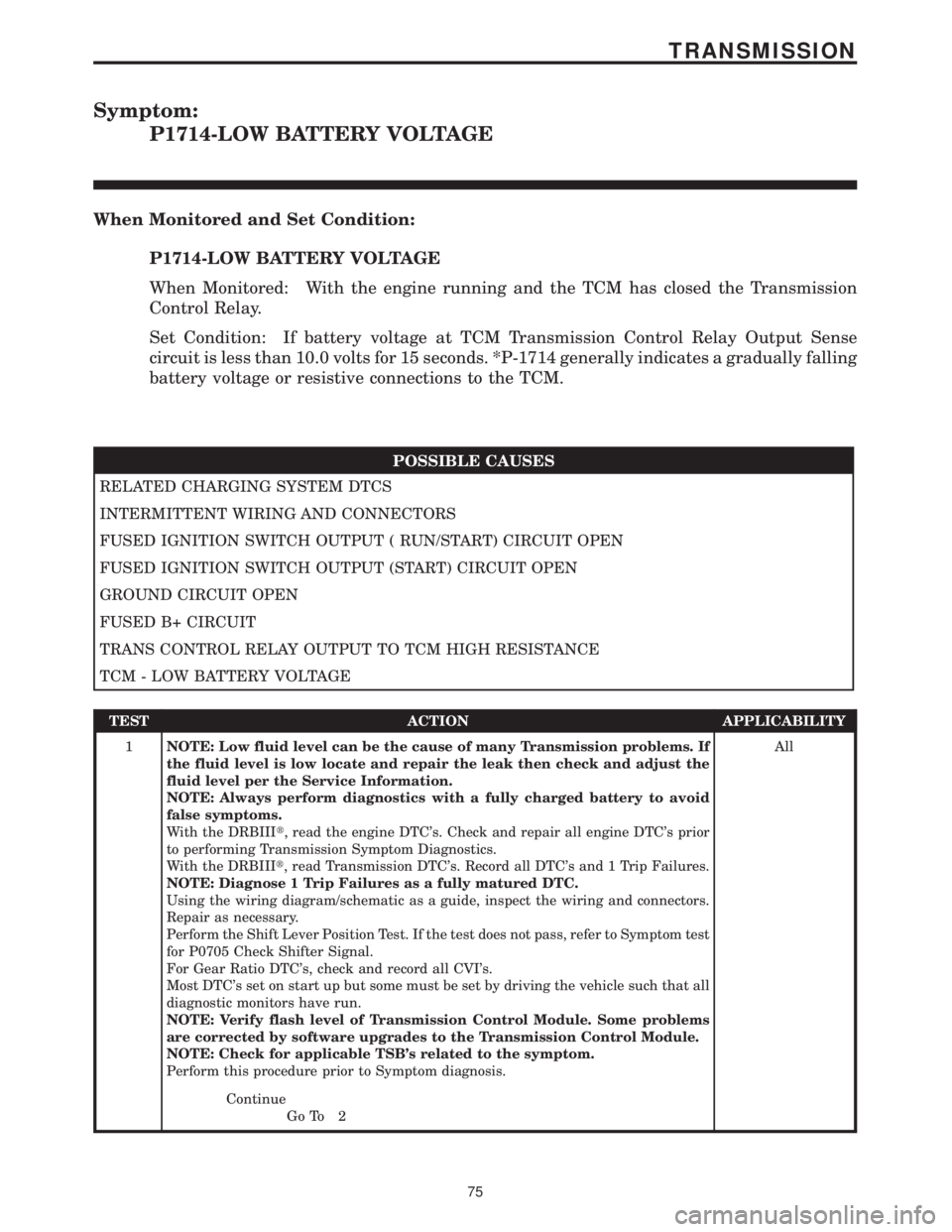

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P1714-LOW BATTERY VOLTAGE
When Monitored and Set Condition:
P1714-LOW BATTERY VOLTAGE
When Monitored: With the engine running and the TCM has closed the Transmission
Control Relay.
Set Condit

Page 4180 of 4284

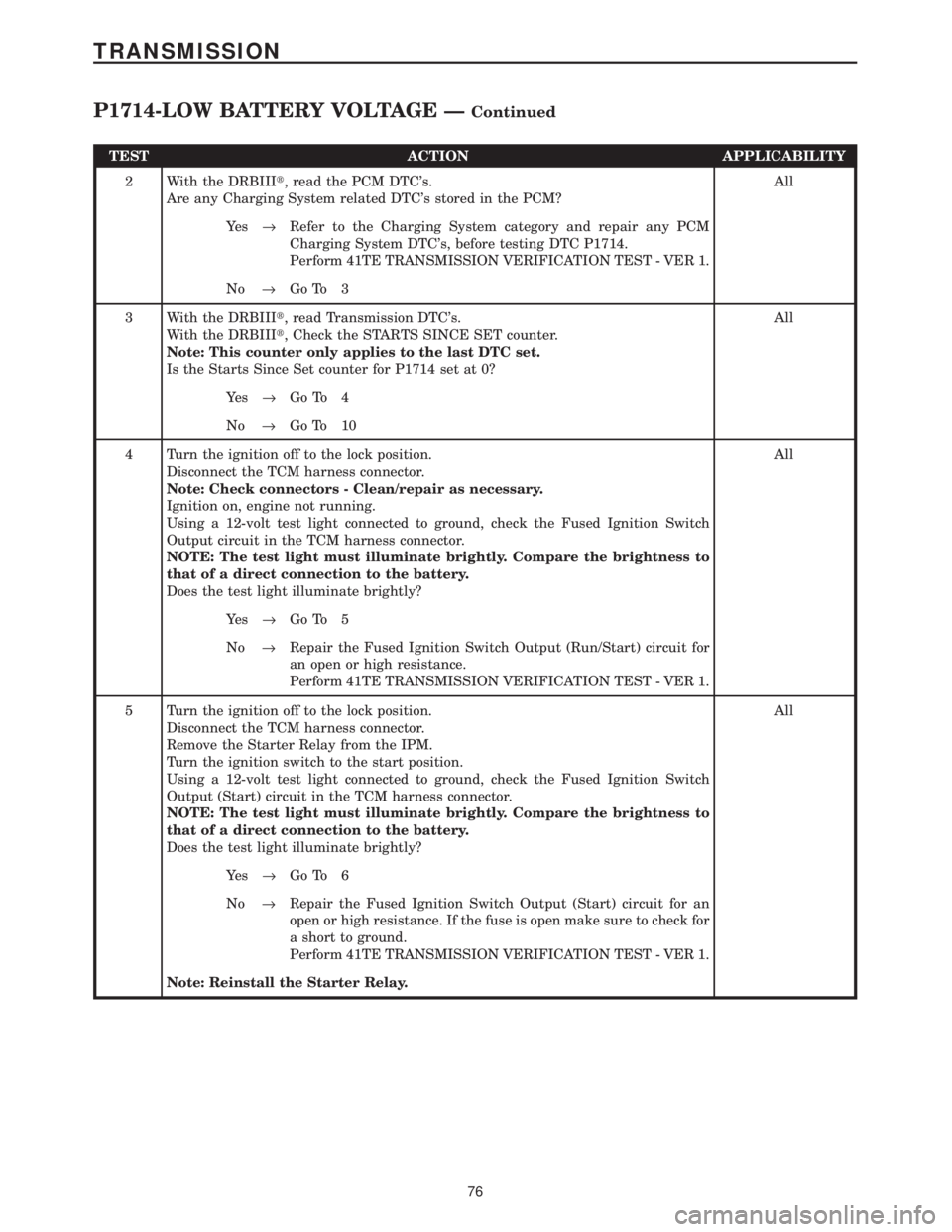

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2 With the DRBIIIt, read the PCM DTCs.
Are any Charging System related DTCs stored in the PCM?All
Ye s®Refer to the Charging System category and repair any PCM
Charging Sy

Page 4181 of 4284

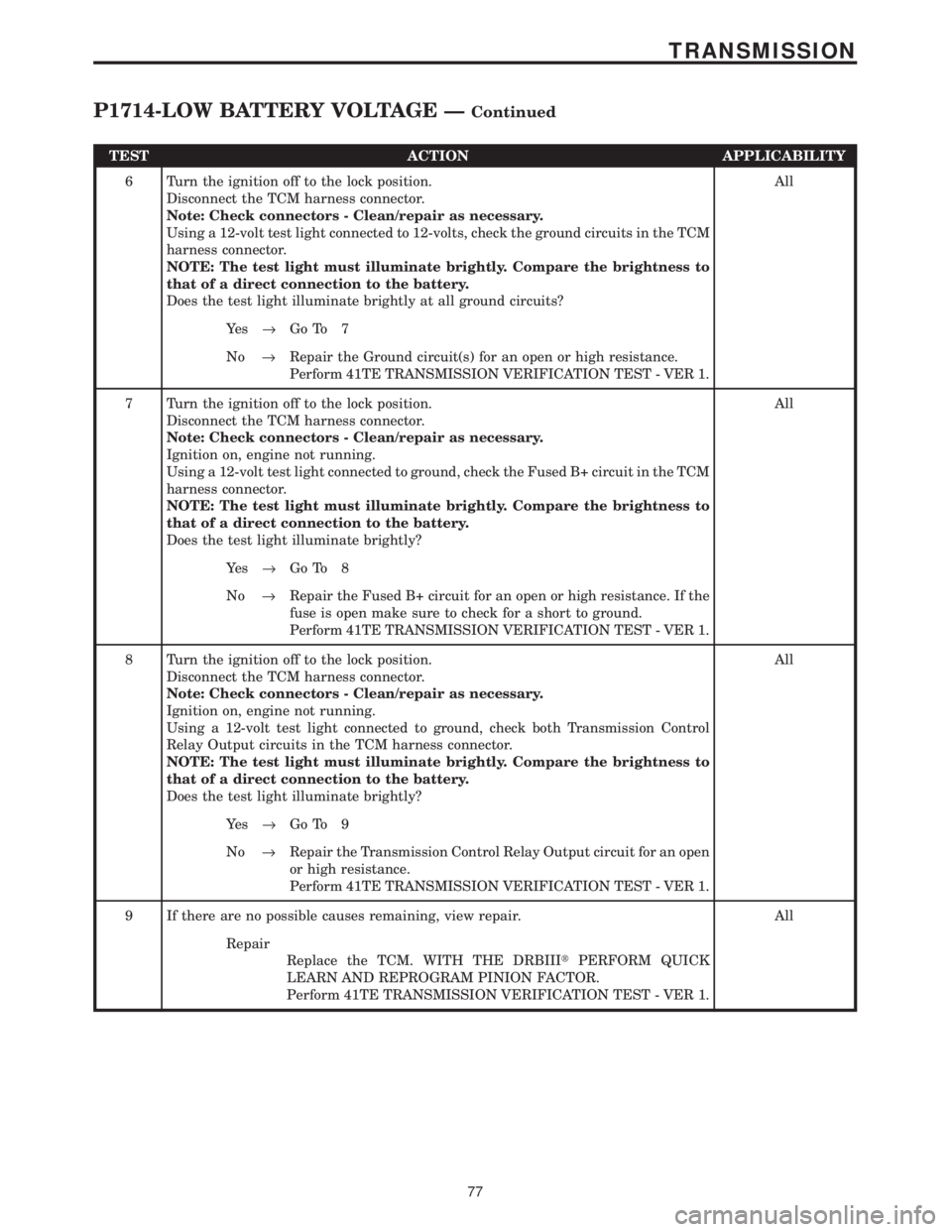

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
6 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.
Using a 12-volt test light connected t

TEST ACTION APPLICABILITY
6 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.
Using a 12-volt test light connected to 12-volts, check the ground circuits in the TCM
harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly at all ground circuits?All
Ye s®Go To 7
No®Repair the Ground circuit(s) for an open or high resistance.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on, engine not running.
Using a 12-volt test light connected to ground, check the Fused B+ circuit in the TCM
harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s®Go To 8
No®Repair the Fused B+ circuit for an open or high resistance. If the
fuse is open make sure to check for a short to ground.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
8 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.
Ignition on, engine not running.
Using a 12-volt test light connected to ground, check both Transmission Control
Relay Output circuits in the TCM harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s®Go To 9
No®Repair the Transmission Control Relay Output circuit for an open
or high resistance.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
9 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
77
TRANSMISSION
P1714-LOW BATTERY VOLTAGE ÐContinued

Page 4182 of 4284

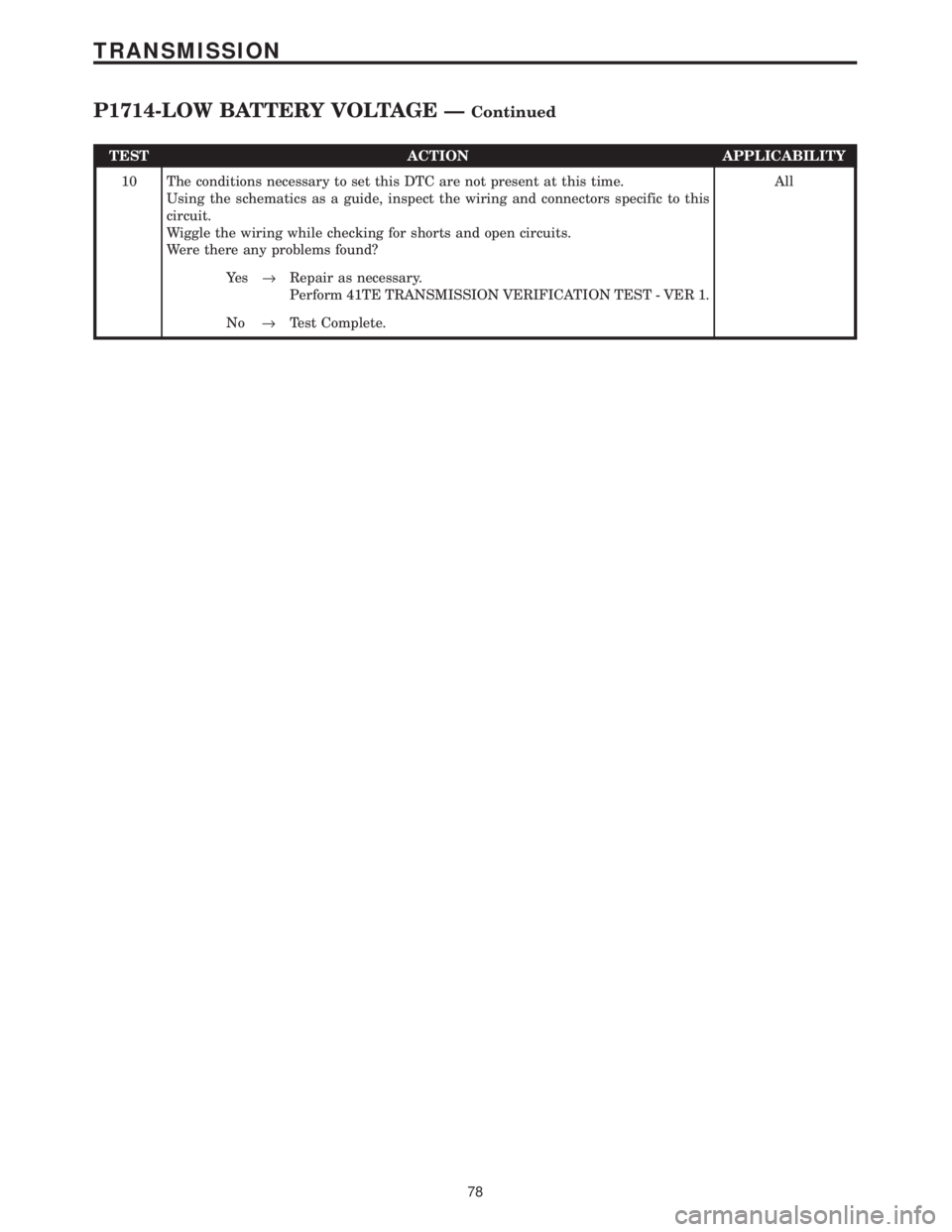

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
10 The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this
circuit.
Wiggle

Page 4183 of 4284

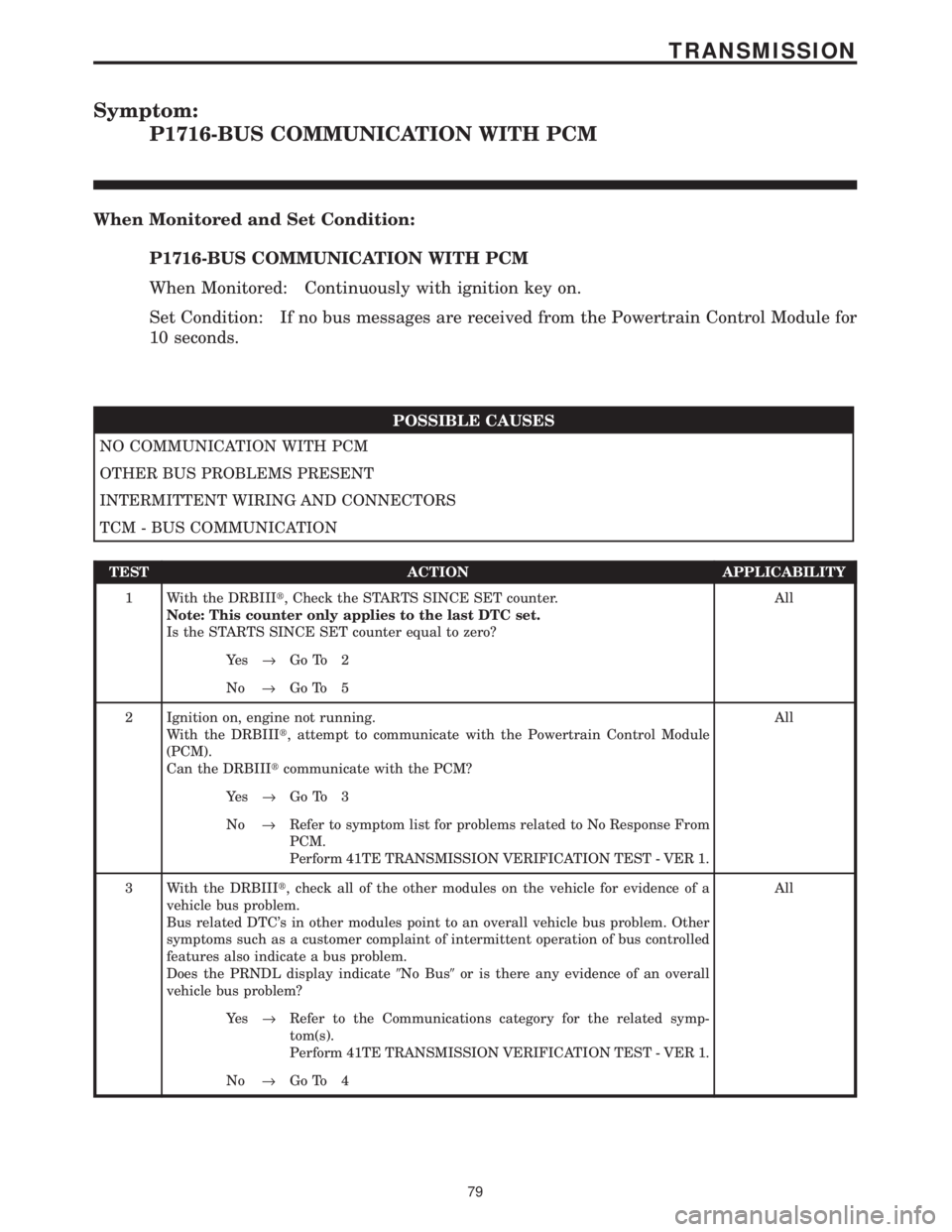

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P1716-BUS COMMUNICATION WITH PCM
When Monitored and Set Condition:
P1716-BUS COMMUNICATION WITH PCM
When Monitored: Continuously with ignition key on.
Set Condition: If no bus messages are re

Page 4184 of 4284

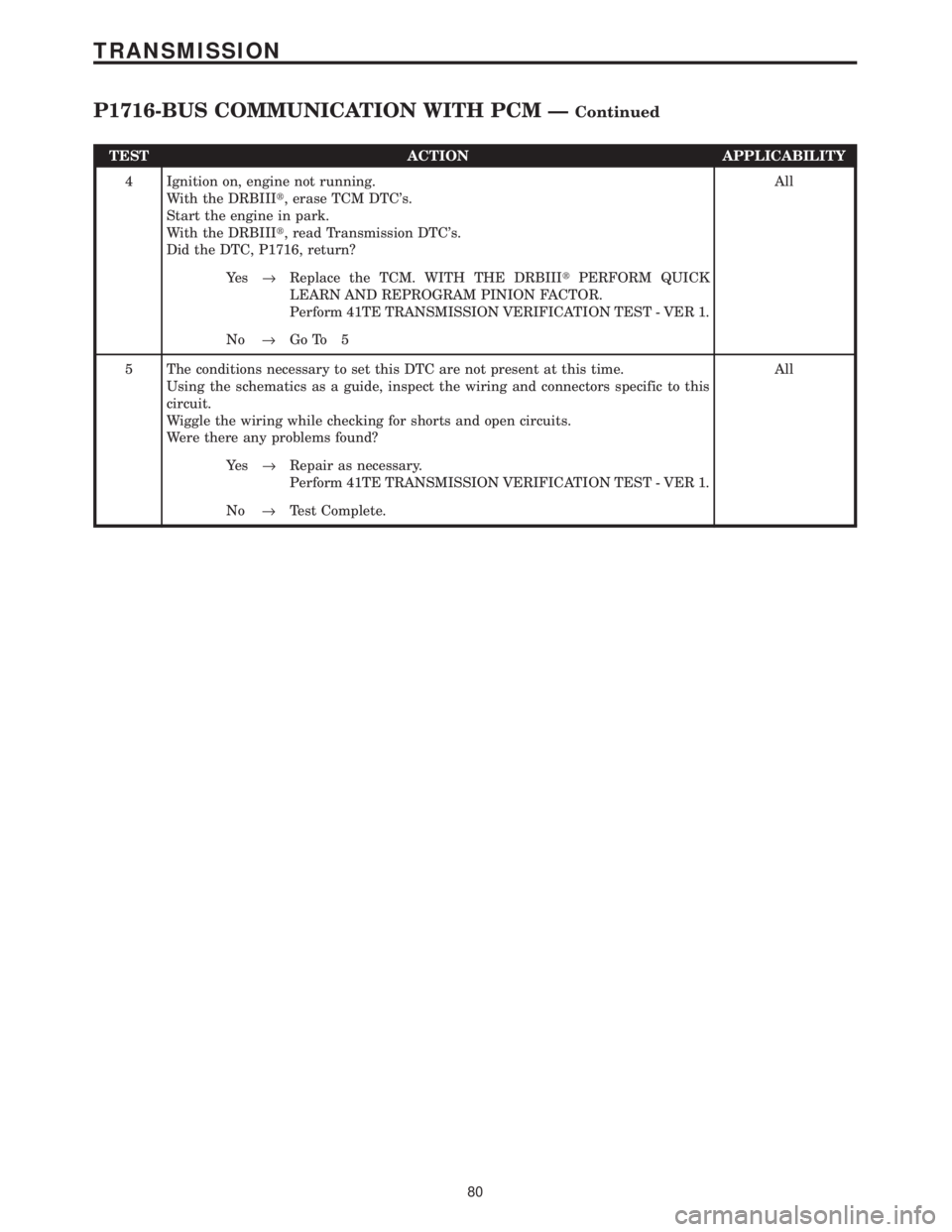

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4 Ignition on, engine not running.
With the DRBIIIt, erase TCM DTCs.
Start the engine in park.
With the DRBIIIt, read Transmission DTCs.
Did the DTC, P1716, return?All
Ye s
