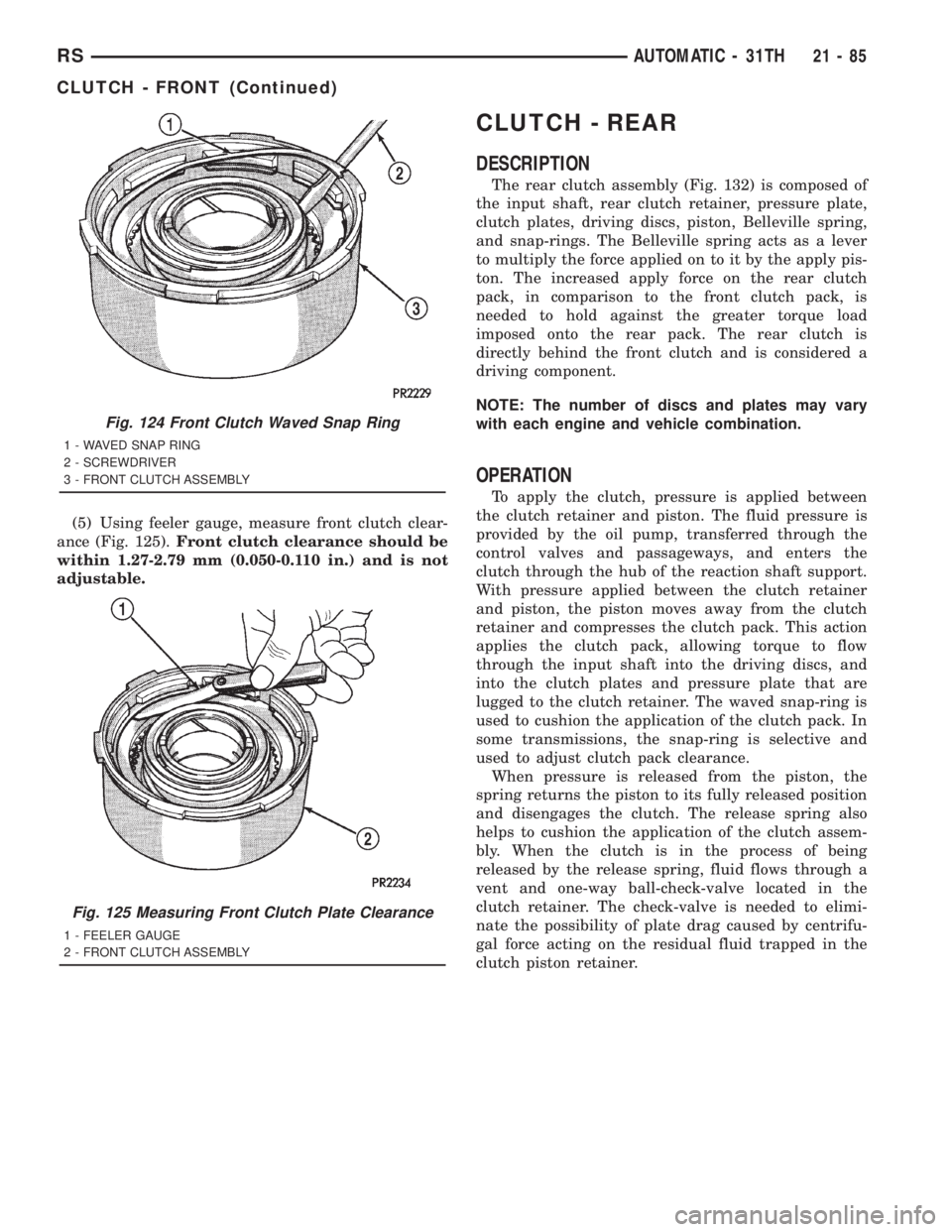

CHRYSLER VOYAGER 2001 Service Manual (5) Using feeler gauge, measure front clutch clear-
ance (Fig. 125).Front clutch clearance should be
within 1.27-2.79 mm (0.050-0.110 in.) and is not
adjustable.
CLUTCH - REAR
DESCRIPTION
The rear clu

(5) Using feeler gauge, measure front clutch clear-
ance (Fig. 125).Front clutch clearance should be
within 1.27-2.79 mm (0.050-0.110 in.) and is not
adjustable.
CLUTCH - REAR
DESCRIPTION
The rear clutch assembly (Fig. 132) is composed of
the input shaft, rear clutch retainer, pressure plate,
clutch plates, driving discs, piston, Belleville spring,
and snap-rings. The Belleville spring acts as a lever
to multiply the force applied on to it by the apply pis-
ton. The increased apply force on the rear clutch
pack, in comparison to the front clutch pack, is
needed to hold against the greater torque load
imposed onto the rear pack. The rear clutch is
directly behind the front clutch and is considered a
driving component.
NOTE: The number of discs and plates may vary
with each engine and vehicle combination.
OPERATION
To apply the clutch, pressure is applied between
the clutch retainer and piston. The fluid pressure is
provided by the oil pump, transferred through the
control valves and passageways, and enters the
clutch through the hub of the reaction shaft support.
With pressure applied between the clutch retainer
and piston, the piston moves away from the clutch
retainer and compresses the clutch pack. This action
applies the clutch pack, allowing torque to flow
through the input shaft into the driving discs, and
into the clutch plates and pressure plate that are
lugged to the clutch retainer. The waved snap-ring is
used to cushion the application of the clutch pack. In
some transmissions, the snap-ring is selective and
used to adjust clutch pack clearance.
When pressure is released from the piston, the
spring returns the piston to its fully released position
and disengages the clutch. The release spring also
helps to cushion the application of the clutch assem-
bly. When the clutch is in the process of being
released by the release spring, fluid flows through a
vent and one-way ball-check-valve located in the
clutch retainer. The check-valve is needed to elimi-
nate the possibility of plate drag caused by centrifu-
gal force acting on the residual fluid trapped in the
clutch piston retainer.
Fig. 124 Front Clutch Waved Snap Ring
1 - WAVED SNAP RING
2 - SCREWDRIVER
3 - FRONT CLUTCH ASSEMBLY
Fig. 125 Measuring Front Clutch Plate Clearance
1 - FEELER GAUGE
2 - FRONT CLUTCH ASSEMBLY
RSAUTOMATIC - 31TH21-85
CLUTCH - FRONT (Continued)

Page 3050 of 4284

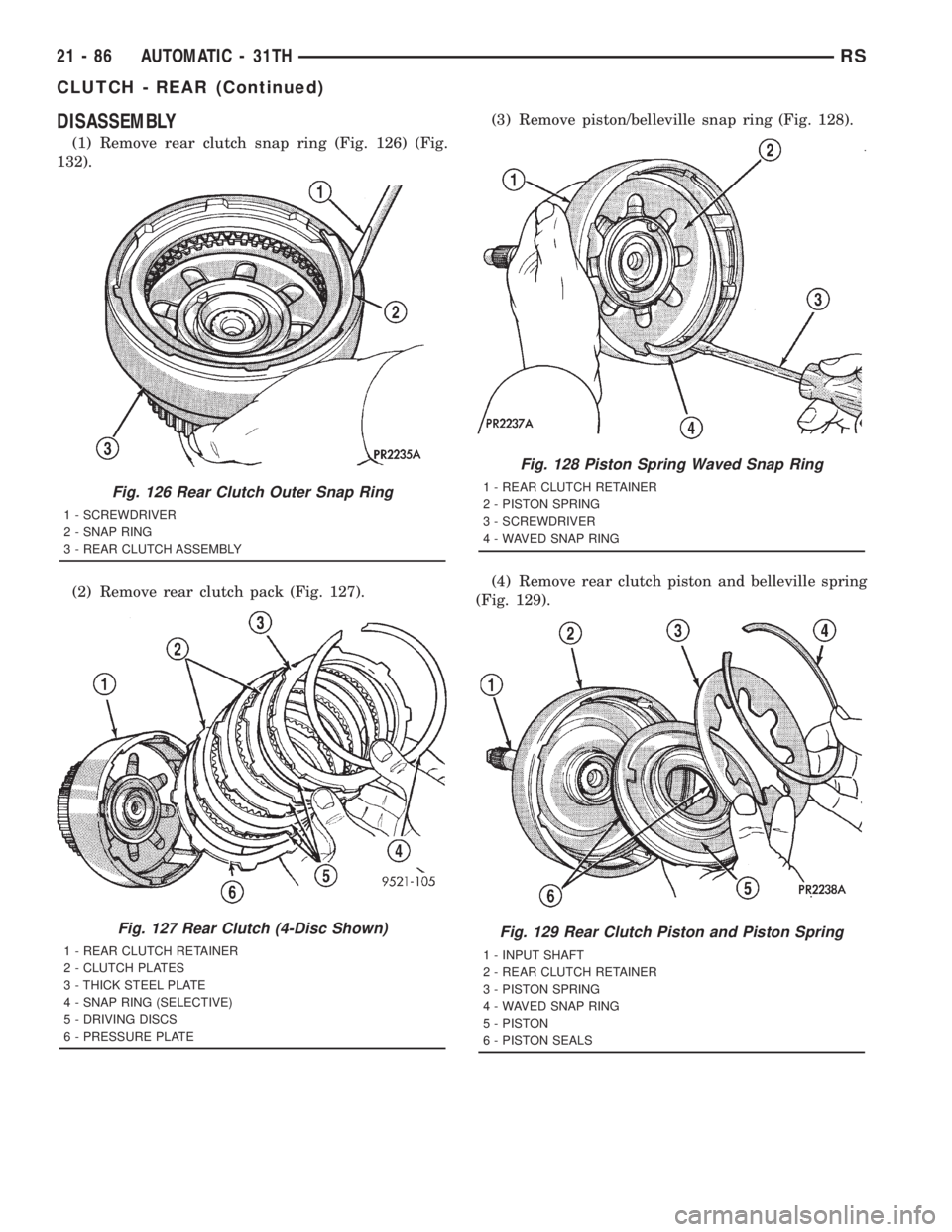

CHRYSLER VOYAGER 2001 Service Manual DISASSEMBLY
(1) Remove rear clutch snap ring (Fig. 126) (Fig.
132).
(2) Remove rear clutch pack (Fig. 127).(3) Remove piston/belleville snap ring (Fig. 128).
(4) Remove rear clutch piston and bellevil

Page 3051 of 4284

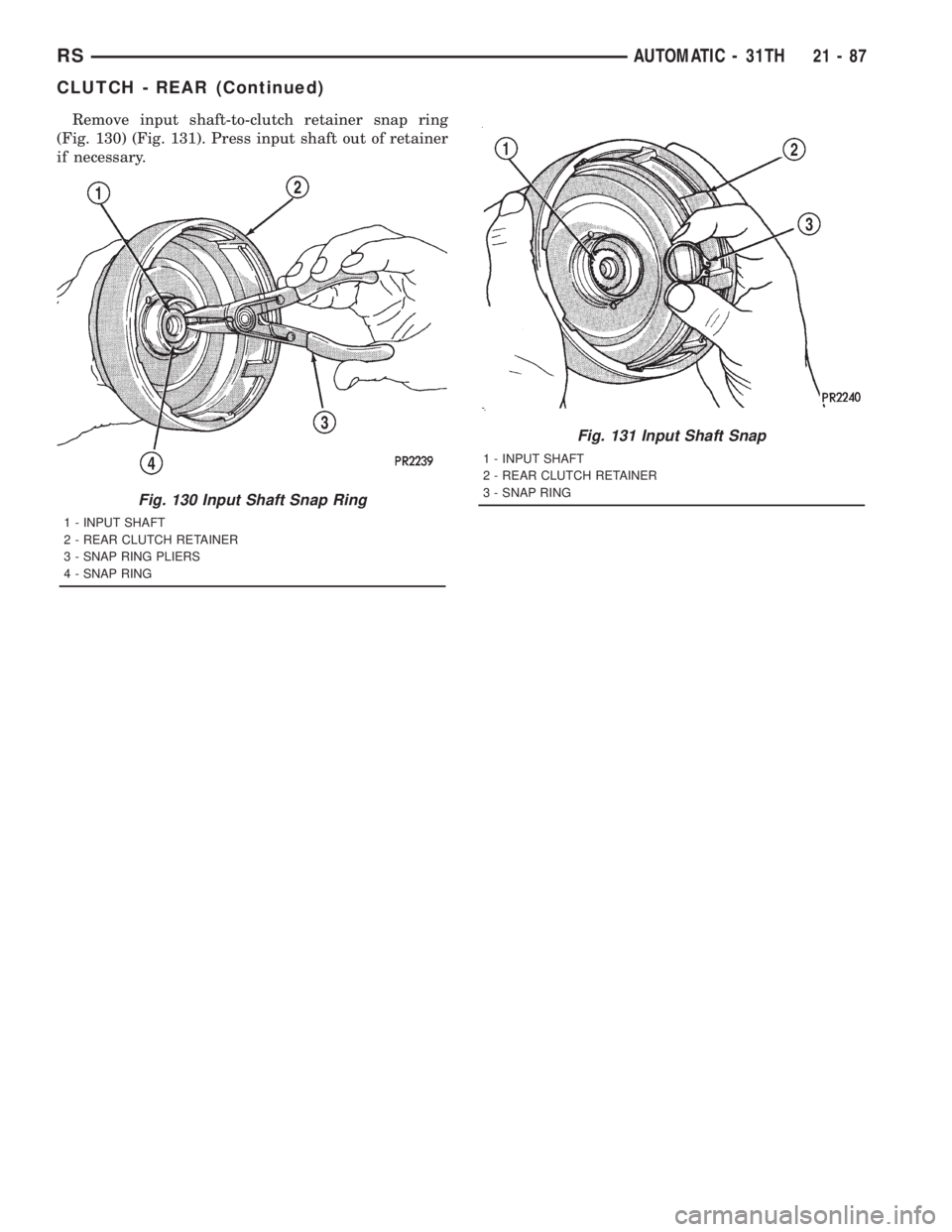

CHRYSLER VOYAGER 2001 Service Manual Remove input shaft-to-clutch retainer snap ring
(Fig. 130) (Fig. 131). Press input shaft out of retainer
if necessary.
Fig. 130 Input Shaft Snap Ring
1 - INPUT SHAFT
2 - REAR CLUTCH RETAINER
3 - SNAP

Page 3052 of 4284

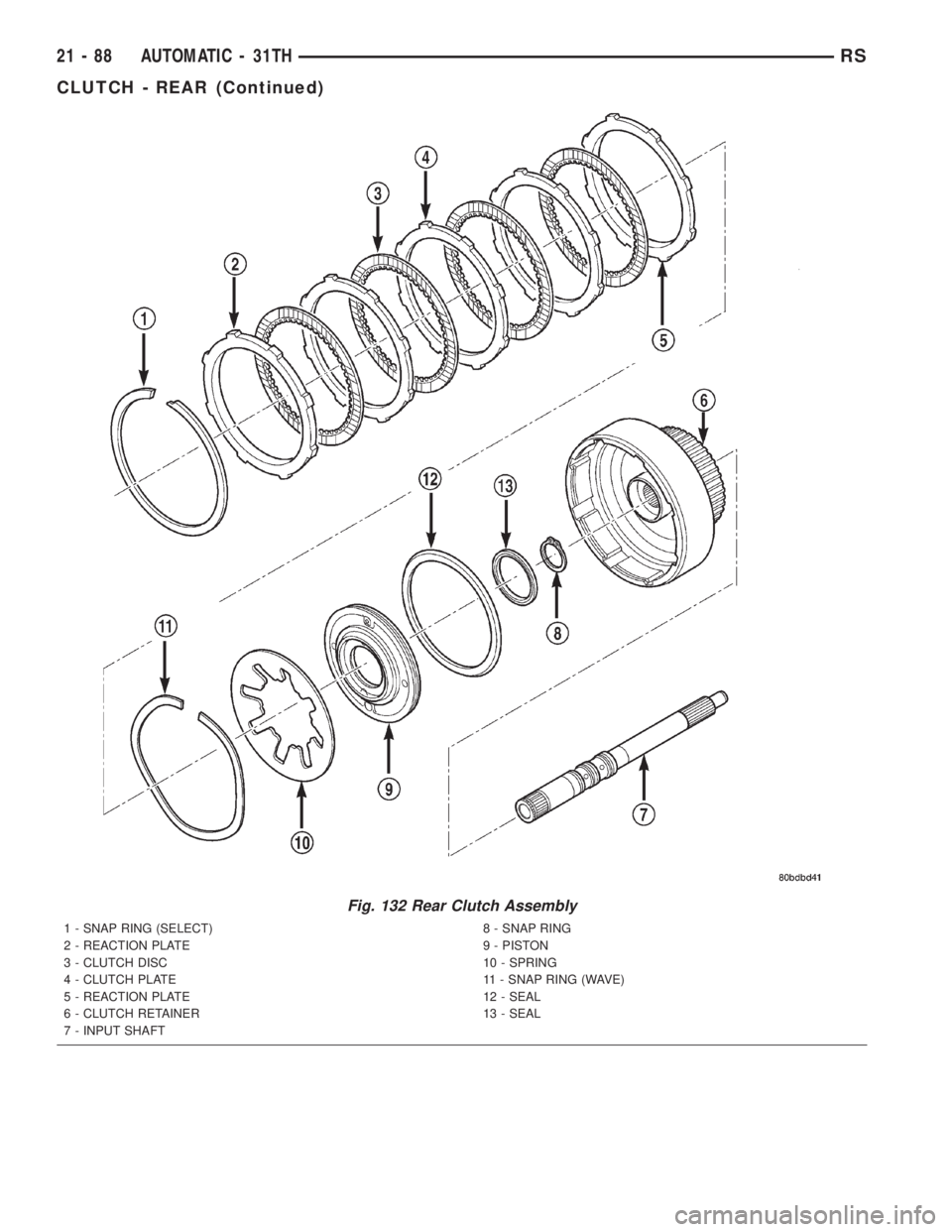

CHRYSLER VOYAGER 2001 Service Manual Fig. 132 Rear Clutch Assembly
1 - SNAP RING (SELECT)
2 - REACTION PLATE
3 - CLUTCH DISC
4 - CLUTCH PLATE
5 - REACTION PLATE
6 - CLUTCH RETAINER
7 - INPUT SHAFT8 - SNAP RING
9 - PISTON
10 - SPRING
11 -

Page 3053 of 4284

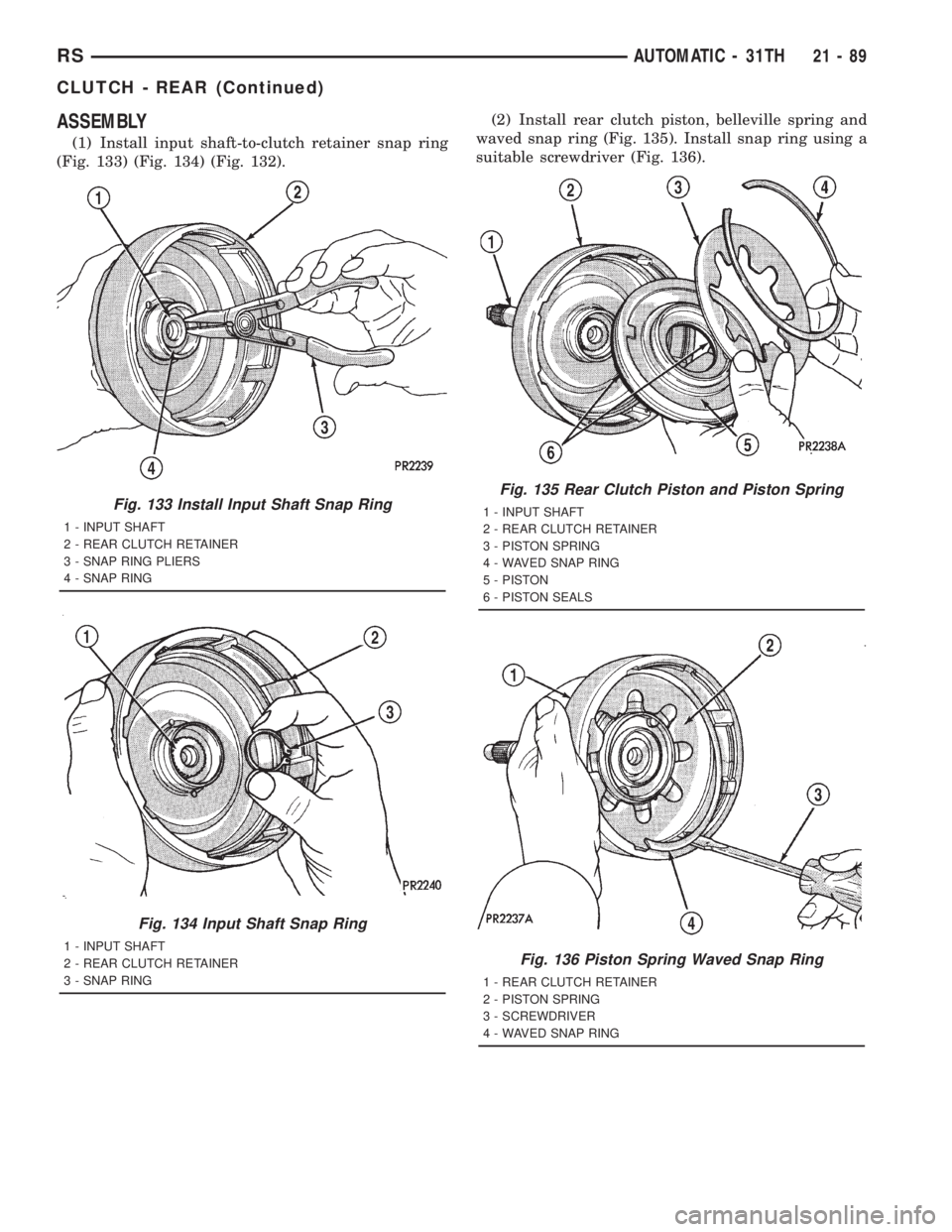

CHRYSLER VOYAGER 2001 Service Manual ASSEMBLY
(1) Install input shaft-to-clutch retainer snap ring
(Fig. 133) (Fig. 134) (Fig. 132).(2) Install rear clutch piston, belleville spring and
waved snap ring (Fig. 135). Install snap ring using

Page 3054 of 4284

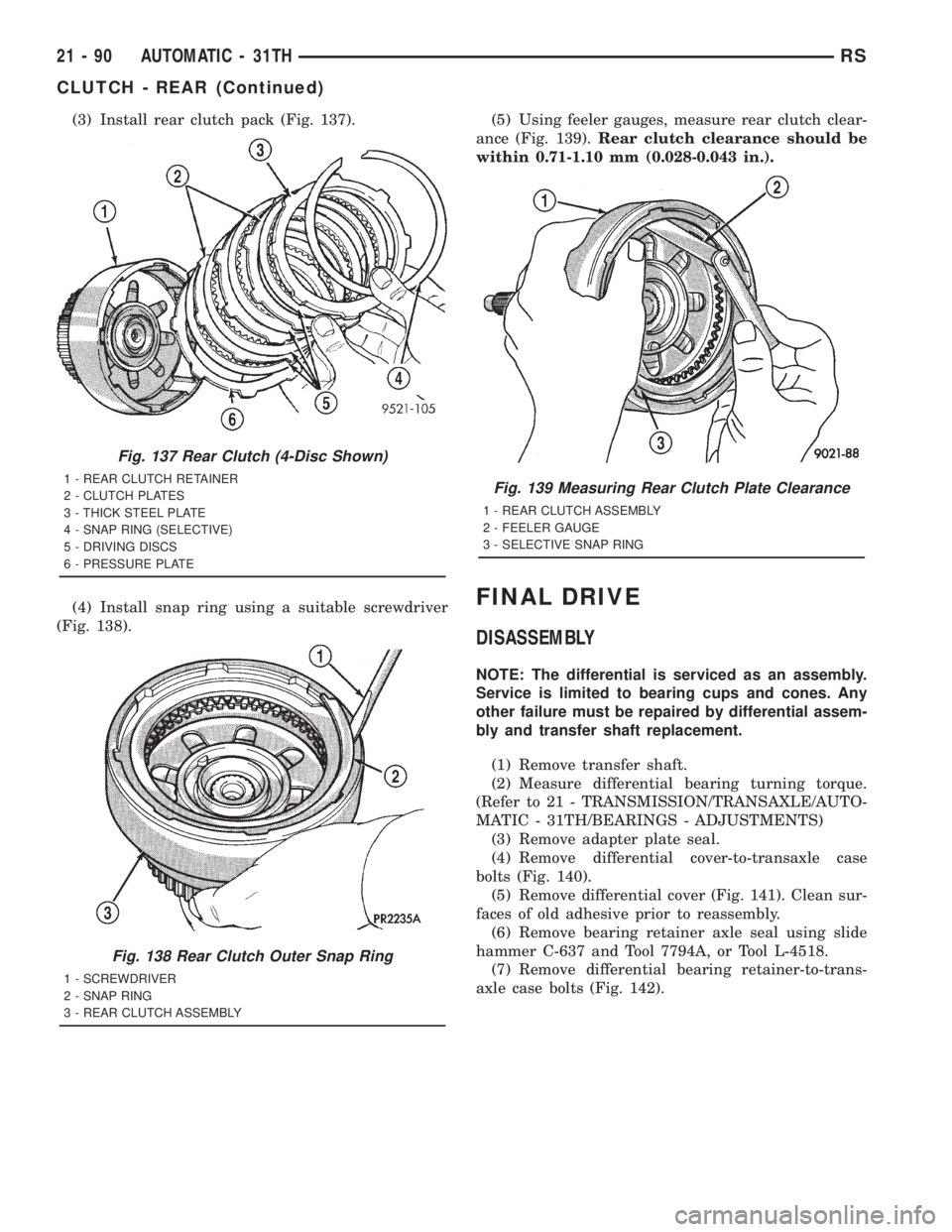

CHRYSLER VOYAGER 2001 Service Manual (3) Install rear clutch pack (Fig. 137).
(4) Install snap ring using a suitable screwdriver
(Fig. 138).(5) Using feeler gauges, measure rear clutch clear-
ance (Fig. 139).Rear clutch clearance should

Page 3055 of 4284

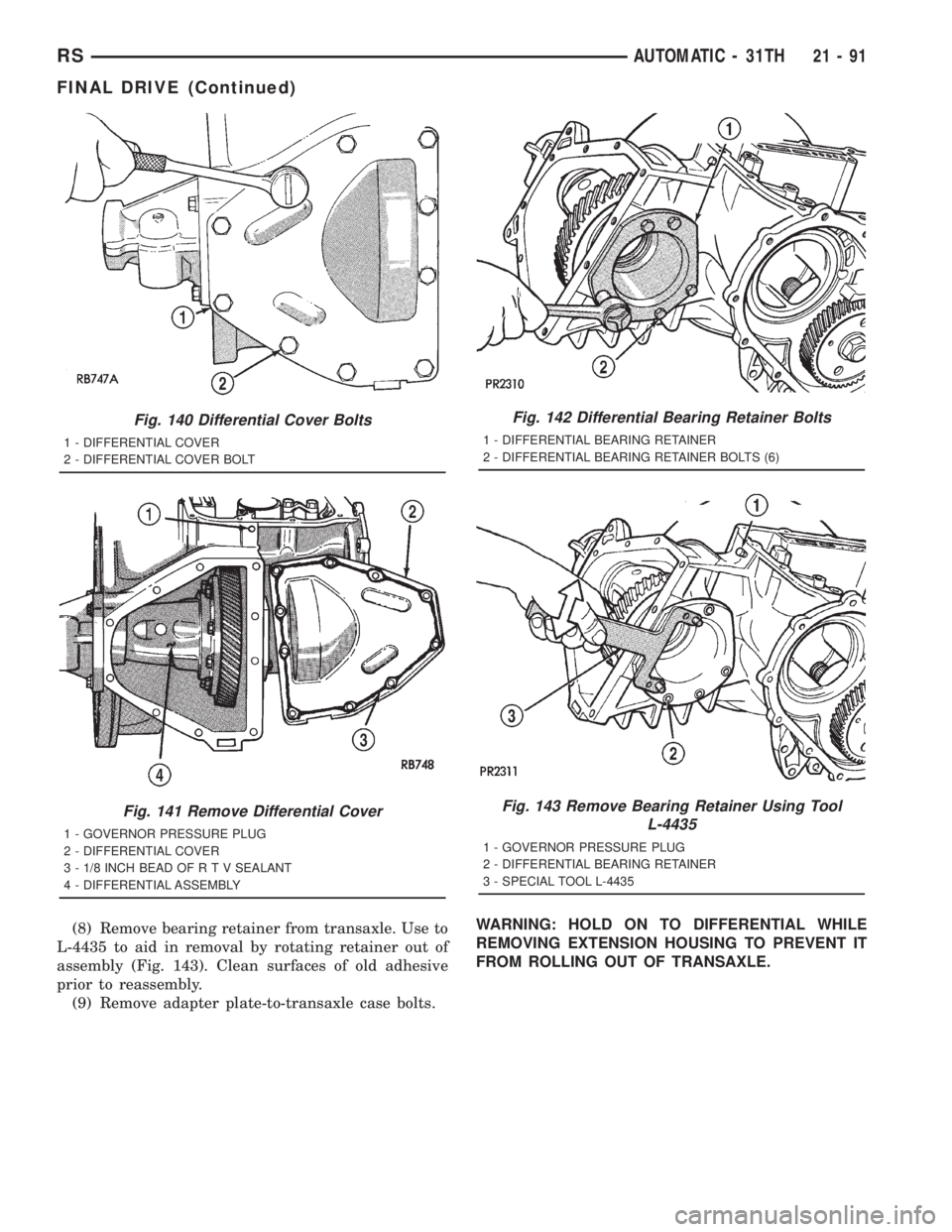

CHRYSLER VOYAGER 2001 Service Manual (8) Remove bearing retainer from transaxle. Use to
L-4435 to aid in removal by rotating retainer out of
assembly (Fig. 143). Clean surfaces of old adhesive
prior to reassembly.
(9) Remove adapter plat

Page 3056 of 4284

CHRYSLER VOYAGER 2001 Service Manual (10) Remove extension housing from transaxle
case. Use Tool L-4435 to aid in removal by rotating
plate out of assembly. Clean surfaces of old adhesive
prior to reassembly.
(11) Measure and record diff
