Page 1073 of 4284

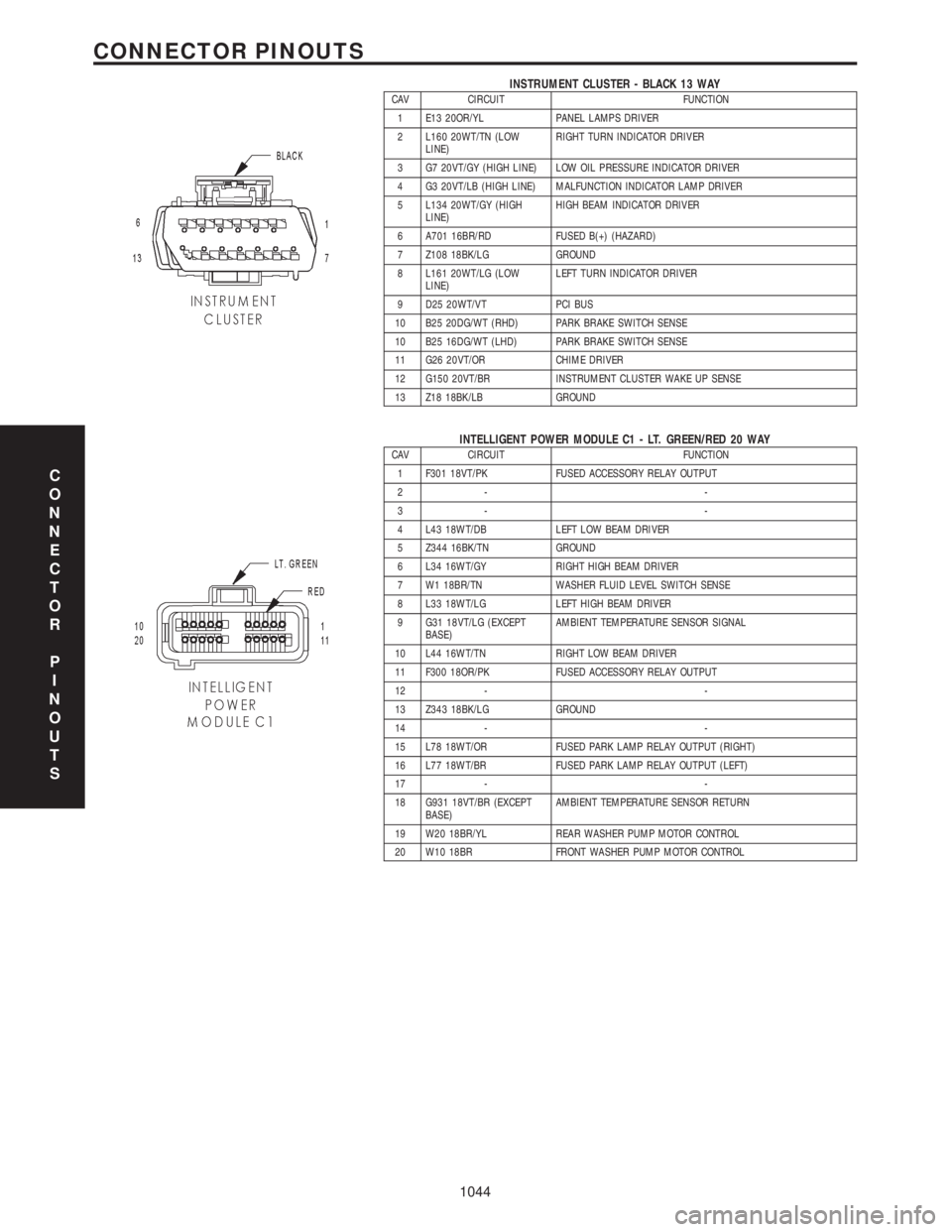

CHRYSLER VOYAGER 2001 Service Manual INSTRUMENT CLUSTER - BLACK 13 WAYCAV CIRCUIT FUNCTION 1 E13 20OR/YL PANEL LAMPS DRIVER 2 L160 20WT/TN (LOW LINE)RIGHT TURN INDICATOR DRIVER 3 G7 20VT/GY (HIGH LINE) LOW OIL PRESSURE INDICATOR DRIVER 4

Page 1074 of 4284

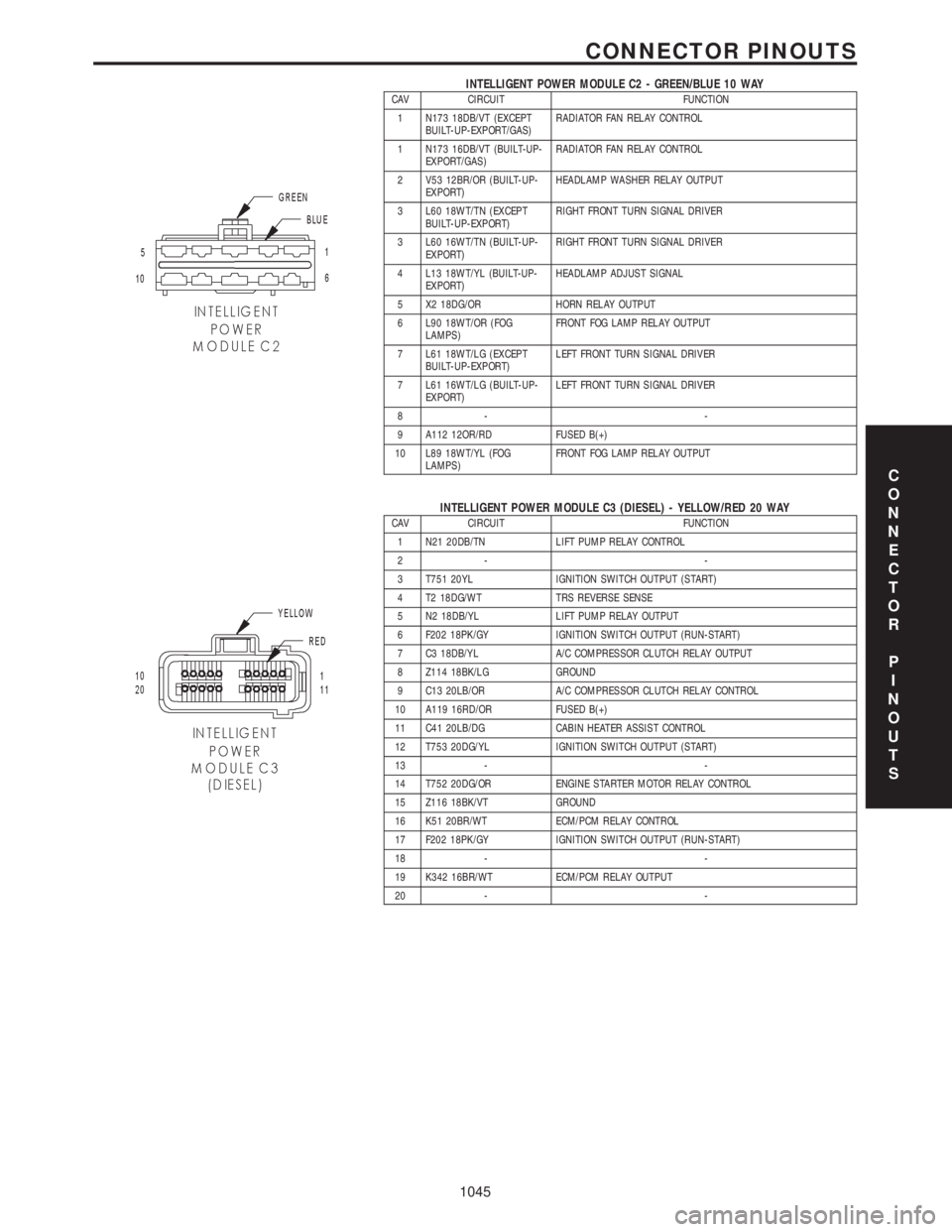

CHRYSLER VOYAGER 2001 Service Manual INTELLIGENT POWER MODULE C2 - GREEN/BLUE 10 WAYCAV CIRCUIT FUNCTION 1 N173 18DB/VT (EXCEPT BUILT-UP-EXPORT/GAS)RADIATOR FAN RELAY CONTROL 1 N173 16DB/VT (BUILT-UP- EXPORT/GAS)RADIATOR FAN RELAY CONTRO

Page 1075 of 4284

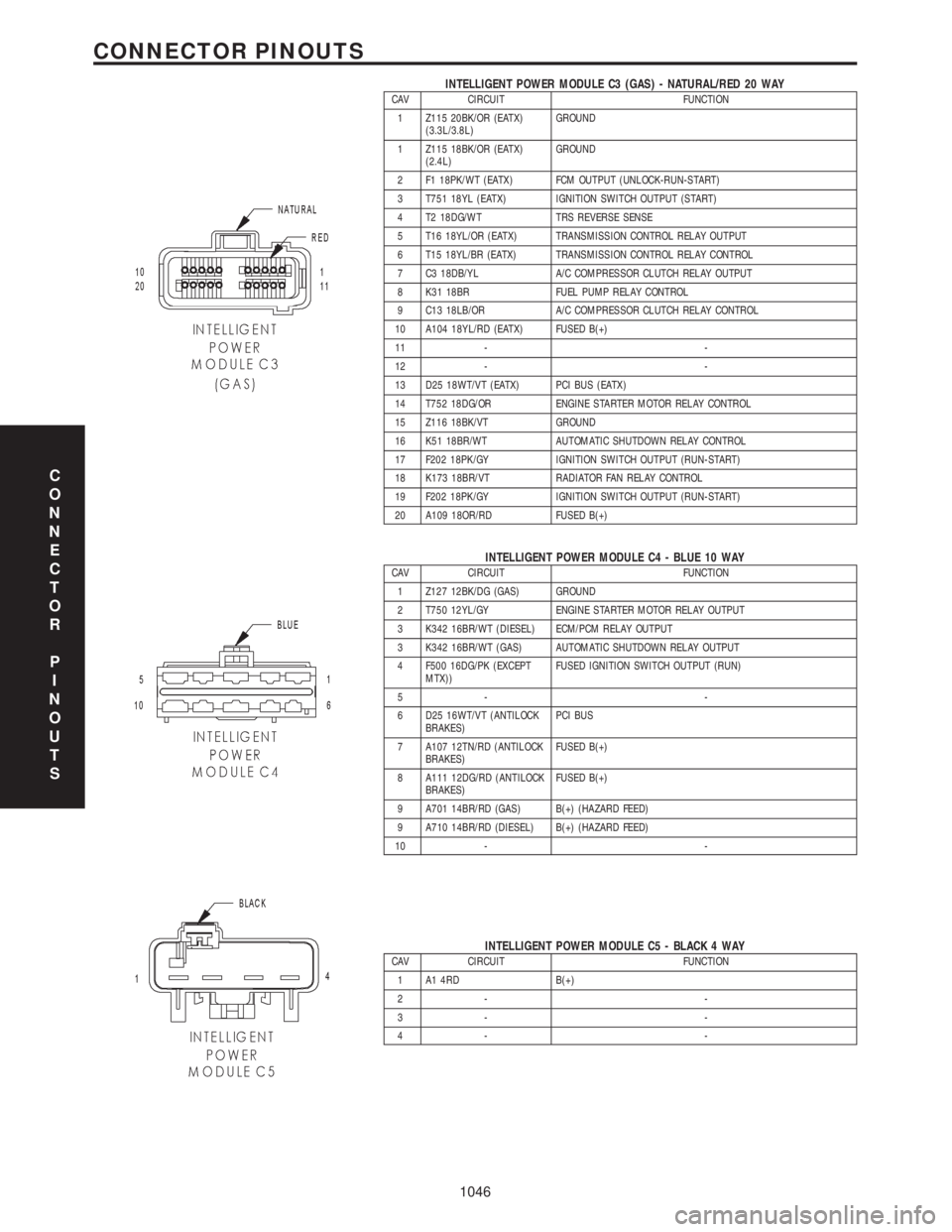

CHRYSLER VOYAGER 2001 Service Manual INTELLIGENT POWER MODULE C3 (GAS) - NATURAL/RED 20 WAYCAV CIRCUIT FUNCTION 1 Z115 20BK/OR (EATX) (3.3L/3.8L)GROUND 1 Z115 18BK/OR (EATX) (2.4L)GROUND 2 F1 18PK/WT (EATX) FCM OUTPUT (UNLOCK-RUN-START)

Page 1076 of 4284

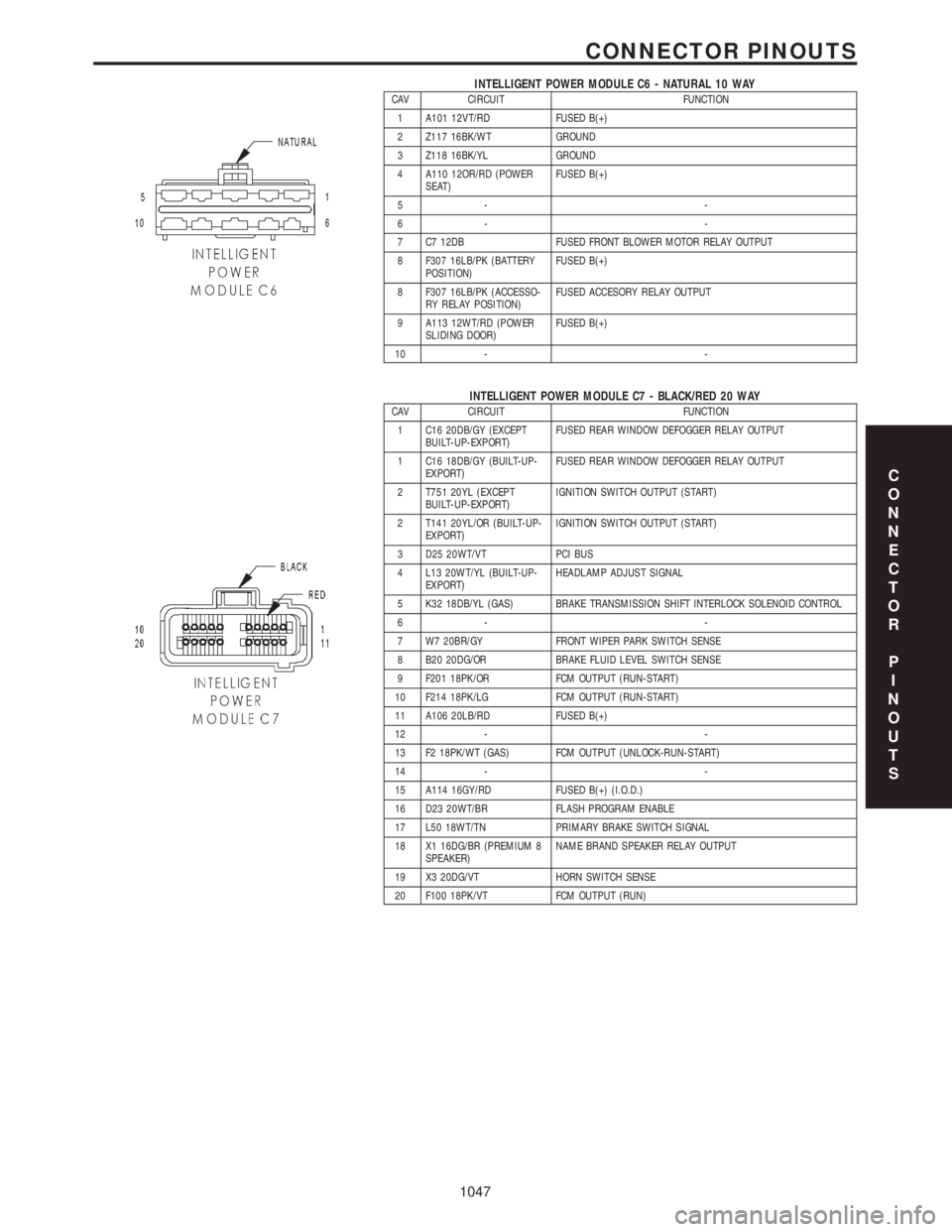

CHRYSLER VOYAGER 2001 Service Manual INTELLIGENT POWER MODULE C6 - NATURAL 10 WAYCAV CIRCUIT FUNCTION 1 A101 12VT/RD FUSED B(+) 2 Z117 16BK/WT GROUND 3 Z118 16BK/YL GROUND 4 A110 12OR/RD (POWER SEAT)FUSED B(+) 5- - 6- - 7 C7 12DB FUSED F

Page 1077 of 4284

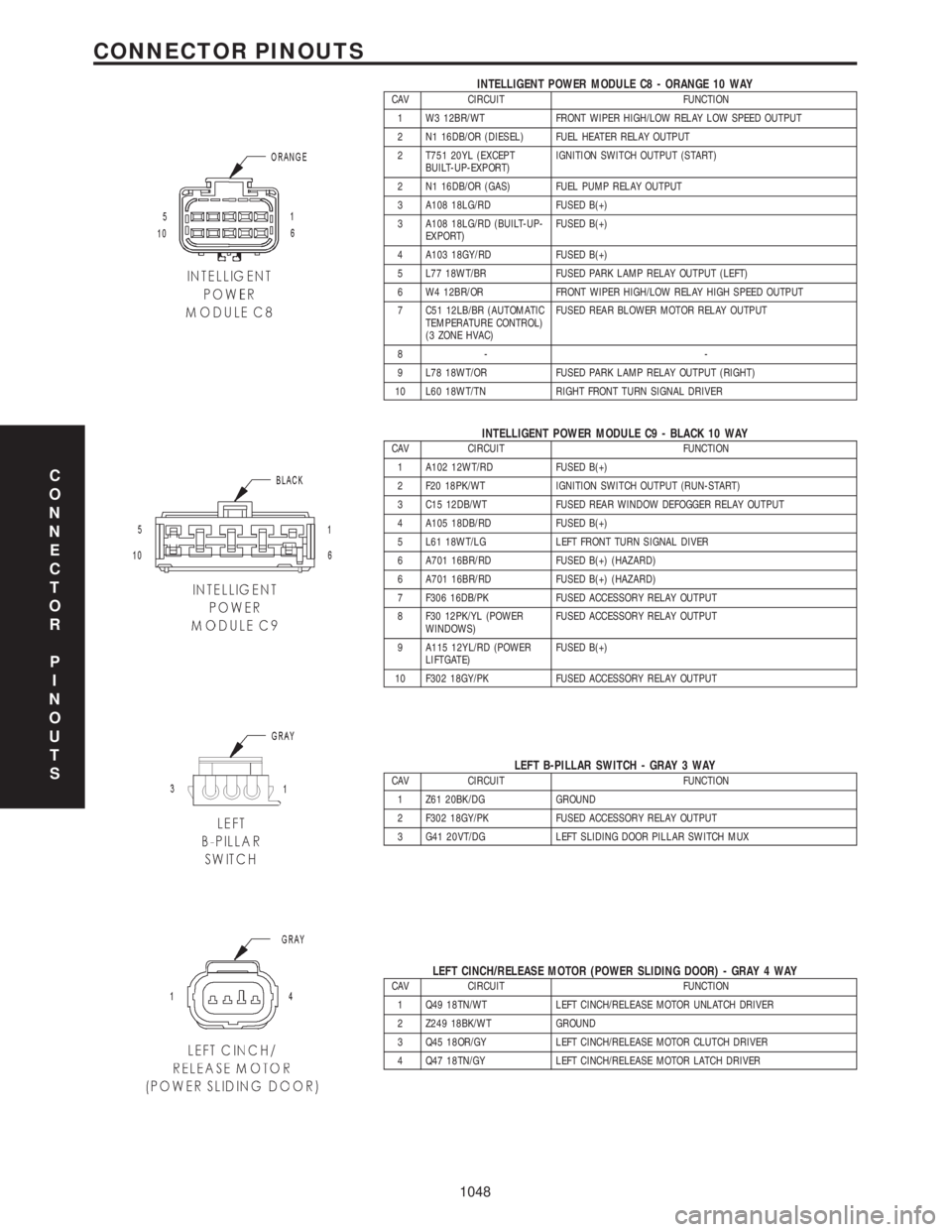

CHRYSLER VOYAGER 2001 Service Manual INTELLIGENT POWER MODULE C8 - ORANGE 10 WAYCAV CIRCUIT FUNCTION 1 W3 12BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT 2 N1 16DB/OR (DIESEL) FUEL HEATER RELAY OUTPUT 2 T751 20YL (EXCEPT BUILT-UP-EXP

Page 1078 of 4284

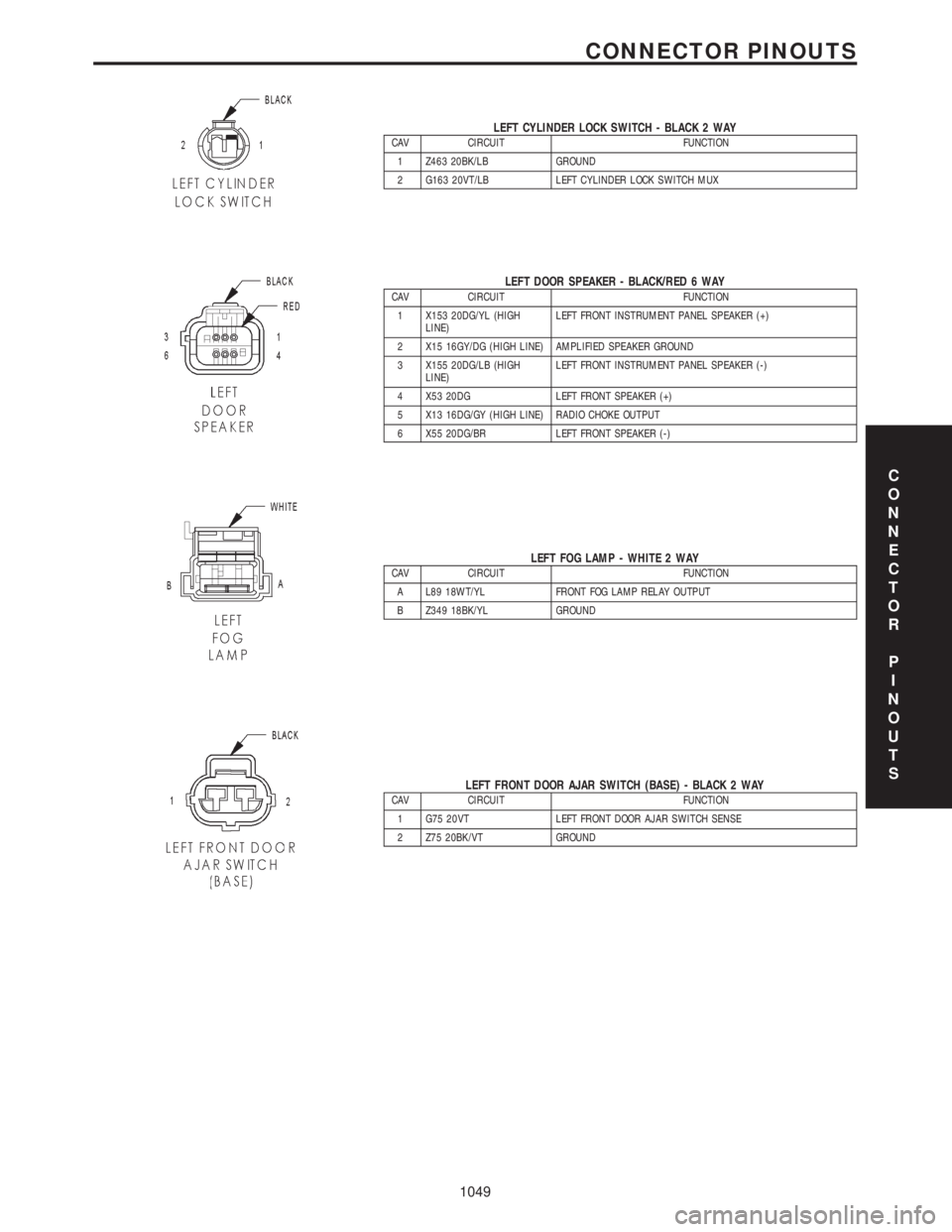

CHRYSLER VOYAGER 2001 Service Manual LEFT CYLINDER LOCK SWITCH - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 Z463 20BK/LB GROUND 2 G163 20VT/LB LEFT CYLINDER LOCK SWITCH MUX LEFT DOOR SPEAKER - BLACK/RED 6 WAYCAV CIRCUIT FUNCTION 1 X153 20DG/YL (H

Page 1079 of 4284

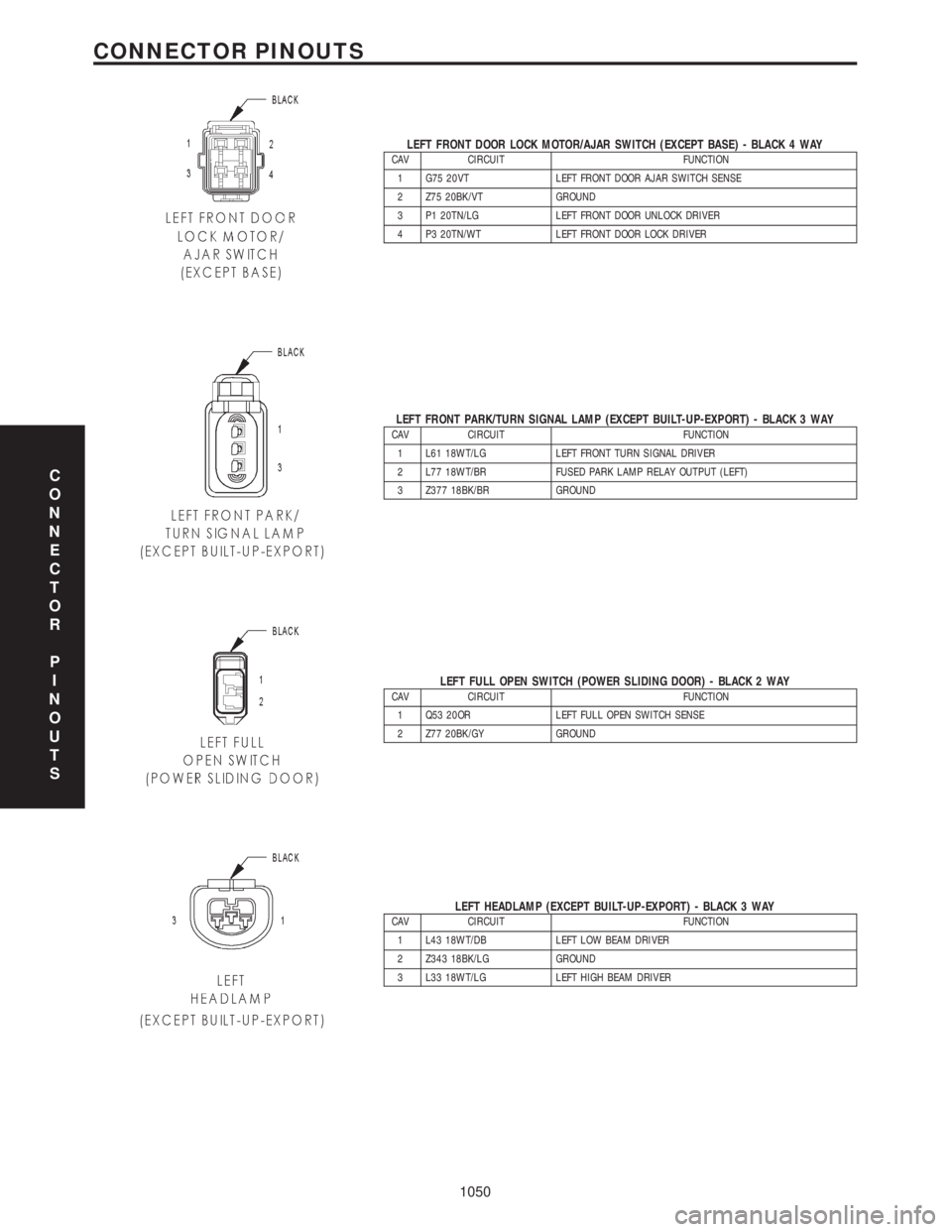

CHRYSLER VOYAGER 2001 Service Manual LEFT FRONT DOOR LOCK MOTOR/AJAR SWITCH (EXCEPT BASE) - BLACK 4 WAYCAV CIRCUIT FUNCTION 1 G75 20VT LEFT FRONT DOOR AJAR SWITCH SENSE 2 Z75 20BK/VT GROUND 3 P1 20TN/LG LEFT FRONT DOOR UNLOCK DRIVER 4 P3

Page 1080 of 4284

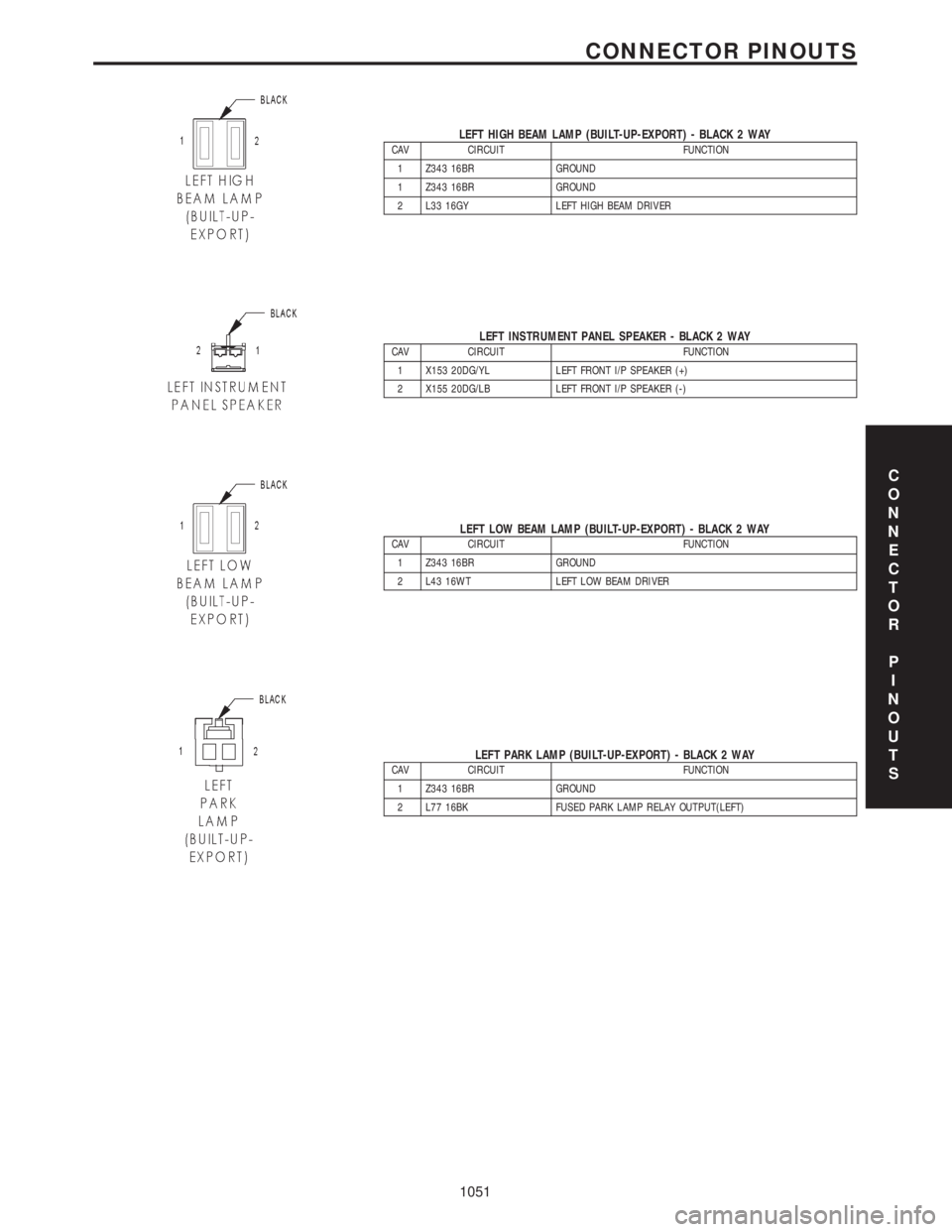

CHRYSLER VOYAGER 2001 Service Manual LEFT HIGH BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 Z343 16BR GROUND 1 Z343 16BR GROUND 2 L33 16GY LEFT HIGH BEAM DRIVER LEFT INSTRUMENT PANEL SPEAKER - BLACK 2 WAYCAV CIRCUIT FU
