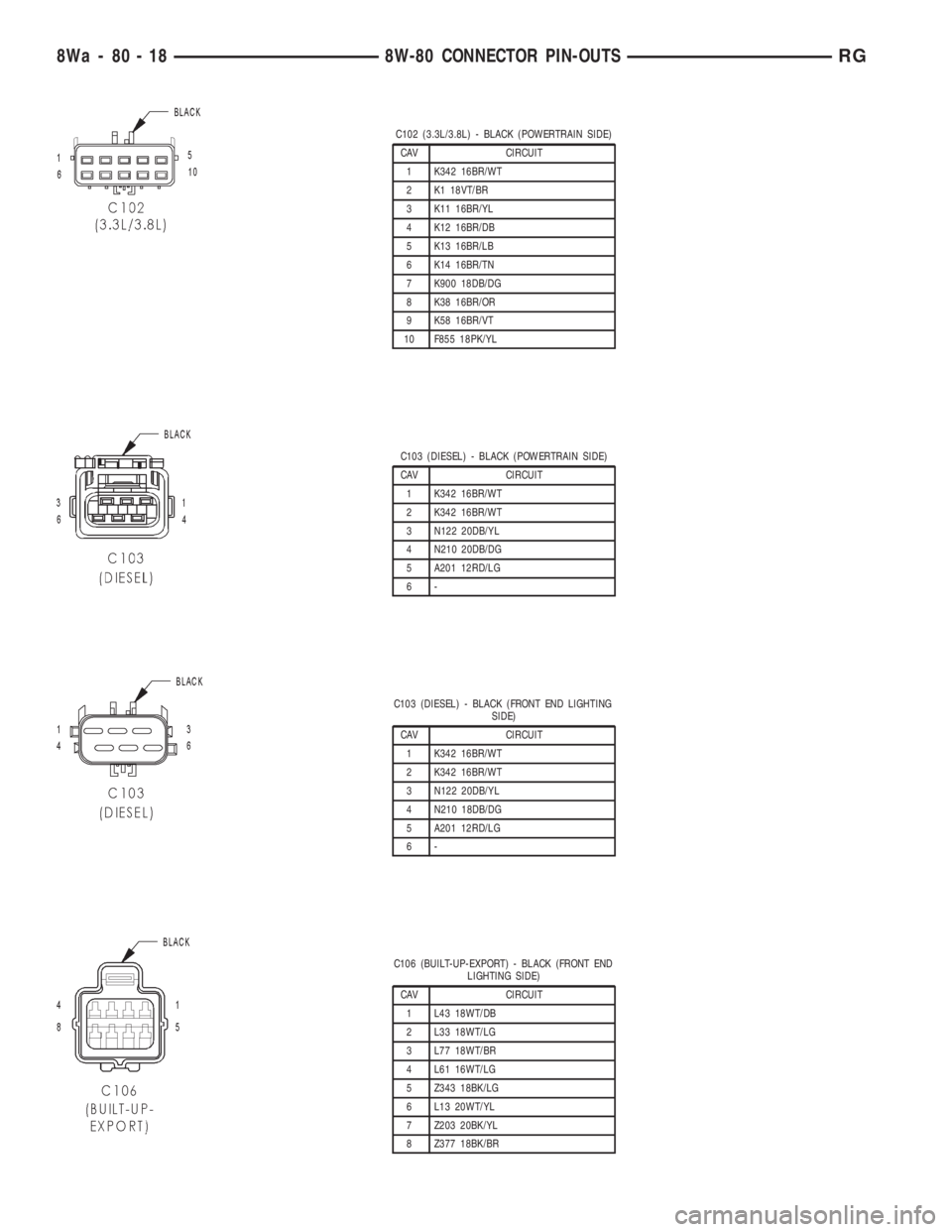

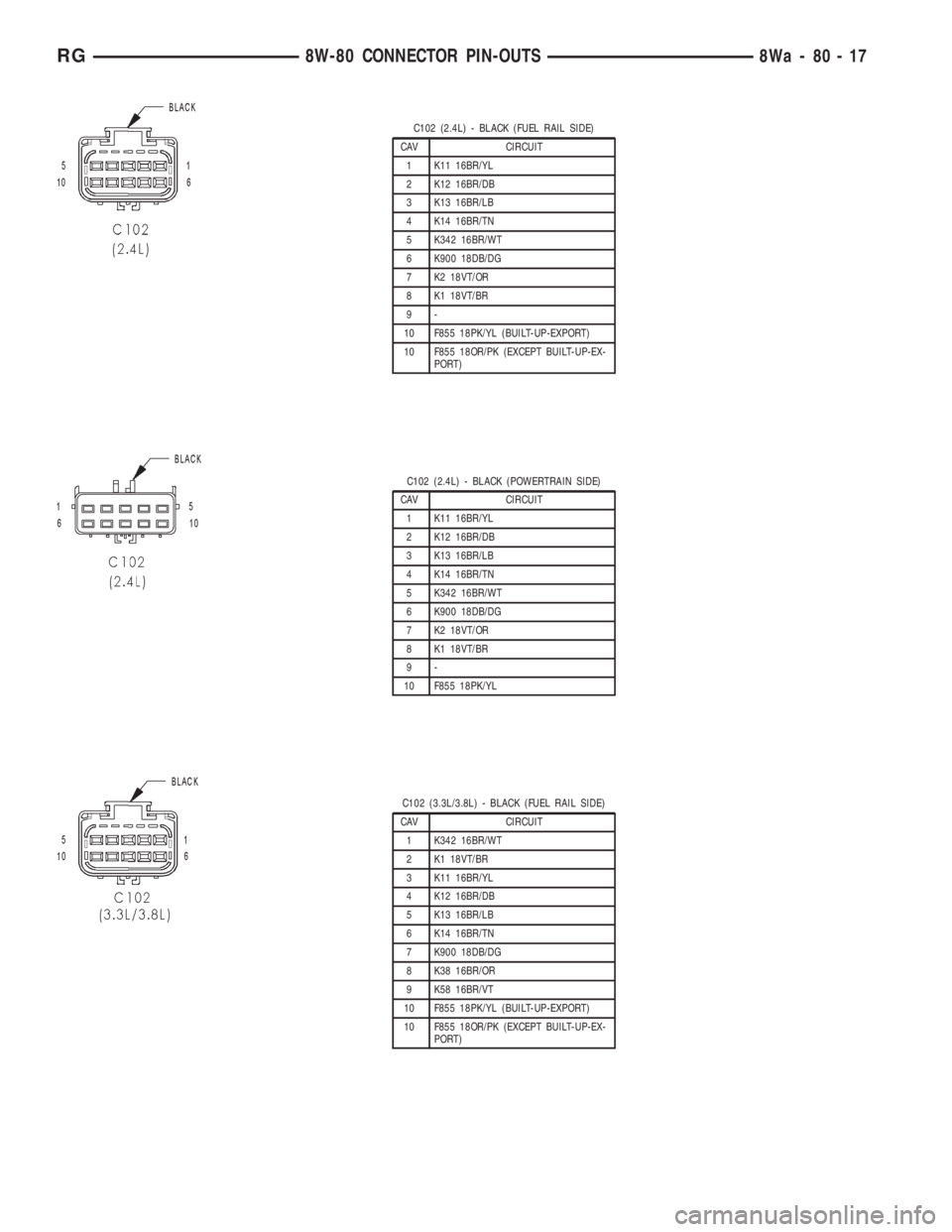

CHRYSLER VOYAGER 2001 Service Manual C102 (2.4L) - BLACK (FUEL RAIL SIDE) CAV CIRCUIT 1 K11 16BR/YL 2 K12 16BR/DB 3 K13 16BR/LB 4 K14 16BR/TN 5 K342 16BR/WT 6 K900 18DB/DG 7 K2 18VT/OR 8 K1 18VT/BR 9- 10 F855 18PK/YL (BUILT-UP-EXPORT) 10

Page 2458 of 4284

CHRYSLER VOYAGER 2001 Service Manual C102 (3.3L/3.8L) - BLACK (POWERTRAIN SIDE) CAV CIRCUIT 1 K342 16BR/WT 2 K1 18VT/BR 3 K11 16BR/YL 4 K12 16BR/DB 5 K13 16BR/LB 6 K14 16BR/TN 7 K900 18DB/DG 8 K38 16BR/OR 9 K58 16BR/VT 10 F855 18PK/YL C1

Page 2459 of 4284

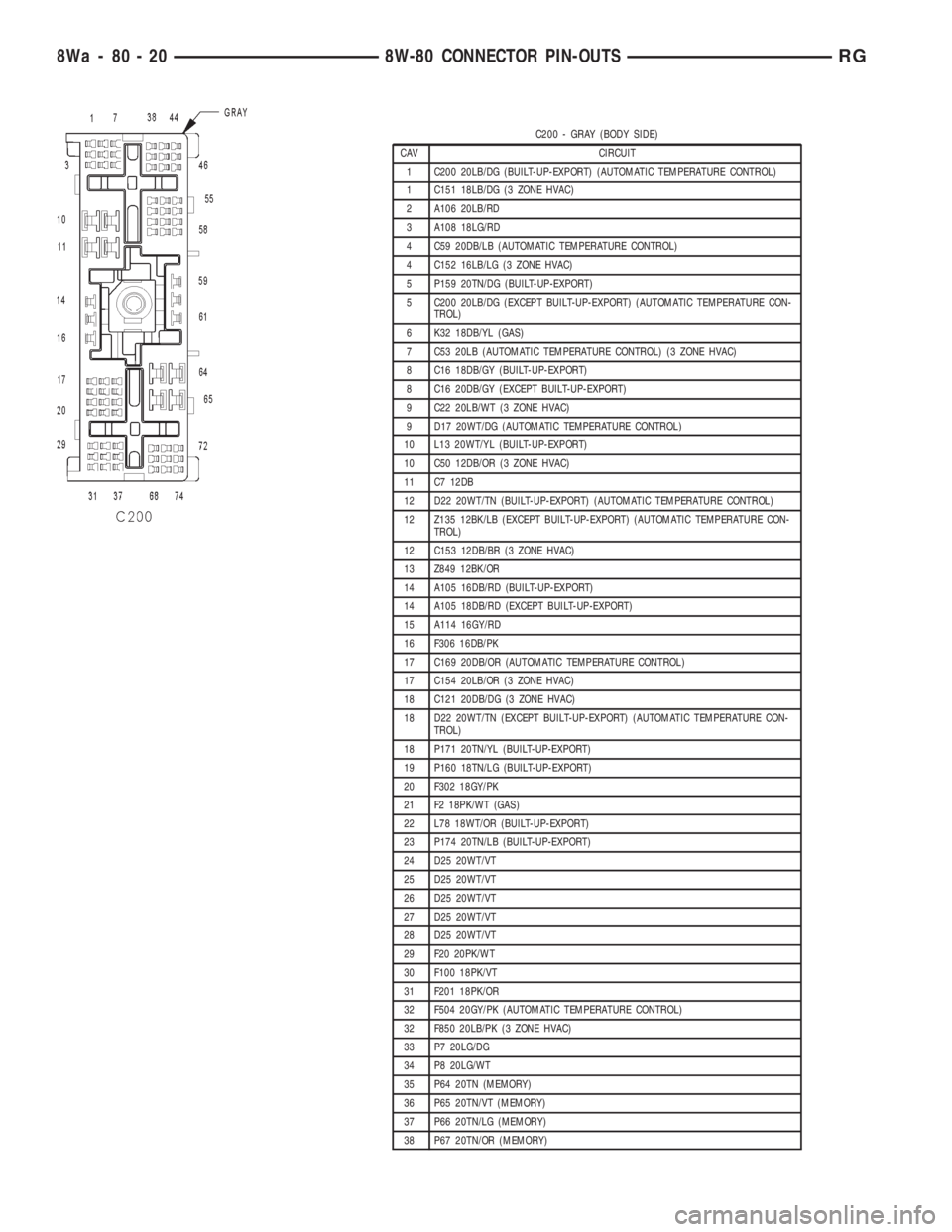

CHRYSLER VOYAGER 2001 Service Manual C106 (BUILT-UP-EXPORT) - BLACK/YELLOW (COMPONENT SIDE) CAV CIRCUIT 1 L43 16WT 2 L33 16GY 3 L77 16BK 4 L61 16YL 5 Z343 16BR 6 L13 16RD 7 Z2O3 16BR 8- C107 (BUILT-UP-EXPORT) - BLACK (FRONT END LIGHTING

Page 2460 of 4284

CHRYSLER VOYAGER 2001 Service Manual C200 - GRAY (BODY SIDE) CAV CIRCUIT 1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL) 1 C151 18LB/DG (3 ZONE HVAC) 2 A106 20LB/RD 3 A108 18LG/RD 4 C59 20DB/LB (AUTOMATIC TEMPERATURE CON

Page 2461 of 4284

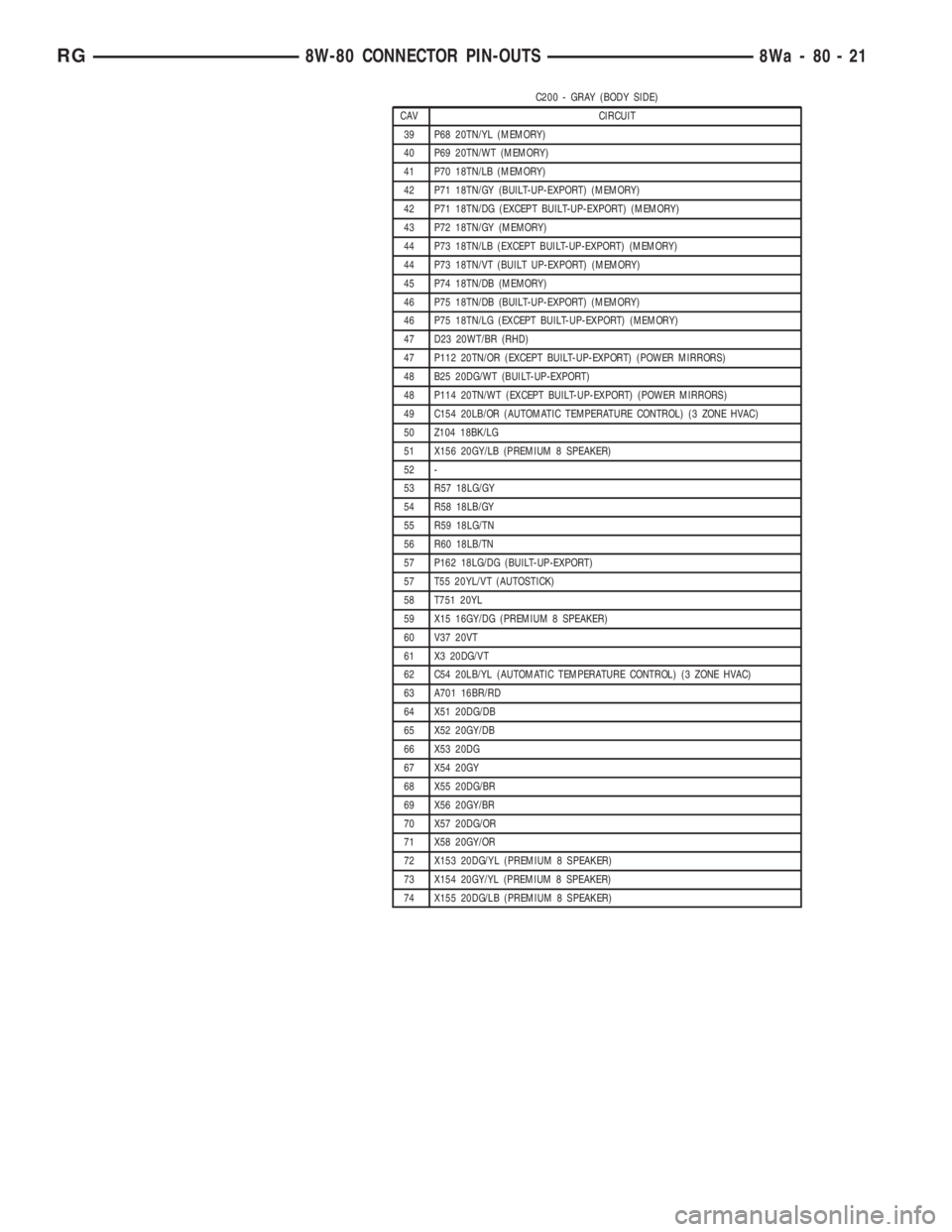

CHRYSLER VOYAGER 2001 Service Manual C200 - GRAY (BODY SIDE) CAV CIRCUIT 39 P68 20TN/YL (MEMORY) 40 P69 20TN/WT (MEMORY) 41 P70 18TN/LB (MEMORY) 42 P71 18TN/GY (BUILT-UP-EXPORT) (MEMORY) 42 P71 18TN/DG (EXCEPT BUILT-UP-EXPORT) (MEMORY) 4

Page 2462 of 4284

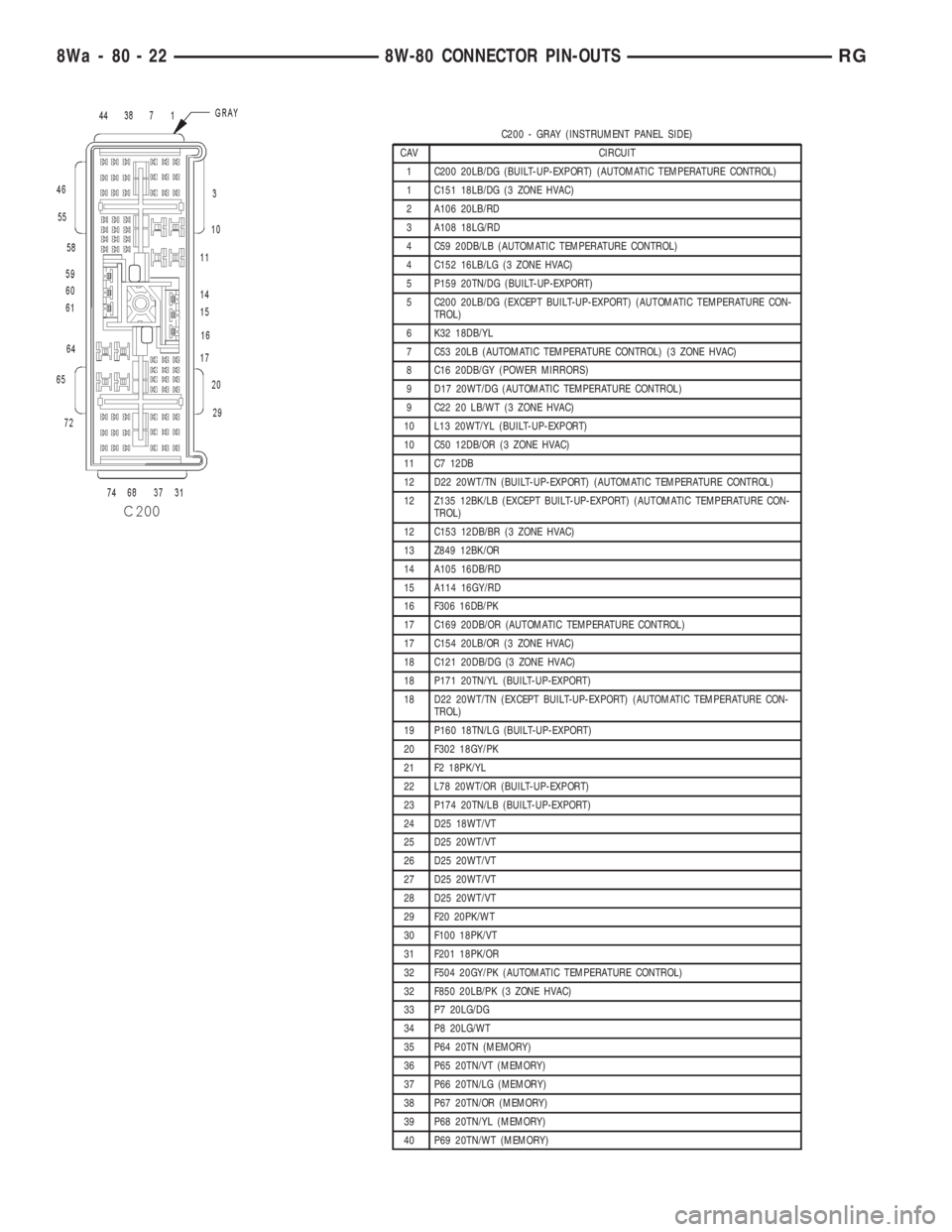

CHRYSLER VOYAGER 2001 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL) 1 C151 18LB/DG (3 ZONE HVAC) 2 A106 20LB/RD 3 A108 18LG/RD 4 C59 20DB/LB (AUTOMATIC TEM

Page 2463 of 4284

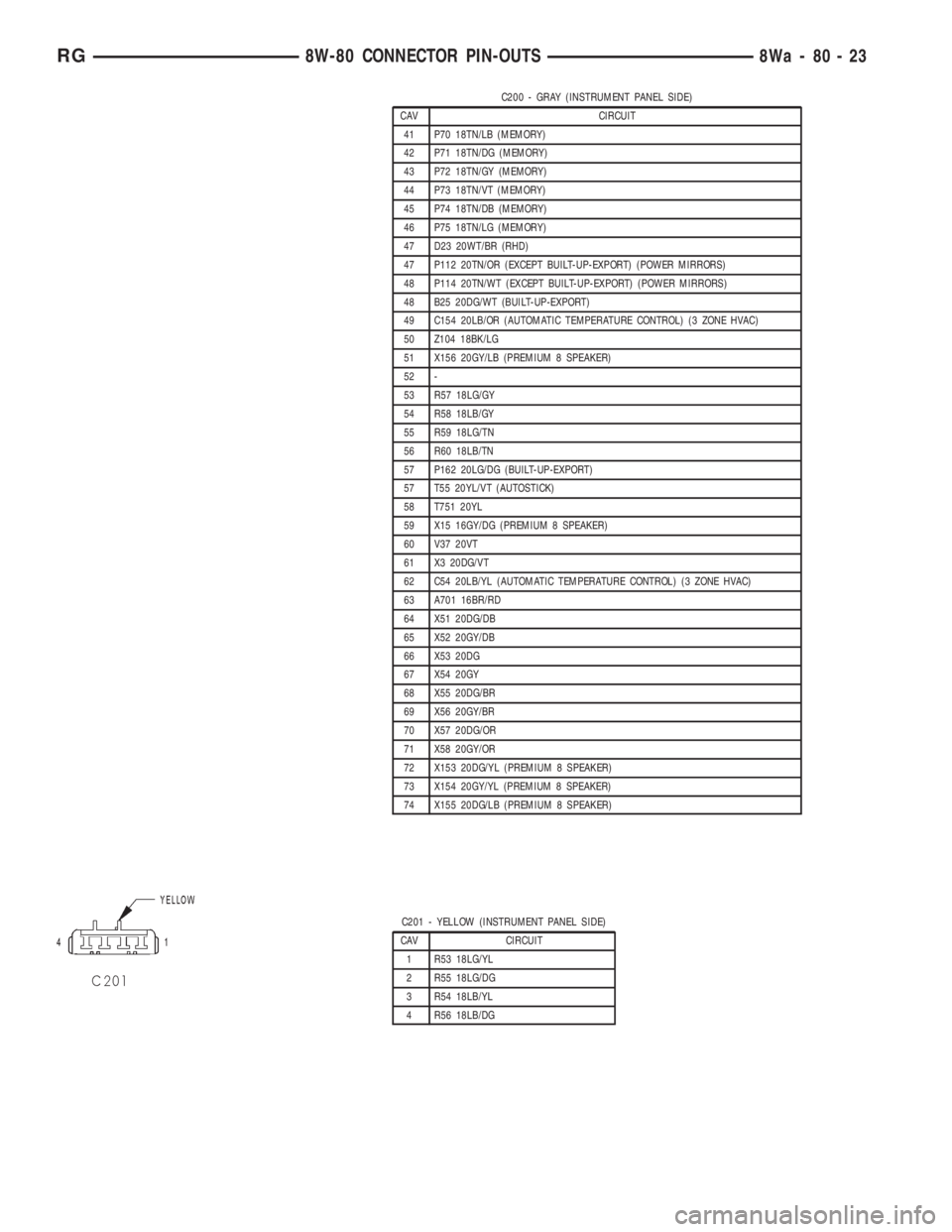

CHRYSLER VOYAGER 2001 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 41 P70 18TN/LB (MEMORY) 42 P71 18TN/DG (MEMORY) 43 P72 18TN/GY (MEMORY) 44 P73 18TN/VT (MEMORY) 45 P74 18TN/DB (MEMORY) 46 P75 18TN/LG (MEMORY) 47 D23 2

Page 2464 of 4284

CHRYSLER VOYAGER 2001 Service Manual C201 - YELLOW (BODY SIDE) CAV CIRCUIT 1 R53 18LG/YL 2 R55 18LG/DG 3 R54 18LB/YL 4 R56 18LB/DG C202 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 1 Z134 12BK/OR (AUTOMATIC TEMPERA- TURE CONTROL) 2 C34 20D
