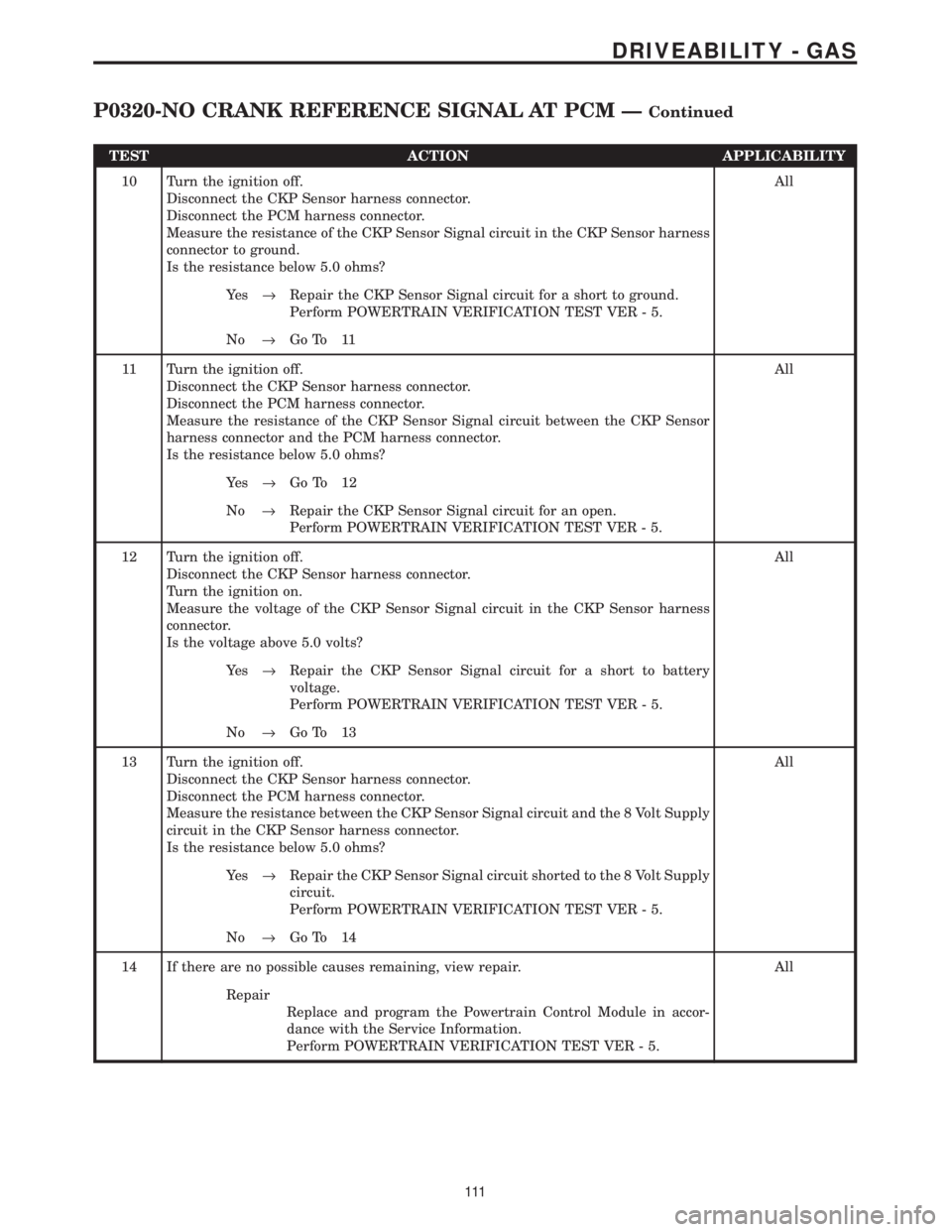

Page 3905 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
10 Turn the ignition off.
Disconnect the CKP Sensor harness connector.
Disconnect the PCM harness connector.
Measure the resistance of the CKP Sensor Signal circuit in the CK

Page 3906 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
15 Turn the ignition off.
Disconnect the CKP Sensor harness connector.
Disconnect the PCM harness connector.
Measure the resistance of the 8 Volt Supply circuit in the CKP Se

Page 3907 of 4284

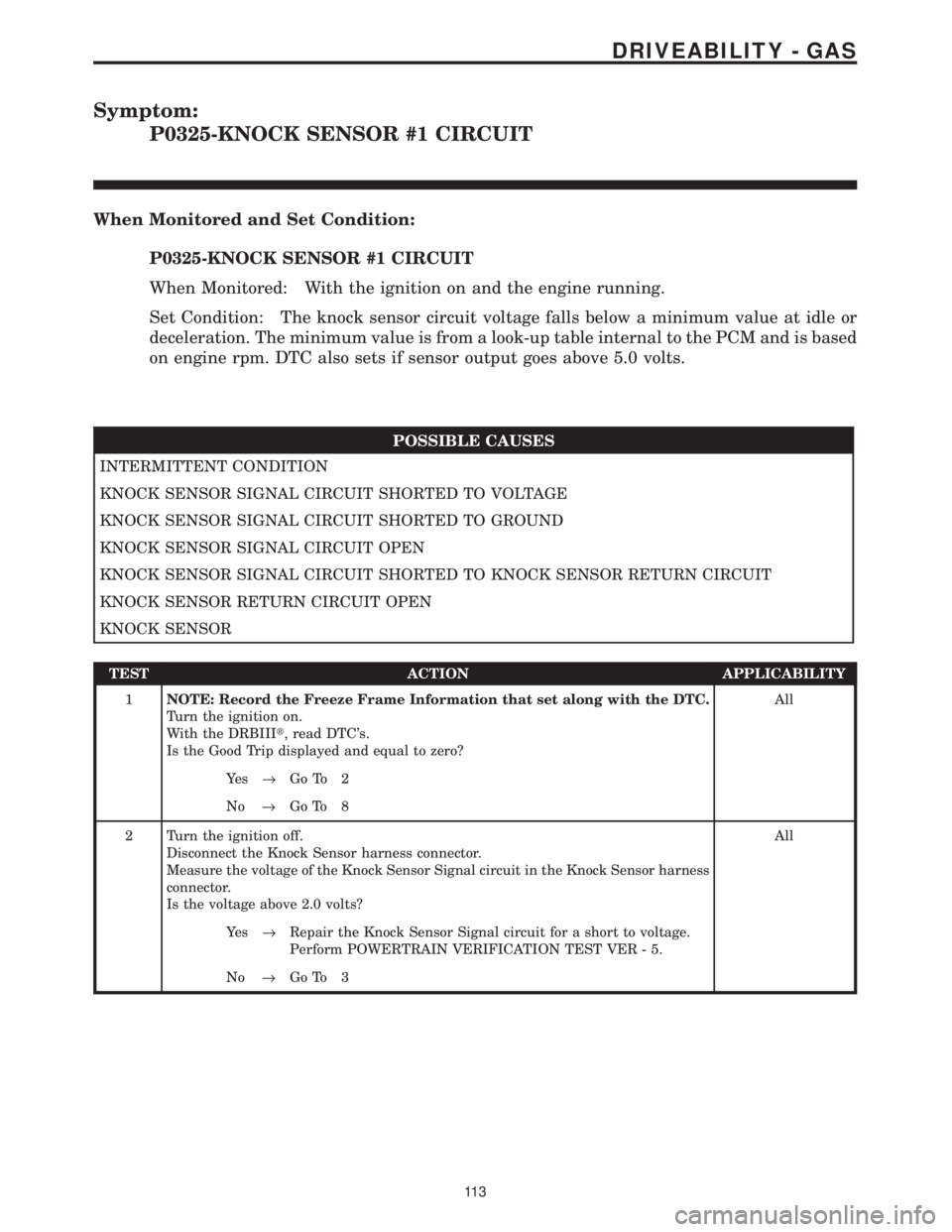

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P0325-KNOCK SENSOR #1 CIRCUIT
When Monitored and Set Condition:
P0325-KNOCK SENSOR #1 CIRCUIT
When Monitored: With the ignition on and the engine running.
Set Condition: The knock sensor circ

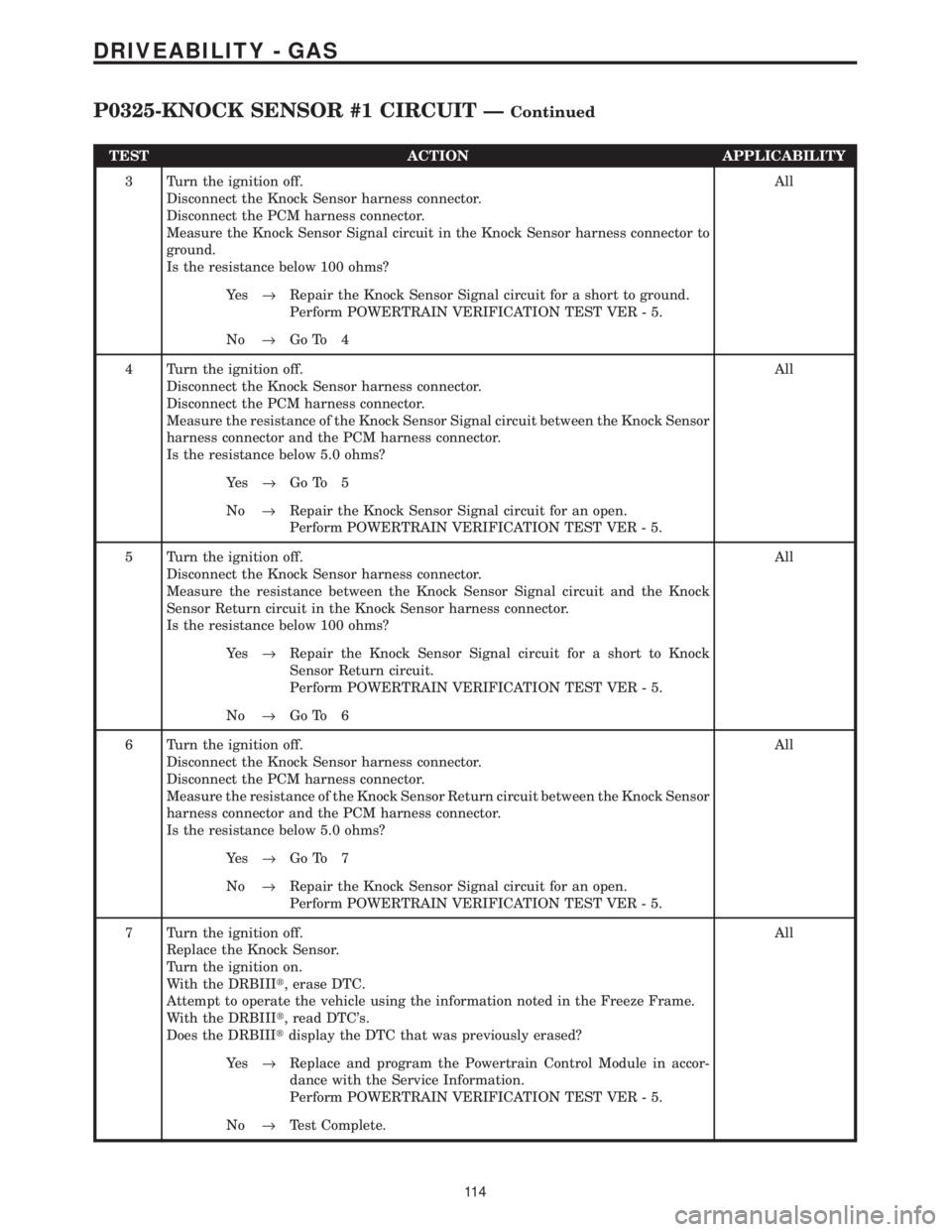

Page 3908 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Knock Sensor harness connector.
Disconnect the PCM harness connector.
Measure the Knock Sensor Signal circuit in the Knock Sensor harn

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Knock Sensor harness connector.
Disconnect the PCM harness connector.
Measure the Knock Sensor Signal circuit in the Knock Sensor harness connector to
ground.
Is the resistance below 100 ohms?All
Ye s®Repair the Knock Sensor Signal circuit for a short to ground.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
No®Go To 4
4 Turn the ignition off.
Disconnect the Knock Sensor harness connector.
Disconnect the PCM harness connector.
Measure the resistance of the Knock Sensor Signal circuit between the Knock Sensor
harness connector and the PCM harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 5
No®Repair the Knock Sensor Signal circuit for an open.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
5 Turn the ignition off.
Disconnect the Knock Sensor harness connector.
Measure the resistance between the Knock Sensor Signal circuit and the Knock
Sensor Return circuit in the Knock Sensor harness connector.
Is the resistance below 100 ohms?All
Ye s®Repair the Knock Sensor Signal circuit for a short to Knock
Sensor Return circuit.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
No®Go To 6
6 Turn the ignition off.
Disconnect the Knock Sensor harness connector.
Disconnect the PCM harness connector.
Measure the resistance of the Knock Sensor Return circuit between the Knock Sensor
harness connector and the PCM harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 7
No®Repair the Knock Sensor Signal circuit for an open.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
7 Turn the ignition off.
Replace the Knock Sensor.
Turn the ignition on.
With the DRBIIIt, erase DTC.
Attempt to operate the vehicle using the information noted in the Freeze Frame.
With the DRBIIIt, read DTC's.
Does the DRBIIItdisplay the DTC that was previously erased?All
Ye s®Replace and program the Powertrain Control Module in accor-
dance with the Service Information.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
No®Test Complete.
11 4
DRIVEABILITY - GAS
P0325-KNOCK SENSOR #1 CIRCUIT ÐContinued

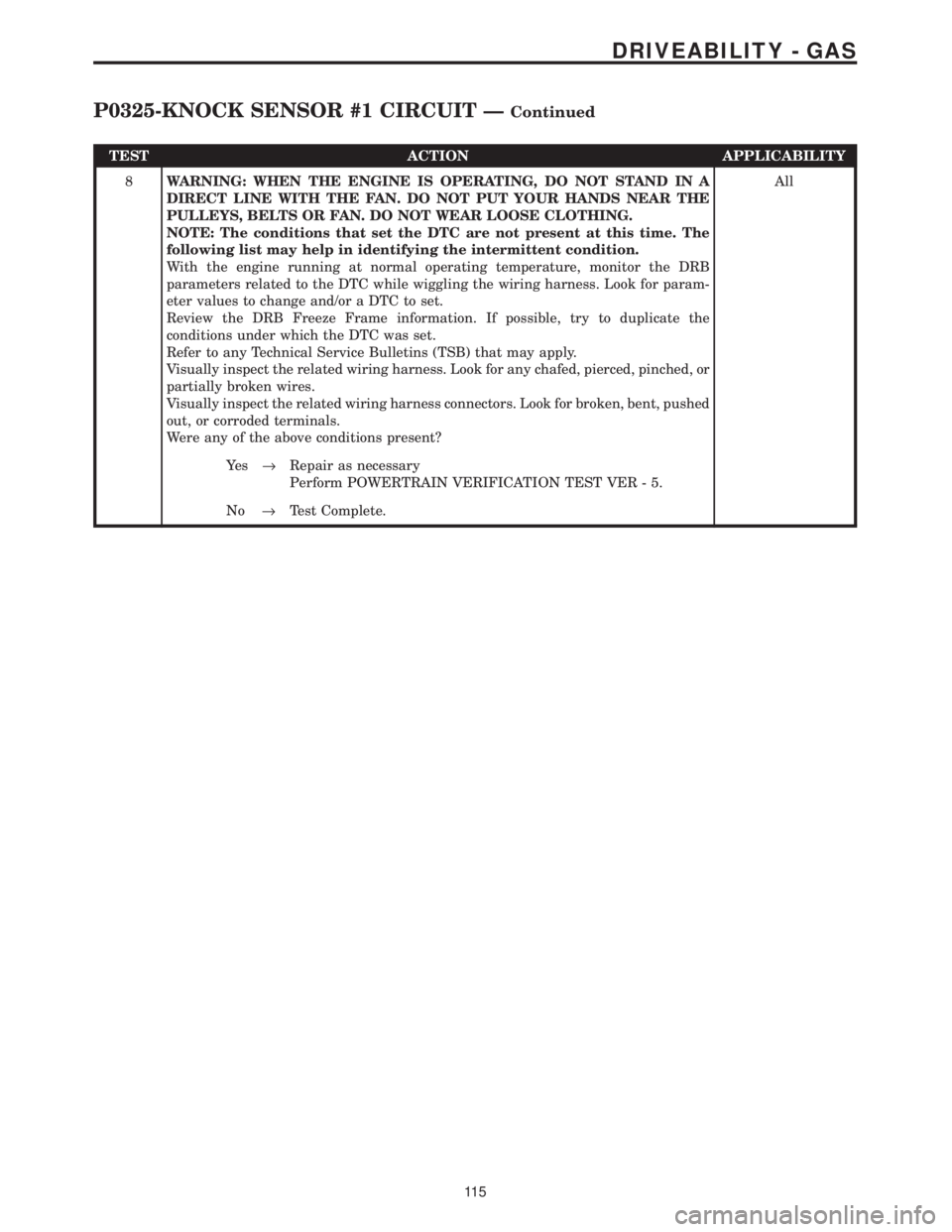

Page 3909 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
8WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: Th

Page 3910 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P0340-NO CAM SIGNAL AT PCM
When Monitored and Set Condition:
P0340-NO CAM SIGNAL AT PCM
When Monitored: Engine cranking/running. Battery voltage greater than 10 volts.
Set Condition: At least

Page 3911 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2 Turn the ignition off.
With the DRBIIItlab scope probe and the Miller special tool #6801, backprobe the
CKP Signal circuit in the PCM harness connector.
WARNING: WHEN THE E

Page 3912 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
5WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: Th

TEST ACTION APPLICABILITY
5WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DRB Freeze Frame information. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary
Perform POWERTRAIN VERIFICATION TEST VER - 5.
No®Test Complete.
6 Turn the ignition off.
Disconnect the CMP Sensor harness connector.
Turn the ignition on.
Measure the voltage of the 8 Volt Supply circuit in the CMP Sensor harness
connector.
Is the voltage between 7.5 and 8.5 volts?All
Ye s®Go To 7
No®Go To 15
7 Turn the ignition off.
Disconnect the CMP Sensor harness connector.
Turn the ignition on.
Measure the voltage of the CMP Sensor Signal circuit in the CMP Sensor harness
connector.
Is the voltage between 4.5 and 5.0 volts?All
Ye s®Go To 8
No®Go To 10
8 Turn the ignition off.
Disconnect the CMP Sensor harness connector.
Disconnect the PCM harness connector.
Measure the resistance of the Sensor Ground circuit between the CMP Sensor
harness connector and the PCM harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 9
No®Repair the Sensor Ground circuit for an open.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
11 8
DRIVEABILITY - GAS
P0340-NO CAM SIGNAL AT PCM ÐContinued
