CHRYSLER VOYAGER 2001 Service Manual 8W-35 ANTILOCK BRAKES
Component Page
Body Control Module................ 8Wa-35-2
Brake Lamp Switch................. 8Wa-35-3
Controller Antilock Brake......... 8Wa-35-2, 3, 4
Diagnostic Junction Port

Page 2250 of 4284

Page 2251 of 4284

Page 2252 of 4284

Page 2253 of 4284

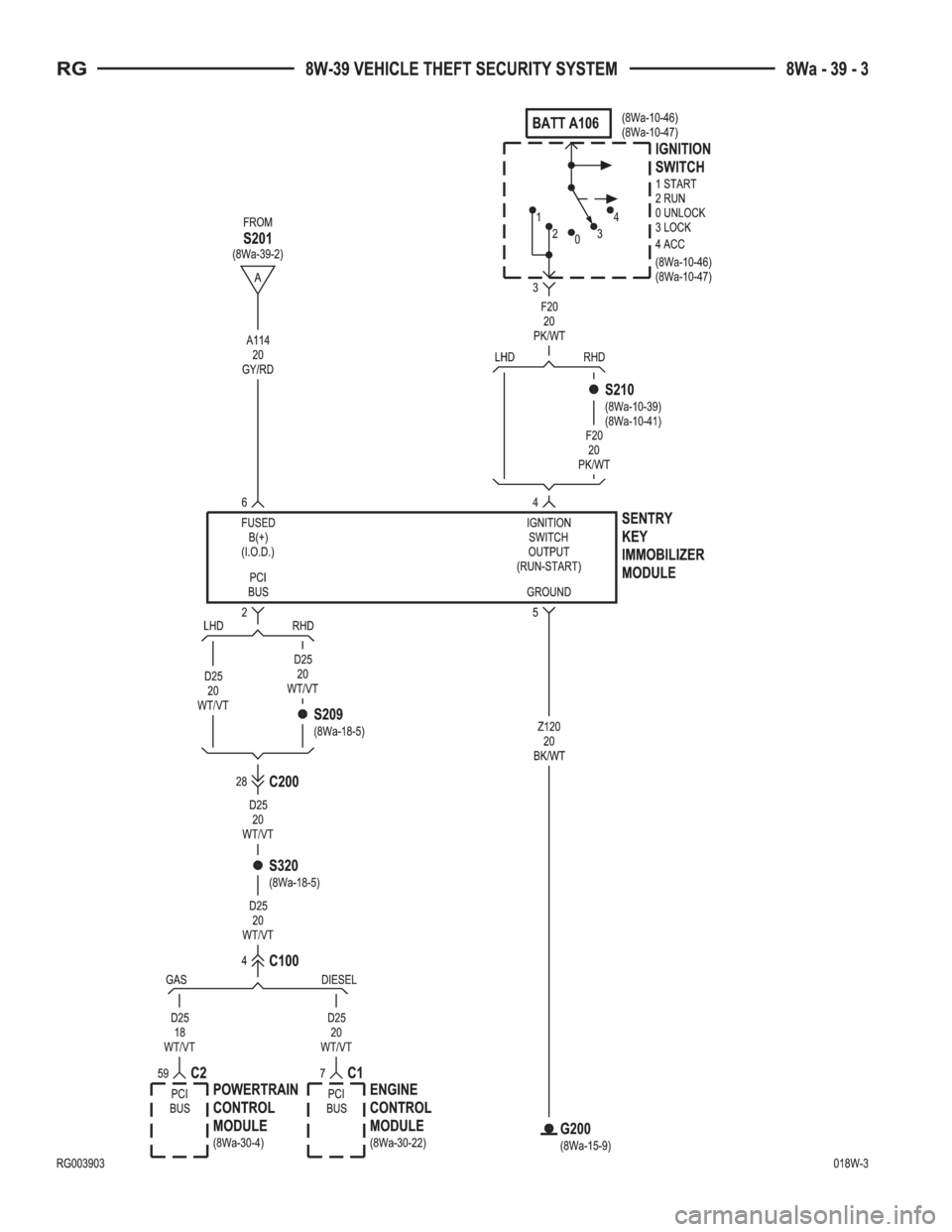

CHRYSLER VOYAGER 2001 Service Manual 8W-39 VEHICLE THEFT SECURITY SYSTEM
Component Page
Body Control Module . . . 8Wa-39-2, 4, 7, 8, 9, 10, 11,
12, 13, 14, 15
Clockspring........................ 8Wa-39-6
Data Link Connector..............

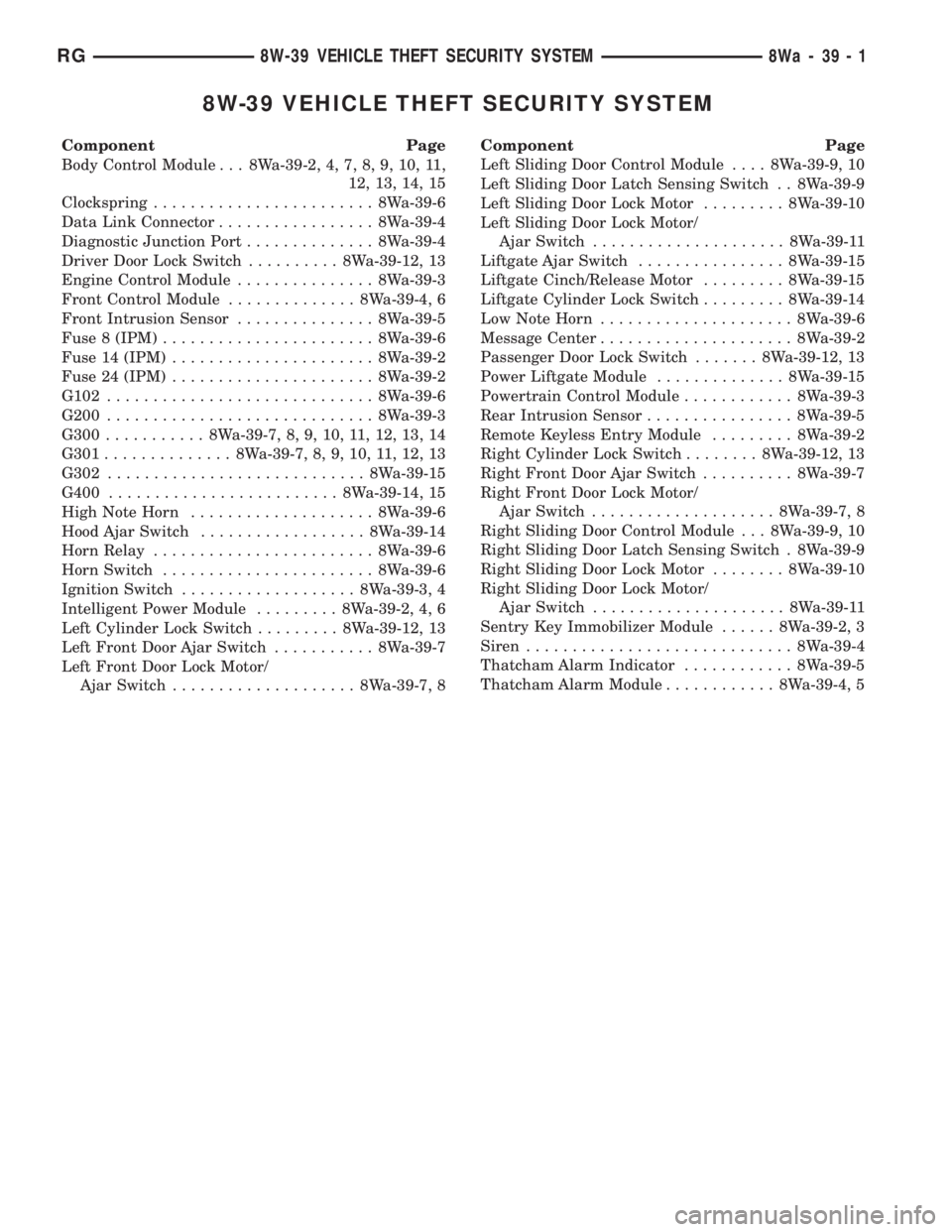

8W-39 VEHICLE THEFT SECURITY SYSTEM
Component Page
Body Control Module . . . 8Wa-39-2, 4, 7, 8, 9, 10, 11,
12, 13, 14, 15
Clockspring........................ 8Wa-39-6
Data Link Connector................. 8Wa-39-4
Diagnostic Junction Port.............. 8Wa-39-4
Driver Door Lock Switch.......... 8Wa-39-12, 13
Engine Control Module............... 8Wa-39-3
Front Control Module.............. 8Wa-39-4, 6
Front Intrusion Sensor............... 8Wa-39-5
Fuse 8 (IPM)....................... 8Wa-39-6
Fuse 14 (IPM)...................... 8Wa-39-2
Fuse 24 (IPM)...................... 8Wa-39-2
G102............................. 8Wa-39-6
G200............................. 8Wa-39-3
G300........... 8Wa-39-7, 8, 9, 10, 11, 12, 13, 14
G301.............. 8Wa-39-7, 8, 9, 10, 11, 12, 13
G302............................ 8Wa-39-15
G400......................... 8Wa-39-14, 15
High Note Horn.................... 8Wa-39-6
Hood Ajar Switch.................. 8Wa-39-14
Horn Relay........................ 8Wa-39-6
Horn Switch....................... 8Wa-39-6
Ignition Switch................... 8Wa-39-3, 4
Intelligent Power Module......... 8Wa-39-2, 4, 6
Left Cylinder Lock Switch......... 8Wa-39-12, 13
Left Front Door Ajar Switch........... 8Wa-39-7
Left Front Door Lock Motor/
Ajar Switch.................... 8Wa-39-7, 8Component Page
Left Sliding Door Control Module.... 8Wa-39-9, 10
Left Sliding Door Latch Sensing Switch . . 8Wa-39-9
Left Sliding Door Lock Motor......... 8Wa-39-10
Left Sliding Door Lock Motor/
Ajar Switch..................... 8Wa-39-11
Liftgate Ajar Switch................ 8Wa-39-15
Liftgate Cinch/Release Motor......... 8Wa-39-15
Liftgate Cylinder Lock Switch......... 8Wa-39-14
Low Note Horn..................... 8Wa-39-6
Message Center..................... 8Wa-39-2
Passenger Door Lock Switch....... 8Wa-39-12, 13
Power Liftgate Module.............. 8Wa-39-15
Powertrain Control Module............ 8Wa-39-3
Rear Intrusion Sensor................ 8Wa-39-5
Remote Keyless Entry Module......... 8Wa-39-2
Right Cylinder Lock Switch........ 8Wa-39-12, 13
Right Front Door Ajar Switch.......... 8Wa-39-7
Right Front Door Lock Motor/
Ajar Switch.................... 8Wa-39-7, 8
Right Sliding Door Control Module . . . 8Wa-39-9, 10
Right Sliding Door Latch Sensing Switch . 8Wa-39-9
Right Sliding Door Lock Motor........ 8Wa-39-10
Right Sliding Door Lock Motor/
Ajar Switch..................... 8Wa-39-11
Sentry Key Immobilizer Module...... 8Wa-39-2, 3
Siren............................. 8Wa-39-4
Thatcham Alarm Indicator............ 8Wa-39-5
Thatcham Alarm Module............ 8Wa-39-4, 5
RG8W-39 VEHICLE THEFT SECURITY SYSTEM8Wa-39-1
