Page 3161 of 4284

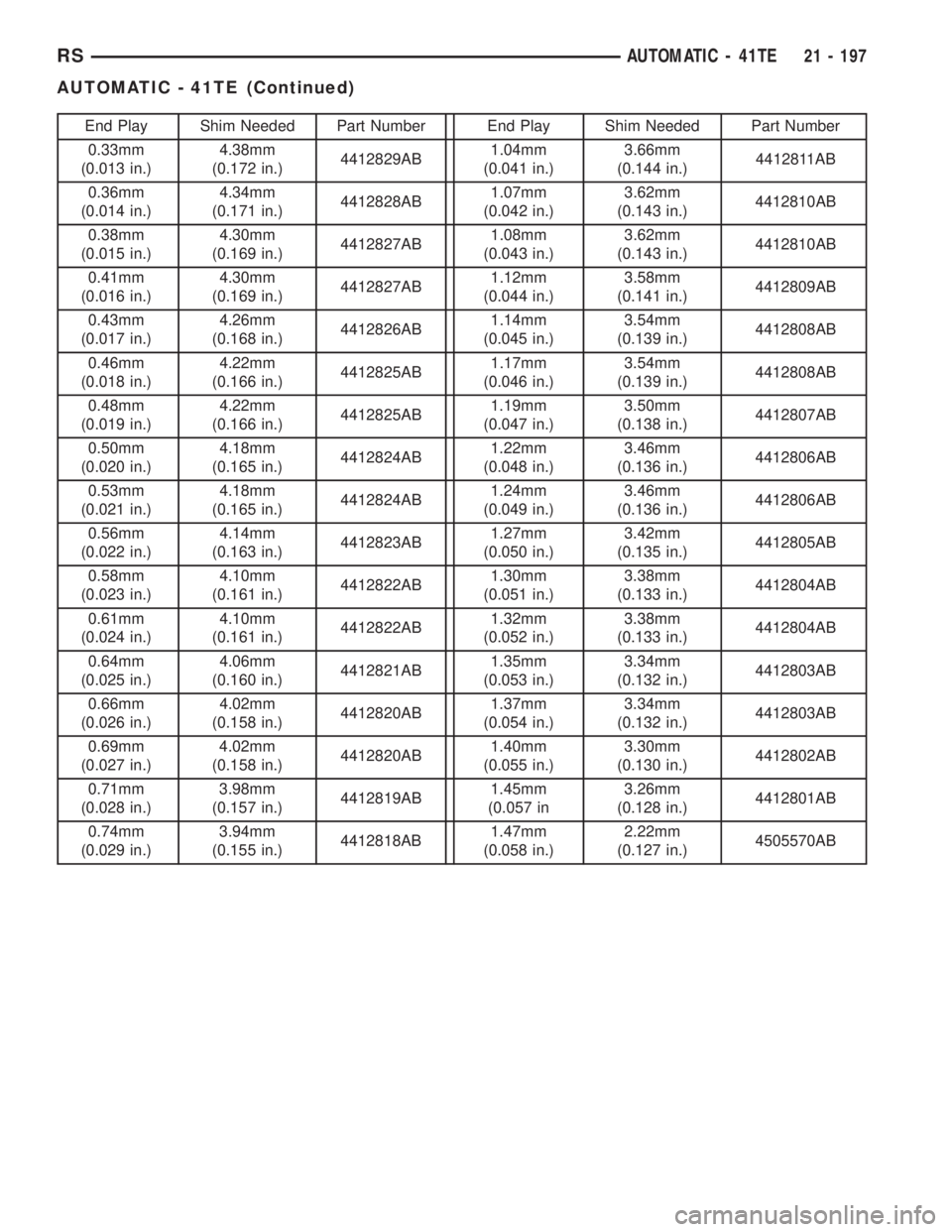

End Play Shim Needed Part Number End Play Shim Needed Part Number
0.33mm
(0.013 in.)4.38mm
(0.172 in.)4412829AB1.04mm
(0.041 in.)3.66mm
(0.144 in.)4412811AB
0.36mm
(0.014 in.)4.34mm
(0.171 in.)4412828AB1.07mm
(0.042 in.)3.62mm
(0.143 in.)4412810AB
0.38mm
(0.015 in.)4.30mm
(0.169 in.)4412827AB1.08mm
(0.043 in.)3.62mm
(0.143 in.)4412810AB
0.41mm
(0.016 in.)4.30mm
(0.169 in.)4412827AB1.12mm
(0.044 in.)3.58mm
(0.141 in.)4412809AB
0.43mm
(0.017 in.)4.26mm
(0.168 in.)4412826AB1.14mm
(0.045 in.)3.54mm
(0.139 in.)4412808AB
0.46mm
(0.018 in.)4.22mm
(0.166 in.)4412825AB1.17mm
(0.046 in.)3.54mm
(0.139 in.)4412808AB
0.48mm
(0.019 in.)4.22mm
(0.166 in.)4412825AB1.19mm
(0.047 in.)3.50mm
(0.138 in.)4412807AB
0.50mm
(0.020 in.)4.18mm
(0.165 in.)4412824AB1.22mm
(0.048 in.)3.46mm
(0.136 in.)4412806AB
0.53mm
(0.021 in.)4.18mm
(0.165 in.)4412824AB1.24mm
(0.049 in.)3.46mm
(0.136 in.)4412806AB
0.56mm
(0.022 in.)4.14mm
(0.163 in.)4412823AB1.27mm
(0.050 in.)3.42mm
(0.135 in.)4412805AB
0.58mm
(0.023 in.)4.10mm
(0.161 in.)4412822AB1.30mm
(0.051 in.)3.38mm
(0.133 in.)4412804AB
0.61mm
(0.024 in.)4.10mm
(0.161 in.)4412822AB1.32mm
(0.052 in.)3.38mm
(0.133 in.)4412804AB
0.64mm
(0.025 in.)4.06mm
(0.160 in.)4412821AB1.35mm
(0.053 in.)3.34mm
(0.132 in.)4412803AB
0.66mm
(0.026 in.)4.02mm
(0.158 in.)4412820AB1.37mm
(0.054 in.)3.34mm
(0.132 in.)4412803AB
0.69mm
(0.027 in.)4.02mm
(0.158 in.)4412820AB1.40mm
(0.055 in.)3.30mm
(0.130 in.)4412802AB
0.71mm
(0.028 in.)3.98mm
(0.157 in.)4412819AB1.45mm
(0.057 in3.26mm
(0.128 in.)4412801AB
0.74mm
(0.029 in.)3.94mm
(0.155 in.)4412818AB1.47mm
(0.058 in.)2.22mm
(0.127 in.)4505570AB
RSAUTOMATIC - 41TE21 - 197
AUTOMATIC - 41TE (Continued)
Page 3162 of 4284
(32) Install the transfer shaft gear using Tool 6261
(Fig. 122).
CAUTION: Install a NEW retaining nut, as the origi-
nal nut MUST NOT be reused.
(33) Install the new retaining nut and washer.
(34) Using Tool 6259, torque transfer gear retain-
ing nut to 271 N´m (200 ft. lbs.) (Fig. 123).(35) Measure transfer shaft end play.Transfer
shaft end play should be within 0.05-0.10 mm
(0.002-0.004 in.).If the end play is too high, install a
0.04 mm (0.0016 in.) thicker shim. If the end play is
too low, install a 0.04 mm (0.0016 in.) thinner shim.
Repeat until 0.05-0.10 mm (0.002-0.004 in.) end play
is obtained.
(36) Install a bead of Moparž Silicone Rubber
Adhesive Sealant to transfer gear cover (Fig. 124).
(37) Install transfer gear cover-to-case bolts and
torque to 20 N´m (175 in. lbs.) torque (Fig. 125).
Fig. 122 Install Transfer Shaft Gear
1 - WRENCHES
2 - SPECIAL TOOL 6261
3 - OUTPUT GEAR
4 - TRANSFER SHAFT GEAR
Fig. 123 Tighten Transfer Gear Nut to 271 N²m (200
ft. lbs.)
1 - TRANSFER SHAFT GEAR
2 - 200 FT. LBS.
3 - TORQUE WRENCH
4 - SPECIAL TOOL 6259
Fig. 124 Install Rear Cover
1 - REAR COVER
2 - 1/8 INCH BEAD OF MOPAR SILICONE RUBBER ADHESIVE
SEALANT AS SHOWN
Fig. 125 Install Rear Cover Bolts
1 - REAR COVER BOLTS
2 - REAR COVER
3 - USE SEALANT ON BOLTS
21 - 198 AUTOMATIC - 41TERS
AUTOMATIC - 41TE (Continued)
Page 3163 of 4284

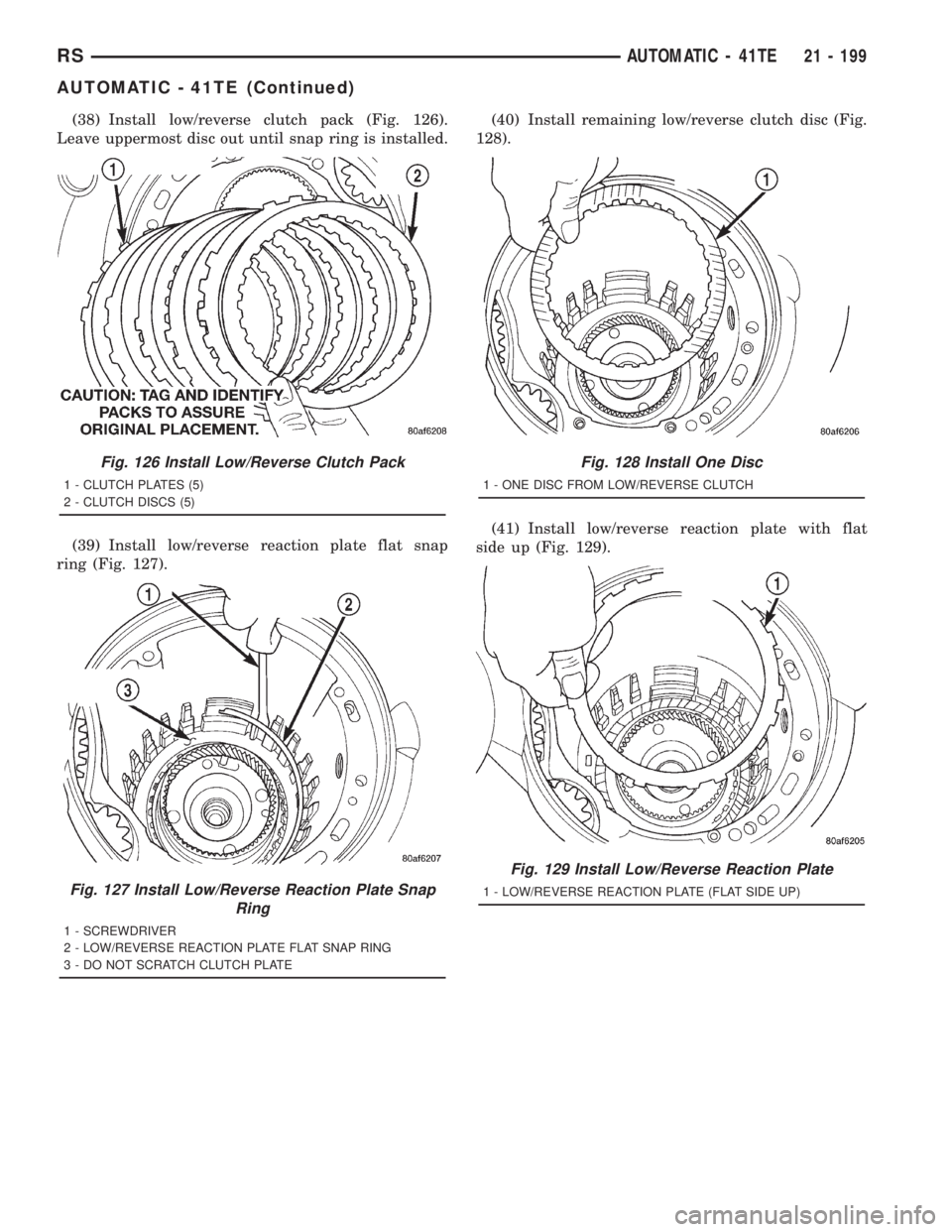

(38) Install low/reverse clutch pack (Fig. 126).
Leave uppermost disc out until snap ring is installed.
(39) Install low/reverse reaction plate flat snap
ring (Fig. 127).(40) Install remaining low/reverse clutch disc (Fig.
128).
(41) Install low/reverse reaction plate with flat
side up (Fig. 129).
Fig. 126 Install Low/Reverse Clutch Pack
1 - CLUTCH PLATES (5)
2 - CLUTCH DISCS (5)
Fig. 127 Install Low/Reverse Reaction Plate Snap
Ring
1 - SCREWDRIVER
2 - LOW/REVERSE REACTION PLATE FLAT SNAP RING
3 - DO NOT SCRATCH CLUTCH PLATE
Fig. 128 Install One Disc
1 - ONE DISC FROM LOW/REVERSE CLUTCH
Fig. 129 Install Low/Reverse Reaction Plate
1 - LOW/REVERSE REACTION PLATE (FLAT SIDE UP)
RSAUTOMATIC - 41TE21 - 199
AUTOMATIC - 41TE (Continued)
Page 3164 of 4284

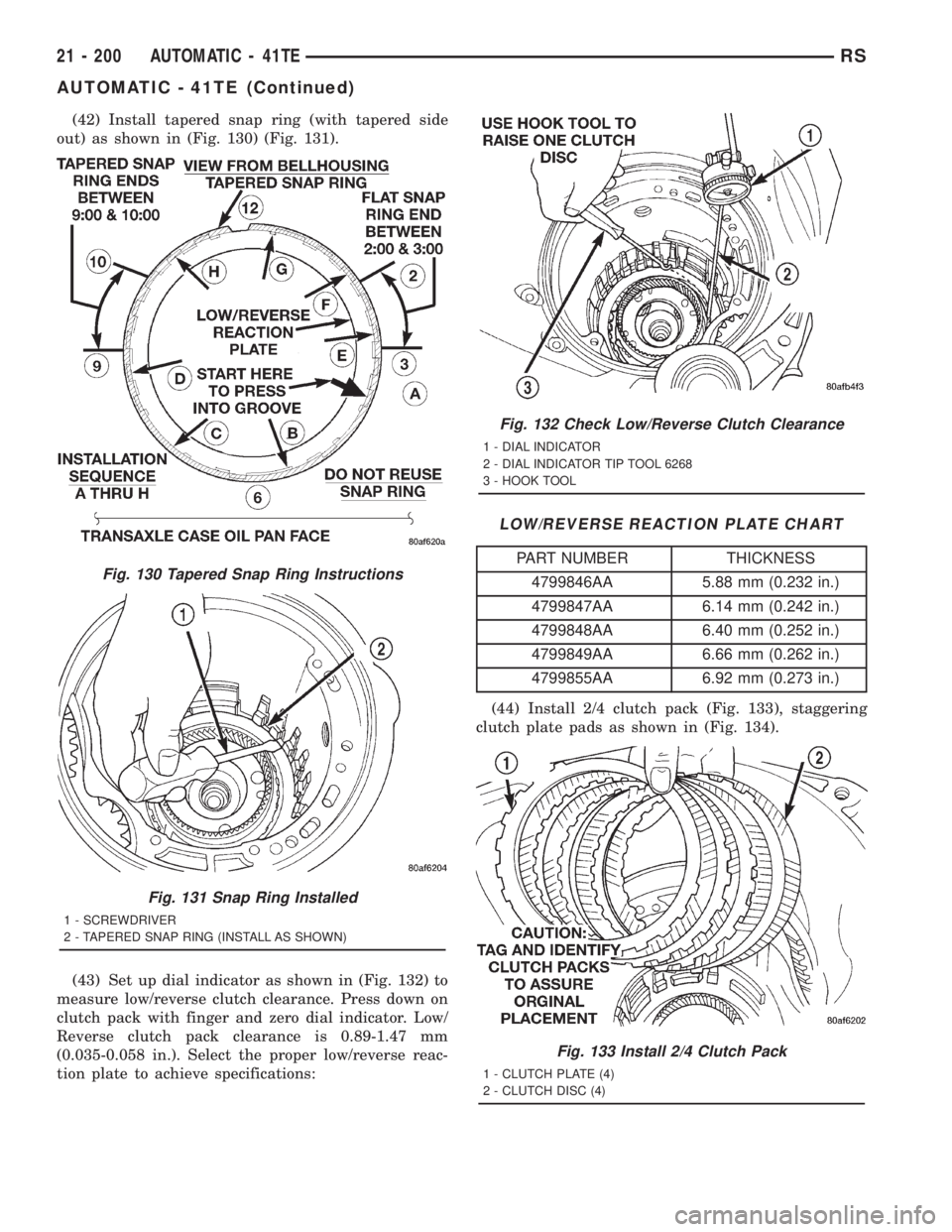

(42) Install tapered snap ring (with tapered side
out) as shown in (Fig. 130) (Fig. 131).
(43) Set up dial indicator as shown in (Fig. 132) to
measure low/reverse clutch clearance. Press down on
clutch pack with finger and zero dial indicator. Low/
Reverse clutch pack clearance is 0.89-1.47 mm
(0.035-0.058 in.). Select the proper low/reverse reac-
tion plate to achieve specifications:
LOW/REVERSE REACTION PLATE CHART
PART NUMBER THICKNESS
4799846AA 5.88 mm (0.232 in.)
4799847AA 6.14 mm (0.242 in.)
4799848AA 6.40 mm (0.252 in.)
4799849AA 6.66 mm (0.262 in.)
4799855AA 6.92 mm (0.273 in.)
(44) Install 2/4 clutch pack (Fig. 133), staggering
clutch plate pads as shown in (Fig. 134).
Fig. 130 Tapered Snap Ring Instructions
Fig. 131 Snap Ring Installed
1 - SCREWDRIVER
2 - TAPERED SNAP RING (INSTALL AS SHOWN)
Fig. 132 Check Low/Reverse Clutch Clearance
1 - DIAL INDICATOR
2 - DIAL INDICATOR TIP TOOL 6268
3 - HOOK TOOL
Fig. 133 Install 2/4 Clutch Pack
1 - CLUTCH PLATE (4)
2 - CLUTCH DISC (4)
21 - 200 AUTOMATIC - 41TERS
AUTOMATIC - 41TE (Continued)
Page 3165 of 4284

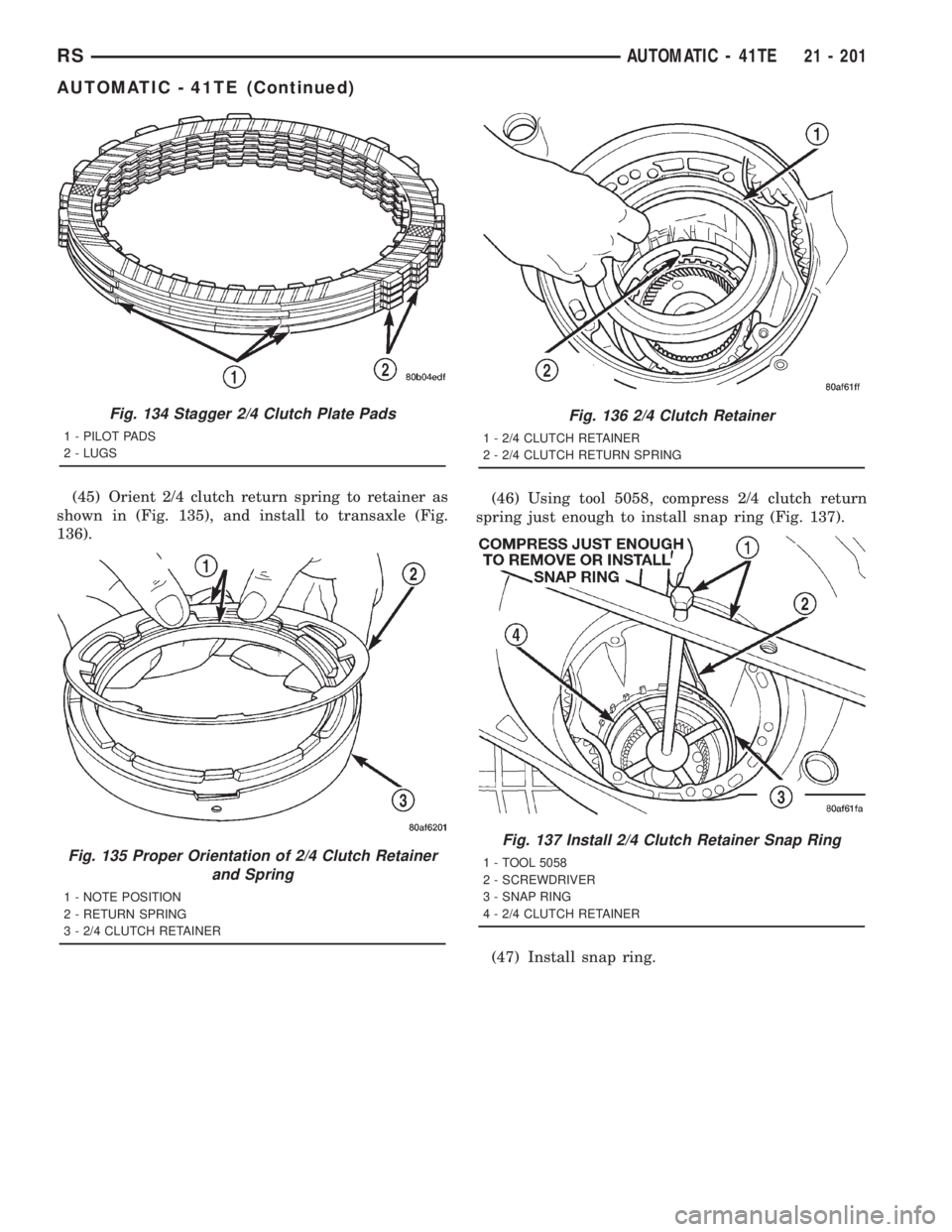

(45) Orient 2/4 clutch return spring to retainer as
shown in (Fig. 135), and install to transaxle (Fig.
136).(46) Using tool 5058, compress 2/4 clutch return
spring just enough to install snap ring (Fig. 137).
(47) Install snap ring.
Fig. 134 Stagger 2/4 Clutch Plate Pads
1 - PILOT PADS
2 - LUGS
Fig. 135 Proper Orientation of 2/4 Clutch Retainer
and Spring
1 - NOTE POSITION
2 - RETURN SPRING
3 - 2/4 CLUTCH RETAINER
Fig. 136 2/4 Clutch Retainer
1 - 2/4 CLUTCH RETAINER
2 - 2/4 CLUTCH RETURN SPRING
Fig. 137 Install 2/4 Clutch Retainer Snap Ring
1 - TOOL 5058
2 - SCREWDRIVER
3 - SNAP RING
4 - 2/4 CLUTCH RETAINER
RSAUTOMATIC - 41TE21 - 201
AUTOMATIC - 41TE (Continued)
Page 3166 of 4284

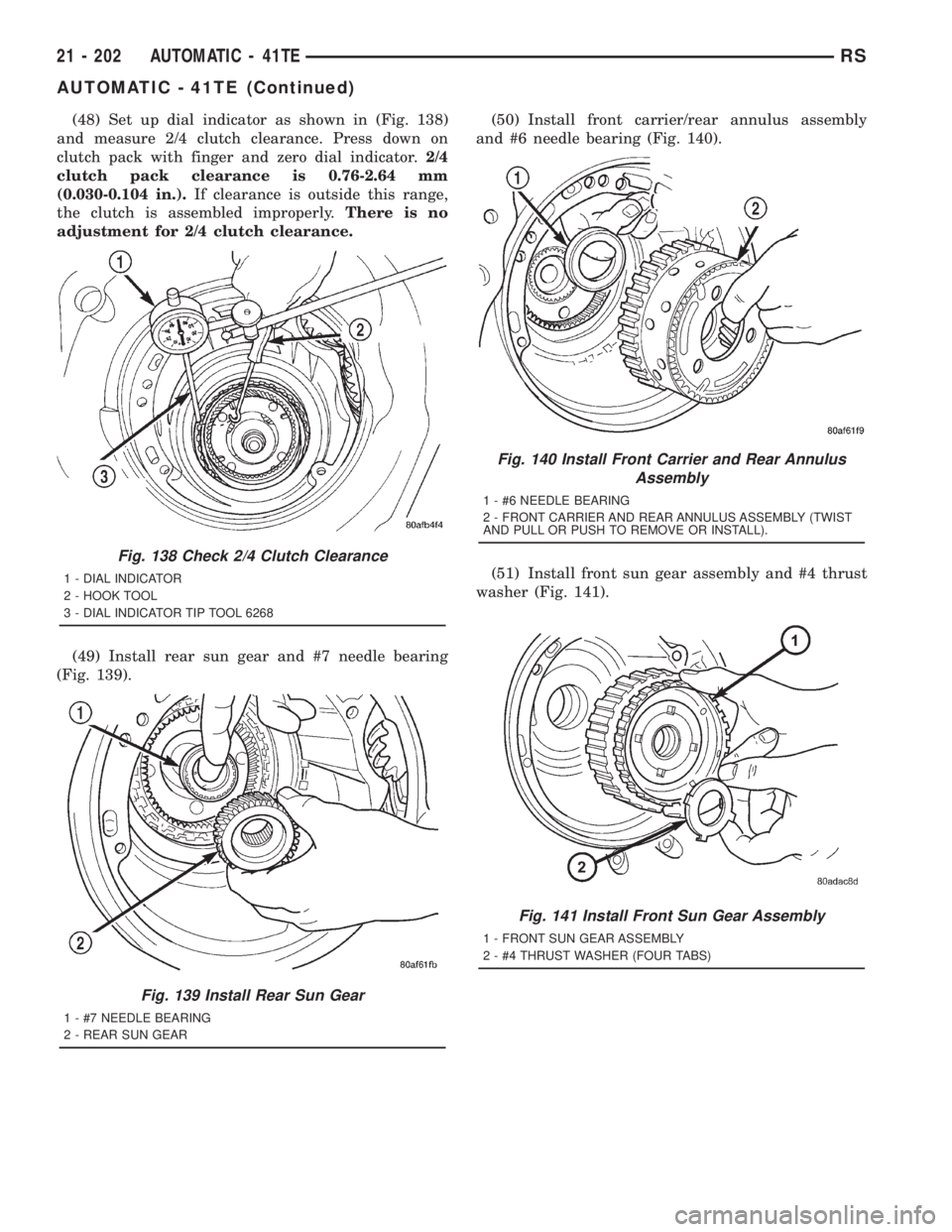

(48) Set up dial indicator as shown in (Fig. 138)
and measure 2/4 clutch clearance. Press down on
clutch pack with finger and zero dial indicator.2/4
clutch pack clearance is 0.76-2.64 mm
(0.030-0.104 in.).If clearance is outside this range,
the clutch is assembled improperly.There is no
adjustment for 2/4 clutch clearance.
(49) Install rear sun gear and #7 needle bearing
(Fig. 139).(50) Install front carrier/rear annulus assembly
and #6 needle bearing (Fig. 140).
(51) Install front sun gear assembly and #4 thrust
washer (Fig. 141).
Fig. 138 Check 2/4 Clutch Clearance
1 - DIAL INDICATOR
2 - HOOK TOOL
3 - DIAL INDICATOR TIP TOOL 6268
Fig. 139 Install Rear Sun Gear
1 - #7 NEEDLE BEARING
2 - REAR SUN GEAR
Fig. 140 Install Front Carrier and Rear Annulus
Assembly
1 - #6 NEEDLE BEARING
2 - FRONT CARRIER AND REAR ANNULUS ASSEMBLY (TWIST
AND PULL OR PUSH TO REMOVE OR INSTALL).
Fig. 141 Install Front Sun Gear Assembly
1 - FRONT SUN GEAR ASSEMBLY
2 - #4 THRUST WASHER (FOUR TABS)
21 - 202 AUTOMATIC - 41TERS
AUTOMATIC - 41TE (Continued)
Page 3167 of 4284
(52)DETERMINING #4 THRUST PLATE
THICKNESS / INPUT SHAFT END PLAY:
(a) Select the thinnest #4 thrust plate thickness
and install to input clutch assembly (Fig. 142). Use
petrolatum to retain.
(b) Install input clutch assembly into position
and verify that it is completely seated by viewing
through input speed sensor hole. If view through
input speed sensor hole is not as shown in (Fig.
143), the input clutch assembly is not seated prop-
erly.
(c) Remove oil pump o-ring (Fig. 144).Be sure
to reinstall oil pump o-ring after selecting the
proper #4 thrust plate.
(d) Set up input shaft for measurement with
Indicator Set C3339 and End Play Set 8266 as
shown in (Fig. 145).
(e) Measure the input shaft end play with the
transaxle in the vertical position.Input shaft end
play must within 0.005 to 0.025 inch.For exam-
ple, if end play reading is 0.055 inch, select No. 4
Thrust Plate which is 0.071 to 0.074 thick. This
should provide an input shaft end play reading of
0.020 inch which is within specifications.
(f) Refer to the No. 4 thrust plate chart to select
the proper No. 4 thrust plate:
Fig. 142 Select Thinnest No. 4 Thrust Plate
1 - OVERDRIVE SHAFT ASSEMBLY
2 - #4 THRUST PLATE (SELECT)
3 - 3 DABS OF PETROLATUM FOR RETENTION
Fig. 143 View Through Input Speed Sensor Hole
1 - INPUT CLUTCH RETAINER
2 - INPUT SPEED SENSOR HOLE
3 - OIL COOLER FITTINGS
Fig. 144 Remove Oil Pump O-Ring
1 - OIL PUMP ASSEMBLY
2 - O-RING
RSAUTOMATIC - 41TE21 - 203
AUTOMATIC - 41TE (Continued)
Page 3168 of 4284

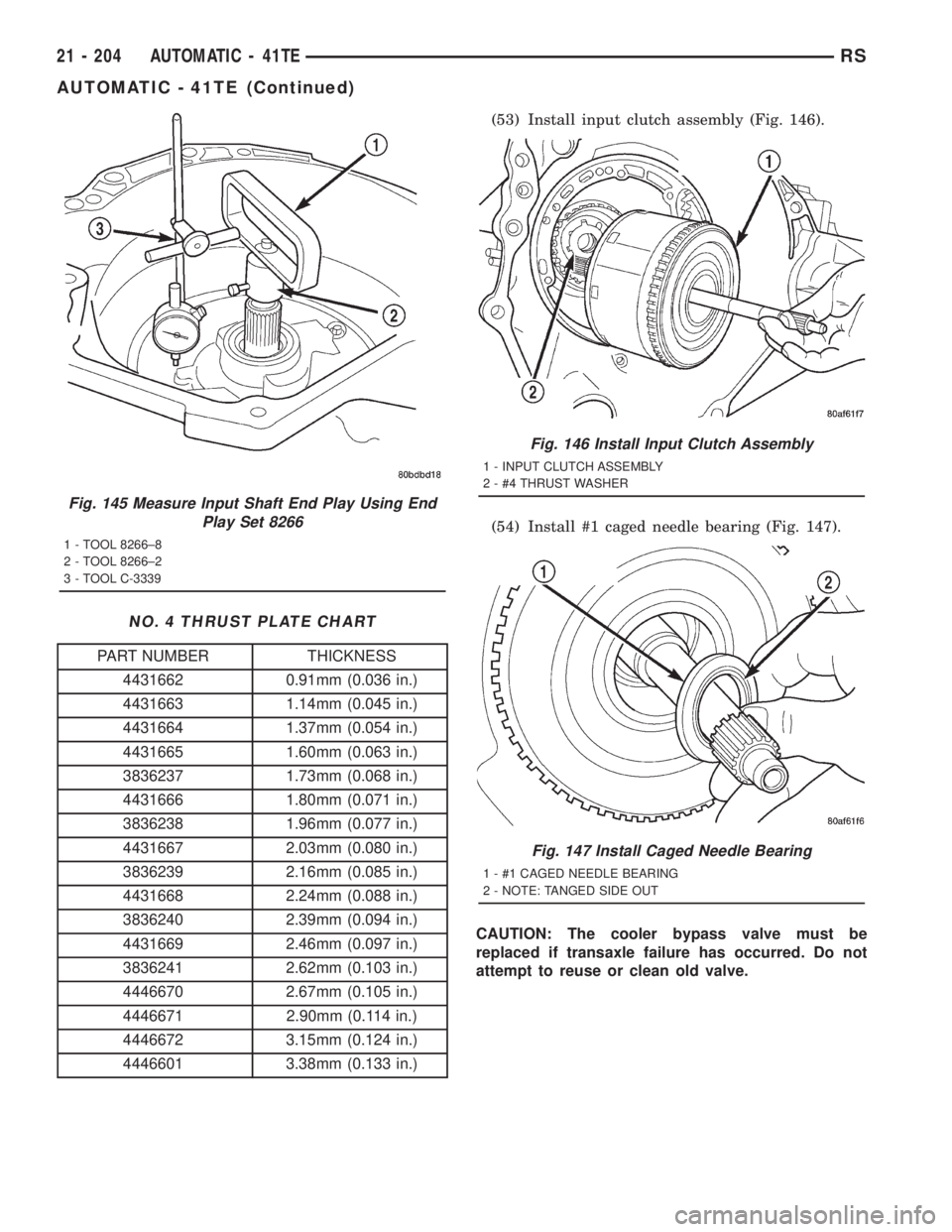

NO. 4 THRUST PLATE CHART
PART NUMBER THICKNESS
4431662 0.91mm (0.036 in.)
4431663 1.14mm (0.045 in.)
4431664 1.37mm (0.054 in.)
4431665 1.60mm (0.063 in.)
3836237 1.73mm (0.068 in.)
4431666 1.80mm (0.071 in.)
3836238 1.96mm (0.077 in.)
4431667 2.03mm (0.080 in.)
3836239 2.16mm (0.085 in.)
4431668 2.24mm (0.088 in.)
3836240 2.39mm (0.094 in.)
4431669 2.46mm (0.097 in.)
3836241 2.62mm (0.103 in.)
4446670 2.67mm (0.105 in.)
4446671 2.90mm (0.114 in.)
4446672 3.15mm (0.124 in.)
4446601 3.38mm (0.133 in.)(53) Install input clutch assembly (Fig. 146).
(54) Install #1 caged needle bearing (Fig. 147).
CAUTION: The cooler bypass valve must be
replaced if transaxle failure has occurred. Do not
attempt to reuse or clean old valve.
Fig. 145 Measure Input Shaft End Play Using End
Play Set 8266
1 - TOOL 8266±8
2 - TOOL 8266±2
3 - TOOL C-3339
Fig. 146 Install Input Clutch Assembly
1 - INPUT CLUTCH ASSEMBLY
2 - #4 THRUST WASHER
Fig. 147 Install Caged Needle Bearing
1 - #1 CAGED NEEDLE BEARING
2 - NOTE: TANGED SIDE OUT
21 - 204 AUTOMATIC - 41TERS
AUTOMATIC - 41TE (Continued)
