Page 2609 of 4284

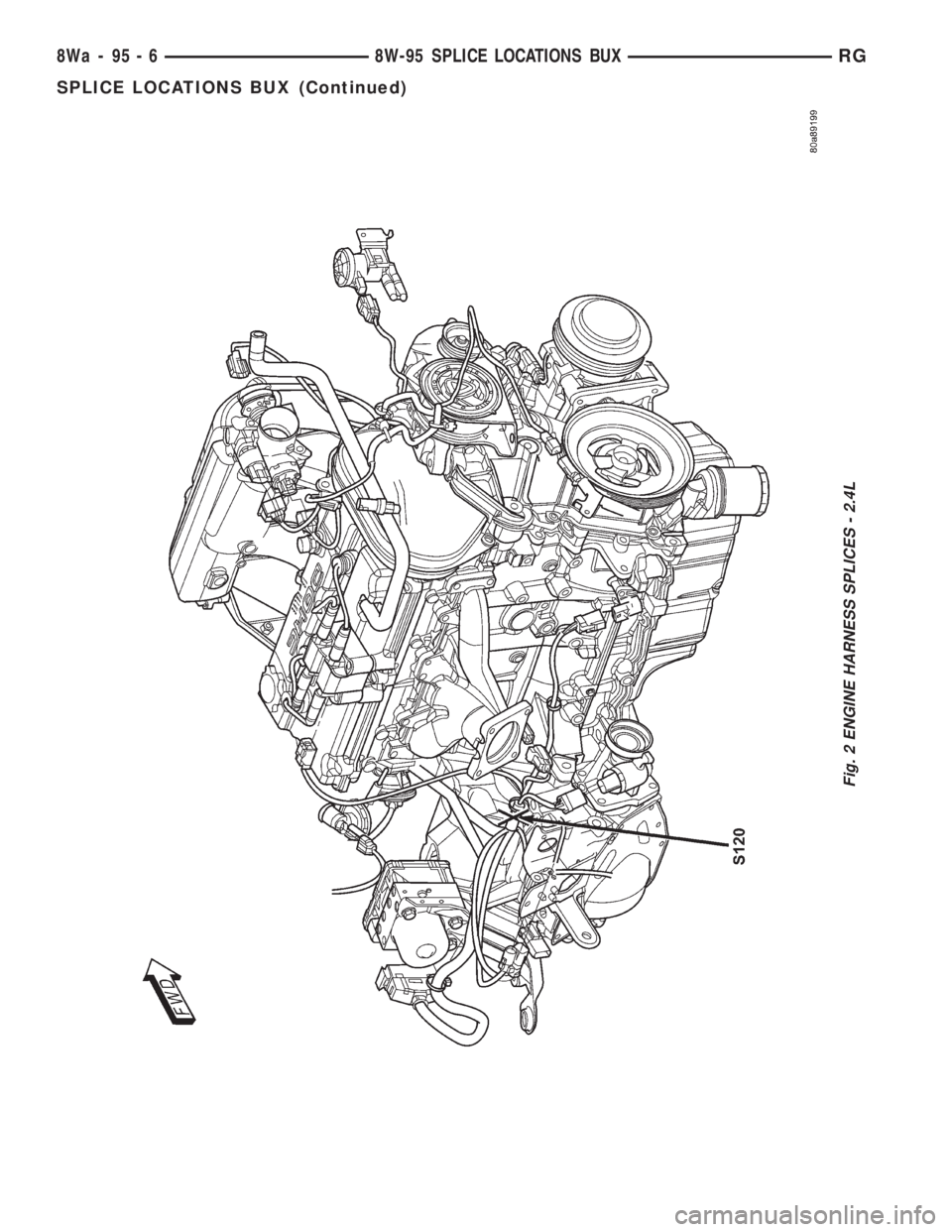

CHRYSLER VOYAGER 2001 Service Manual Fig. 1 ENGINE HARNESS SPLICES - 2.4L RG8W-95 SPLICE LOCATIONS BUX8Wa-95-5 SPLICE LOCATIONS BUX (Continued)

Page 2610 of 4284

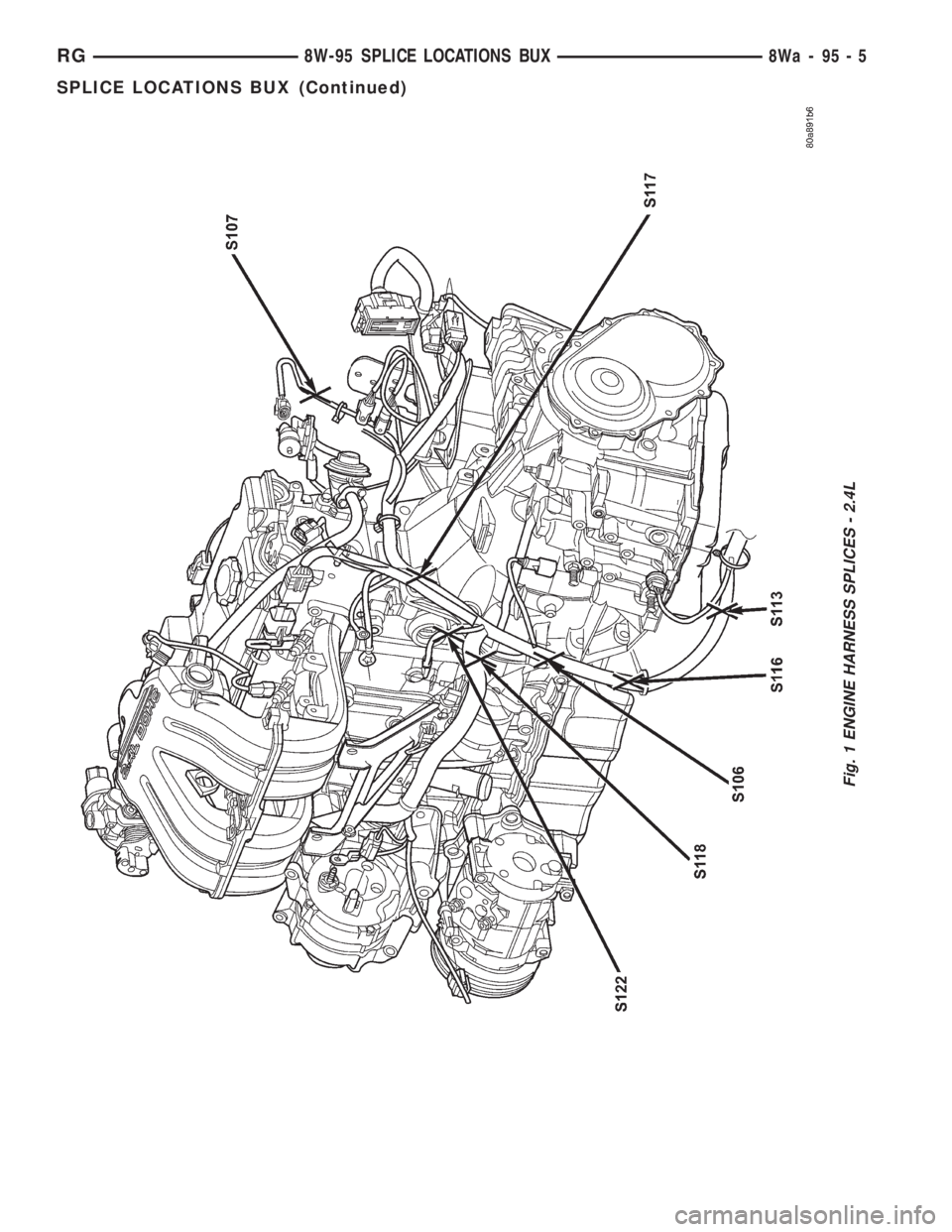

CHRYSLER VOYAGER 2001 Service Manual Fig. 2 ENGINE HARNESS SPLICES - 2.4L 8Wa - 95 - 6 8W-95 SPLICE LOCATIONS BUXRG SPLICE LOCATIONS BUX (Continued)

Page 2611 of 4284

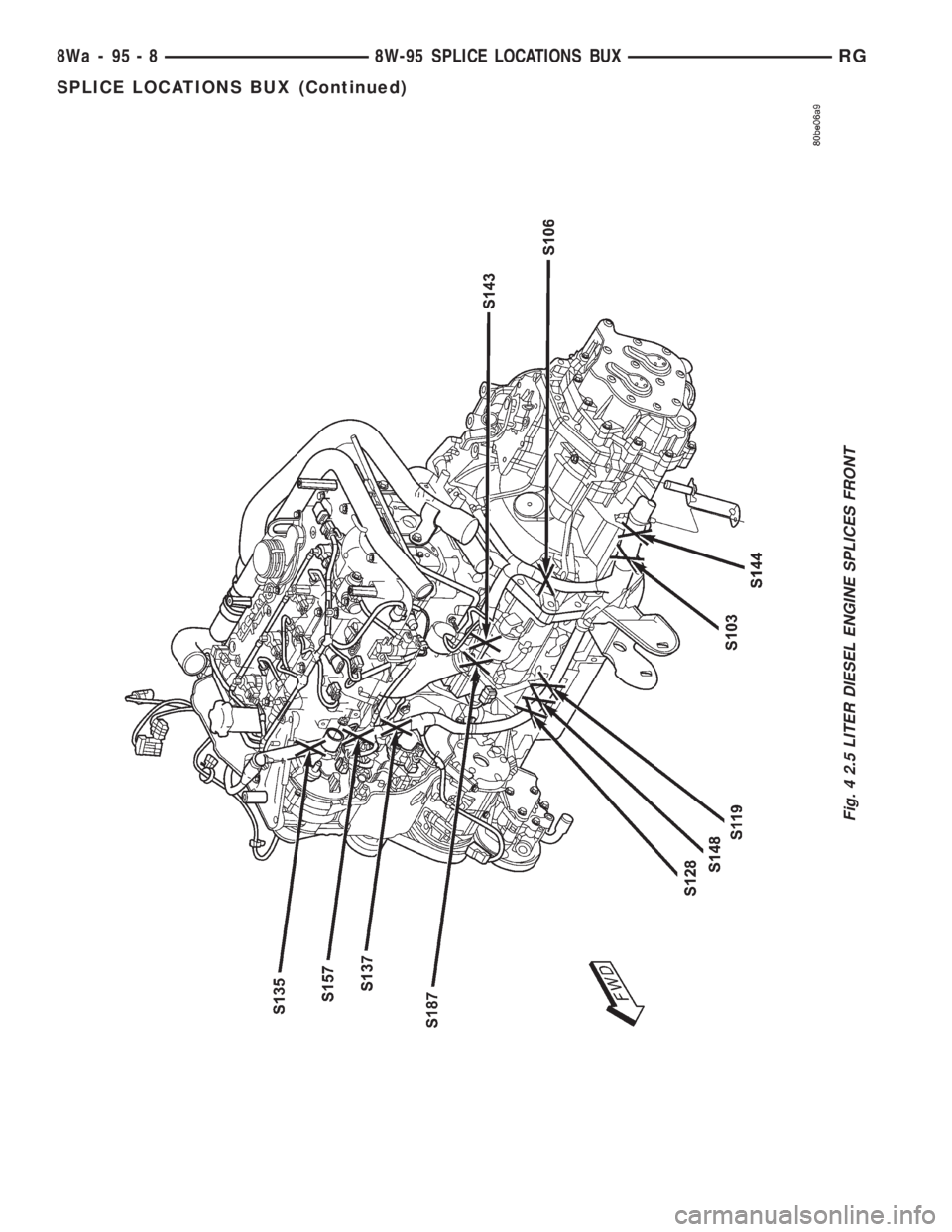

CHRYSLER VOYAGER 2001 Service Manual Fig. 3 2.5 LITER DIESEL ENGINE SPLICES REAR RG8W-95 SPLICE LOCATIONS BUX8Wa-95-7 SPLICE LOCATIONS BUX (Continued)

Page 2612 of 4284

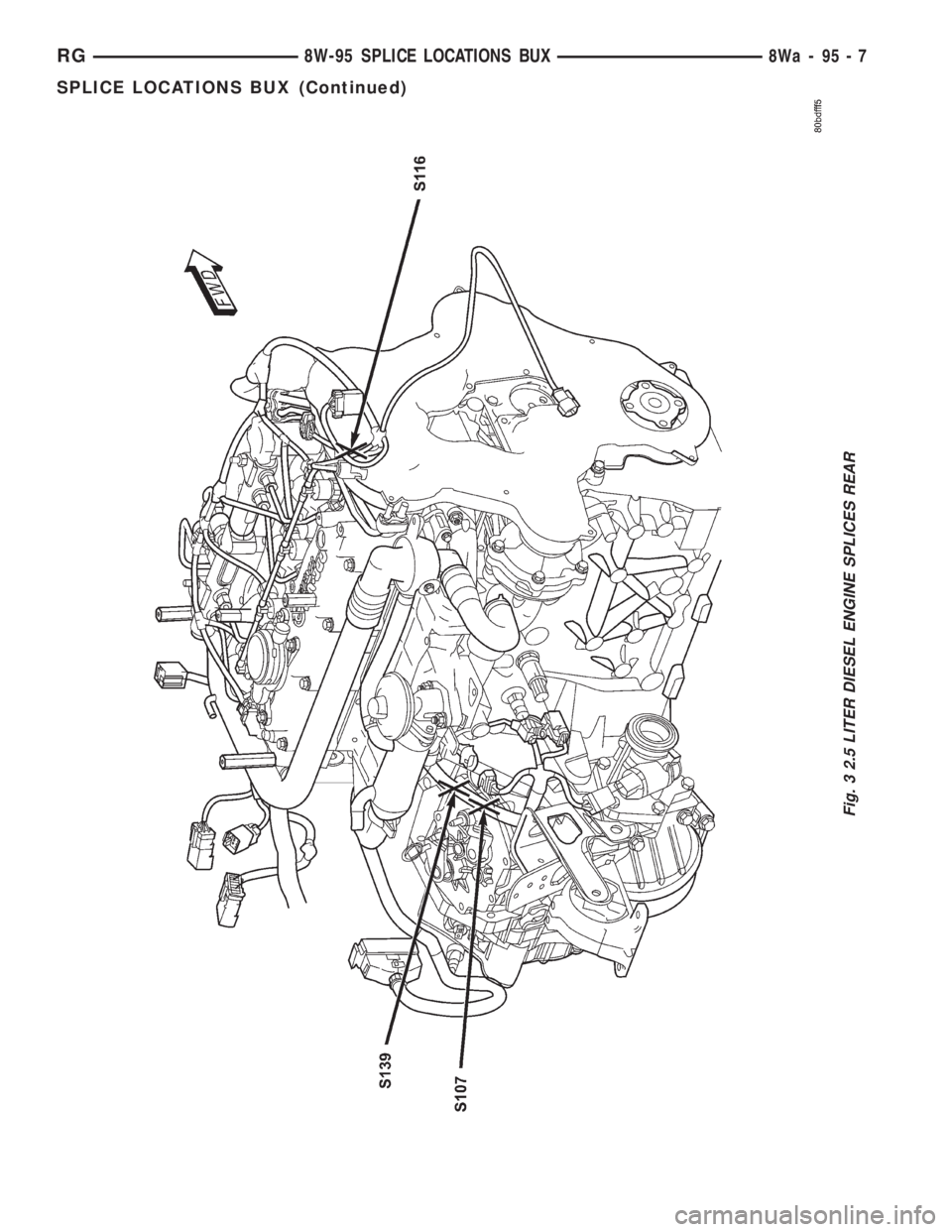

CHRYSLER VOYAGER 2001 Service Manual Fig. 4 2.5 LITER DIESEL ENGINE SPLICES FRONT 8Wa - 95 - 8 8W-95 SPLICE LOCATIONS BUXRG SPLICE LOCATIONS BUX (Continued)

Page 2613 of 4284

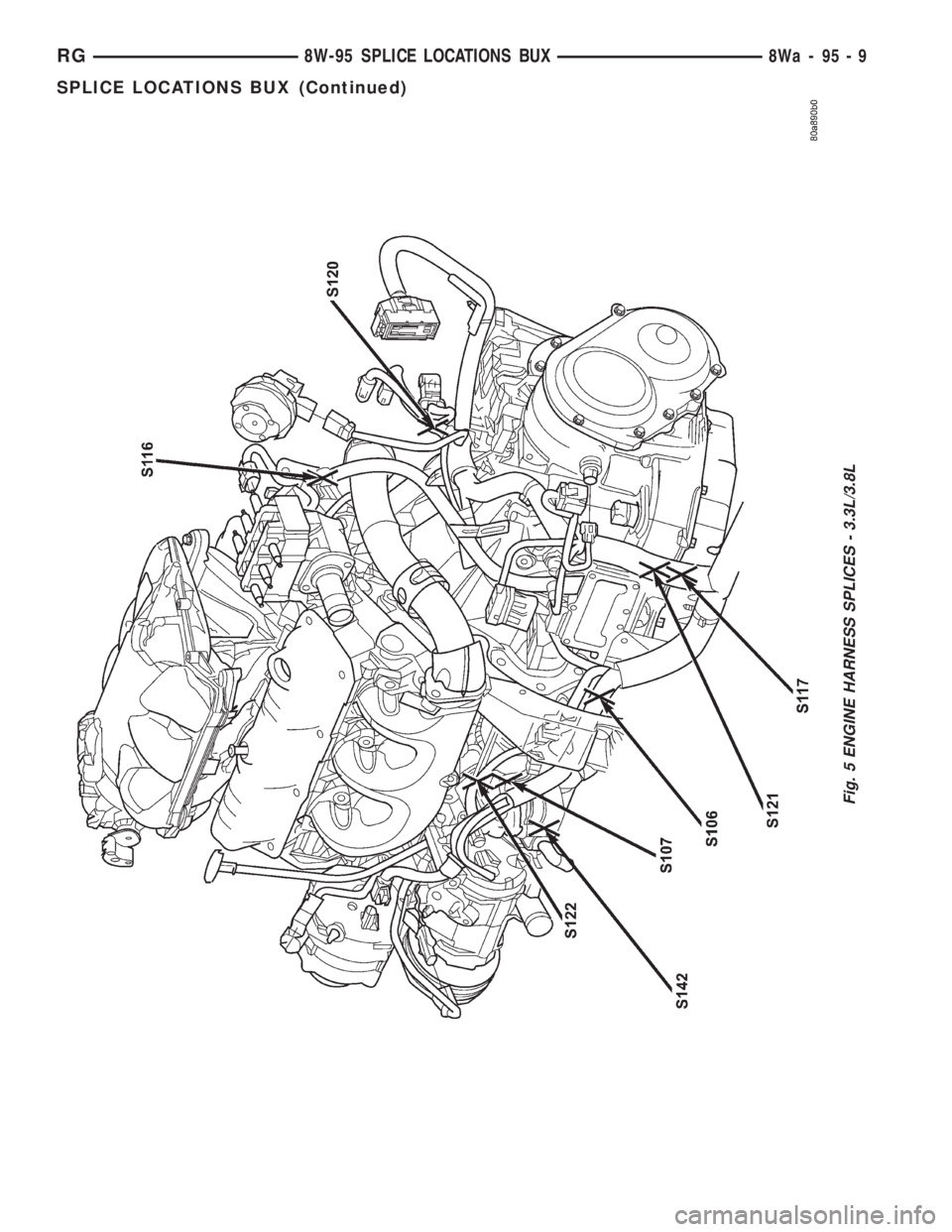

CHRYSLER VOYAGER 2001 Service Manual Fig. 5 ENGINE HARNESS SPLICES - 3.3L/3.8L RG8W-95 SPLICE LOCATIONS BUX8Wa-95-9 SPLICE LOCATIONS BUX (Continued)

Page 2614 of 4284

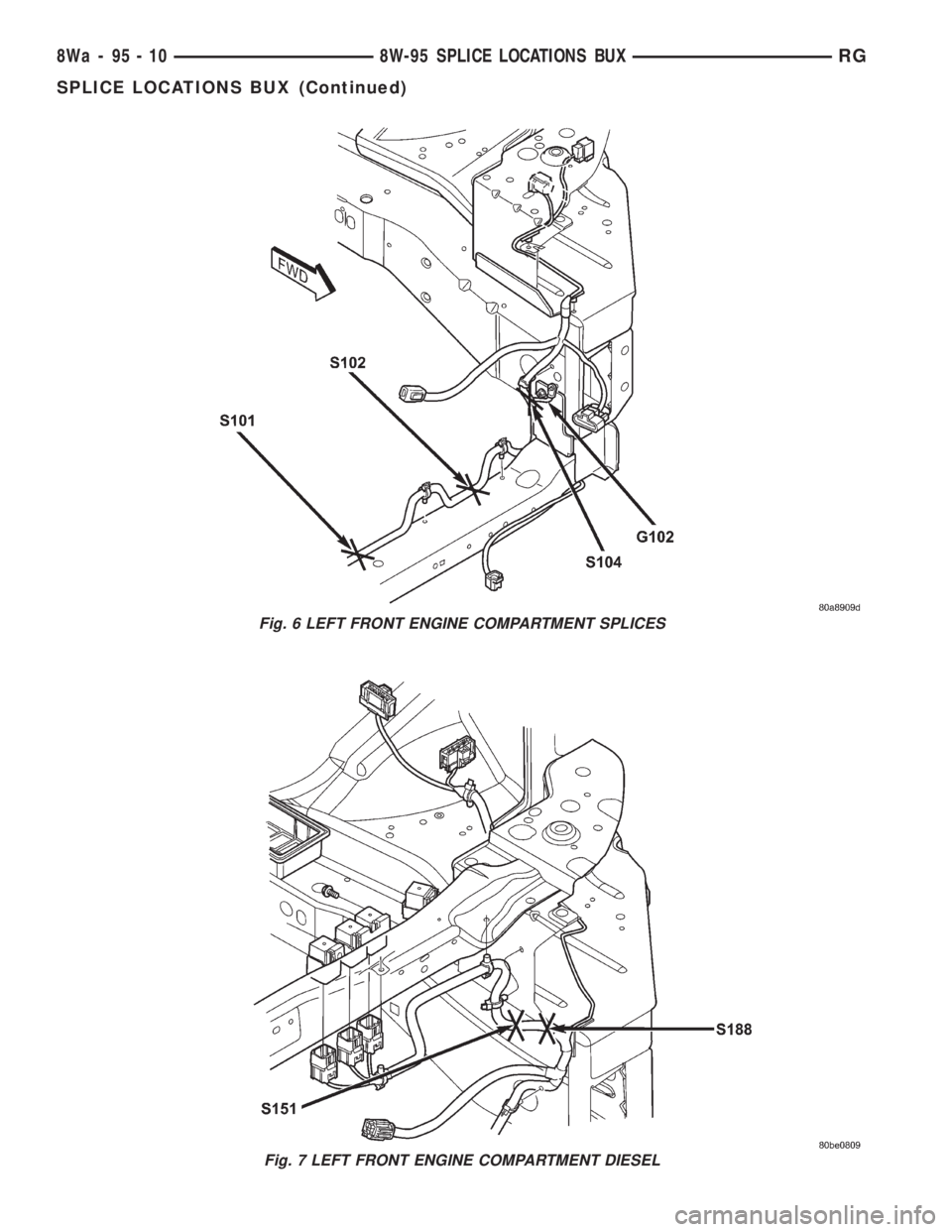

CHRYSLER VOYAGER 2001 Service Manual Fig. 6 LEFT FRONT ENGINE COMPARTMENT SPLICES Fig. 7 LEFT FRONT ENGINE COMPARTMENT DIESEL 8Wa - 95 - 10 8W-95 SPLICE LOCATIONS BUXRG SPLICE LOCATIONS BUX (Continued)

Page 2615 of 4284

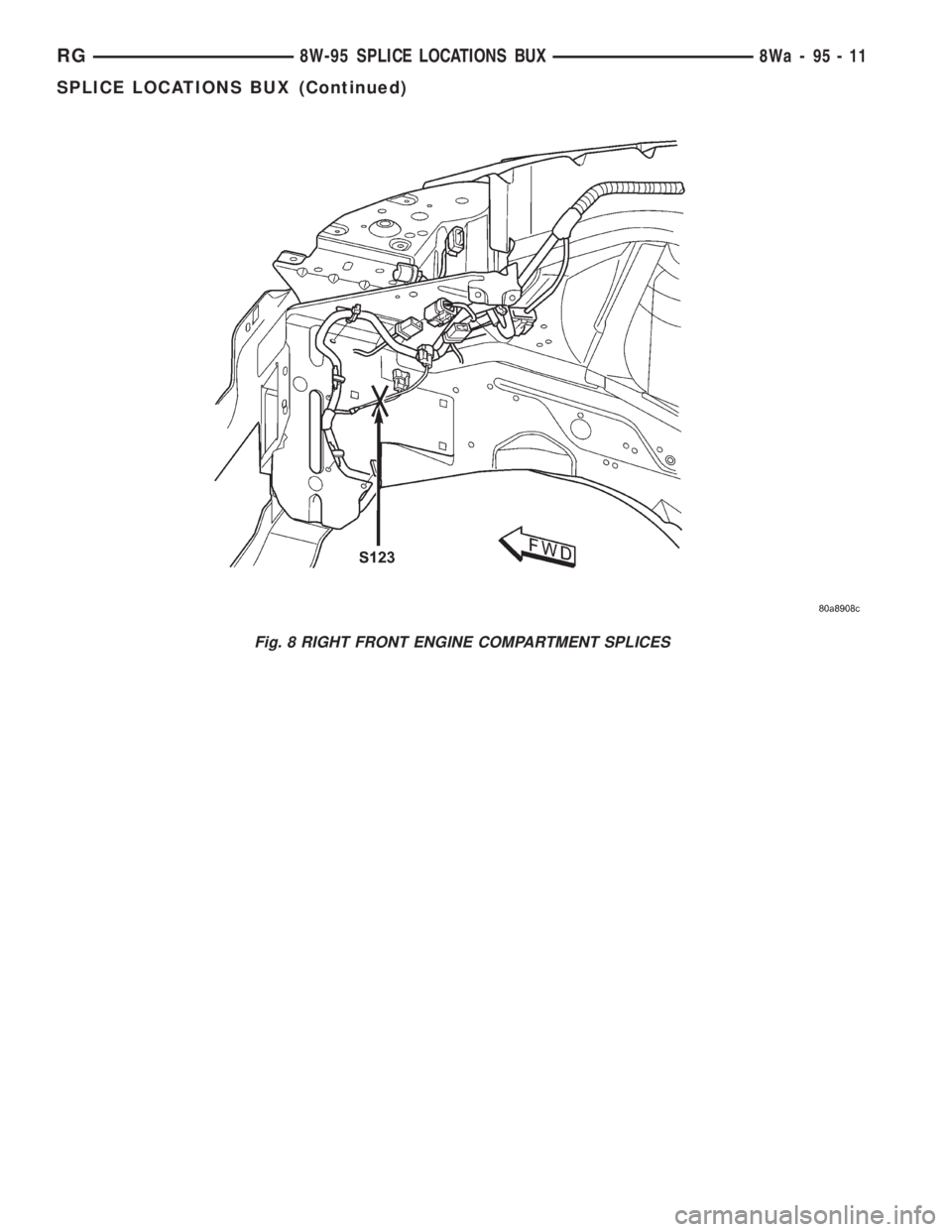

CHRYSLER VOYAGER 2001 Service Manual Fig. 8 RIGHT FRONT ENGINE COMPARTMENT SPLICES RG8W-95 SPLICE LOCATIONS BUX8Wa-95-11 SPLICE LOCATIONS BUX (Continued)

Page 2616 of 4284

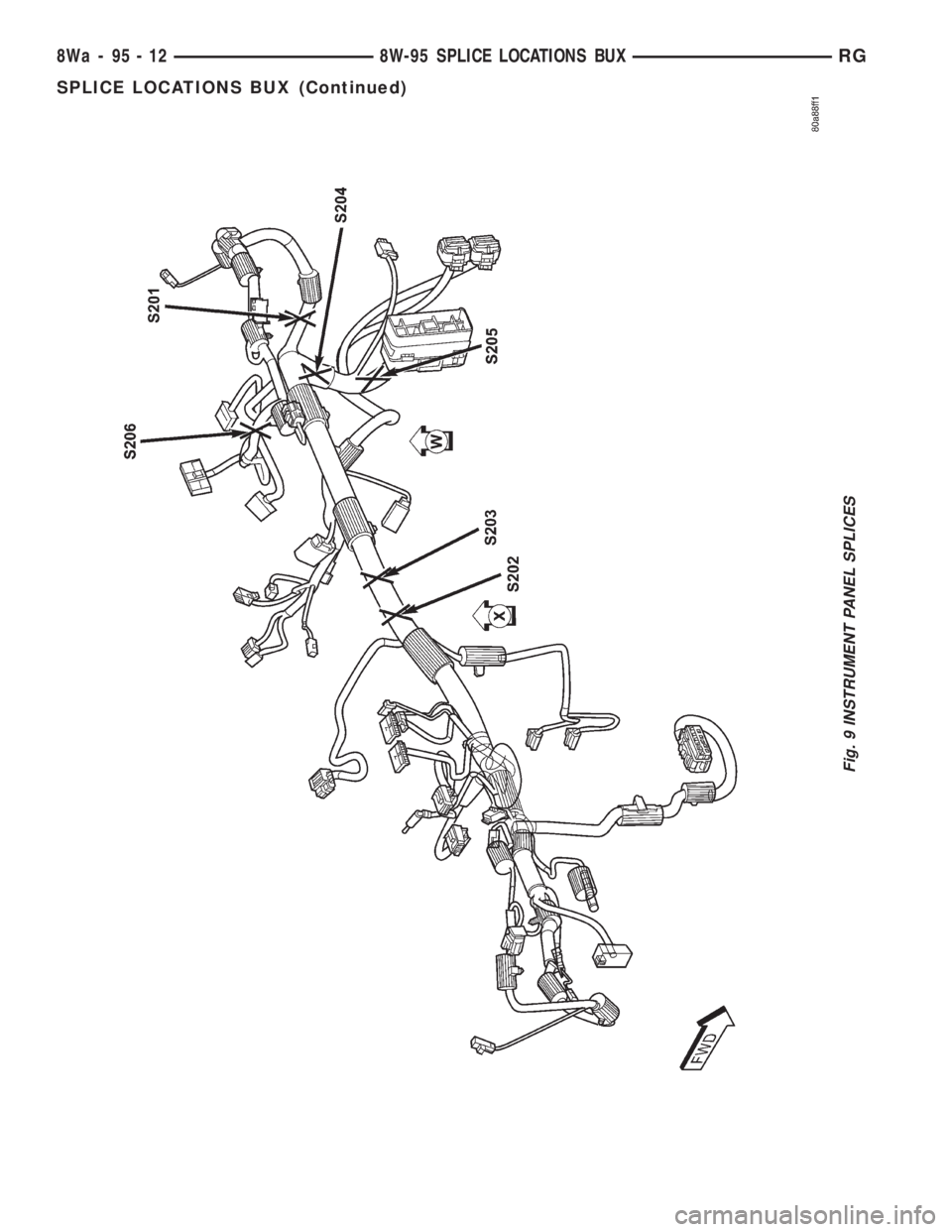

CHRYSLER VOYAGER 2001 Service Manual Fig. 9 INSTRUMENT PANEL SPLICES 8Wa - 95 - 12 8W-95 SPLICE LOCATIONS BUXRG SPLICE LOCATIONS BUX (Continued)
