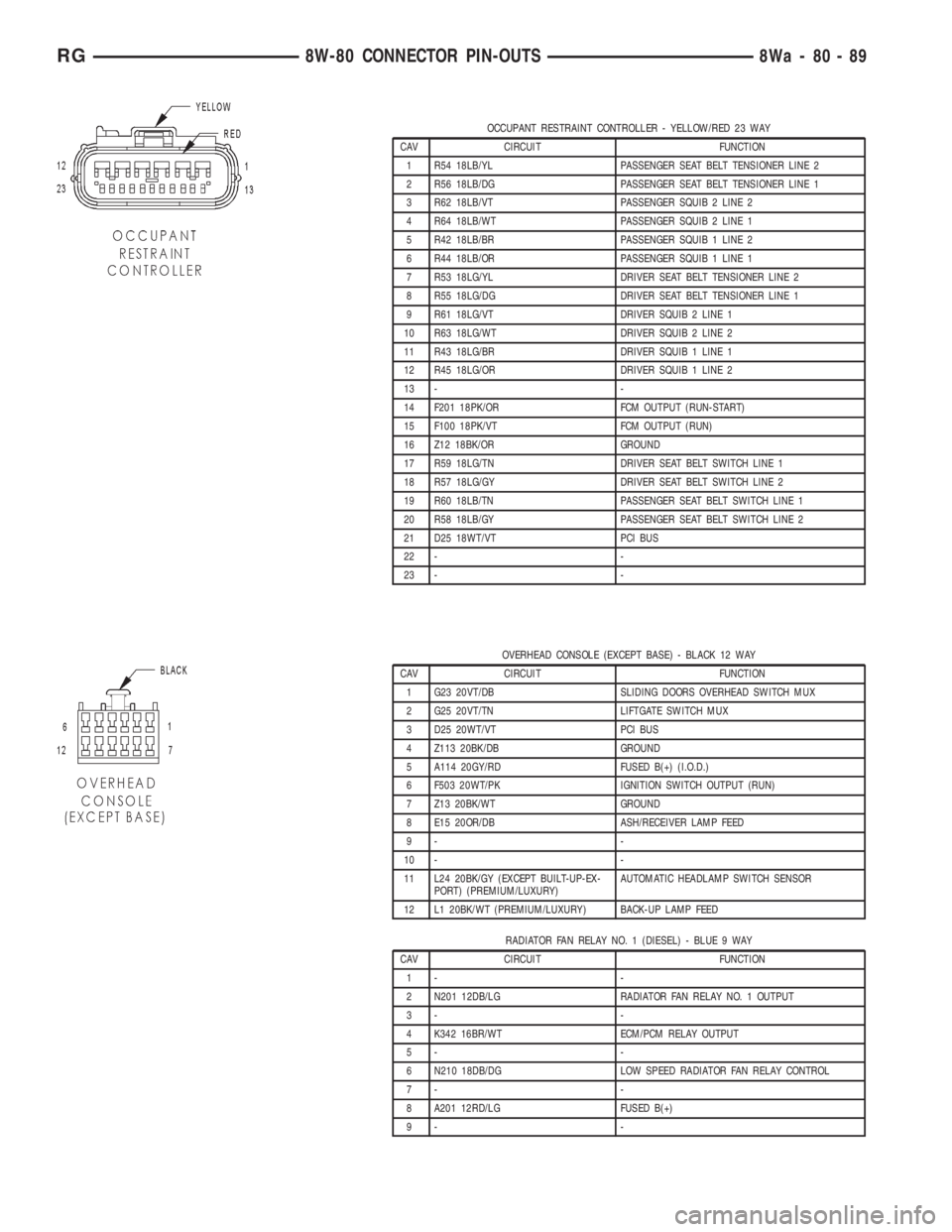

Page 2529 of 4284

CHRYSLER VOYAGER 2001 Service Manual OCCUPANT RESTRAINT CONTROLLER - YELLOW/RED 23 WAY CAV CIRCUIT FUNCTION 1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2 2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1 3 R62 18LB/VT PASSENGER SQU

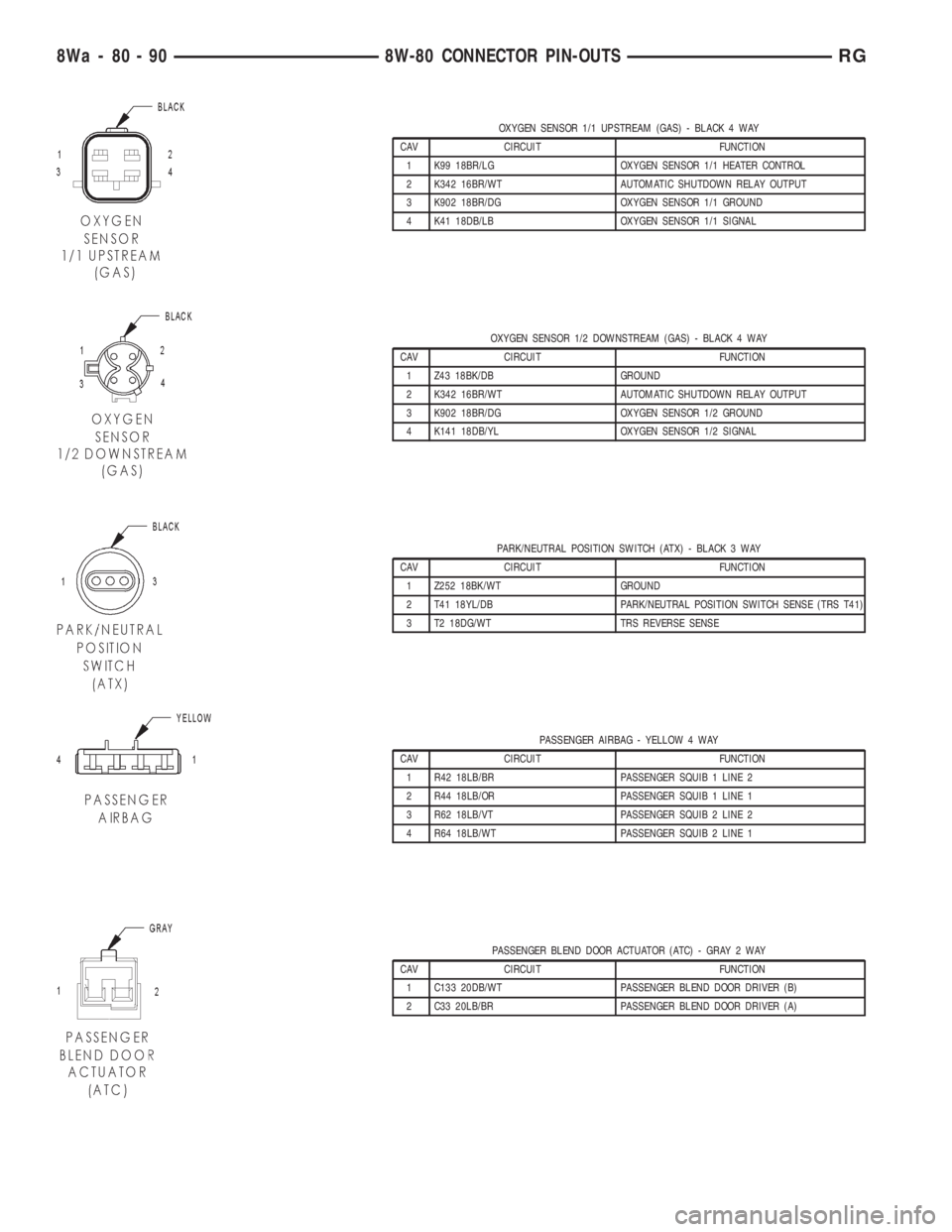

Page 2530 of 4284

CHRYSLER VOYAGER 2001 Service Manual OXYGEN SENSOR 1/1 UPSTREAM (GAS) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL 2 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT 3 K902 18BR/DG OXYGEN SENSOR 1/1 GROUN

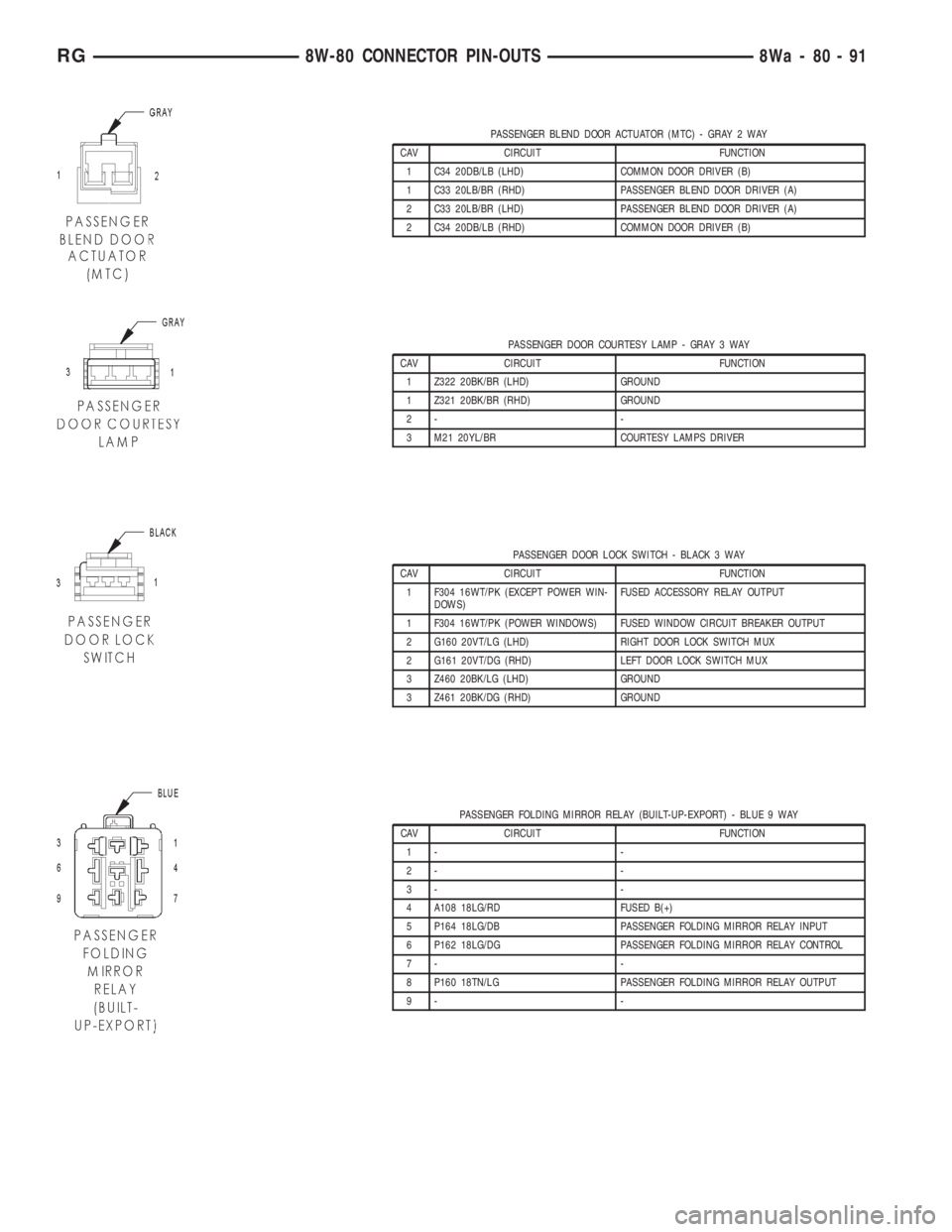

Page 2531 of 4284

CHRYSLER VOYAGER 2001 Service Manual PASSENGER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B) 1 C33 20LB/BR (RHD) PASSENGER BLEND DOOR DRIVER (A) 2 C33 20LB/BR (LHD) PASSENGER BLEND

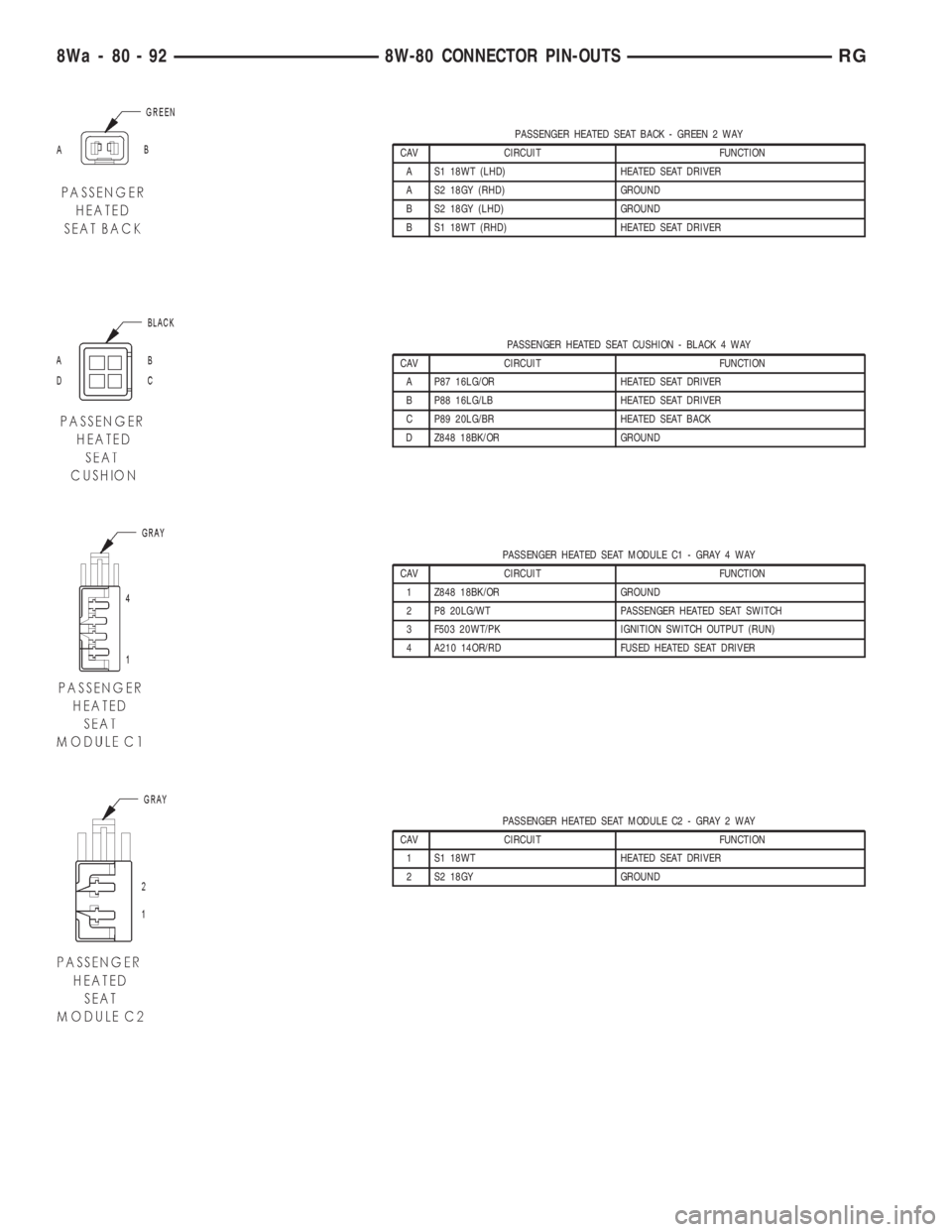

Page 2532 of 4284

CHRYSLER VOYAGER 2001 Service Manual PASSENGER HEATED SEAT BACK - GREEN 2 WAY CAV CIRCUIT FUNCTION A S1 18WT (LHD) HEATED SEAT DRIVER A S2 18GY (RHD) GROUND B S2 18GY (LHD) GROUND B S1 18WT (RHD) HEATED SEAT DRIVER PASSENGER HEATED SEAT

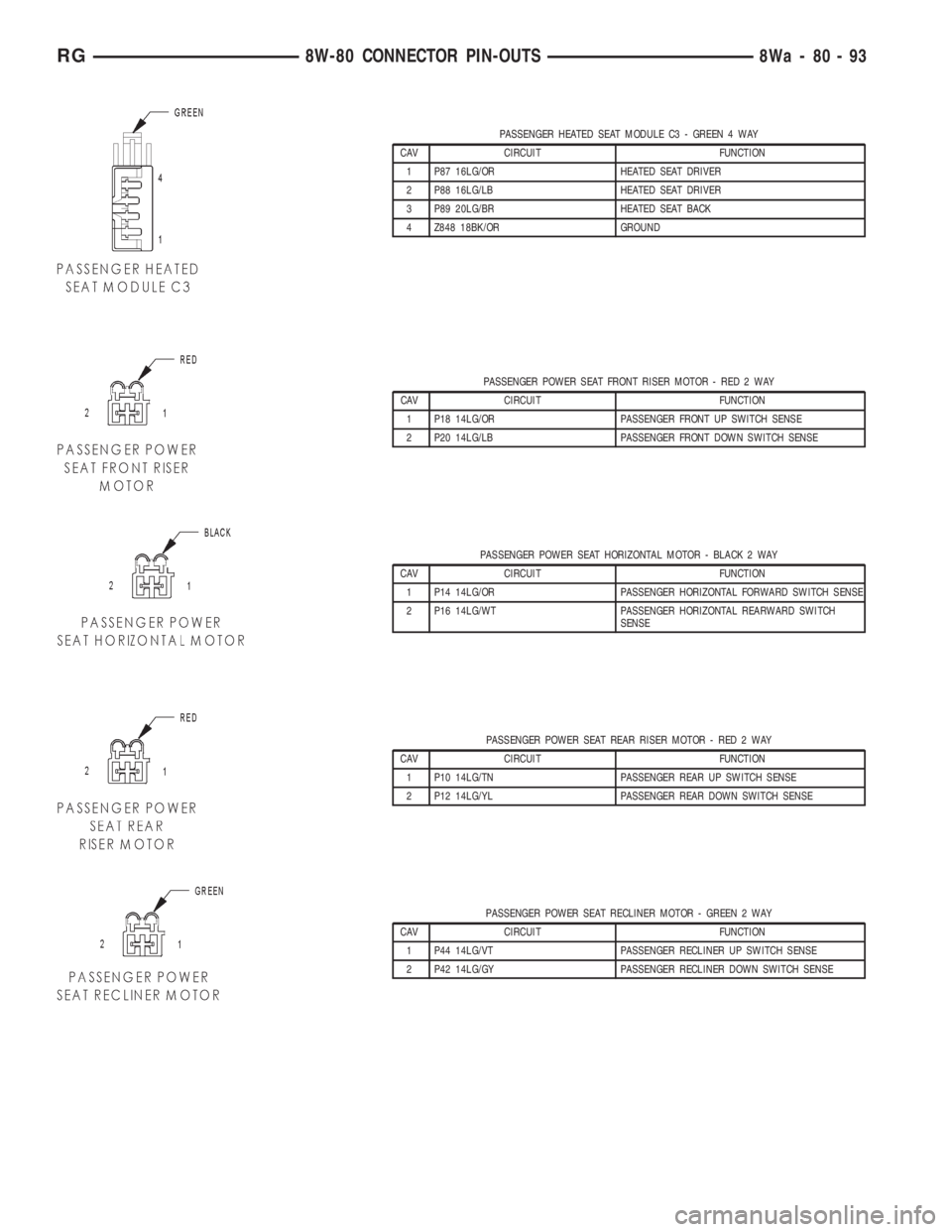

Page 2533 of 4284

CHRYSLER VOYAGER 2001 Service Manual PASSENGER HEATED SEAT MODULE C3 - GREEN 4 WAY CAV CIRCUIT FUNCTION 1 P87 16LG/OR HEATED SEAT DRIVER 2 P88 16LG/LB HEATED SEAT DRIVER 3 P89 20LG/BR HEATED SEAT BACK 4 Z848 18BK/OR GROUND PASSENGER POWE

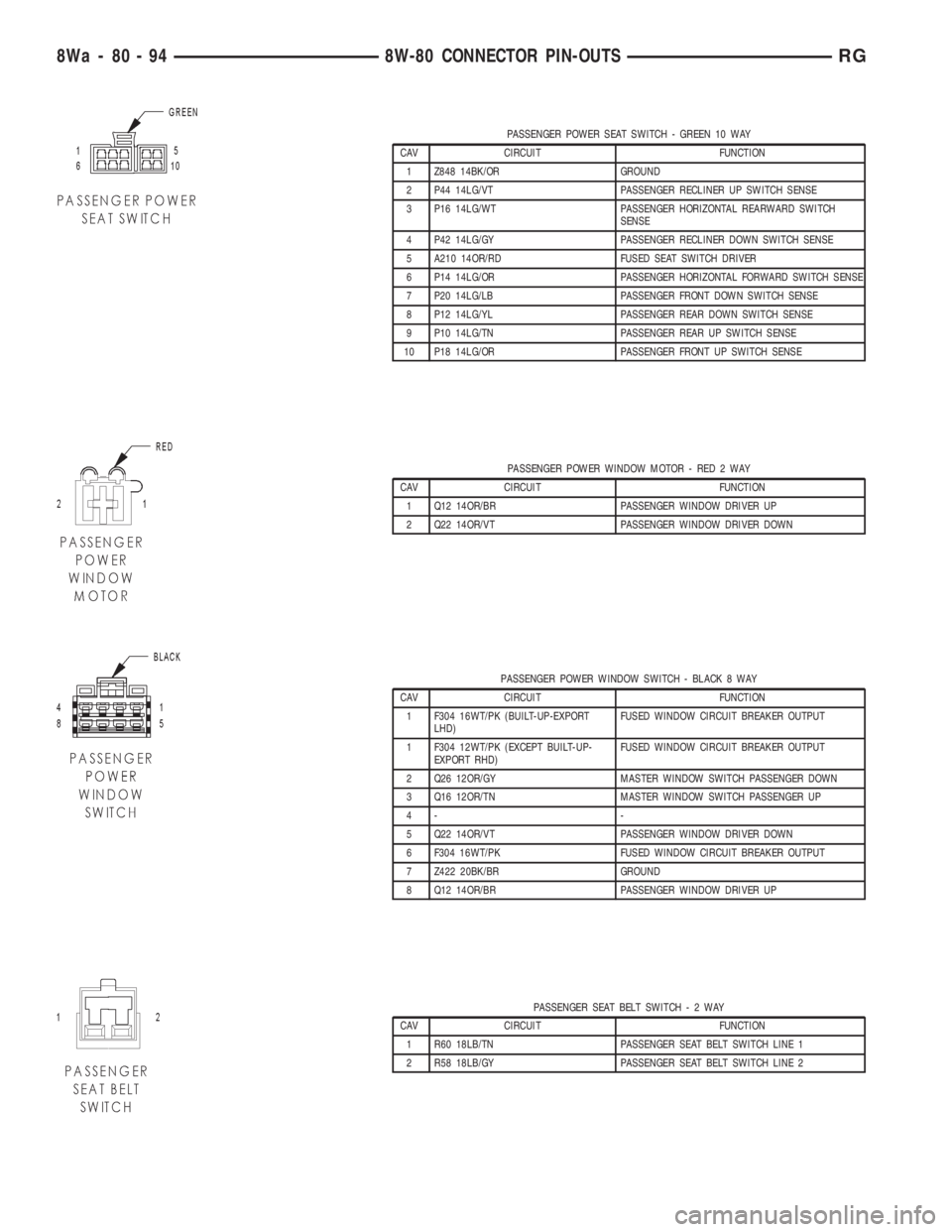

Page 2534 of 4284

CHRYSLER VOYAGER 2001 Service Manual PASSENGER POWER SEAT SWITCH - GREEN 10 WAY CAV CIRCUIT FUNCTION 1 Z848 14BK/OR GROUND 2 P44 14LG/VT PASSENGER RECLINER UP SWITCH SENSE 3 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH SENSE 4 P42 14

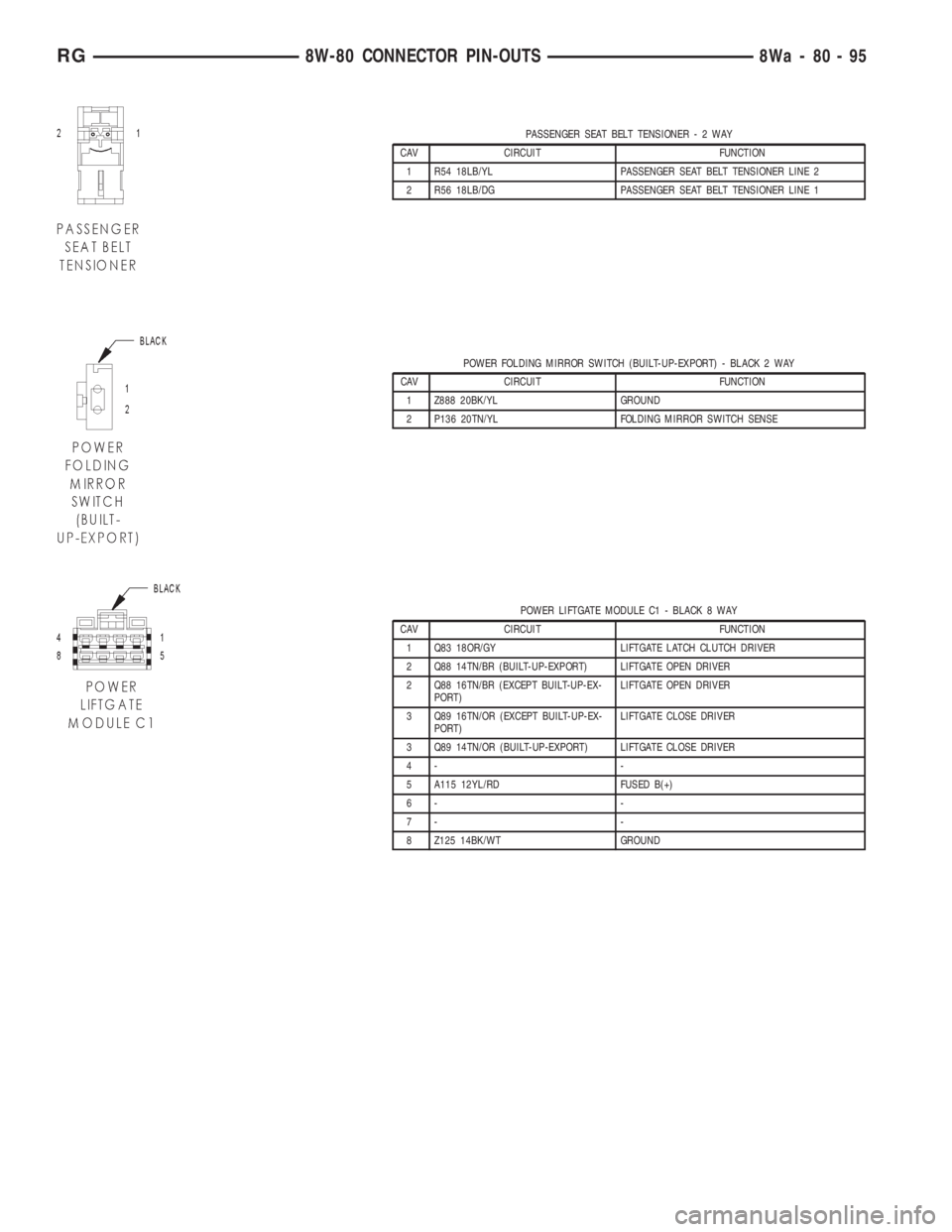

Page 2535 of 4284

CHRYSLER VOYAGER 2001 Service Manual PASSENGER SEAT BELT TENSIONER-2WAY CAV CIRCUIT FUNCTION 1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2 2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1 POWER FOLDING MIRROR SWITCH (BUILT-UP-EXPO

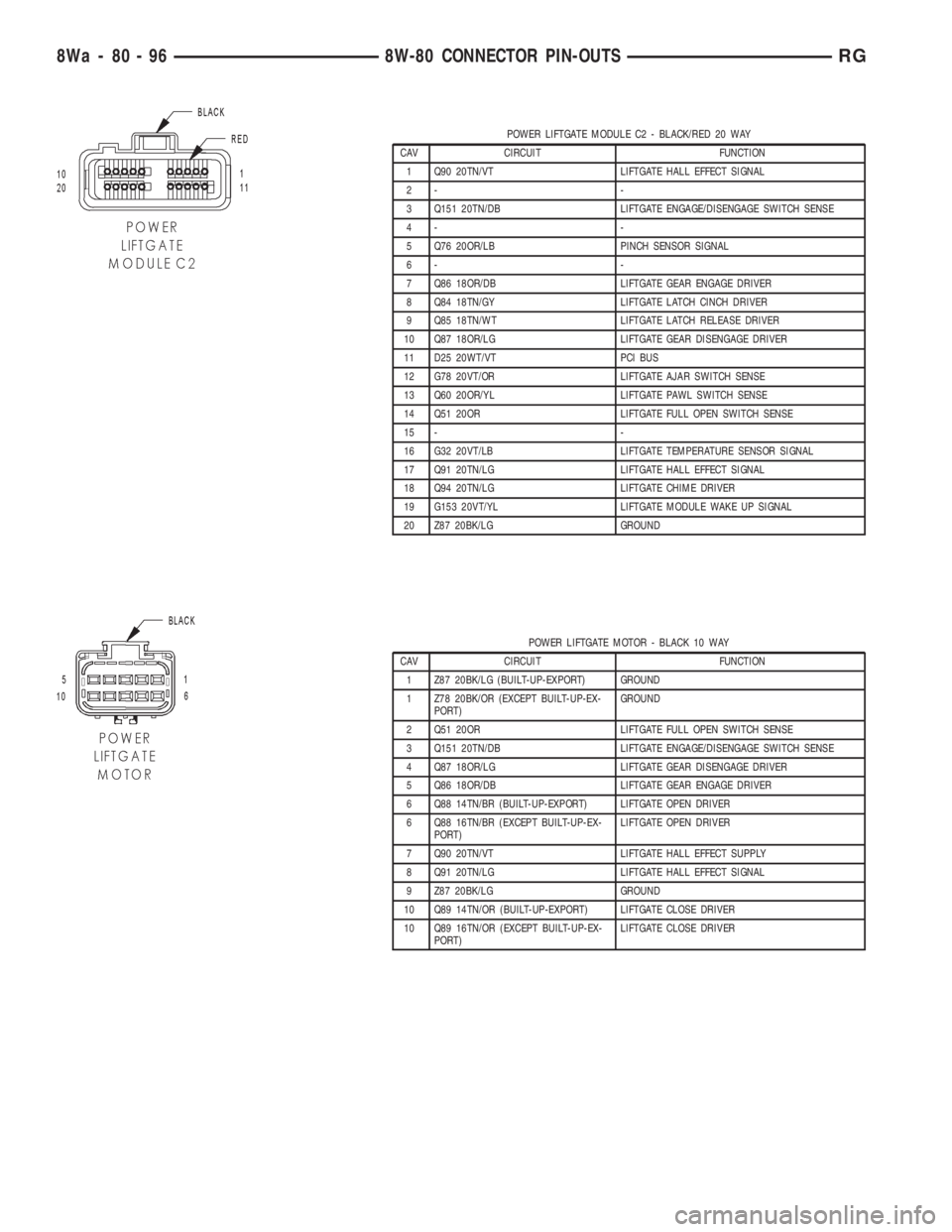

Page 2536 of 4284

CHRYSLER VOYAGER 2001 Service Manual POWER LIFTGATE MODULE C2 - BLACK/RED 20 WAY CAV CIRCUIT FUNCTION 1 Q90 20TN/VT LIFTGATE HALL EFFECT SIGNAL 2- - 3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE 4- - 5 Q76 20OR/LB PINCH SENSOR SI
