Page 2521 of 4284

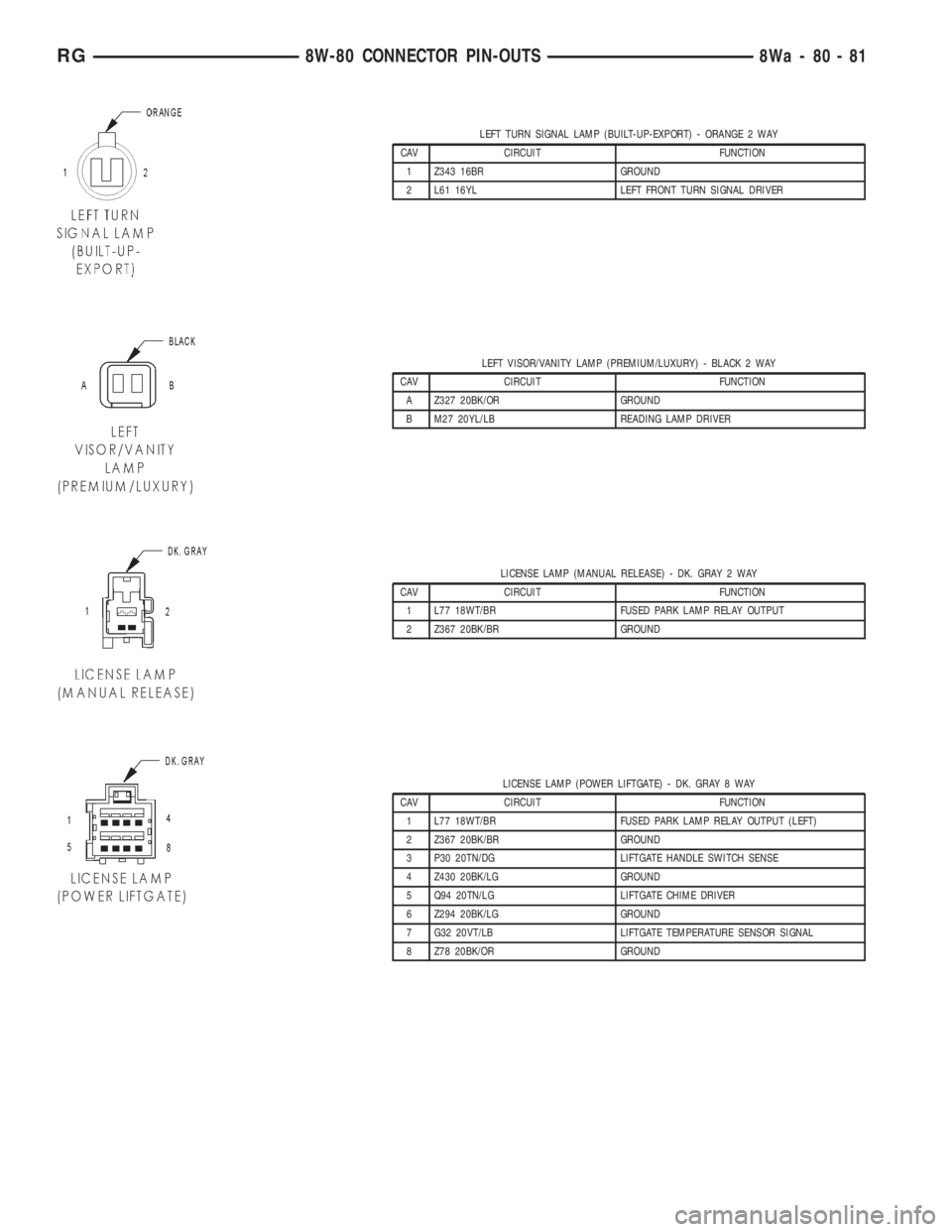

CHRYSLER VOYAGER 2001 Service Manual LEFT TURN SIGNAL LAMP (BUILT-UP-EXPORT) - ORANGE 2 WAY CAV CIRCUIT FUNCTION 1 Z343 16BR GROUND 2 L61 16YL LEFT FRONT TURN SIGNAL DRIVER LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY) - BLACK 2 WAY CAV CIRCUI

Page 2522 of 4284

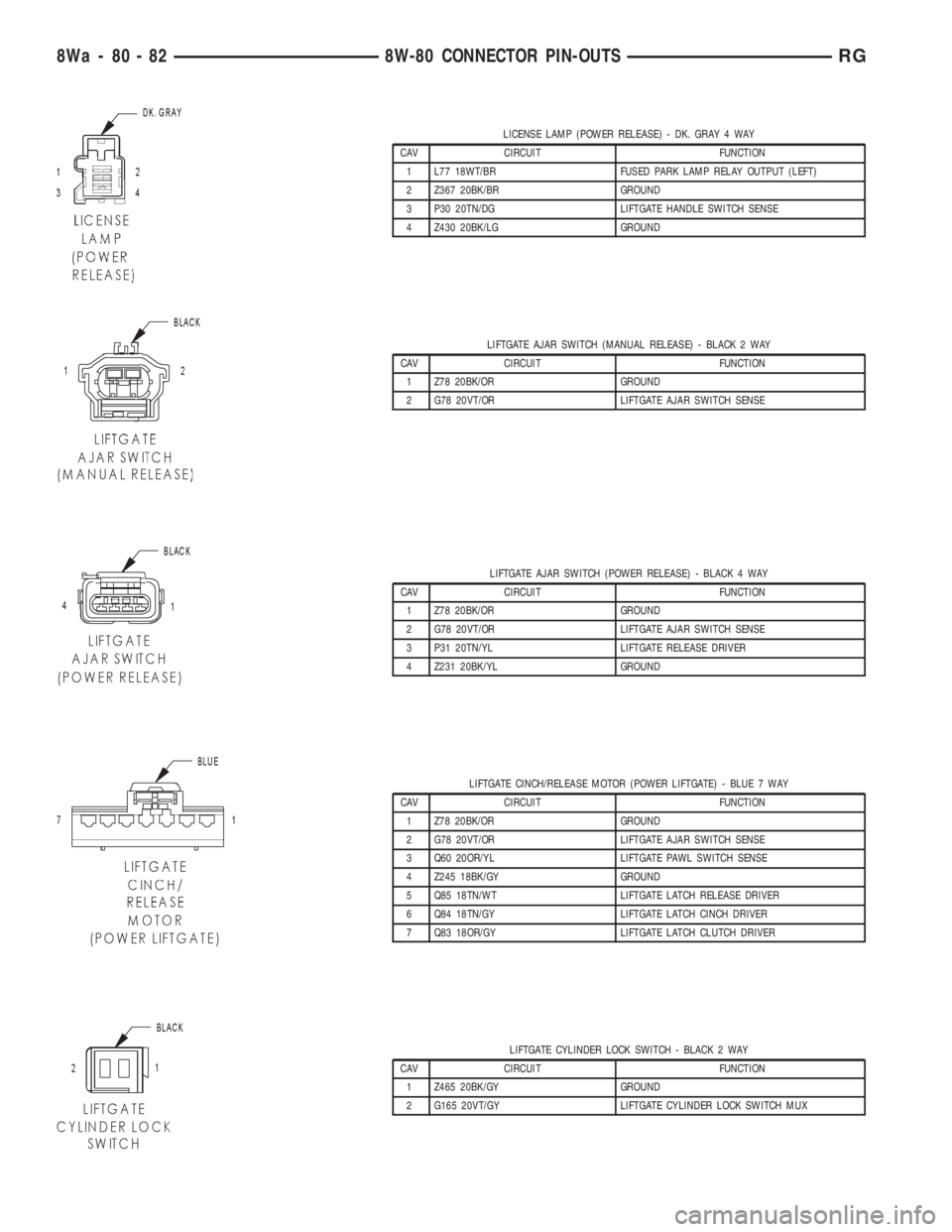

CHRYSLER VOYAGER 2001 Service Manual LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAY CAV CIRCUIT FUNCTION 1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT) 2 Z367 20BK/BR GROUND 3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE 4 Z430 20BK/LG GRO

Page 2523 of 4284

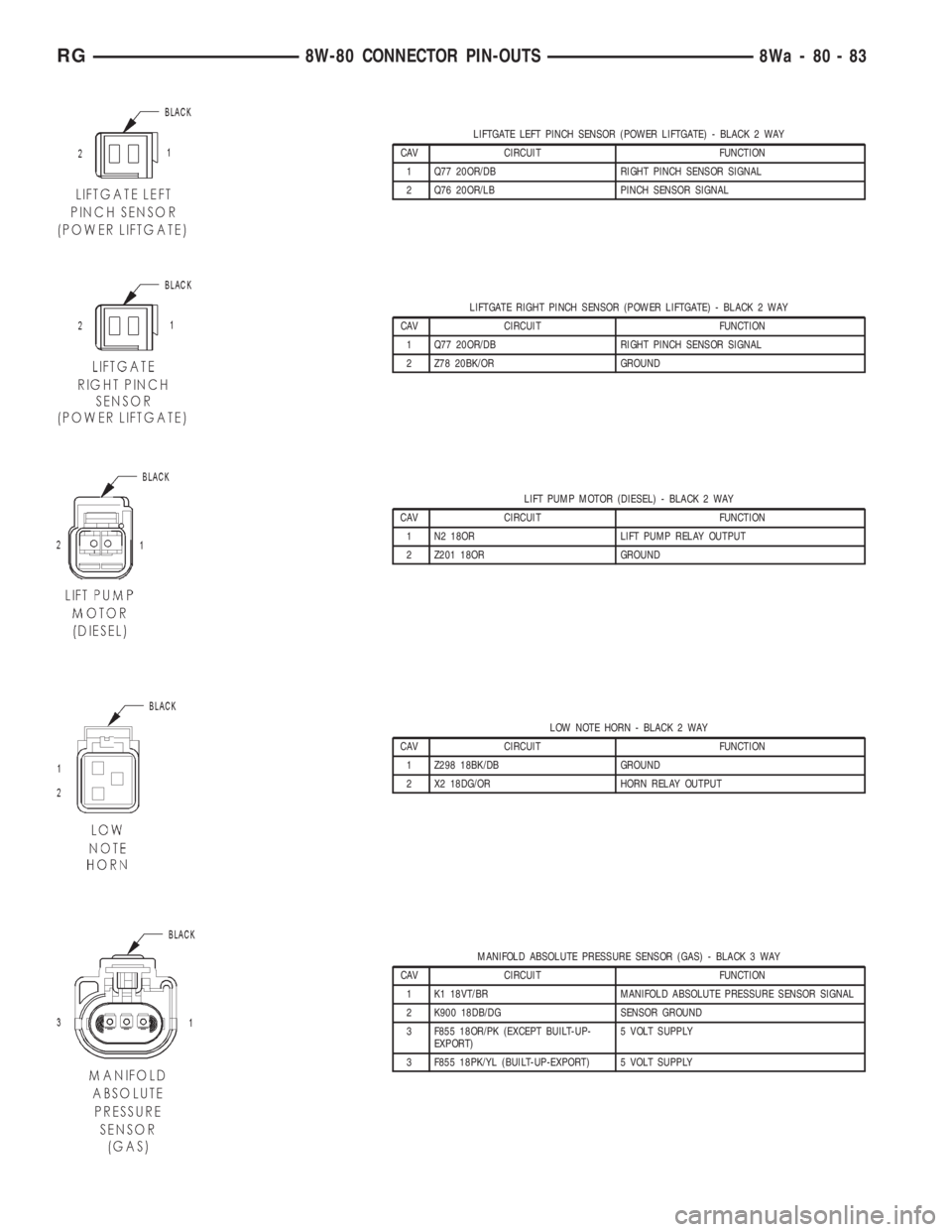

CHRYSLER VOYAGER 2001 Service Manual LIFTGATE LEFT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL 2 Q76 20OR/LB PINCH SENSOR SIGNAL LIFTGATE RIGHT PINCH SENSOR (POWER LIFTGATE) -

Page 2524 of 4284

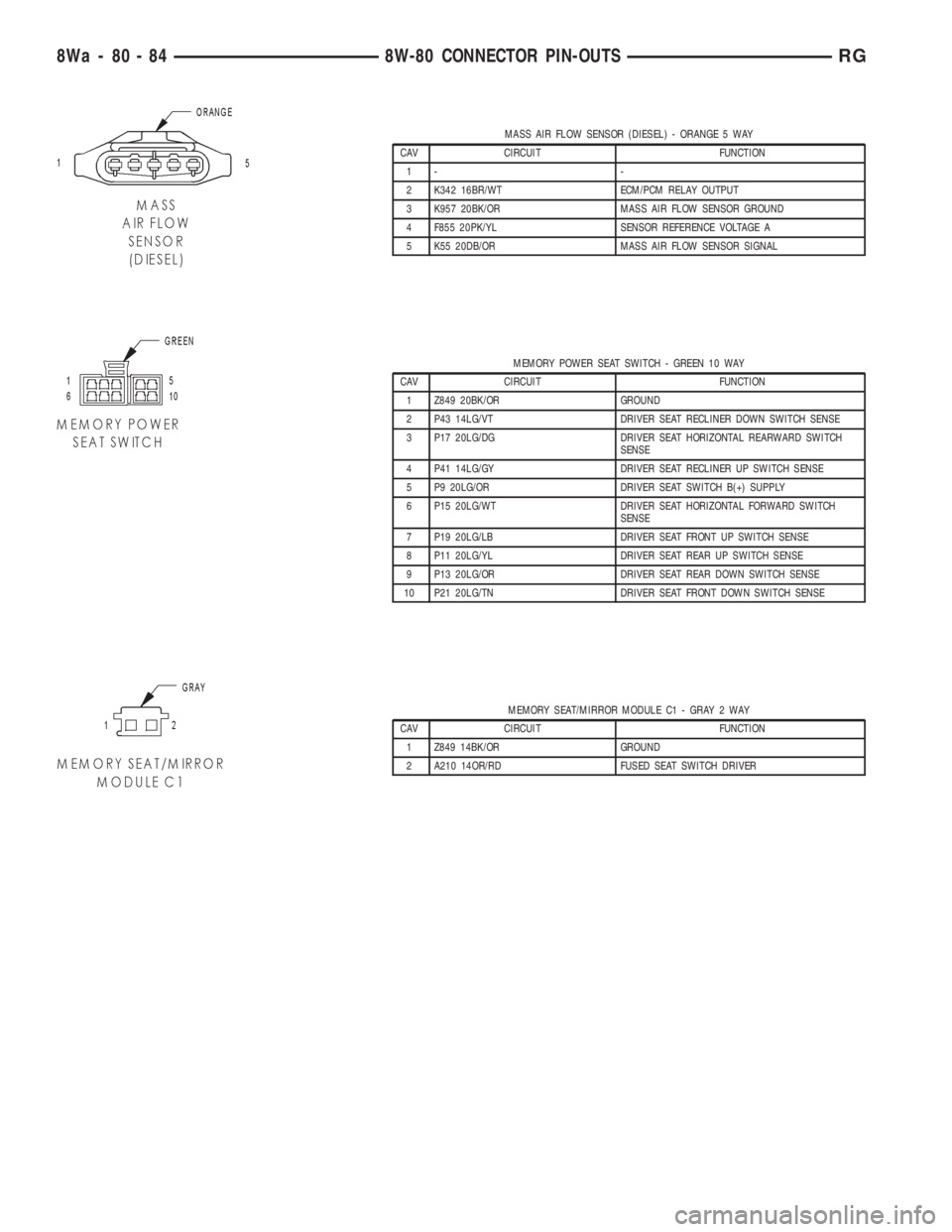

CHRYSLER VOYAGER 2001 Service Manual MASS AIR FLOW SENSOR (DIESEL) - ORANGE 5 WAY CAV CIRCUIT FUNCTION 1- - 2 K342 16BR/WT ECM/PCM RELAY OUTPUT 3 K957 20BK/OR MASS AIR FLOW SENSOR GROUND 4 F855 20PK/YL SENSOR REFERENCE VOLTAGE A 5 K55 20

Page 2525 of 4284

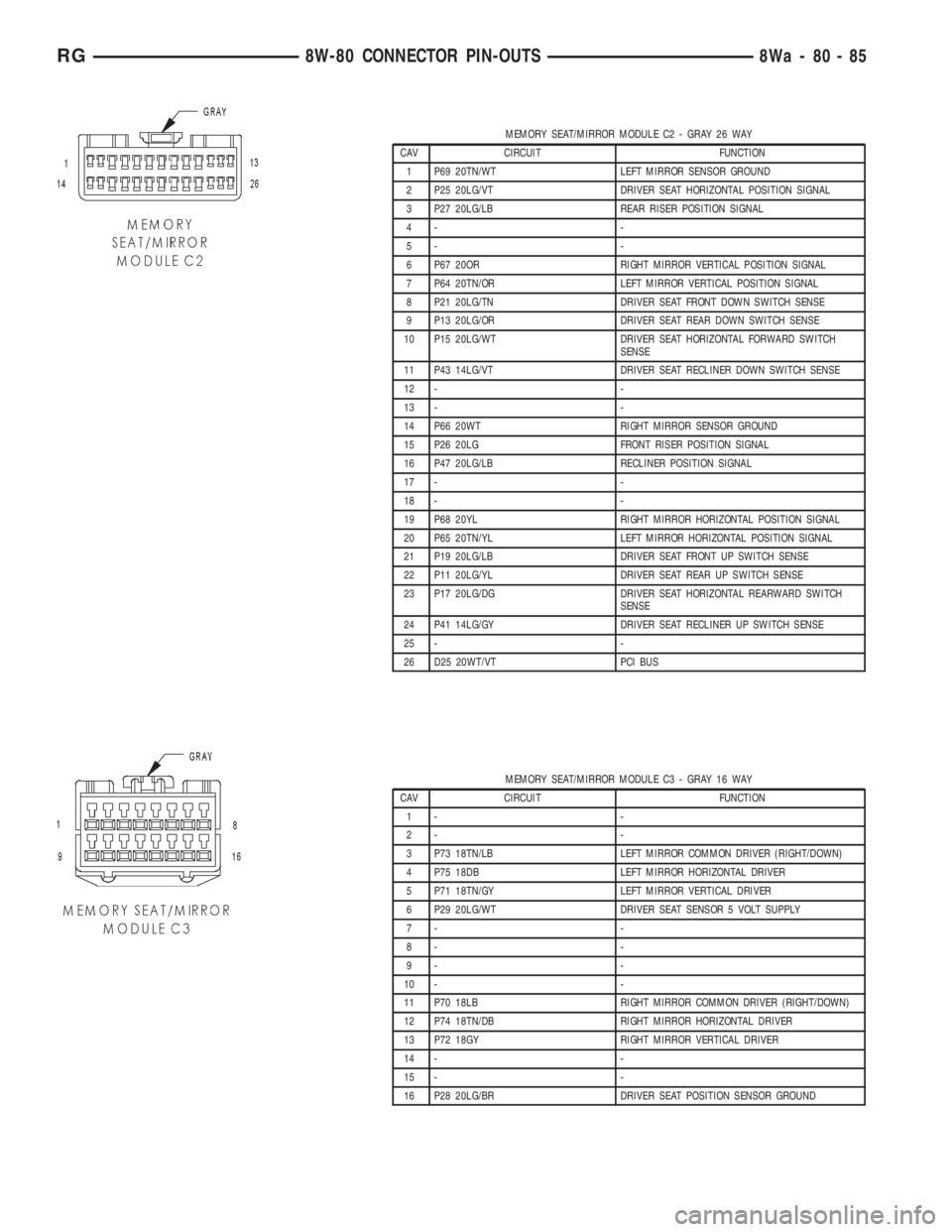

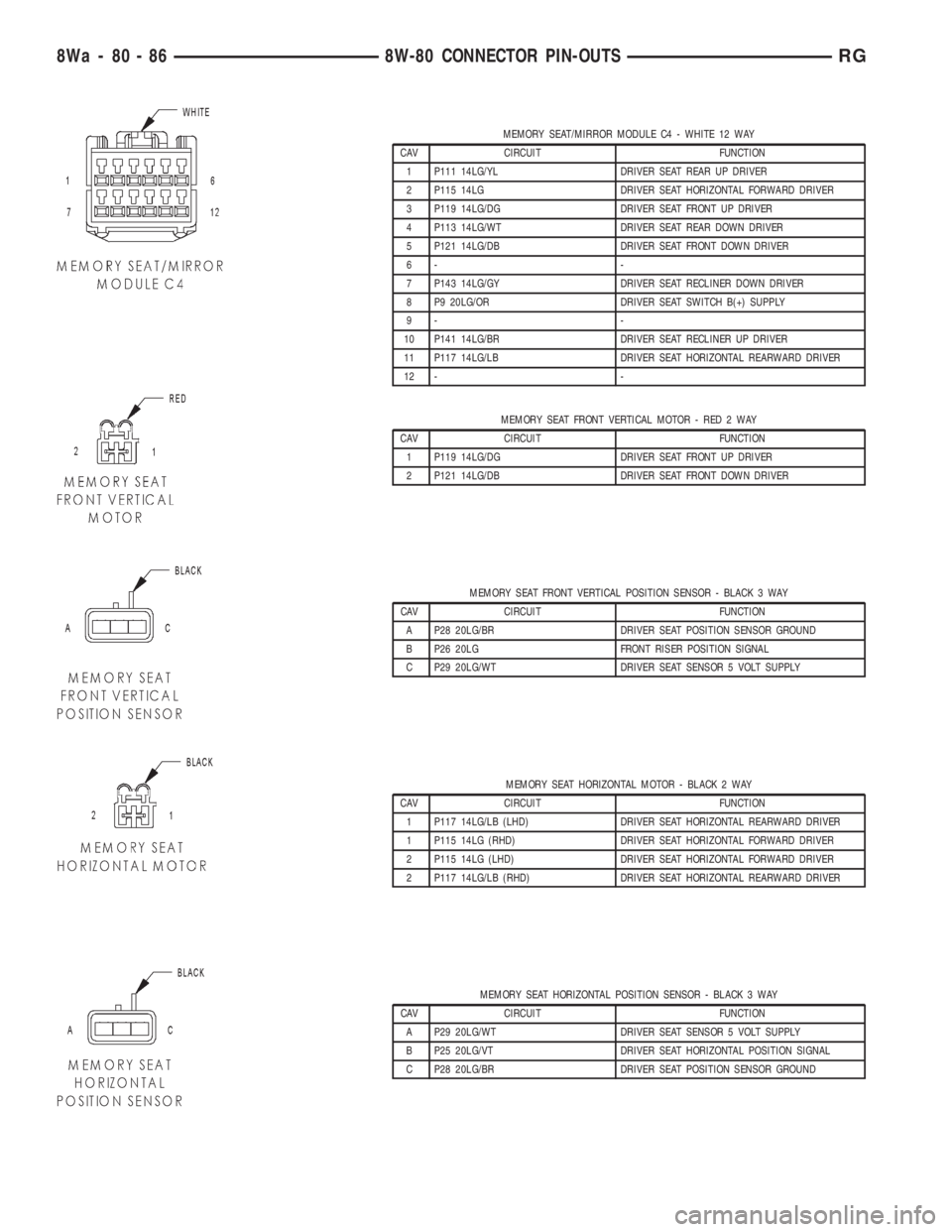

CHRYSLER VOYAGER 2001 Service Manual MEMORY SEAT/MIRROR MODULE C2 - GRAY 26 WAY CAV CIRCUIT FUNCTION 1 P69 20TN/WT LEFT MIRROR SENSOR GROUND 2 P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL 3 P27 20LG/LB REAR RISER POSITION SIGNAL 4-

Page 2526 of 4284

CHRYSLER VOYAGER 2001 Service Manual MEMORY SEAT/MIRROR MODULE C4 - WHITE 12 WAY CAV CIRCUIT FUNCTION 1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER 2 P115 14LG DRIVER SEAT HORIZONTAL FORWARD DRIVER 3 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER

Page 2527 of 4284

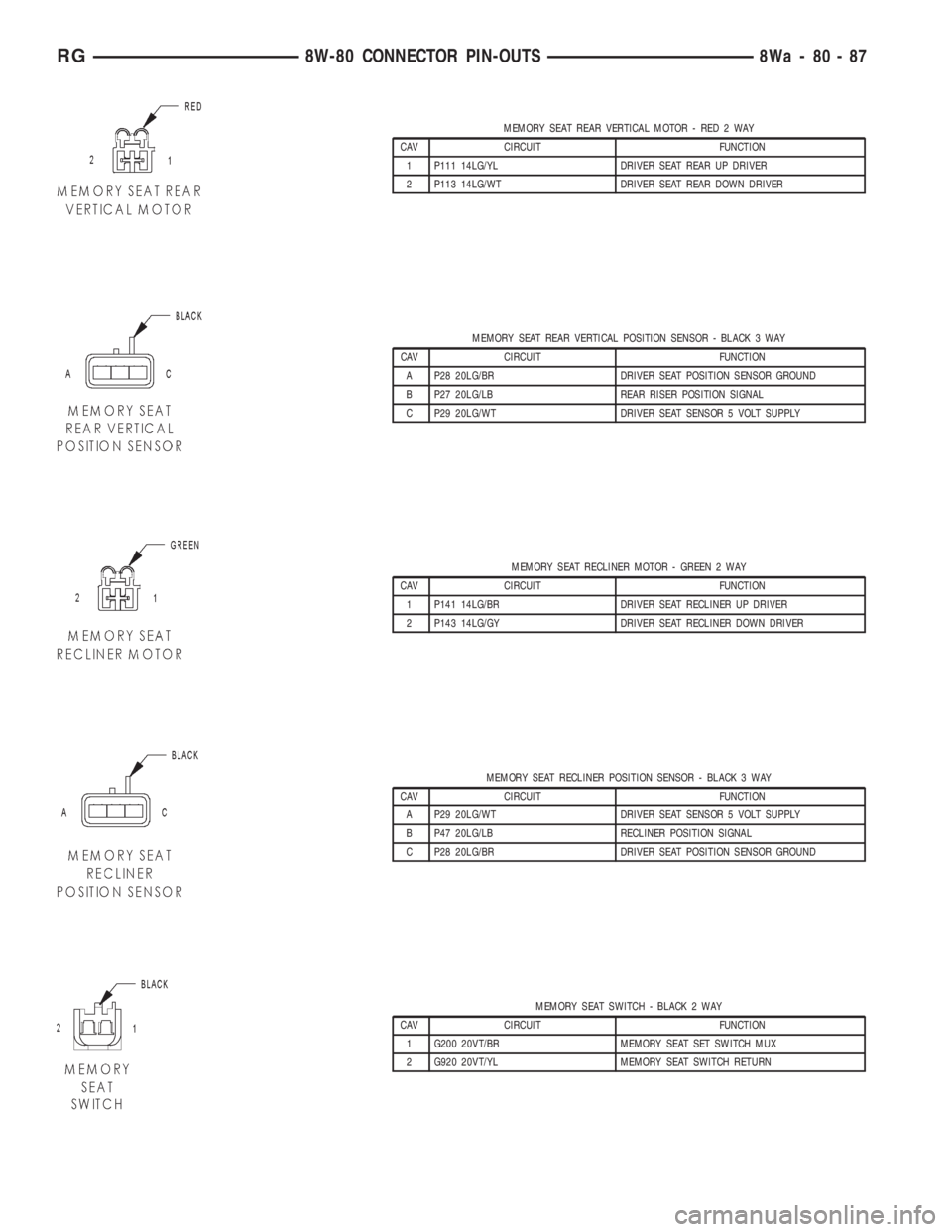

CHRYSLER VOYAGER 2001 Service Manual MEMORY SEAT REAR VERTICAL MOTOR - RED 2 WAY CAV CIRCUIT FUNCTION 1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER 2 P113 14LG/WT DRIVER SEAT REAR DOWN DRIVER MEMORY SEAT REAR VERTICAL POSITION SENSOR - BLACK

Page 2528 of 4284

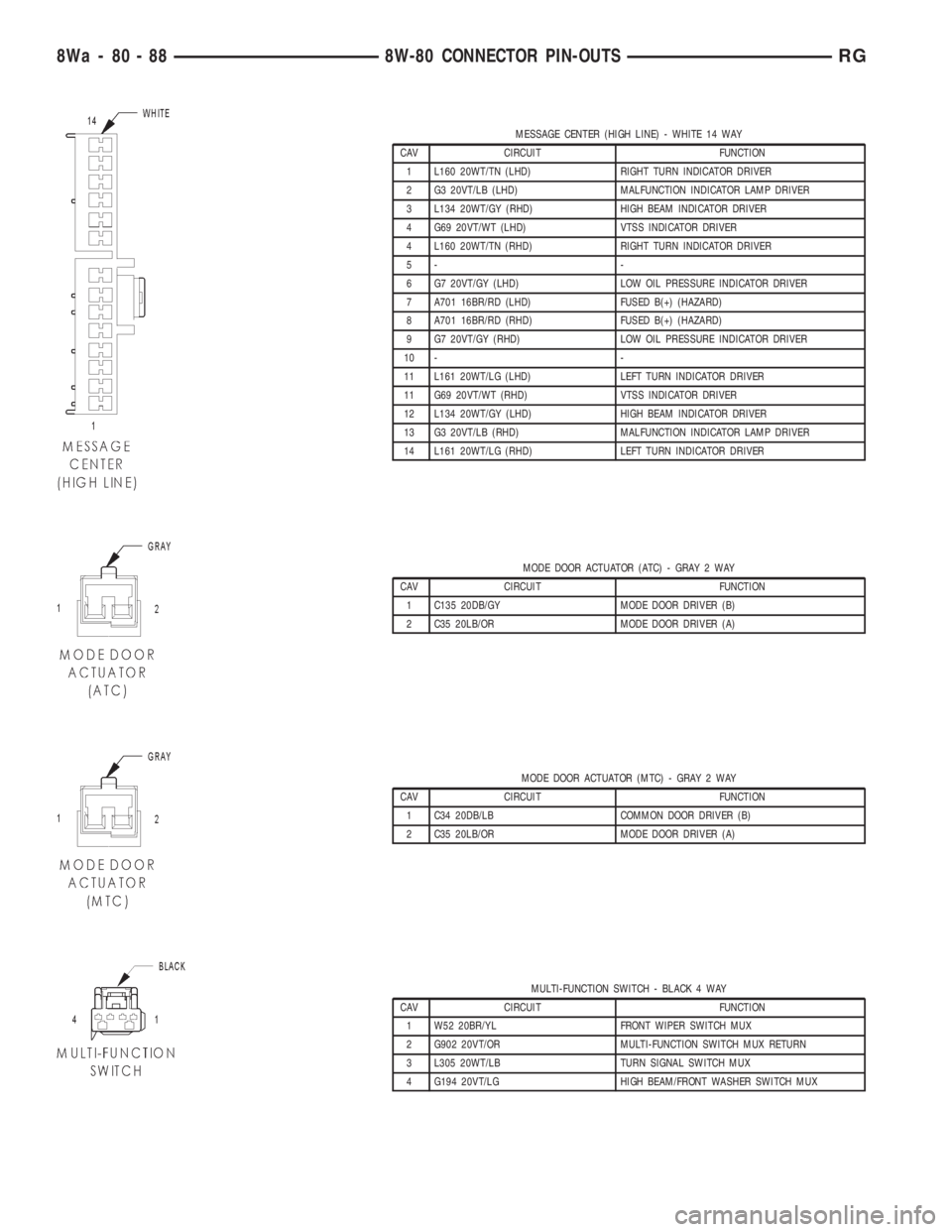

CHRYSLER VOYAGER 2001 Service Manual MESSAGE CENTER (HIGH LINE) - WHITE 14 WAY CAV CIRCUIT FUNCTION 1 L160 20WT/TN (LHD) RIGHT TURN INDICATOR DRIVER 2 G3 20VT/LB (LHD) MALFUNCTION INDICATOR LAMP DRIVER 3 L134 20WT/GY (RHD) HIGH BEAM INDI
