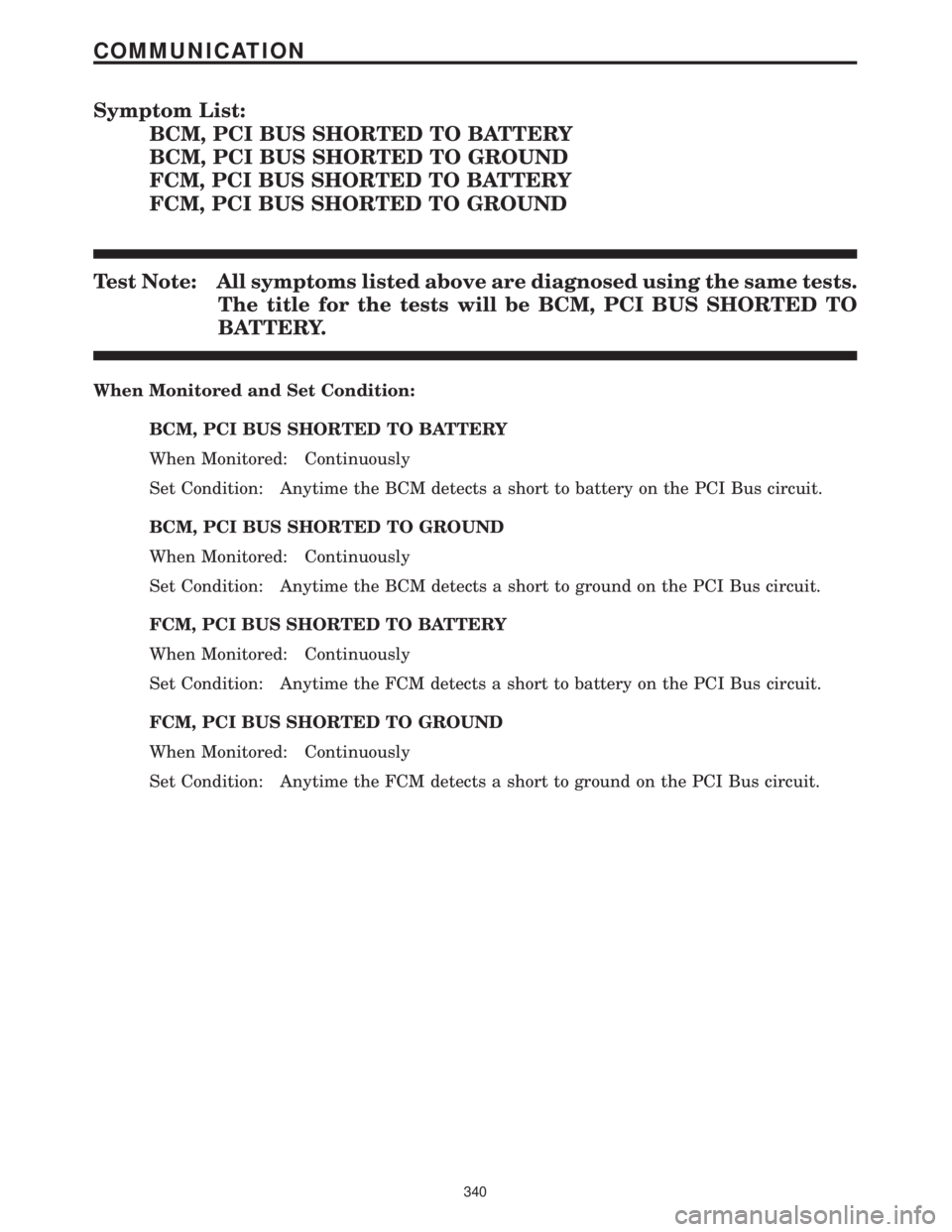

Page 369 of 4284
Symptom List:
BCM, PCI BUS SHORTED TO BATTERY
BCM, PCI BUS SHORTED TO GROUND
FCM, PCI BUS SHORTED TO BATTERY
FCM, PCI BUS SHORTED TO GROUND
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be BCM, PCI BUS SHORTED TO
BATTERY.
When Monitored and Set Condition:
BCM, PCI BUS SHORTED TO BATTERY
When Monitored: Continuously
Set Condition: Anytime the BCM detects a short to battery on the PCI Bus circuit.
BCM, PCI BUS SHORTED TO GROUND
When Monitored: Continuously
Set Condition: Anytime the BCM detects a short to ground on the PCI Bus circuit.
FCM, PCI BUS SHORTED TO BATTERY
When Monitored: Continuously
Set Condition: Anytime the FCM detects a short to battery on the PCI Bus circuit.
FCM, PCI BUS SHORTED TO GROUND
When Monitored: Continuously
Set Condition: Anytime the FCM detects a short to ground on the PCI Bus circuit.
340
COMMUNICATION
Page 370 of 4284

POSSIBLE CAUSES
INTERMITTENT CONDITION
TEST ACTION APPLICABILITY
1NOTE: For this code to be active, the DRB will not be able to communicate
with any modules on the vehicle (except the PCM).
NOTE: If this code is set and active it will be necessary to perform the PCI
Bus Communication Failure symptom.
WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, wiggle the wiring
harnesses. This is to try and duplicate the complete bus failure condition.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
341
COMMUNICATION
BCM, PCI BUS SHORTED TO BATTERY ÐContinued

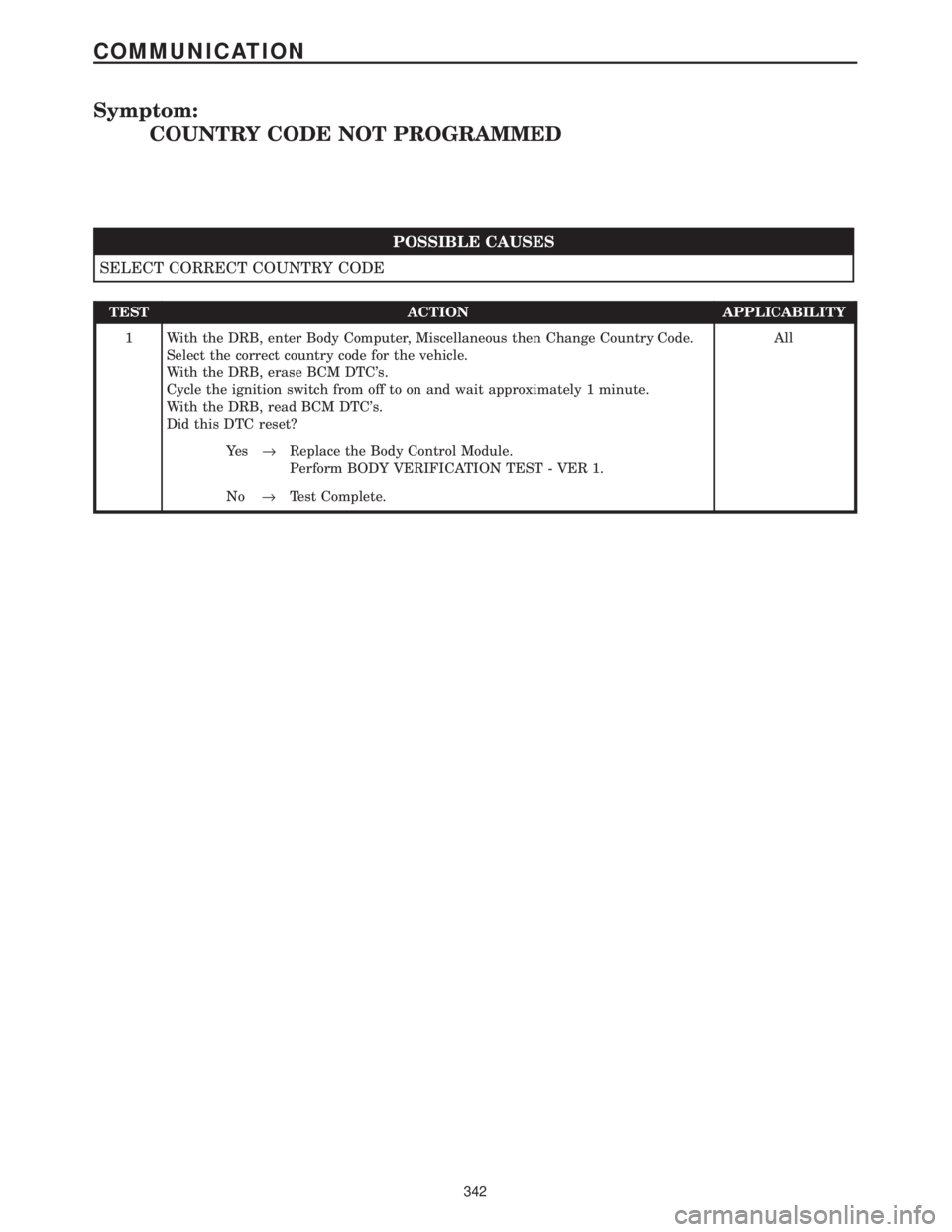

Page 371 of 4284
Symptom:
COUNTRY CODE NOT PROGRAMMED
POSSIBLE CAUSES
SELECT CORRECT COUNTRY CODE
TEST ACTION APPLICABILITY
1 With the DRB, enter Body Computer, Miscellaneous then Change Country Code.
Select the correct country code for the vehicle.
With the DRB, erase BCM DTC's.
Cycle the ignition switch from off to on and wait approximately 1 minute.
With the DRB, read BCM DTC's.
Did this DTC reset?All
Ye s®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
342
COMMUNICATION

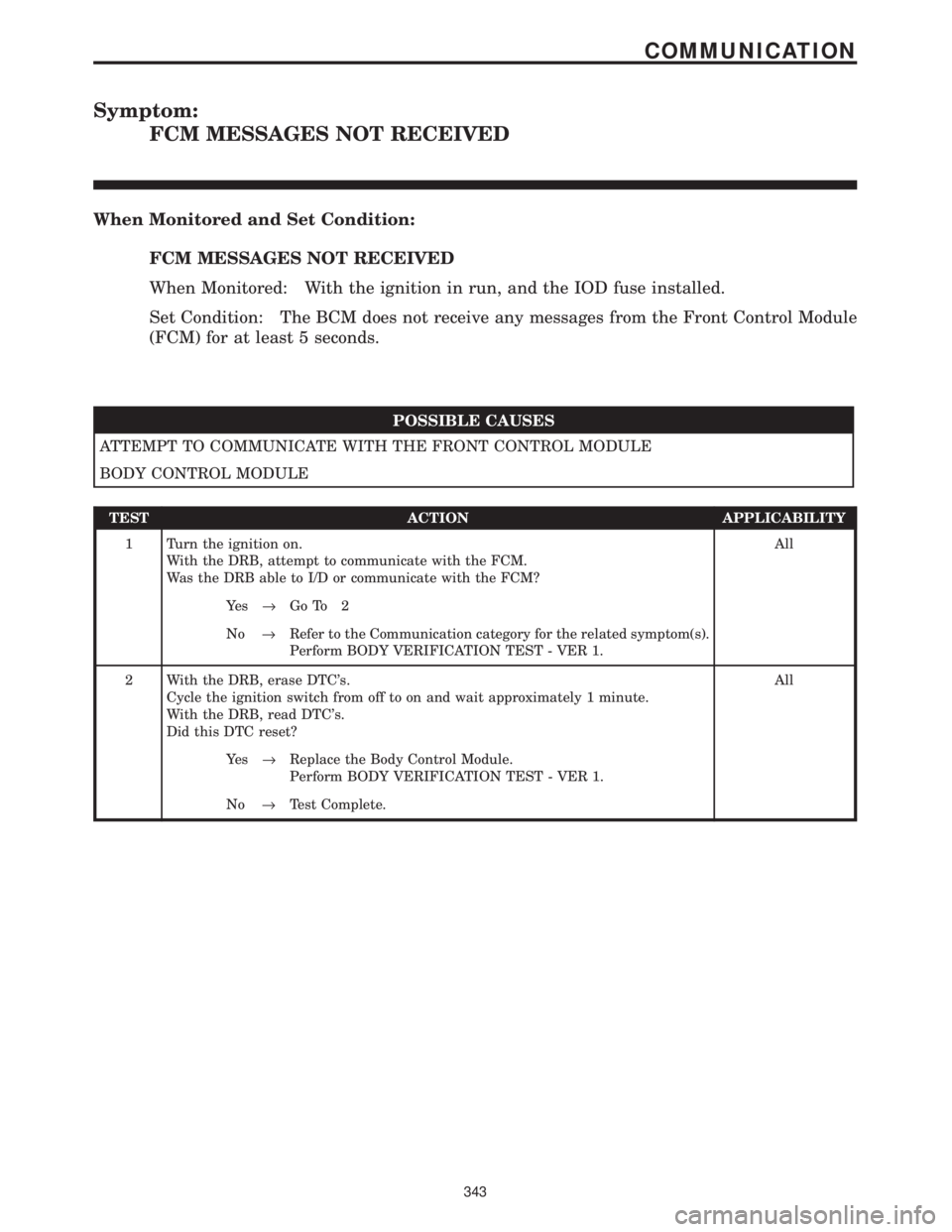

Page 372 of 4284
Symptom:
FCM MESSAGES NOT RECEIVED
When Monitored and Set Condition:
FCM MESSAGES NOT RECEIVED
When Monitored: With the ignition in run, and the IOD fuse installed.
Set Condition: The BCM does not receive any messages from the Front Control Module
(FCM) for at least 5 seconds.
POSSIBLE CAUSES
ATTEMPT TO COMMUNICATE WITH THE FRONT CONTROL MODULE
BODY CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, attempt to communicate with the FCM.
Was the DRB able to I/D or communicate with the FCM?All
Ye s®Go To 2
No®Refer to the Communication category for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
2 With the DRB, erase DTC's.
Cycle the ignition switch from off to on and wait approximately 1 minute.
With the DRB, read DTC's.
Did this DTC reset?All
Ye s®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
343
COMMUNICATION

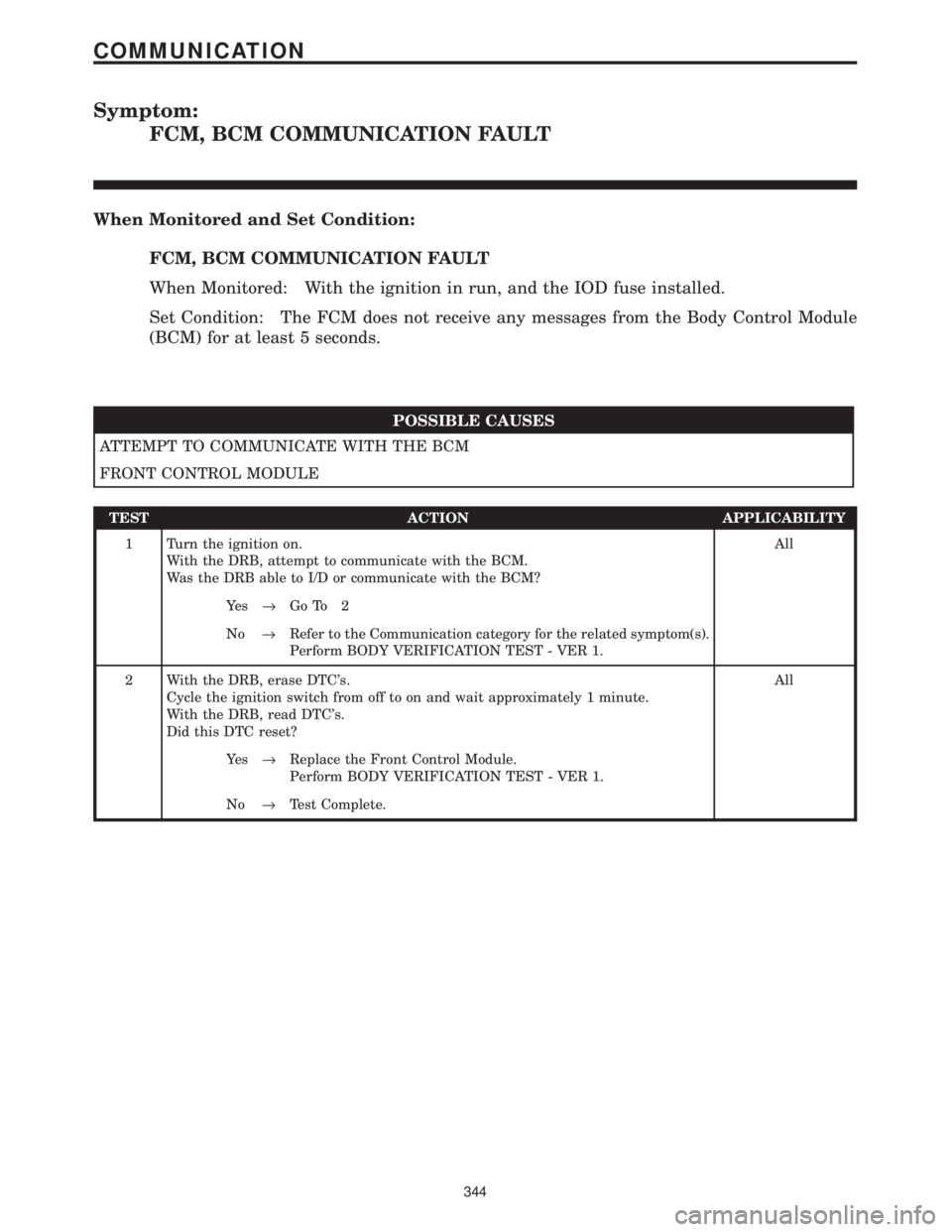

Page 373 of 4284
Symptom:
FCM, BCM COMMUNICATION FAULT
When Monitored and Set Condition:
FCM, BCM COMMUNICATION FAULT
When Monitored: With the ignition in run, and the IOD fuse installed.
Set Condition: The FCM does not receive any messages from the Body Control Module
(BCM) for at least 5 seconds.
POSSIBLE CAUSES
ATTEMPT TO COMMUNICATE WITH THE BCM
FRONT CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, attempt to communicate with the BCM.
Was the DRB able to I/D or communicate with the BCM?All
Ye s®Go To 2
No®Refer to the Communication category for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
2 With the DRB, erase DTC's.
Cycle the ignition switch from off to on and wait approximately 1 minute.
With the DRB, read DTC's.
Did this DTC reset?All
Ye s®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
344
COMMUNICATION

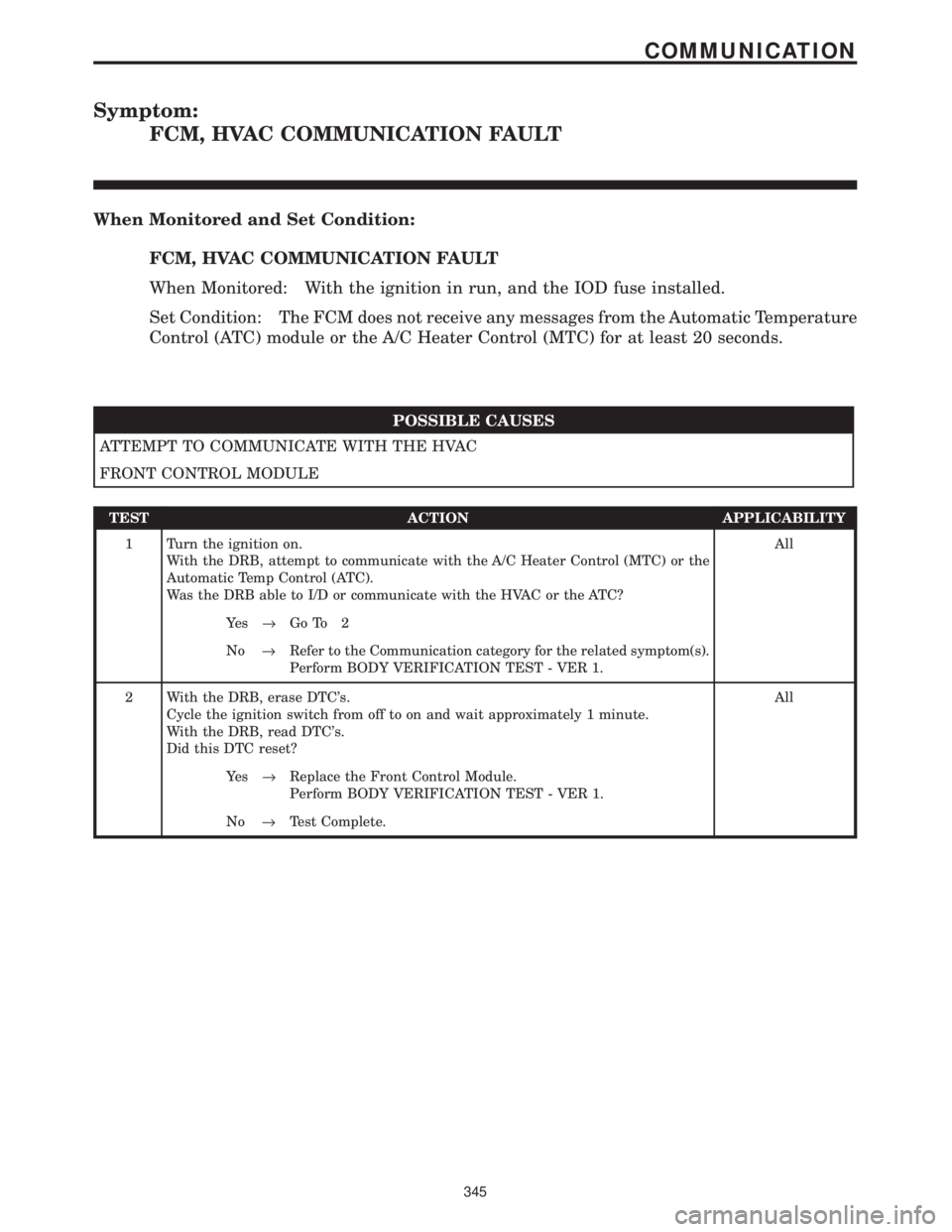

Page 374 of 4284

Symptom:
FCM, HVAC COMMUNICATION FAULT
When Monitored and Set Condition:
FCM, HVAC COMMUNICATION FAULT
When Monitored: With the ignition in run, and the IOD fuse installed.
Set Condition: The FCM does not receive any messages from the Automatic Temperature
Control (ATC) module or the A/C Heater Control (MTC) for at least 20 seconds.
POSSIBLE CAUSES
ATTEMPT TO COMMUNICATE WITH THE HVAC
FRONT CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, attempt to communicate with the A/C Heater Control (MTC) or the
Automatic Temp Control (ATC).
Was the DRB able to I/D or communicate with the HVAC or the ATC?All
Ye s®Go To 2
No®Refer to the Communication category for the related symptom(s).
Perform BODY VERIFICATION TEST - VER 1.
2 With the DRB, erase DTC's.
Cycle the ignition switch from off to on and wait approximately 1 minute.
With the DRB, read DTC's.
Did this DTC reset?All
Ye s®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
345
COMMUNICATION

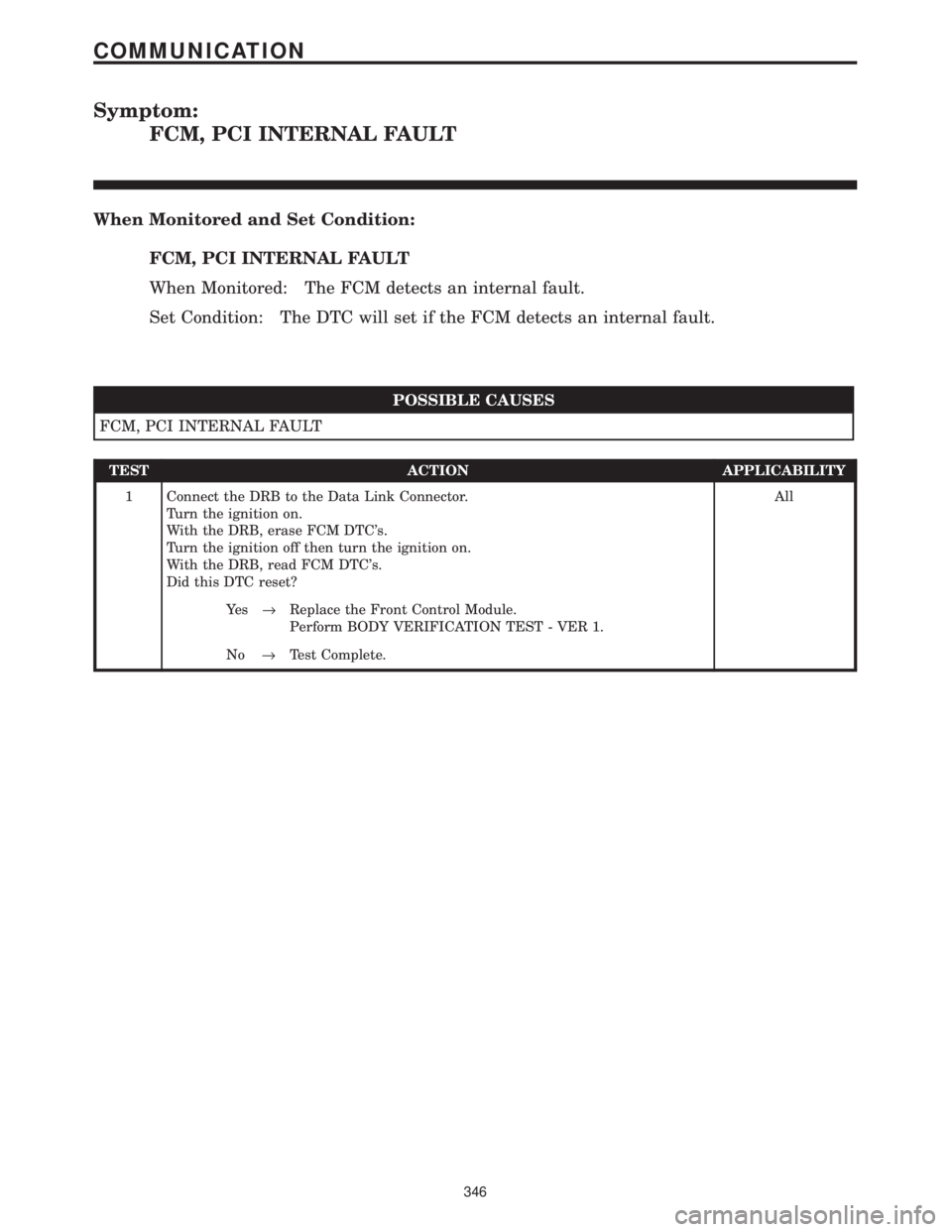

Page 375 of 4284
Symptom:
FCM, PCI INTERNAL FAULT
When Monitored and Set Condition:
FCM, PCI INTERNAL FAULT
When Monitored: The FCM detects an internal fault.
Set Condition: The DTC will set if the FCM detects an internal fault.
POSSIBLE CAUSES
FCM, PCI INTERNAL FAULT
TEST ACTION APPLICABILITY
1 Connect the DRB to the Data Link Connector.
Turn the ignition on.
With the DRB, erase FCM DTC's.
Turn the ignition off then turn the ignition on.
With the DRB, read FCM DTC's.
Did this DTC reset?All
Ye s®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
346
COMMUNICATION
Page 376 of 4284

Symptom:
FCM, PCM COMMUNICATION FAULT
When Monitored and Set Condition:
FCM, PCM COMMUNICATION FAULT
When Monitored: With the ignition in run, and the IOD fuse installed.
Set Condition: The FCM does not receive any messages from the PCM for at least 5
seconds.
POSSIBLE CAUSES
PCM COMMUNICATION FAULT
ATTEMPT TO COMMUNICATE WITH THE PCM
PCI BUS CIRCUIT OPEN
POWERTRAIN CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, enter Instrument Cluster, System Tests then PCM Monitor.
Does the DRB display: PCM is active on BUS?All
Ye s®Erase the DTC, if DTC resets, replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Turn the ignition on.
With the DRB, attempt to communicate with the PCM.
Was the DRB able to communicate with the PCM?All
Ye s®Go To 3
No®Refer to the communication category and perform the appropriate
symptom.
Perform BODY VERIFICATION TEST - VER 1.
3 Turn the ignition off.
Disconnect the PCM C2 harness connector.
Connect the diagnostic junction port tester #8339 to the diagnostic junction port.
Note: Do not connect the tester to the DRB.
Measure the resistance of the PCI Bus circuit between the diagnostic junction port
tester and the PCM C2 connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace and program the Powertrain Control Module in accor-
dance with the Service Information.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the PCI Bus circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
347
COMMUNICATION
