Page 1457 of 4284

CHRYSLER VOYAGER 2001 Service Manual FUEL INJECTOR NO. 3 (DIESEL) - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 K111 14DB/LB COMMON INJECTOR DRIVER 2 K13 14BR/LB FUEL INJECTOR NO. 3 CONTROL FUEL INJECTOR NO. 4 (DIESEL) - BLACK 2 WAYCAV CIRCUIT FUN

Page 1458 of 4284

CHRYSLER VOYAGER 2001 Service Manual GLOW PLUG RELAY (DIESEL) - BLACK 4 WAYCAV CIRCUIT FUNCTION 1 A202 10RD/WT FUSED B(+) 2 K152 20DB/WT GLOW PLUG RELAY CONTROL 3 K342 16BR/WT ECM/PCM RELAY OUTPUT 4 K154 10BR/OR GLOW PLUG RELAY OUTPUT IN

Page 1459 of 4284

CHRYSLER VOYAGER 2001 Service Manual MASS AIR FLOW SENSOR (DIESEL) - ORANGE 5 WAYCAV CIRCUIT FUNCTION 1- - 2 K342 16BR/WT ECM/PCM RELAY OUTPUT 3 K957 20BK/OR MASS AIR FLOW SENSOR GROUND 4 F855 20PK/YL SENSOR REFERENCE VOLTAGE A 5 K55 20D

Page 1460 of 4284

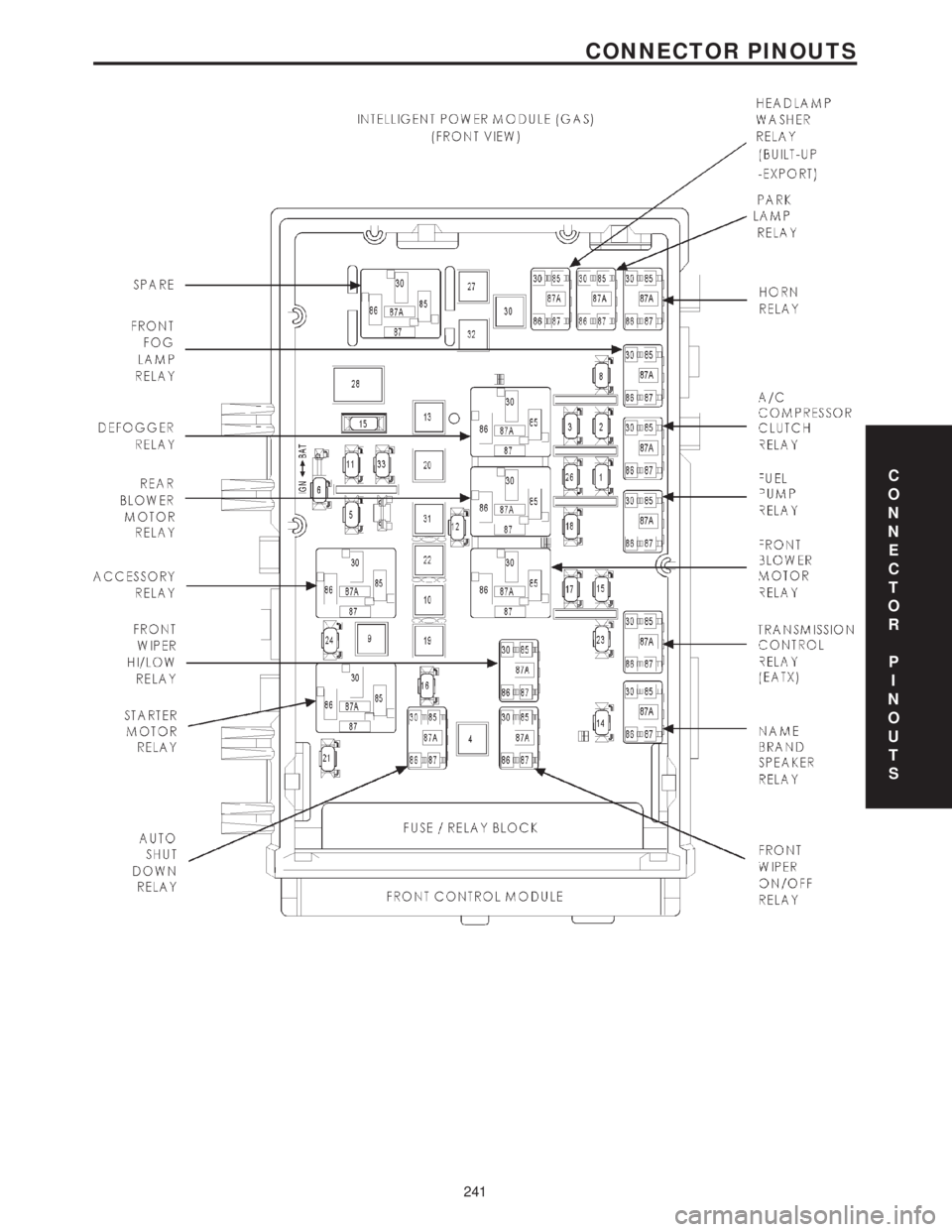

CHRYSLER VOYAGER 2001 Service Manual C O N N E C T O R P I N O U T S 241 CONNECTOR PINOUTS

Page 1461 of 4284

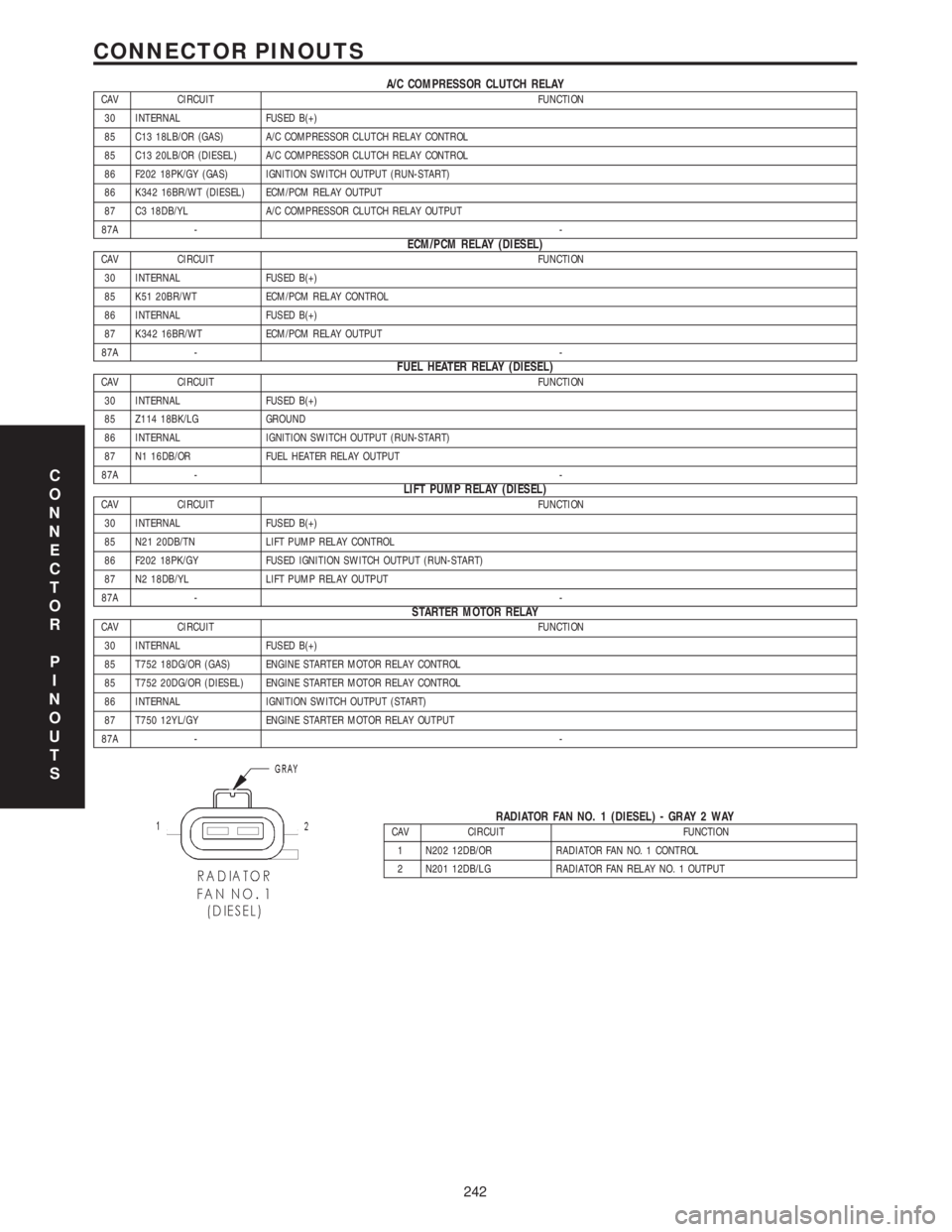

CHRYSLER VOYAGER 2001 Service Manual A/C COMPRESSOR CLUTCH RELAYCAV CIRCUIT FUNCTION 30 INTERNAL FUSED B(+) 85 C13 18LB/OR (GAS) A/C COMPRESSOR CLUTCH RELAY CONTROL 85 C13 20LB/OR (DIESEL) A/C COMPRESSOR CLUTCH RELAY CONTROL 86 F202 18PK

Page 1462 of 4284

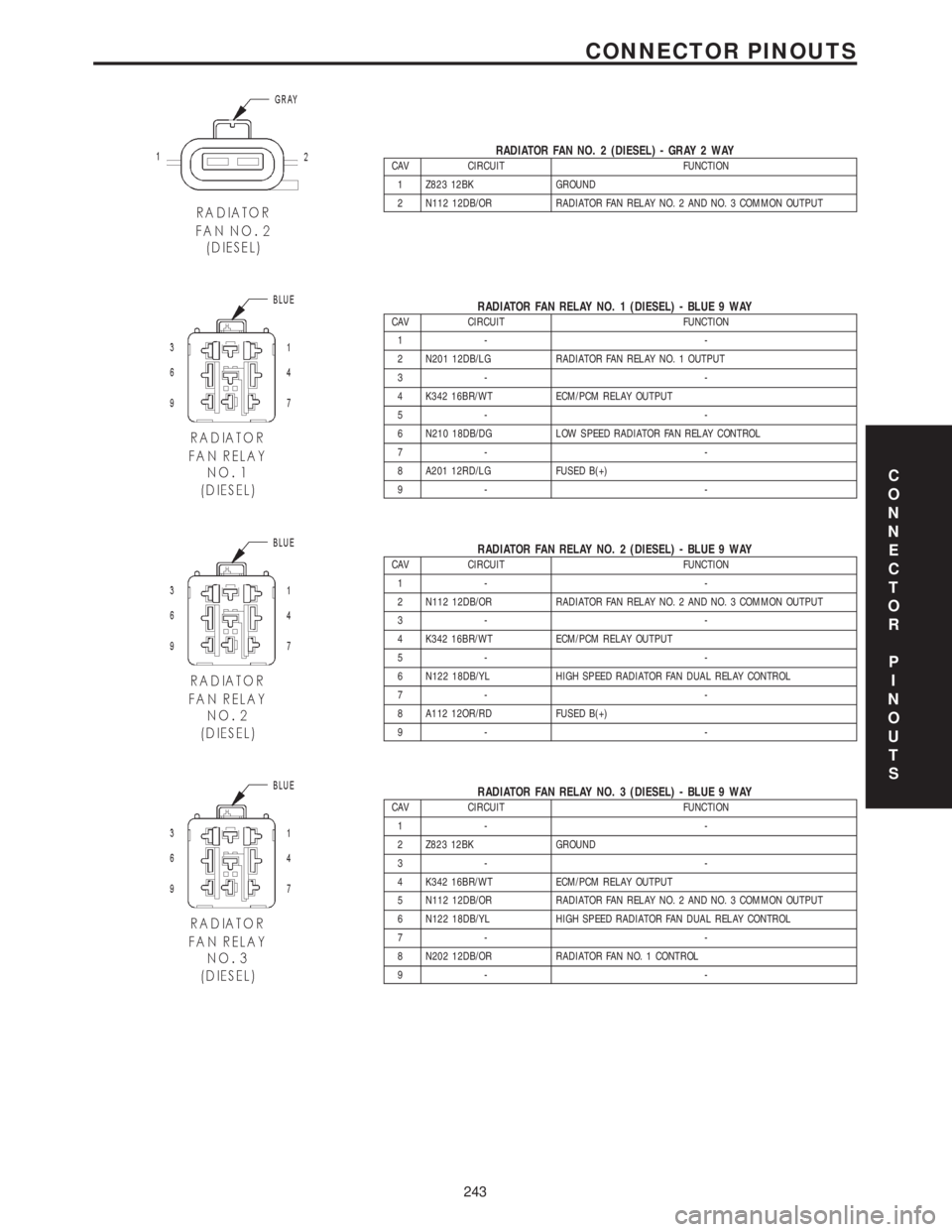

CHRYSLER VOYAGER 2001 Service Manual RADIATOR FAN NO. 2 (DIESEL) - GRAY 2 WAYCAV CIRCUIT FUNCTION 1 Z823 12BK GROUND 2 N112 12DB/OR RADIATOR FAN RELAY NO. 2 AND NO. 3 COMMON OUTPUT RADIATOR FAN RELAY NO. 1 (DIESEL) - BLUE 9 WAYCAV CIRCUI

Page 1463 of 4284

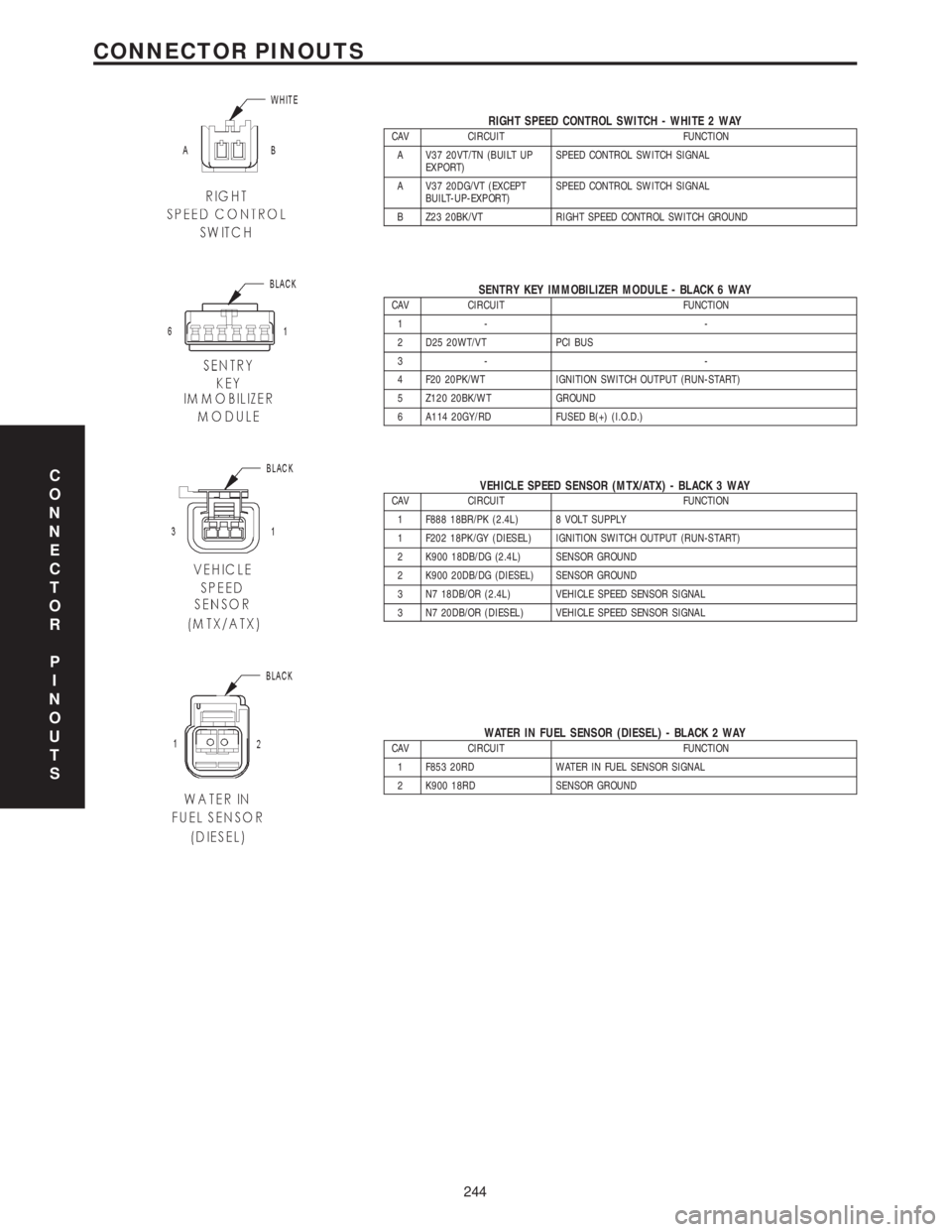

CHRYSLER VOYAGER 2001 Service Manual RIGHT SPEED CONTROL SWITCH - WHITE 2 WAYCAV CIRCUIT FUNCTION A V37 20VT/TN (BUILT UP EXPORT)SPEED CONTROL SWITCH SIGNAL A V37 20DG/VT (EXCEPT BUILT-UP-EXPORT)SPEED CONTROL SWITCH SIGNAL B Z23 20BK/VT

Page 1464 of 4284

CHRYSLER VOYAGER 2001 Service Manual 10.0 SCHEMATIC DIAGRAMS 10.1 2001 RG 2.5L TURBO DIESEL S C H E M A T I C D I A G R A M S 245 SCHEMATIC DIAGRAMS
