Page 209 of 4284

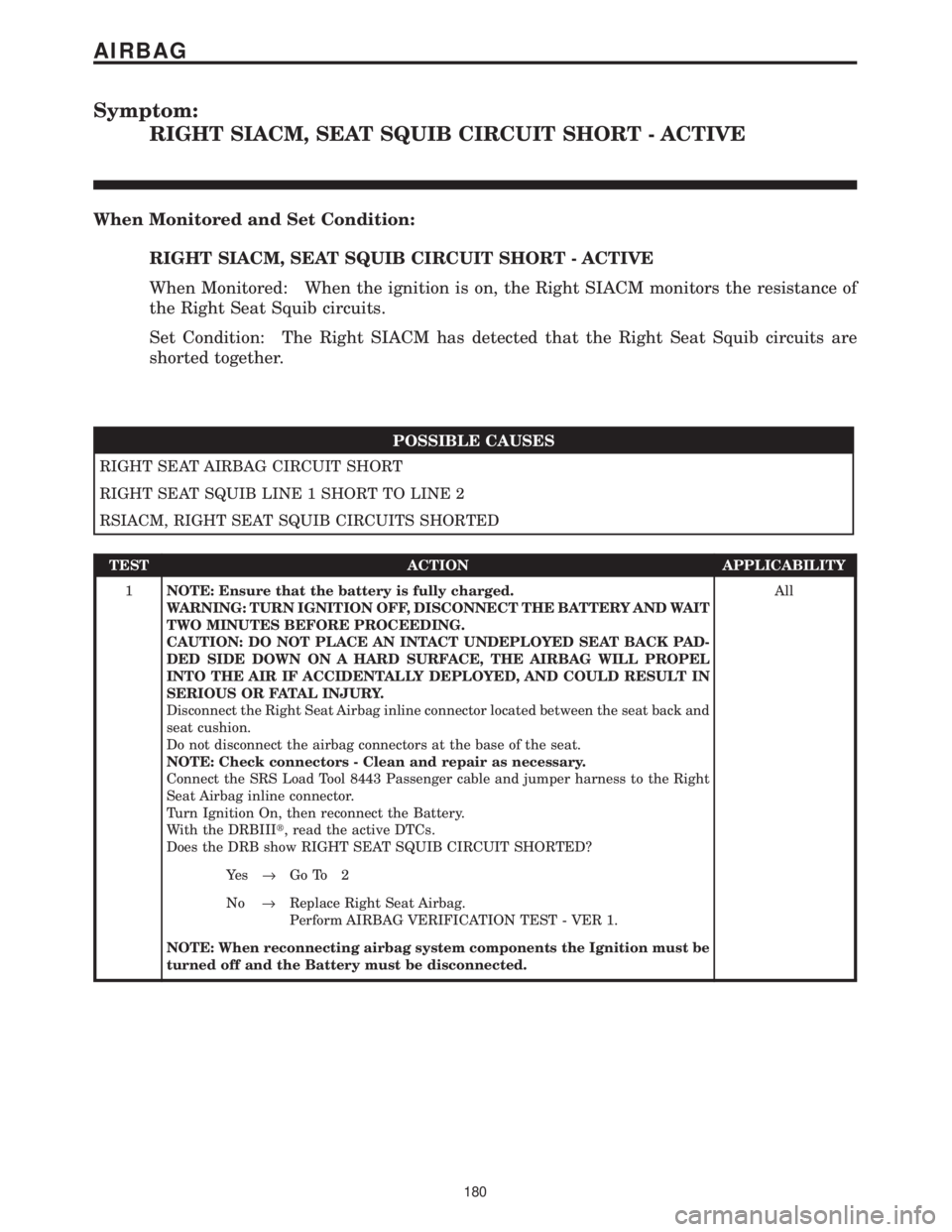

CHRYSLER VOYAGER 2001 Service Manual Symptom:
RIGHT SIACM, SEAT SQUIB CIRCUIT SHORT - ACTIVE
When Monitored and Set Condition:
RIGHT SIACM, SEAT SQUIB CIRCUIT SHORT - ACTIVE
When Monitored: When the ignition is on, the Right SIACM monito

Page 210 of 4284

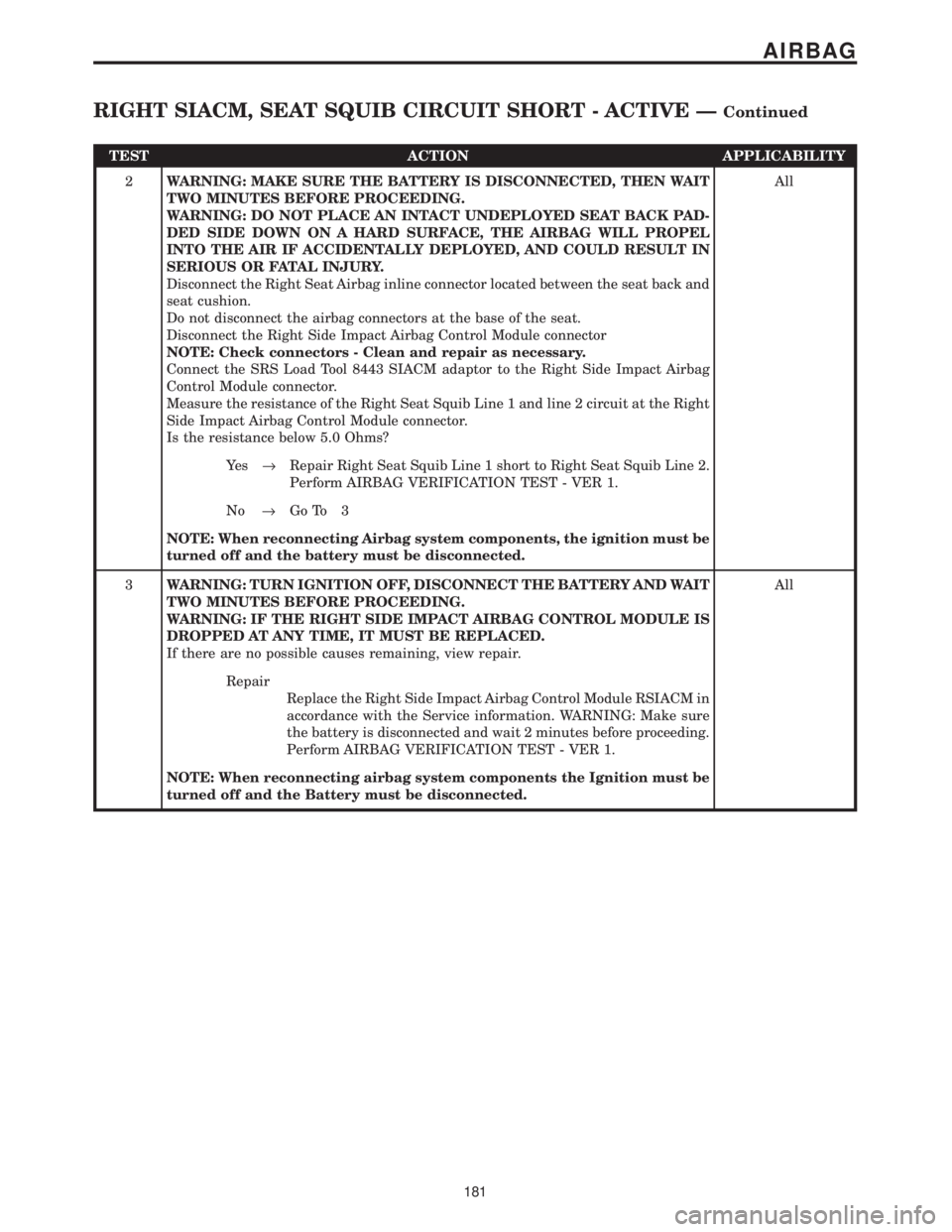

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2WARNING: MAKE SURE THE BATTERY IS DISCONNECTED, THEN WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SU

Page 211 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
RIGHT SIACM, SEAT SQUIB SHORT TO BATTERY - ACTIVE
When Monitored and Set Condition:
RIGHT SIACM, SEAT SQUIB SHORT TO BATTERY - ACTIVE
When Monitored: When the ignition is on, the Right SIACM

Page 212 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A H

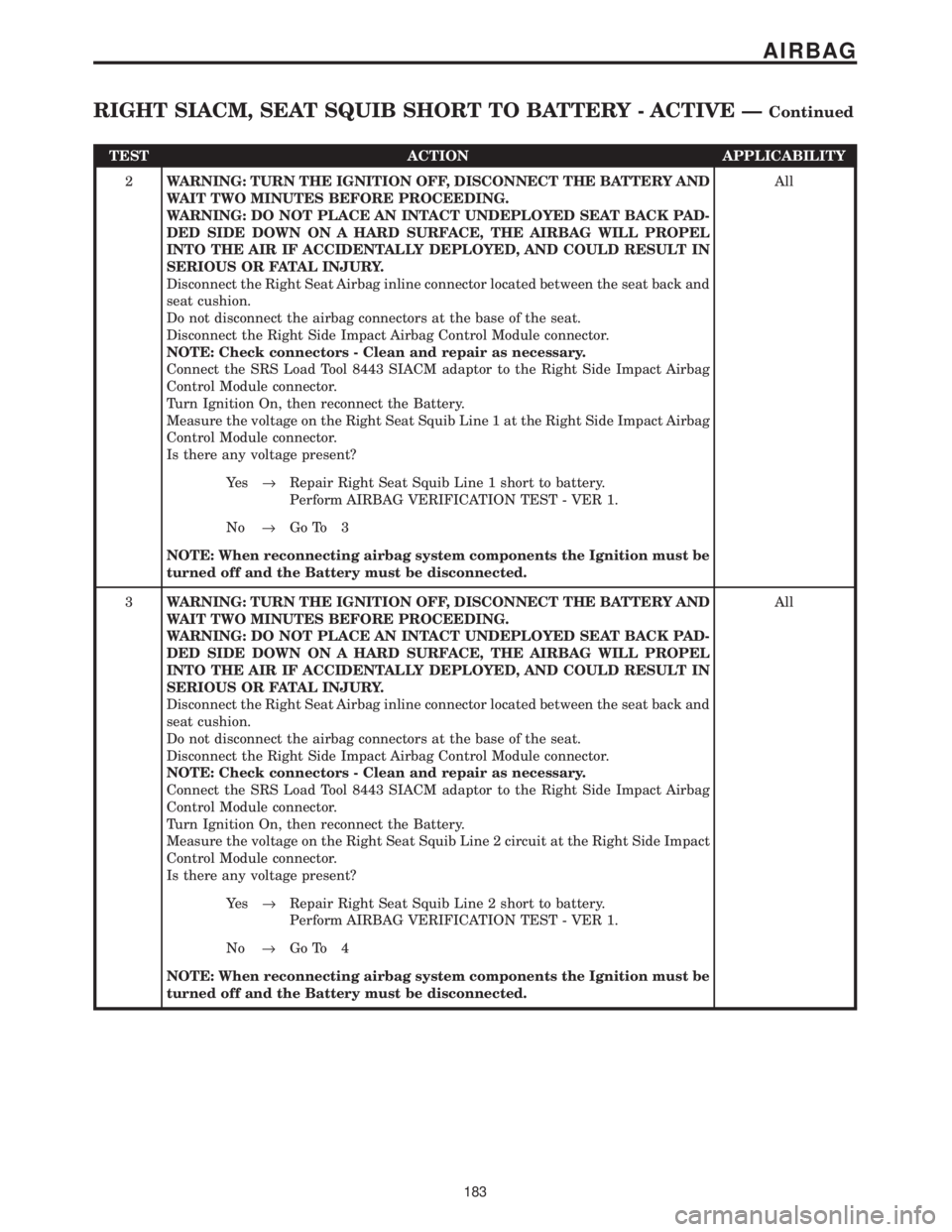

TEST ACTION APPLICABILITY
2WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Right Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Right Side Impact Airbag Control Module connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Right Side Impact Airbag
Control Module connector.
Turn Ignition On, then reconnect the Battery.
Measure the voltage on the Right Seat Squib Line 1 at the Right Side Impact Airbag
Control Module connector.
Is there any voltage present?All
Ye s®Repair Right Seat Squib Line 1 short to battery.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
3WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Right Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Right Side Impact Airbag Control Module connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Right Side Impact Airbag
Control Module connector.
Turn Ignition On, then reconnect the Battery.
Measure the voltage on the Right Seat Squib Line 2 circuit at the Right Side Impact
Control Module connector.
Is there any voltage present?All
Ye s®Repair Right Seat Squib Line 2 short to battery.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 4
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
183
AIRBAG
RIGHT SIACM, SEAT SQUIB SHORT TO BATTERY - ACTIVE ÐContinued

Page 213 of 4284

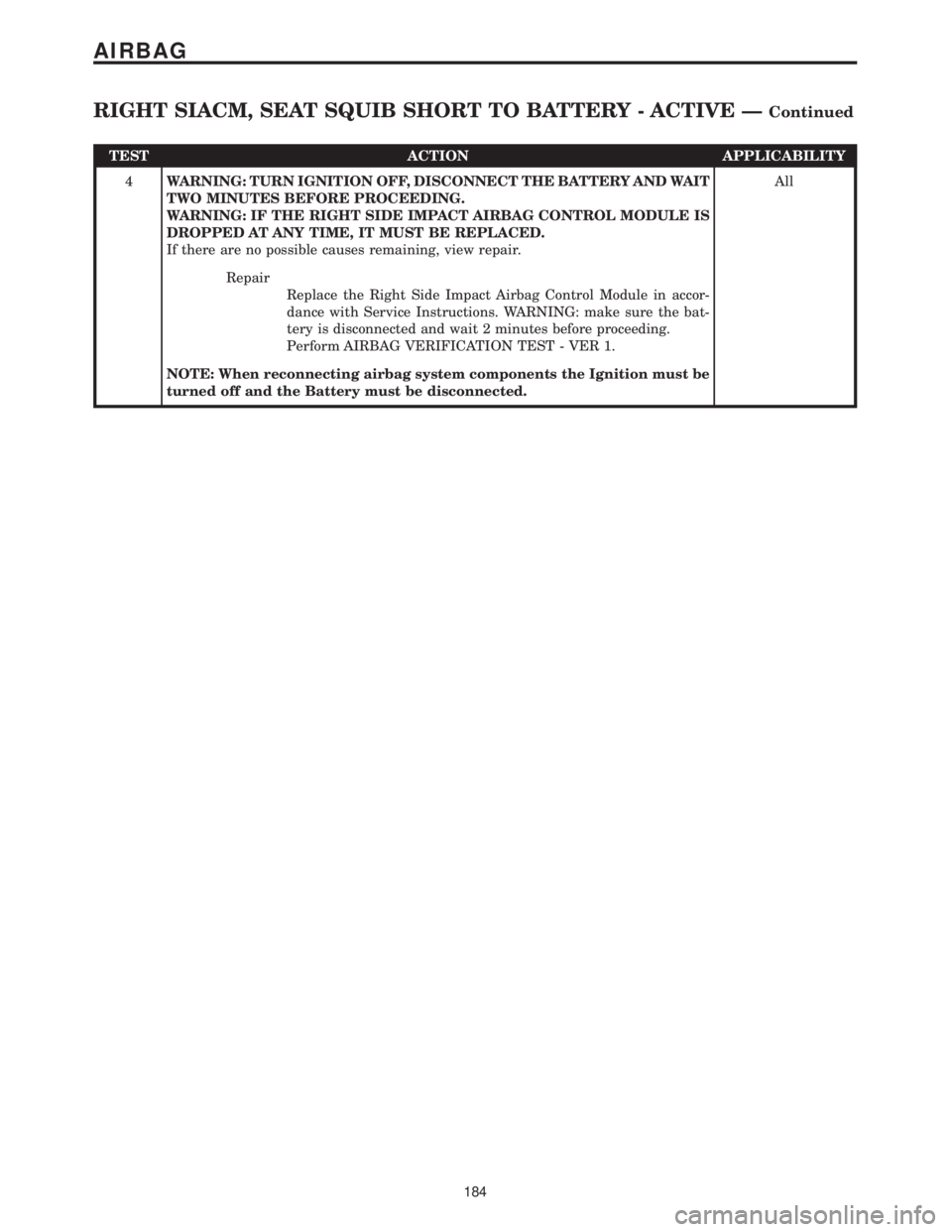

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE RIGHT SIDE IMPACT AIRBAG CONTROL MODULE IS
DROPPED AT ANY TIME, IT

Page 214 of 4284

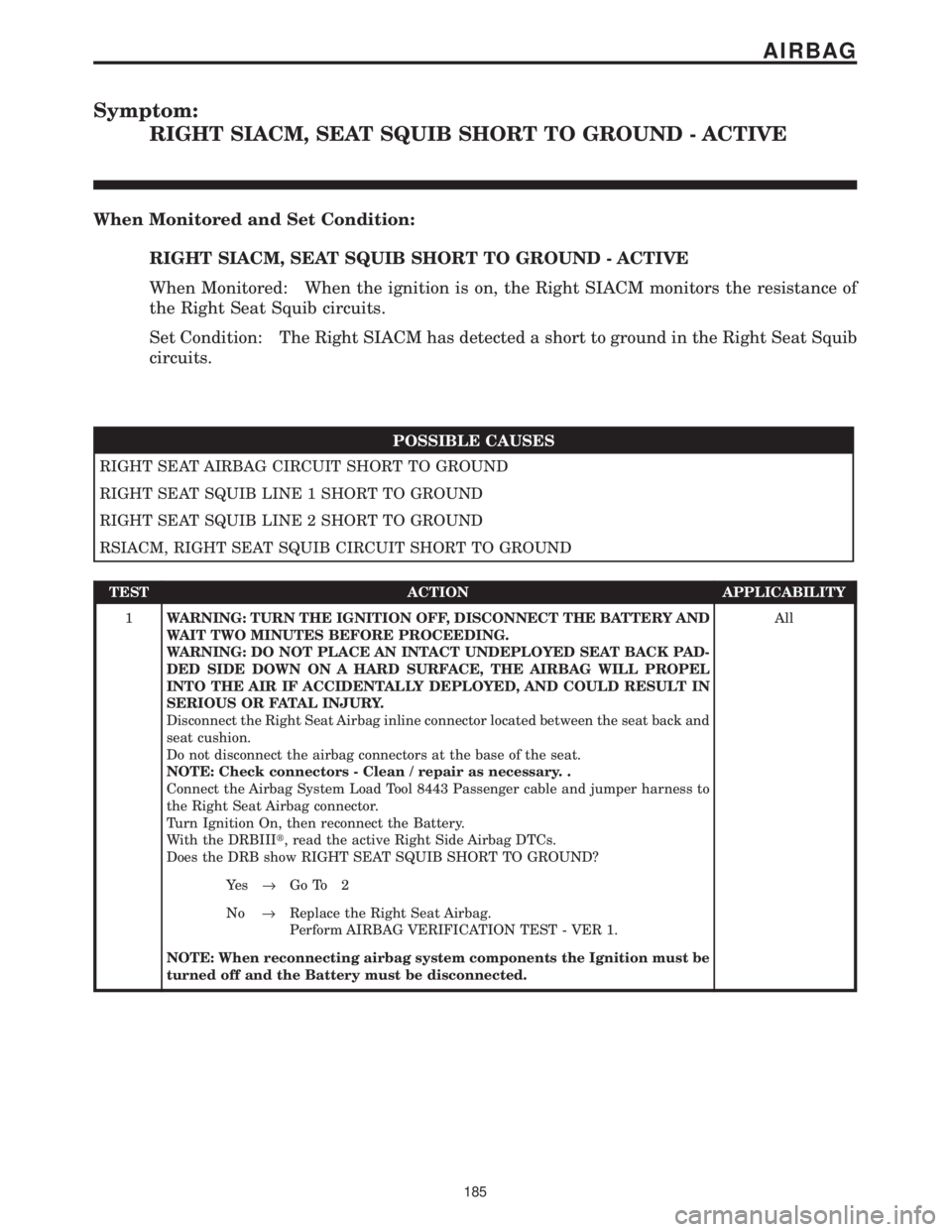

CHRYSLER VOYAGER 2001 Service Manual Symptom:
RIGHT SIACM, SEAT SQUIB SHORT TO GROUND - ACTIVE
When Monitored and Set Condition:
RIGHT SIACM, SEAT SQUIB SHORT TO GROUND - ACTIVE
When Monitored: When the ignition is on, the Right SIACM mo

Page 215 of 4284

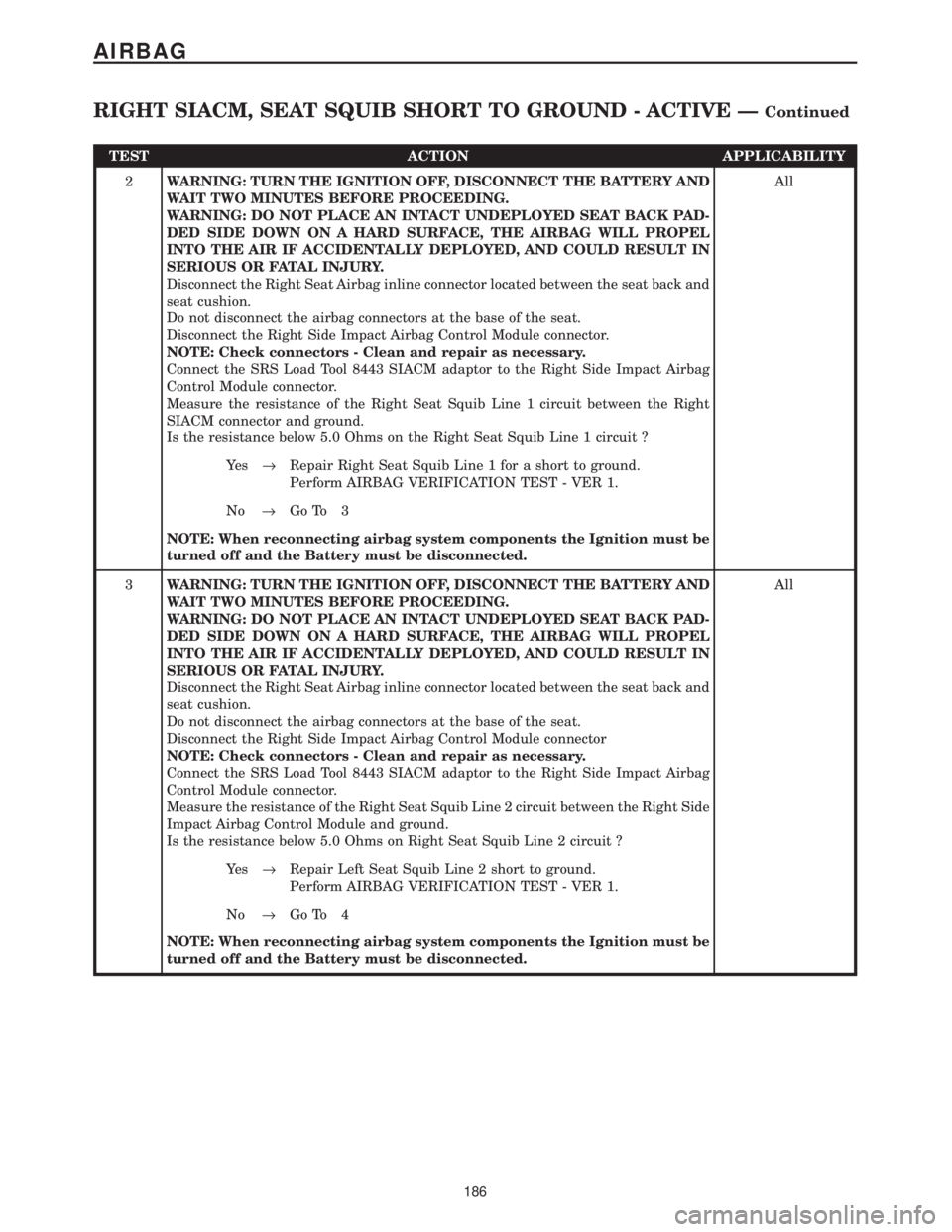

TEST ACTION APPLICABILITY
2WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Right Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Right Side Impact Airbag Control Module connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Right Side Impact Airbag
Control Module connector.
Measure the resistance of the Right Seat Squib Line 1 circuit between the Right
SIACM connector and ground.
Is the resistance below 5.0 Ohms on the Right Seat Squib Line 1 circuit ?All
Ye s®Repair Right Seat Squib Line 1 for a short to ground.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
3WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED SEAT BACK PAD-
DED SIDE DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL
INTO THE AIR IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN
SERIOUS OR FATAL INJURY.
Disconnect the Right Seat Airbag inline connector located between the seat back and
seat cushion.
Do not disconnect the airbag connectors at the base of the seat.
Disconnect the Right Side Impact Airbag Control Module connector
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 SIACM adaptor to the Right Side Impact Airbag
Control Module connector.
Measure the resistance of the Right Seat Squib Line 2 circuit between the Right Side
Impact Airbag Control Module and ground.
Is the resistance below 5.0 Ohms on Right Seat Squib Line 2 circuit ?All
Ye s®Repair Left Seat Squib Line 2 short to ground.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 4
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
186
AIRBAG
RIGHT SIACM, SEAT SQUIB SHORT TO GROUND - ACTIVE ÐContinued

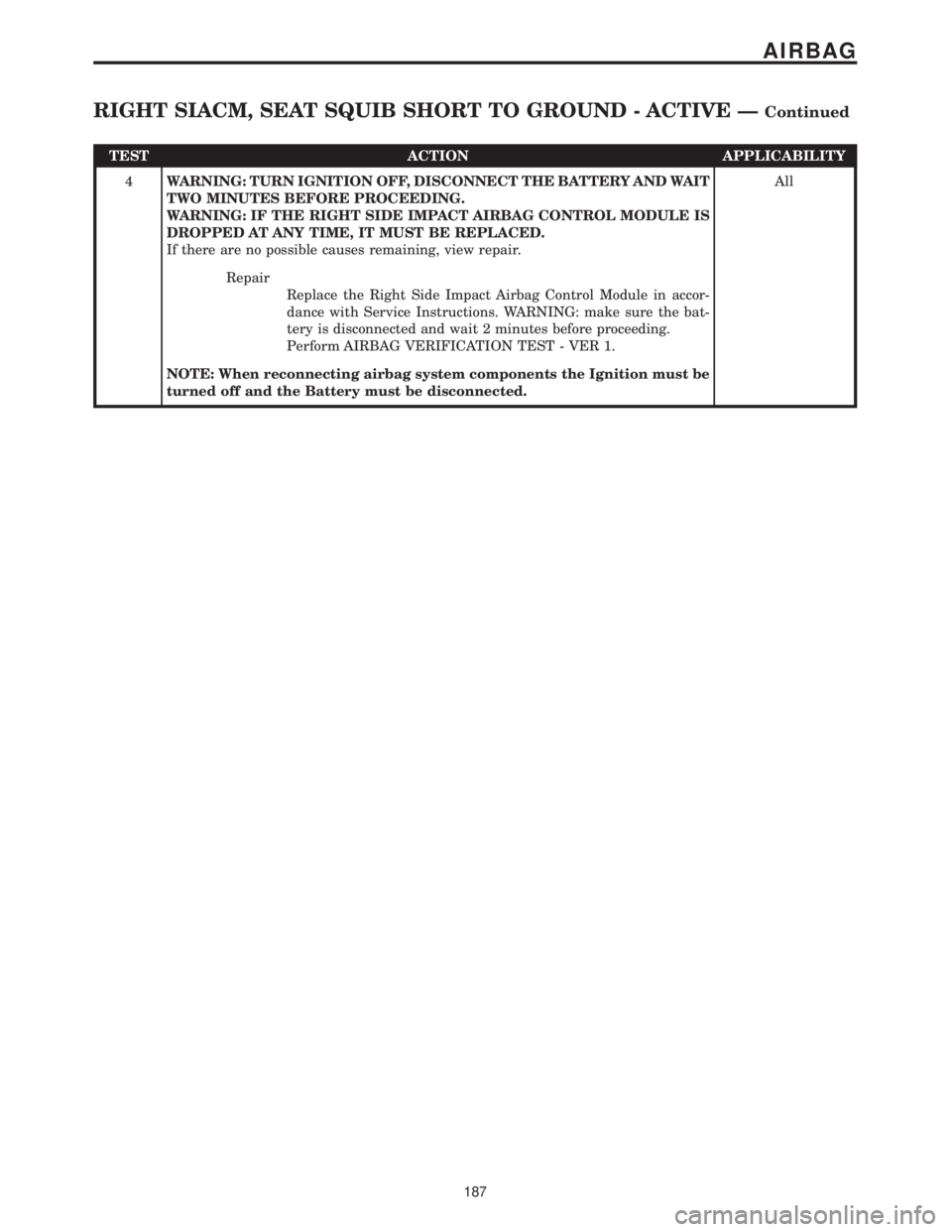

Page 216 of 4284
