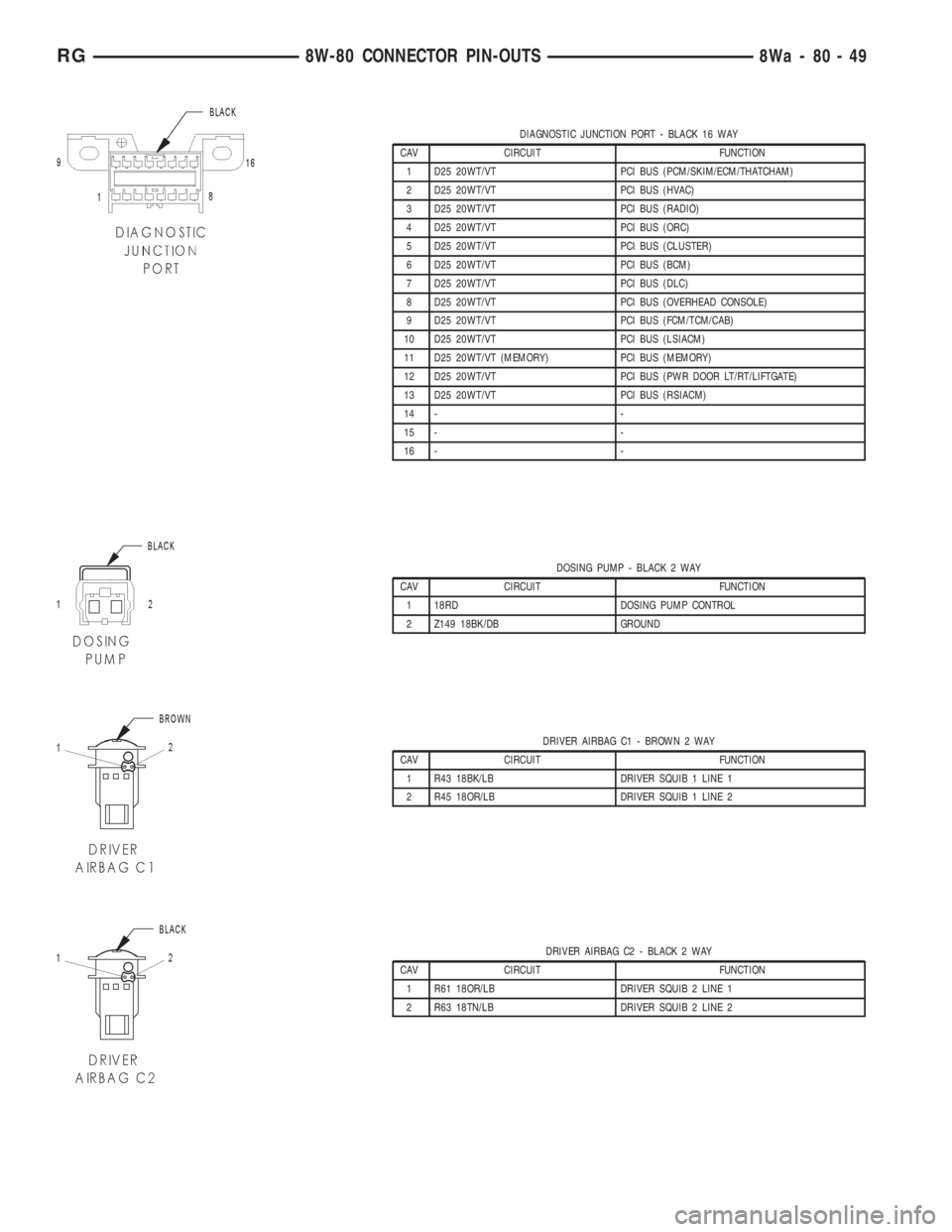

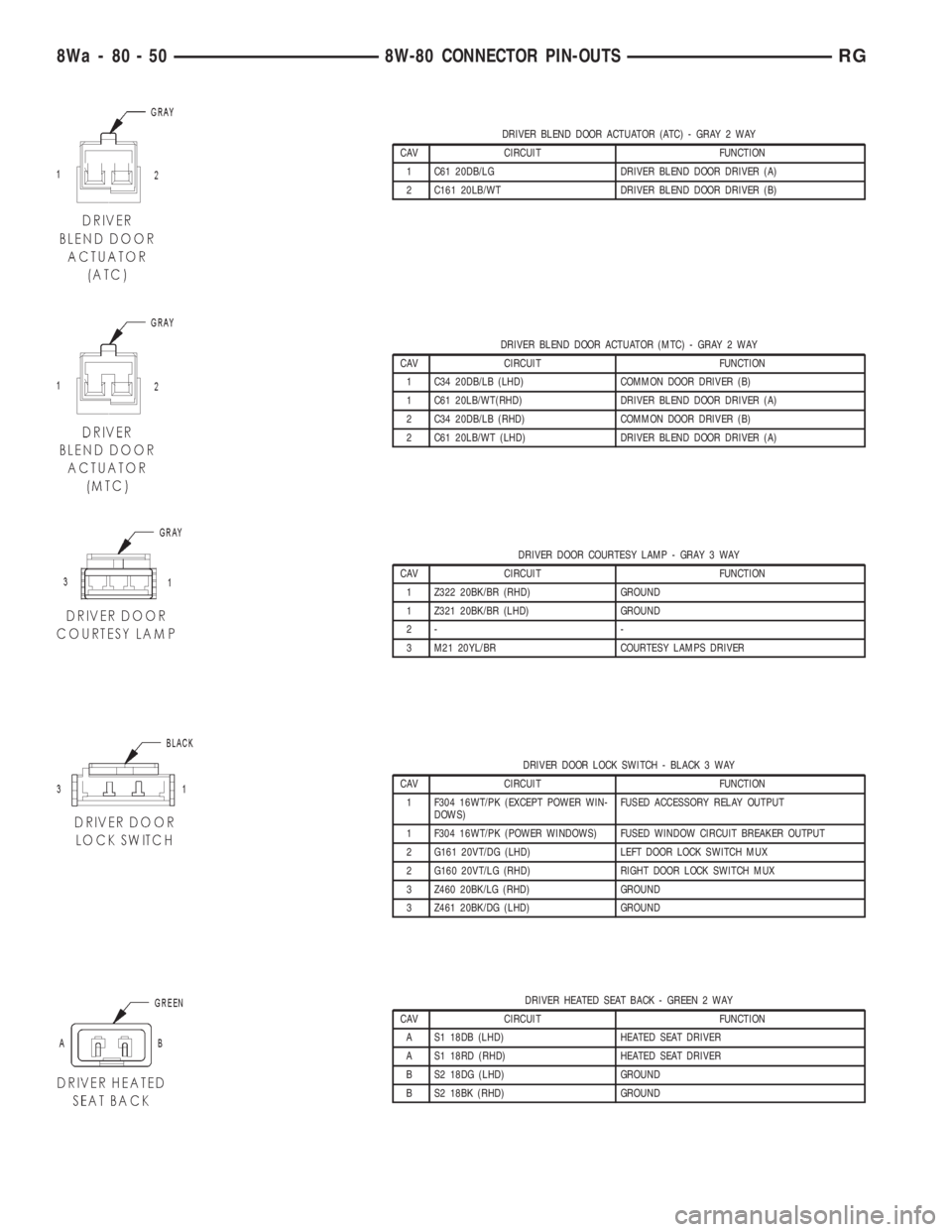

CHRYSLER VOYAGER 2001 Service Manual DIAGNOSTIC JUNCTION PORT - BLACK 16 WAY CAV CIRCUIT FUNCTION 1 D25 20WT/VT PCI BUS (PCM/SKIM/ECM/THATCHAM) 2 D25 20WT/VT PCI BUS (HVAC) 3 D25 20WT/VT PCI BUS (RADIO) 4 D25 20WT/VT PCI BUS (ORC) 5 D25

Page 2490 of 4284

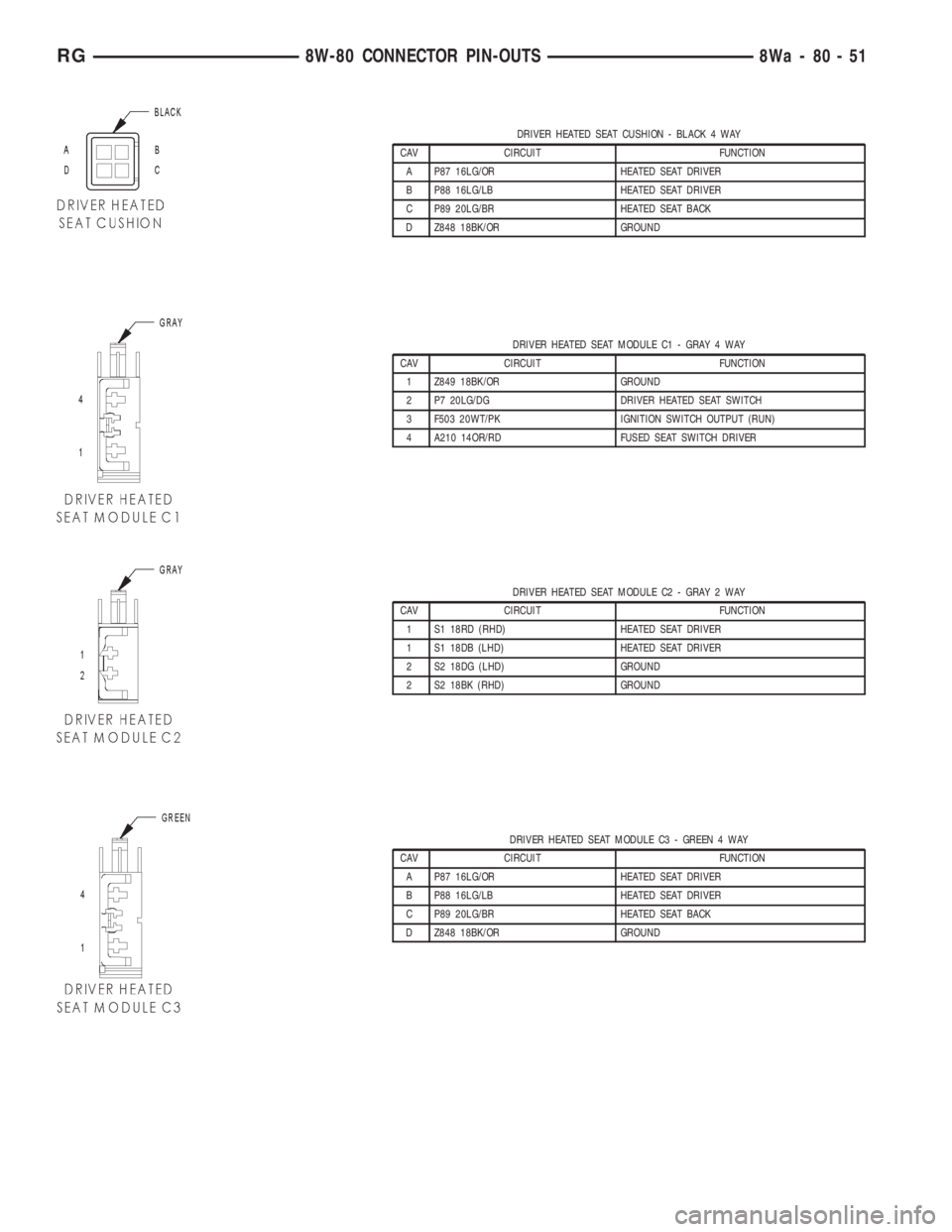

CHRYSLER VOYAGER 2001 Service Manual DRIVER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A) 2 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B) DRIVER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY

Page 2491 of 4284

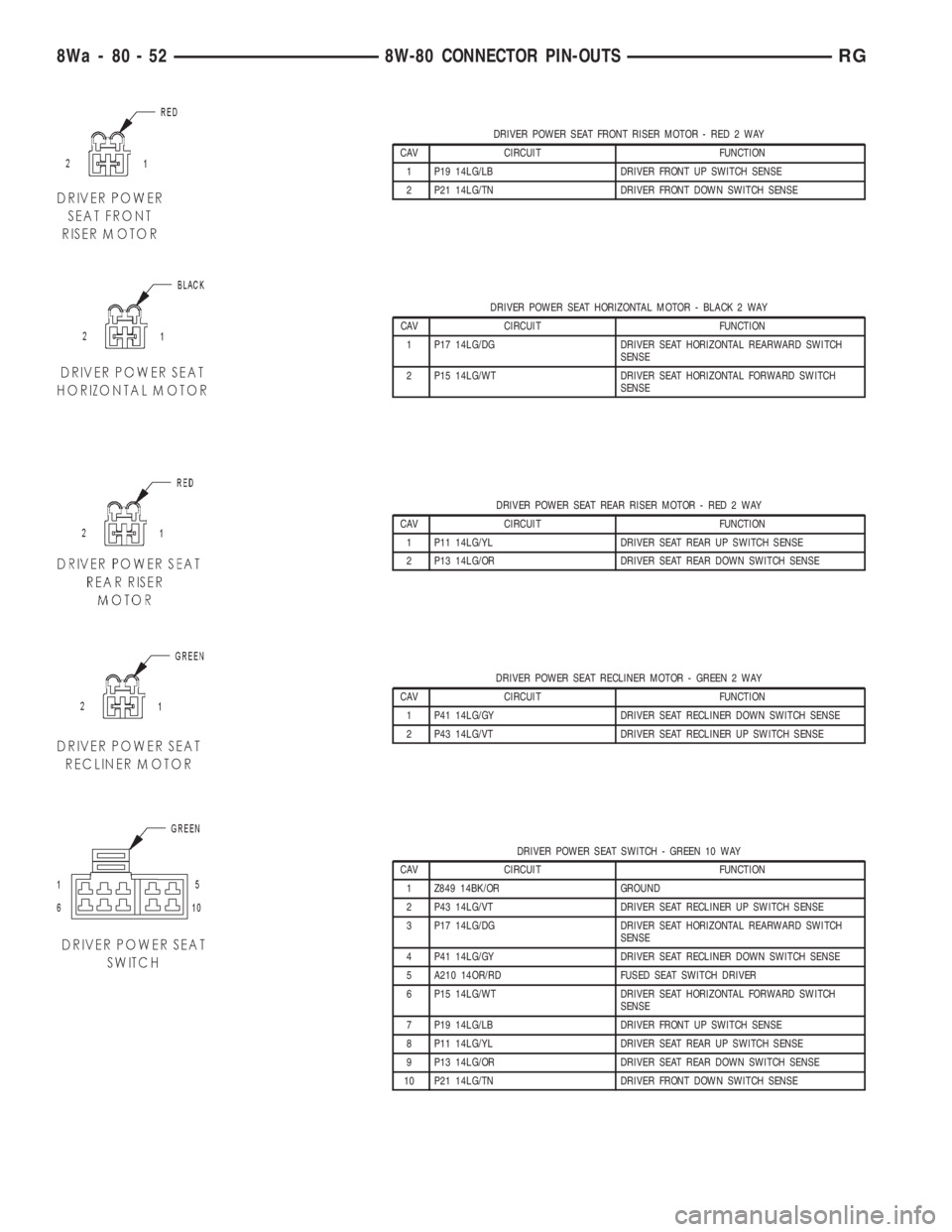

CHRYSLER VOYAGER 2001 Service Manual DRIVER HEATED SEAT CUSHION - BLACK 4 WAY CAV CIRCUIT FUNCTION A P87 16LG/OR HEATED SEAT DRIVER B P88 16LG/LB HEATED SEAT DRIVER C P89 20LG/BR HEATED SEAT BACK D Z848 18BK/OR GROUND DRIVER HEATED SEAT

Page 2492 of 4284

CHRYSLER VOYAGER 2001 Service Manual DRIVER POWER SEAT FRONT RISER MOTOR - RED 2 WAY CAV CIRCUIT FUNCTION 1 P19 14LG/LB DRIVER FRONT UP SWITCH SENSE 2 P21 14LG/TN DRIVER FRONT DOWN SWITCH SENSE DRIVER POWER SEAT HORIZONTAL MOTOR - BLACK

Page 2493 of 4284

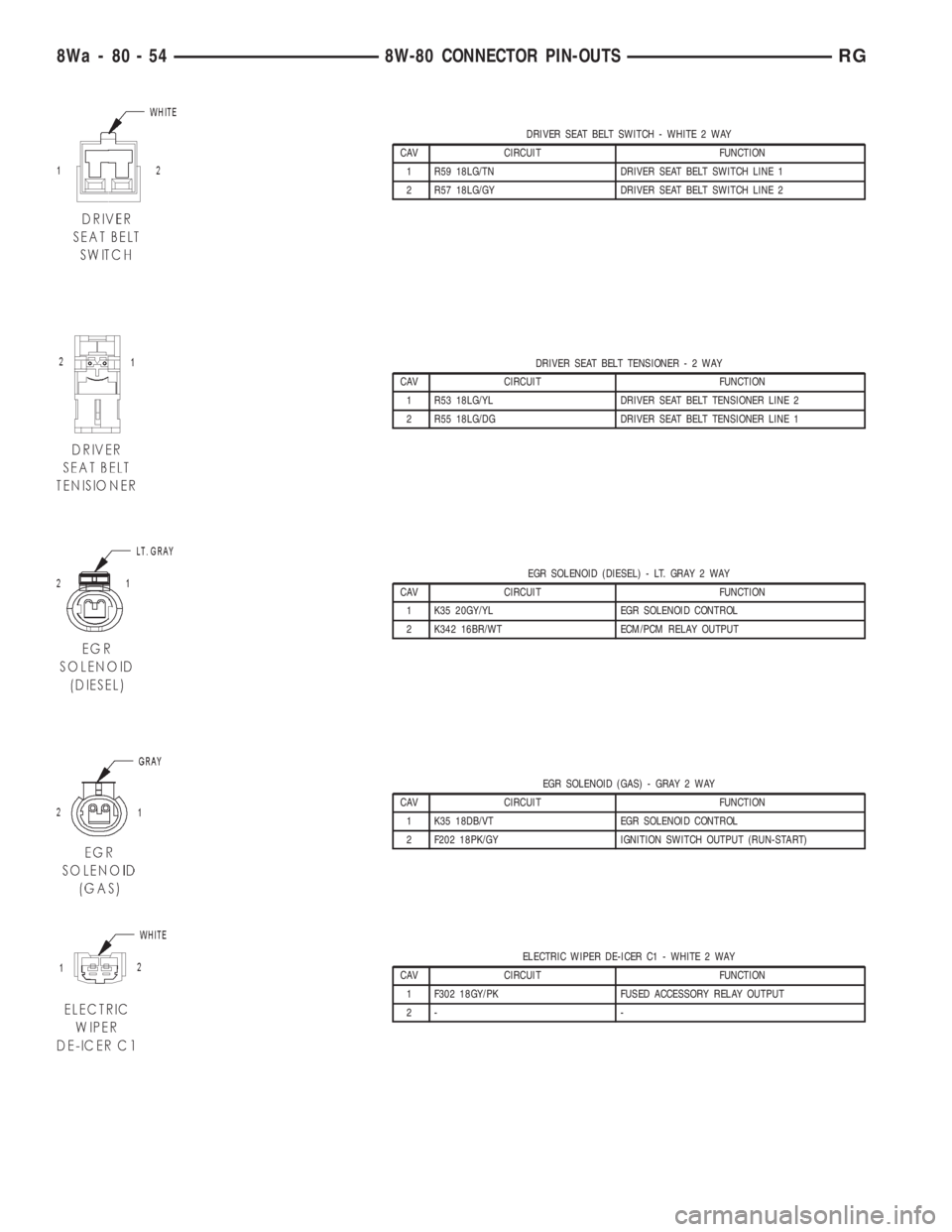

CHRYSLER VOYAGER 2001 Service Manual DRIVER POWER WINDOW MOTOR - RED 2 WAY CAV CIRCUIT FUNCTION 1 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP 2 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN DRIVER POWER WINDOW SWITCH (LHD) - GREEN 14 WAY C

Page 2494 of 4284

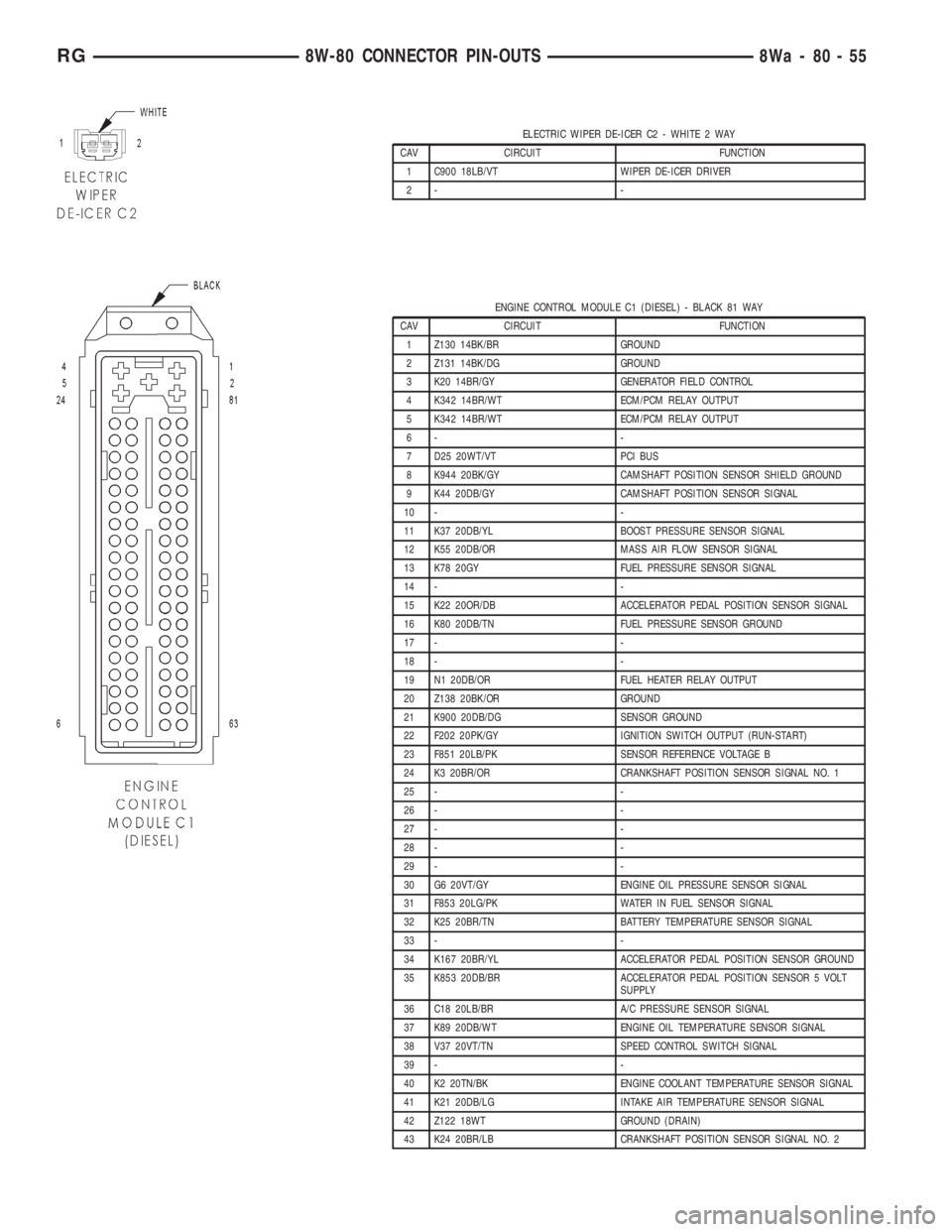

CHRYSLER VOYAGER 2001 Service Manual DRIVER SEAT BELT SWITCH - WHITE 2 WAY CAV CIRCUIT FUNCTION 1 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1 2 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2 DRIVER SEAT BELT TENSIONER-2WAY CAV CIRCUIT FUNCTIO

Page 2495 of 4284

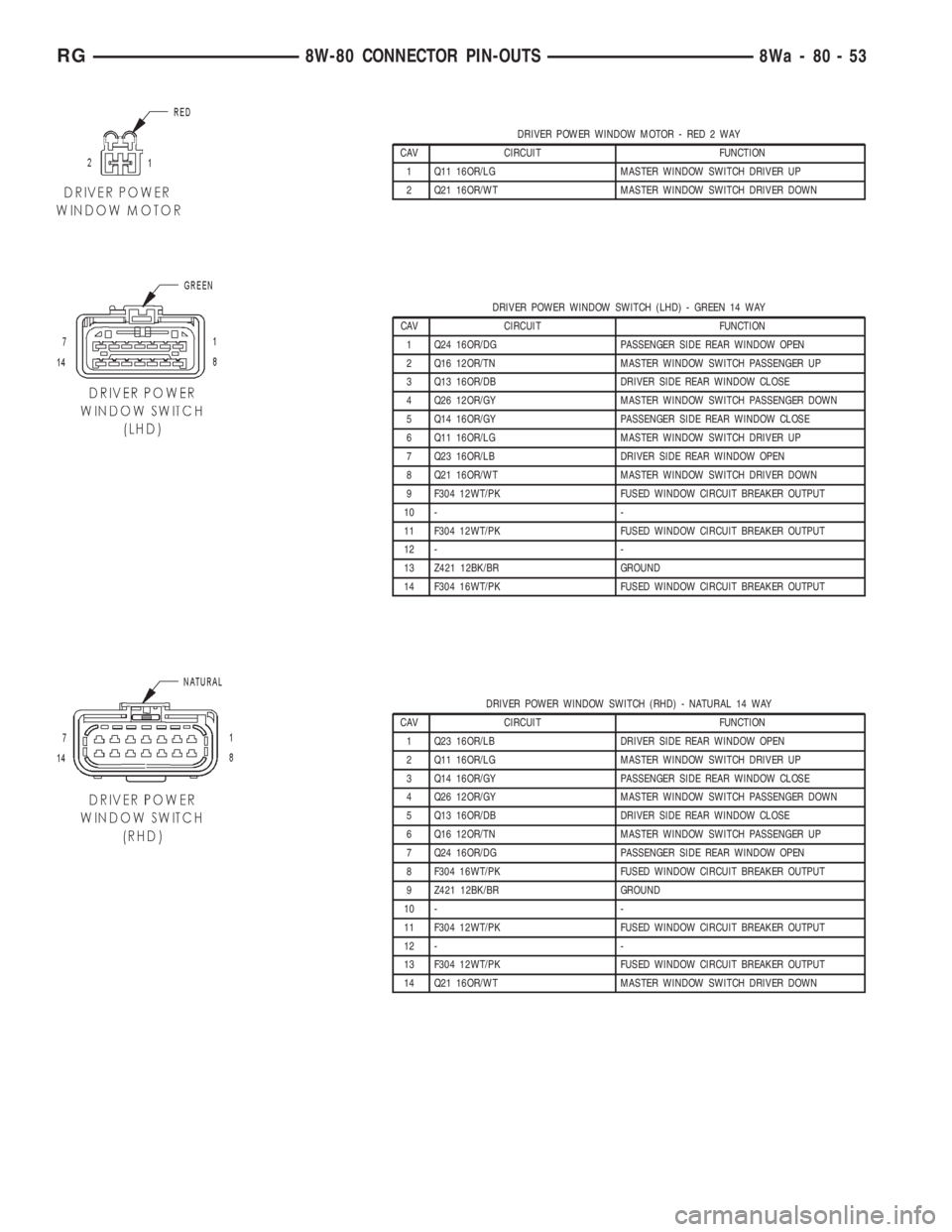

CHRYSLER VOYAGER 2001 Service Manual ELECTRIC WIPER DE-ICER C2 - WHITE 2 WAY CAV CIRCUIT FUNCTION 1 C900 18LB/VT WIPER DE-ICER DRIVER 2- - ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY CAV CIRCUIT FUNCTION 1 Z130 14BK/BR GROUND 2 Z131

Page 2496 of 4284

CHRYSLER VOYAGER 2001 Service Manual ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY CAV CIRCUIT FUNCTION 44 - - 45 - - 46 - - 47 L50 20WT/TN PRIMARY BRAKE SWITCH SIGNAL 48 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL 49 T751 20YL IGNITION
