Page 2569 of 4284

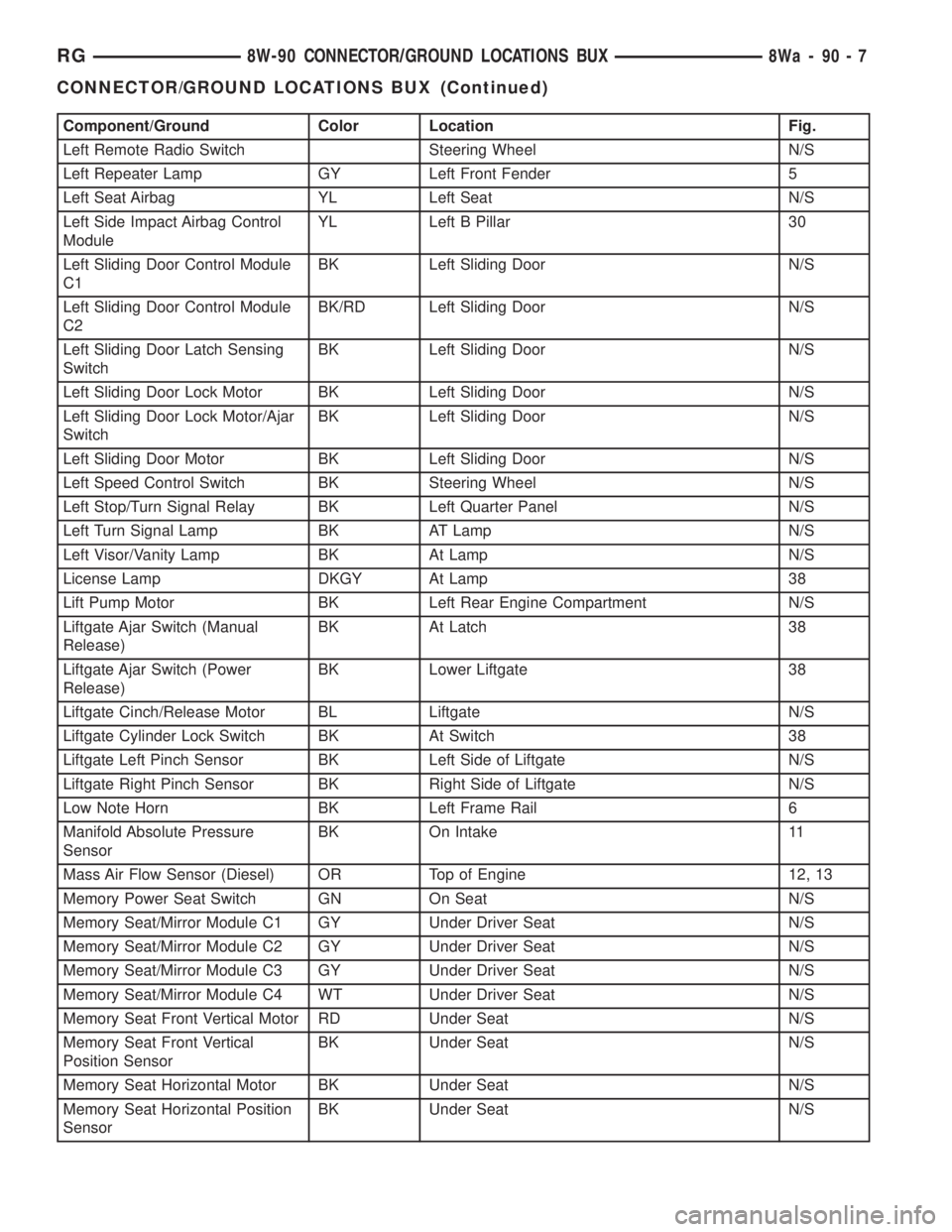

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. Left Remote Radio Switch Steering Wheel N/S Left Repeater Lamp GY Left Front Fender 5 Left Seat Airbag YL Left Seat N/S Left Side Impact Airbag Control ModuleYL Le

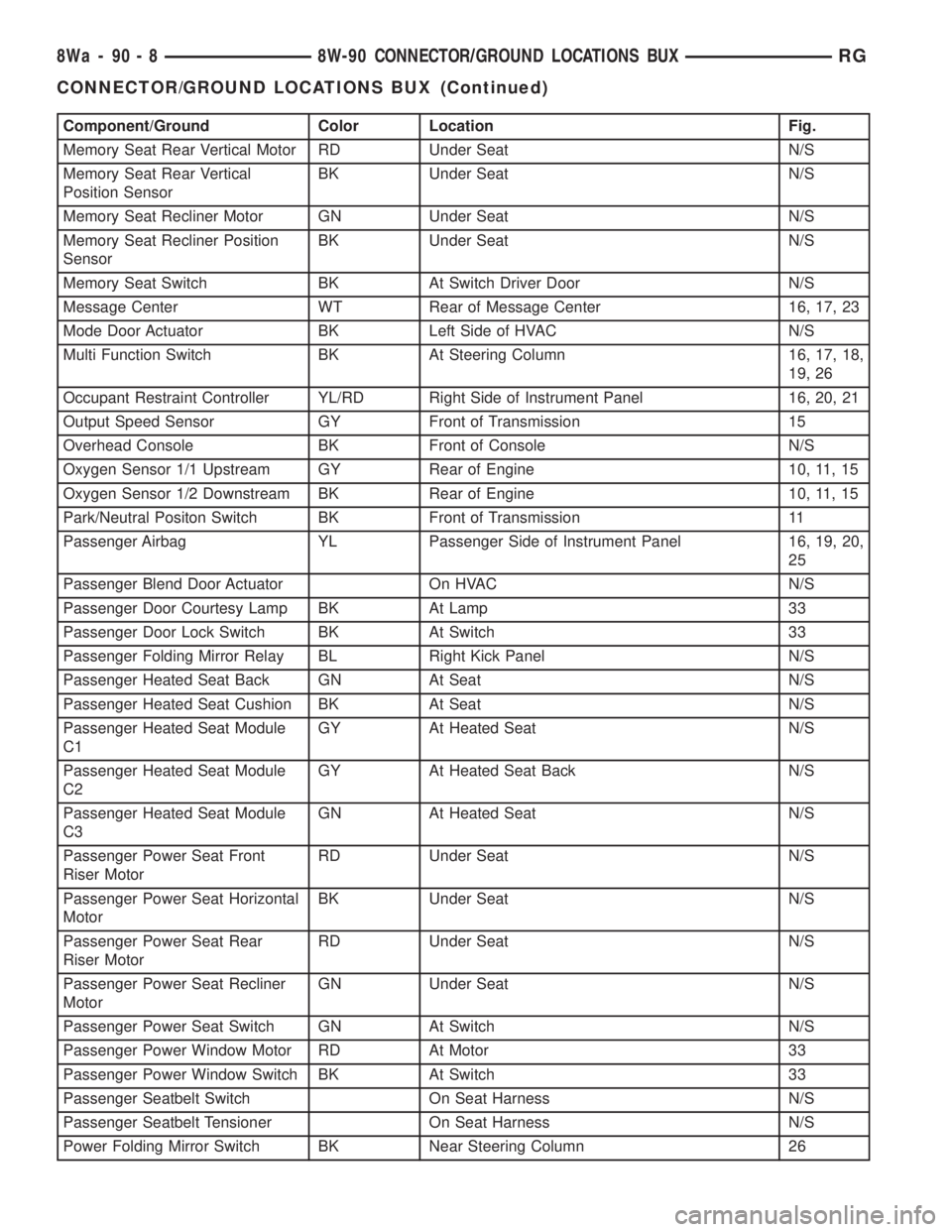

Page 2570 of 4284

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. Memory Seat Rear Vertical Motor RD Under Seat N/S Memory Seat Rear Vertical Position SensorBK Under Seat N/S Memory Seat Recliner Motor GN Under Seat N/S Memory Se

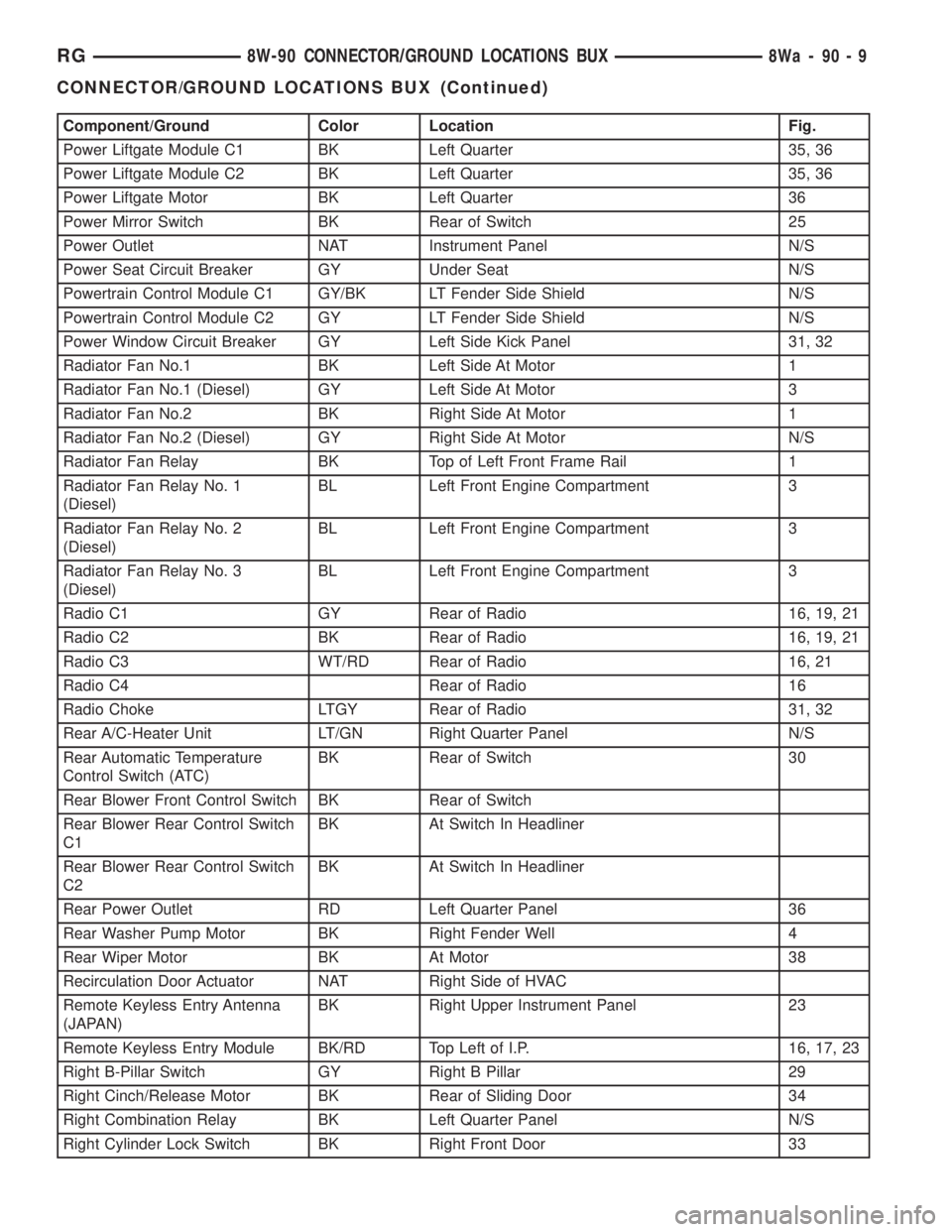

Page 2571 of 4284

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. Power Liftgate Module C1 BK Left Quarter 35, 36 Power Liftgate Module C2 BK Left Quarter 35, 36 Power Liftgate Motor BK Left Quarter 36 Power Mirror Switch BK Rear

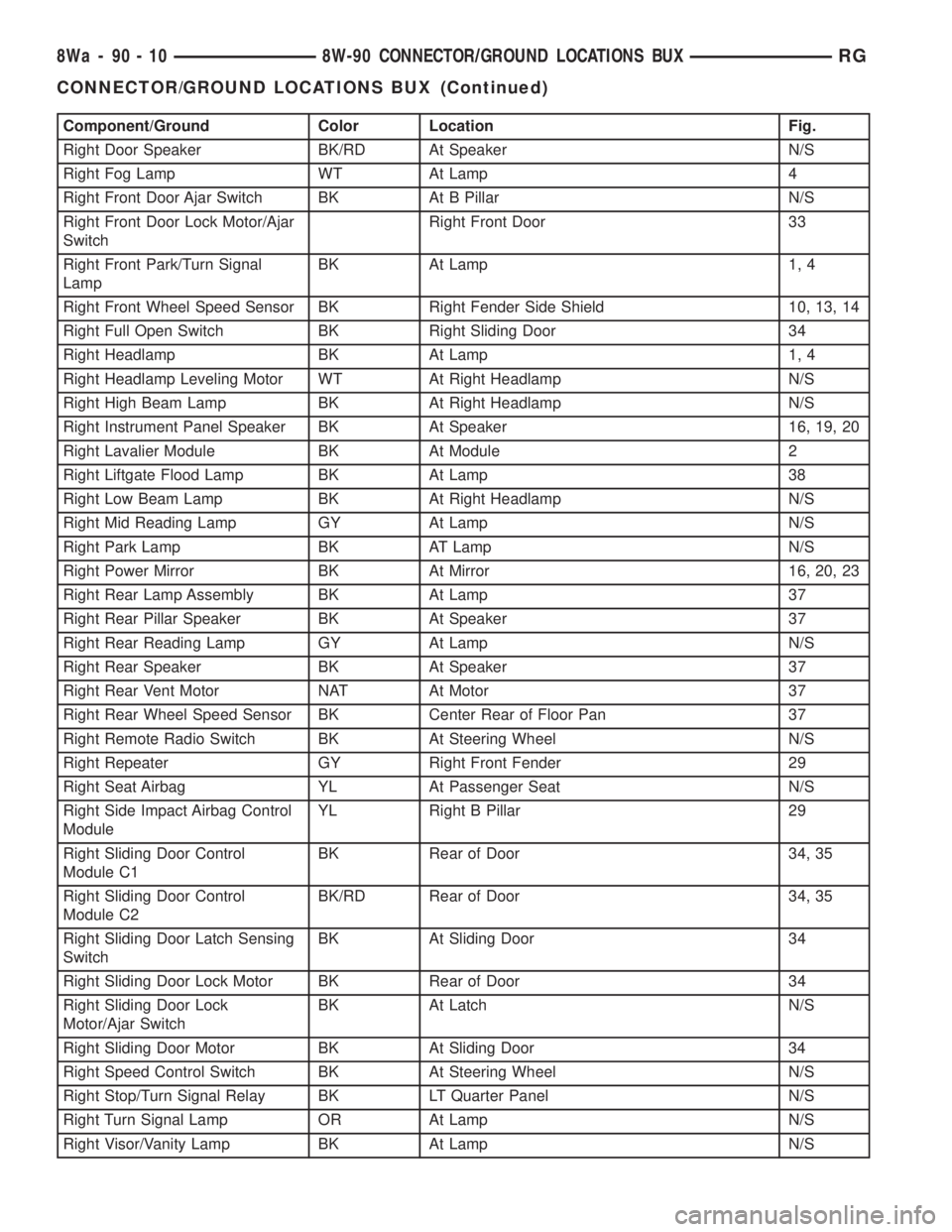

Page 2572 of 4284

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. Right Door Speaker BK/RD At Speaker N/S Right Fog Lamp WT At Lamp 4 Right Front Door Ajar Switch BK At B Pillar N/S Right Front Door Lock Motor/Ajar SwitchRight Fr

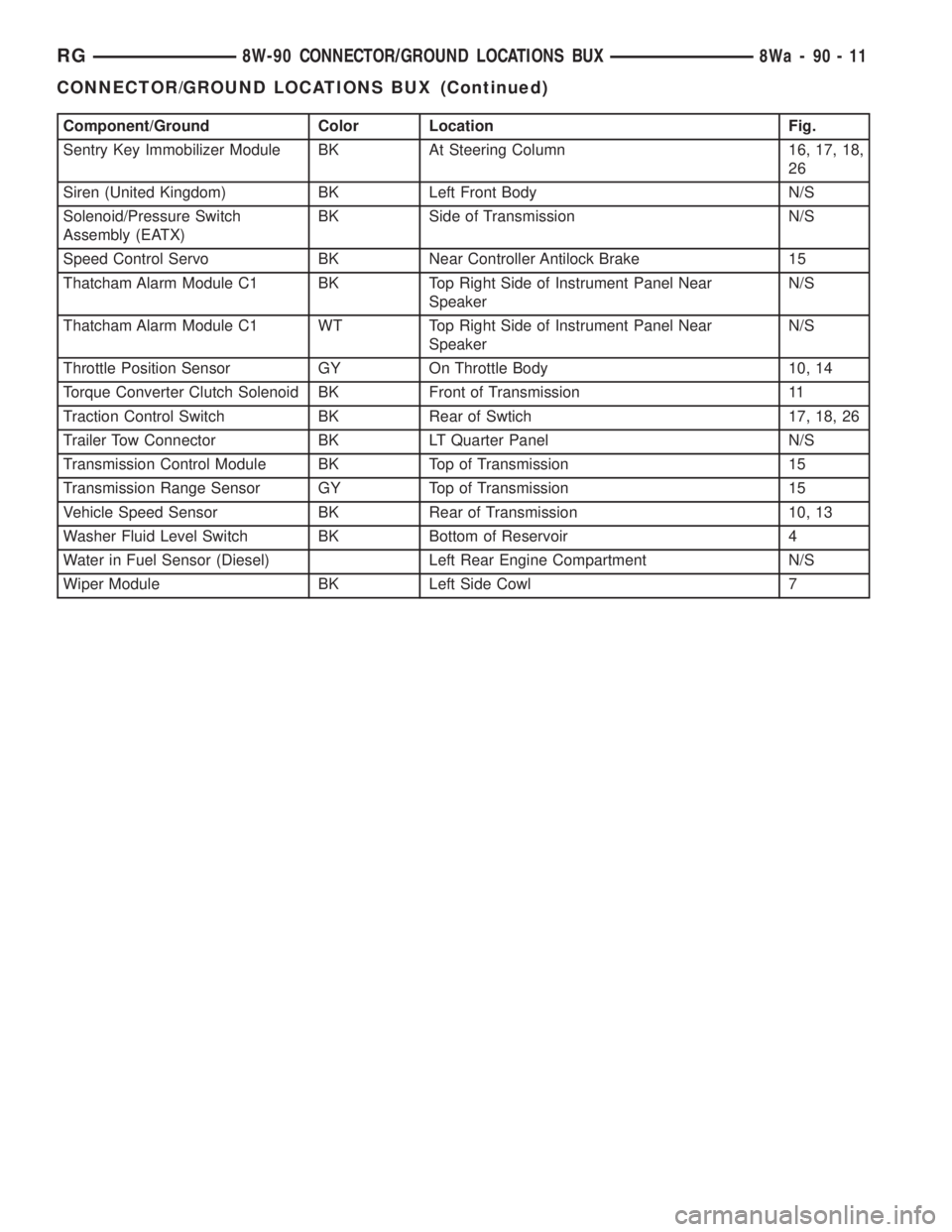

Page 2573 of 4284

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. Sentry Key Immobilizer Module BK At Steering Column 16, 17, 18, 26 Siren (United Kingdom) BK Left Front Body N/S Solenoid/Pressure Switch Assembly (EATX)BK Side of

Page 2574 of 4284

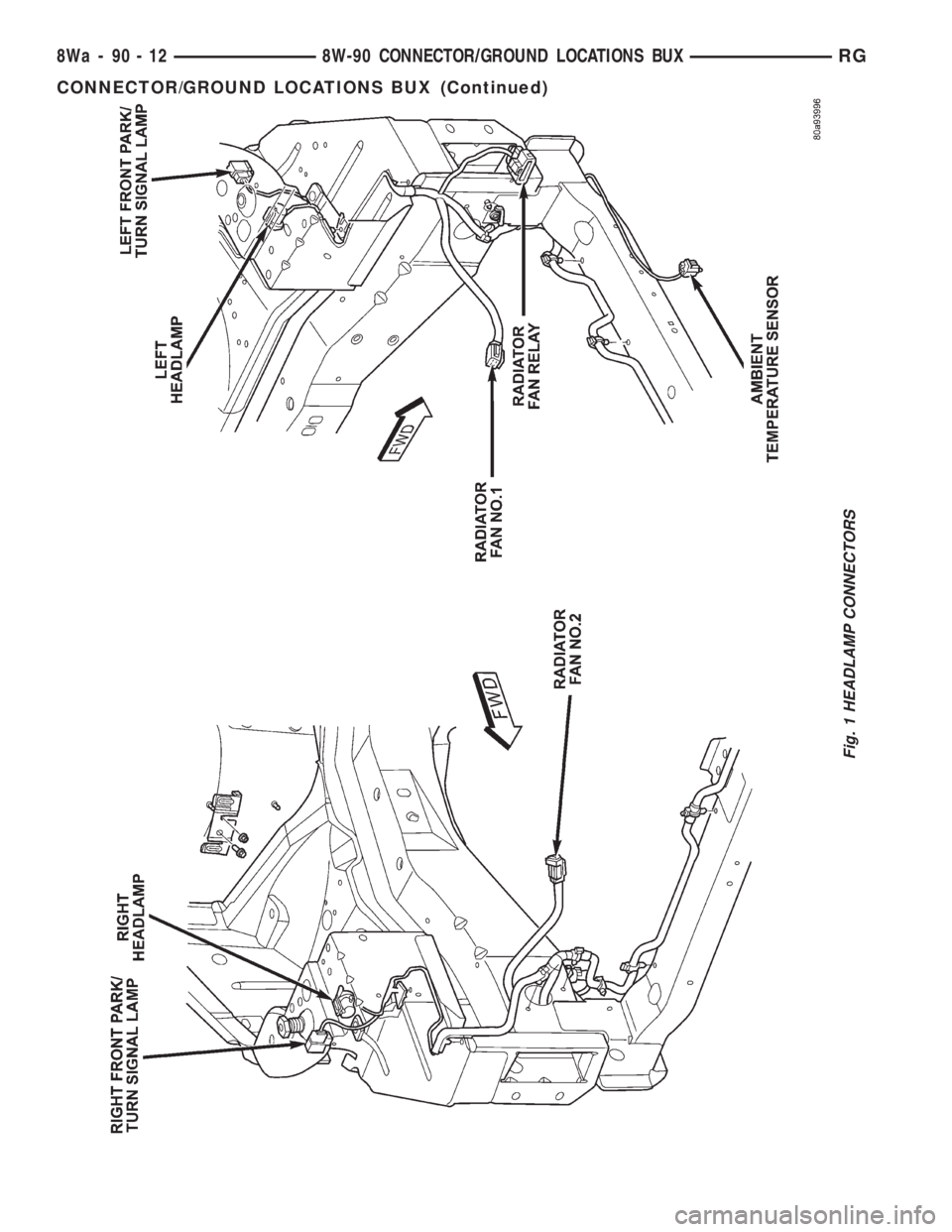

CHRYSLER VOYAGER 2001 Service Manual Fig. 1 HEADLAMP CONNECTORS 8Wa - 90 - 12 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued)

Page 2575 of 4284

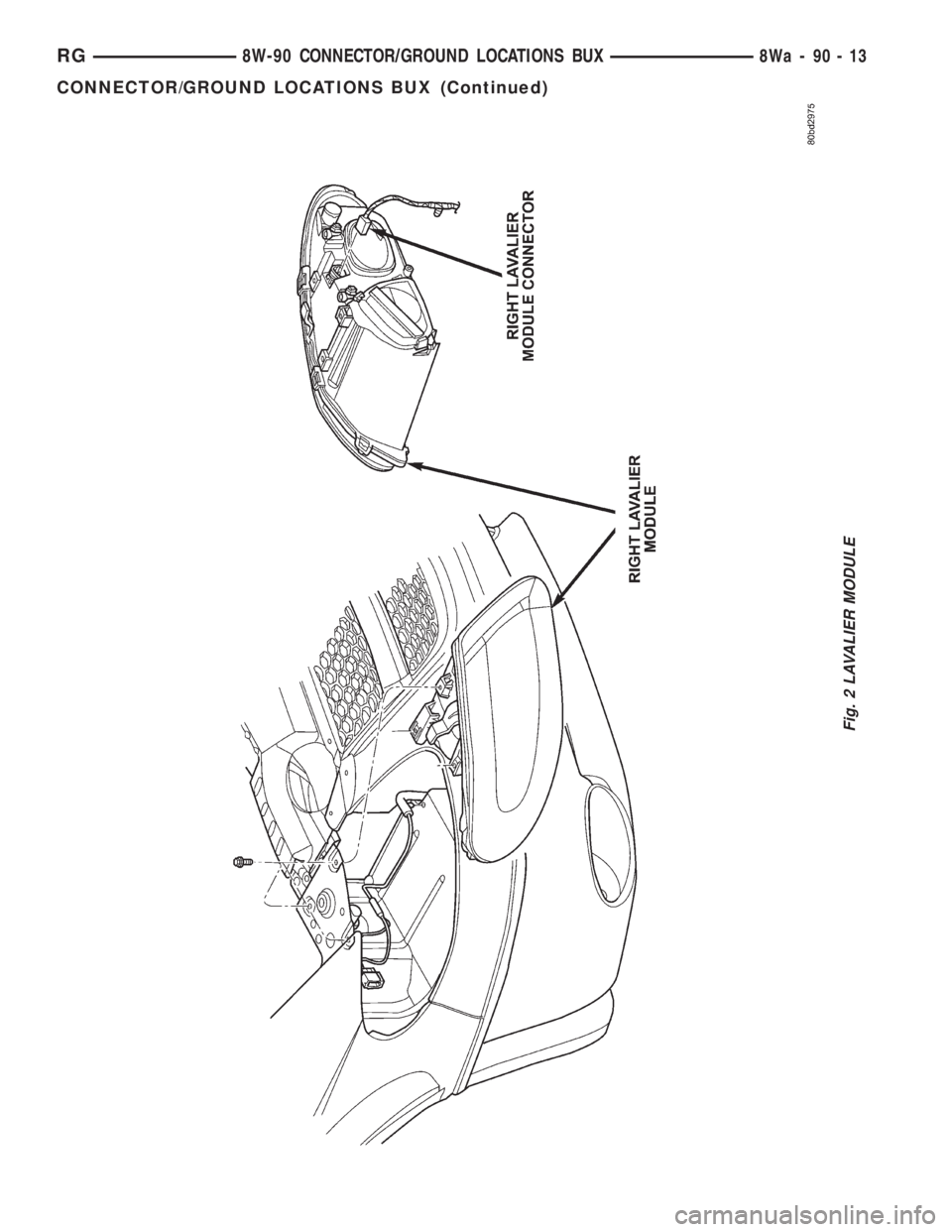

CHRYSLER VOYAGER 2001 Service Manual Fig. 2 LAVALIER MODULE RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-13 CONNECTOR/GROUND LOCATIONS BUX (Continued)

Page 2576 of 4284

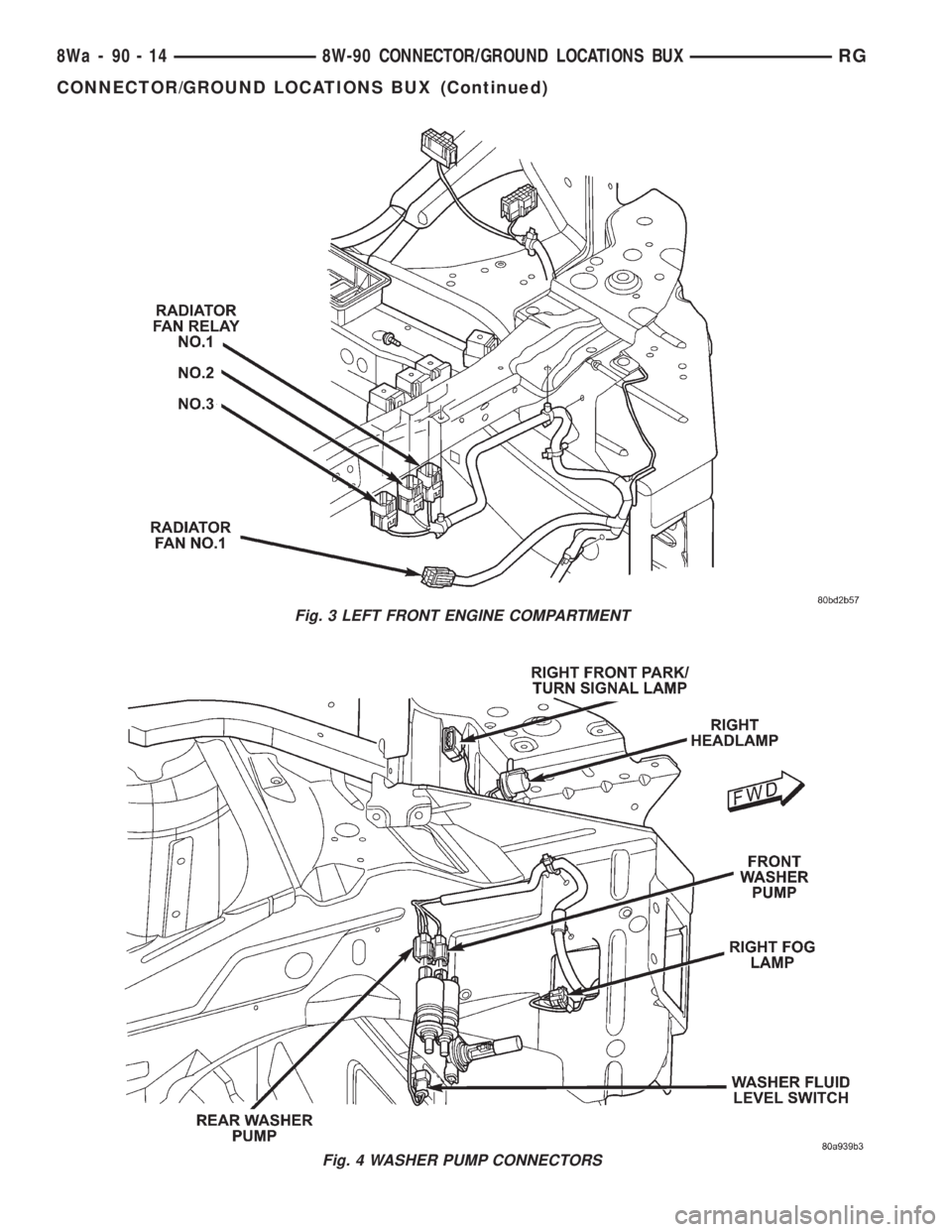

CHRYSLER VOYAGER 2001 Service Manual Fig. 3 LEFT FRONT ENGINE COMPARTMENT Fig. 4 WASHER PUMP CONNECTORS 8Wa - 90 - 14 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued)
