Page 769 of 3066
POWER DOOR LOCK — SUPER LOCK —
BL-25
C
D
E
F
G
H
J
K
L
MA
B
BL
Lock/unlock switch operation cannot control super lock
Key reminder system
lIf the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
System initialization
lSystem initialization is required when battery cables are reconnected. Conduct the following to release
super lock once;
–insert the key into the ignition key cylinder and turn it to ON.
–LOCK/UNLOCK operation using door key cylinder or multi-remote controller.
Page 770 of 3066
BL-26
POWER DOOR LOCK — SUPER LOCK —

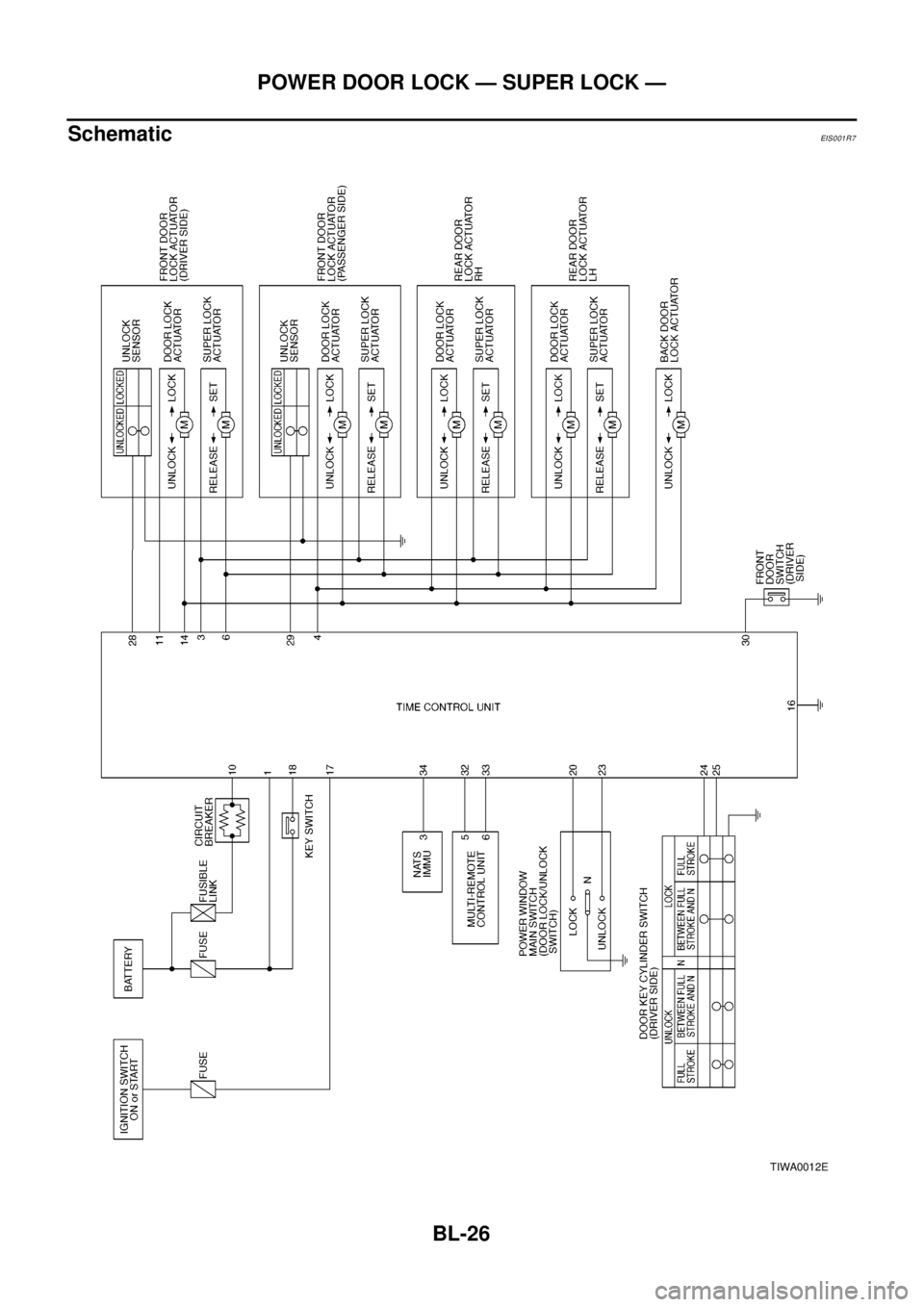

Schematic
EIS0 01 R7
TIWA0012E
Page 771 of 3066
POWER DOOR LOCK — SUPER LOCK —
BL-27
C
D
E
F
G
H
J
K
L
MA
B
BL

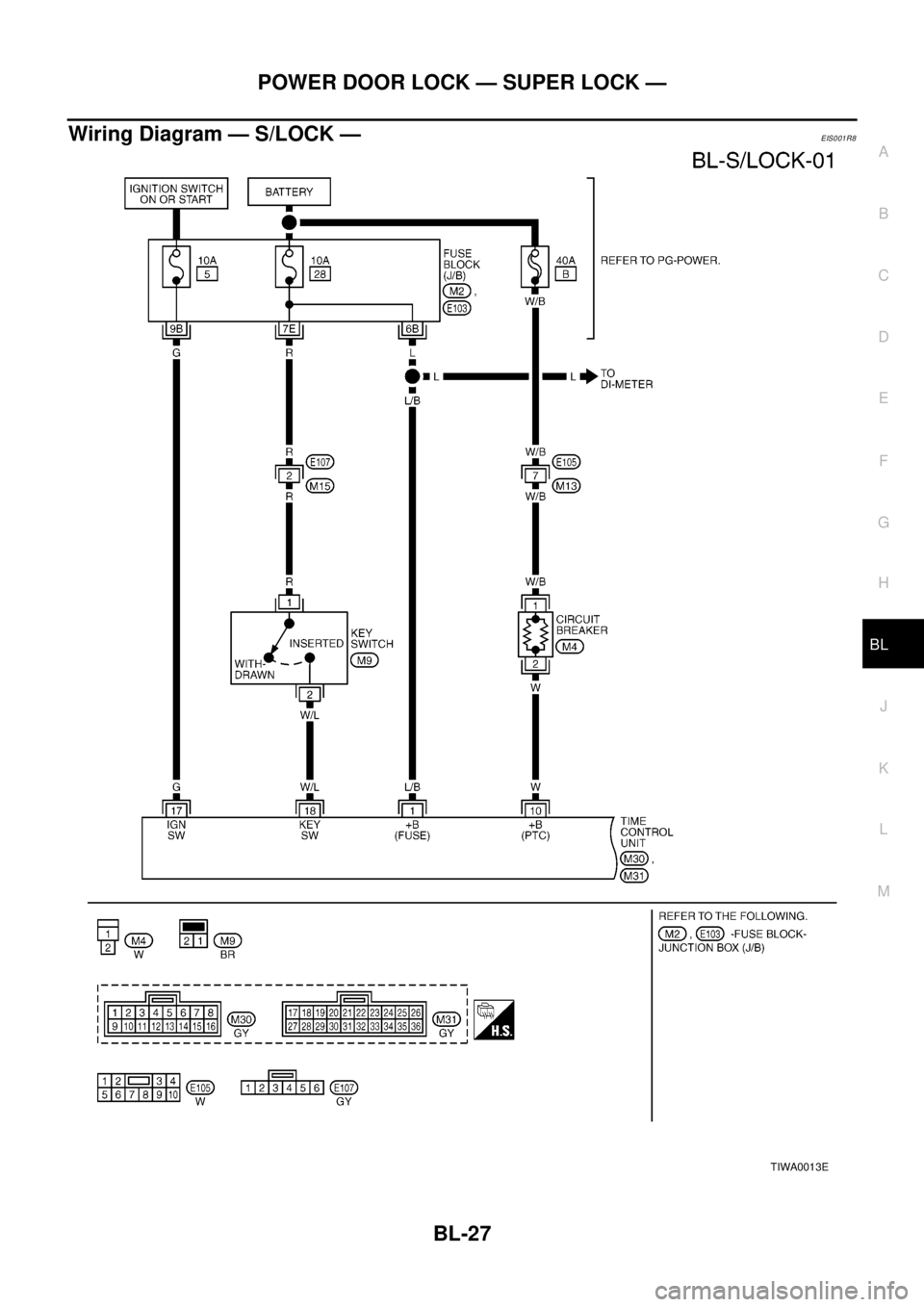

Wiring Diagram — S/LOCK —EIS001R8
TIWA0013E
Page 772 of 3066
BL-28
POWER DOOR LOCK — SUPER LOCK —

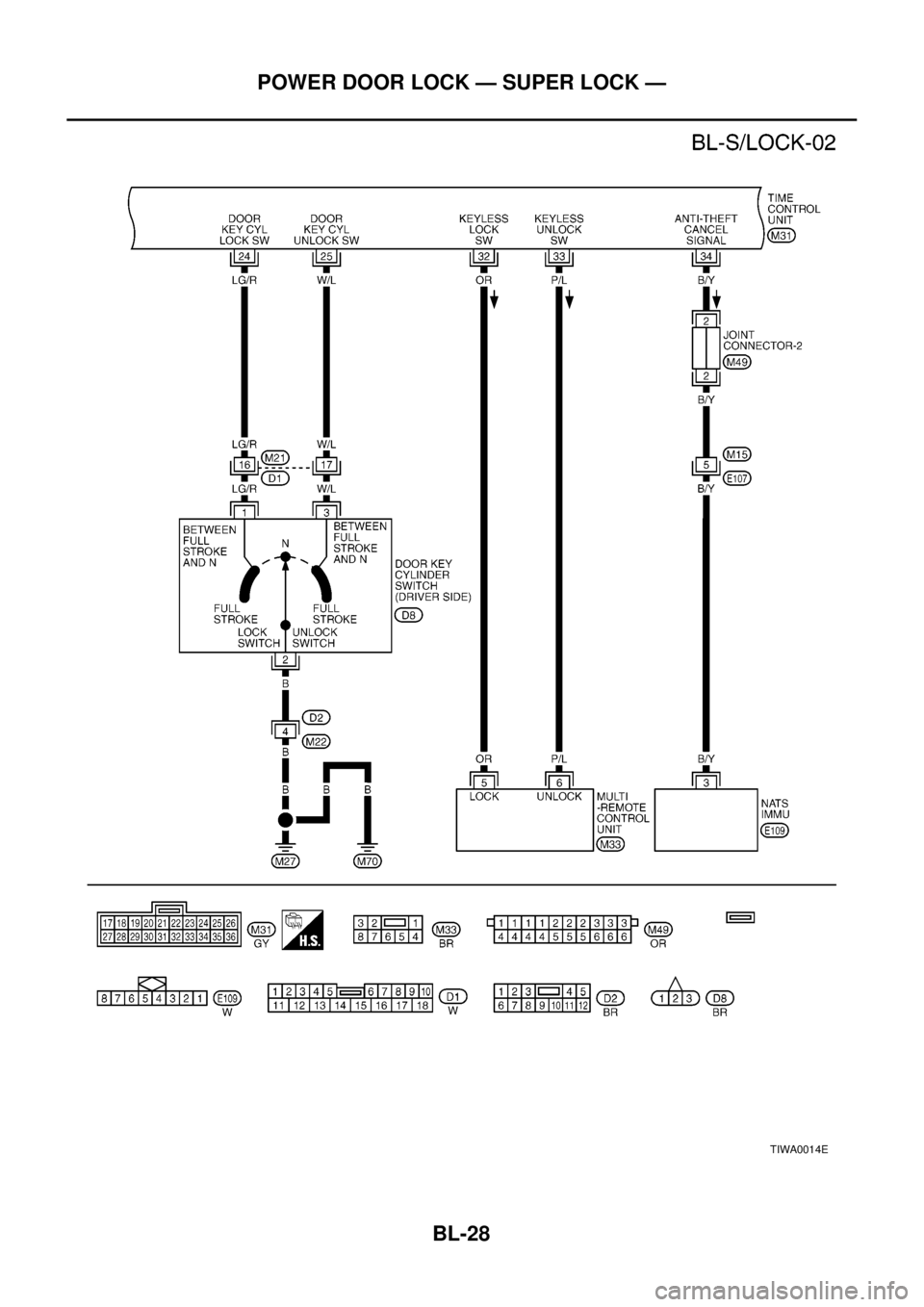

TIWA0014E
Page 773 of 3066
POWER DOOR LOCK — SUPER LOCK —
BL-29
C
D
E
F
G
H
J
K
L
MA
B
BL

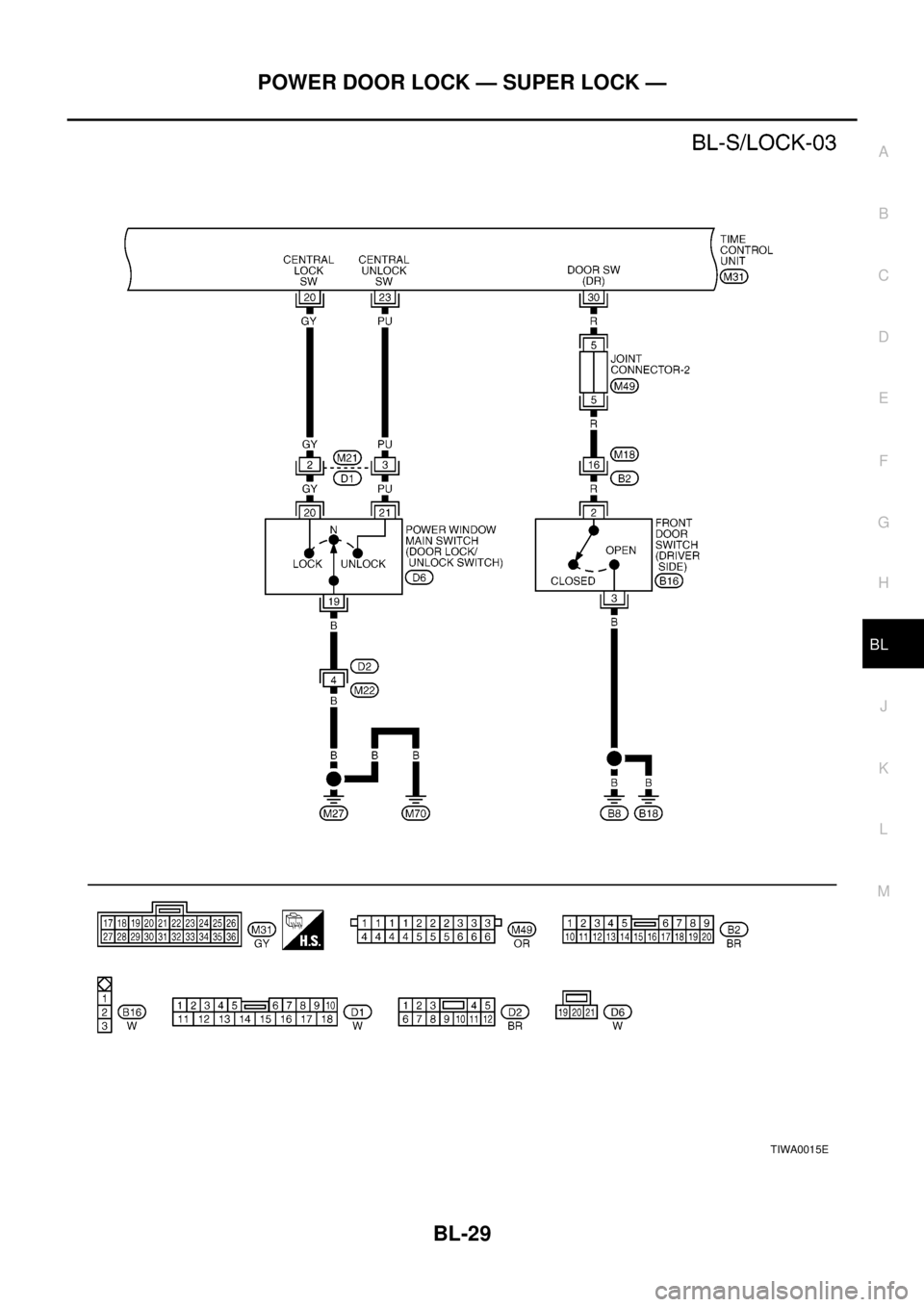

TIWA0015E
Page 774 of 3066
BL-30
POWER DOOR LOCK — SUPER LOCK —

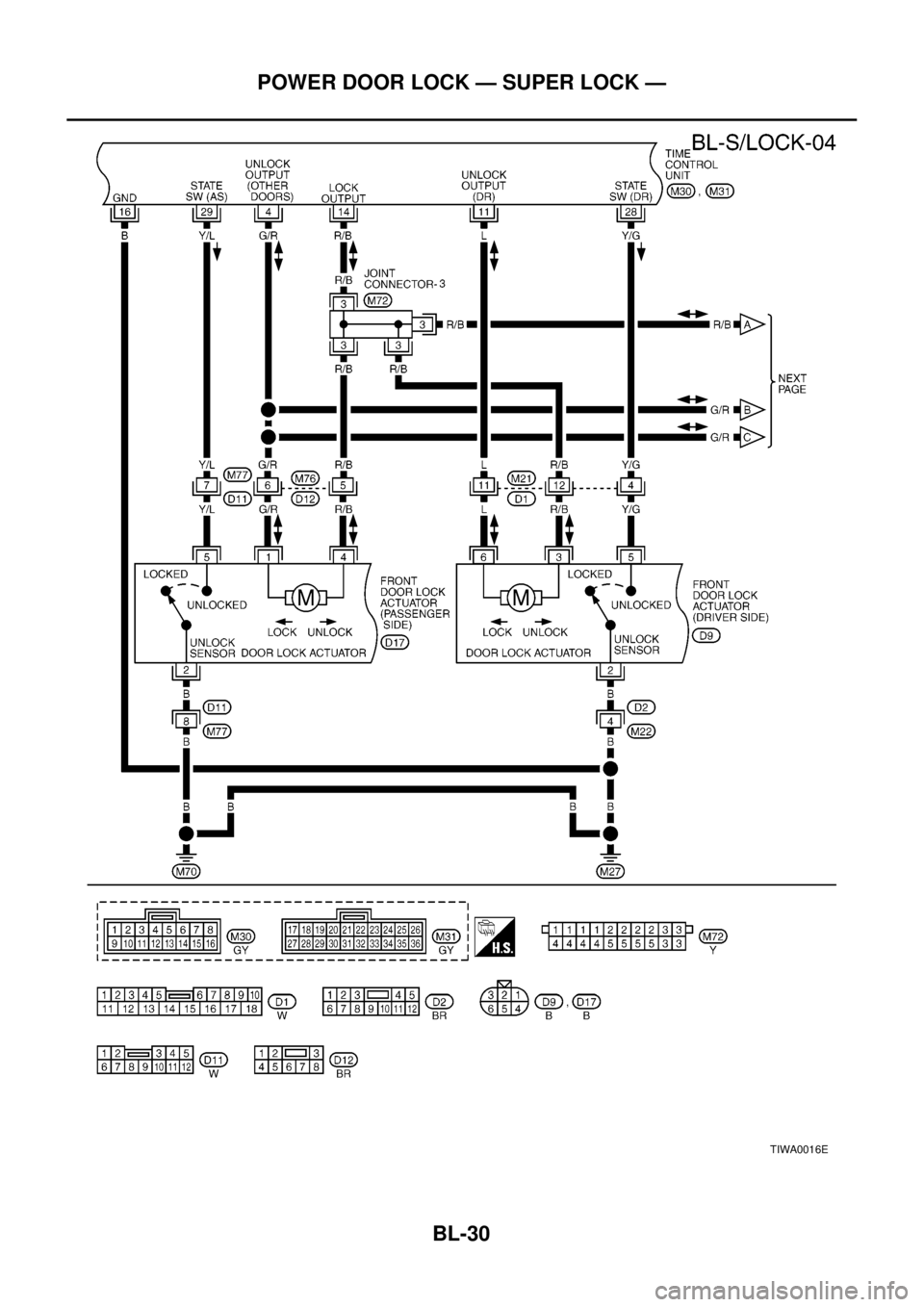

TIWA0016E
Page 775 of 3066
POWER DOOR LOCK — SUPER LOCK —
BL-31
C
D
E
F
G
H
J
K
L
MA
B
BL

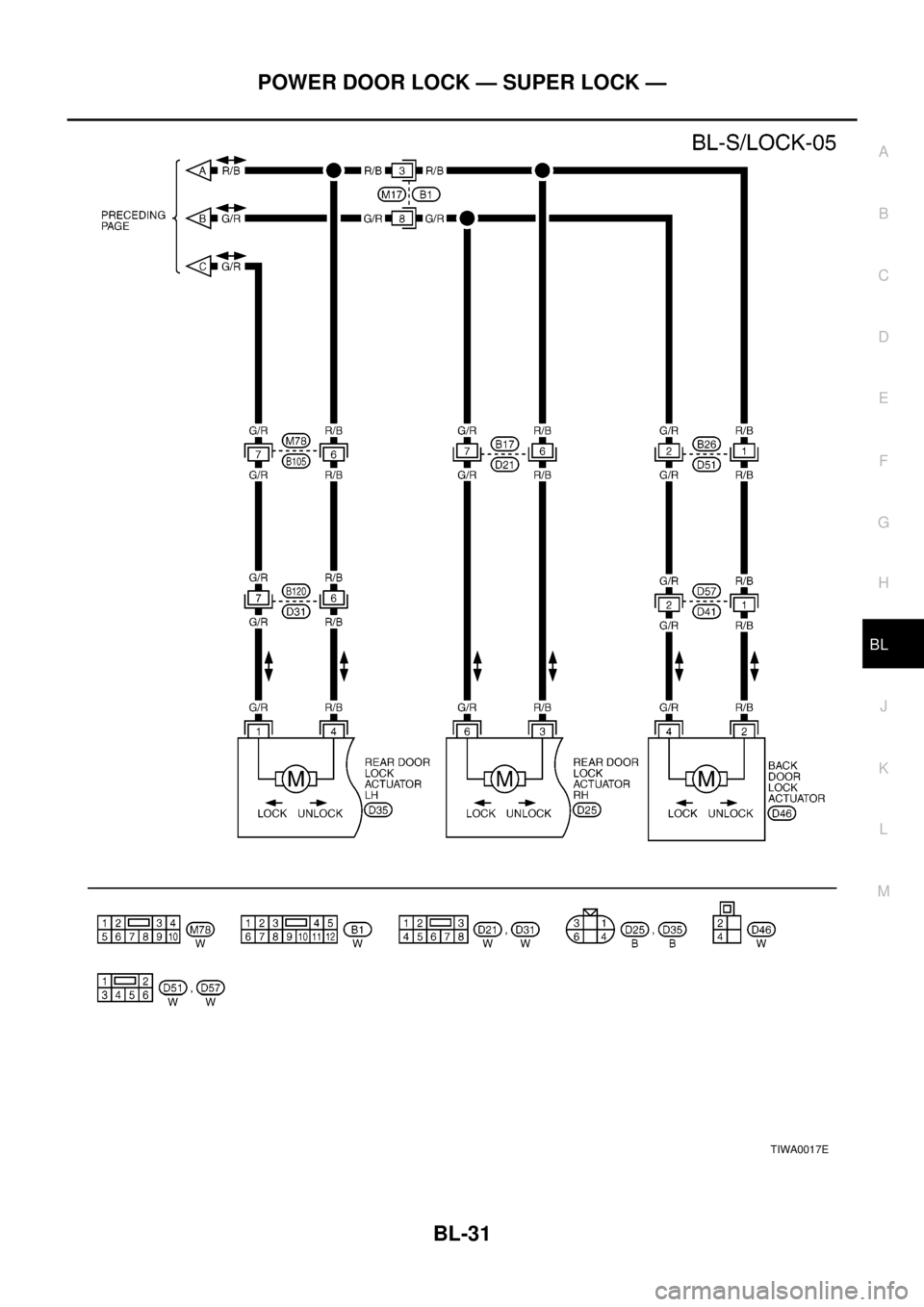

TIWA0017E
Page 776 of 3066
BL-32
POWER DOOR LOCK — SUPER LOCK —

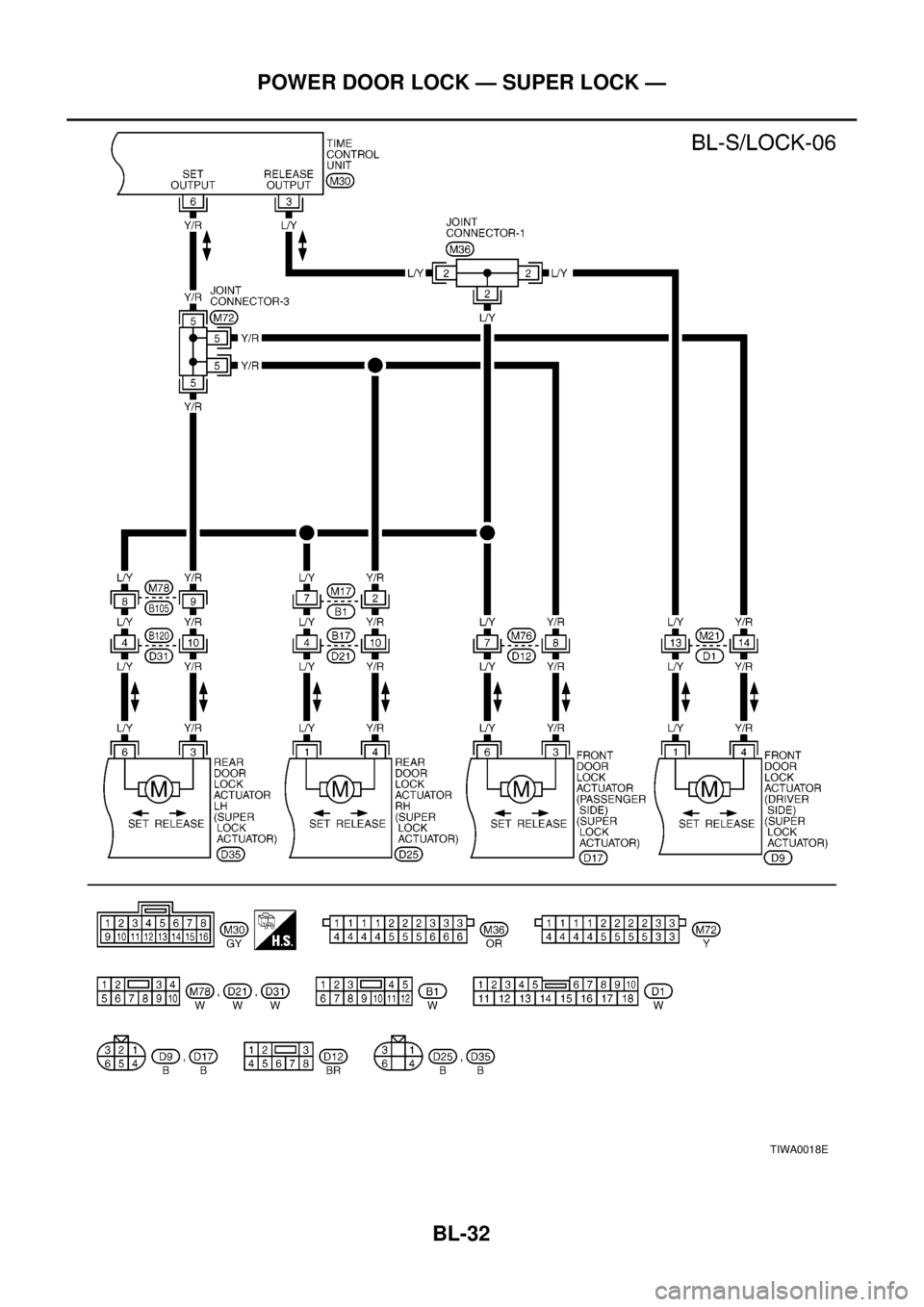

TIWA0018E
