NISSAN X-TRAIL 2003 Electronic Repair Manual BATTERY SC-9 C D E F G H I J L MA B SC lCheck battery type and determine the specified current using the table shown above. lAfter starting charging, adjustment of charging current is not necessary. F

Page 2882 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SC-10 BATTERY C: QUICK CHARGE Fig. 6 INITIAL CHARGING CURRENT SETTING AND CHARGING TIME (Quick charge) lCheck battery type and determine the specified current using the table shown above. lAfter start

Page 2883 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BATTERY SC-11 C D E F G H I J L MA B SC Removal and InstallationEKS00315 Observe the following to ensure proper servicing. CAUTION: lWhen removing, remove negative terminal first. But for installation

Page 2884 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SC-12 CHARGING SYSTEM CHARGING SYSTEM PFP:00011 System DescriptionEKS00316 The alternator provides DC voltage to operate the vehicles electrical system and to keep the battery charged. The voltage ou

Page 2885 of 3066

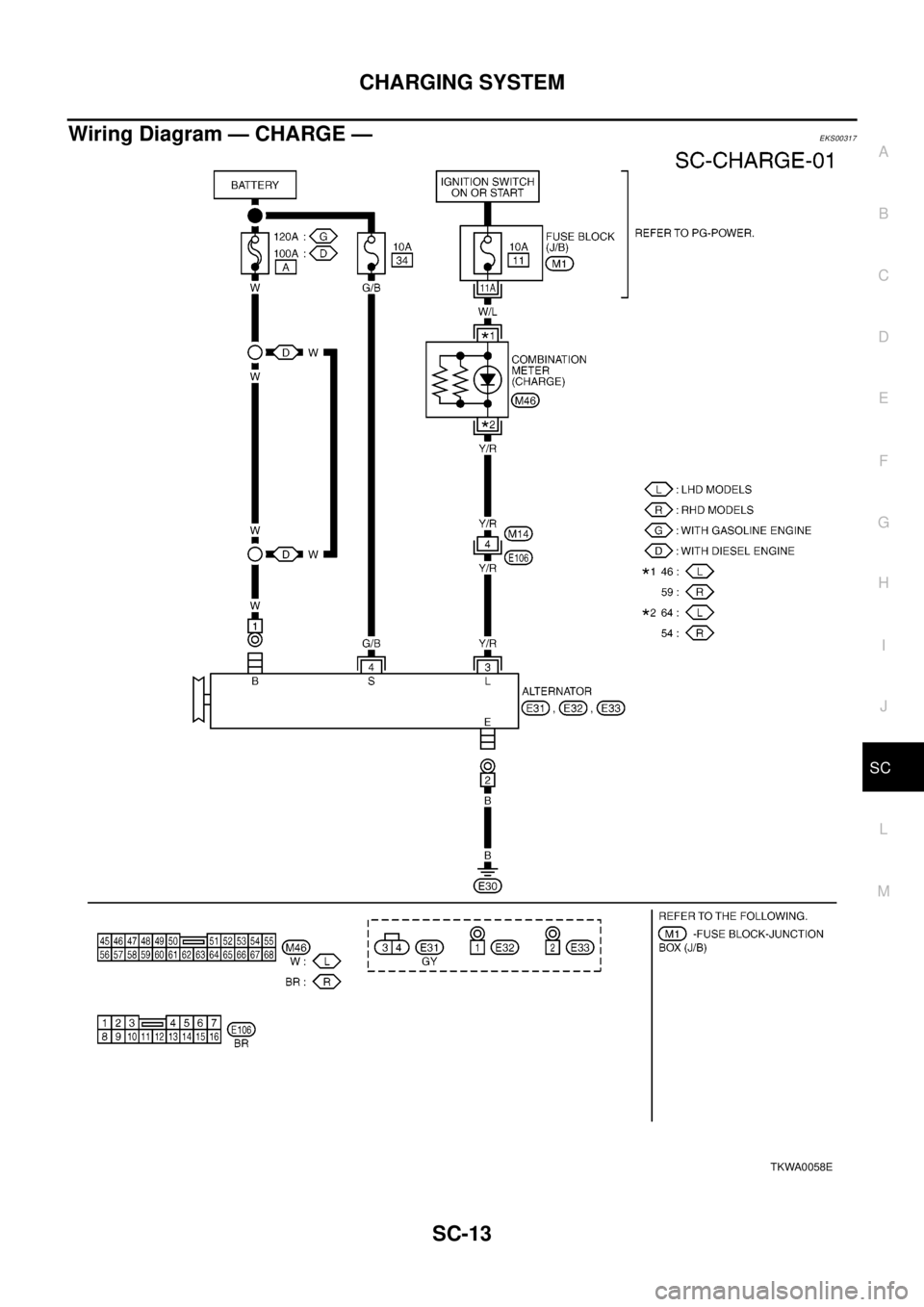

NISSAN X-TRAIL 2003 Electronic Repair Manual CHARGING SYSTEM SC-13 C D E F G H I J L MA B SC Wiring Diagram — CHARGE —EKS00317 TKWA0058E

Page 2886 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual SC-14 CHARGING SYSTEM Trouble Diagnoses EKS00319 Before conducting an alternator test, make sure that the battery is fully charged. A 30-volt voltmeter and suit- able test probes are necessary for the

Page 2887 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual CHARGING SYSTEM SC-15 C D E F G H I J L MA B SC 3. Disconnect alternator harness mounting bolt, ground mounting bolt, alternator connector and B terminal mounting nut. 4. Remove alternator mounting bo

Page 2888 of 3066

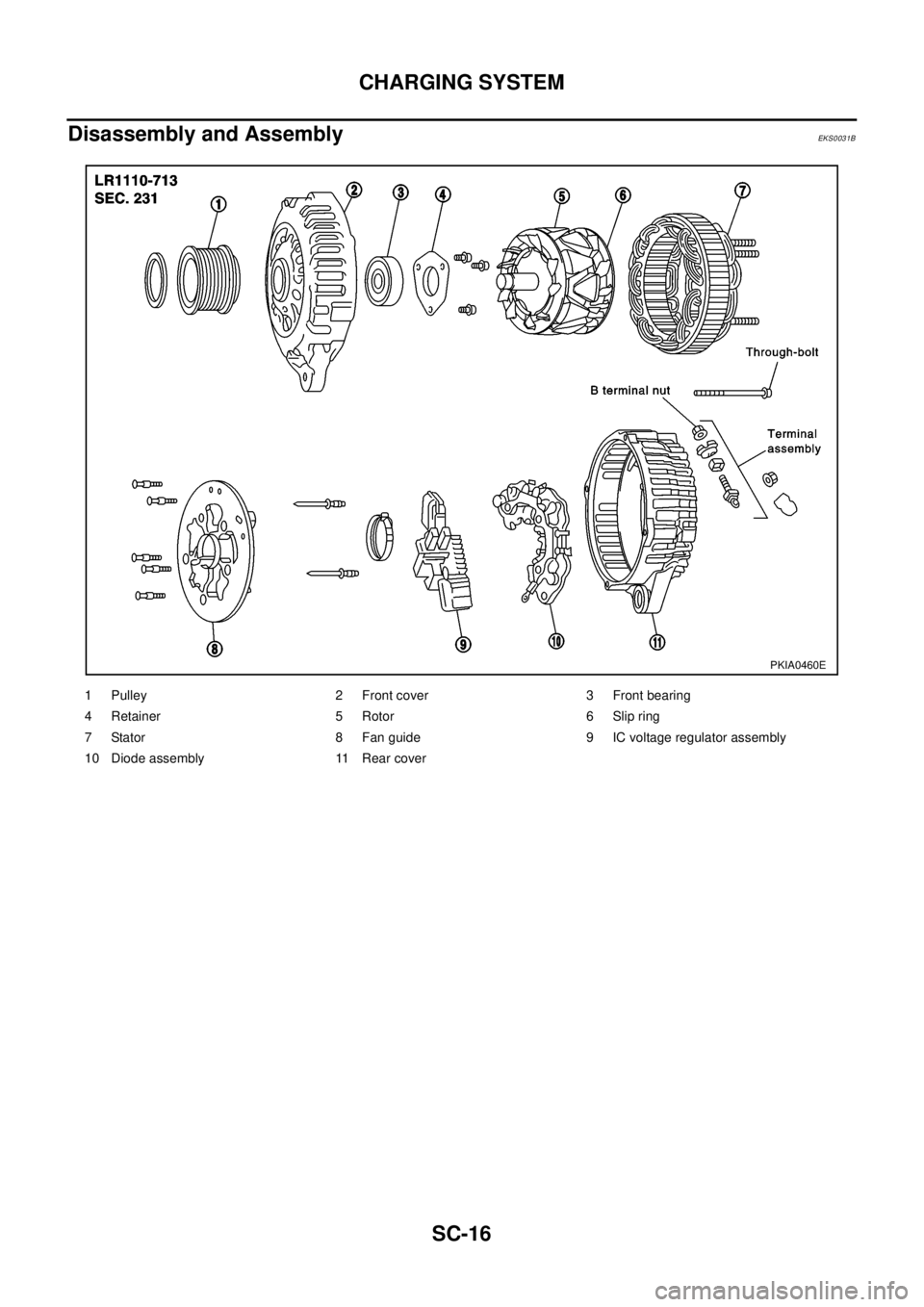

NISSAN X-TRAIL 2003 Electronic Repair Manual SC-16 CHARGING SYSTEM Disassembly and Assembly EKS0031B PKIA0460E 1 Pulley 2 Front cover 3 Front bearing 4 Retainer 5 Rotor 6 Slip ring 7 Stator 8 Fan guide 9 IC voltage regulator assembly 10 Diode as
