Page 817 of 3066

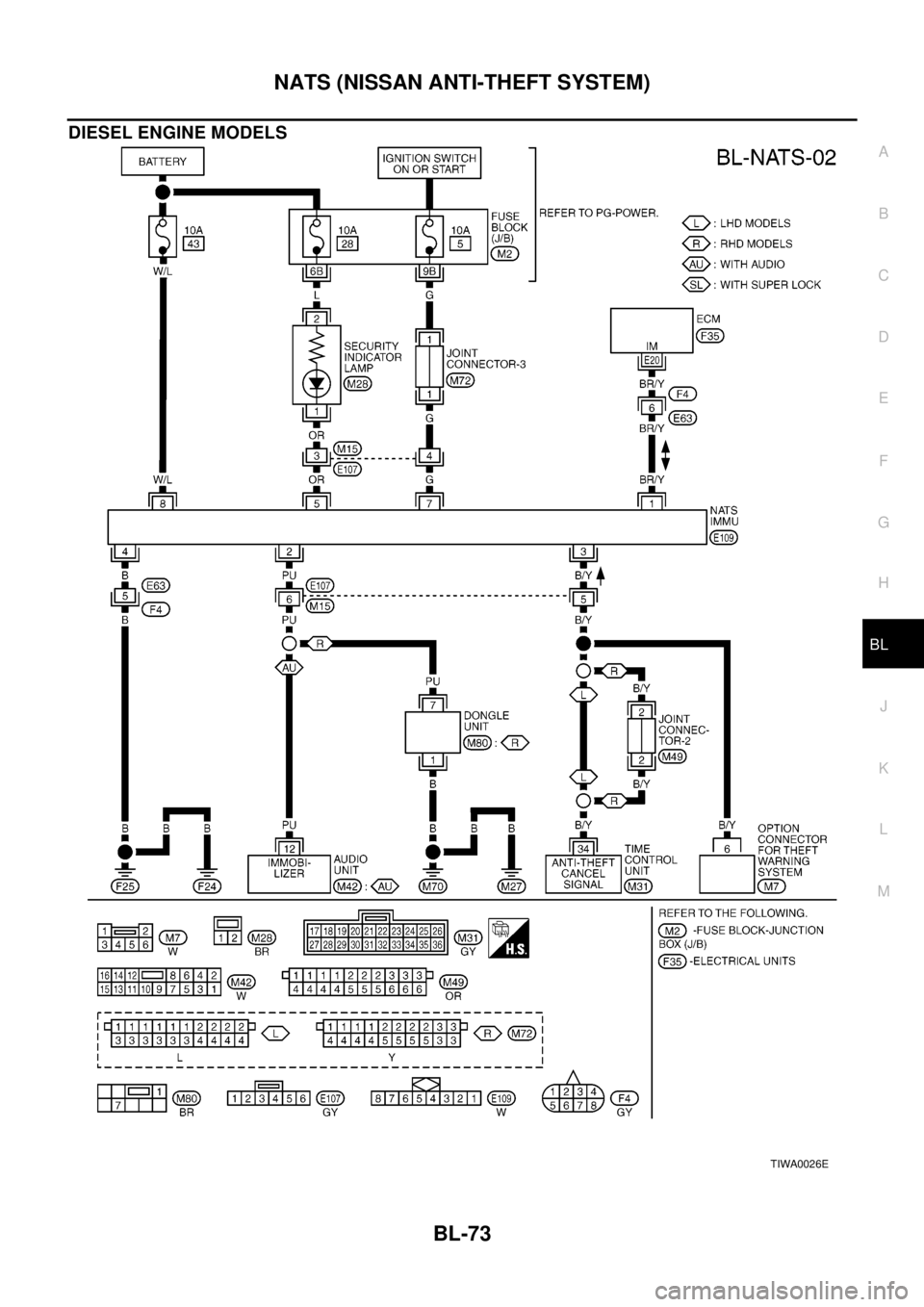

NISSAN X-TRAIL 2003 Electronic Repair Manual NATS (NISSAN ANTI-THEFT SYSTEM) BL-73 C D E F G H J K L MA B BL DIESEL ENGINE MODELS TIWA0026E

Page 818 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BL-74 NATS (NISSAN ANTI-THEFT SYSTEM) CONSULT-II EIS001RW CONSULT-II INSPECTION PROCEDURE 1. Turn ignition switch OFF. 2. Insert NATS program card into CONSULT-II. 3. Connect CONSULT-II to data link c

Page 819 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual NATS (NISSAN ANTI-THEFT SYSTEM) BL-75 C D E F G H J K L MA B BL NOTE: lWhen any initialization is performed, all ID previously registered will be erased and all NATS igni- tion keys must be registered

Page 820 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BL-76 NATS (NISSAN ANTI-THEFT SYSTEM) LOCK MODENATS MAL- FUNCTION P1610When the starting operation is carried out five or more times consecutively under the following conditions, NATS will shift the m

Page 821 of 3066

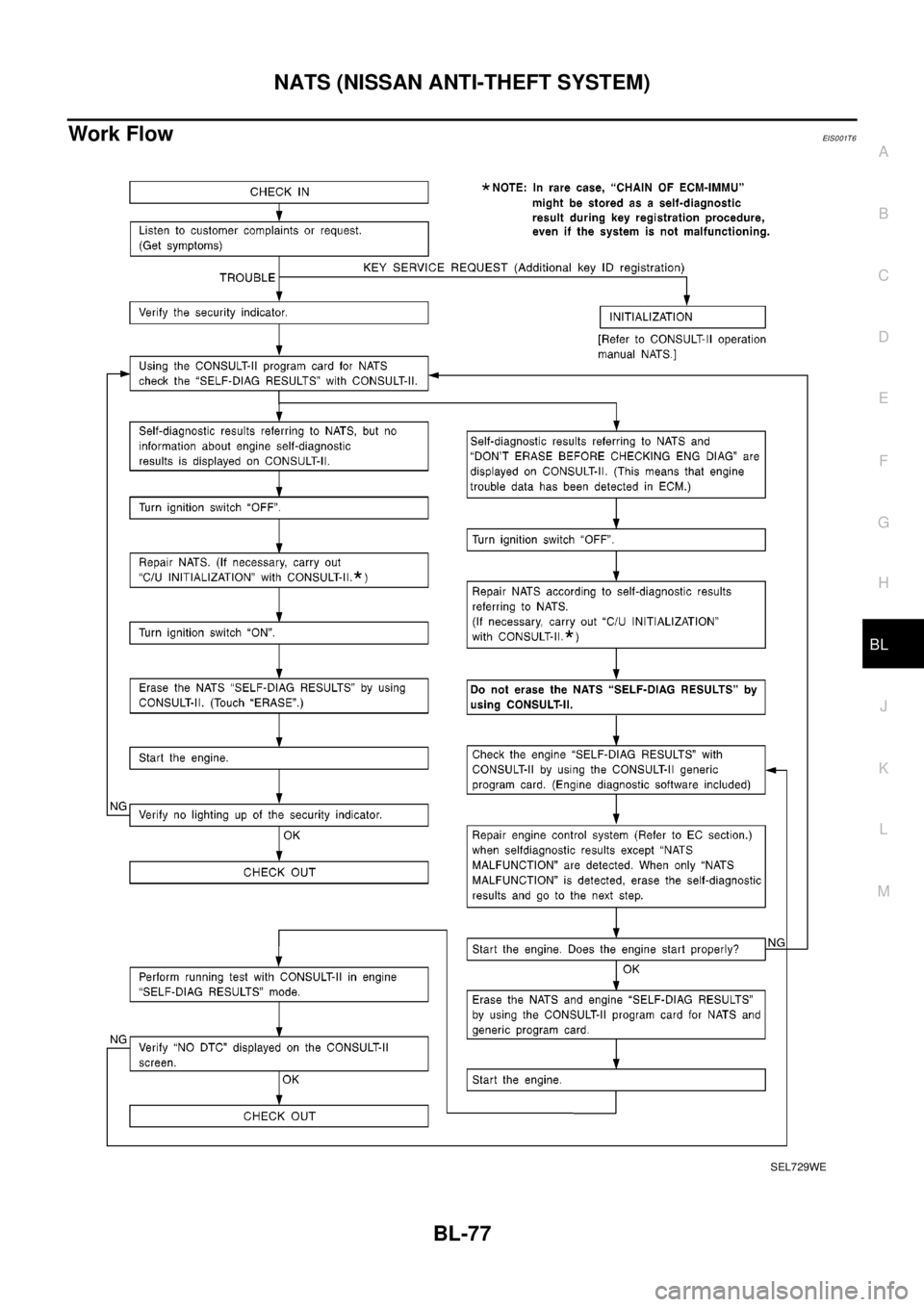

NISSAN X-TRAIL 2003 Electronic Repair Manual NATS (NISSAN ANTI-THEFT SYSTEM) BL-77 C D E F G H J K L MA B BL Work FlowEIS0 01T 6 SEL729WE

Page 822 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BL-78 NATS (NISSAN ANTI-THEFT SYSTEM) Trouble Diagnoses EIS001RX SYMPTOM MATRIX CHART 1 Self-diagnosis related item *: When NATS detects trouble, the security indicator lights up while ignition key is

Page 823 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual NATS (NISSAN ANTI-THEFT SYSTEM) BL-79 C D E F G H J K L MA B BL *: When the vehicle is equipped with a dongle unit (RHD models), the security indicator blinks 6 times just after the ignition switch is

Page 824 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual BL-80 NATS (NISSAN ANTI-THEFT SYSTEM) Diagnostic Procedure 1 EIS001T7 Self-diagnostic results: “ECM INT CIRC-IMMU” displayed on CONSULT-II screen 1. Confirm SELF-DIAGNOSTIC RESULTS “ECM INT CIRC
